HONDA CIVIC COUPE 2018 Owner's Manual (in English)

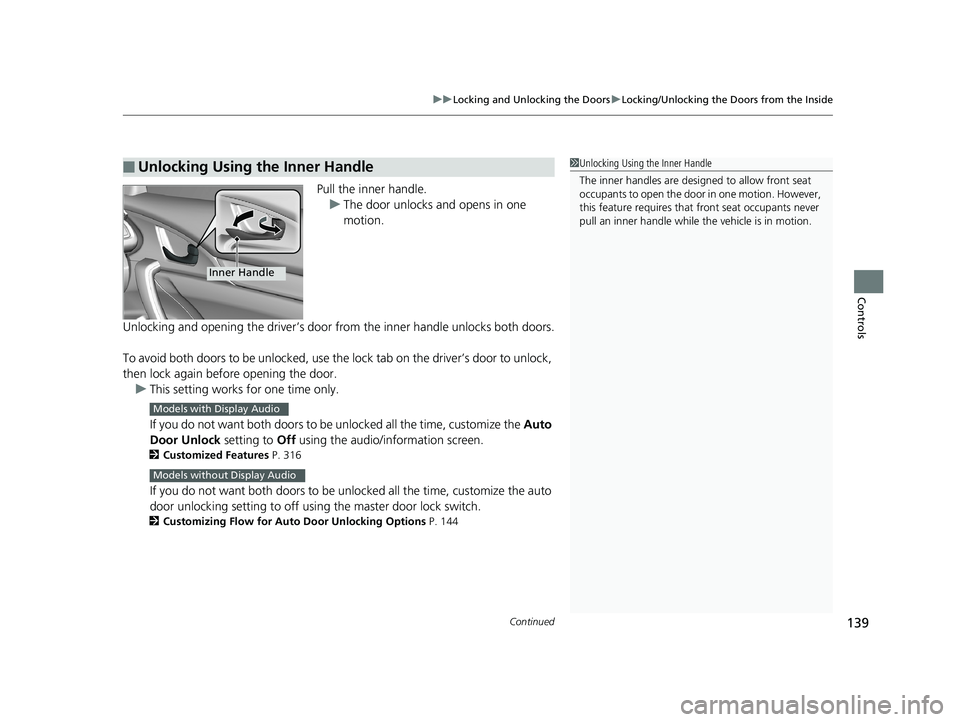

Continued139
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks both doors.
To avoid both doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want both doors to be unlocked all the time, customize the Auto
Door Unlock setting to Off using the audio/information screen.
2Customized Features P. 316
If you do not want both doors to be unlocked all the time, customize the auto
door unlocking setting to off using the master door lock switch.
2Customizing Flow for Auto Door Unlocking Options P. 144
■Unlocking Using the Inner Handle1Unlocking Using the Inner Handle
The inner handles are desi gned to allow front seat
occupants to open the door in one motion. However,
this feature requires that front seat occupants never
pull an inner handle while the vehicle is in motion.
Inner Handle
Models with Display Audio
Models without Display Audio
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 139 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside

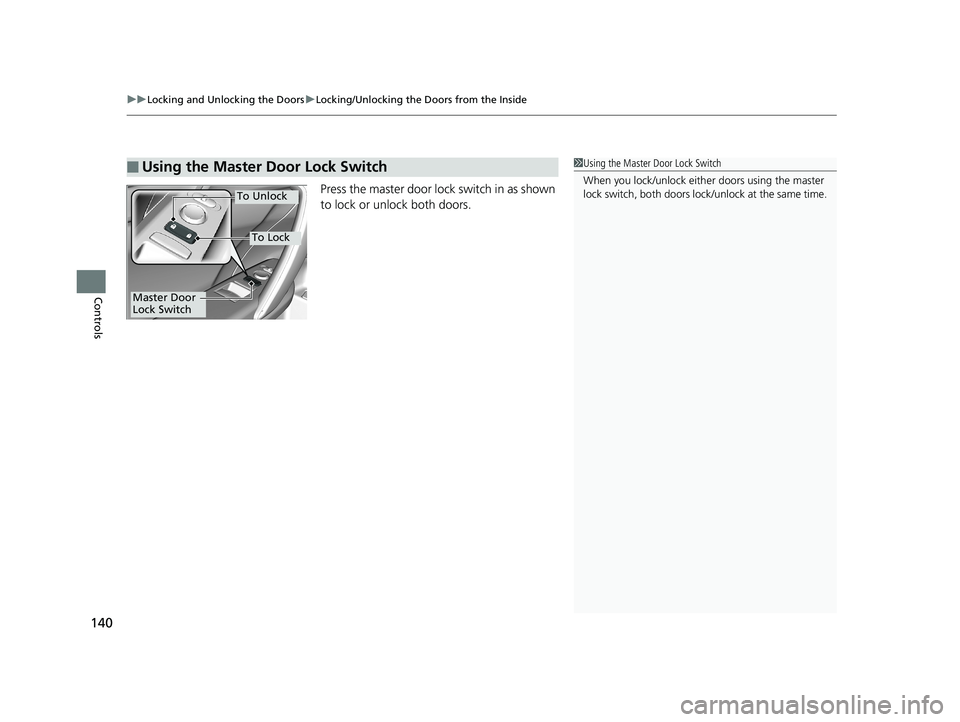

140
Controls
Press the master door lock switch in as shown
to lock or unlock both doors.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock eith er doors using the master
lock switch, both doors lock/ unlock at the same time.
To Unlock
Master Door
Lock Switch
To Lock
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 140 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

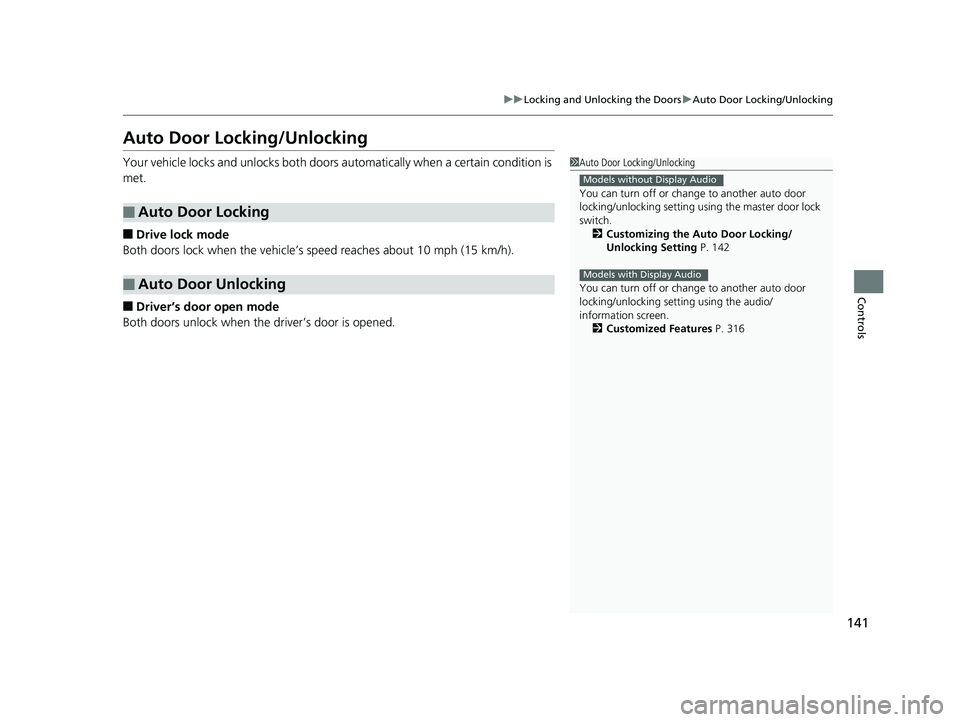

141
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks both doors automatically when a certain condition is
met.
■Drive lock mode
Both doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
Both doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting P. 142
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen.
2 Customized Features P. 316
Models without Display Audio
Models with Display Audio
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 141 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

142
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls

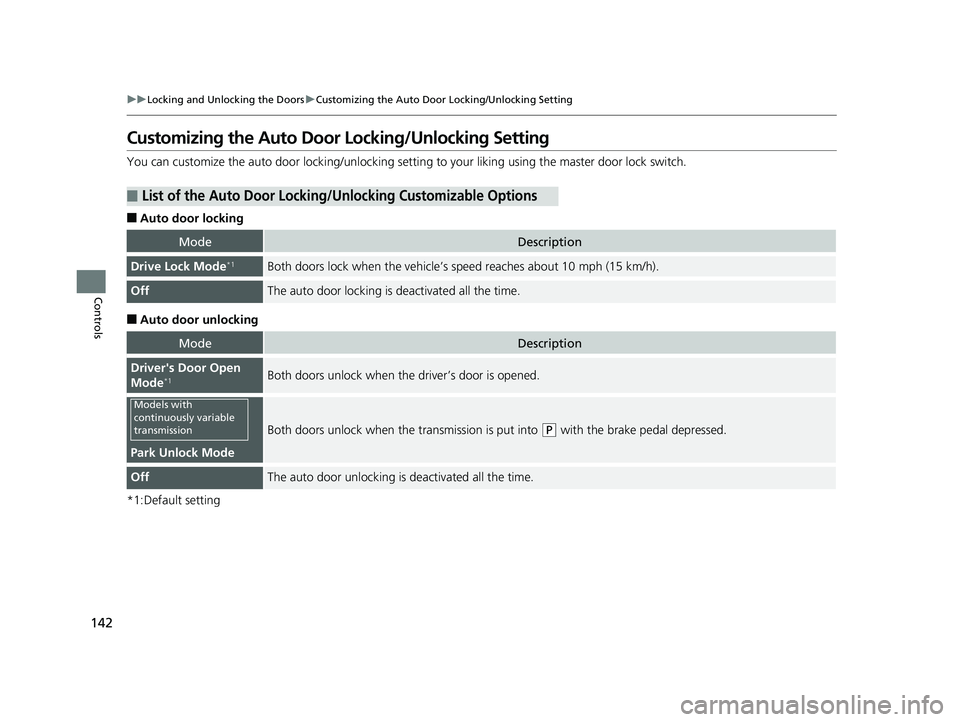

Customizing the Auto Door Locking/Unlocking Setting
You can customize the auto door locking/unlocking setti ng to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1:Default setting
■List of the Auto Door Locking/ Unlocking Customizable Options
ModeDescription
Drive Lock Mode*1Both doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver's Door Open
Mode*1Both doors unlock when the driver’s door is opened.
Park Unlock Mode
Both doors unlock when the transmission is put into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
Models with
continuously variable
transmission
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 142 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

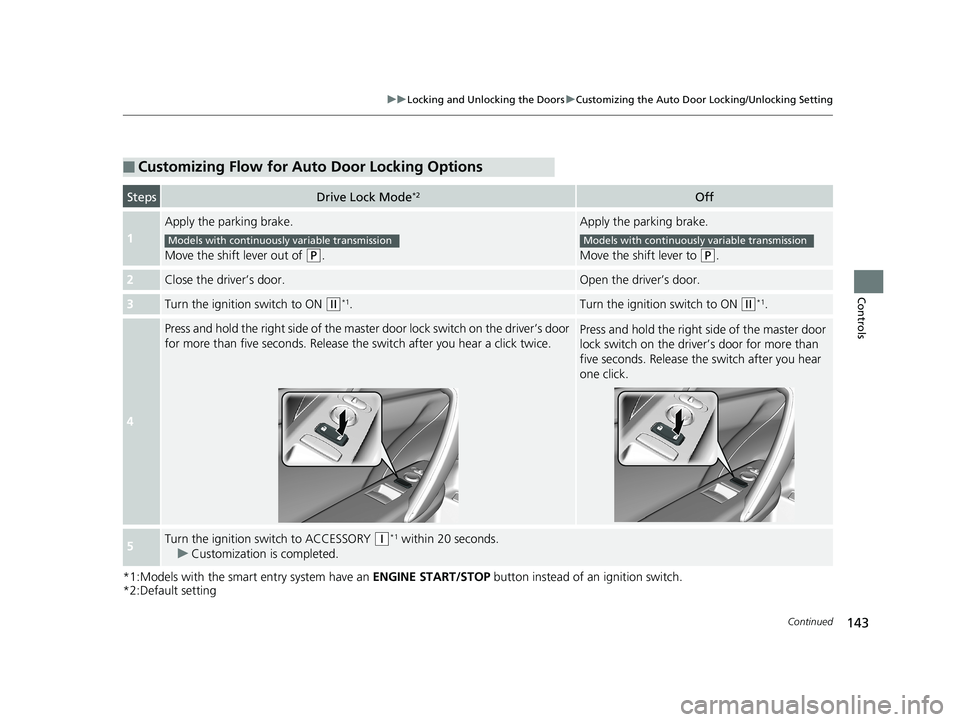

143
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Continued
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting
■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*2Off
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON (w*1.
4
Press and hold the right side of the master door lock switch on the driver’s door
for more than five seconds. Release th e switch after you hear a click twice.Press and hold the right side of the master door
lock switch on the driver’s door for more than
five seconds. Release the switch after you hear
one click.
5Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
Models with continuously variable transmissionModels with continuously variable transmission
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 143 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

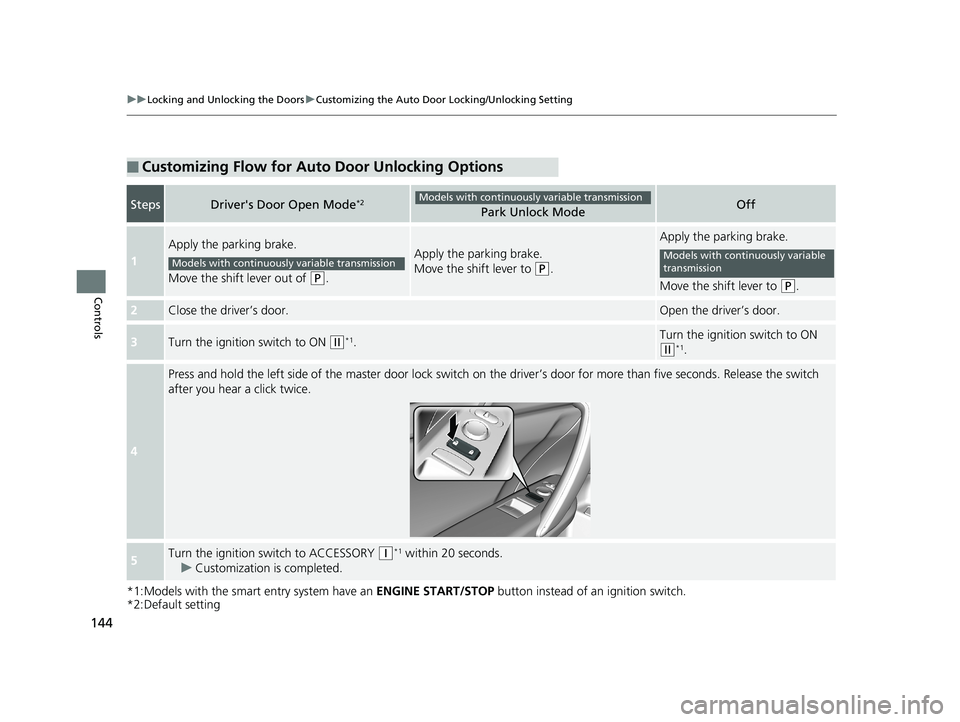

144
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting
■Customizing Flow for Auto Door Unlocking Options
StepsDriver's Door Open Mode*2Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON
(w*1.
4
Press and hold the left side of the master door lock switch on the driver’s door for more than five seconds. Release the switch
after you hear a click twice.
5Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
Models with continuously variable transmission
Models with continuously variable transmissionModels with continuously variable
transmission
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 144 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

145
Controls

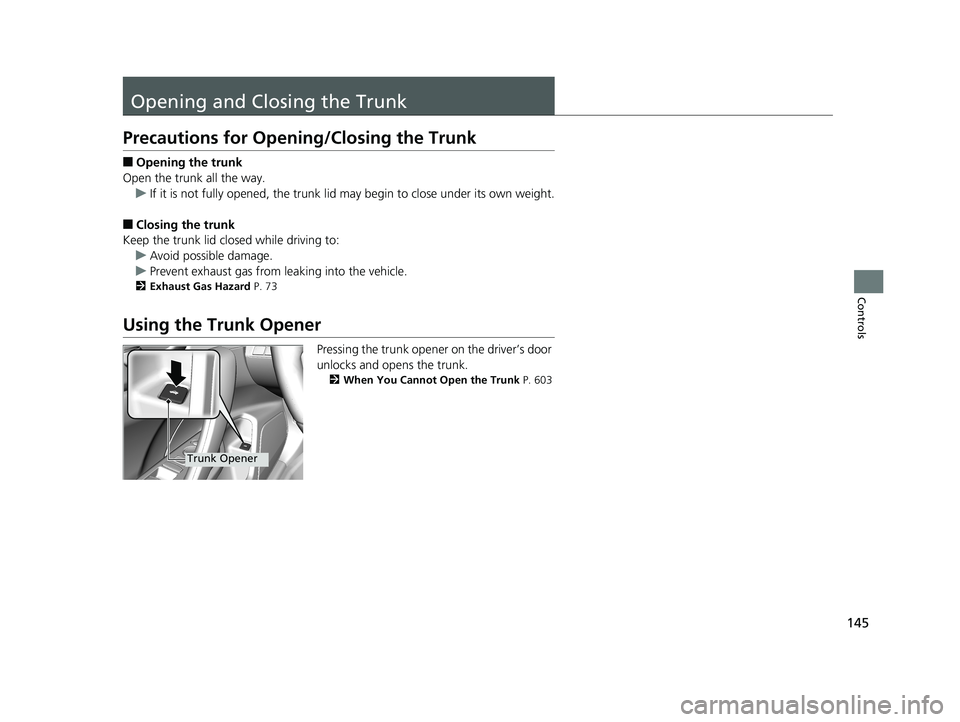

Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 73
Using the Trunk Opener
Pressing the trunk open er on the driver’s door
unlocks and opens the trunk.
2 When You Cannot Open the Trunk P. 603
Trunk Opener
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 145 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

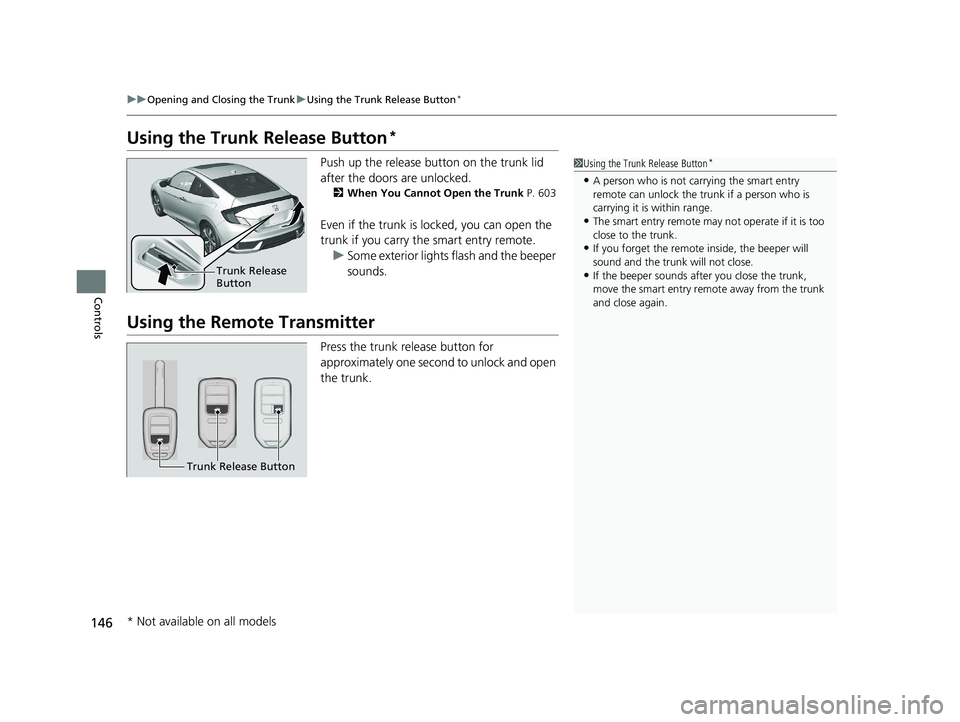

146
uuOpening and Closing the Trunk uUsing the Trunk Release Button*
Controls
Using the Trunk Release Button*
Push up the release button on the trunk lid
after the doors are unlocked.
2When You Cannot Open the Trunk P. 603
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
u Some exterior lights flash and the beeper
sounds.
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button*
•A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
•The smart entry remote may not operate if it is too
close to the trunk.
•If you forget the remote inside, the beeper will
sound and the trunk will not close.
•If the beeper sounds after you close the trunk,
move the smart entry remote away from the trunk
and close again.Trunk Release
Button
Trunk Release Button
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 146 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

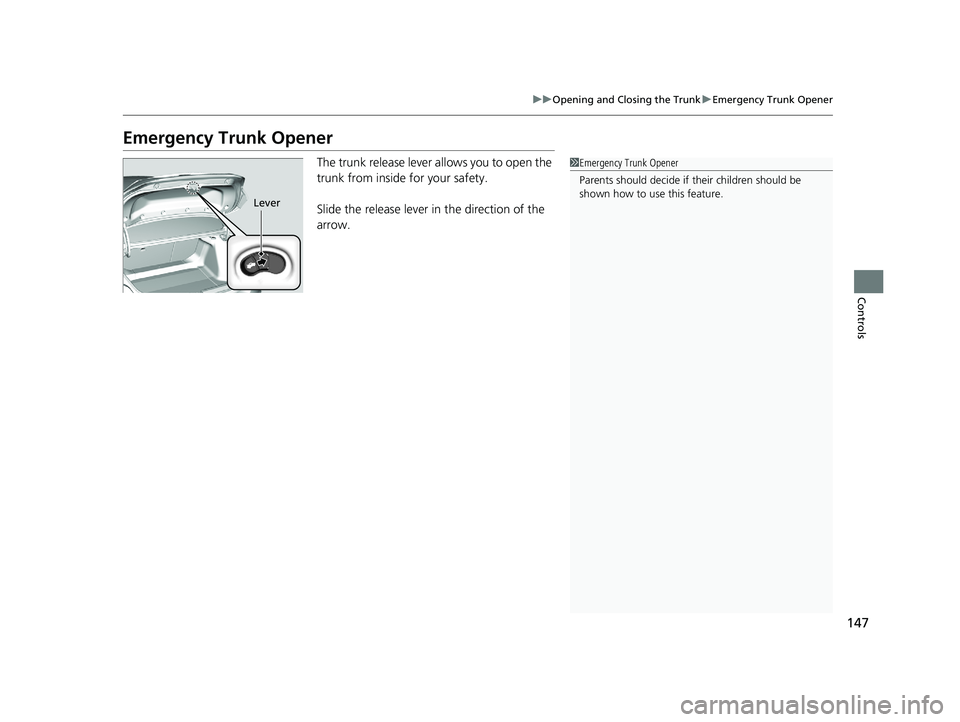

147
uuOpening and Closing the Trunk uEmergency Trunk Opener
Controls
Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 147 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

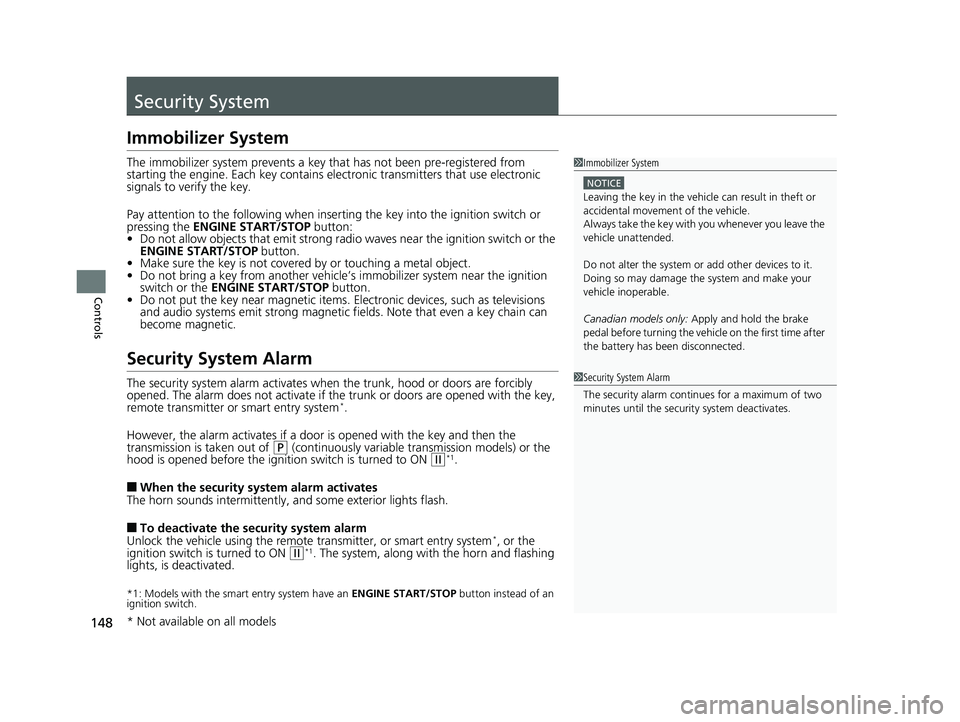

148
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserti ng the key into the ignition switch or
pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ignition switch or the
ENGINE START/STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ignition
switch or the ENGINE START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if th e trunk or doors are opened with the key,
remote transmitter or smart entry system
*.
However, the alarm activates if a door is opened with the key and then the
transmission is taken out of
(P (continuously variable transmission models) or the
hood is opened before the ignition switch is turned to ON (w*1.
■When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the remote transmitter, or smart entry system*, or the
ignition switch is turned to ON (w*1. The system, along with the horn and flashing
lights, is deactivated.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1 Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 148 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分
