HONDA CIVIC COUPE 2018 Owner's Manual (in English)

Continued119
uuGauges and Displays uDriver Information Interface*
Instrument Panel

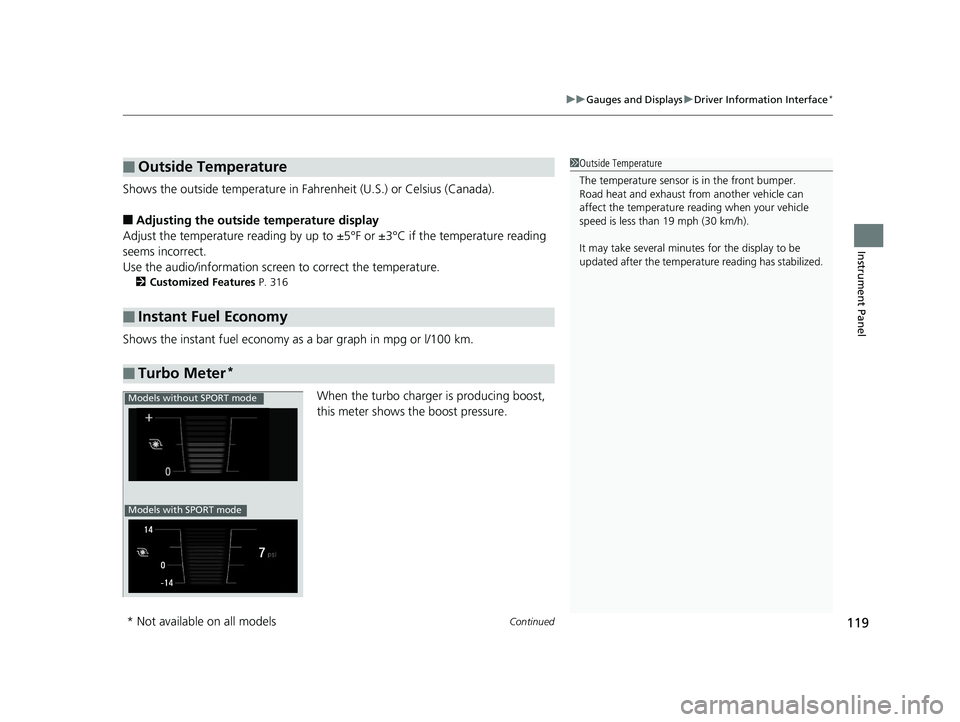

Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the audio/information screen to correct the temperature.
2Customized Features P. 316
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
When the turbo charger is producing boost,
this meter shows the boost pressure.
■Outside Temperature
■Instant Fuel Economy
■Turbo Meter*
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Models without SPORT mode
Models with SPORT mode
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 119 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuGauges and Displays uDriver Information Interface*
120
Instrument Panel

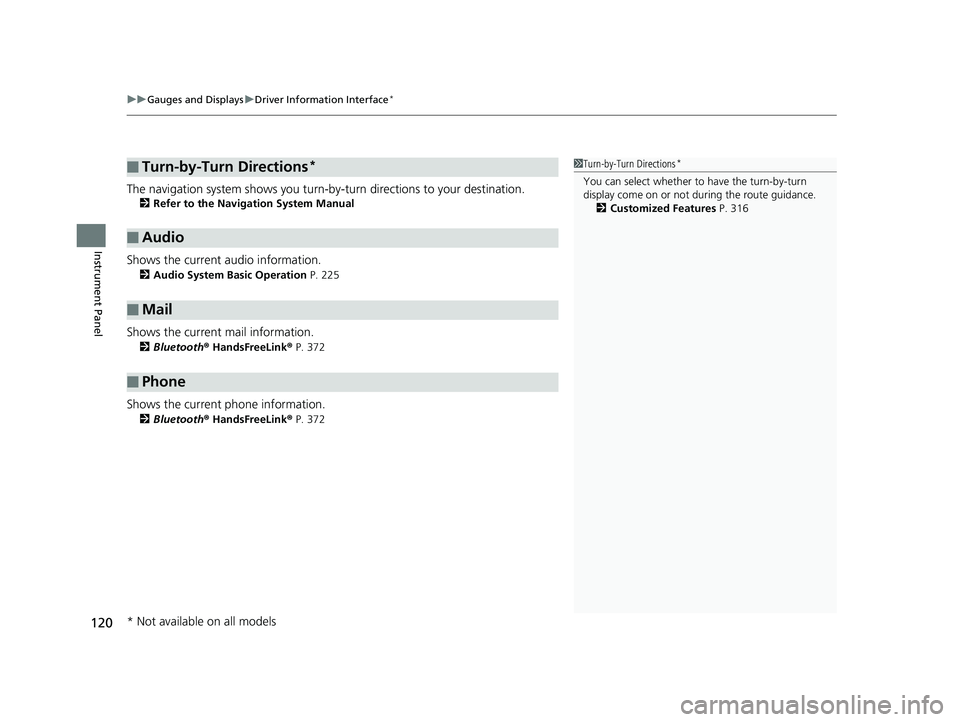

The navigation system shows you turn-by -turn directions to your destination.
2Refer to the Navigation System Manual
Shows the current audio information.
2Audio System Basic Operation P. 225
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 372
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 372
■Turn-by-Turn Directions*
■Audio
■Mail
■Phone
1 Turn-by-Turn Directions*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 316
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 120 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

121
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

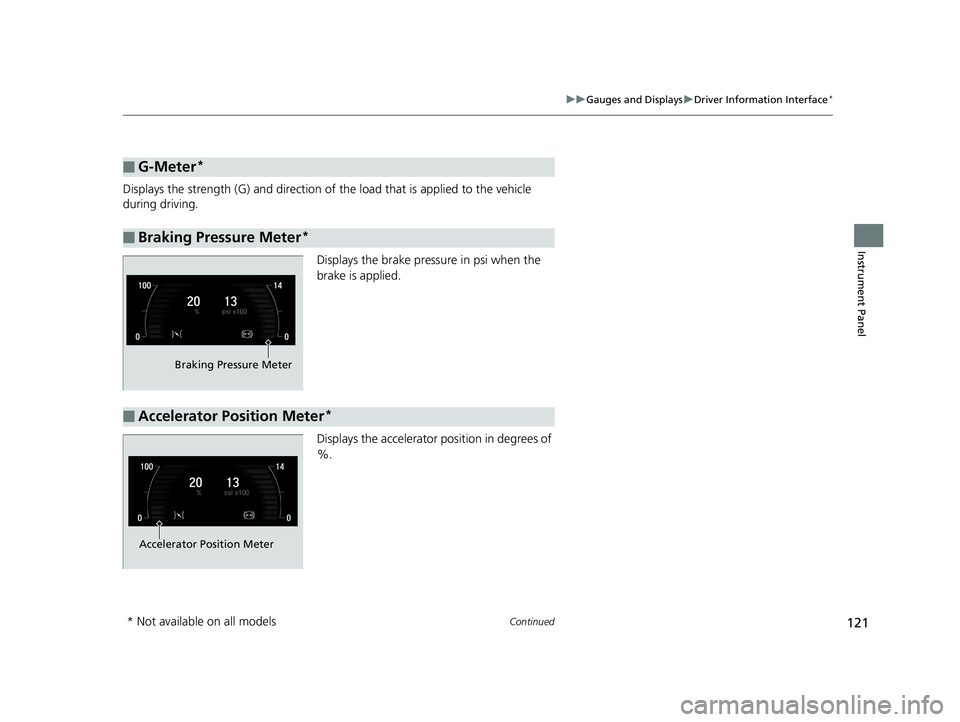

Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.
Displays the brake pressure in psi when the
brake is applied.
Displays the accelerator position in degrees of
%.
■G-Meter*
■Braking Pressure Meter*
Braking Pressure Meter
■Accelerator Position Meter*
Accelerator Position Meter
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 121 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

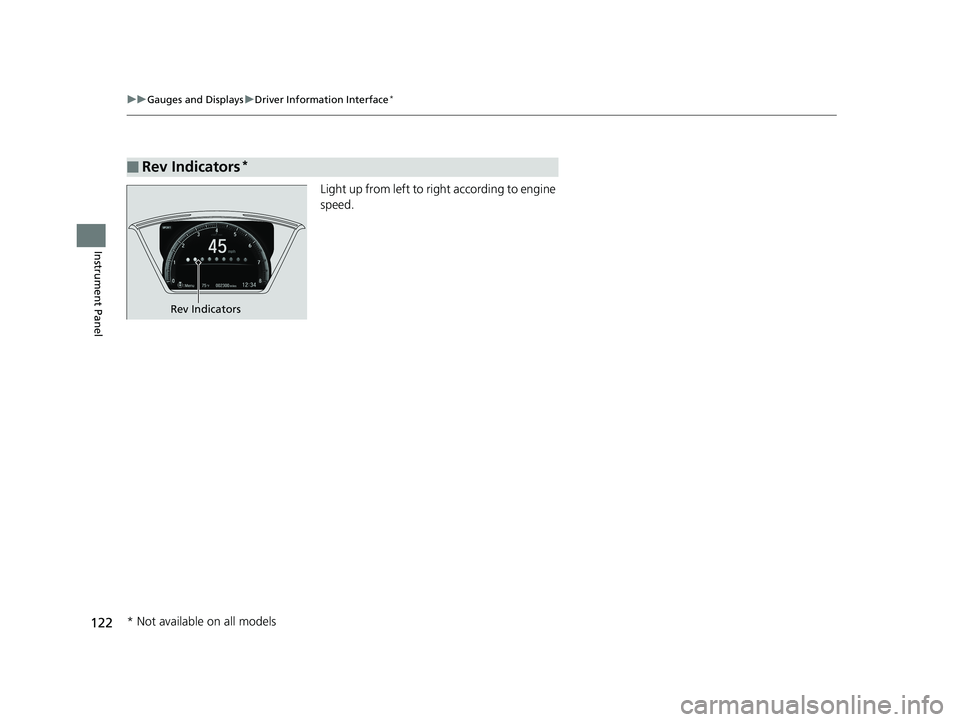

122
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Light up from left to right according to engine
speed.
■Rev Indicators*
Rev Indicators
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 122 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

Continued123
uuGauges and Displays uDriver Information Interface*
Instrument Panel

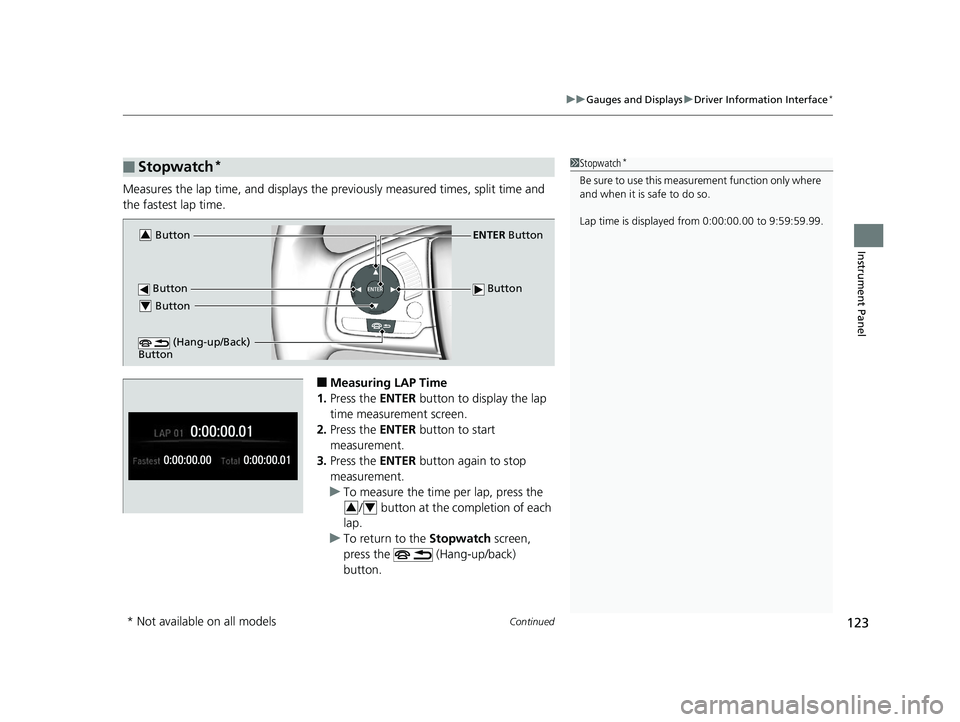

Measures the lap time, and displays the pr eviously measured times, split time and
the fastest lap time.
■Measuring LAP Time
1. Press the ENTER button to display the lap
time measurement screen.
2. Press the ENTER button to start
measurement.
3. Press the ENTER button again to stop
measurement.
u To measure the time per lap, press the
/ button at the completion of each
lap.
u To return to the Stopwatch screen,
press the (Hang-up/back)
button.
■Stopwatch*1 Stopwatch*
Be sure to use this measurement function only where
and when it is safe to do so.
Lap time is displayed fr om 0:00:00.00 to 9:59:59.99.
Button
ENTER Button
Button Button3
Button4
(Hang-up/Back)
Button
34
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 123 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

124
uuGauges and Displays uDriver Information Interface*
Instrument Panel

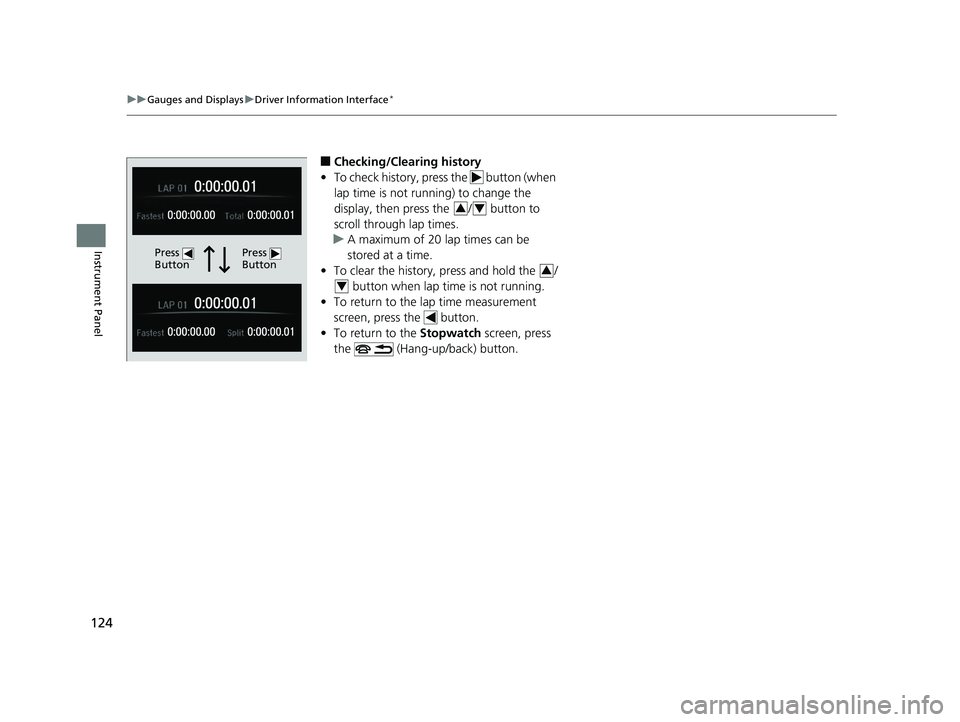

■Checking/Clearing history
• To check history, press the button (when
lap time is not running) to change the
display, then press the / button to
scroll through lap times.
u A maximum of 20 lap times can be
stored at a time.
• To clear the history, press and hold the /
button when lap time is not running.
• To return to the lap time measurement
screen, press the button.
• To return to the Stopwatch screen, press
the (Hang-up/back) button.
Press
ButtonPress
Button
34
3
4
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 124 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

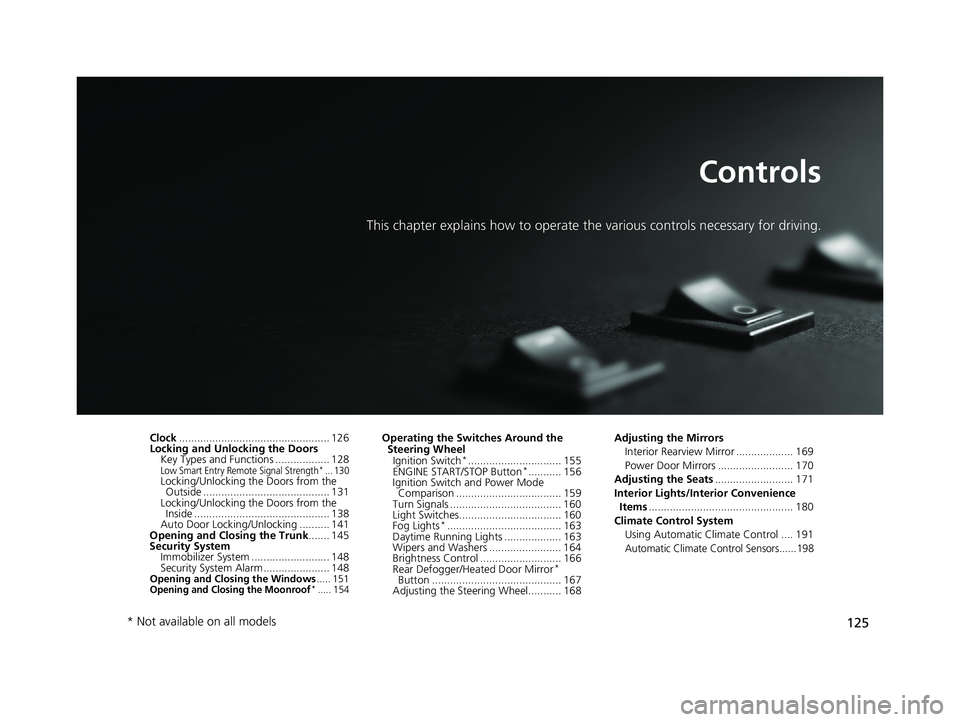

125
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 126
Locking and Unlocking the Doors Key Types and Functions .................. 128
Low Smart Entry Remote Signal Strength*... 130Locking/Unlocking the Doors from the Outside .......................................... 131
Locking/Unlocking the Doors from the Inside ............................................. 138
Auto Door Locking/Unlocking .......... 141
Opening and Closing the Trunk ....... 145
Security System Immobilizer System .......................... 148
Security System Alarm ...................... 148
Opening and Closing the Windows ..... 151Opening and Closing the Moonroof*..... 154
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 155
ENGINE START/STOP Button*........... 156
Ignition Switch and Power Mode Comparison ................................... 159
Turn Signals ..................................... 160
Light Switches.................................. 160
Fog Lights
*...................................... 163
Daytime Running Lights ................... 163
Wipers and Washers ........................ 164
Brightness Control ........................... 166
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 167
Adjusting the Steering Wheel........... 168 Adjusting the Mirrors
Interior Rearview Mirror ................... 169
Power Door Mirrors ......................... 170
Adjusting the Seats .......................... 171
Interior Lights/Interior Convenience Items ................................................ 180
Climate Control System Using Automatic Climate Control .... 191
Automatic Climate Control Sensors......198
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 125 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

126
Controls

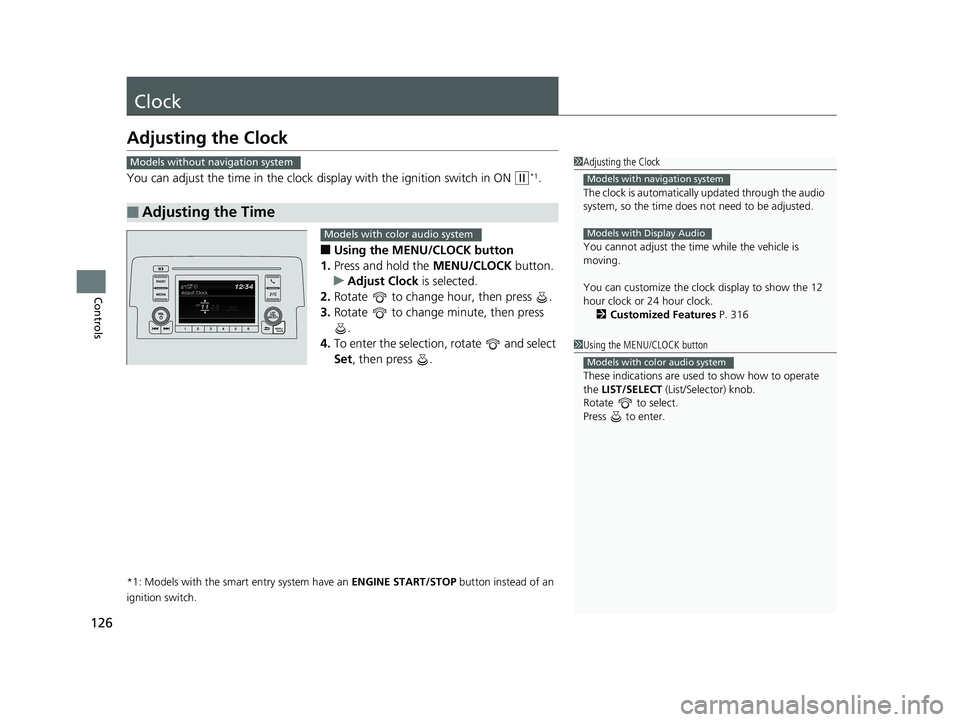

Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You cannot adjust the time while the vehicle is
moving.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 316
Models with navigation system
Models with Display Audio
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 126 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

127
uuClock uAdjusting the Clock
Controls

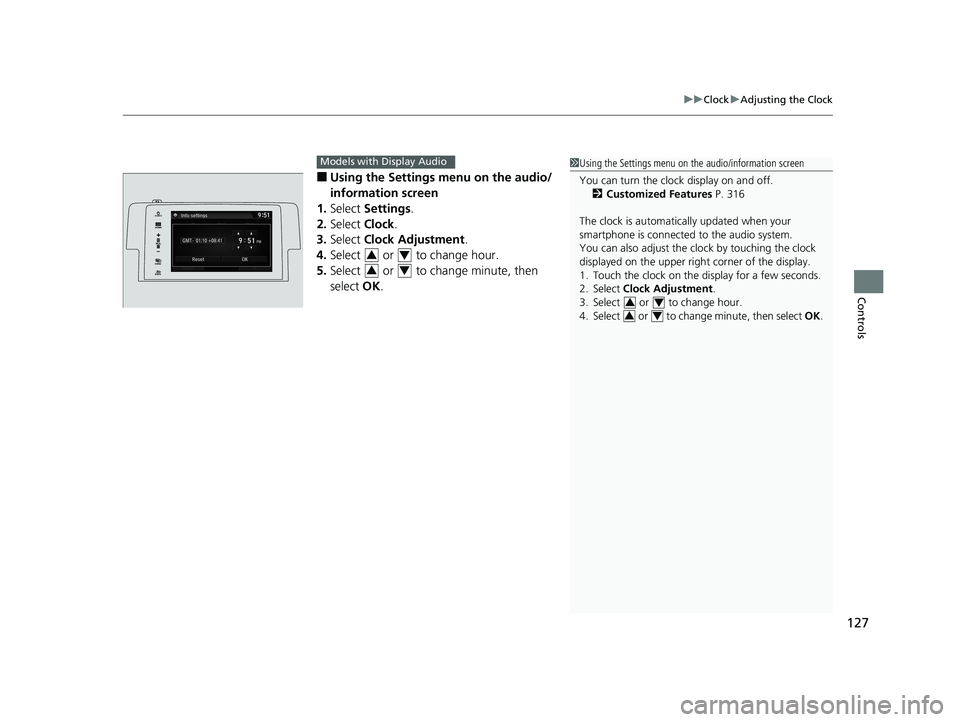

■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
Models with Display Audio1Using the Settings menu on the audio/information screen
You can turn the clock display on and off.
2 Customized Features P. 316
The clock is automatica lly updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
3434
VOL
HOME
MENUBACK
AUDIO
34
34
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 127 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

128
Controls

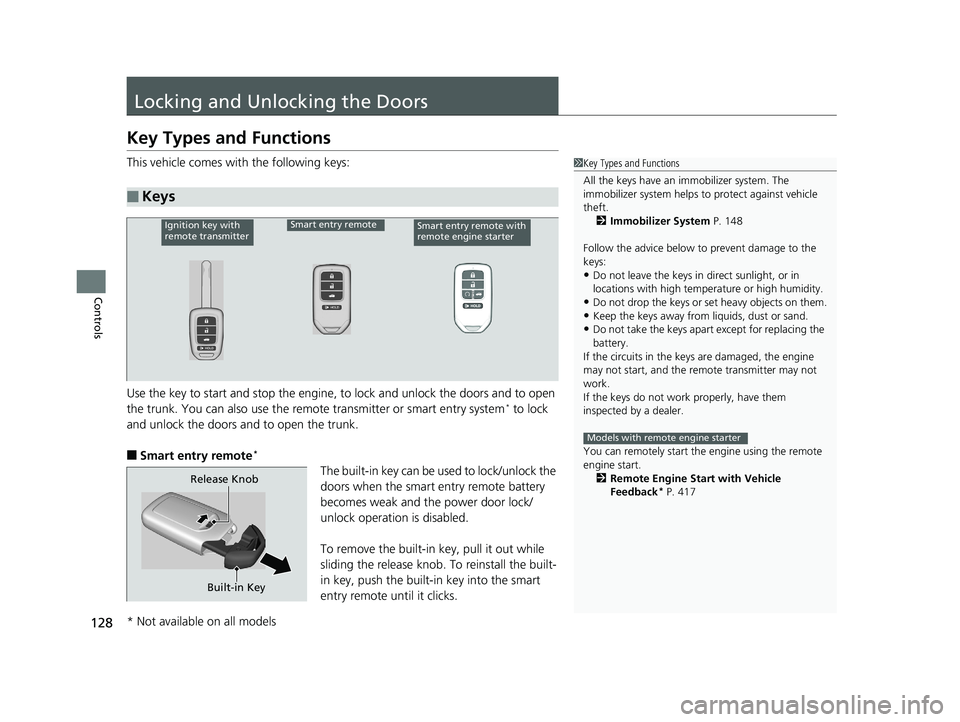

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, to lock and unlock the doors and to open
the trunk. You can also use the remote transmitter or smart entry system
* to lock
and unlock the doors and to open the trunk.
■Smart entry remote*
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 148
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust or sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start. 2 Remote Engine Start with Vehicle
Feedback
* P. 417
Models with remote engine starter
Ignition key with
remote transmitterSmart entry remote with
remote engine starterSmart entry remote
Built-in Key
Release Knob
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 128 ページ ２０１８年１０月２６日
　金曜日　午前９時１０分
