HONDA CIVIC COUPE 2019 Owner's Manual (in English)

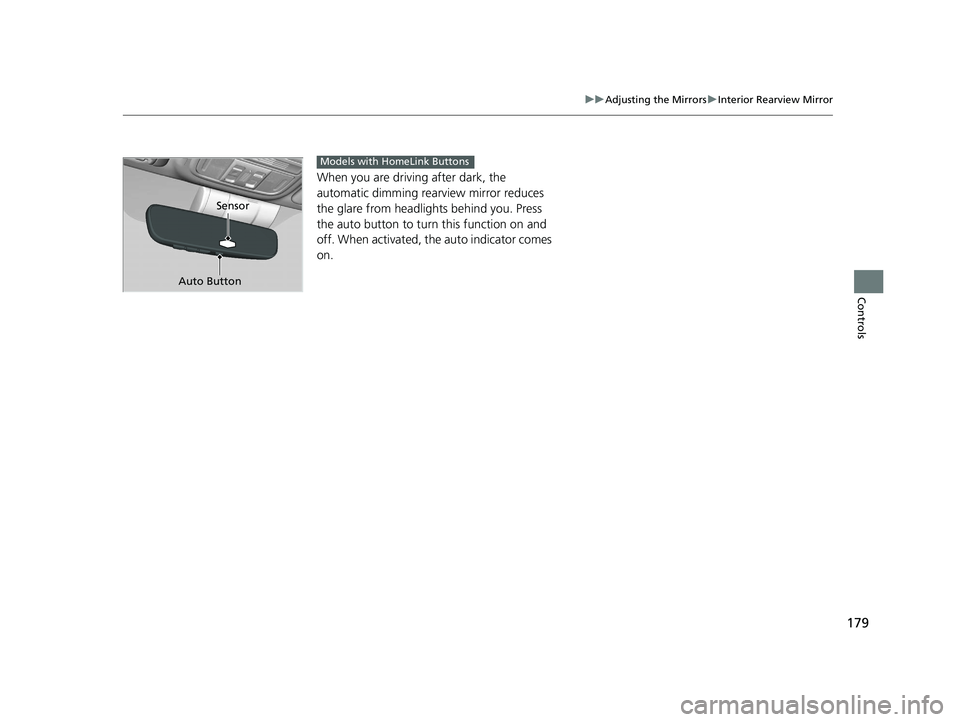

179
uuAdjusting the Mirrors uInterior Rearview Mirror
Controls
When you are driving after dark, the
automatic dimming rear view mirror reduces
the glare from headligh ts behind you. Press
the auto button to turn this function on and
off. When activated, th e auto indicator comes
on.
Sensor
Auto Button
Models with HomeLink Buttons
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 179 ページ ２０１８年９月４日　火 曜日　午後１時３８分

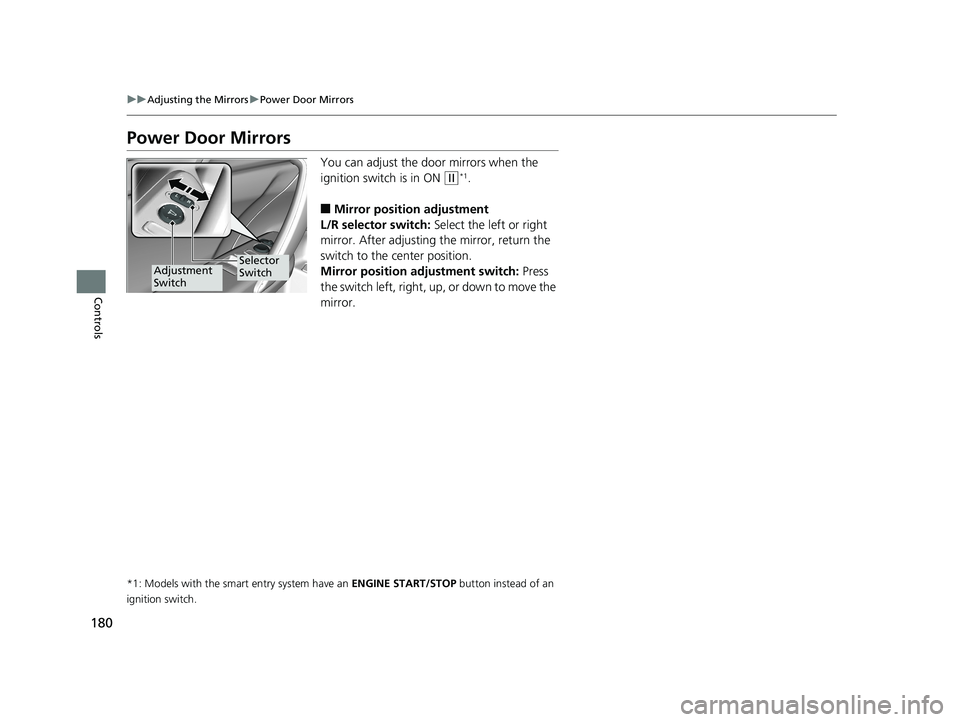

180
uuAdjusting the Mirrors uPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Selector
SwitchAdjustment
Switch
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 180 ページ ２０１８年９月４日　火 曜日　午後１時３８分

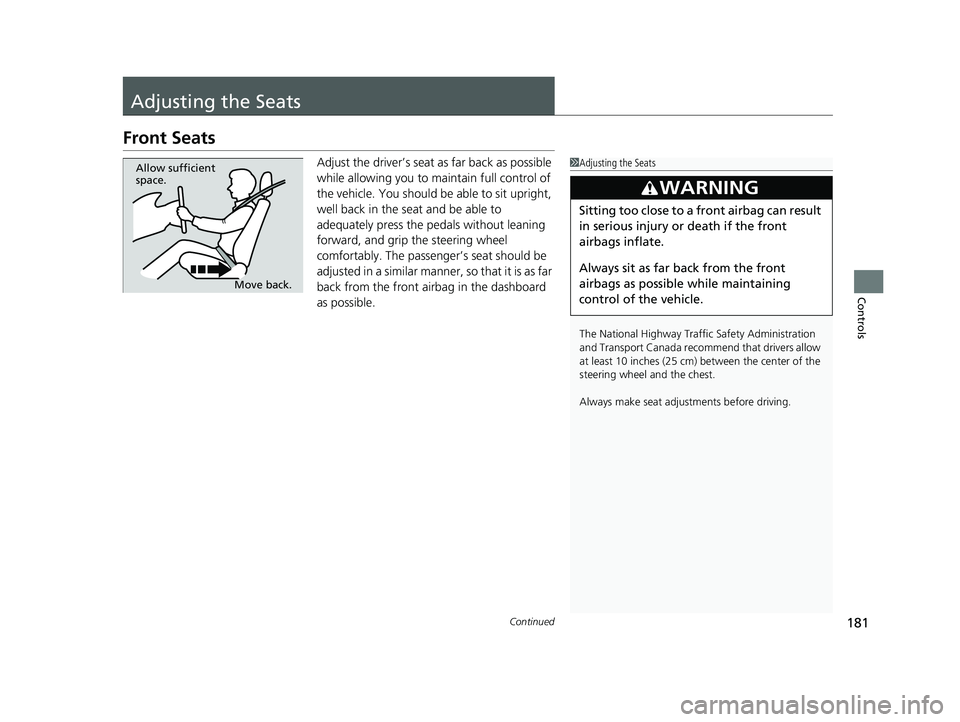

181Continued
Controls
Adjusting the Seats
Front Seats
Adjust the driver’s seat as far back as possible
while allowing you to ma intain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.1 Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 181 ページ ２０１８年９月４日　火
曜日　午後１時３８分

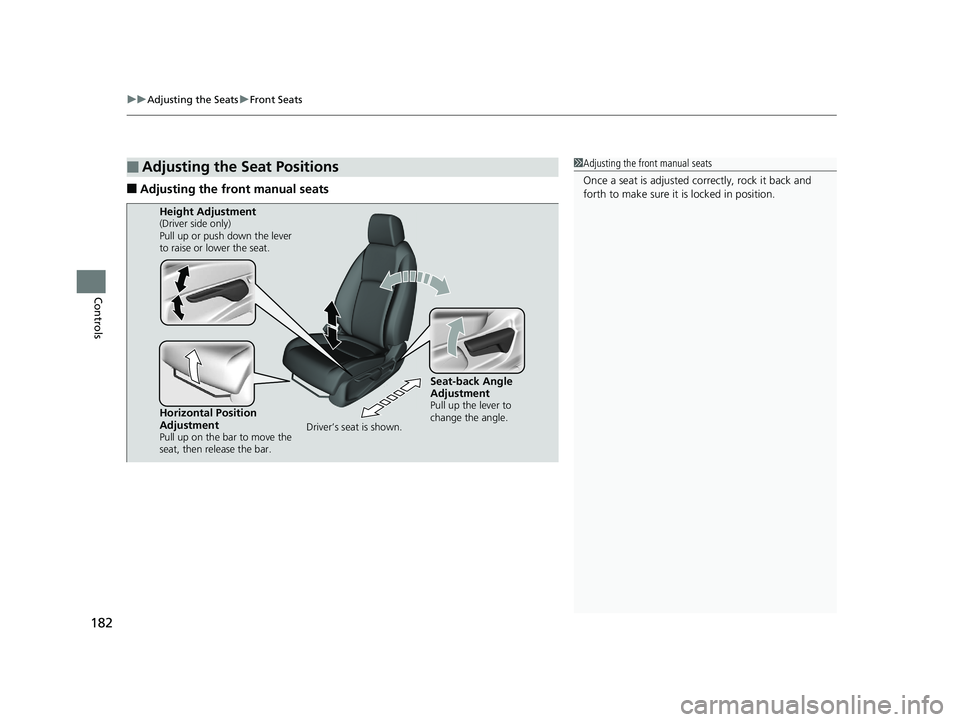

uuAdjusting the Seats uFront Seats
182
Controls
■Adjusting the front manual seats
■Adjusting the Seat Positions1Adjusting the front manual seats
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar.
Height Adjustment(Driver side only)
Pull up or push down the lever
to raise or lower the seat.
Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
Driver’s seat is shown.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 182 ページ ２０１８年９月４日　火 曜日　午後１時３８分

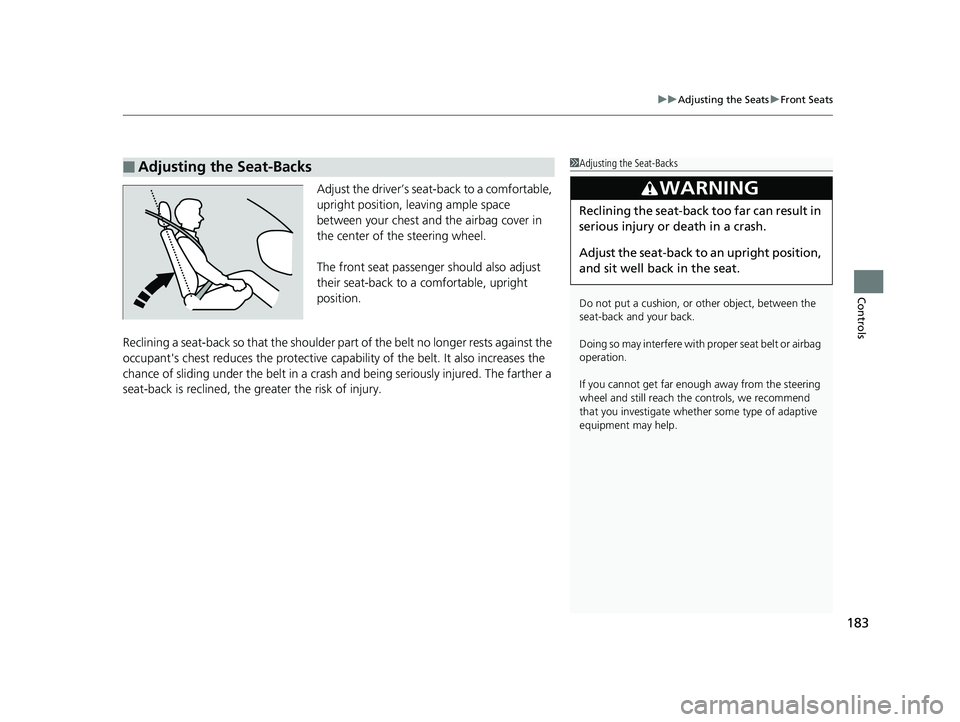

183
uuAdjusting the Seats uFront Seats
Controls
Adjust the driver’s seat -back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant's chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 183 ページ ２０１８年９月４日　火 曜日　午後１時３８分

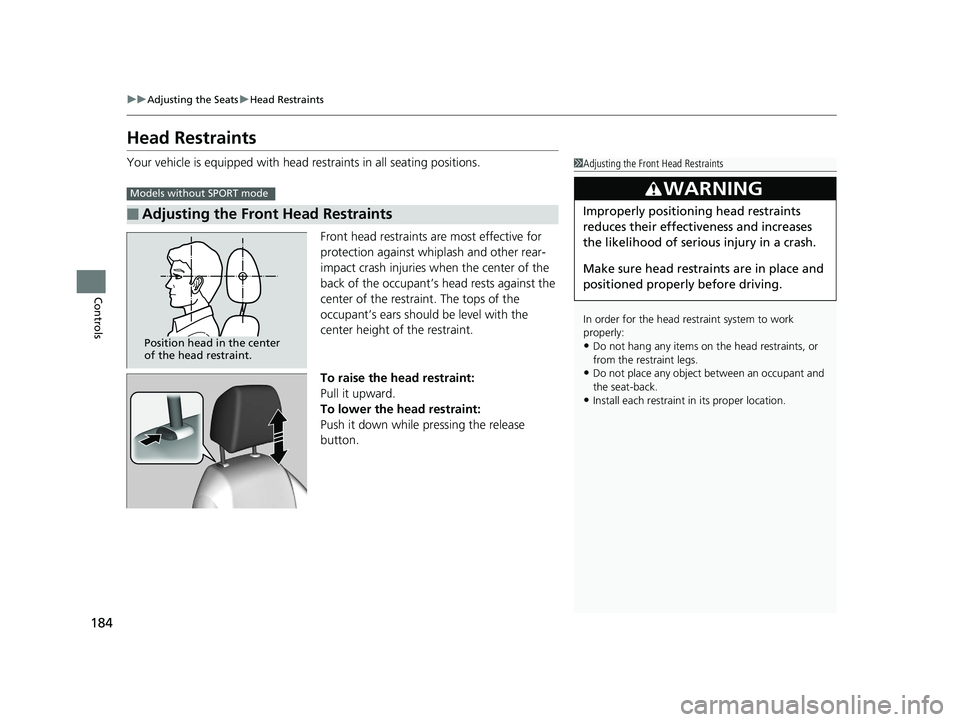

184
uuAdjusting the Seats uHead Restraints
Controls
Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Front head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
■Adjusting the Front Head Restraints
Models without SPORT mode
1Adjusting the Front Head Restraints
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any object be tween an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 184 ページ ２０１８年９月４日　火 曜日　午後１時３８分

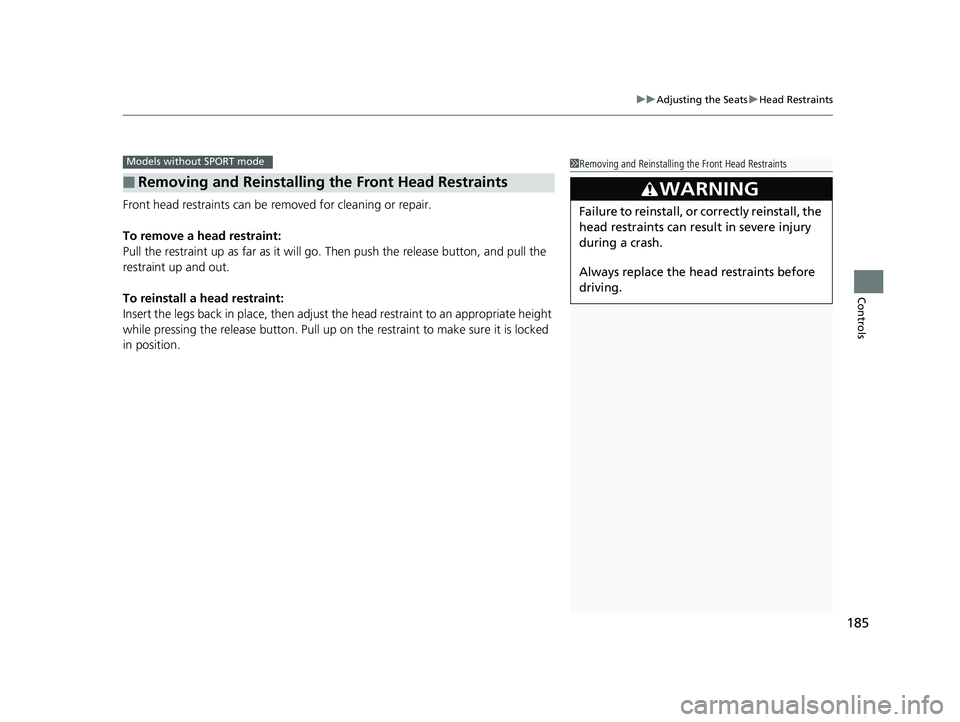

185
uuAdjusting the Seats uHead Restraints
Controls
Front head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Removing and Reinstalling the Front Head Restraints
Models without SPORT mode1 Removing and Reinstalling the Front Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 185 ページ ２０１８年９月４日　火 曜日　午後１時３８分

186
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls

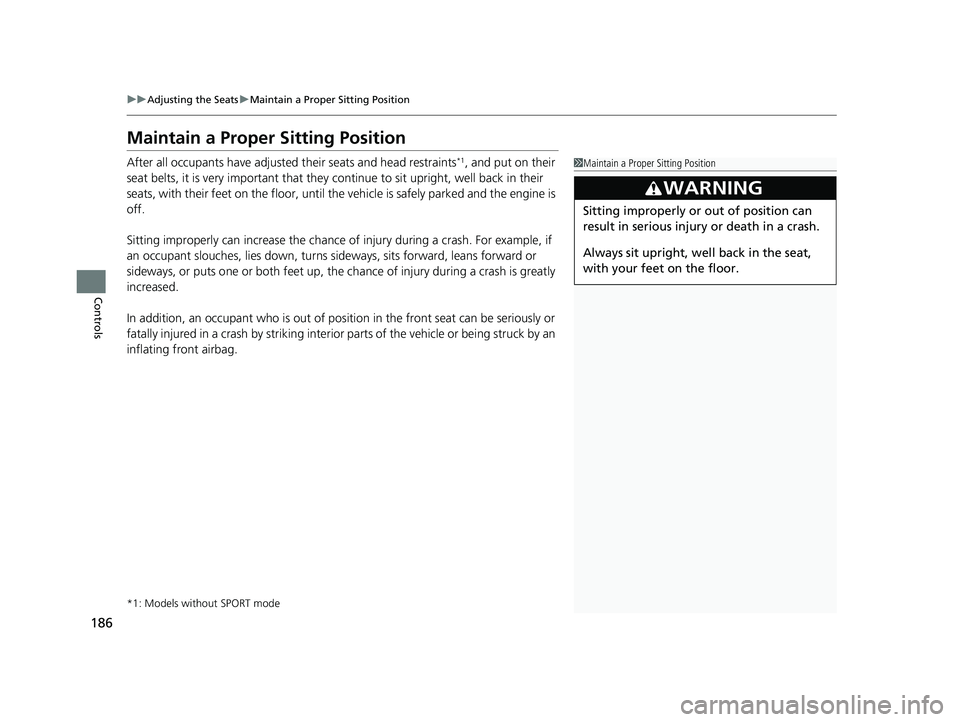

Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints*1, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
*1: Models without SPORT mode
1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 186 ページ ２０１８年９月４日　火 曜日　午後１時３８分

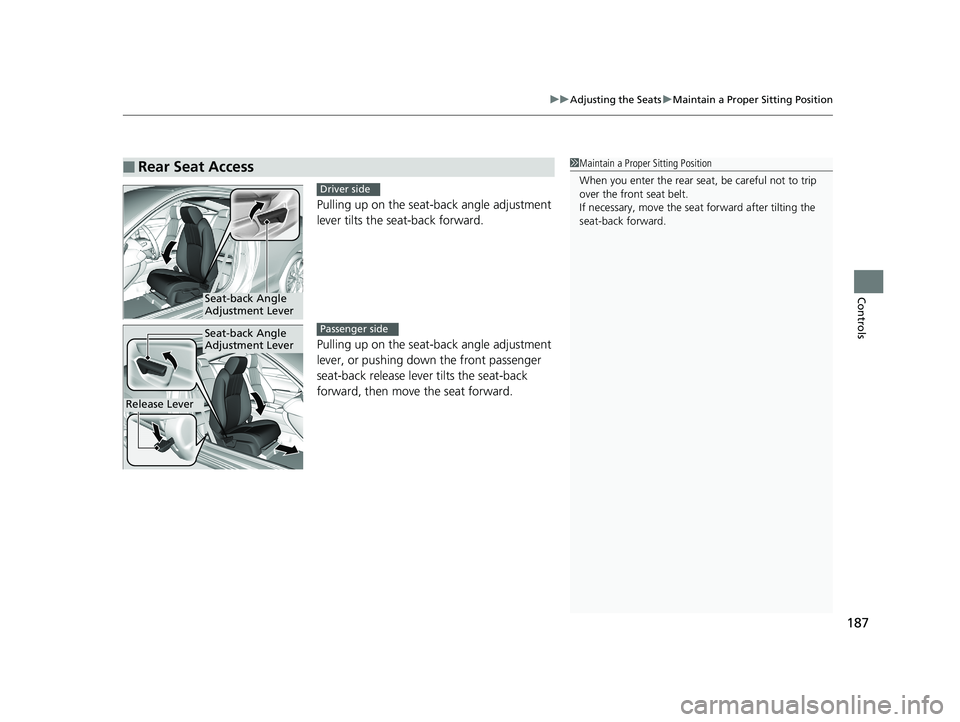

187
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls
Pulling up on the seat-b ack angle adjustment
lever tilts the seat-back forward.
Pulling up on the seat-b ack angle adjustment
lever, or pushing down the front passenger
seat-back release lever tilts the seat-back
forward, then move the seat forward.
■Rear Seat Access1 Maintain a Proper Sitting Position
When you enter the rear seat, be careful not to trip
over the front seat belt.
If necessary, move the seat forward after tilting the
seat-back forward.
Seat-back Angle
Adjustment Lever
Driver side
Seat-back Angle
Adjustment Lever
Release Lever
Passenger side
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 187 ページ ２０１８年９月４日　火 曜日　午後１時３８分

188
uuAdjusting the Seats uRear Seats
Controls

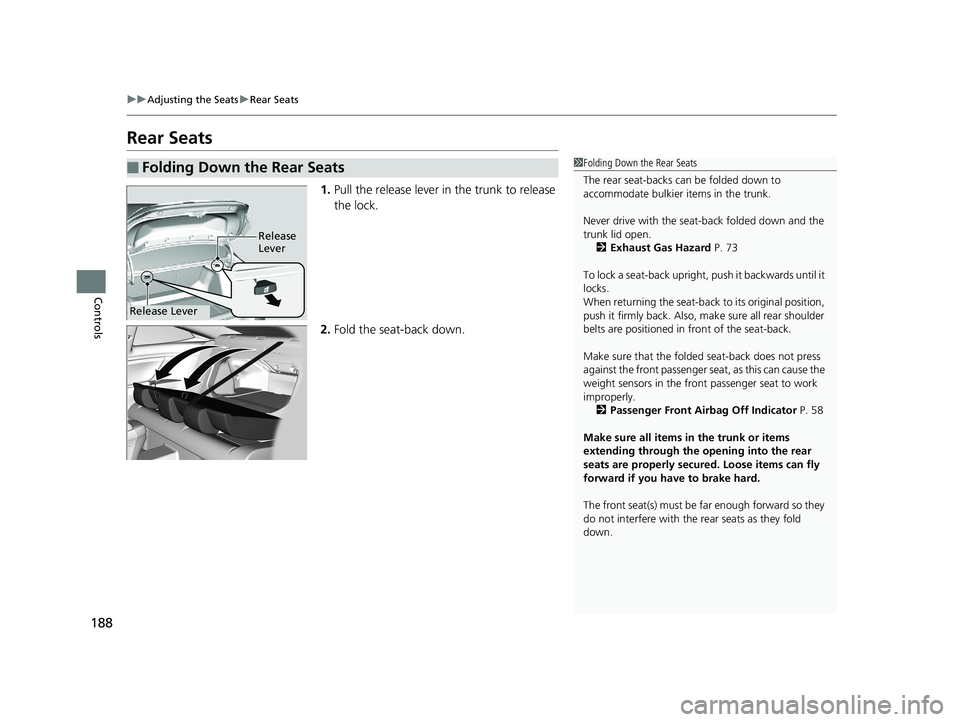

Rear Seats
1. Pull the release lever in the trunk to release
the lock.
2. Fold the seat-back down.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open. 2 Exhaust Gas Hazard P. 73
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Front Airbag Off Indicator P. 58
Make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release
Lever
Release Lever
