HONDA CIVIC COUPE 2019 Owner's Manual (in English)

189
uuAdjusting the Seats uArmrest
Controls

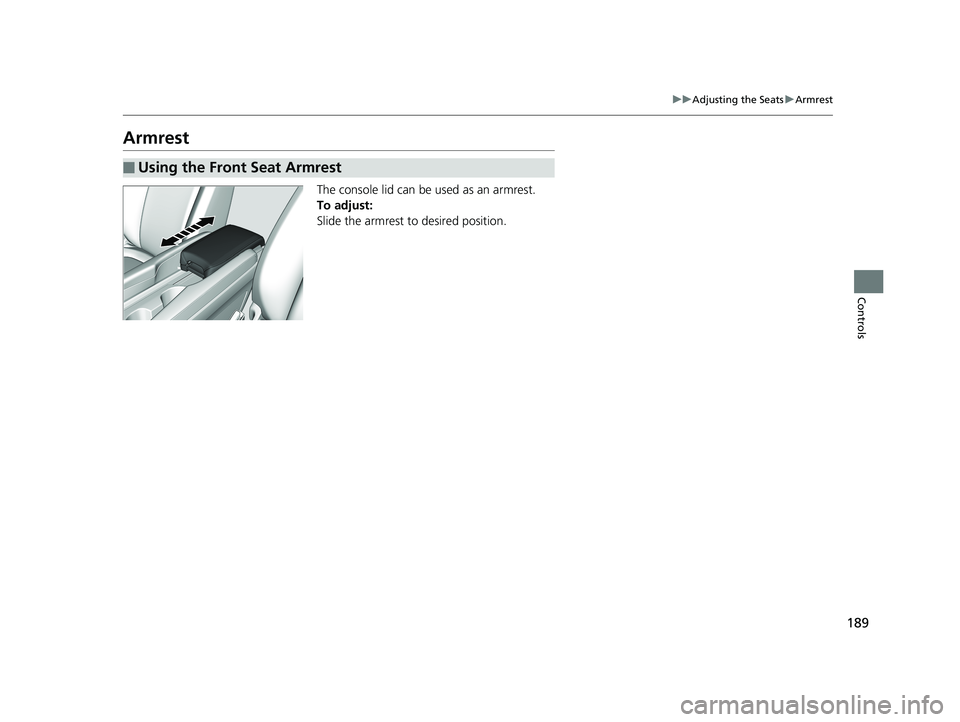

Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to desired position.
■Using the Front Seat Armrest
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 189 ページ ２０１８年９月４日　火 曜日　午後１時３８分

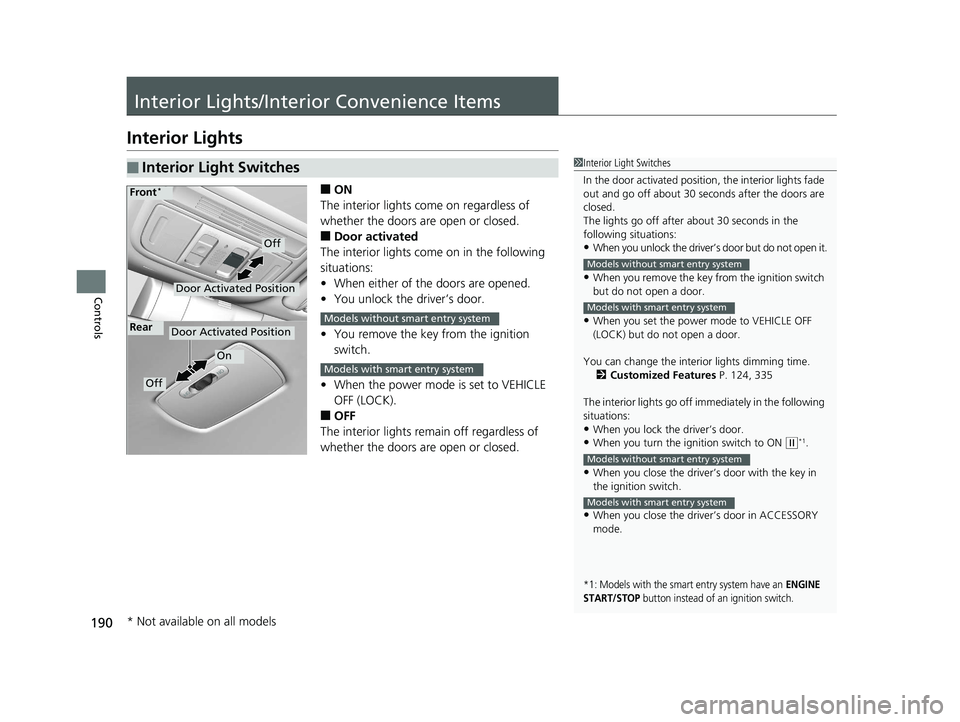

190
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When either of the doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 124, 335
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
*1: Models with the smart entry system have an ENGINE
START/STOP
button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front*
Door Activated Position
On
Off
RearModels without smart entry system
Models with smart entry system
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 190 ページ ２０１８年９月４日　火 曜日　午後１時３８分

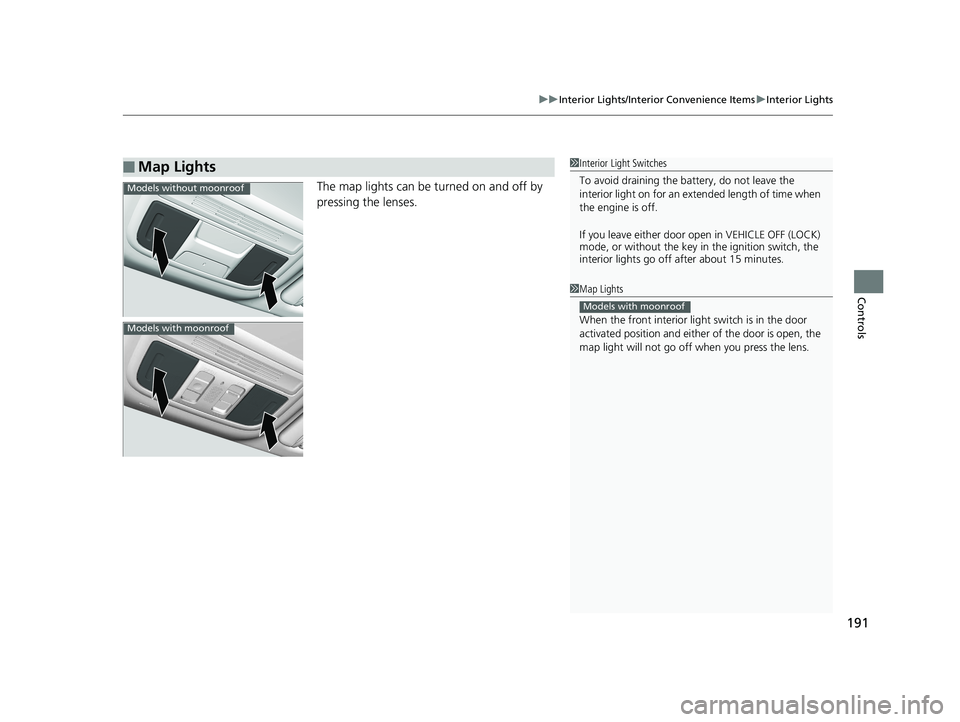

191
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Interior Light Switches
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
If you leave either door open in VEHICLE OFF (LOCK)
mode, or without the key in the ignition switch, the
interior lights go off after about 15 minutes.
1Map Lights
When the front interior li ght switch is in the door
activated position and either of the door is open, the
map light will not go off when you press the lens.
Models with moonroof
Models without moonroof
Models with moonroof
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 191 ページ ２０１８年９月４日　火 曜日　午後１時３８分

192
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

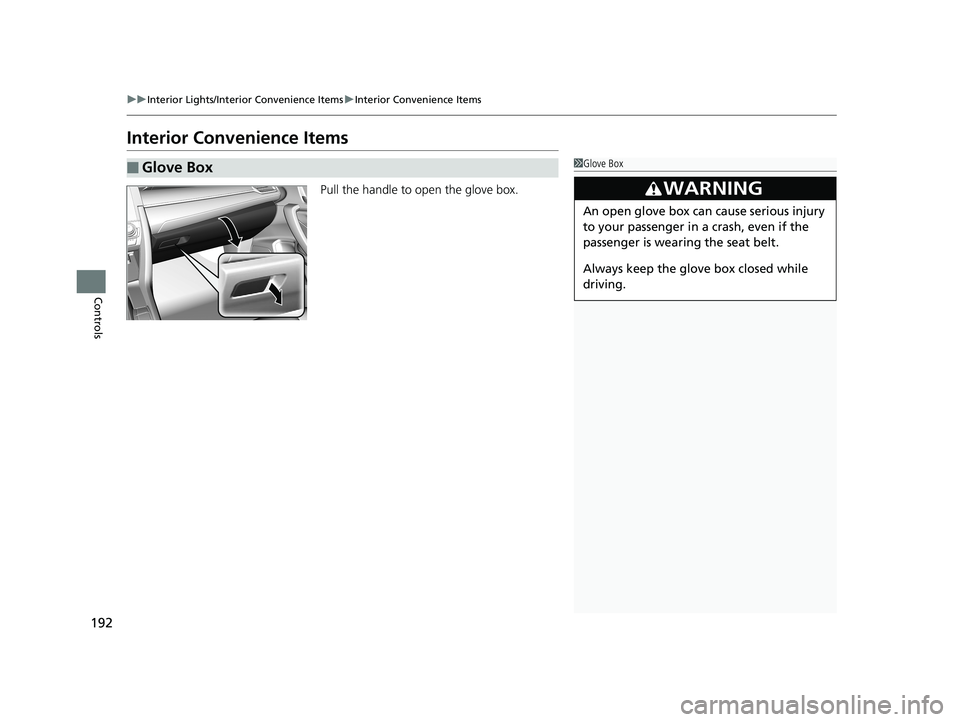

Interior Convenience Items
Pull the handle to open the glove box.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 192 ページ ２０１８年９月４日　火 曜日　午後１時３８分

193
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

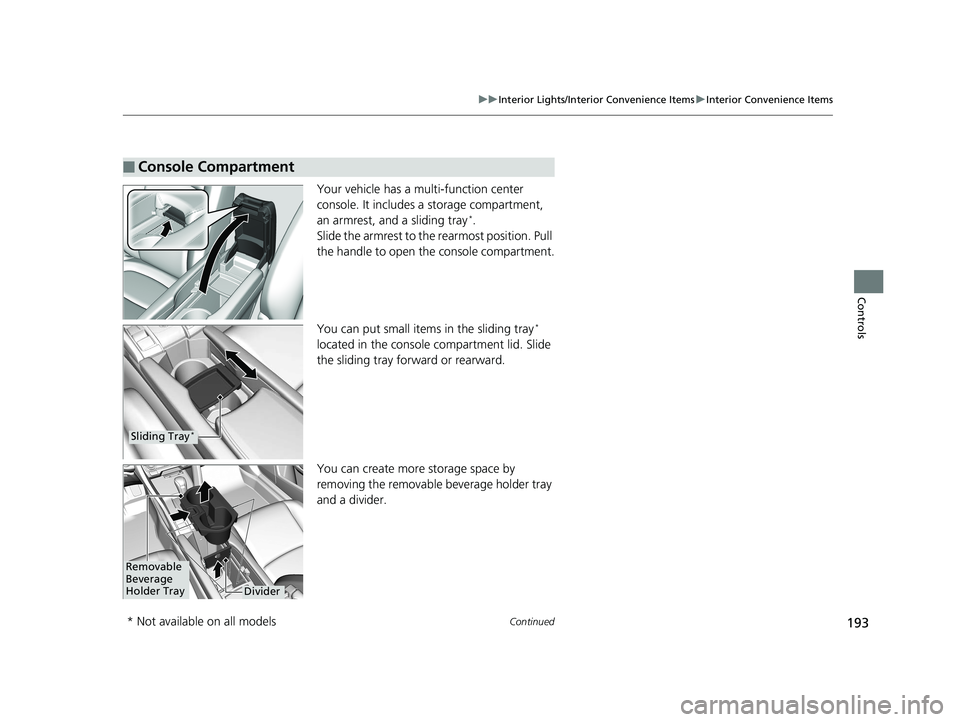

Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray
*.
Slide the armrest to the rearmost position. Pull
the handle to open the console compartment.
You can put small items in the sliding tray
*
located in the console compartment lid. Slide
the sliding tray forward or rearward.
You can create more storage space by
removing the removable beverage holder tray
and a divider.
■Console Compartment
Sliding Tray*
Removable
Beverage
Holder Tray
Divider
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 193 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
194
Controls

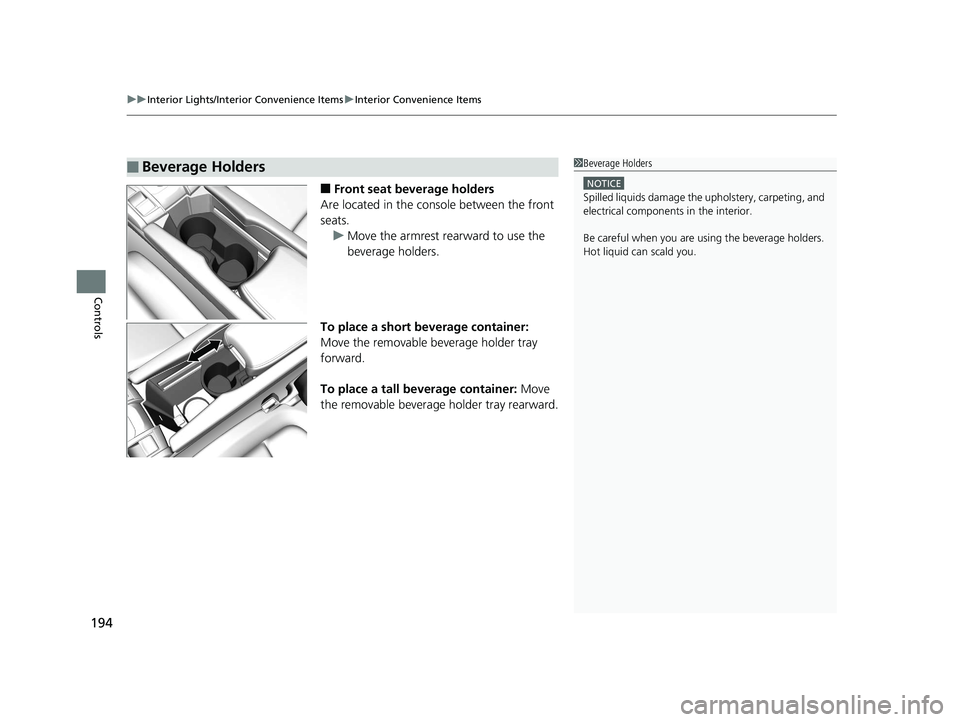

■Front seat beverage holders
Are located in the console between the front
seats. u Move the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray
forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 194 ページ ２０１８年９月４日　火 曜日　午後１時３８分

195
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

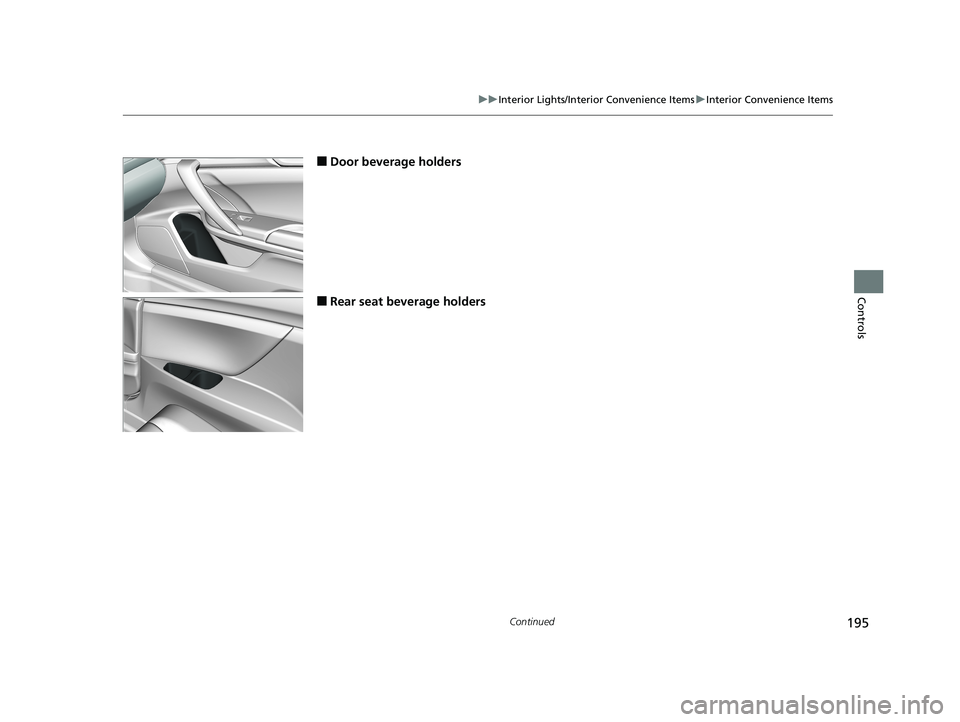

■Door beverage holders
■Rear seat beverage holders
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 195 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
196
Controls

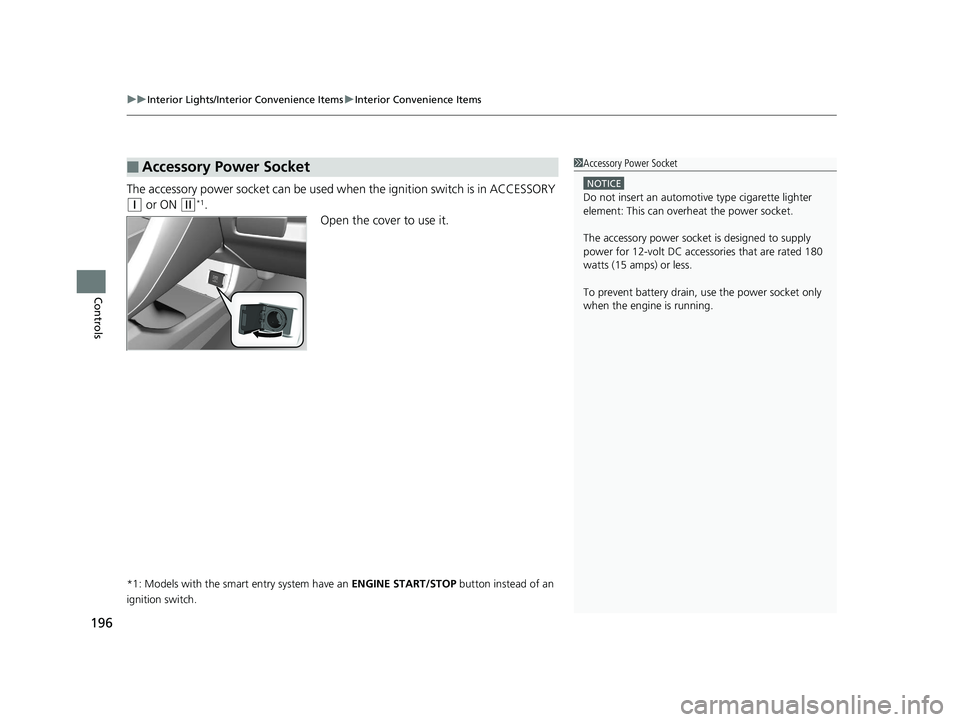

The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w*1.
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element: This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 196 ページ ２０１８年９月４日　火 曜日　午後１時３８分

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

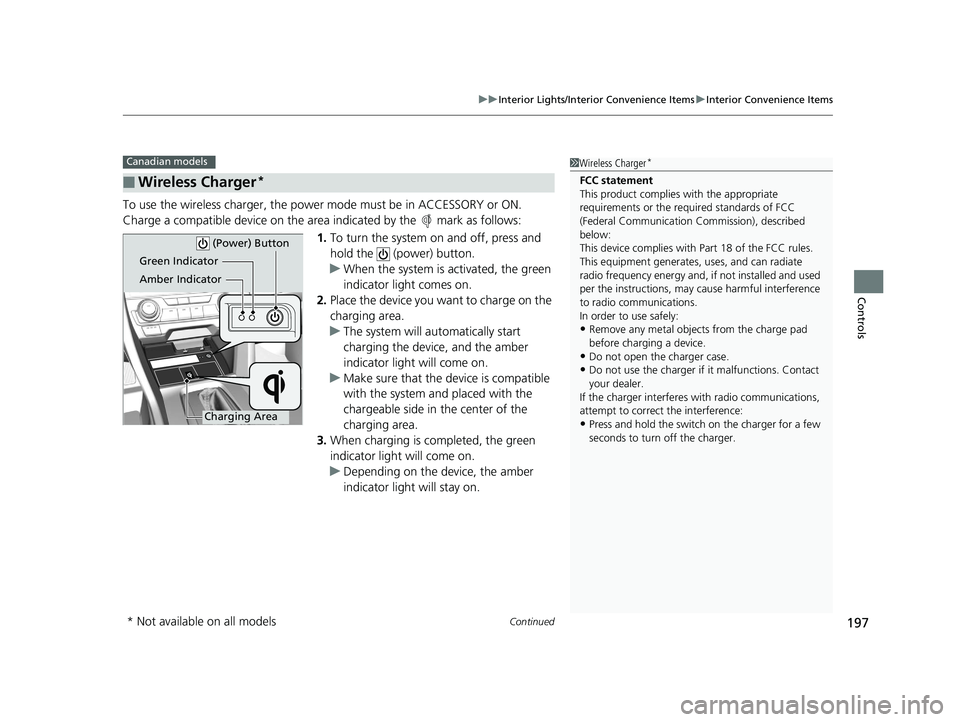

To use the wireless charger, the powe r mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
u When the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the
charging area.
u The system will au tomatically start
charging the device, and the amber
indicator light will come on.
u Make sure that the device is compatible
with the system and placed with the
chargeable side in the center of the
charging area.
3. When charging is co mpleted, the green
indicator light will come on.
u Depending on the device, the amber
indicator light will stay on.
■Wireless Charger*
Canadian models1Wireless Charger*
FCC statement
This product complies with the appropriate
requirements or the requ ired standards of FCC
(Federal Communication Commission), described
below:
This device complies with Part 18 of the FCC rules.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
per the instructions, may cause harmful interference
to radio communications.
In order to use safely:
•Remove any metal objects from the charge pad
before charging a device.
•Do not open the charger case.
•Do not use the charger if it malfunctions. Contact
your dealer.
If the charger interferes with radio communications,
attempt to correct the interference:
•Press and hold the switch on the charger for a few
seconds to turn off the charger.
Green Indicator
Amber Indicator
Charging Area (Power) Button
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 197 ページ ２０１８年９月４日　火
曜日　午後１時３８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
198
Controls

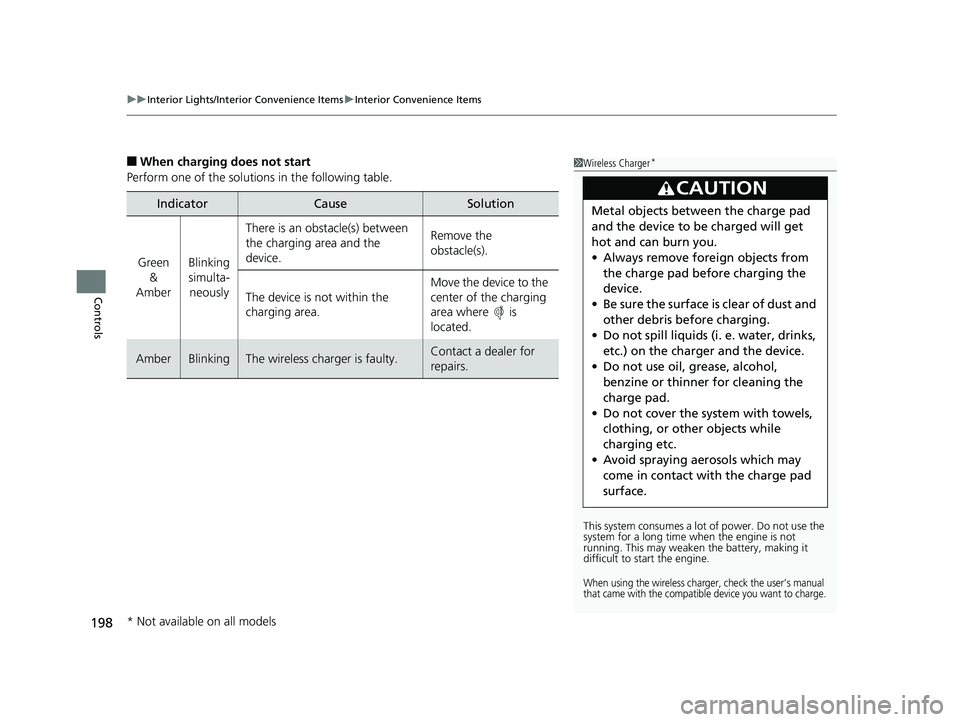

■When charging does not start
Perform one of the solution s in the following table.
IndicatorCauseSolution
Green
&
AmberBlinking
simulta- neously
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
AmberBlinkingThe wireless charger is faulty.Contact a dealer for
repairs.
1
Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s manual
that came with the compatible device you want to charge.
3CAUTION
Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
• Always remove foreign objects from
the charge pad before charging the
device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.
• Do not cover the system with towels,
clothing, or other objects while
charging etc.
• Avoid spraying aerosols which may
come in contact with the charge pad
surface.
* Not available on all models
