HONDA CIVIC COUPE 2019 Owner's Manual (in English)

139
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

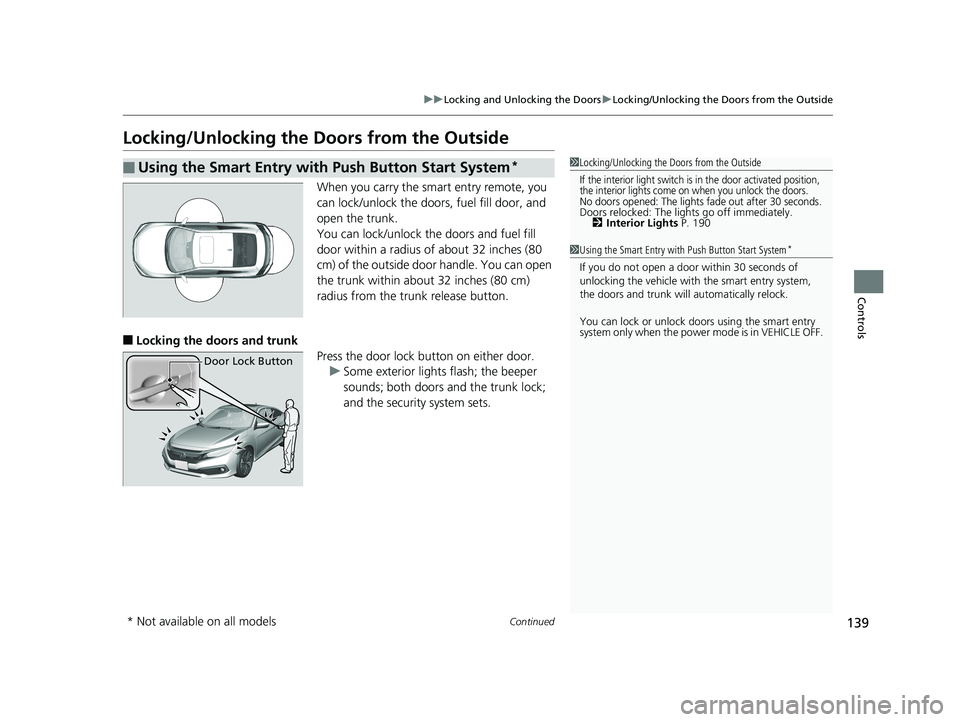

Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors, fuel fill door, and
open the trunk.
You can lock/unlock the doors and fuel fill
door within a radius of about 32 inches (80
cm) of the outside door handle. You can open
the trunk within about 32 inches (80 cm)
radius from the trunk release button.
■Locking the doors and trunk
Press the door lock button on either door.u Some exterior lights flash; the beeper
sounds; both doors and the trunk lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System*1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated position,
the interior lights come on when you unlock the doors.
No doors opened: The lights fade out after 30 seconds.Doors relocked: The li ghts go off immediately.
2 Interior Lights P. 190
1Using the Smart Entry with Push Button Start System*
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors and trunk will automatically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
Door Lock Button
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 139 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
140
Controls

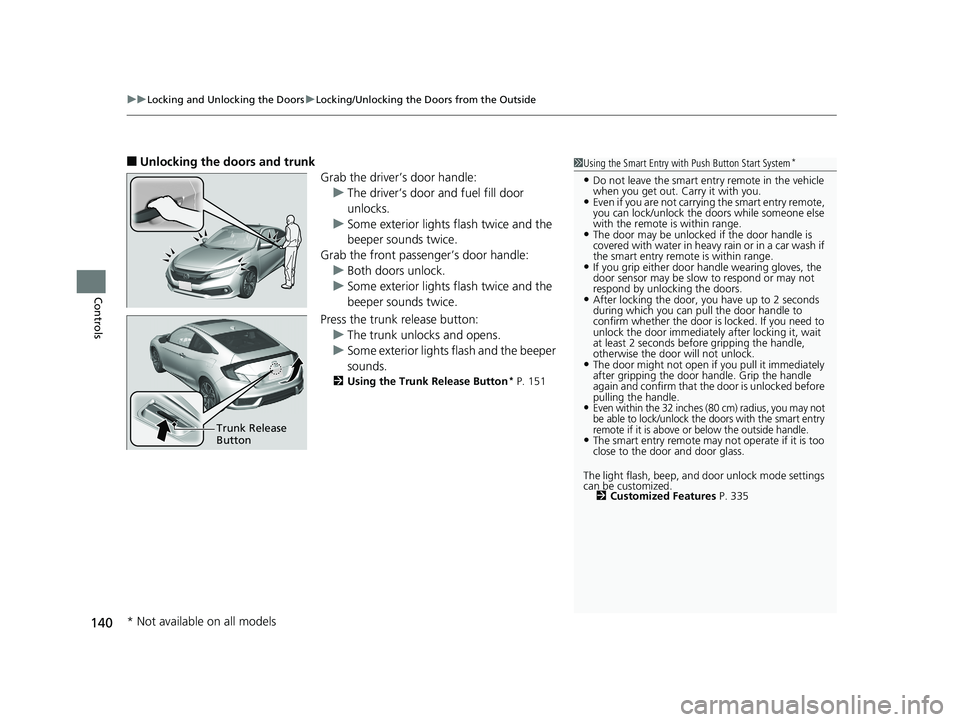

■Unlocking the doors and trunk
Grab the driver’s door handle:u The driver’s door and fuel fill door
unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle: u Both doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u Some exterior lights flash and the beeper
sounds.
2 Using the Trunk Release Button* P. 151
1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip either door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may not
be able to lock/unlock the doors with the smart entry
remote if it is above or below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
The light flash, beep, a nd door unlock mode settings
can be customized. 2 Customized Features P. 335Trunk Release
Button
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 140 ページ ２０１８年９月４日　火 曜日　午後１時３８分

Continued141
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

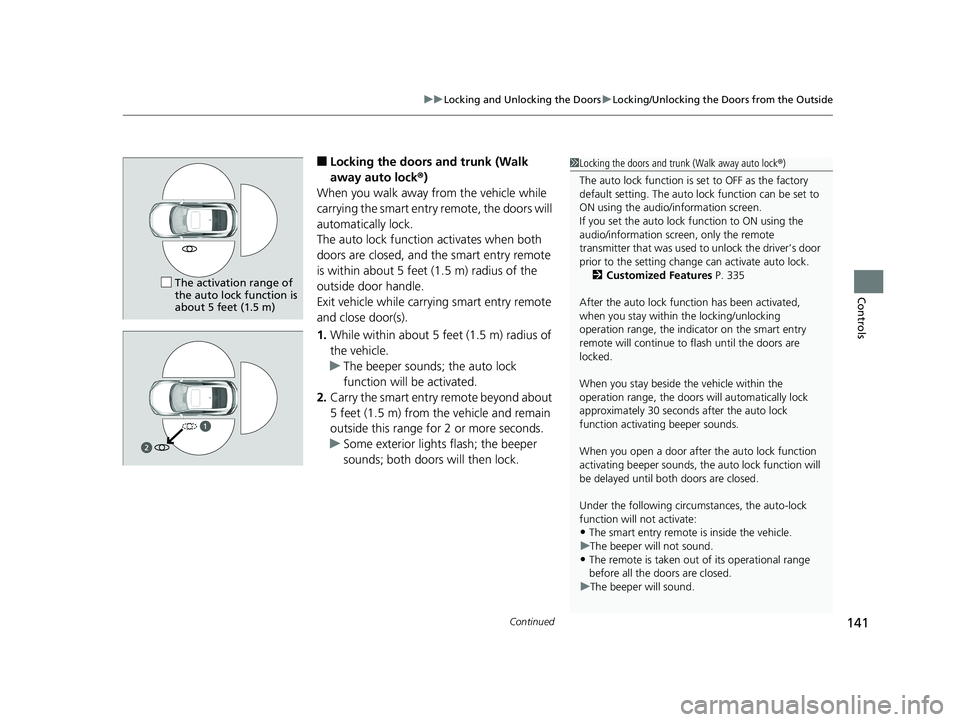

■Locking the doors and trunk (Walk
away auto lock ®)
When you walk away from the vehicle while
carrying the smart entry remote, the doors will
automatically lock.
The auto lock function activates when both
doors are closed, and the smart entry remote
is within about 5 feet (1.5 m) radius of the
outside door handle.
Exit vehicle while carry ing smart entry remote
and close door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range for 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; both doors will then lock.1Locking the doors and trunk (Walk away auto lock ®)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/information screen.
If you set the auto lock function to ON using the
audio/information screen, only the remote
transmitter that was used to unlock the driver’s door
prior to the setting change can activate auto lock. 2 Customized Features P. 335
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the smart entry
remote will continue to flash until the doors are
locked.
When you stay beside the vehicle within the
operation range, the doors wi ll automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be delayed until bo th doors are closed.
Under the following circumstances, the auto-lock
function will not activate:
•The smart entry remote is inside the vehicle.
u The beeper will not sound.
•The remote is taken out of its operational range
before all the doors are closed.
u The beeper will sound.
The activation range of
the auto lock function is
about 5 feet (1.5 m)
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 141 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
142
Controls

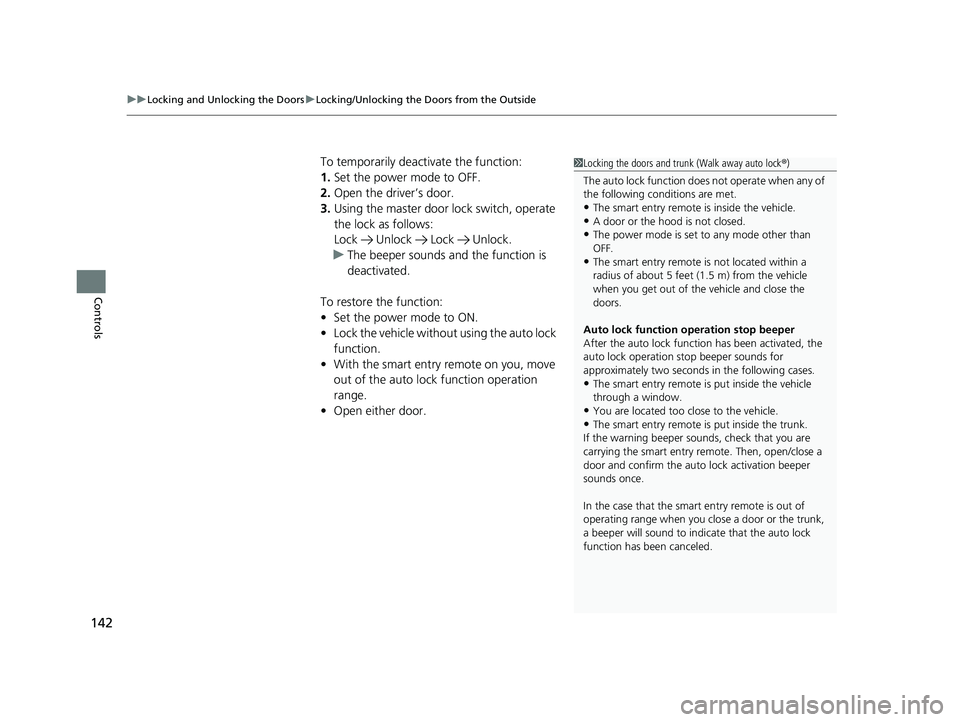

To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle without using the auto lock
function.
• With the smart entry re mote on you, move
out of the auto lock function operation
range.
• Open either door.1Locking the doors and trunk (Walk away auto lock ®)
The auto lock function does not operate when any of
the following conditions are met.
•The smart entry remote is inside the vehicle.
•A door or the hood is not closed.•The power mode is set to any mode other than
OFF.
•The smart entry remote is not located within a
radius of about 5 feet (1 .5 m) from the vehicle
when you get out of the vehicle and close the
doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The smart entry remote is put inside the vehicle
through a window.
•You are located too close to the vehicle.
•The smart entry remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the smart entry remote. Then, open/close a
door and confirm the auto lock activation beeper
sounds once.
In the case that the smart entry remote is out of
operating range when you cl ose a door or the trunk,
a beeper will sound to indi cate that the auto lock
function has been canceled.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 142 ページ ２０１８年９月４日　火 曜日　午後１時３８分

Continued143
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

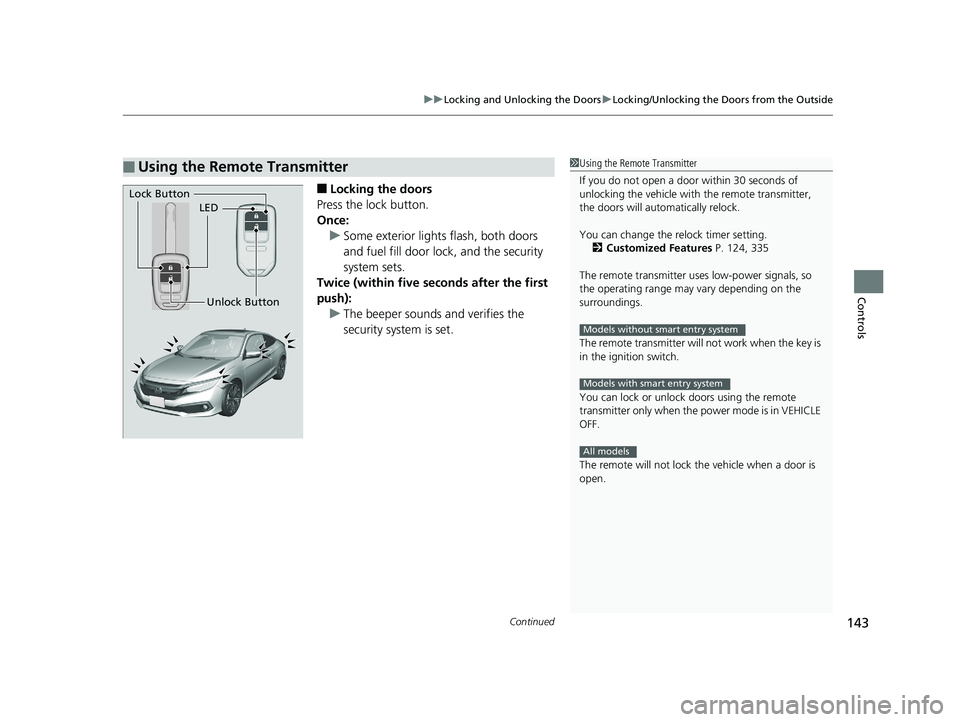

■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, both doors
and fuel fill door lock , and the security
system sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting. 2 Customized Features P. 124, 335
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote will not lock th e vehicle when a door is
open.
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 143 ページ ２０１８年９月４日　火
曜日　午後１時３８分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
144
Controls

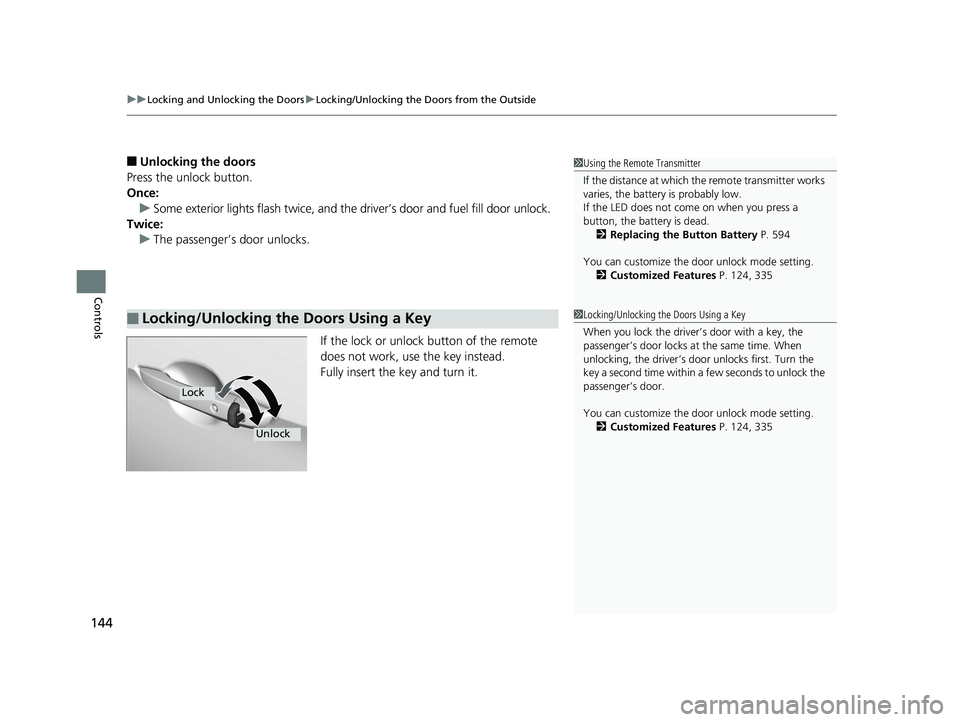

■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door and fuel fill door unlock.
Twice: u The passenger’s door unlocks.
If the lock or unlock button of the remote
does not work, use the key instead.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key
1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 594
You can customize the door unlock mode setting. 2 Customized Features P. 124, 335
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, the
passenger’s door locks at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
passenger’s door.
You can customize the door unlock mode setting.
2 Customized Features P. 124, 335
Lock
Unlock
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 144 ページ ２０１８年９月４日　火 曜日　午後１時３８分

145
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

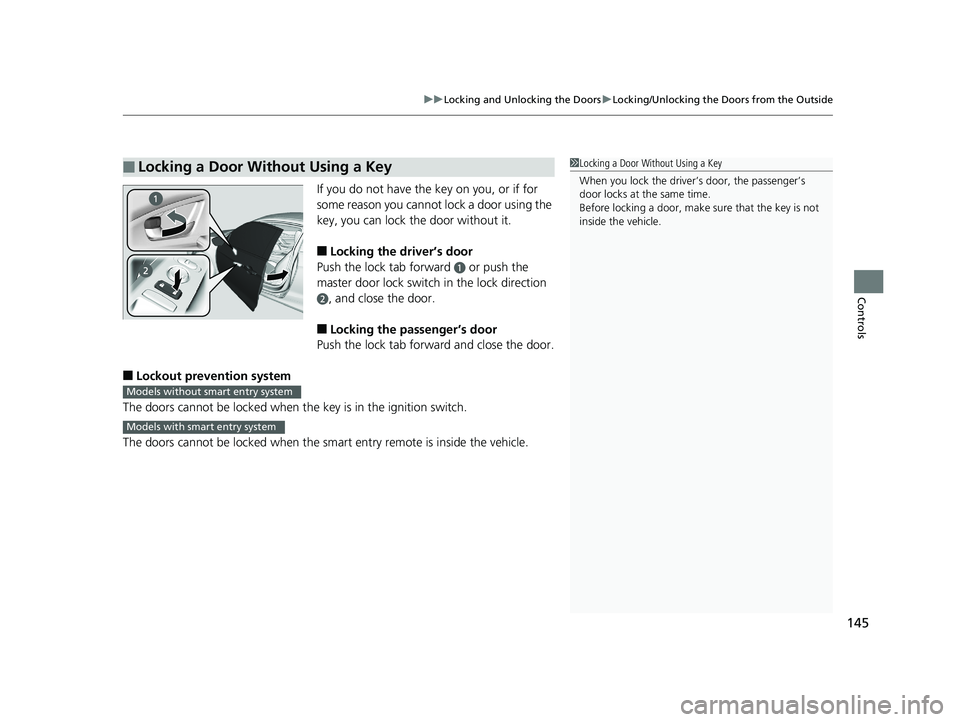

If you do not have the key on you, or if for
some reason you cannot lock a door using the
key, you can lock the door without it.
■Locking the driver’s door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passenger’s door
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when th e key is in the ignition switch.
The doors cannot be locked when the sm art entry remote is inside the vehicle.
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, the passenger’s
door locks at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
Models without smart entry system
Models with smart entry system
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 145 ページ ２０１８年９月４日　火 曜日　午後１時３８分

146
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

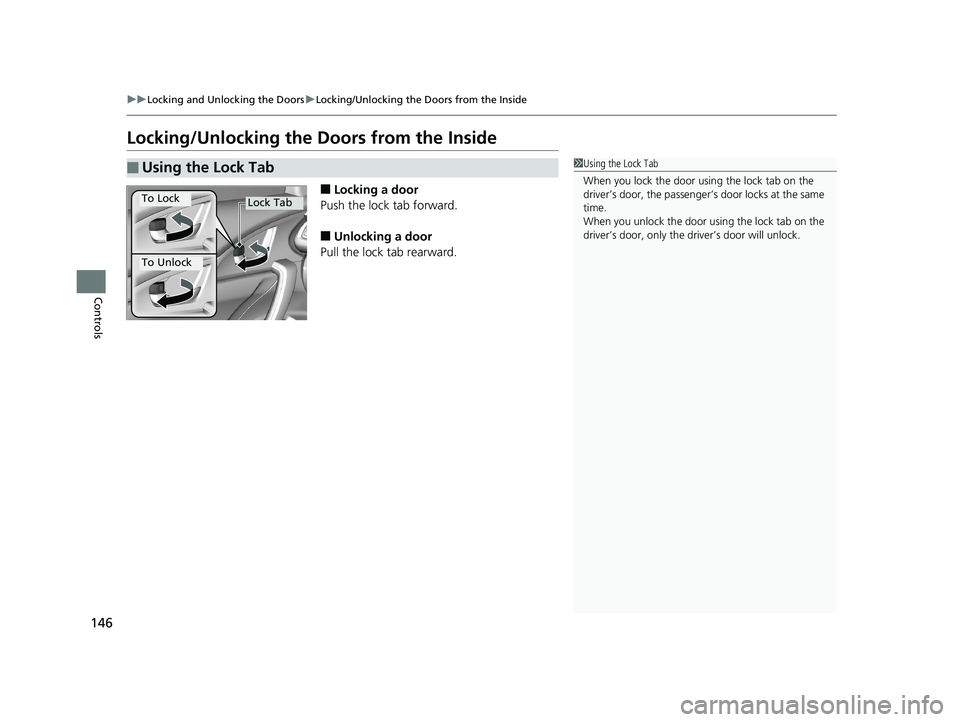

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, the passenger’s door locks at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 146 ページ ２０１８年９月４日　火 曜日　午後１時３８分

Continued147

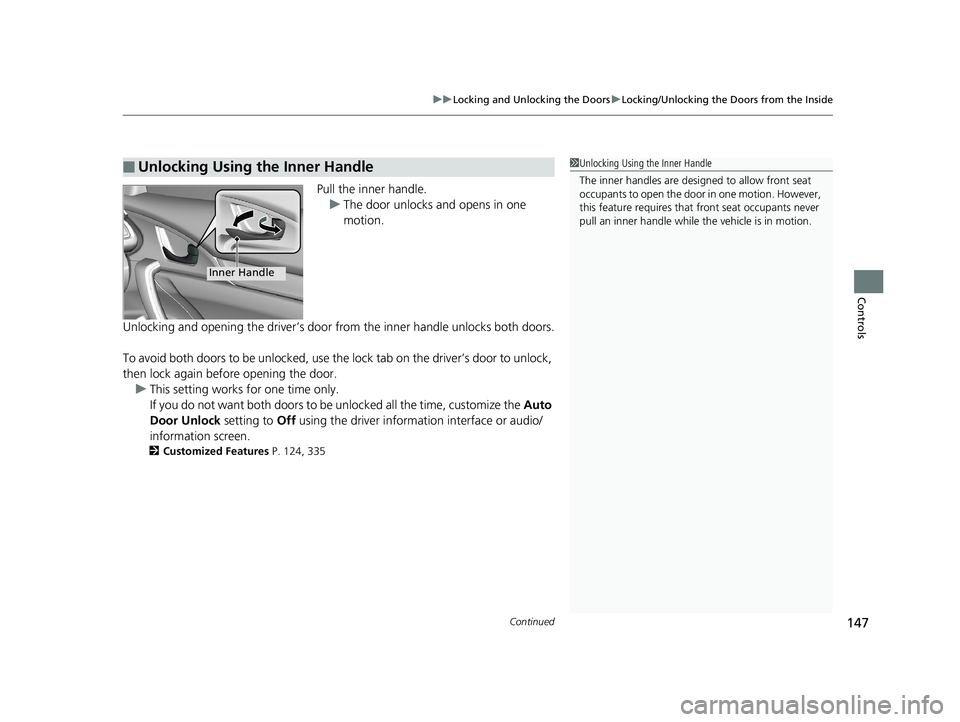

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks both doors.
To avoid both doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want both doors to be unlocked all the time, customize the Auto
Door Unlock setting to Off using the driver inform ation interface or audio/
information screen.
2 Customized Features P. 124, 335
■Unlocking Using the Inner Handle1Unlocking Using the Inner Handle
The inner handles are desi gned to allow front seat
occupants to open the door in one motion. However,
this feature requires that front seat occupants never
pull an inner handle while the vehicle is in motion.
Inner Handle
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 147 ページ ２０１８年９月４日　火 曜日　午後１時３８分

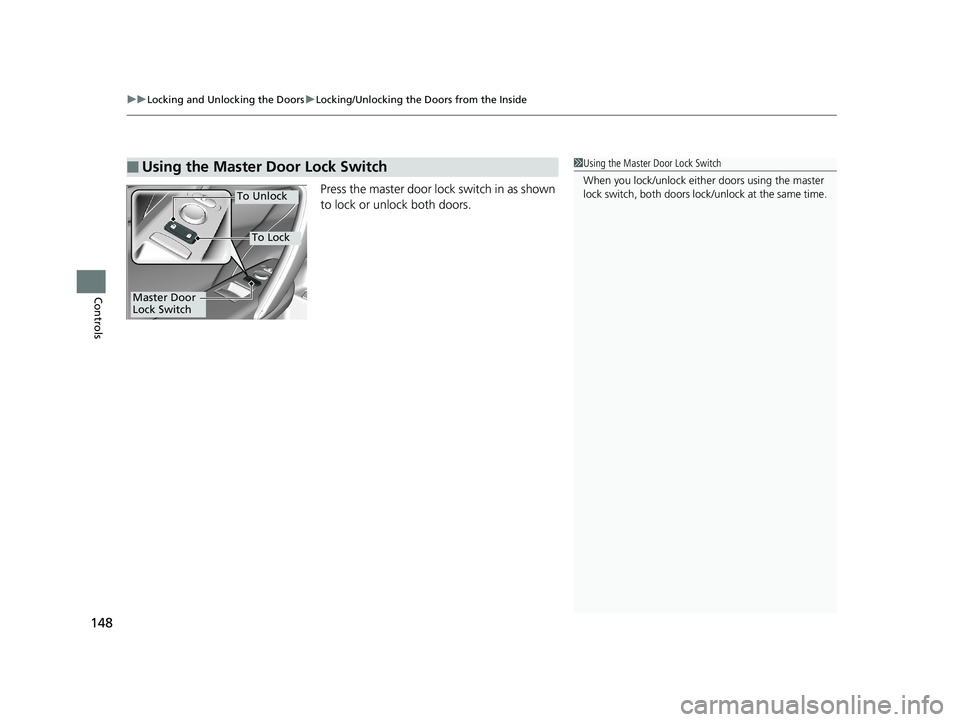

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
148
Controls
Press the master door lock switch in as shown
to lock or unlock both doors.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock eith er doors using the master
lock switch, both doors lock/ unlock at the same time.
To Unlock
Master Door
Lock Switch
To Lock
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 148 ページ ２０１８年９月４日　火 曜日　午後１時３８分
