Page 41 of 215

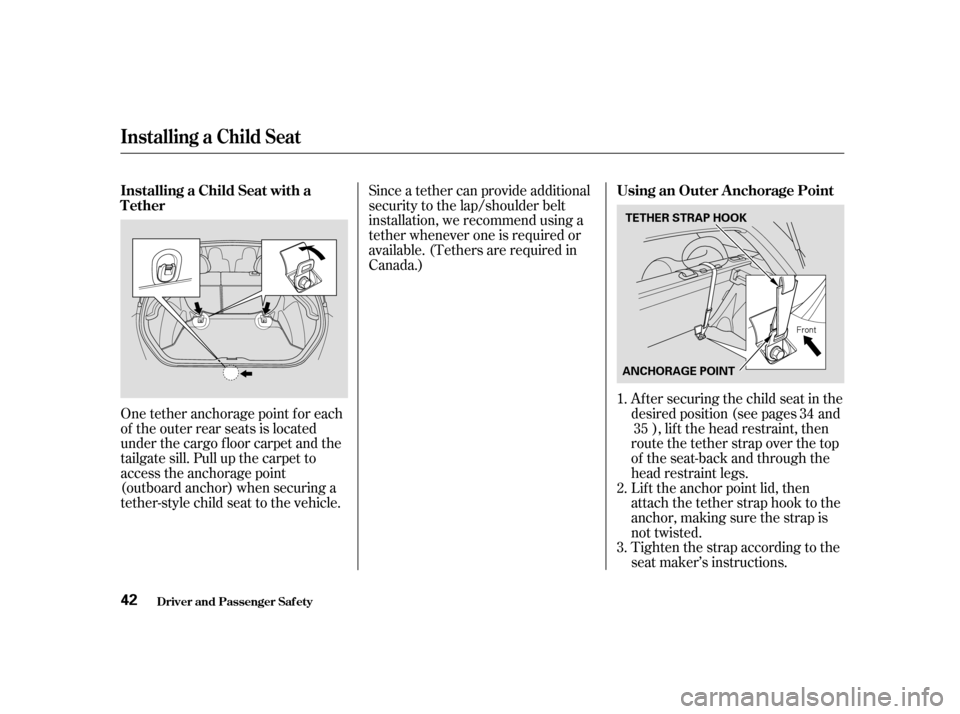

One tether anchorage point f or each
of the outer rear seats is located
under the cargo f loor carpet and the
tailgate sill. Pull up the carpet to
access the anchorage point
(outboard anchor) when securing a
tether-style child seat to the vehicle.Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available. (Tethers are required in
Canada.)
Lif t the anchor point lid, then
attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
Tighten the strap according to the
seat maker’s instructions.
Af ter securing the child seat in the
desired position (see pages and
), lif t the head restraint, then
route the tether strap over the top
of the seat-back and through the
head restraint legs.
2. 3.
1.
34
35
Installing a Child Seat
Driver and Passenger Saf ety
Installing a Child Seat with a
Tether
Using an Outer A nchorage Point
42 ANCHORAGE POINT
TETHER STRAP HOOK
— —y
y
() y y
Page 42 of 215

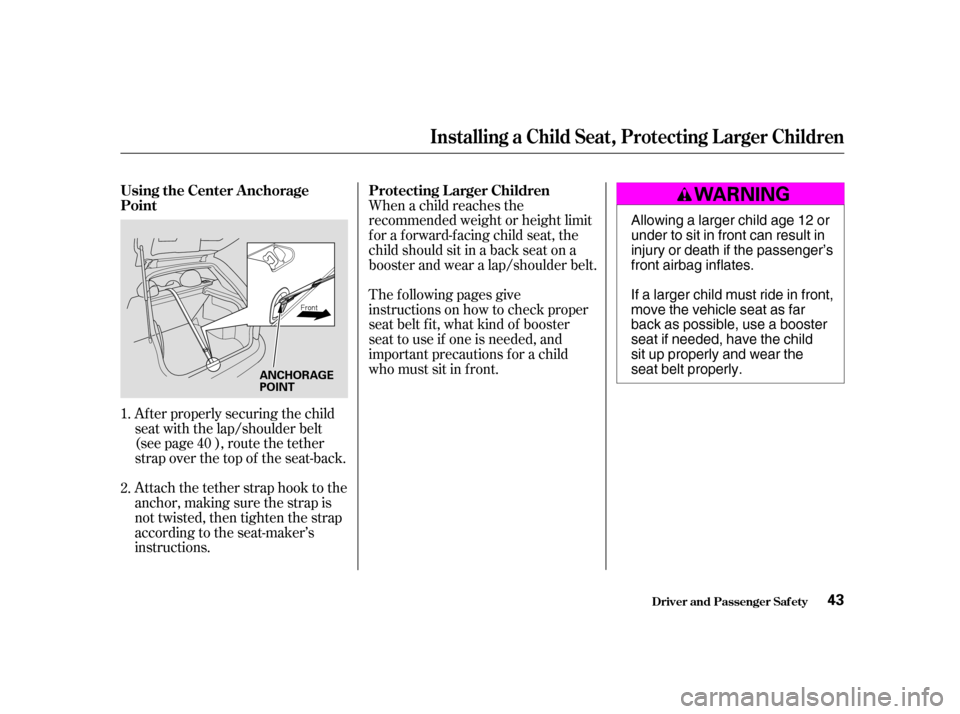

Af ter properly securing the child
seat with the lap/shoulder belt
(see page ), route the tether
strap over the top of the seat-back.
Attach the tether strap hook to the
anchor, making sure the strap is
not twisted, then tighten the strap
according to the seat-maker’s
instructions.When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster and wear a lap/shoulder belt.
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in f ront.
1. 40
2.
Installing a Child Seat, Protecting L arger Children
Driver and Passenger Saf ety
Using the Center A nchorage
Point
Protecting L arger Children
43
ANCHORAGE
POINT
Allowing a larger child age 12 or
under to sit in front can result in
injury or death if the passenger’s
front airbag inflates.
If a larger child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
— —y
y
() y y
Page 43 of 215

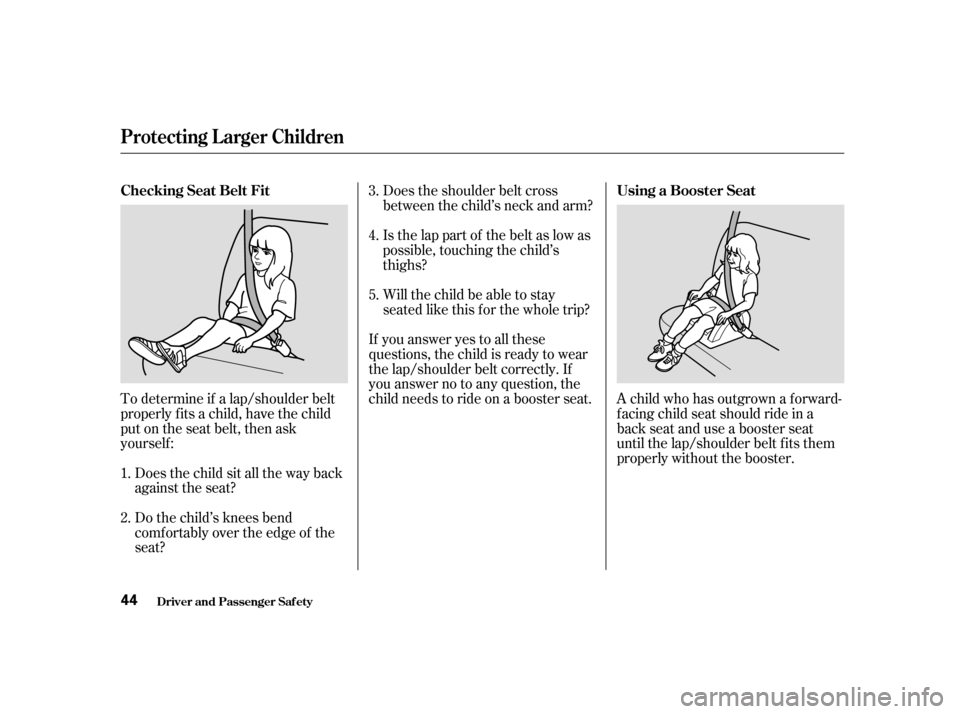

To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat? Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a f orward- f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.
1. 2. 3.4. 5.
Checking Seat Belt Fit
Using a Booster Seat
Protecting L arger Children
Driver and Passenger Saf ety
44
— —y
y
() y y
Page 44 of 215
Some states also require children to
use a booster until they reach a
given age or weight (e.g., 6 years or
60lbs).Besuretocheckcurrent
laws in the state or states where you
intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets f ederal
saf ety standards and that you f ollow
the booster seat maker’s instructions.The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
ages 12 and under be properly
restrained in the back seat.
If the passenger’s f ront airbag
inf lates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
Thesideairbagalsoposesrisks.If
any part of a larger child’s body is in
the path of a deploying side airbag,
the child could receive possibly
serious injuries.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster.
If a child who uses a booster must be
in f ront, move the vehicle seat as f ar
back as possible and be sure the
child is wearing the seat belt
properly.When Can a Larger Child Sit in Front
Protecting L arger Children
Driver and Passenger Saf ety 45
— —y
y
() y y
Page 45 of 215
If you decide that a child can saf ely
ride up f ront, be sure to:Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly positioned and secured. This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
If they do, they could
be very seriously injured in a crash.
Devices intended to improve a
child’s comf ort or reposition the
shoulder part of a seat belt can make
the belt less ef f ective, and increase
the chance of serious injury in a
crash.
Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in the
f ront. There are other important
f actors you should consider.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see page ). If the seat
belt does not f it properly, with or
without the child sitting on a booster,
the child should not sit in the f ront. Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
44 Additional Saf ety Precautions
Do not let a child wear a seat belt
across t he neck.
Do not let a child put the shoulderpart of a seat belt behind t he back orunder t he arm.
T wo children should never use t hesame seat belt .
Do not put any accessories on a seatbelt.
Maturity
Physical Size
Protecting L arger Children
Driver and Passenger Saf ety
46
— —y
y
() y y
Page 46 of 215
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
Have the exhaust system inspected
f or leaks whenever:The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side. High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage. With the hatch open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
hatch open, open all the windows
and set the heating and cooling
system as shown below.
If you must sit in your parked vehicle,
even in an unconf ined area, with the
engine running, adjust the heating
and cooling system as f ollows:
Select the Fresh Air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
1.2.3.4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
47
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
— —y
y
() y y
Page 47 of 215

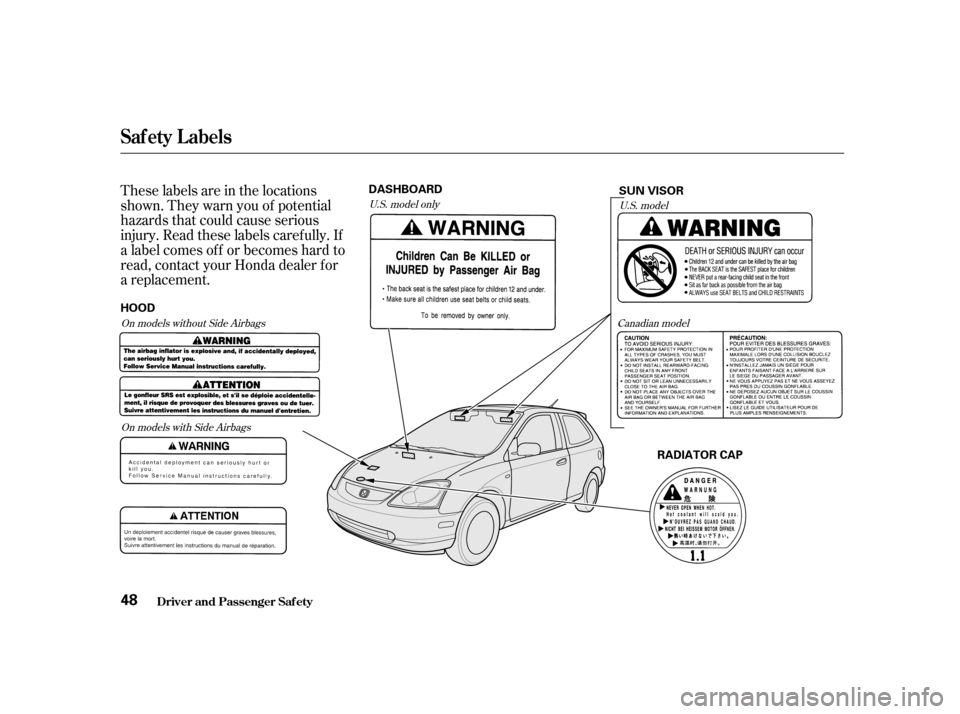

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully. If
a label comes of f or becomes hard to
read, contact your Honda dealer f or
a replacement.U.S. model onlyU.S. model
Canadian model
On models without Side Airbags
On models with Side Airbags
Saf ety L abels
Driver and Passenger Saf ety
48
HOOD
SUN VISOR
RADIATOR CAP
DASHBOARD
— —y
y
() y
y
Page 48 of 215
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations . 50
..........
Instrument Panel Indicators . 51
.............................................
Gauges . 57
...............
Odometer/Trip Meter . 57
..................................
Fuel Gauge . 57
...................
Temperature Gauge . 58
Controls Near the Steering ...........................................
Wheel . 59
.
Windshield Wipers and Washers . 60
...........
Turn Signal and Headlights . 61
........
Instrument Panel Brightness . 62
.................
Hazard Warning Button . 62
.................
Rear Window Def ogger . 62
..........
Steering Wheel Adjustment . 63
...............................
Keys and Locks . 64
........................
Immobilizer System . 65
................................
Ignition Switch . 66
......................................
Door Locks . 67
......................
Power Door Locks . 67
............................................
Hatch . 68
.......................
Remote Transmitter . 69
.................................................
Seats . 71
...........................
Cargo Area Cover . 75
..............................
Power Windows . 76
.........................................
Moonroof . 78
.............................................
Mirrors . 79 .................................
Parking Brake . 80
.................................
Interior Lights . 81
...........
Interior Convenience Items . 82
.......................
Beverage Holders . 83
....................................
Glove Box . 83
..........
Accessory Power Sockets . 83
...............
Console Compartment . 83
Instruments and Controls
Inst rument s and Cont rols 49
— —y
y
() y y
Page 49 of 215
Control L ocations
Inst rument s and Cont rols
50 MIRROR CONTROLS
POWER DOOR LOCK
SWITCH
POWER WINDOW
SWITCHES
FUEL FILL DOOR
RELEASE
HOOD RELEASE HANDLE M/T
HEATING/COOLING CONTROLS
AUDIO SYSTEM
GAUGES
INSTRUMENT PANEL
(P. 51)
(P. 57)
(P. 79)
(P. 67)
(P. 76)
(P. 111) (P. 90)
(P. 86)
(P. 112) ACCESSORY POWER
SOCKET(P. 124)
(P. 83)
— —y
y
() y y
Page 50 of 215
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in thetext.
Inst rument s and Cont rols
Instrument Panel Indicators
51
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
HATCH-OPEN INDICATOR
CHARGING SYSTEM INDICATOR
LOW OIL PRESSURE
INDICATOR
MALFUNCTION
INDICATOR LAMP
IMMOBILIZER SYSTEM INDICATOR CRUISE CONTROL
INDICATOR
HIGH BEAM INDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATOR ELECTRIC POWER
STEERING INDICATOR
LOW FUEL
INDICATOR
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
MAINTENANCE
REQUIRED
INDICATOR
(P. 53) (P. 54)
(P. 56) (P. 53)
(P. 54)
(P. 55)
(P. 54)
(P. 52)
(P. 52)
(P. 55)
(P. 53, 179)
(P. 52, 177)
(P. 52, 177)
(P. 53, 178) SIDE AIRBAG OFF
INDICATOR
SEAT BELT REMINDER INDICATOR
(P. 52)
— —y
y
() y y
