HONDA CIVIC HATCHBACK 2017 10.G User Guide

10
Quick Reference Guide

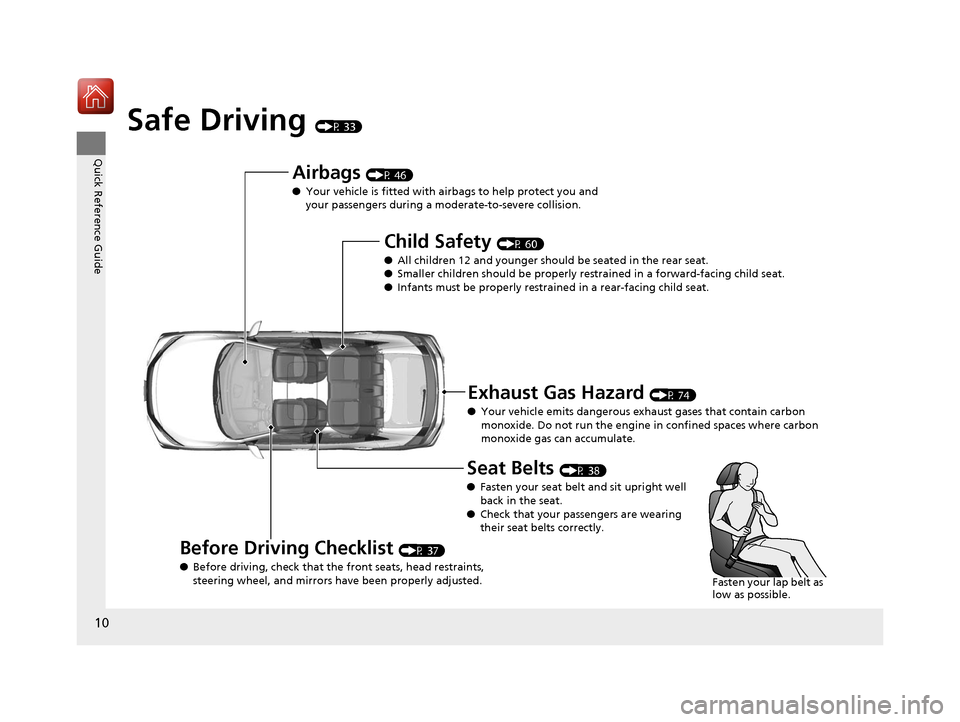

Safe Driving (P 33)
Airbags (P 46)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 74)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 10 ページ ２０１６年６月８日　水曜日　午後 ２時８分

11
Quick Reference Guide

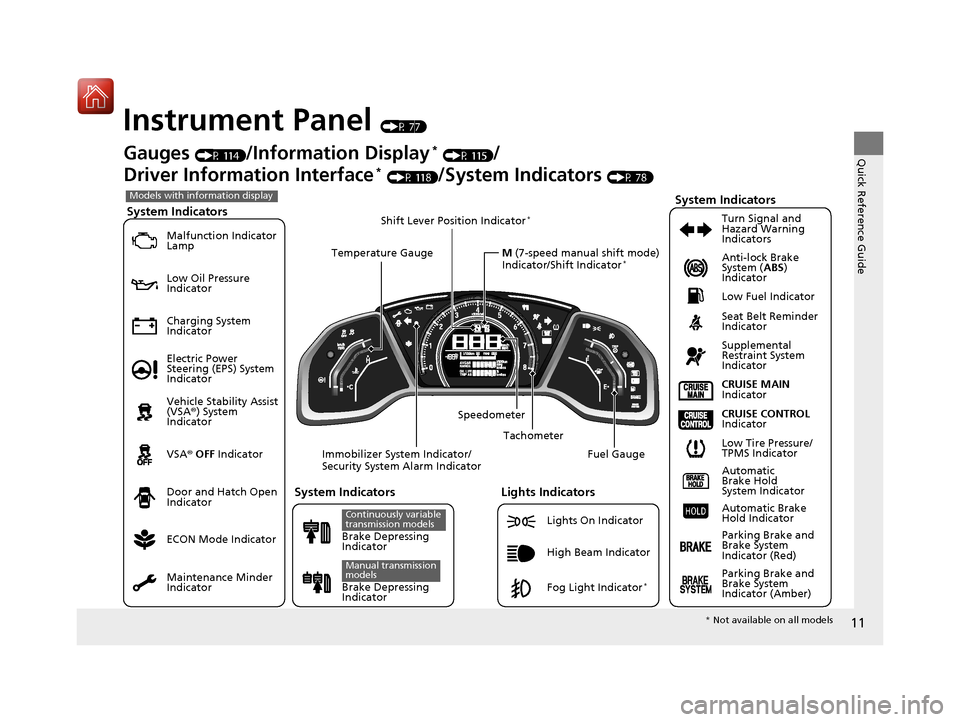

Instrument Panel (P 77)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator Low Tire Pressure/
TPMS Indicator
Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door and Hatch Open
Indicator CRUISE MAIN

Indicator
Tachometer Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P 114)/Information Display* (P 115)/
Driver Information Interface
* (P 118)/System Indicators (P 78)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
Automatic
Brake Hold
System Indicator
Automatic Brake
Hold Indicator
Temperature Gauge
Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
Indicator
Manual transmission
models
Fog Light Indicator*
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Speedometer
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 11 ページ ２０１６年６月８日　水曜日　午後 ２時８分

12

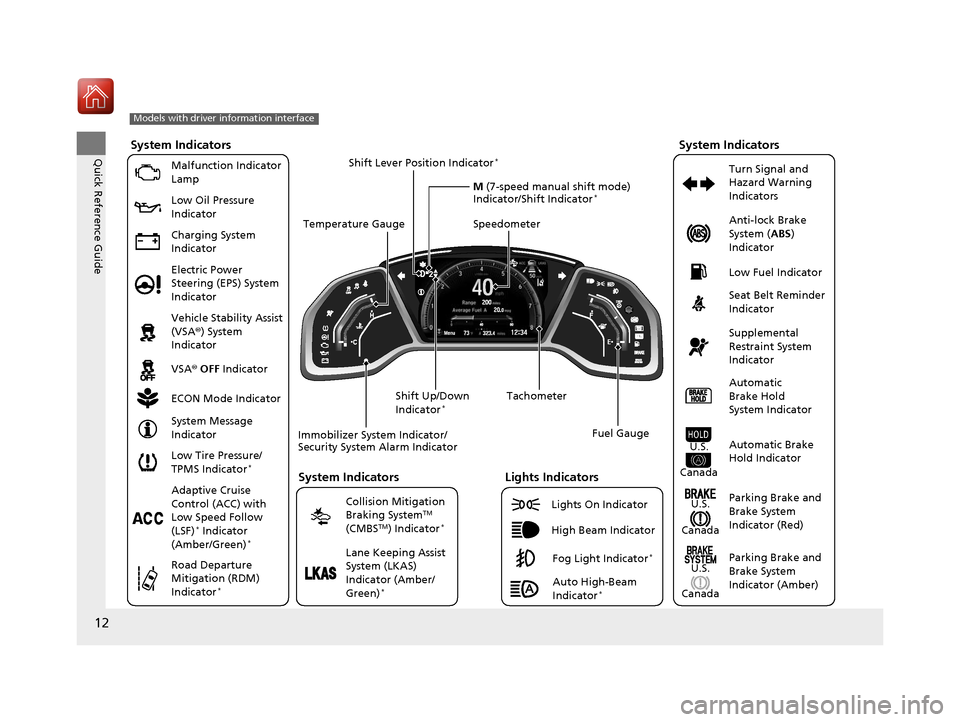

Quick Reference Guide
200
323.412‰34Menu40 80
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator Anti-lock Brake
System (
ABS)
Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Speedometer
Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator Shift Lever Position Indicator
*
Low Fuel Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic
Brake Hold
System Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF)
* Indicator
(Amber/Green)*
System Message
Indicator
Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
*
M (7-speed manual shift mode)
Indicator/Shift Indicator*
Auto High-Beam
Indicator*
Shift Up/Down
Indicator*
17 CIVIC 5D (KA KC KL)-31TGG6000.book 12 ページ ２０１６年６月８日　水曜日　午後 ２時８分

13
Quick Reference Guide

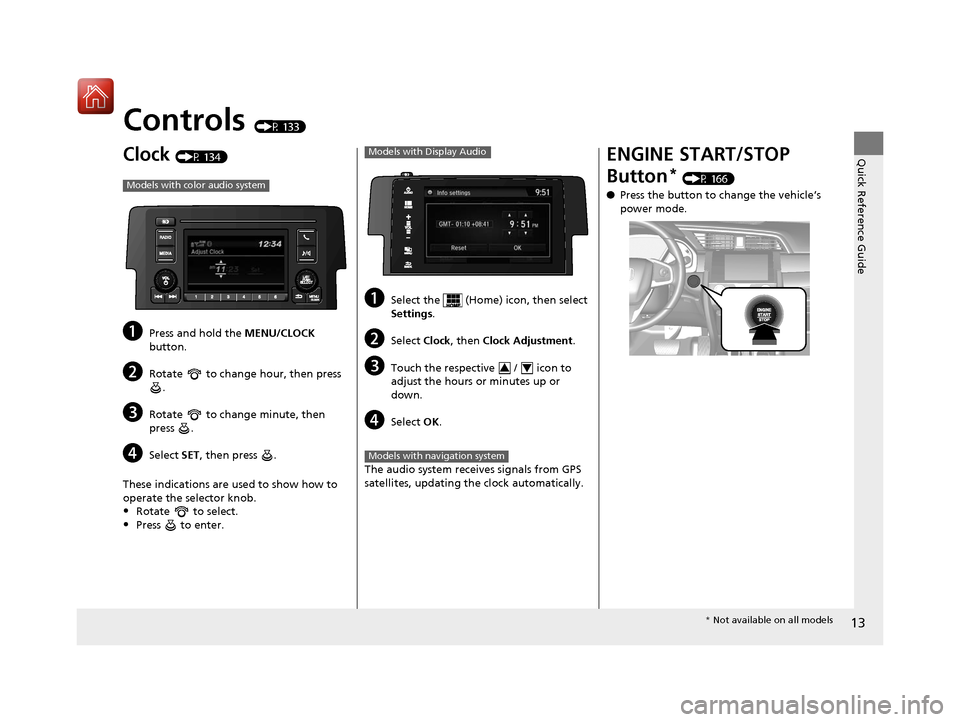

Controls (P 133)
Clock (P 134)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aSelect the (Home) icon, then select
Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The audio system receives signals from GPS
satellites, updating the clock automatically.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 166)
● Press the button to change the vehicle’s
power mode.
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 13 ページ ２０１６年６月８日　水曜日　午後 ２時８分

14
Quick Reference Guide

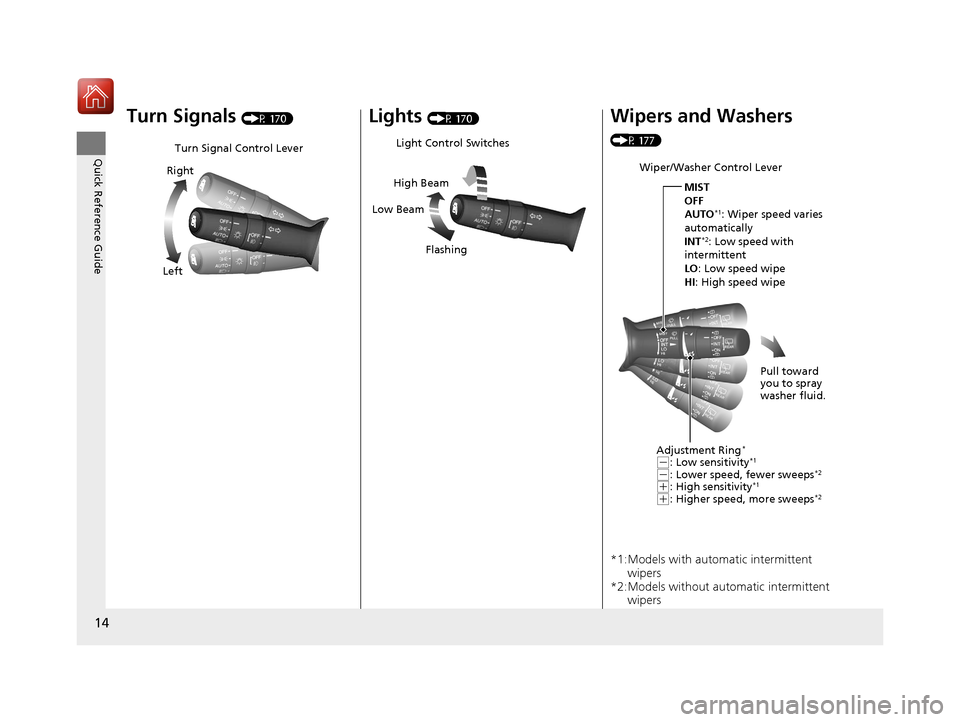

Turn Signals (P 170)
Turn Signal Control Lever
Right
Left
Lights (P 170)
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 177)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
Adjustment Ring
*
(-: Low sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO: Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 14 ページ ２０１６年６月８日　水曜日　午後 ２時８分

15
Quick Reference Guide

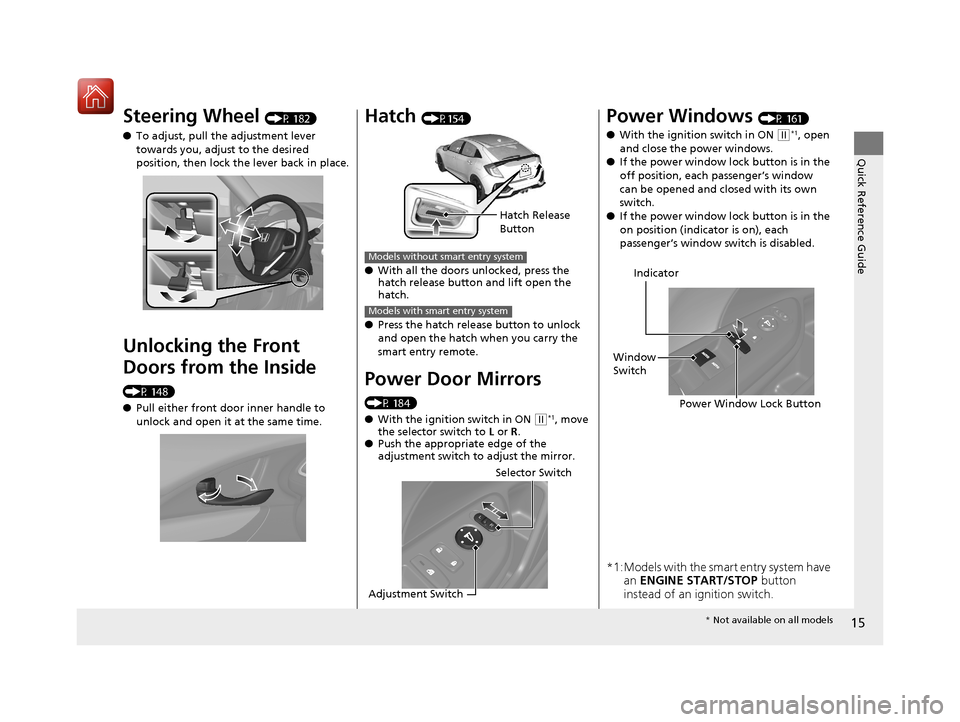

Steering Wheel (P 182)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 148)
●Pull either front door inner handle to
unlock and open it at the same time.
Hatch (P154)
● With all the doors unlocked, press the
hatch release button and lift open the
hatch.
● Press the hatch release button to unlock
and open the hatch when you carry the
smart entry remote.
Power Door Mirrors
(P 184)
●With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Hatch Release
Button
Models without smart entry system
Models with smart entry system
Selector Switch
Adjustment Switch
Power Windows (P 161)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 15 ページ ２０１６年６月８日　水曜日　午後 ２時８分

16
Quick Reference Guide

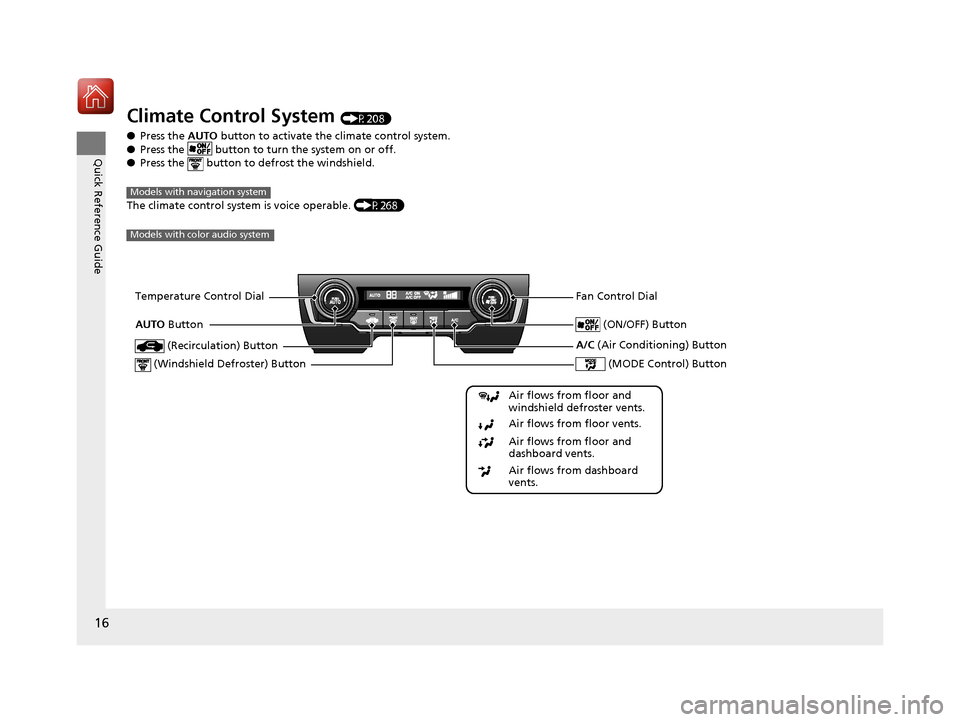

Climate Control System (P208)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P268)
Models with navigation system
Models with color audio system
Fan Control Dial
(Windshield De froster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) ButtonAUTO Button
A/C (Air Conditioning) Button
17 CIVIC 5D (KA KC KL)-31TGG6000.book 16 ページ ２０１６年６月８日　水曜日　午後 ２時８分

17
Quick Reference Guide

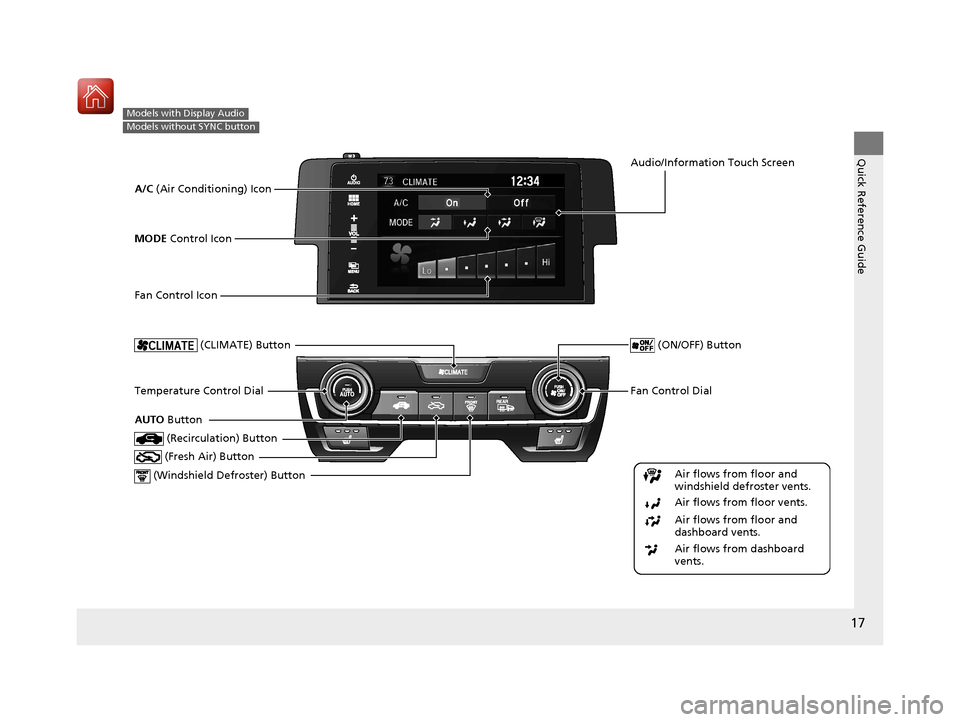

Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield De froster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE) Button
(Fresh Air) Button
(ON/OFF) Button
AUTO Button
Audio/Information Touch Screen
A/C (Air Conditioning) Icon
MODE Control Icon
Fan Control Icon
17 CIVIC 5D (KA KC KL)-31TGG6000.book 17 ページ ２０１６年６月８日　水曜日　午後 ２時８分

18
Quick Reference Guide

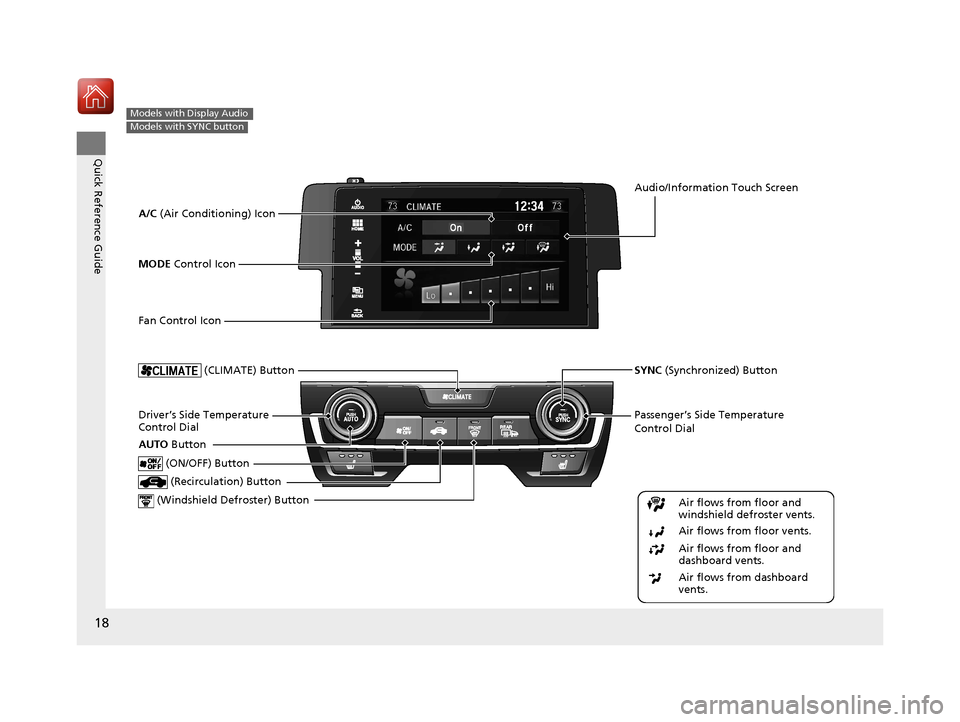

Models with Display Audio
Models with SYNC button
Passenger’s Side Temperature
Control Dial
(Windshield De froster) ButtonDriver’s Side Temperature
Control Dial
(Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Touch Screen
SYNC (Synchronized) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
A/C (Air Conditioning) Icon
MODE Control Icon
Fan Control Icon
17 CIVIC 5D (KA KC KL)-31TGG6000.book 18 ページ ２０１６年６月８日　水曜日　午後 ２時８分

Quick Reference Guide
19

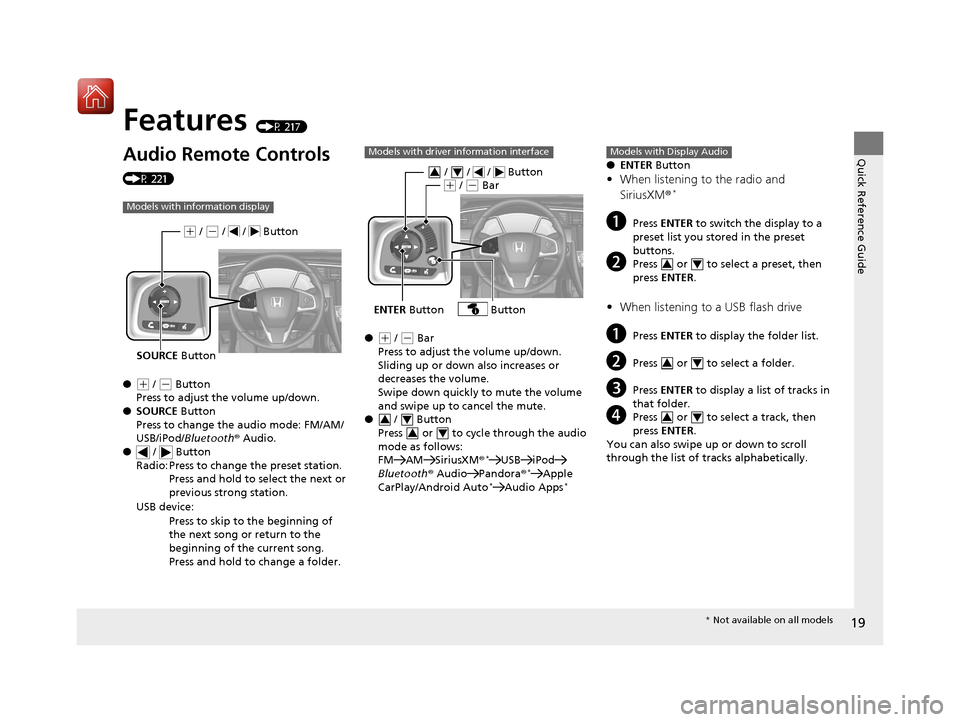

Features (P 217)
Audio Remote Controls
(P 221)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
USB/iPod/Bluetooth® Audio.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with information display
SOURCE Button
(+ / (- / / Button
●(+ / (- Bar
Press to adjust the volume up/down.
Sliding up or down also increases or
decreases the volume.
Swipe down quickly to mute the volume
and swipe up to cancel the mute.
● / Button
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ®
*USB iPod
Bluetooth ® Audio Pandora®*Apple
CarPlay/Android Auto*Audio Apps*
Models with driver information interface
ENTER Button
/ / / Button34(+ / (- Bar
Button
34
34
● ENTER Button
•When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
You can also swipe up or down to scroll
through the list of tracks alphabetically.
Models with Display Audio
34
34
34
* Not available on all models
