HONDA CIVIC HATCHBACK 2018 (in English) Owner's Guide

Quick Reference Guide
19

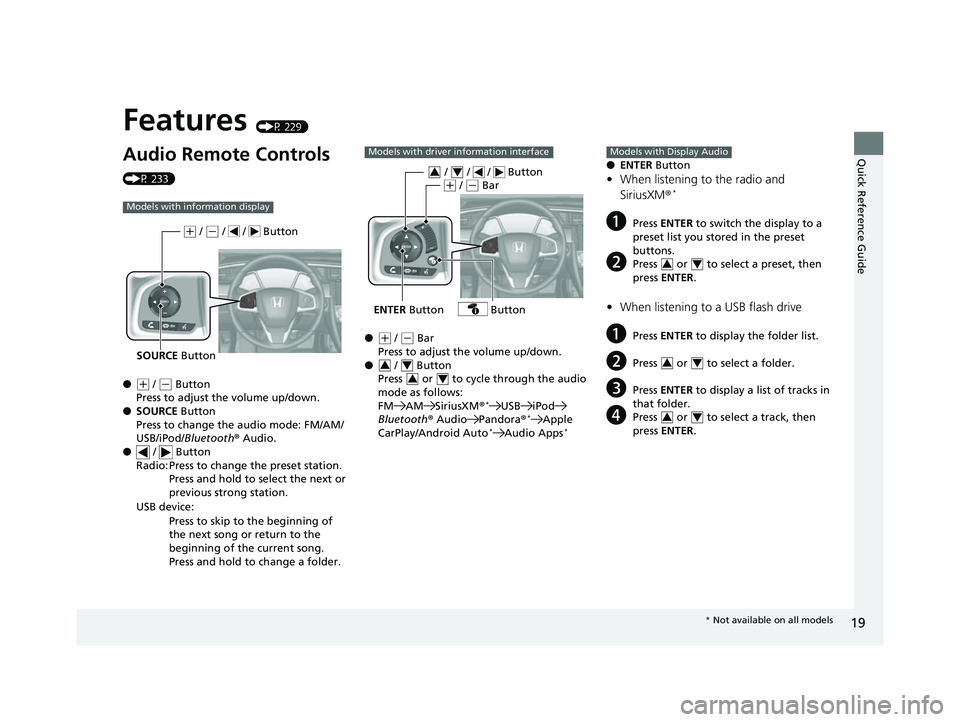

Features (P 229)
Audio Remote Controls
(P 233)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
USB/iPod/Bluetooth® Audio.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with information display
SOURCE Button
(+ / (- / / Button
●(+ / (- Bar
Press to adjust the volume up/down.
● / Button
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ®
*USB iPod
Bluetooth ® Audio Pandora®*Apple
CarPlay/Android Auto*Audio Apps*
Models with driver information interface
ENTER Button
/ / / Button34(+ / (- Bar
Button
34
34
● ENTER Button
•When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
Models with Display Audio
34
34
34
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 19 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

20
Quick Reference Guide

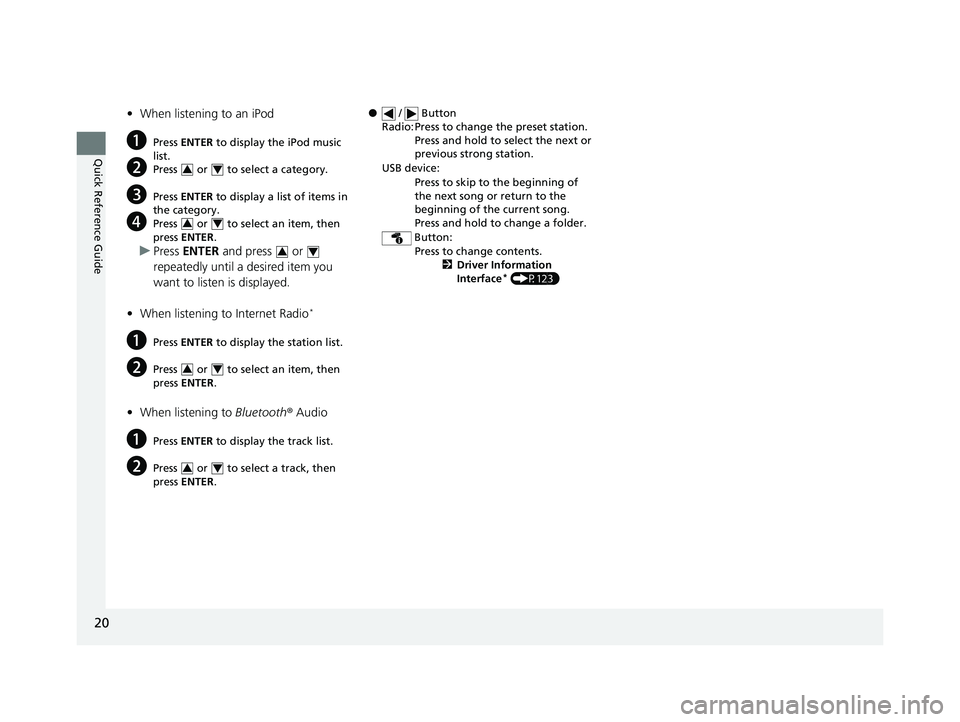

•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
• When listening to Internet Radio
*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth ® Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Button: Press to change contents. 2Driver Information
Interface
* (P123)
18 CIVIC 5D (KA KC KL)-31TGG6100.book 20 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

21
Quick Reference Guide

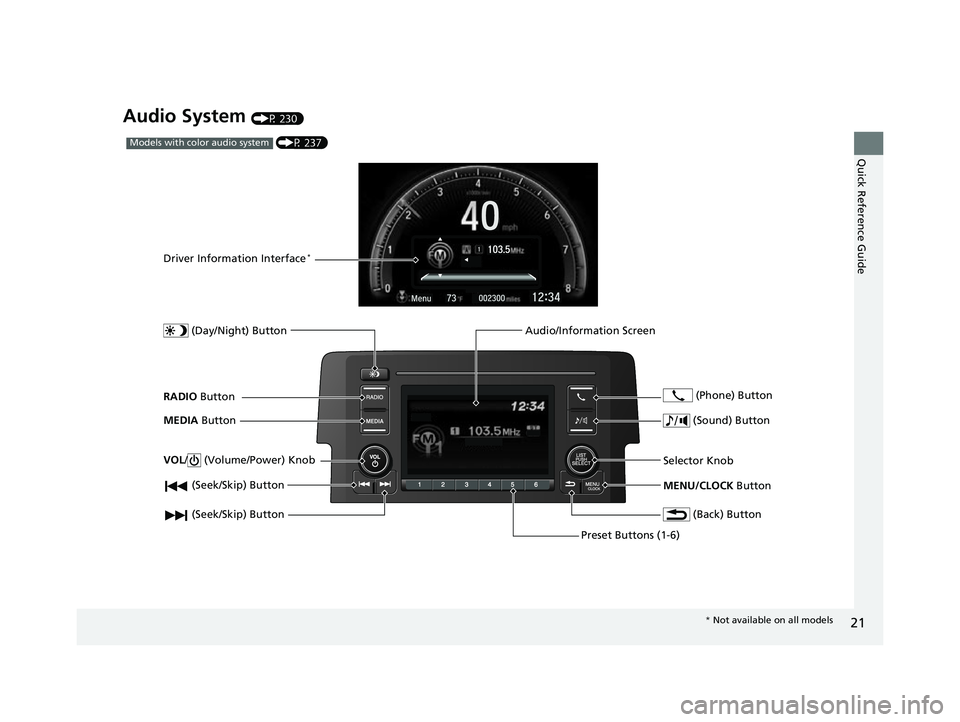

Audio System (P 230)
(P 237)Models with color audio system
(Seek/Skip) Button
RADIO Button
Driver Information Interface*
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
*
Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 21 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

22
Quick Reference Guide

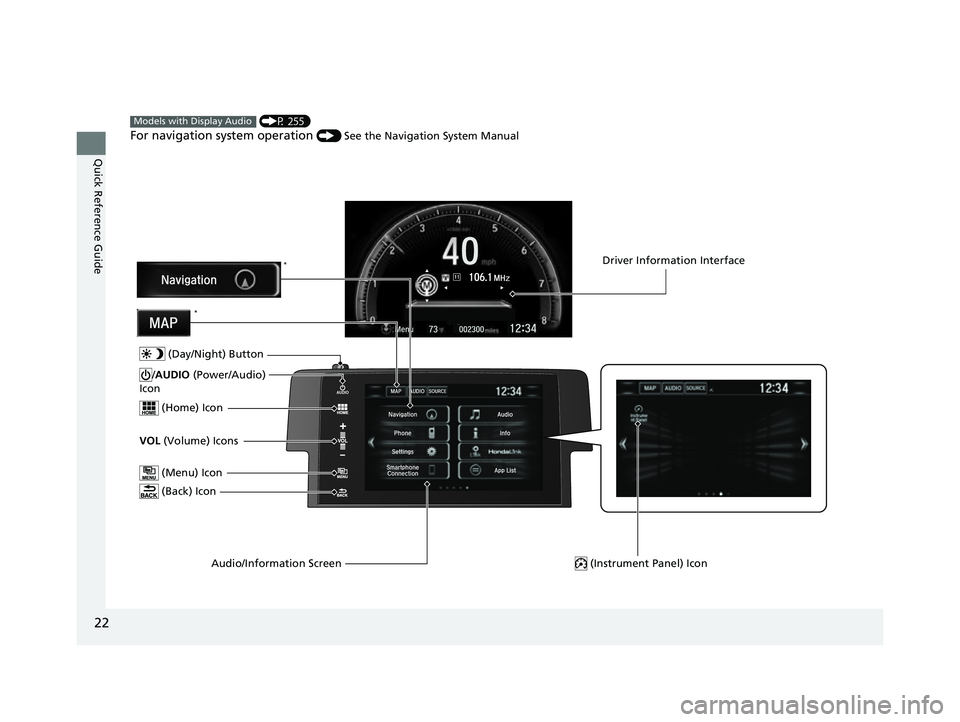

(P 255)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Menu) Icon
VOL (Volume) Icons
(Home) Icon
(Back) Icon
Audio/Information Screen
/AUDIO
(Power/Audio)
Icon
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
*
18 CIVIC 5D (KA KC KL)-31TGG6100.book 22 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

23
Quick Reference Guide

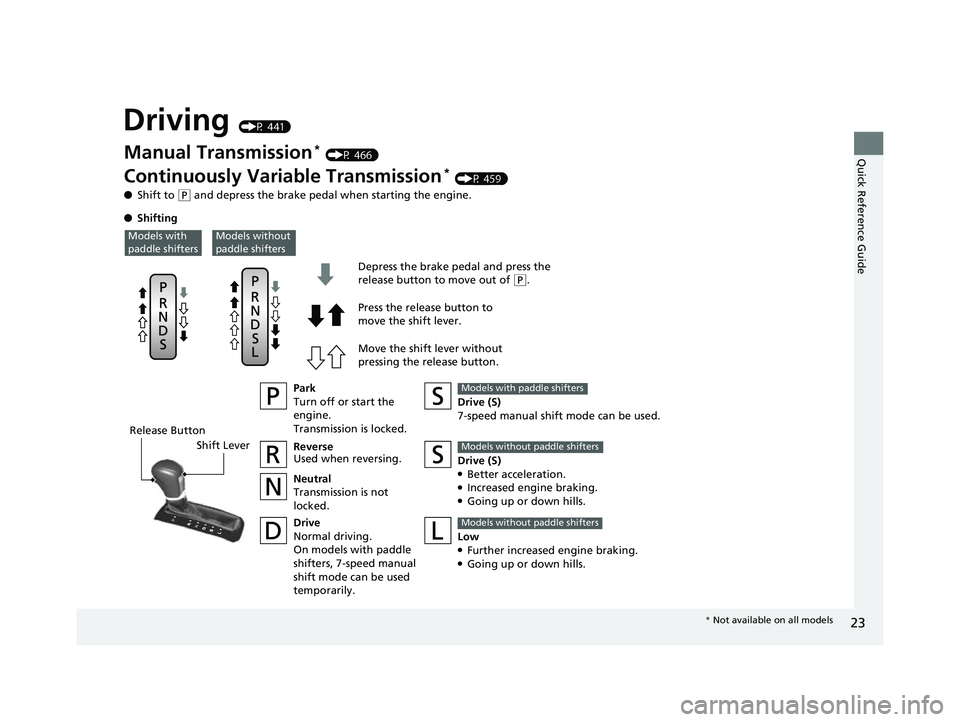

Driving (P 441)
Release ButtonShift Lever Depress the brake pedal and press the
release button to move out of
(
P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Manual Transmission* (P 466)
Continuously Variable Transmission* (P 459)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the
engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not
locked.
Drive
Normal driving.
On models with paddle
shifters, 7-speed manual
shift mode can be used
temporarily. Drive (S)
7-speed manual shift mode can be used.
Models with paddle shifters
Low●Further increased engine braking.●Going up or down hills.
Models without paddle shifters
Models without
paddle shiftersModels with
paddle shifters
Drive (S)●Better acceleration.●Increased engine braking.●Going up or down hills.
Models without paddle shifters
*
Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 23 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

24

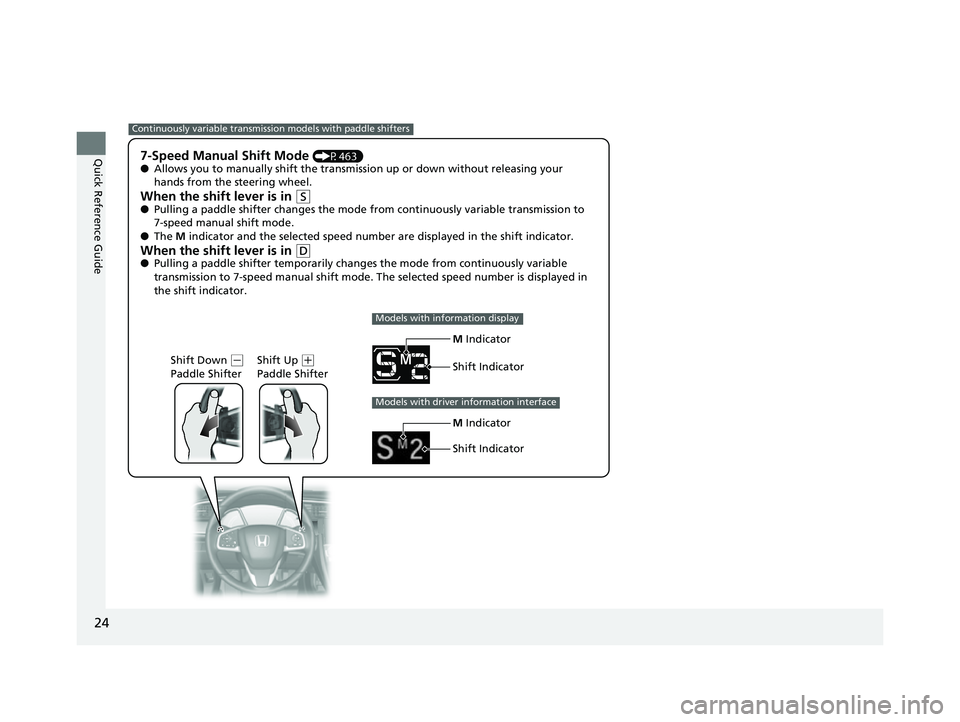

Quick Reference Guide7-Speed Manual Shift Mode (P463)
● Allows you to manually shift the transmi ssion up or down without releasing your
hands from the steering wheel.
When the shift lever is in (S● Pulling a paddle shifter changes the mode from continuously variable transmission to
7-speed manual shift mode.
● The M indicator and the selected speed number are displayed in the shift indicator.
When the shift lever is in (D●Pulling a paddle shifter temporarily changes the mode from continuously variable
transmission to 7-speed manual shift mode. The selected speed number is displayed in
the shift indicator.
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Continuously variable transmission models with paddle shifters
Models with information display
Models with driver information interface
M Indicator
Shift Indicator
Shift Indicator M Indicator
18 CIVIC 5D (KA KC KL)-31TGG6100.book 24 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

25
Quick Reference Guide
VSA® On and Off (P 521)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA®
function, press and ho ld the button until
you hear a beep.
Cruise Control* (P 473)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
CMBSTM* On and Off
(P 545)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS)* (P 527)
● Detects a change in tire conditions and overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically every time you start the engine.
● A calibration procedure must be performed when certain conditions arise.
Refueling (P 553)
Fuel recommendation:
Unleaded gasoline, pump octane number 87 or higher
required
Unleaded premium gasoline, pump octane number 91 or
higher recommended
Fuel tank capacity: 12.39 US gal (46.9 L)Models without the label “PREMIUM RECOMMENDED”
Models with the label “PREMIUM RECOMMENDED”
aUnlock the driver’s
door.
2 Locking/Unlocking
the Doors from
the Inside
(P158)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Wait for five seconds
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 25 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

26
Quick Reference Guide
Honda SensingTM *
Honda SensingTM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bumper next to the fog
light
* and a front sensor camera mounted to
the interior side of the windshield, behind
the rearview mirror.
The camera is
located behind the
rearview mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is in
the lower bumper
next to the fog light
*.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
* (P 479)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Adaptive Cruise Control
(ACC)
* (P 495)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Road Departure
Mitigation (RDM) System
(P 509)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P 513)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 541)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 26 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

27
Quick Reference Guide
Maintenance (P 559)
Under the Hood (P 572)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake/clutch
* fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 587)
● Inspect all lights regularly.
Wiper Blades (P 597)
● Replace blades if they leave streaks
across the windshield.
Tires (P 602)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
Handling Summer Only tires and Ultra
High Performance (UHP) tires in low
ambient temperatures. 2 Cold Weather Driving (P612)
2.0 L engine models
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 27 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

28
Quick Reference Guide

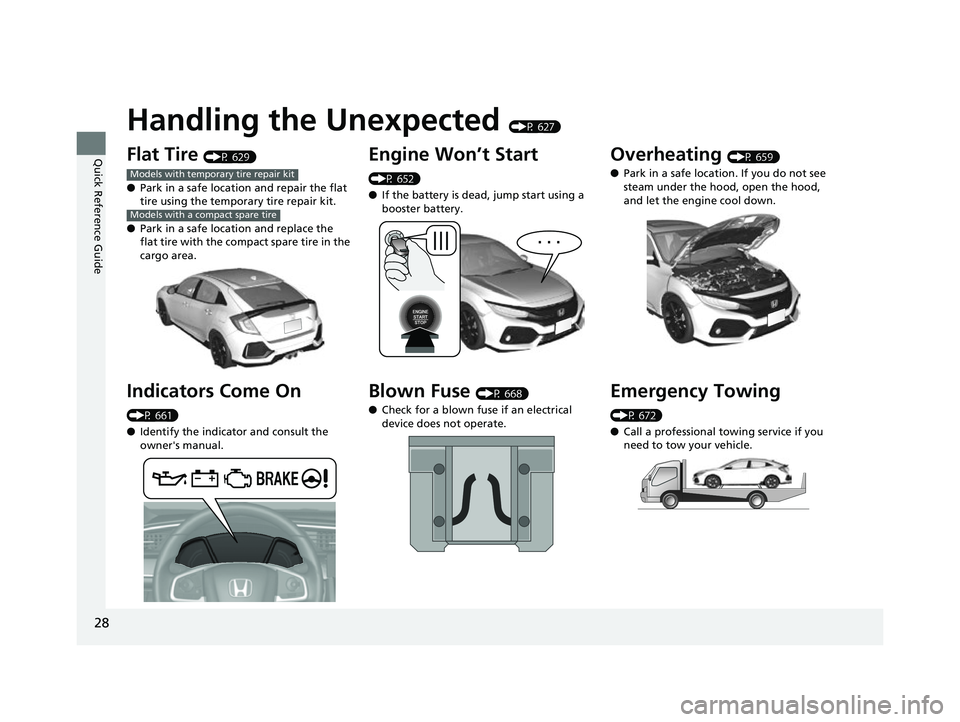

Handling the Unexpected (P 627)
Flat Tire (P 629)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P 661)
●Identify the indicator and consult the
owner's manual.
Models with temporary tire repair kit
Models with a compact spare tire
Engine Won’t Start
(P 652)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 668)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 659)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 672)
●Call a professional towing service if you
need to tow your vehicle.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 28 ページ ２０１７年１２月２７日　水曜日　午前１１時２分
