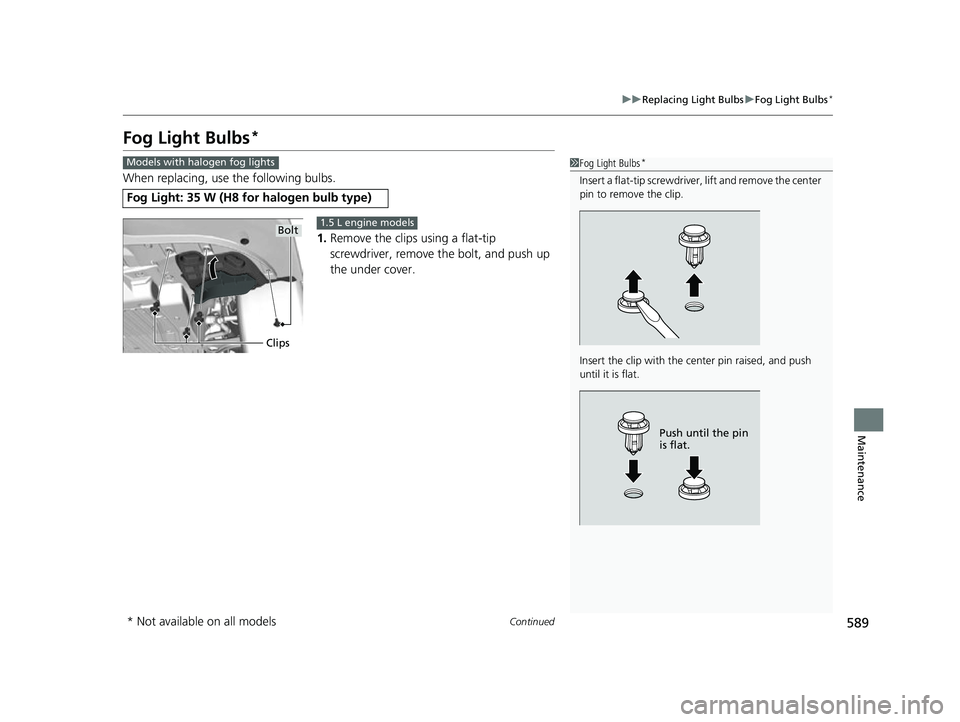

HONDA CIVIC HATCHBACK 2018 Owner's Manual (in English)

589
uuReplacing Light Bulbs uFog Light Bulbs*
Continued
Maintenance
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the clips using a flat-tip
screwdriver, remove the bolt, and push up
the under cover.
Fog Light: 35 W (H8 for halogen bulb type)
1Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the pin
is flat.
Models with halogen fog lights
Clips
Bolt1.5 L engine models
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 589 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

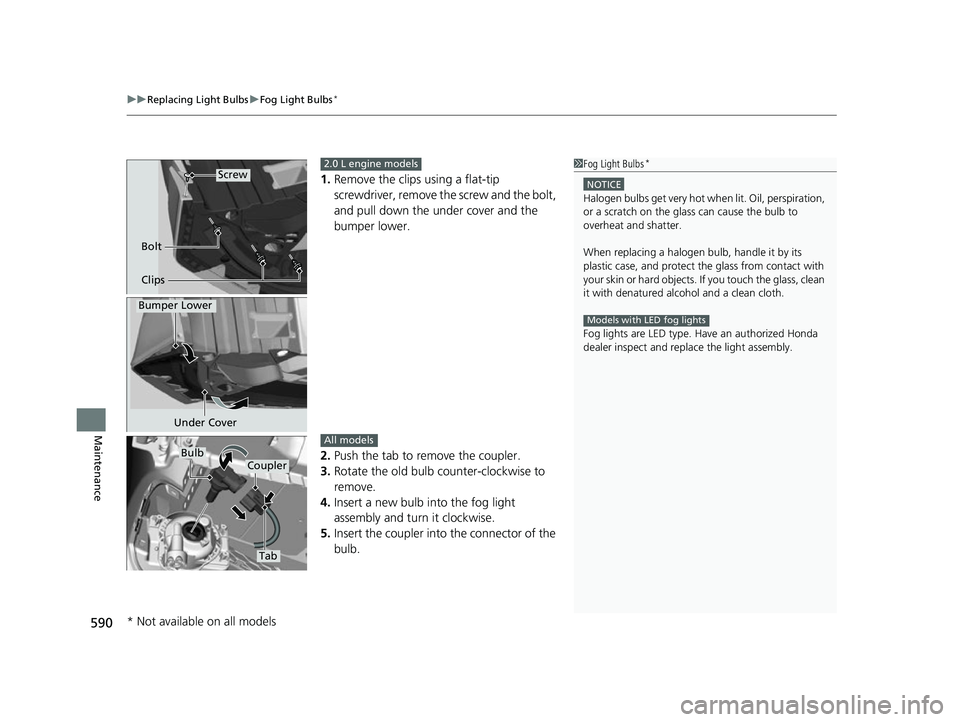

uuReplacing Light Bulbs uFog Light Bulbs*
590
Maintenance
1. Remove the clips using a flat-tip
screwdriver, remove the screw and the bolt,
and pull down the under cover and the
bumper lower.
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the fog light
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.
1Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Fog lights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with LED fog lights
Screw
Bolt
Clips
2.0 L engine models
Bumper Lower
Under Cover
Tab
CouplerBulbAll models
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 590 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

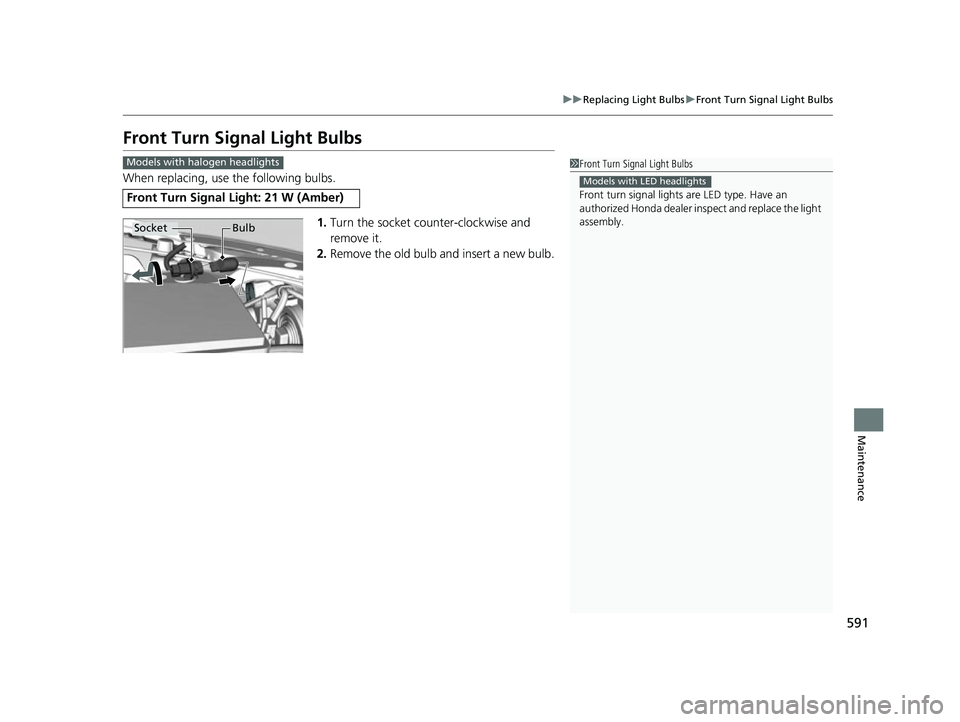

591
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Light: 21 W (Amber)
1Front Turn Signal Light Bulbs
Front turn signal lights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with LED headlights
Models with halogen headlights
Socket Bulb
18 CIVIC 5D (KA KC KL)-31TGG6100.book 591 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

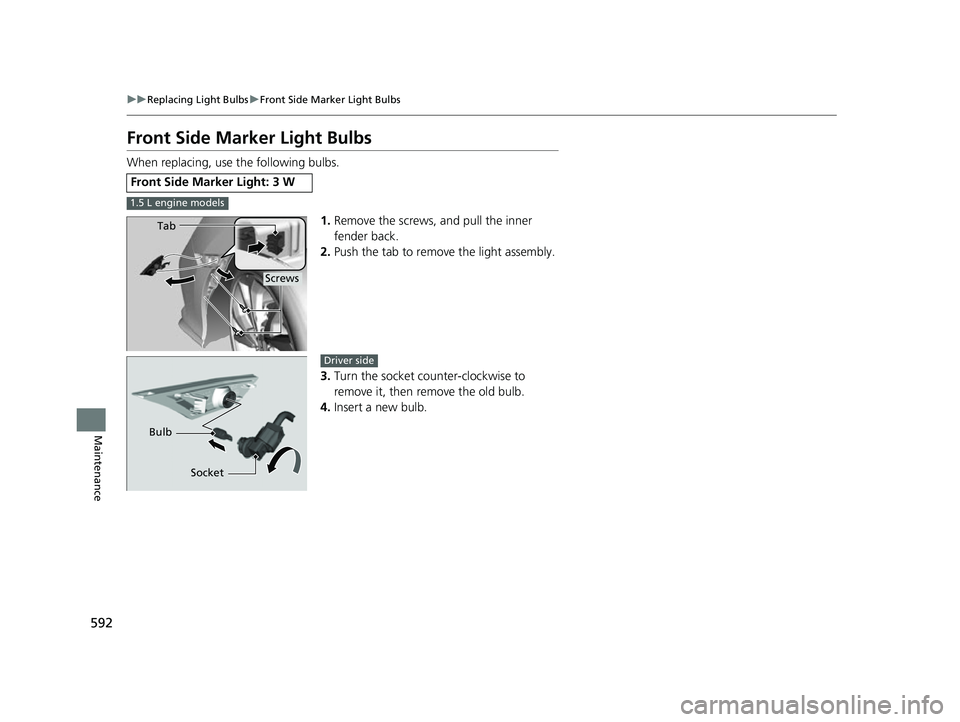

592
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Remove the screws, and pull the inner
fender back.
2. Push the tab to remove the light assembly.
3. Turn the socket c ounter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
Front Side Marker Light: 3 W
1.5 L engine models
Tab
Screws
Socket
Bulb
Driver side
18 CIVIC 5D (KA KC KL)-31TGG6100.book 592 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

593
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Continued
Maintenance
3. Turn the socket clockwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
1. Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel to
the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the screws, then pull the inner
fender back.
Bulb
Socket
Passenger side
2.0 L engine models
Screws
Inner
Fender
18 CIVIC 5D (KA KC KL)-31TGG6100.book 593 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

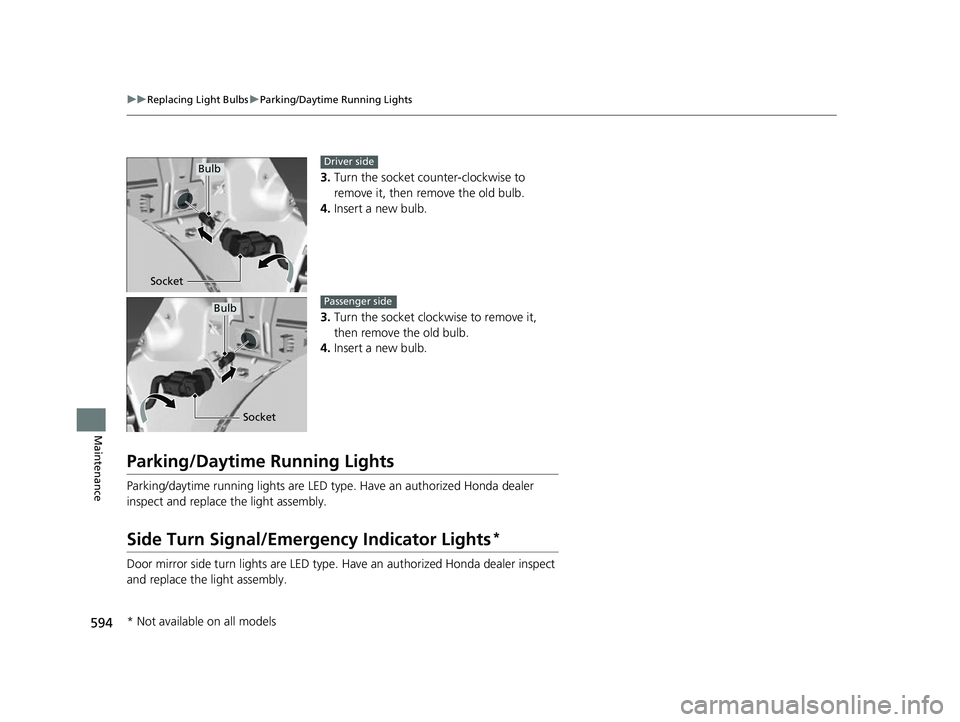

594
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
3. Turn the socket c ounter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
3. Turn the socket clockwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bulb
SocketDriver side
Bulb SocketPassenger side
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 594 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

595
uuReplacing Light Bulbs uBrake Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance
Brake Light, Rear Turn Signal Light and Back-Up
Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake Light: 21 W
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 16 W
Bolts
Bulbs
Sockets
Bulb
Socket
18 CIVIC 5D (KA KC KL)-31TGG6100.book 595 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

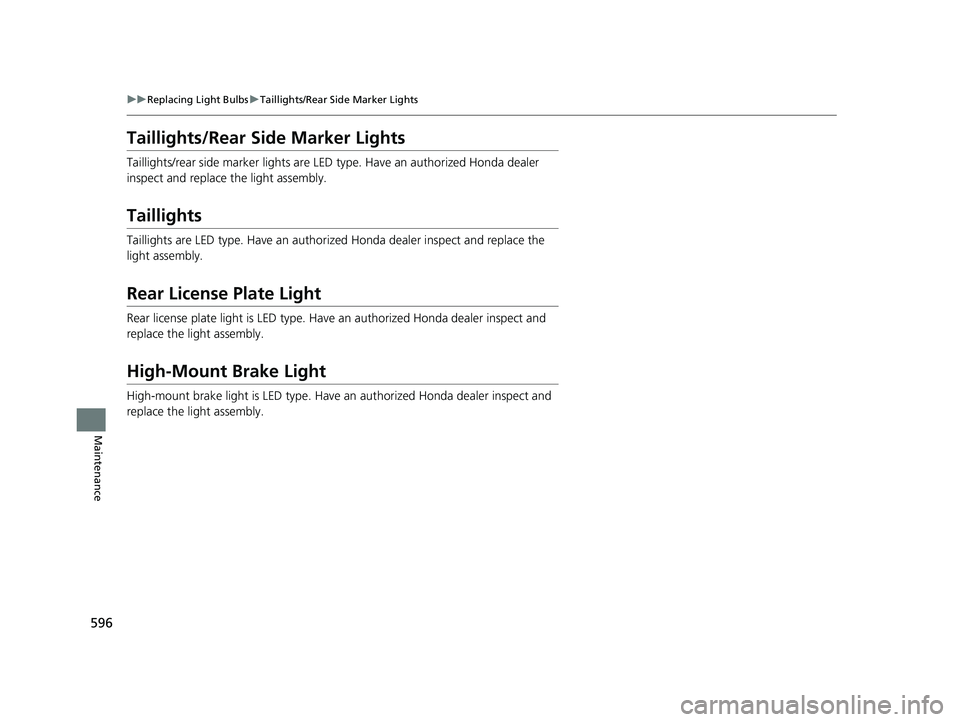

596
uuReplacing Light Bulbs uTaillights/Rear Side Marker Lights
Maintenance
Taillights/Rear Side Marker Lights
Taillights/rear side marker lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Taillights
Taillights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 596 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

597Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Turn the ignition switch to LOCK (0*1.
2. While holding the wiper switch in the MIST
position, turn the ignition switch to ON
(w*1, then to LOCK (0*1.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 597 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

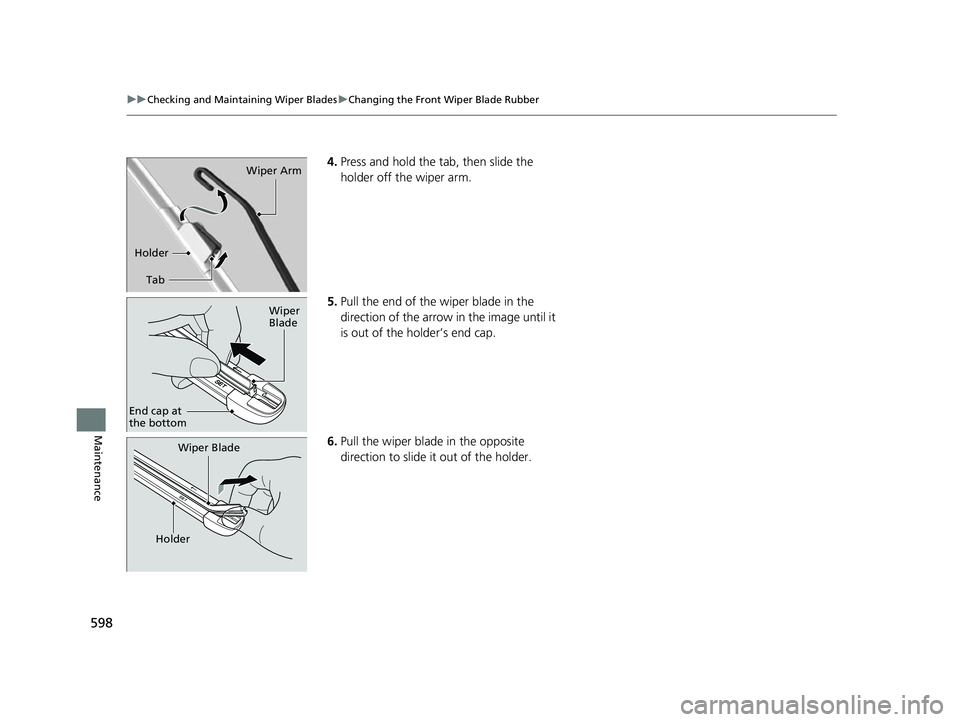

598
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance
4. Press and hold the tab, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.
Tab
Holder
Wiper Arm
Wiper
Blade
End cap at
the bottom
Wiper Blade
Holder
