HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

159
uuOpening and Closing the Hatch uUsing the Hatch Release Button
Continued
Controls

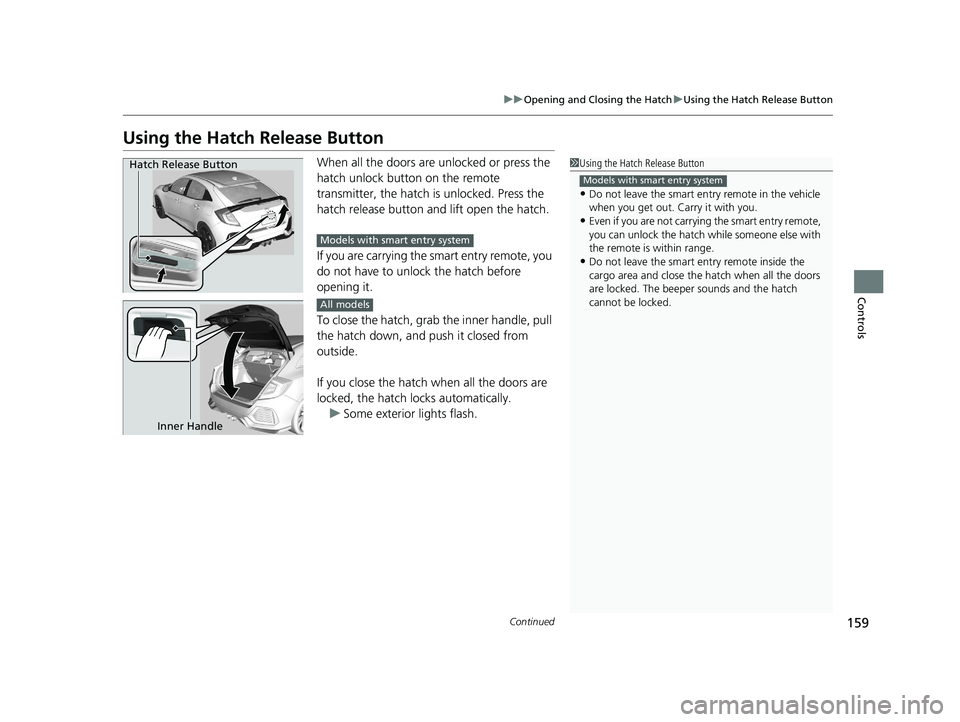

Using the Hatch Release Button
When all the doors are unlocked or press the
hatch unlock button on the remote
transmitter, the hatch is unlocked. Press the
hatch release button an d lift open the hatch.
If you are carrying the smart entry remote, you
do not have to unlock the hatch before
opening it.
To close the hatch, grab the inner handle, pull
the hatch down, and push it closed from
outside.
If you close the hatch when all the doors are
locked, the hatch locks automatically. u Some exterior lights flash.1Using the Hatch Release Button
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can unlock the hatch while someone else with
the remote is within range.
•Do not leave the smart entry remote inside the
cargo area and close the hatch when all the doors
are locked. The beeper sounds and the hatch
cannot be locked.
Models with smart entry system
Hatch Release Button
Models with smart entry system
Inner Handle
All models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 159 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuOpening and Closing the Hatch uUsing the Hatch Release Button
160
Controls

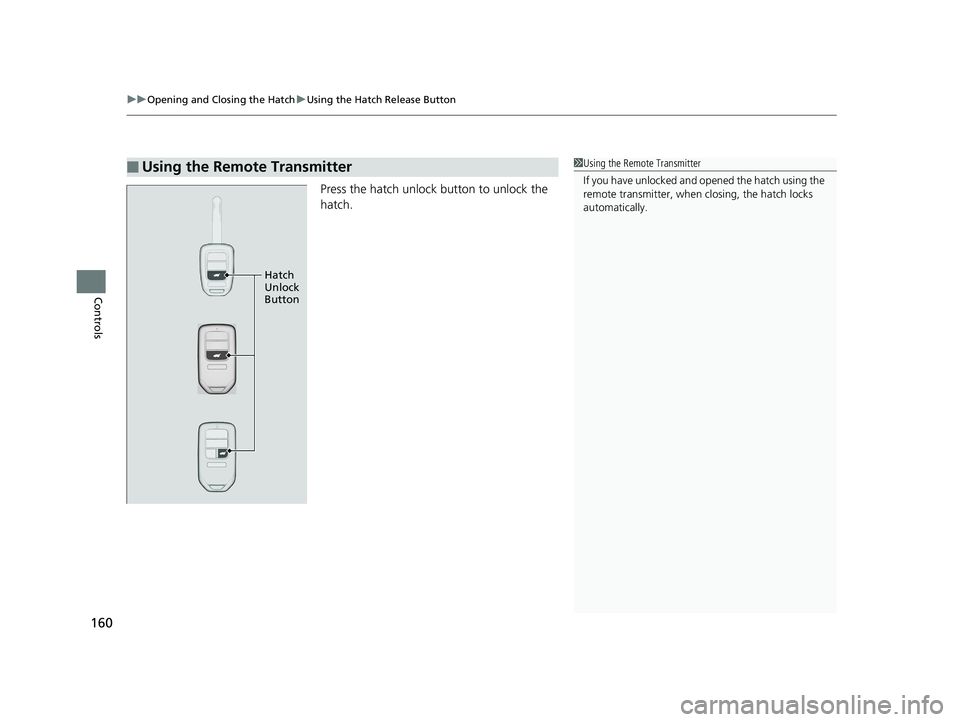

Press the hatch unlock button to unlock the
hatch.
■Using the Remote Transmitter1Using the Remote Transmitter
If you have unlocked and opened the hatch using the
remote transmitter, when closing, the hatch locks
automatically.
Hatch
Unlock
Button
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 160 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

161
Controls

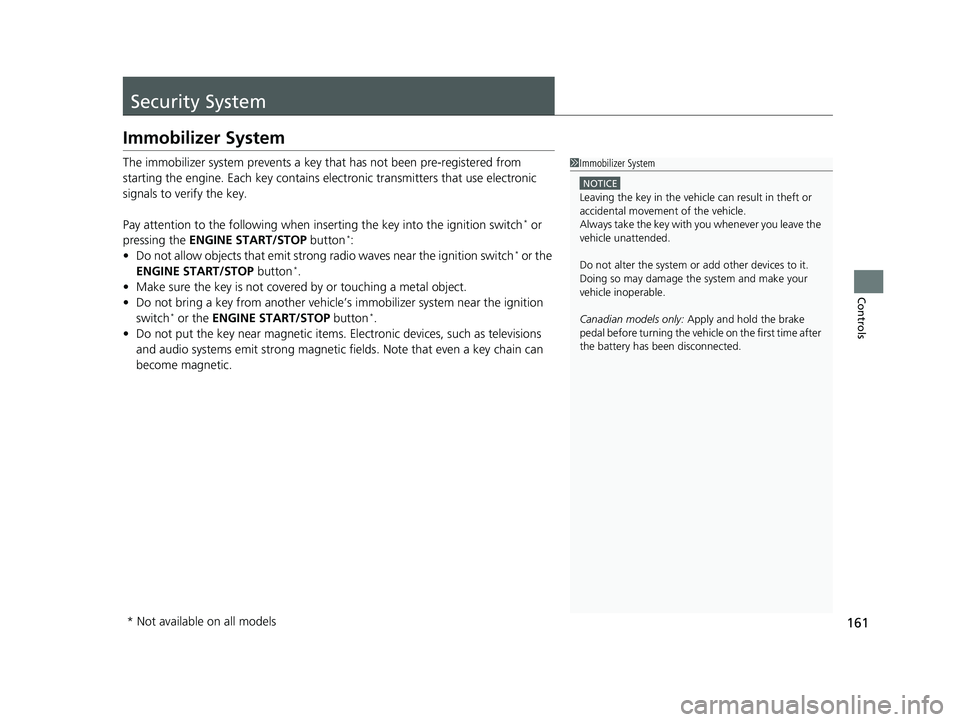

Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when in serting the key into the ignition switch
* or
pressing the ENGINE START/STOP button*:
• Do not allow objects that emit strong radio waves near the ignition switch* or the
ENGINE START/STOP button*.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ignition
switch
* or the ENGINE START/STOP button*.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 161 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

162
uuSecurity System uSecurity System Alarm
Controls

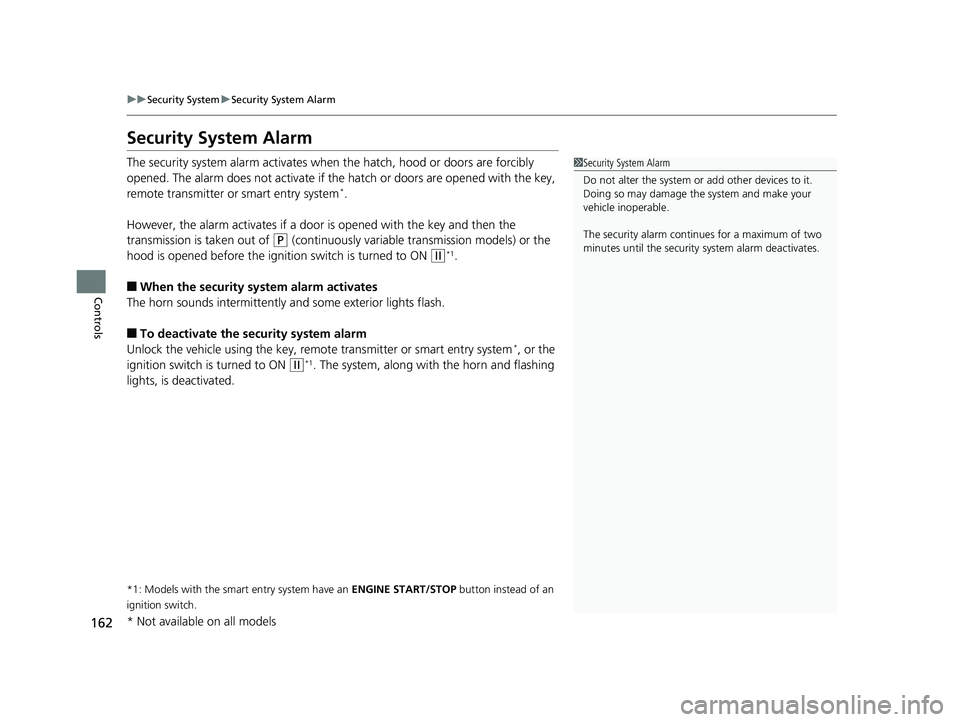

Security System Alarm
The security system alarm activates when the hatch, hood or doors are forcibly
opened. The alarm does not activate if the hatch or doors are opened with the key,
remote transmitter or smart entry system
*.
However, the alarm activates if a door is opened with the key and then the
transmission is taken out of
(P (continuously variable transmission models) or the
hood is opened before the ignition switch is turned to ON
(w*1.
■When the security sy stem alarm activates
The horn sounds intermittently and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system*, or the
ignition switch is turned to ON
(w*1. The system, along with the horn and flashing
lights, is deactivated.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 162 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued163
uuSecurity System uSecurity System Alarm
Controls

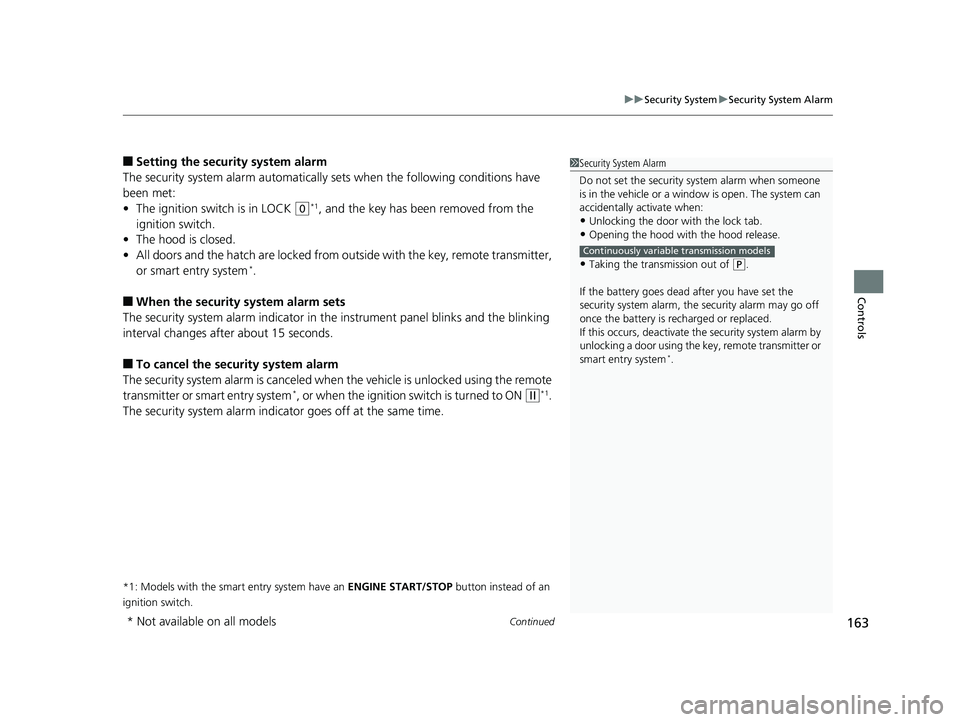

■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK
(0*1, and the key has been removed from the
ignition switch.
• The hood is closed.
• All doors and the hatch are locked from outside with the key, remote transmitter,
or smart entry system
*.
■When the security system alarm sets
The security system alarm in dicator in the instrument panel blinks and the blinking
interval changes after about 15 seconds.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or smart entry system
*, or when the ignition sw itch is turned to ON (w*1.
The security system alarm indica tor goes off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release.
•Taking the transmission out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter or
smart entry system
*.
Continuously variable transmission models
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 163 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

164
uuSecurity System uSecurity System Alarm
Controls

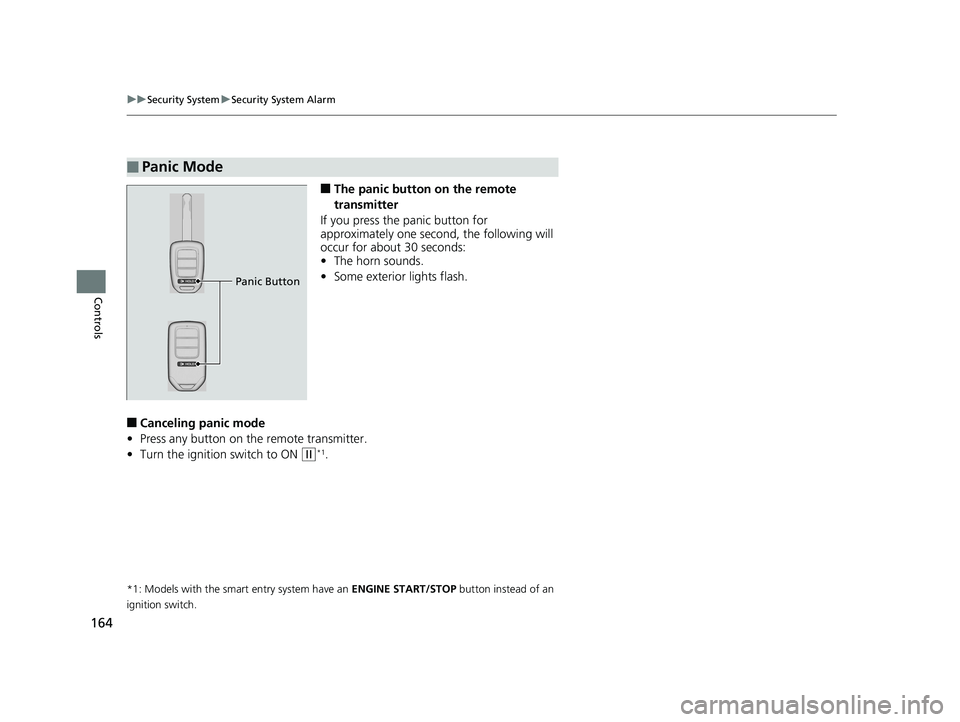

■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
• Press any button on the remote transmitter.
• Turn the ignition switch to ON
(w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Panic Mode
Panic Button
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 164 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

165Continued
Controls

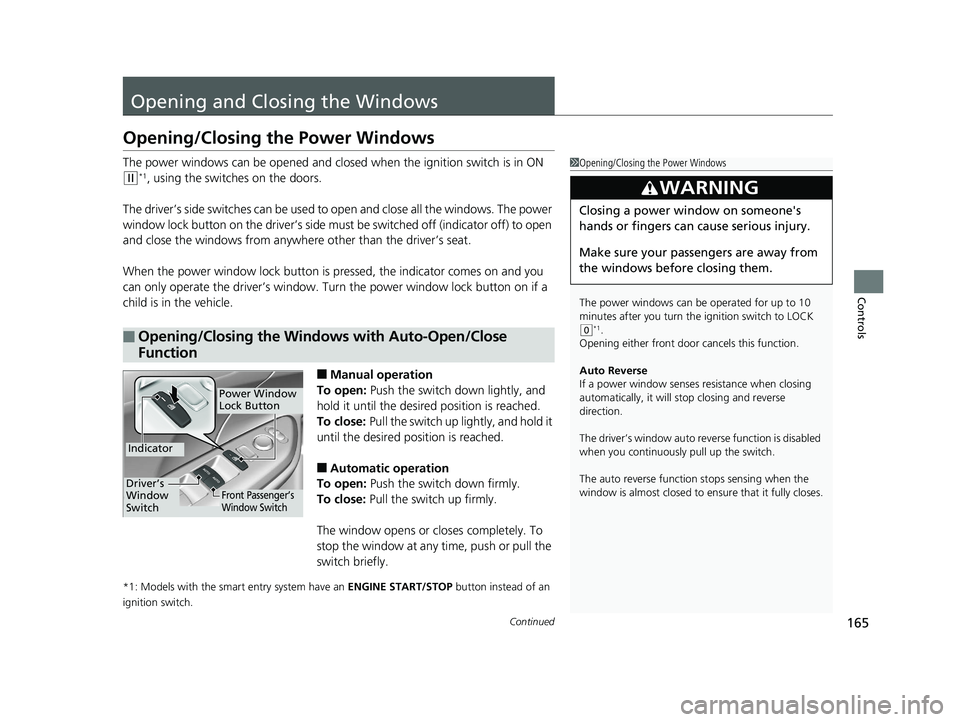

Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and clos ed when the ignition switch is in ON
(w*1, using the switches on the doors.
The driver’s side switches can be used to open and close all the windows. The power
window lock button on the driver’s side must be switched off (indicator off) to open
and close the windows from anywhere other than the driver’s seat.
When the power window lock button is pressed, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on if a
child is in the vehicle.
■Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Opening/Closing the Windows with Auto-Open/Close
Function
1 Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you turn the ignition switch to LOCK
( 0*1.
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it will stop closing and reverse
direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
3WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
Power Window
Lock Button
Indicator
Driver’s
Window
SwitchFront Passenger’s
Window Switch
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 165 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

166
uuOpening and Closing the Windows uOpening/Closing th e Power Windows
Controls

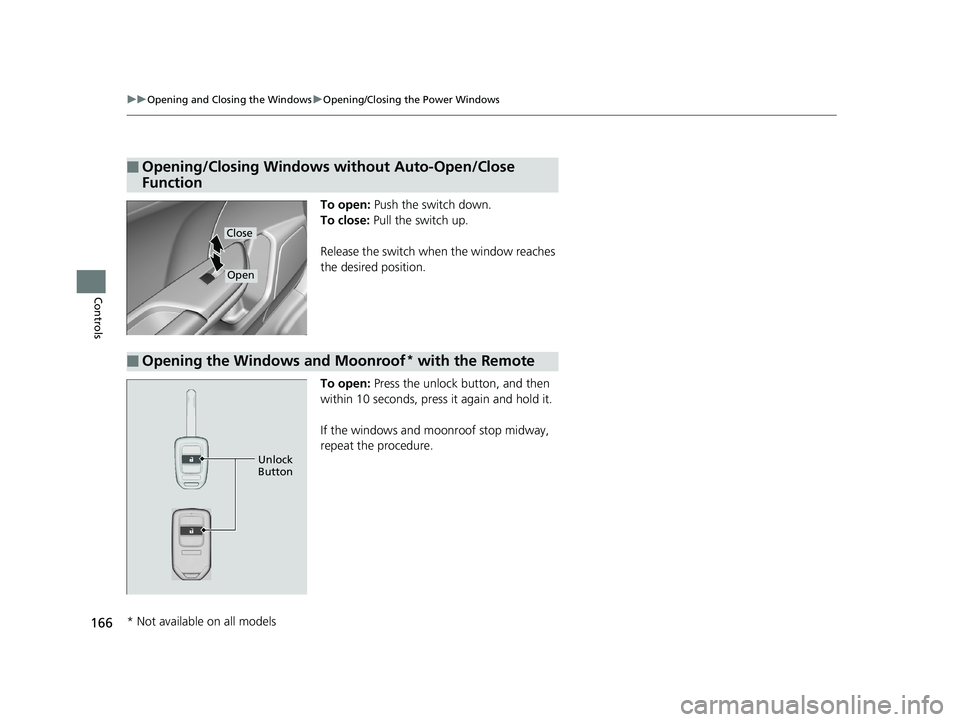

To open: Push the switch down.
To close: Pull the switch up.
Release the switch wh en the window reaches
the desired position.
To open: Press the unlock button, and then
within 10 seconds, press it again and hold it.
If the windows and moonroof stop midway,
repeat the procedure.
■Opening/Closing Windows without Auto-Open/Close
Function
Close
Open
■Opening the Windows and Moonroof* with the Remote
Unlock
Button
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 166 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

167
uuOpening and Closing the Windows uOpening/Closing the Power Windows
Controls
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows and
moonroof at the desired position. If you want
further adjustment, repeat the same
operation.

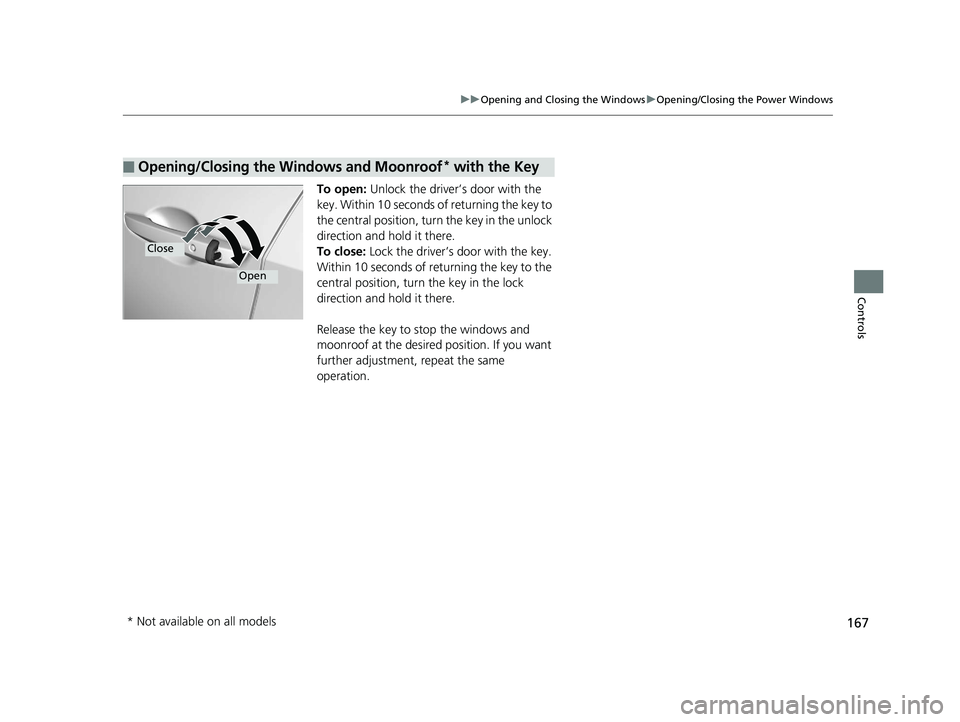

■Opening/Closing the Windows and Moonroof* with the Key
Close
Open
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 167 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

168
Controls

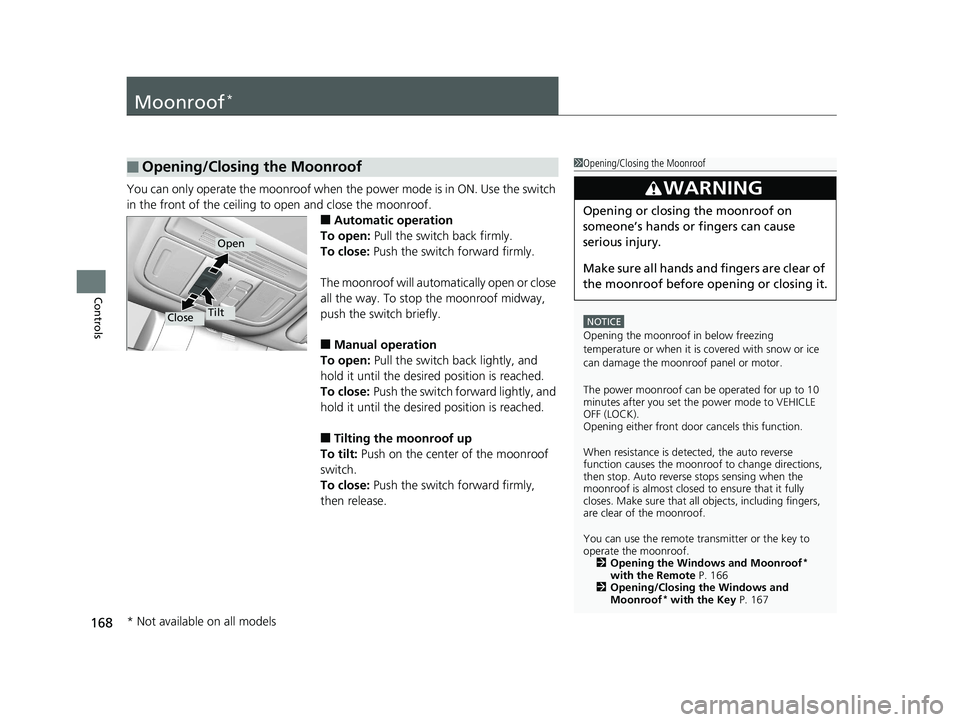

Moonroof*
You can only operate the moonroof when the power mode is in ON. Use the switch
in the front of the ceiling to open and close the moonroof.
■Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof will automatically open or close
all the way. To stop the moonroof midway,
push the switch briefly.
■Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch fo rward lightly, and
hold it until the desired position is reached.
■Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly,
then release.
■Opening/Closing the Moonroof1 Opening/Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonr oof panel or motor.
The power moonroof can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the
moonroof is almost closed to ensure that it fully
closes. Make sure that al l objects, including fingers,
are clear of the moonroof.
You can use the remote transmitter or the key to
operate the moonroof. 2 Opening the Windows and Moonroof
*
with the Remote P. 166
2 Opening/Closing the Windows and
Moonroof
* with the Key P. 167
3WARNING
Opening or closing the moonroof on
someone’s hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
CloseTilt
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 168 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
