Continued129
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

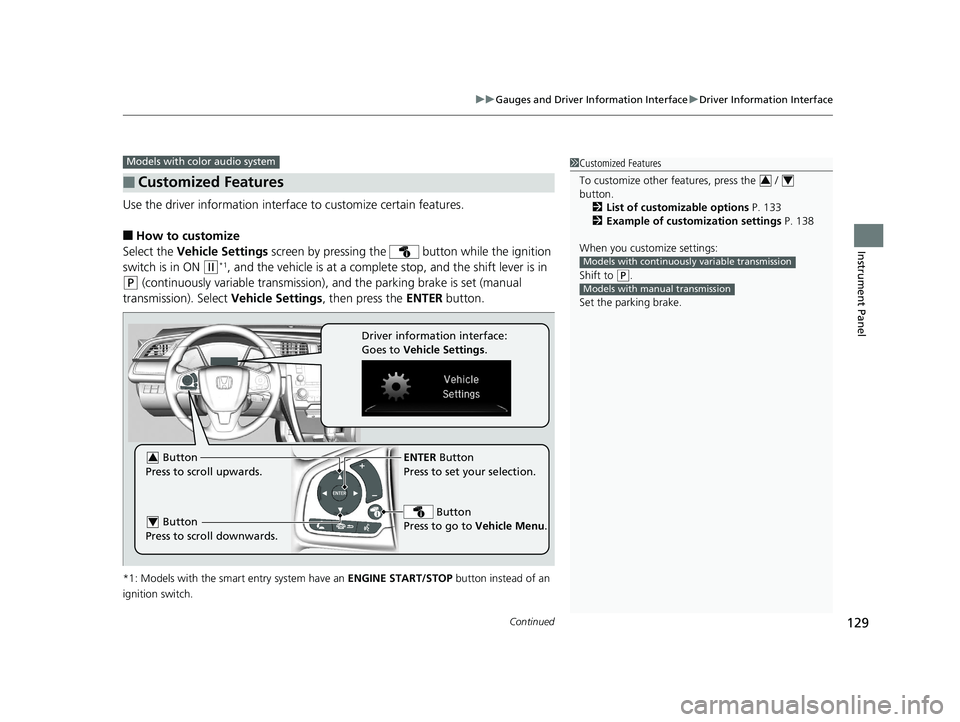

Use the driver information interface to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the ignition
switch is in ON
(w*1, and the vehicle is at a complete stop, and the shift lever is in
(P (continuously variable transmission), and the parking brake is set (manual
transmission). Select Vehicle Settings, then press the ENTER button.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Customized Features
Models with color audio system1 Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 133
2 Example of customization settings P. 138
When you customize settings:
Shift to
( P.
Set the parking brake.
34
Models with continuousl y variable transmission
Models with manual transmission
ENTER Button
Press to set your selection.
Button
Press to go to Vehicle Menu . Button
Press to scroll upwards.3
Button
Press to scroll downwards.4
Driver information interface:
Goes to Vehicle Settings .
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 129 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

130
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

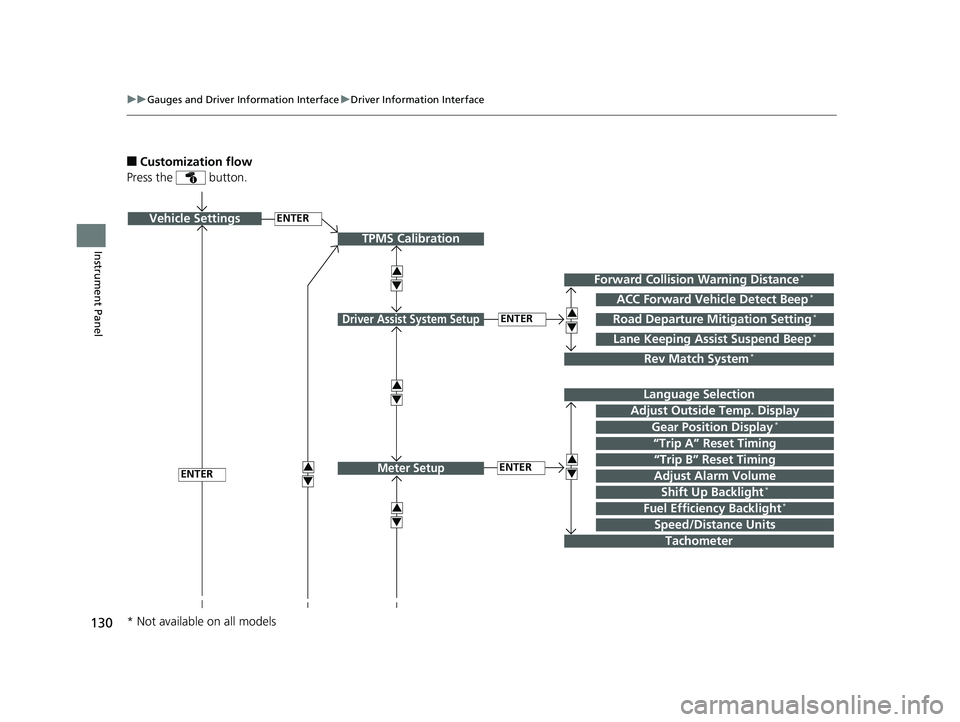

■Customization flow
Press the button.
ENTERVehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
TPMS Calibration
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight*
3
4
ACC Forward Vehicle Detect Beep*
3
4
Tachometer
ENTER
Forward Collision Warning Distance*
3
4
3
4
Lane Keeping Assist Suspend Beep*
Road Departure Mitigation Setting*
Adjust Alarm Volume
Speed/Distance Units
3
4
ENTER
Driver Assist System Setup
Meter Setup
Rev Match System*
Shift Up Backlight*
Gear Position Display*
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 130 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

131
uuGauges and Driver Information Interface uDriver Information Interface
Continued

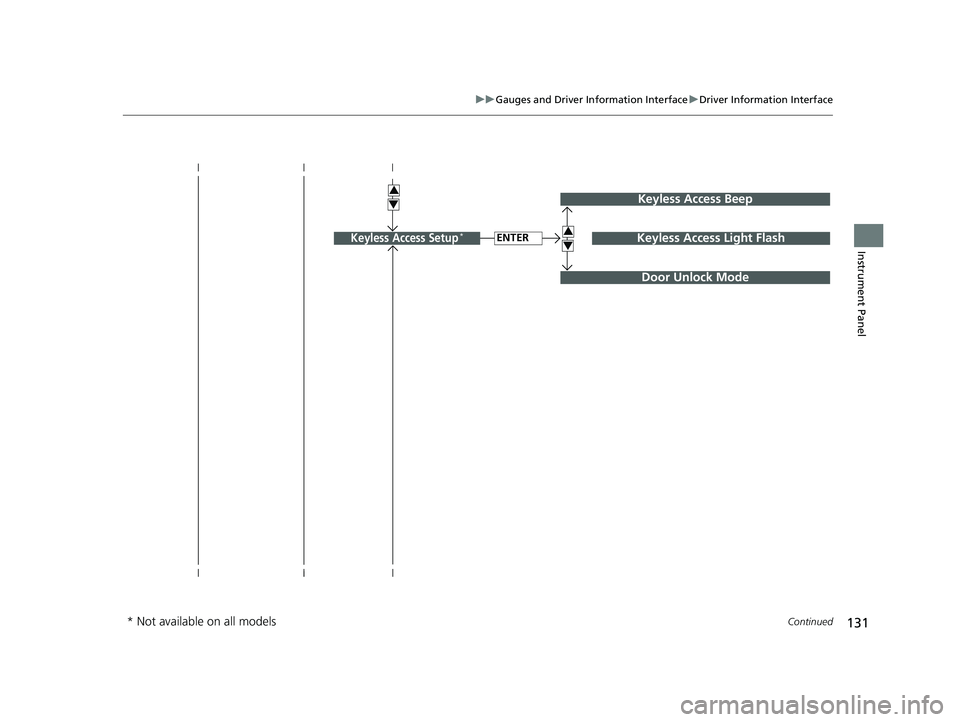

Instrument PanelENTERKeyless Access Light Flash
Keyless Access Beep
3
4Keyless Access Setup*
3
4
Door Unlock Mode
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 131 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

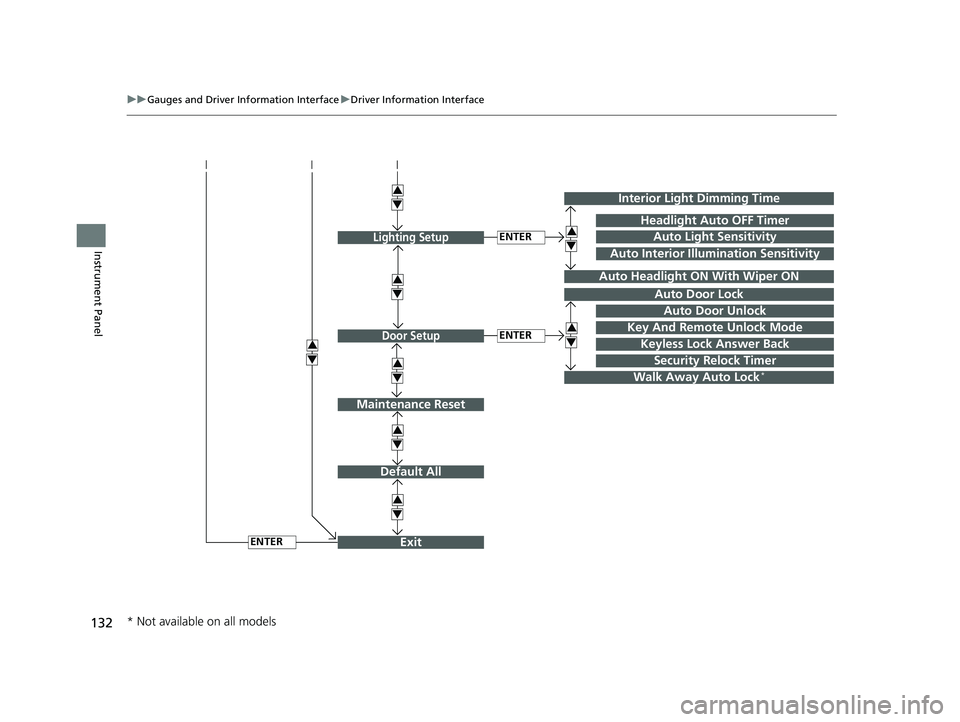

Exit
3
4
3
4
3
4
Maintenance Reset
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity3
4
3
4
Auto Headlight ON With Wiper ON
ENTER
ENTER
Auto Interior Illumination Sensitivity
Lighting Setup
Door Setup
Walk Away Auto Lock*
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 132 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

133
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

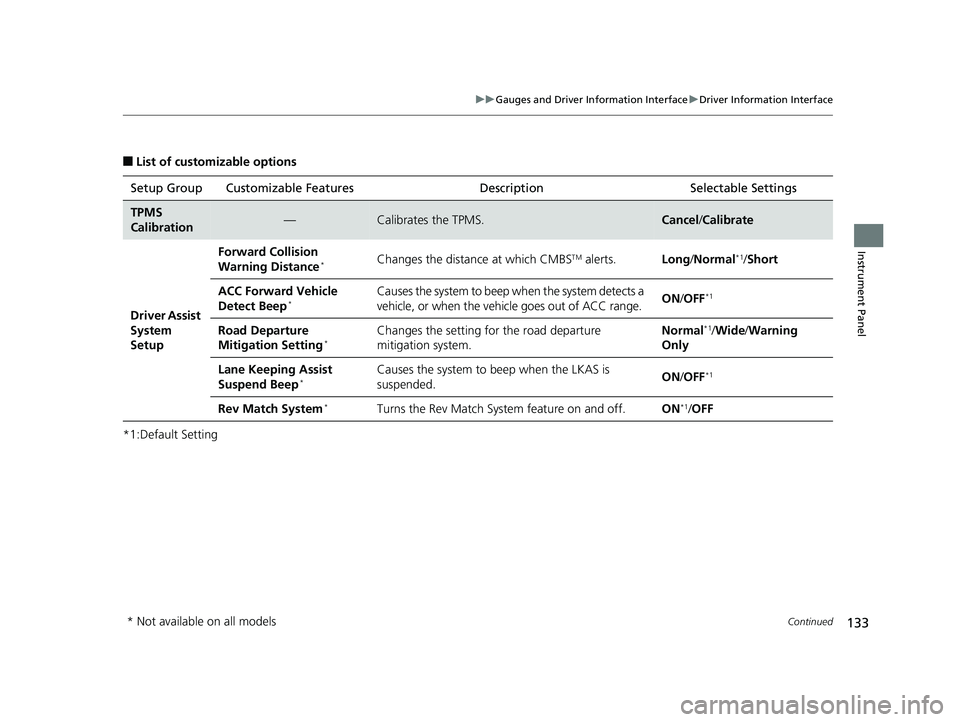

■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup Forward Collision
Warning Distance
*Changes the distance at which CMBSTM alerts.
Long/Normal*1/ Short
ACC Forward Vehicle
Detect Beep
*Causes the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range. ON
/OFF*1
Road Departure
Mitigation Setting*Changes the setting fo r the road departure
mitigation system. Normal*1/
Wide /Warning
Only
Lane Keeping Assist
Suspend Beep
*Causes the system to b eep when the LKAS is
suspended. ON
/OFF*1
Rev Match System*Turns the Rev Match System feature on and off. ON*1/OFF
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 133 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

134
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

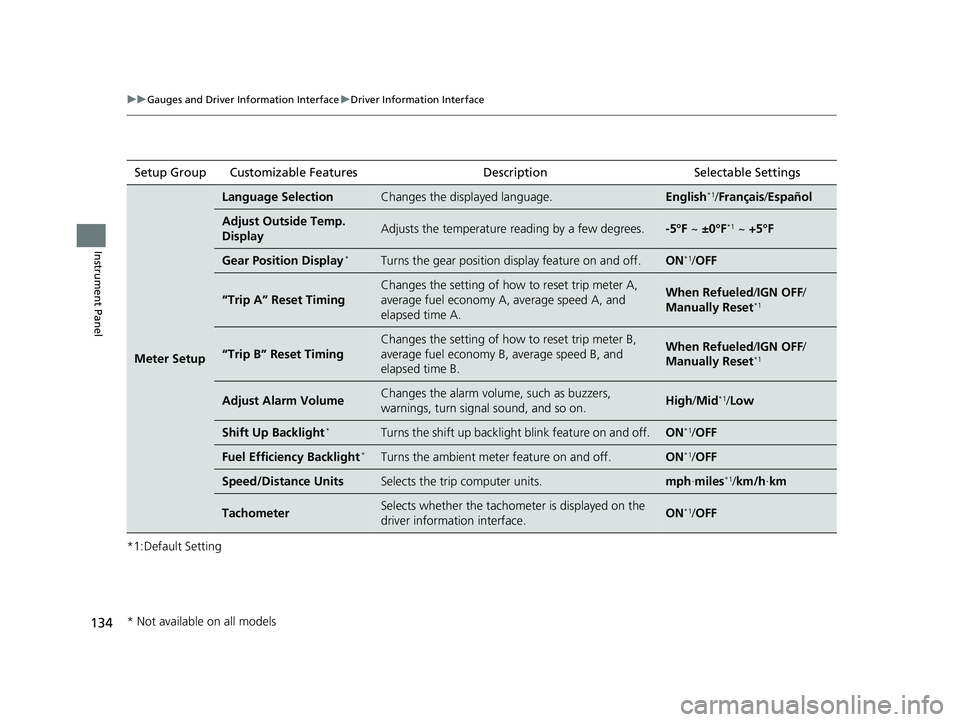

*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F
Gear Position Display*Turns the gear position di splay feature on and off.ON*1/OFF
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges the alarm volume, such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Shift Up Backlight*Turns the shift up backlight blink feature on and off.ON*1/OFF
Fuel Efficien cy Backlight*Turns the ambient meter feature on and off.ON*1/OFF
Speed/Distance UnitsSelects the trip computer units.mph ∙miles*1/ km/h ∙km
TachometerSelects whether the tachomet er is displayed on the
driver information interface.ON*1/ OFF
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 134 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

135
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

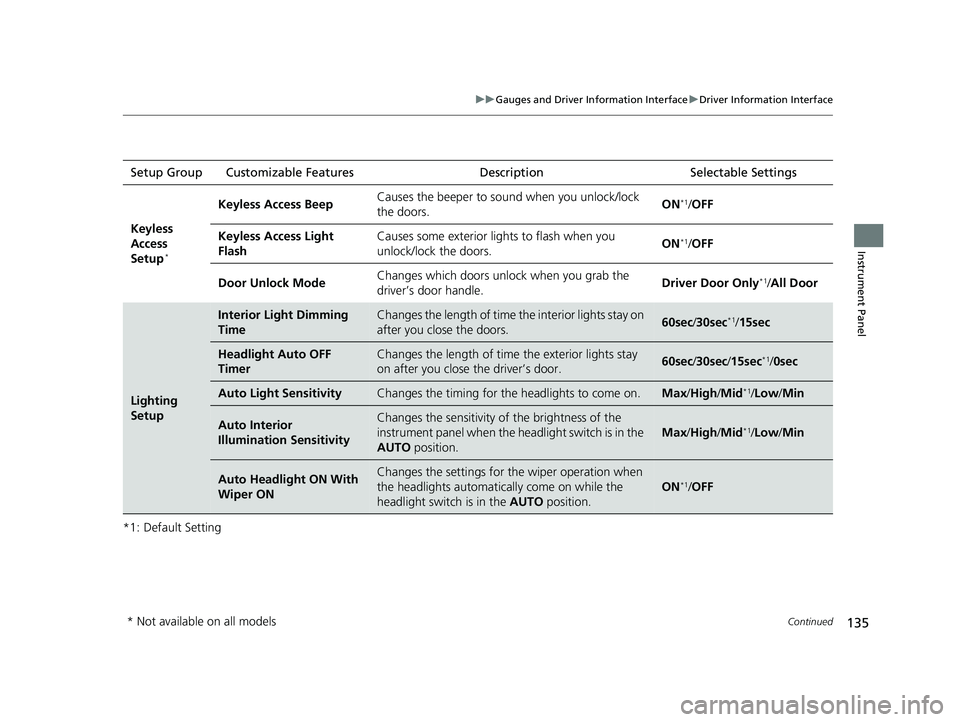

*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
*
Keyless Access Beep Causes the beeper to sound when you unlock/lock
the doors. ON*1/
OFF
Keyless Access Light
Flash Causes some exterior li
ghts to flash when you
unlock/lock the doors. ON
*1/
OFF
Door Unlock Mode Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/
All Door
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low /Min
Auto Headlight ON With
Wiper ONChanges the settings for th e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON*1/OFF
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 135 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

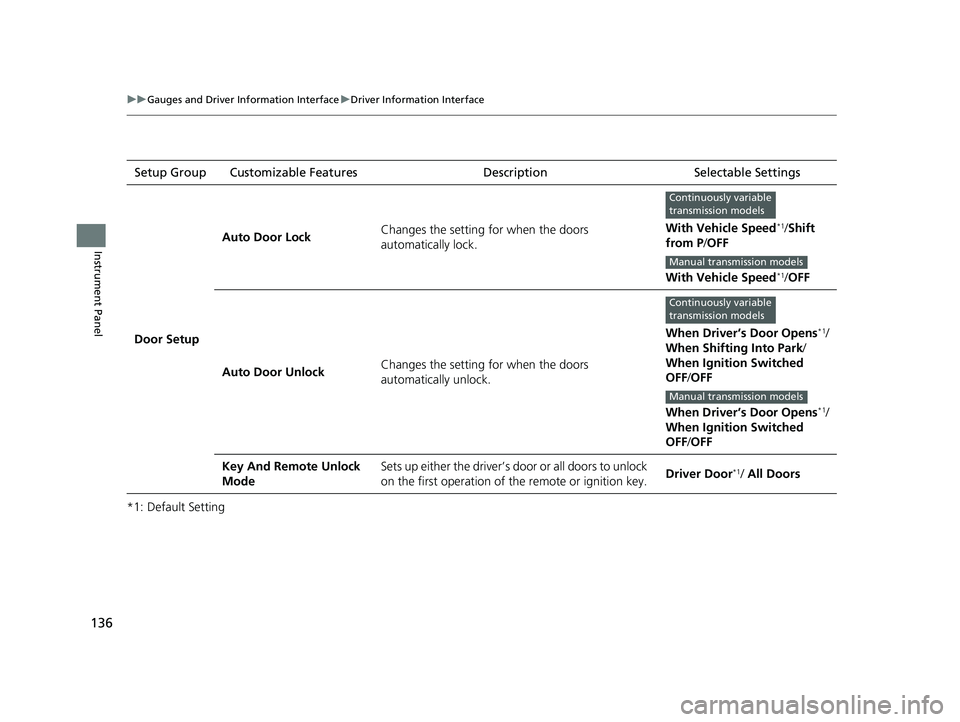

136
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup Auto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1/
Shift
from P /OFF
With Vehicle Speed
*1/ OFF
Auto Door Unlock Changes the setting for when the doors
automatically unlock. When Driver’s Door Opens
*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
When Driver’s Door Opens
*1/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or ignition key.
Driver Door
*1/ All Doors
Continuously variable
transmission models
Manual transmission models
Continuously variable
transmission models
Manual transmission models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 136 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

137
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

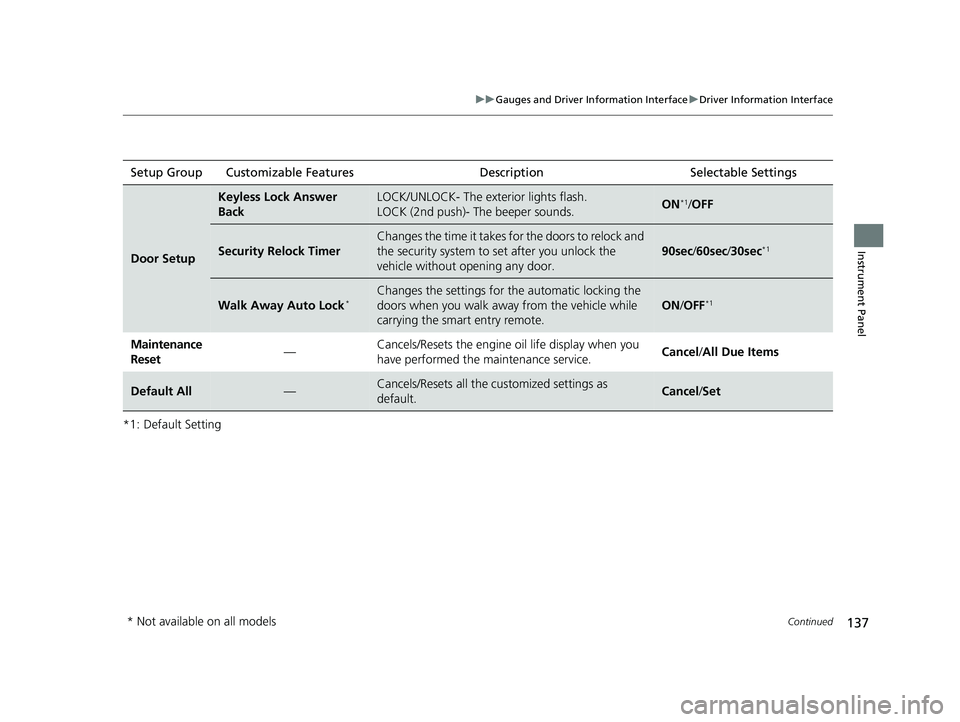

*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Door Setup
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Walk Away Auto Lock*Changes the settings for th e automatic locking the
doors when you walk away from the vehicle while
carrying the smart entry remote.
ON /OFF*1
Maintenance
Reset —Cancels/Resets the engine oil life display when you
have performed the maintenance service.
Cancel
/All Due Items
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 137 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

138
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button to select Vehicle
Settings , then press the ENTER button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
u Language Selection appears first in the
display.
34
