HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

139
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

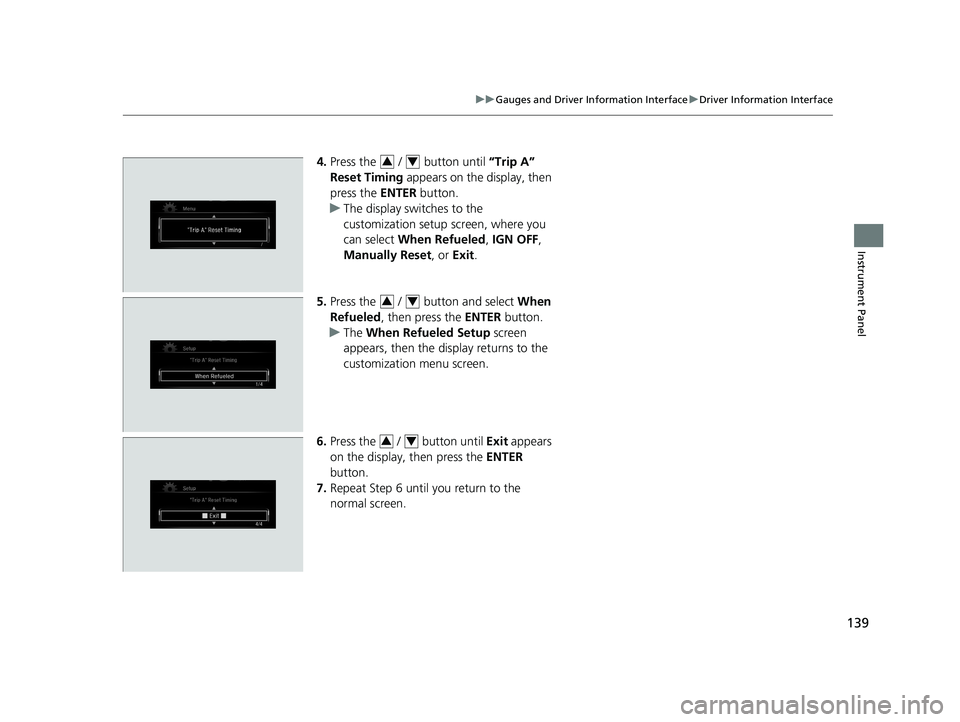

4. Press the / button until “Trip A”
Reset Timing appears on the display, then
press the ENTER button.
u The display swit ches to the
customization setup screen, where you
can select When Refueled , IGN OFF ,
Manually Reset , or Exit .
5. Press the / button and select When
Refueled , then press the ENTER button.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
normal screen.34
34
34
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 139 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

140
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 140 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

141
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 142
Locking and Unlocking the Doors
Key Types and Functions .................. 143
Low Smart Entry Remote Signal Strength*.. 144Locking/Unlocking the Doors from the Outside .......................................... 145
Locking/Unlocking the Doors from the Inside ............................................. 154
Childproof Door Locks ..................... 156
Auto Door Locking/Unlocking .......... 157
Opening and Closing the Hatch....... 158
Security System
Immobilizer System .......................... 161
Security System Alarm ...................... 162 Opening and Closing the Windows
... 165
Moonroof
*........................................ 168
Operating the Switches Around the Steering Wheel Ignition Switch
*............................... 169
ENGINE START/STOP Button*........... 170
Ignition Switch and Power Mode Comparison ................................... 173
Turn Signals ..................................... 174
Light Switches.................................. 174
Fog Lights
*...................................... 177
Daytime Running Lights ................... 177
Auto High-Beam
*............................ 178
Wipers and Washers ........................ 181 Brightness Control ........................... 184
Rear Defogger/Heated Door Mirror
*
Button ........................................... 185
Adjusting the Steering Wheel .......... 186
Adjusting the Mirrors
Interior Rearview Mirror ................... 187
Power Door Mirrors ......................... 188
Adjusting the Seats .......................... 189
Interior Lights/Interior Convenience Items ................................................ 197
Climate Control System
Using Automatic Climate Control .... 213
Automatic Climate Control Sensors......220
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 141 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

142
Controls

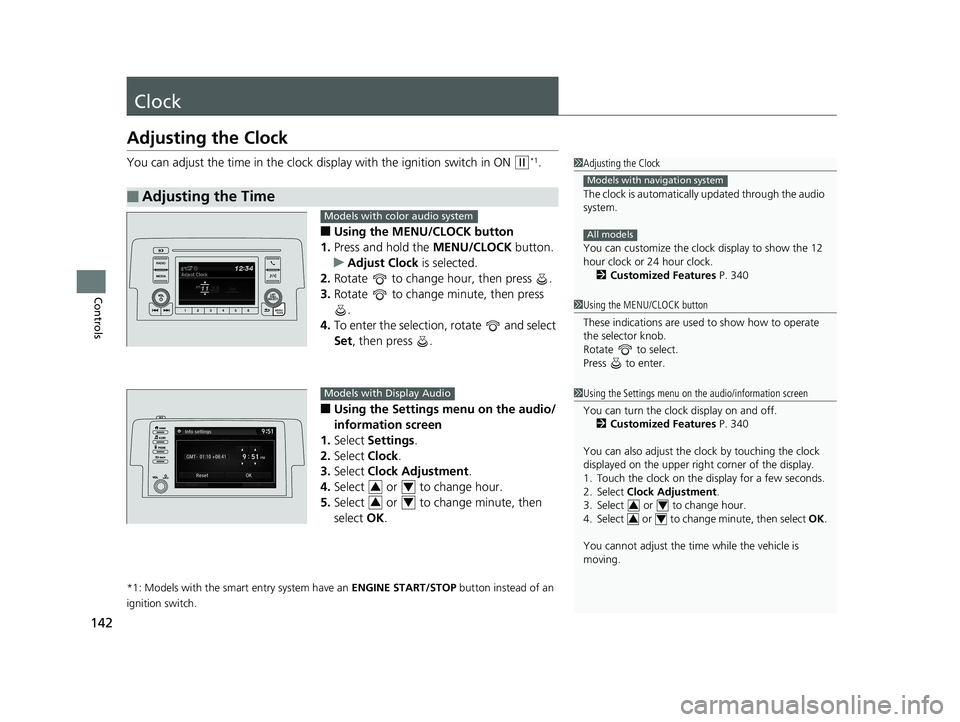

Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatically updated through the audio
system.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 340
Models with navigation system
All models
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
1 Using the Settings menu on the audio/information screen
You can turn the clock display on and off.
2 Customized Features P. 340
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
You cannot adjust the time while the vehicle is
moving.
34
34
Models with color audio system
Models with Display Audio
34
34
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 142 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

143Continued
Controls
Locking and Unlocking the Doors

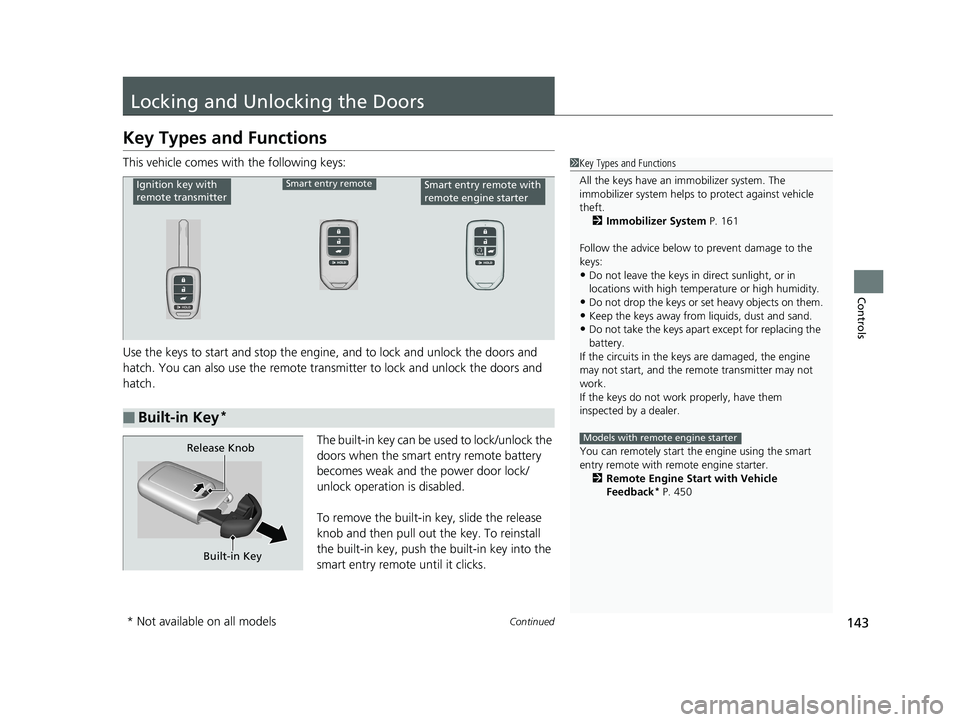

Key Types and Functions
This vehicle comes with the following keys:
Use the keys to start and stop the engine, and to lock and unlock the doors and
hatch. You can also use the remote transmitter to lock and unlock the doors and
hatch.
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
smart entry remote until it clicks.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 161
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the smart
entry remote with remote engine starter. 2 Remote Engine Start with Vehicle
Feedback
* P. 450
Models with remote engine starter
■Built-in Key*
Ignition key with
remote transmitterSmart entry remoteSmart entry remote with
remote engine starter
Built-in Key
Release Knob
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 143 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
144
Controls

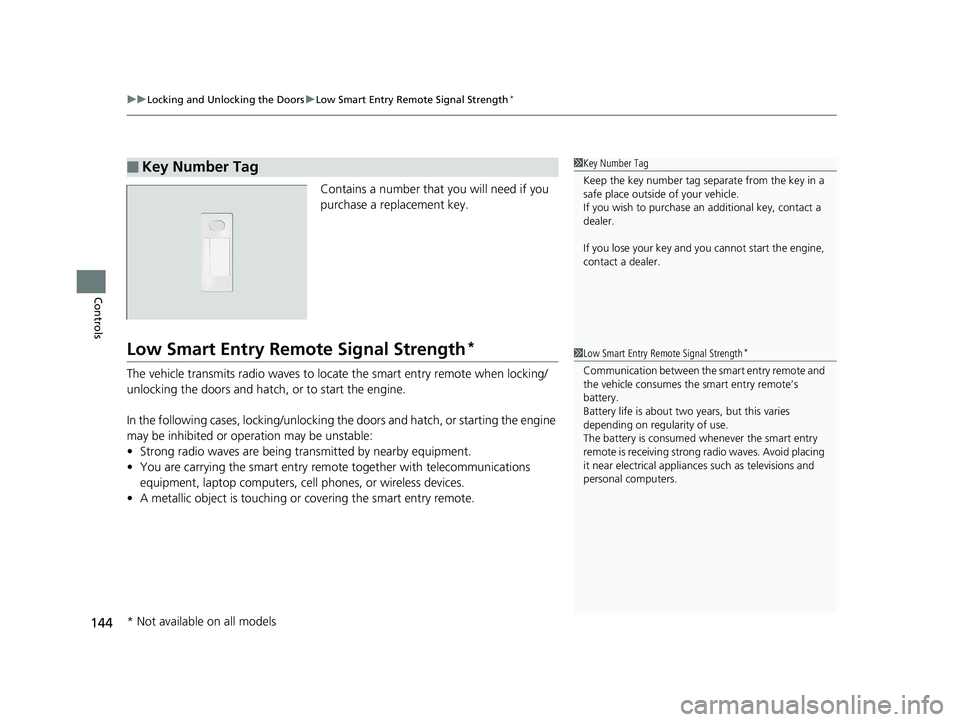

Contains a number that you will need if you
purchase a replacement key.
Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors and hatch, or to start the engine.
In the following cases, locking/unlocking the doors and hatch, or starting the engine
may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
1 Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 144 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

145
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

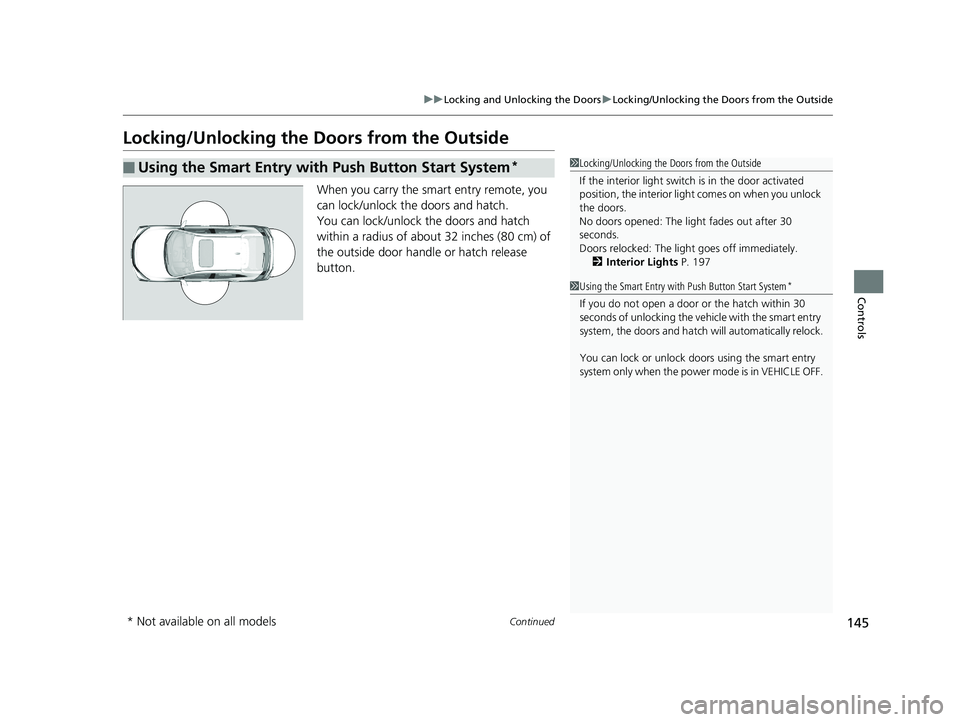

Locking/Unlocking the Doors from the Outside
When you carry the sm art entry remote, you
can lock/unlock the doors and hatch.
You can lock/unlock the doors and hatch
within a radius of about 32 inches (80 cm) of
the outside door handle or hatch release
button.
■Using the Smart Entry with Push Button Start System*1 Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 197
1Using the Smart Entry with Push Button Start System*
If you do not open a door or the hatch within 30
seconds of unlocking the vehicle with the smart entry
system, the doors and hatch will automatically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 145 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
146
Controls
■Locking the doors and hatch
Press the door lock button on the front door
or on the hatch.u Some exterior lights flash; the beeper
sounds; all the doors and hatch lock; and
the security system sets.1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors and hatch while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•After locking the door, you have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least two seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors and hatch
with the smart entry remote if it is above or below
the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen or driver information interface.
2 Customized Features P. 129, 340
Door Lock Button
Lock Button
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 146 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

147
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

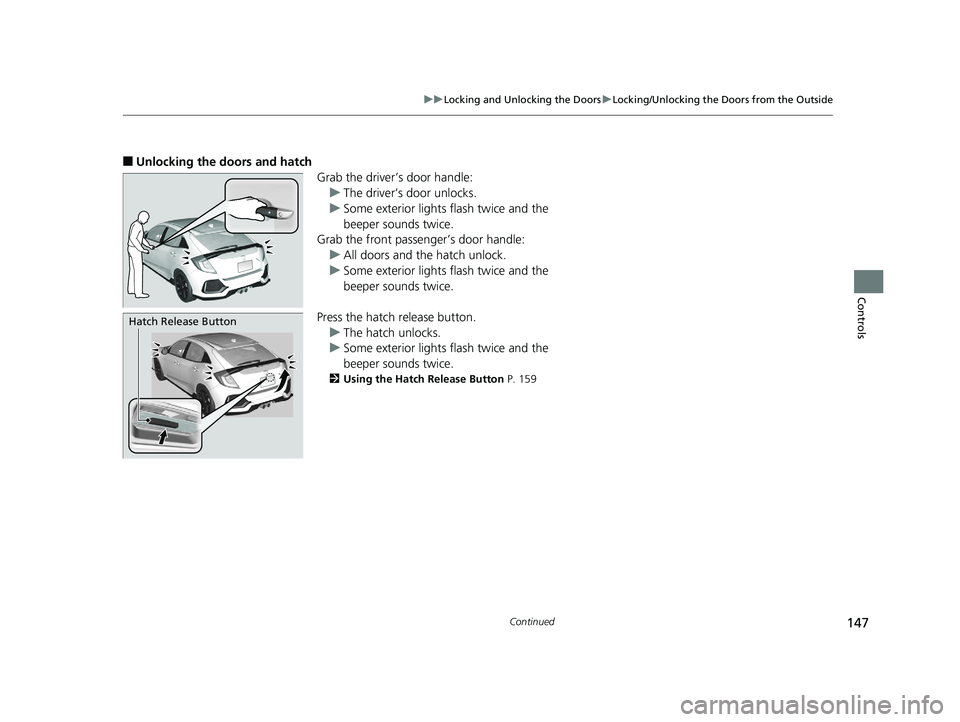

■Unlocking the doors and hatch
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All doors and the hatch unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the hatch release button. u The hatch unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Using the Hatch Release Button P. 159
Hatch Release Button
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 147 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

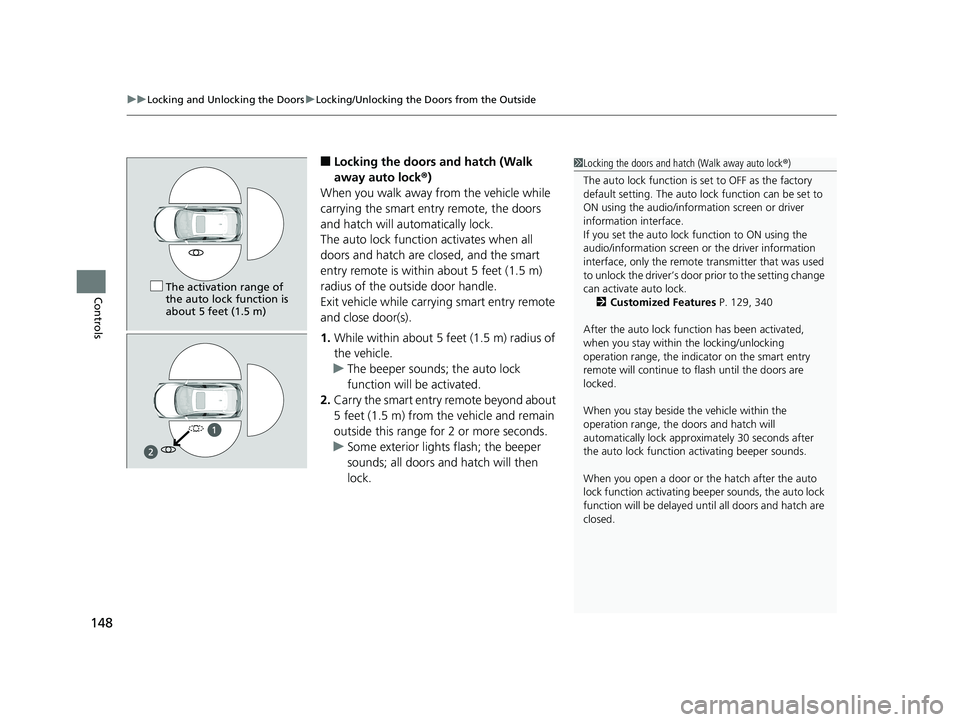

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
148
Controls
■Locking the doors and hatch (Walk
away auto lock ®)
When you walk away from the vehicle while
carrying the smart entry remote, the doors
and hatch will au tomatically lock.
The auto lock function activates when all
doors and hatch are closed, and the smart
entry remote is within about 5 feet (1.5 m)
radius of the outside door handle.
Exit vehicle while carrying smart entry remote
and close door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range fo r 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors and hatch will then
lock.1Locking the doors and hatch (Walk away auto lock ®)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/inform ation screen or driver
information interface.
If you set the auto lock function to ON using the
audio/information screen or the driver information
interface, only the remote transmitter that was used
to unlock the driver’s door prior to the setting change
can activate auto lock. 2 Customized Features P. 129, 340
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the smart entry
remote will continue to flash until the doors are
locked.
When you stay beside the vehicle within the
operation range, the doors and hatch will
automatically lock approx imately 30 seconds after
the auto lock function activating beeper sounds.
When you open a door or the hatch after the auto
lock function activating beep er sounds, the auto lock
function will be delayed un til all doors and hatch are
closed.
The activation range of
the auto lock function is
about 5 feet (1.5 m)
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 148 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
