HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

Continued289
uuAudio System Basic Operation uPlaying an iPod
Features

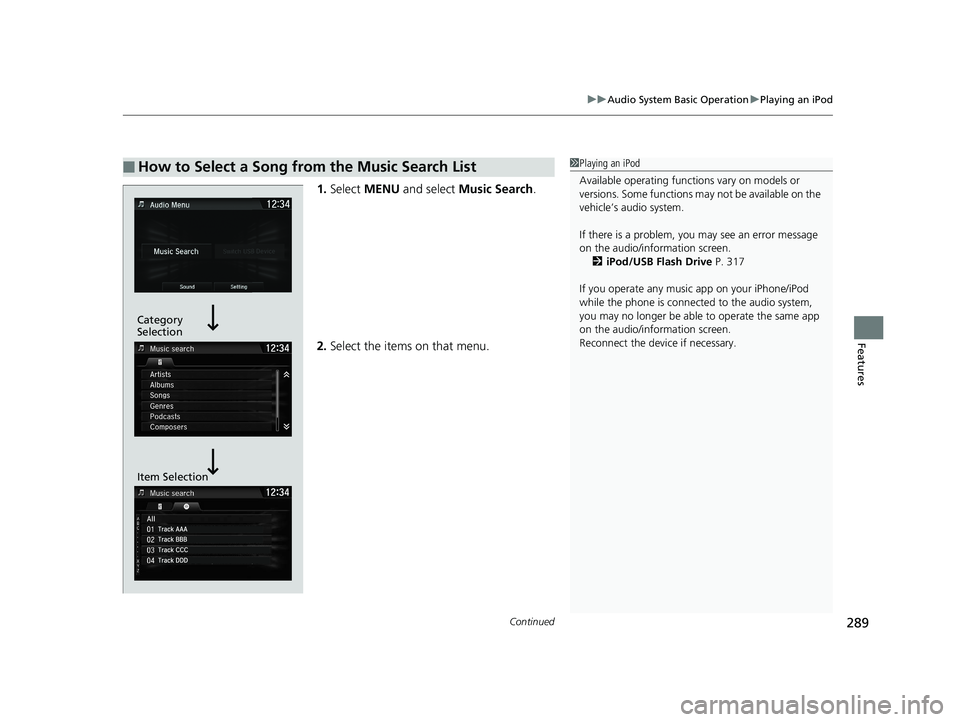

1. Select MENU and select Music Search .
2. Select the items on that menu.
■How to Select a Song from the Music Search List1Playing an iPod
Available operating functi ons vary on models or
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen. 2 iPod/USB Flash Drive P. 317
If you operate any musi c app on your iPhone/iPod
while the phone is connected to the audio system,
you may no longer be able to operate the same app
on the audio/information screen.
Reconnect the devi ce if necessary.
Category
Selection
Item Selection
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 289 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uPlaying an iPod
290
Features
You can select shuffle and repeat modes when playing a song.
Select a play mode.
■To turn off a play mode
Select the mode you want to turn off.
■How to Select a Play Mode1 How to Select a Play Mode
Play Mode Menu Items
Shuffle Albums
*1: Plays all available albums in a
selected list in random order.
Shuffle All Songs /Shuffle: Plays all available songs
in a selected list in random order.
Repeat : Repeats the song.
*1: This function is not avai lable if your iPod is not
supported.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 290 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

291
uuAudio System Basic Operation uSong By VoiceTM (SBV)
Continued
Features

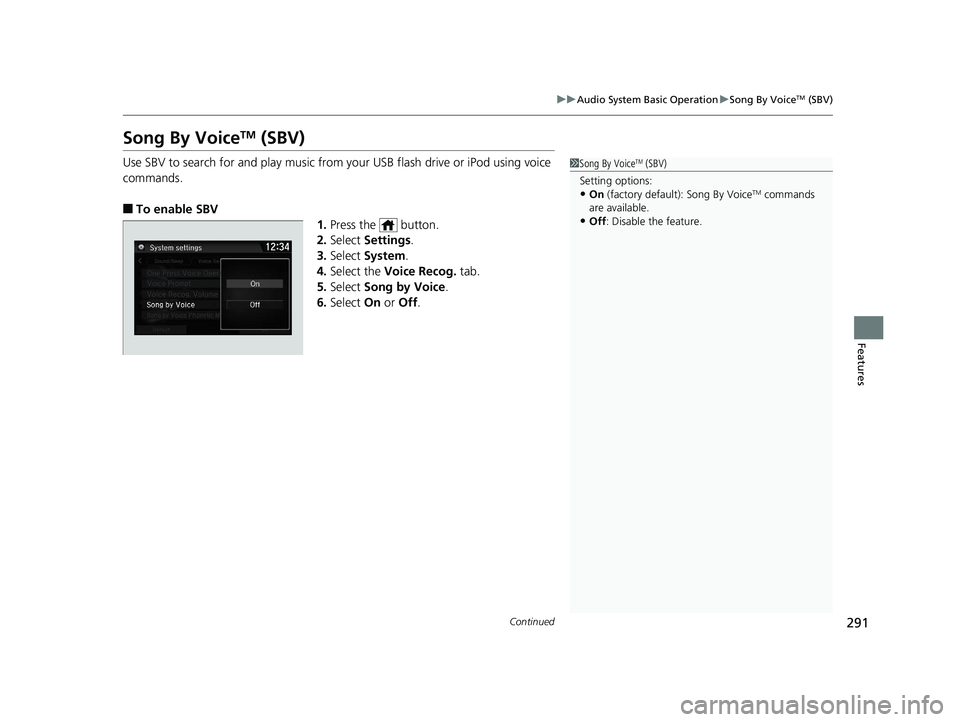

Song By VoiceTM (SBV)
Use SBV to search for and play music from your USB flash drive or iPod using voice
commands.
■To enable SBV
1.Press the button.
2. Select Settings .
3. Select System.
4. Select the Voice Recog. tab.
5. Select Song by Voice .
6. Select On or Off .
1Song By VoiceTM (SBV)
Setting options:
•On (factory default): Song By VoiceTM commands
are available.
•Off : Disable the feature.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 291 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uSong By VoiceTM (SBV)
292
Features

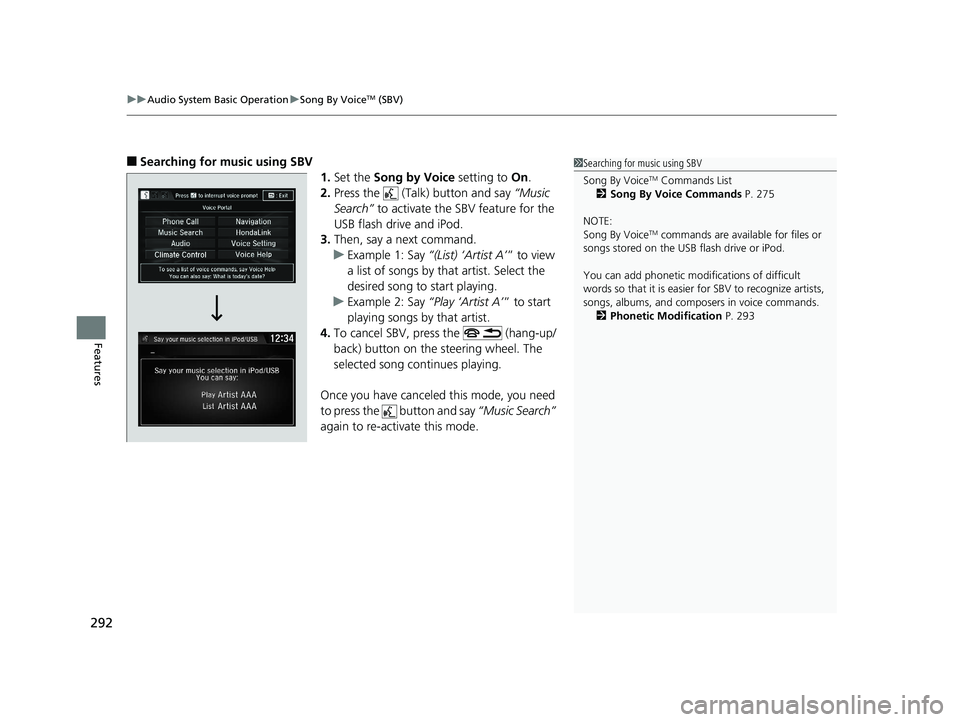

■Searching for music using SBV
1.Set the Song by Voice setting to On.
2. Press the (Talk) button and say “Music
Search” to activate the SBV feature for the
USB flash drive and iPod.
3. Then, say a next command.
u Example 1: Say “(List) ‘Artist A’” to view
a list of songs by that artist. Select the
desired song to start playing.
u Example 2: Say “Play ‘Artist A’” to start
playing songs by that artist.
4. To cancel SBV, pr ess the (hang-up/
back) button on the steering wheel. The
selected song continues playing.
Once you have canceled this mode, you need
to press the button and say “Music Search”
again to re-activate this mode.1 Searching for music using SBV
Song By Voice
TM Commands List
2 Song By Voice Commands P. 275
NOTE:
Song By Voice
TM commands are available for files or
songs stored on the US B flash drive or iPod.
You can add phonetic modi fications of difficult
words so that it is easier for SBV to recognize artists,
songs, albums, and composers in voice commands. 2 Phonetic Modification P. 293
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 292 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued293
uuAudio System Basic Operation uSong By VoiceTM (SBV)
Features

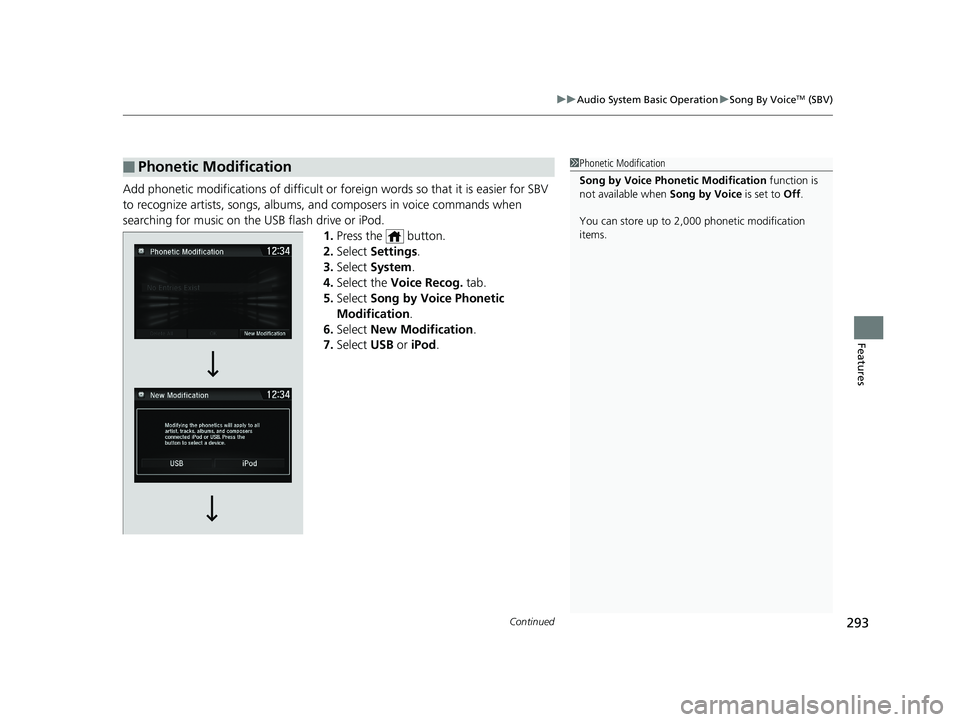

Add phonetic modifications of difficult or fo reign words so that it is easier for SBV
to recognize artists, songs, albums, and composers in voice commands when
searching for music on the USB flash drive or iPod. 1.Press the button.
2. Select Settings .
3. Select System .
4. Select the Voice Recog. tab.
5. Select Song by Voice Phonetic
Modification .
6. Select New Modification .
7. Select USB or iPod .
■Phonetic Modification1Phonetic Modification
Song by Voice Phonetic Modification function is
not available when Song by Voice is set to Off.
You can store up to 2, 000 phonetic modification
items.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 293 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

294
uuAudio System Basic Operation uSong By VoiceTM (SBV)
Features

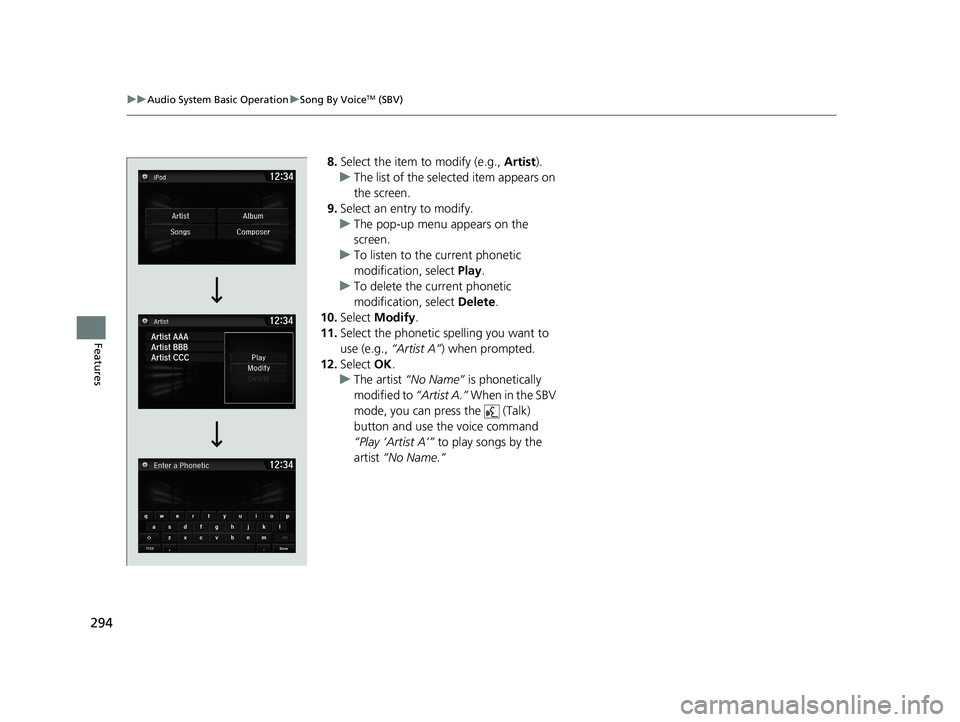

8. Select the item to modify (e.g., Artist).
u The list of the selected item appears on
the screen.
9. Select an entry to modify.
u The pop-up menu appears on the
screen.
u To listen to the current phonetic
modification, select Play .
u To delete the current phonetic
modification, select Delete .
10. Select Modify .
11. Select the phonetic spelling you want to
use (e.g., “Artist A”) when prompted.
12. Select OK.
u The artist “No Name” is phonetically
modified to “Artist A.” When in the SBV
mode, you can press the (Talk)
button and use the voice command
“Play ‘Artist A’” to play songs by the
artist “No Name.”
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 294 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

295
uuAudio System Basic Operation uPlaying Pandora ®
Continued
Features

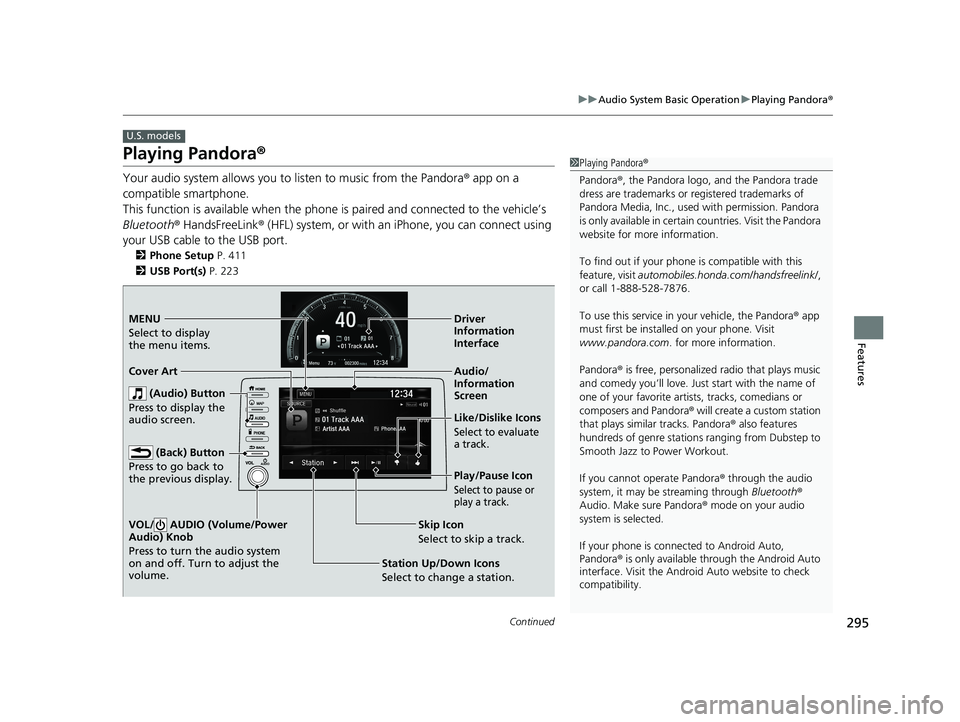

Playing Pandora ®
Your audio system allows you to listen to music from the Pandora ® app on a
compatible smartphone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system, or with an iPhone, you can connect using
your USB cable to the USB port.
2 Phone Setup P. 411
2 USB Port(s) P. 223
U.S. models
1Playing Pandora ®
Pandora ®, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is only available in certai n countries. Visit the Pandora
website for more information.
To find out if your phone is compatible with this
feature, visit automobiles.honda.com /handsfreelink/,
or call 1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
Pandora ® is free, personalized radio that plays music
and comedy you’ll love. Just start with the name of
one of your favorite arti sts, tracks, comedians or
composers and Pandora ® will create a custom station
that plays similar tracks. Pandora ® also features
hundreds of genre stations ranging from Dubstep to
Smooth Jazz to Power Workout.
If you cannot operate Pandora ® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora ® mode on your audio
system is selected.
If your phone is connec ted to Android Auto,
Pandora ® is only available through the Android Auto
interface. Visit the Android Auto website to check
compatibility.
Audio/
Information
Screen
Cover Art
Station Up/Down Icons
Select to change a station.Skip Icon
Select to skip a track.Like/Dislike Icons
Select to evaluate
a track.
Driver
Information
Interface
MENU
Select to display
the menu items.
(Audio) Button
Press to display the
audio screen.
(Back) Button
Press to go back to
the previous display.
VOL/ AUDIO (Volume/Power
Audio) Knob
Press to turn the audio system
on and off. Turn to adjust the
volume.
Play/Pause Icon
Select to pause or
play a track.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 295 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uPlaying Pandora ®
296
Features

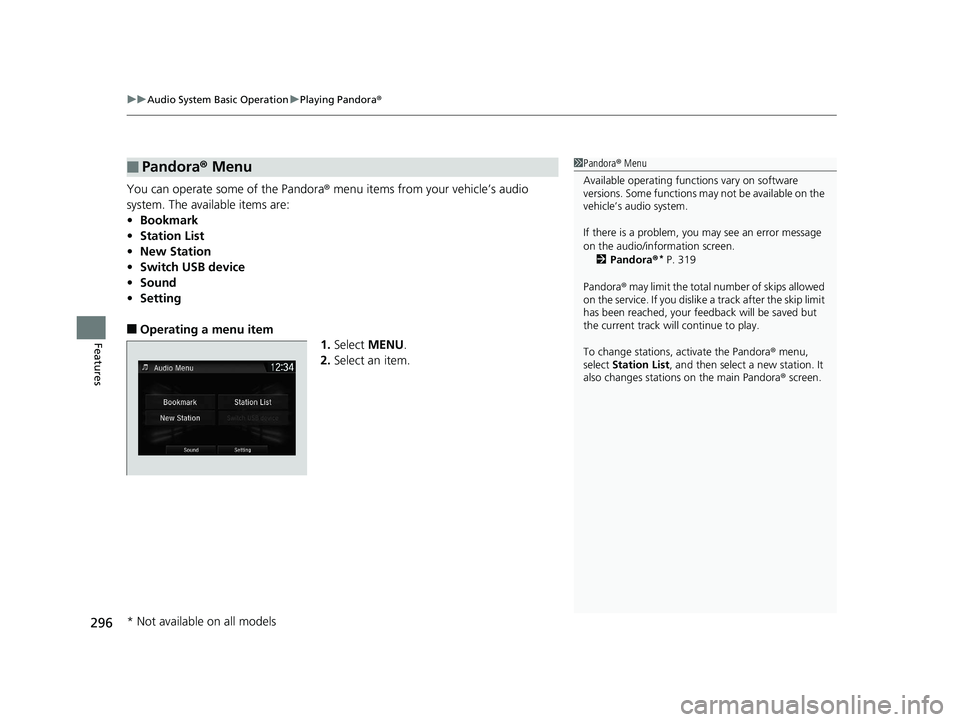

You can operate some of the Pandora® menu items from your vehicle’s audio
system. The available items are:
•Bookmark
• Station List
• New Station
• Switch USB device
• Sound
• Setting
■Operating a menu item
1.Select MENU .
2. Select an item.
■Pandora® Menu1Pandora ® Menu
Available operating functi ons vary on software
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2 Pandora ®
* P. 319
Pandora ® may limit the total number of skips allowed
on the service. If you dislike a track after the skip limit
has been reached, your fe edback will be saved but
the current track will continue to play.
To change stations, activate the Pandora ® menu,
select Station List , and then select a new station. It
also changes stations on the main Pandora ® screen.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 296 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

297
uuAudio System Basic Operation uPlaying a USB Flash Drive
Continued
Features

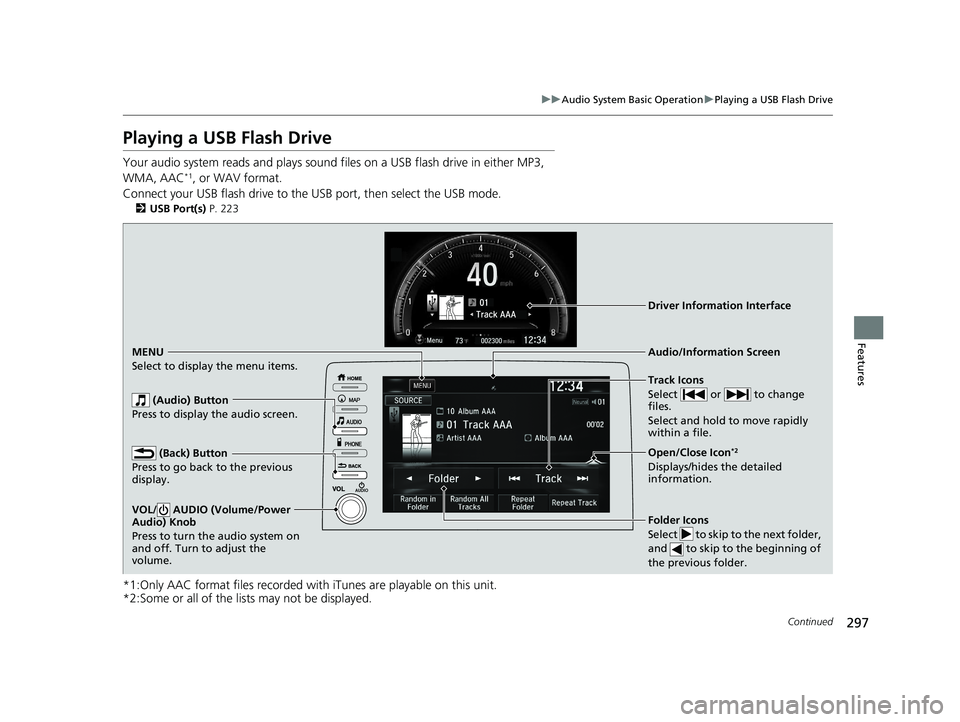

Playing a USB Flash Drive
Your audio system reads and plays sound files on a USB flash drive in either MP3,
WMA, AAC*1, or WAV format.
Connect your USB flash drive to the USB port, then select the USB mode.
2 USB Port(s) P. 223
*1:Only AAC format files recorded with iTunes are playable on this unit.
*2:Some or all of the lists may not be displayed.
Track Icons
Select or to change
files.
Select and hold to move rapidly
within a file.
Open/Close Icon*2
Displays/hides the detailed
information.
Folder Icons
Select to skip to the next folder,
and to skip to the beginning of
the previous folder.
Audio/Information Screen Driver Information Interface
MENU
Select to display the menu items. (Audio) Button
Press to display the audio screen.
(Back) Button
Press to go back to the previous
display.
VOL/ AUDIO (Volume/Power
Audio) Knob
Press to turn the audio system on
and off. Turn to adjust the
volume.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 297 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uPlaying a USB Flash Drive
298
Features
1. Select MENU and select Music Search .
2. Select Music.
3. Select a folder.
4. Select a file.
■How to Select a File from the Music Search List1Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 321
WMA files protected by di gital rights management
(DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 317
Folder Selection
File Selection
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 298 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
