HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

339Continued
Features

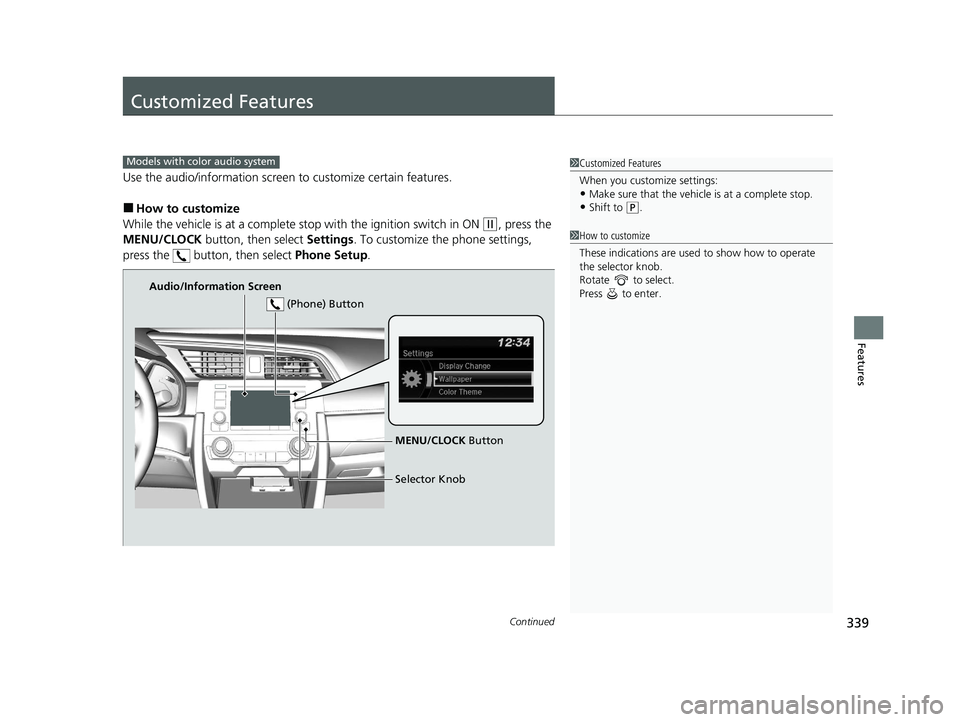

Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete st op with the ignition switch in ON
(w, press the
MENU/CLOCK button, then select Settings. To customize the phone settings,
press the button, then select Phone Setup.
1Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
Models with color audio system
1 How to customize
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Audio/Information Screen
MENU/CLOCK Button
Selector Knob
(Phone) Button
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 339 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

340
uuCustomized Features u
Features

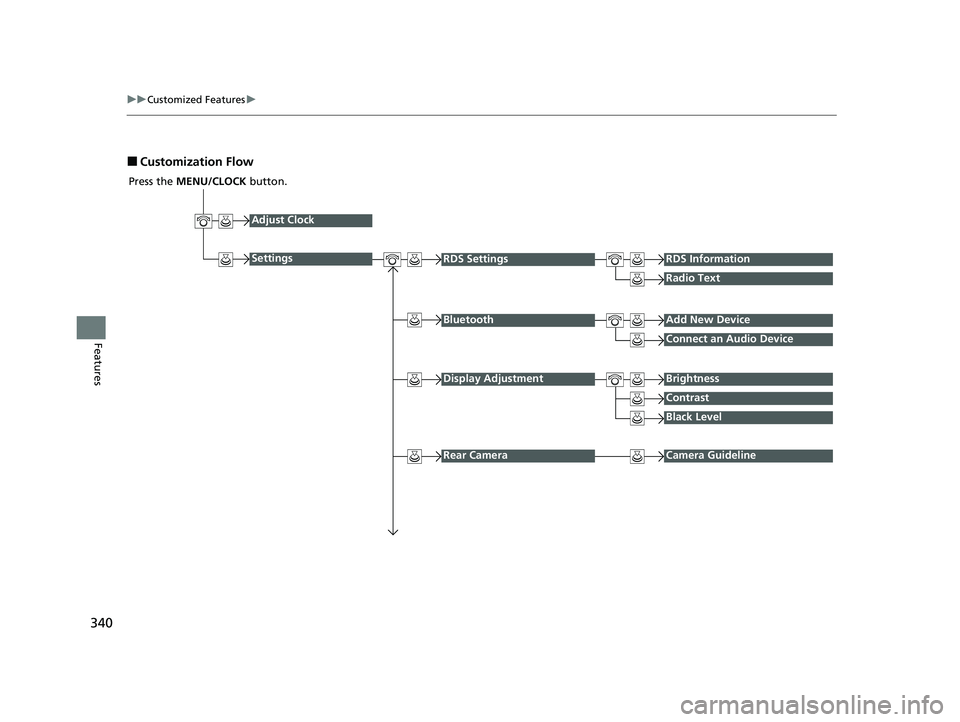

■Customization Flow
Press the MENU/CLOCK button.
Adjust Clock
SettingsRDS SettingsRDS Information
Radio Text
Display AdjustmentBrightness
Contrast
Black Level
Rear CameraCamera Guideline
BluetoothAdd New Device
Connect an Audio Device
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 340 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

341
uuCustomized Features u
Continued
Features
Display ChangeAudio
Wallpaper
WallpaperSelect
Import
Delete
Color ThemeBlue
Red
Amber
Gray
Language
Clock Format12h
24h
OSS Licenses
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 341 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

342
uuCustomized Features u
Features

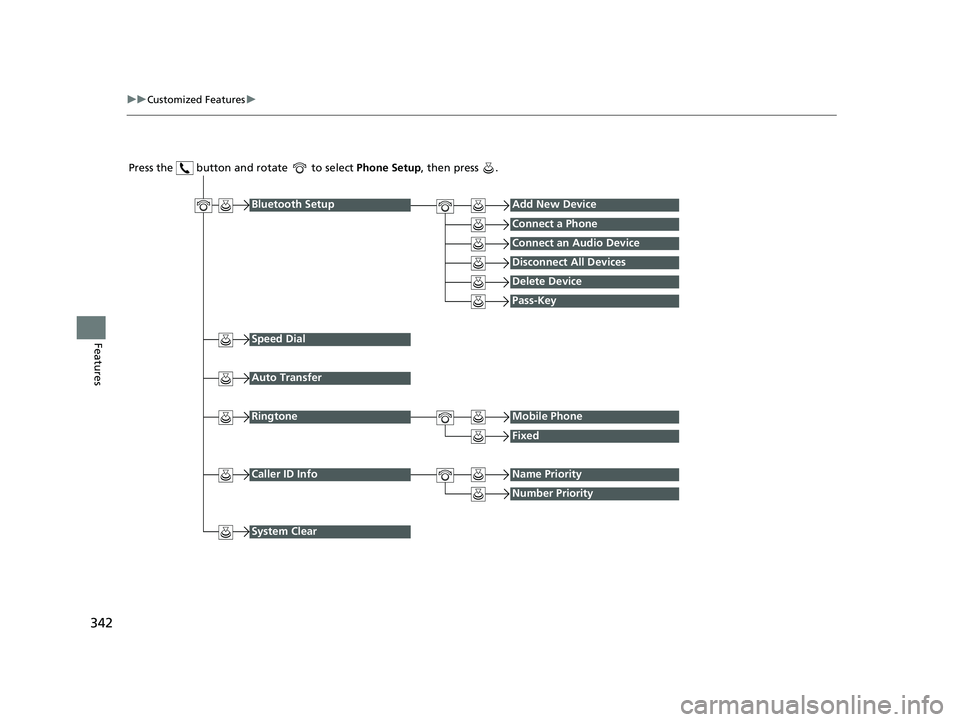

Press the button and rotate to select Phone Setup, then press .
Ringtone
Fixed
Mobile Phone
Bluetooth SetupAdd New Device
Connect a Phone
Connect an Audio Device
Disconnect All Devices
Delete Device
Pass-Key
Speed Dial
Caller ID InfoName Priority
Number Priority
System Clear
Auto Transfer
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 342 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

343
uuCustomized Features u
Continued
Features

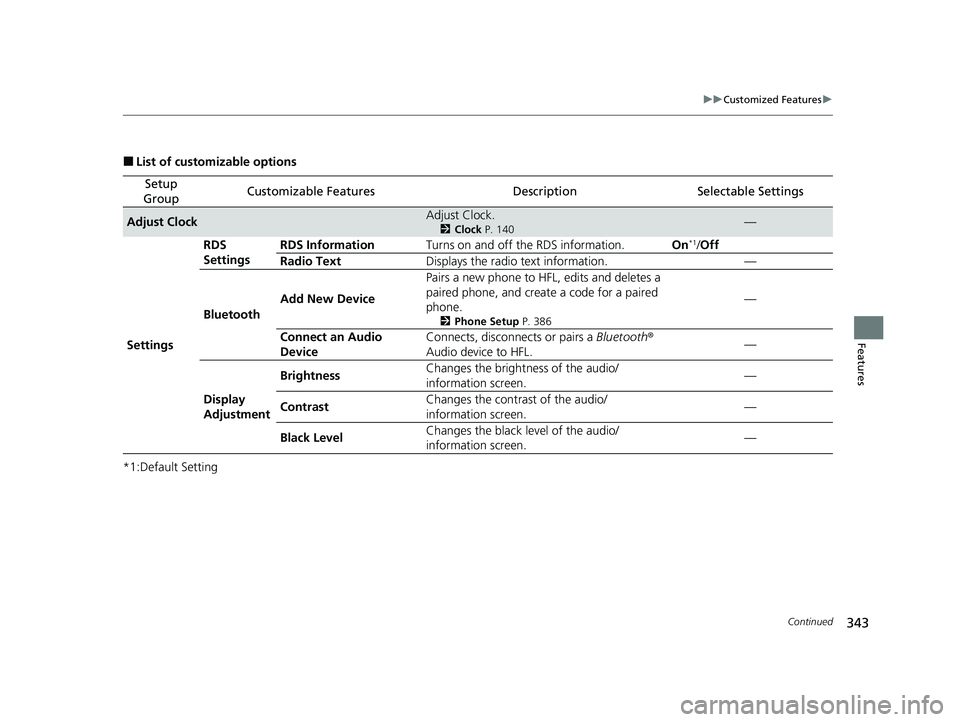

■List of customizable options
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Adjust ClockAdjust Clock.
2 Clock P. 140—
Settings RDS
Settings
RDS Information
Turns on and off the RDS information. On
*1/Off
Radio Text Displays the radio text information. —
Bluetooth Add New Device Pairs a new phone to HFL, edits and deletes a
paired phone, and creat
e a code for a paired
phone.
2 Phone Setup P. 386
—
Connect an Audio
Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Display
Adjustment Brightness
Changes the brightness of the audio/
information screen.
—
Contrast Changes the contrast of the audio/
information screen. —
Black Level Changes the black level of the audio/
information screen. —
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 343 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

344
uuCustomized Features u
Features
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Settings Rear
Camera
Camera Guideline Selects whether the guidelines come on the
audio/information screen.
On
*1/
Off
Display Change Changes the display type. Audio
*1/Wallpaper
Wallpaper Select
Changes the wallpaper type. Clock*1/
Image1/ Image2/
Import Imports an image file for a new wallpaper.
2
Wallpaper Setup P. 232—
Delete Deletes an image file for a wallpaper. Image1
*1/Image2/Image3
Color Theme Changes the background color of the audio/
information screen. Blue
*1/
Red/ Amber /Gray
Language Changes the display language. English
*1/French /Spanish
Clock Format Selects the digital clock display from 12H to
24H. 12H
*1/
24H
OSS Licenses Shows the legal information. —
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 344 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

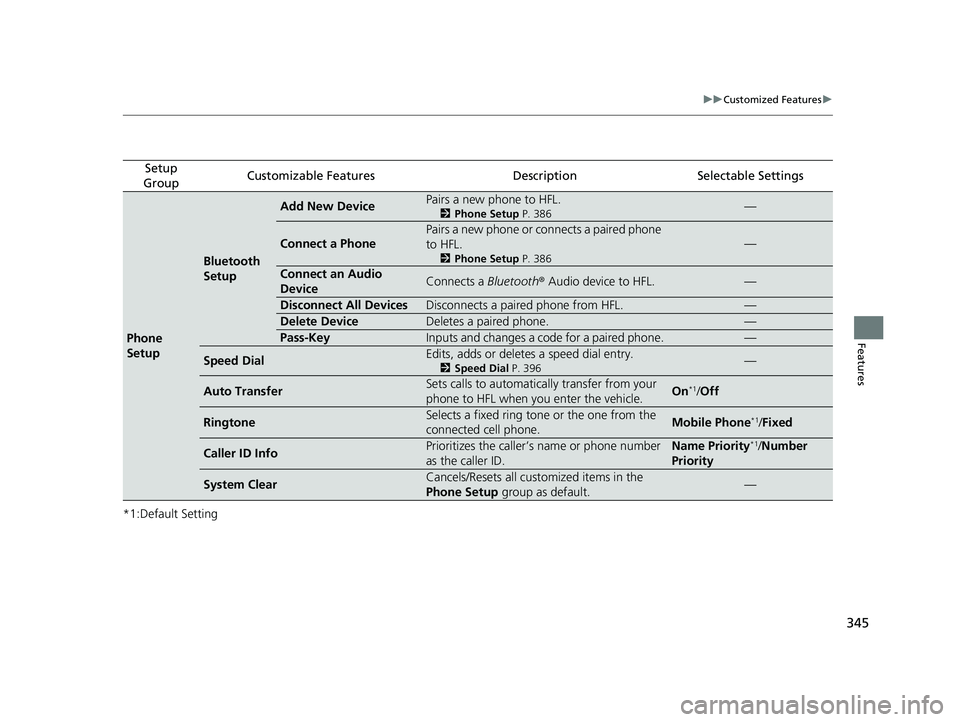

345
uuCustomized Features u
Features
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Phone
Setup
Bluetooth
Setup
Add New DevicePairs a new phone to HFL.
2 Phone Setup P. 386—
Connect a Phone
Pairs a new phone or connects a paired phone
to HFL.
2Phone Setup P. 386
—
Connect an Audio
DeviceConnects a Bluetooth® Audio device to HFL.—
Disconnect All DevicesDisconnects a paired phone from HFL.—
Delete DeviceDeletes a paired phone.—
Pass-KeyInputs and changes a code for a paired phone.—
Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 396—
Auto TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.On*1/Off
RingtoneSelects a fixed ring tone or the one from the
connected cell phone.Mobile Phone*1/Fixed
Caller ID InfoPrioritizes the caller’s name or phone number
as the caller ID.Name Priority*1/Number
Priority
System ClearCancels/Resets all customized items in the
Phone Setup group as default.—
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 345 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

346
Features
Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete st op with the ignition switch in ON
(w*1, press the
button, and select Settings, then select a setting item.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
To customize features detail, refer to the following. 2 Customization flow P. 347
2 List of customizable options P. 355
Continuously variable transmission models
Manual transmission models
Models with Display Audio
Audio/Information
Screen
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 346 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

347
uuCustomized Features u
Continued
Features

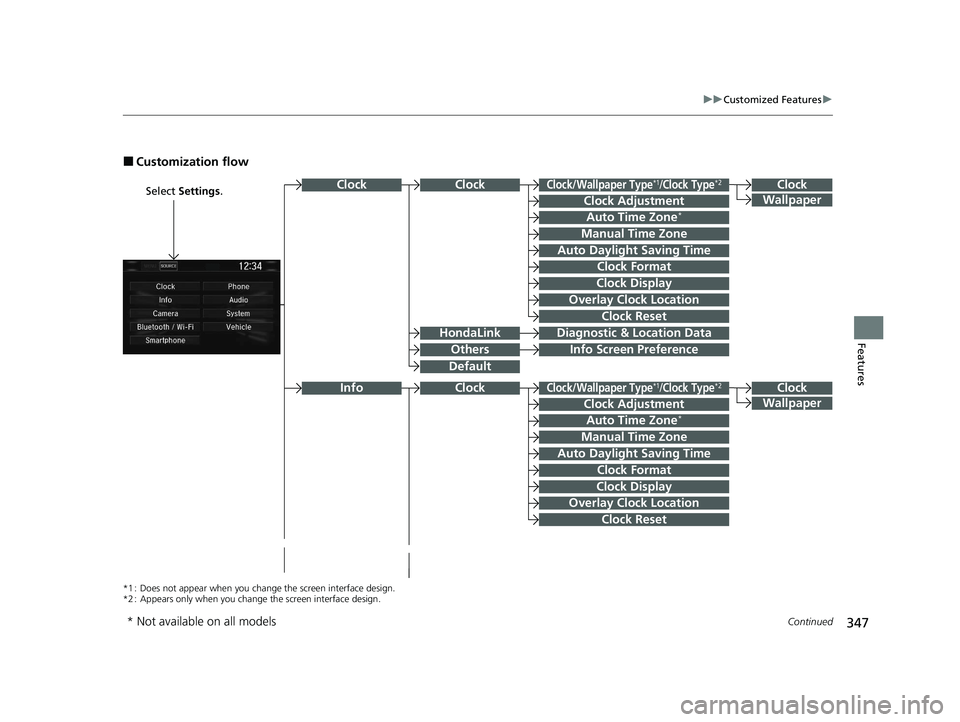

■Customization flow
Select Settings .Clock
Wallpaper
Others
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
ClockClock
Auto Time Zone*
Manual Time Zone
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Clock
Wallpaper
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
Clock
Auto Time Zone*
Manual Time Zone
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info
HondaLinkDiagnostic & Location Data
*1 : Does not appear when you chan ge the screen interface design.
*2 : Appears only when you change the screen interface design.
Default
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 347 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

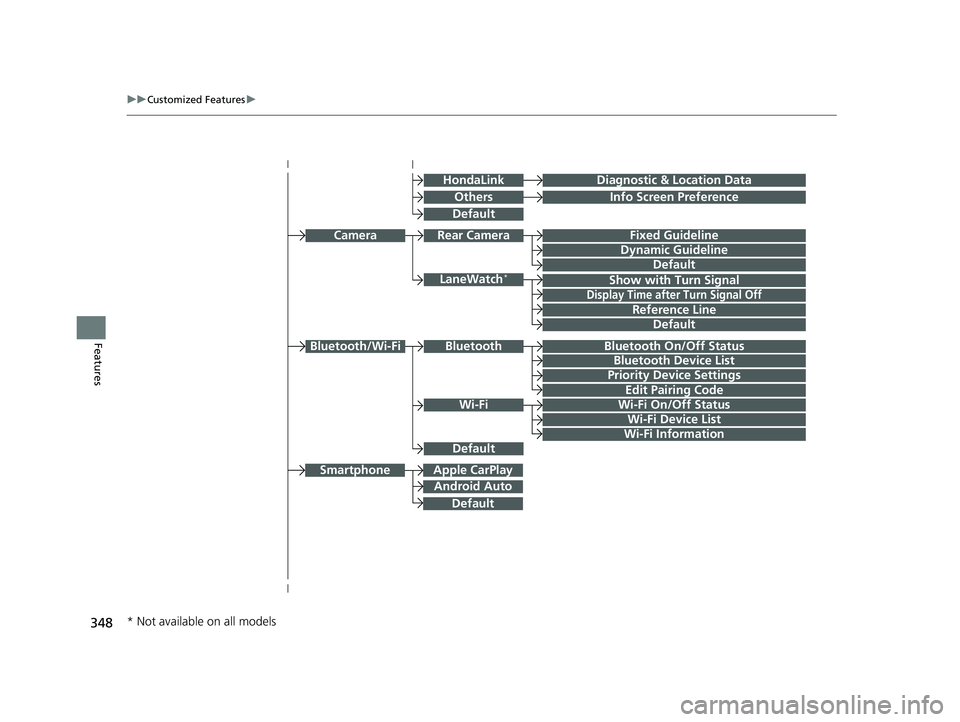

348
uuCustomized Features u
FeaturesBluetooth On/Off Status
Bluetooth Device List
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Device List
Wi-Fi
BluetoothBluetooth/Wi-Fi
Wi-Fi Information
LaneWatch*
Fixed Guideline
Dynamic Guideline
Show with Turn Signal
Rear CameraCamera
Display Time after Turn Signal Off
Reference Line
Apple CarPlay
Android Auto
Smartphone
OthersInfo Screen Preference
HondaLinkDiagnostic & Location Data
Default
Default
Default
Default
Default
Priority Device Settings
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 348 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
