HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

409
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
HFL Menus
The ignition switch mu st be in ACCESSORY (q or (w*1 to use HFL.
■Phone Settings screen
1.Press the button.
2. Select Settings .
3. Select Phone.
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are li mited while driving.
Disconnect a paired phone
from the system.
Bluetooth Device List(Existing entry list)
Disconnect
DeleteDelete a paired phone.
Add Bluetooth DevicePair a new phone to the system.
Phone
Connect a paired device to
the system.Connect
Connect
Connect
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 409 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

410
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
Manual InputNew Entry
Import from Call History
Import from Phonebook
Edit
Delete
(Existing entry list)Edit Speed Dial
Delete All
Enter a phone number to store as a speed
dial number.
Select a phone number from the call history
to store as a speed dial number.
Delete all of the previously stored speed dial numbers. Select a phone number from the phonebook
to store as a speed dial number. Edit a previously stored speed dial number.
●Change a name.●Change a number.●Create or delete a voice tag.
Delete a previously stored speed dial number.
Ring ToneSelect a fixed ring tone or the
one from the connected cell phone.
Automatic Phone SyncSet phonebook and call history data to be automatically imported when a phone is paired to HFL.
Turn HondaLink Assist on and off.HondaLink Assist
Priority Device
SettingsPriority On/Off Status
Audio
Phone
Enable the system to or disables it from
automatically establishi ng a connection with
a Bluetooth ® device which has been
assigned priority.
Select the priority devi ce over another paired
audio device(s).
Select the priority device over another paired
phone(s).
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 410 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

411
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
Select Account
Enable Text/EmailText/Email
New Message NotificationSelect whether a pop-up alert co mes on the screen when HFL
receives a new text/e-mail message.
Turn the text/e-mail message function on and off.
Select a text or e- mail message account.
DefaultCancel/Reset all customized items in the Phone settings group as default.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 411 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

412
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

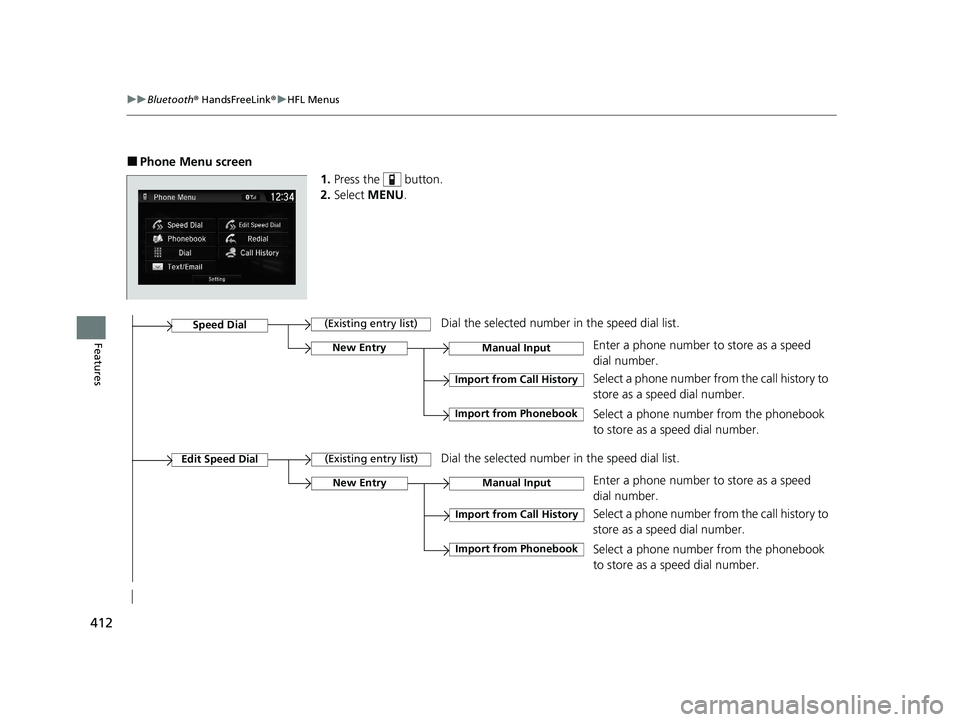

■Phone Menu screen
1.Press the button.
2. Select MENU .
Select a phone number from the call history to
store as a speed dial number.
Speed Dial
Manual InputNew Entry
Import from Call History
Import from PhonebookSelect a phone number from the phonebook
to store as a speed dial number. Enter a phone number to store as a speed
dial number.
(Existing entry list)Dial the selected number in the speed dial list.
Select a phone number from the call history to
store as a speed dial number.
Manual InputNew Entry
Import from Call History
Import from PhonebookSelect a phone number from the phonebook
to store as a speed dial number. Enter a phone number to store as a speed
dial number.
(Existing entry list)Dial the selected number in the speed dial list.Edit Speed Dial
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 412 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

413
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
See the previous message.
Text/EmailRead/Stop(Existing message list)
See the next message. System reads received message aloud, or
stop message from being read.
Select AccountSelect a text or e-mail message account.
Reply to a received message using one of six
fixed phrases.
DialMake a call to the sender.
Reply
Display the last outgoing, incoming and missed calls.Call HistoryAll
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.
MissedDisplay the last missed calls.
Dial
Redial
Enter a phone number to dial. Redial the last number dialed.
PhonebookDisplay the paired phone’s phonebook.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 413 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
414
Features

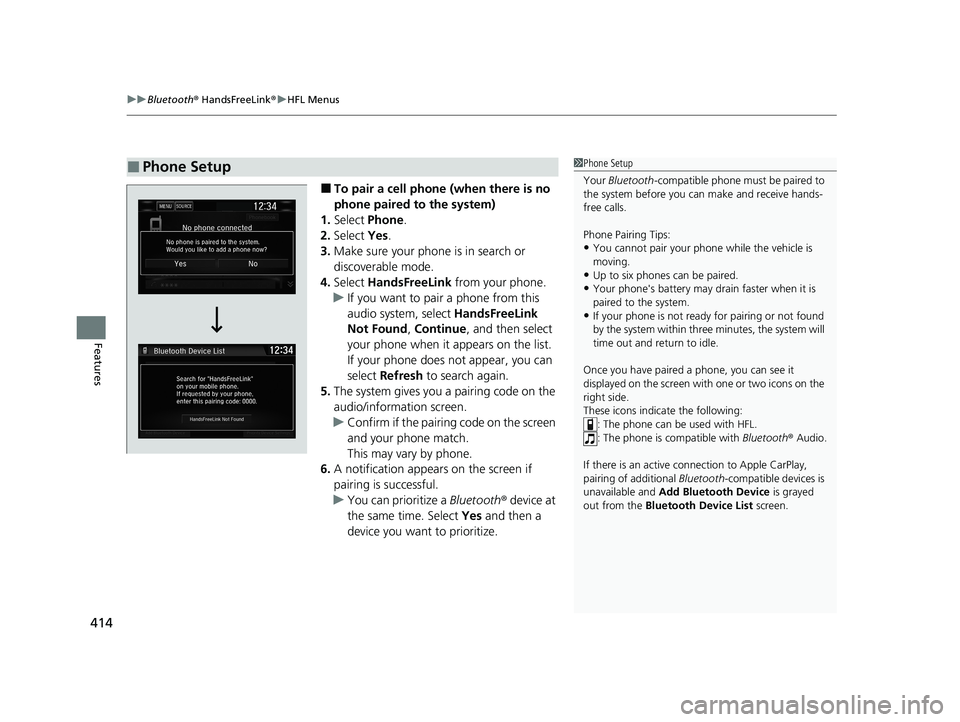

■To pair a cell phone (when there is no
phone paired to the system)
1. Select Phone .
2. Select Yes.
3. Make sure your phone is in search or
discoverable mode.
4. Select HandsFreeLink from your phone.
u If you want to pair a phone from this
audio system, select HandsFreeLink
Not Found , Continue , and then select
your phone when it appears on the list.
If your phone does not appear, you can
select Refresh to search again.
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
6. A notification appears on the screen if
pairing is successful.
u You can prioritize a Bluetooth ® device at
the same time. Select Yes and then a
device you want to prioritize.
■Phone Setup1 Phone Setup
Your Bluetooth -compatible phone must be paired to
the system before you ca n make and receive hands-
free calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone's battery may dr ain faster when it is
paired to the system.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following: : The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.
If there is an active c onnection to Apple CarPlay,
pairing of additional Bluetooth -compatible devices is
unavailable and Add Bluetooth Device is grayed
out from the Bluetooth Device List screen.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 414 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

Continued415
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

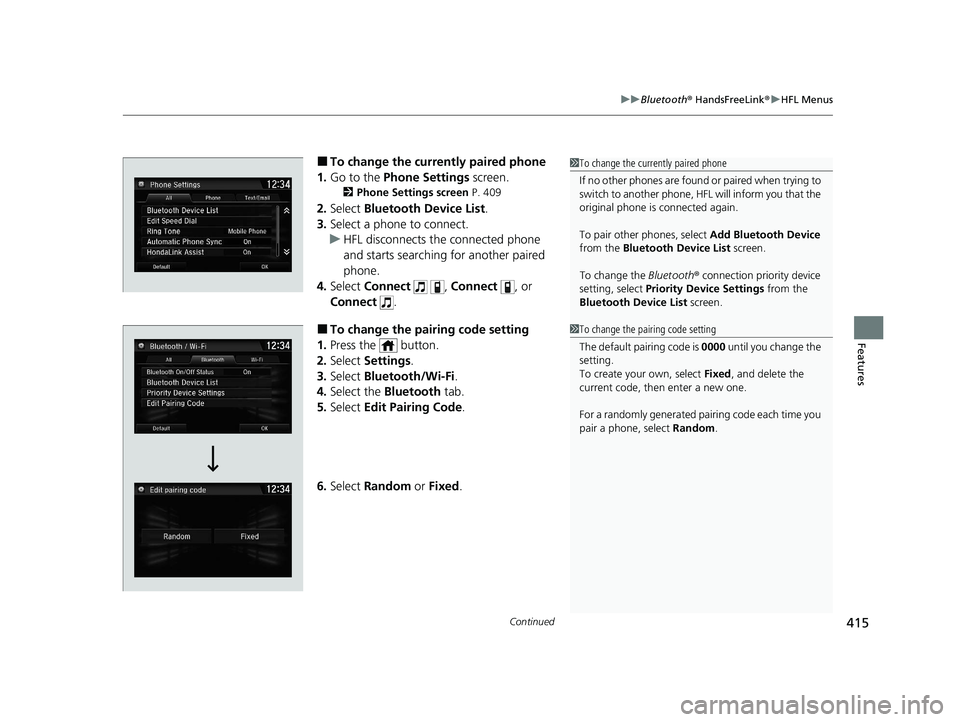

■To change the currently paired phone
1. Go to the Phone Settings screen.
2Phone Settings screen P. 409
2.Select Bluetooth Device List .
3. Select a phone to connect.
u HFL disconnects the connected phone
and starts searching for another paired
phone.
4. Select Connect , Connect , or
Connect .
■To change the pairing code setting
1. Press the button.
2. Select Settings .
3. Select Bluetooth/Wi-Fi .
4. Select the Bluetooth tab.
5. Select Edit Pairing Code .
6. Select Random or Fixed .
1To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HF L will inform you that the
original phone is connected again.
To pair other phones, select Add Bluetooth Device
from the Bluetooth Device List screen.
To change the Bluetooth® connection priority device
setting, select Priority Device Settings from the
Bluetooth Device List screen.
1To change the pairing code setting
The default pairing code is 0000 until you change the
setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pair ing code each time you
pair a phone , select Random .
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 415 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

416
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

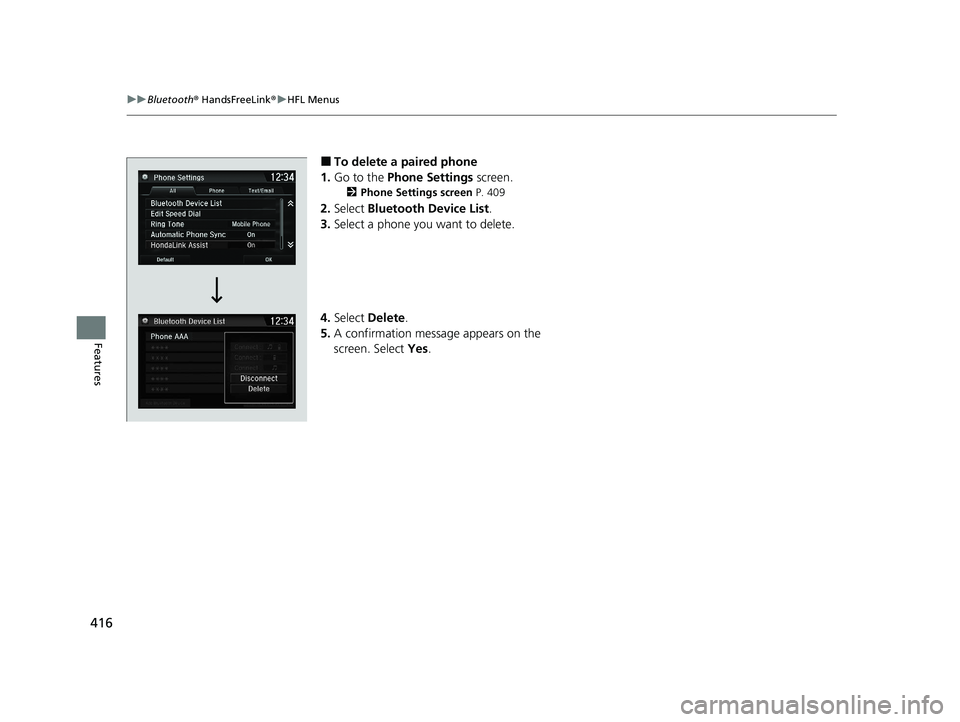

■To delete a paired phone
1. Go to the Phone Settings screen.
2Phone Settings screen P. 409
2.Select Bluetooth Device List .
3. Select a phone you want to delete.
4. Select Delete.
5. A confirmation message appears on the
screen. Select Yes.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 416 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

Continued417
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

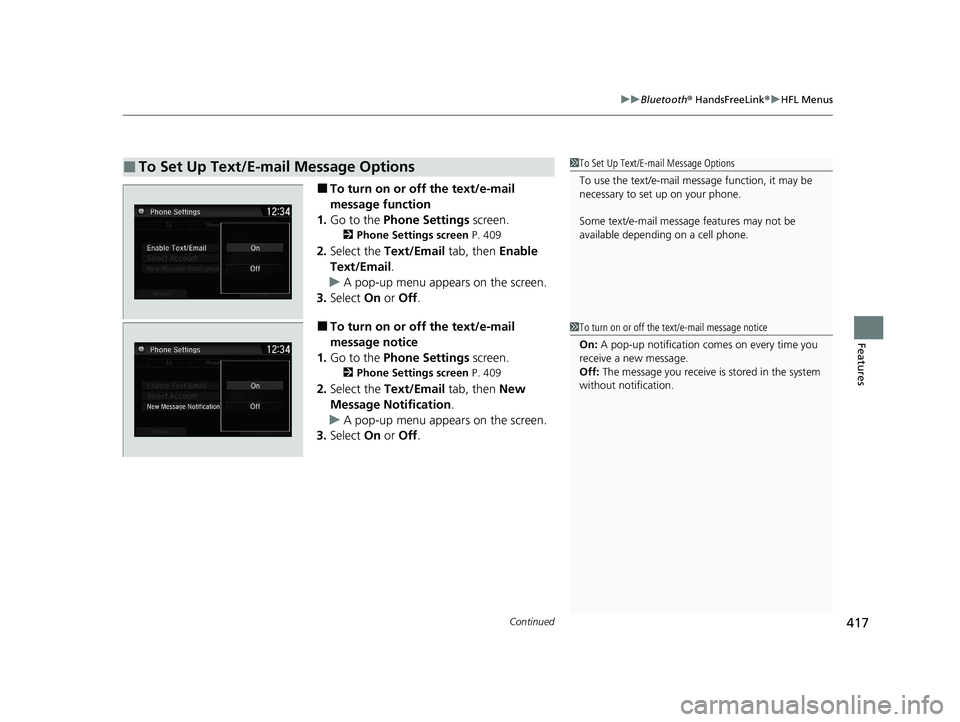

■To turn on or off the text/e-mail
message function
1. Go to the Phone Settings screen.
2Phone Settings screen P. 409
2.Select the Text/Email tab, then Enable
Text/Email .
u A pop-up menu appears on the screen.
3. Select On or Off .
■To turn on or off the text/e-mail
message notice
1. Go to the Phone Settings screen.
2Phone Settings screen P. 409
2.Select the Text/Email tab, then New
Message Notification .
u A pop-up menu appears on the screen.
3. Select On or Off .
■To Set Up Text/E-mail Message Options1To Set Up Text/E-mail Message Options
To use the text/e-mail message function, it may be
necessary to set up on your phone.
Some text/e-mail message features may not be
available dependi ng on a cell phone.
1To turn on or off the text/e-mail message notice
On: A pop-up notification comes on every time you
receive a new message.
Off: The message you receive is stored in the system
without not ification.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 417 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
418
Features

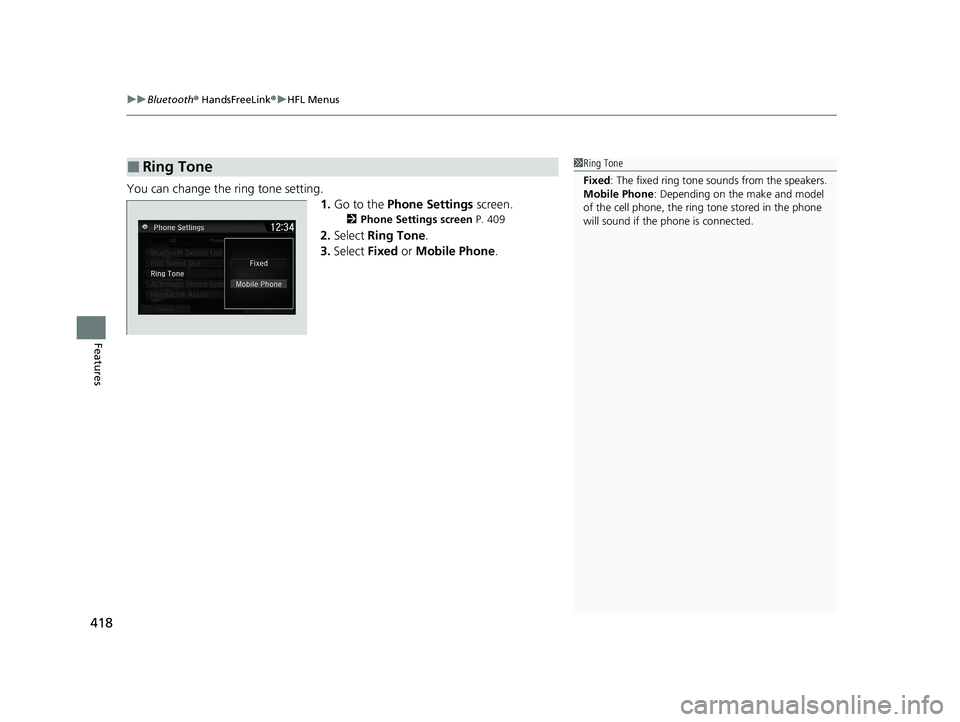

You can change the ring tone setting.
1.Go to the Phone Settings screen.
2Phone Settings screen P. 409
2.Select Ring Tone.
3. Select Fixed or Mobile Phone .
■Ring Tone1Ring Tone
Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone : Depending on the make and model
of the cell phone, the ring tone stored in the phone
will sound if the phone is connected.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 418 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
