HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

629
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 630
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 631
Changing a Flat Tire ......................... 644
Handling of the jack
*
How to Set Up the Jack .................... 652
Engine Does Not Start Checking the Engine ........................ 655
If the Smart Entry Remote Battery is Weak .. 656
Models with temporary tire repair kit
Models with a compact spare tire
Canadian models with temporary tire repair kit
Models with smart entry system
Emergency Engine Stop ................... 657
Jump Starting .................................... 658
Shift Lever Does Not Move .............. 661
Overheating ...................................... 662
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On................................................ 664
If the Charging System Indicator Comes
On ................................................. 664
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 665
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 666
Models with smart entry systemIf the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On ....................... 667
If the Electric Power Steering (EPS) System Indicator Comes On......................... 668
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks
*...................... 669
Fuses Fuse Locations ................................. 670
Inspecting and Changing Fuses ........ 674
Emergency Towing ........................... 675
When You Cannot Unlock the Fuel Fill
Door ................................................. 676
When You Cannot Open the Hatch.....677Refueling ........................................... 678
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 629 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

630
Handling the Unexpected

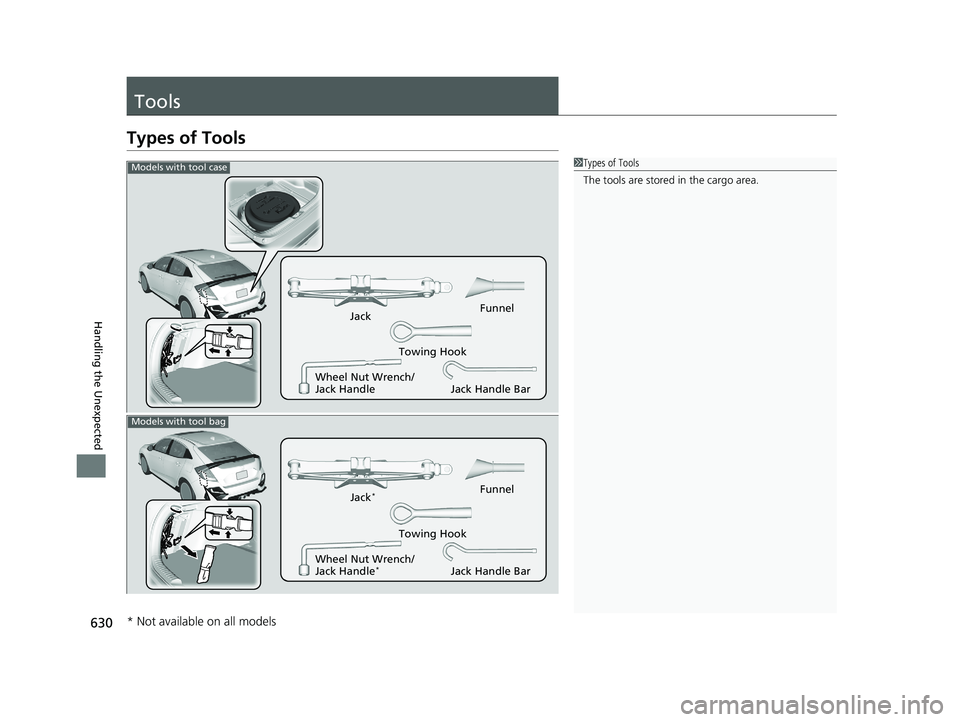

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle BarFunnel
Models with tool case
Towing Hook
Jack Handle Bar
Models with tool bag
Wheel Nut Wrench/
Jack Handle*
Jack*Funnel
Towing Hook
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 630 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

631Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface, and apply the parking
brake.
2. Put the transmission into
(R.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Models with temporary tire repair kit
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Use Kit
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 631 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
632
Handling the Unexpected

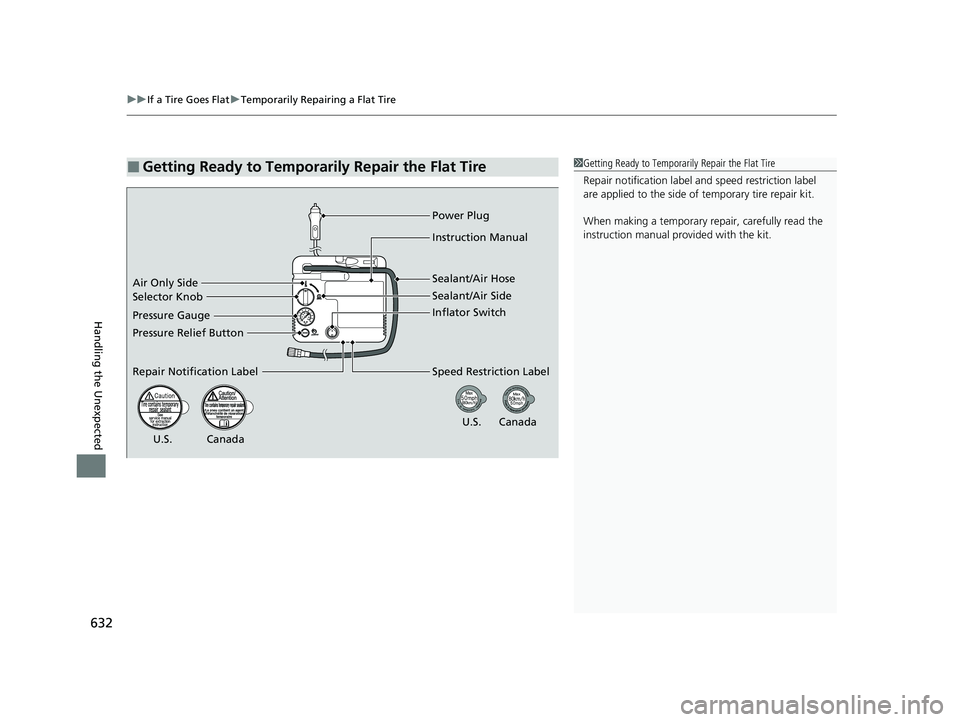

■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
U.S. Canada
U.S. Canada
Air Only Side
Selector Knob Sealant/Air Side
Pressure Gauge
Pressure Relief Button
Repair Notification Label Power Plug
Instruction Manual
Sealant/Air Hose
Inflator Switch
Speed Restriction Label
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 632 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

633
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

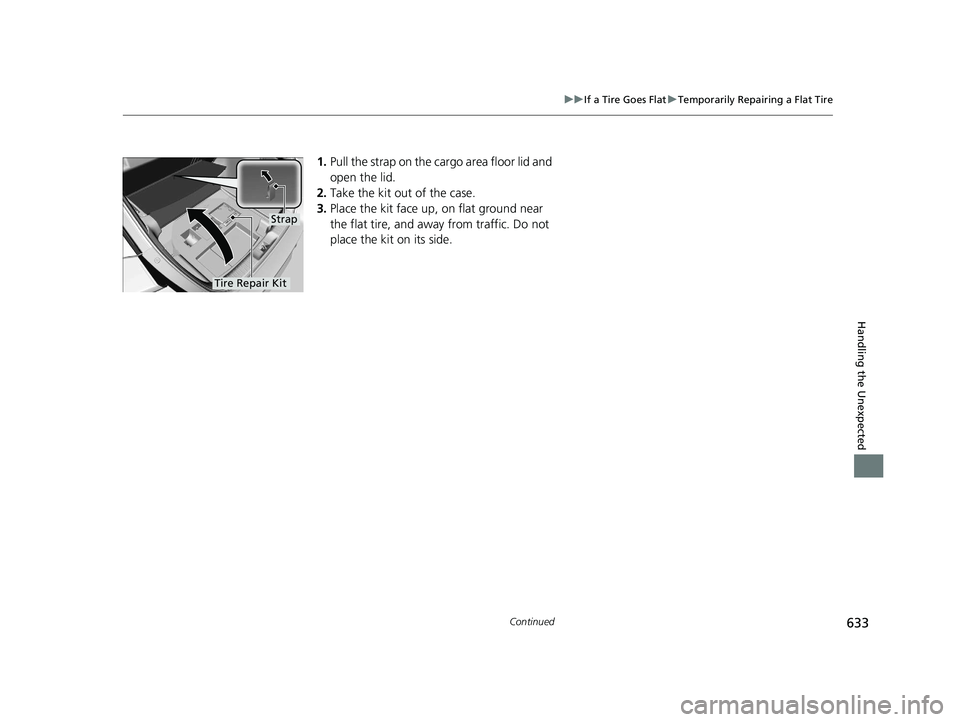

1. Pull the strap on the cargo area floor lid and
open the lid.
2. Take the kit out of the case.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Strap
Tire Repair Kit
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 633 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
634
Handling the Unexpected

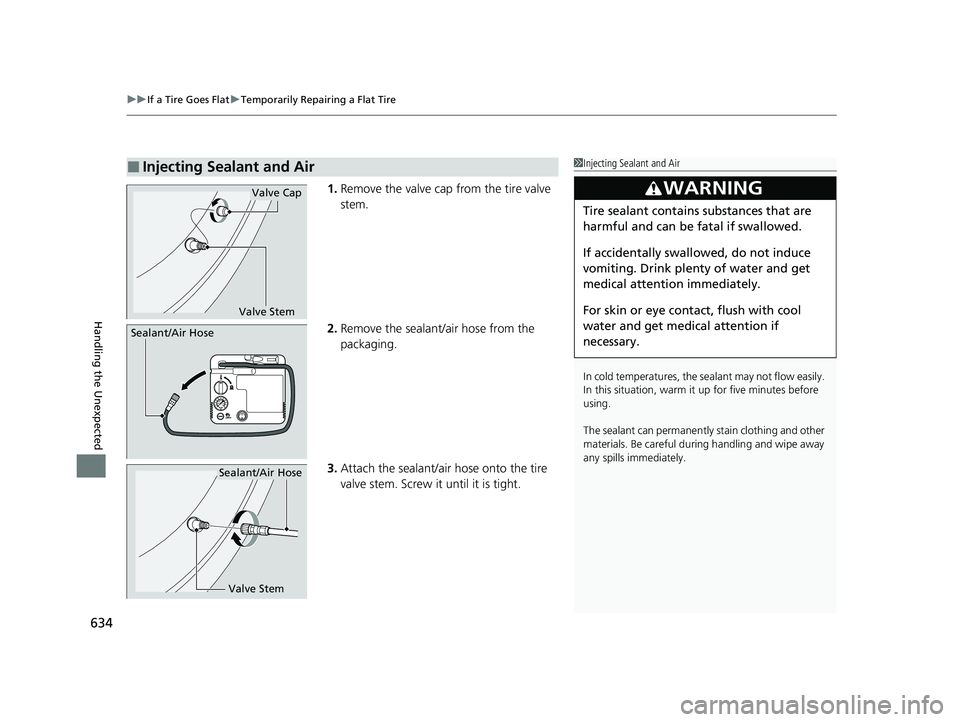

1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Valve Stem
Valve Cap
Sealant/Air Hose
Valve Stem
Sealant/Air Hose
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 634 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

Continued635
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

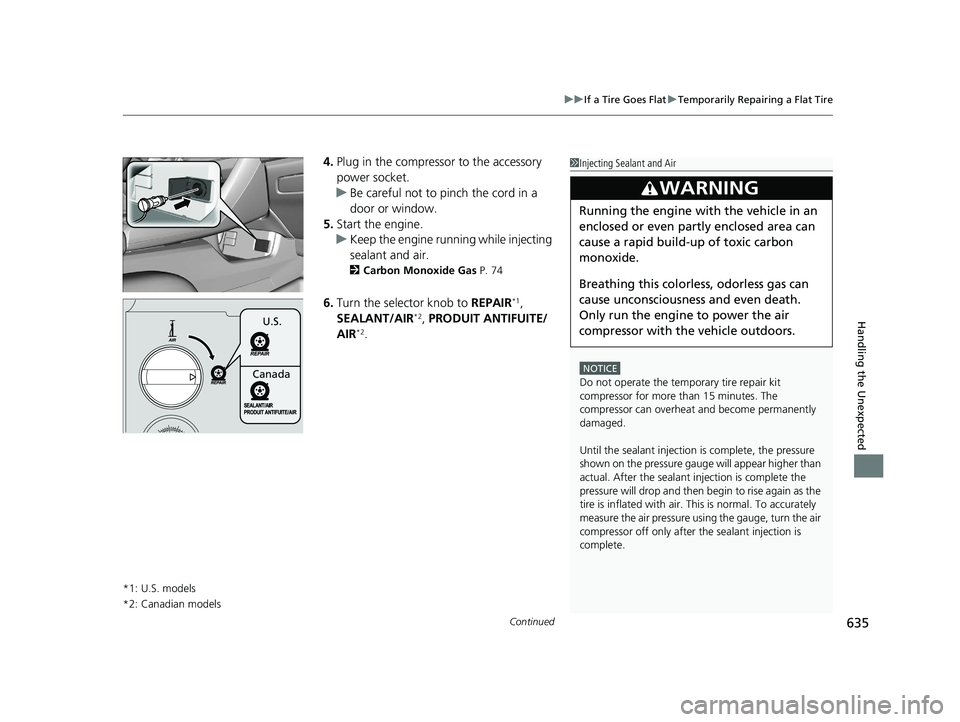

4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
5. Start the engine.
u Keep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 74
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usin g the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 635 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
636
Handling the Unexpected

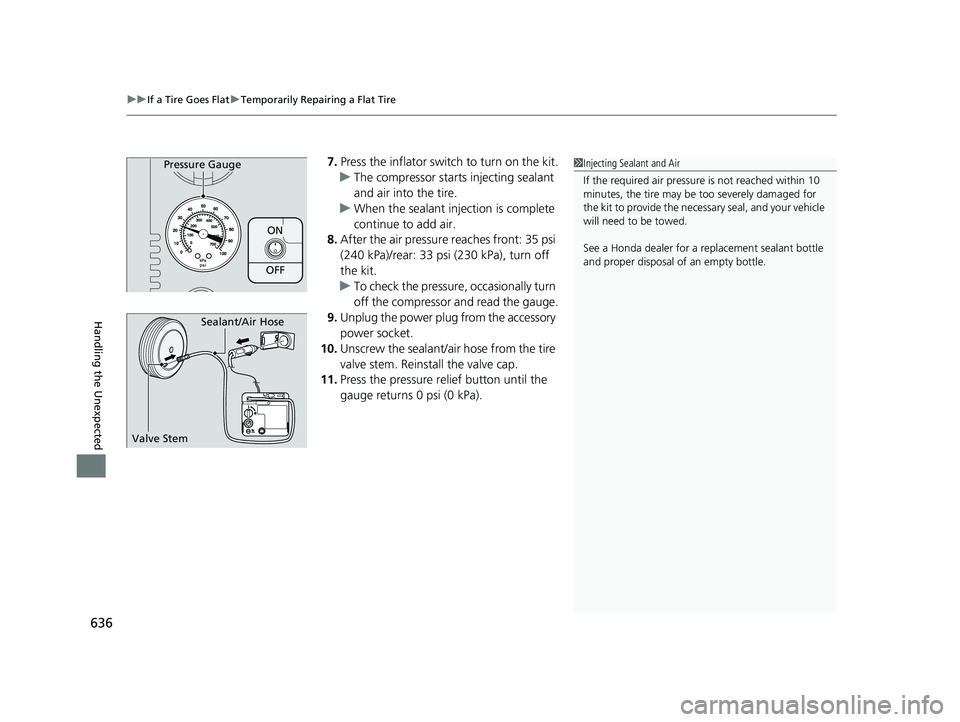

7. Press the inflator swit ch to turn on the kit.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete
continue to add air.
8. After the air pressure reaches front: 35 psi
(240 kPa)/rear: 33 psi (230 kPa), turn off
the kit.
u To check the pressure, occasionally turn
off the compressor and read the gauge.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
11. Press the pressure relief button until the
gauge returns 0 psi (0 kPa).
ON
OFF
Pressure Gauge1Injecting Sealant and Air
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal, and your vehicle
will need to be towed.
See a Honda dealer for a replacement sealant bottle
and proper disposal of an empty bottle.
Sealant/Air Hose
Valve Stem
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 636 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

637
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

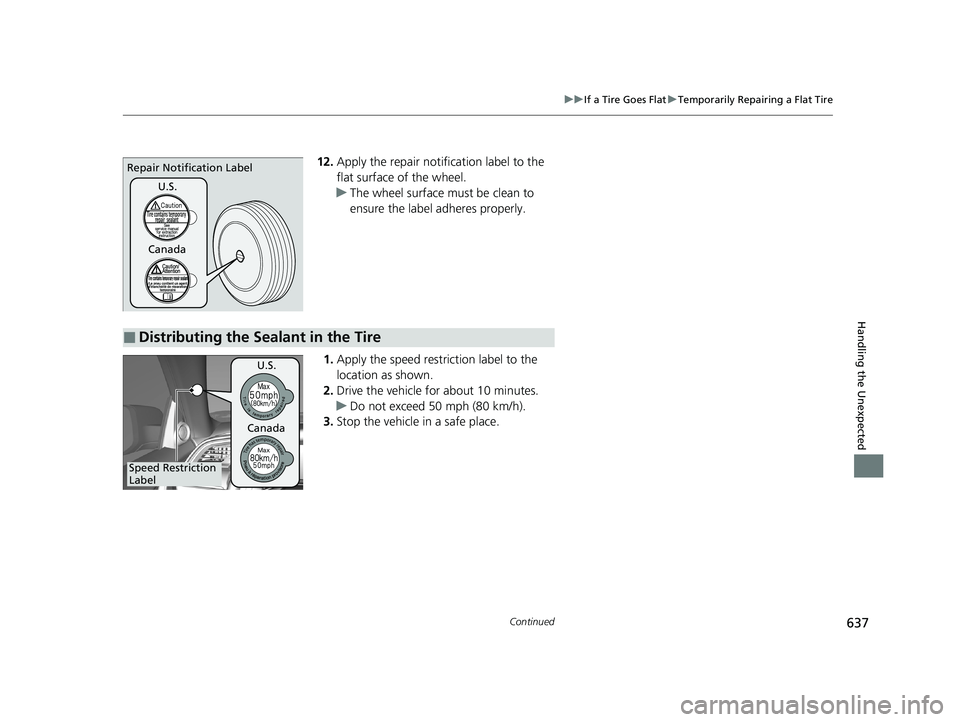

12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.Repair Notification Label
U.S.
Canada
■Distributing the Sealant in the Tire
Speed Restriction
Label U.S.
Canada
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 637 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

638
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

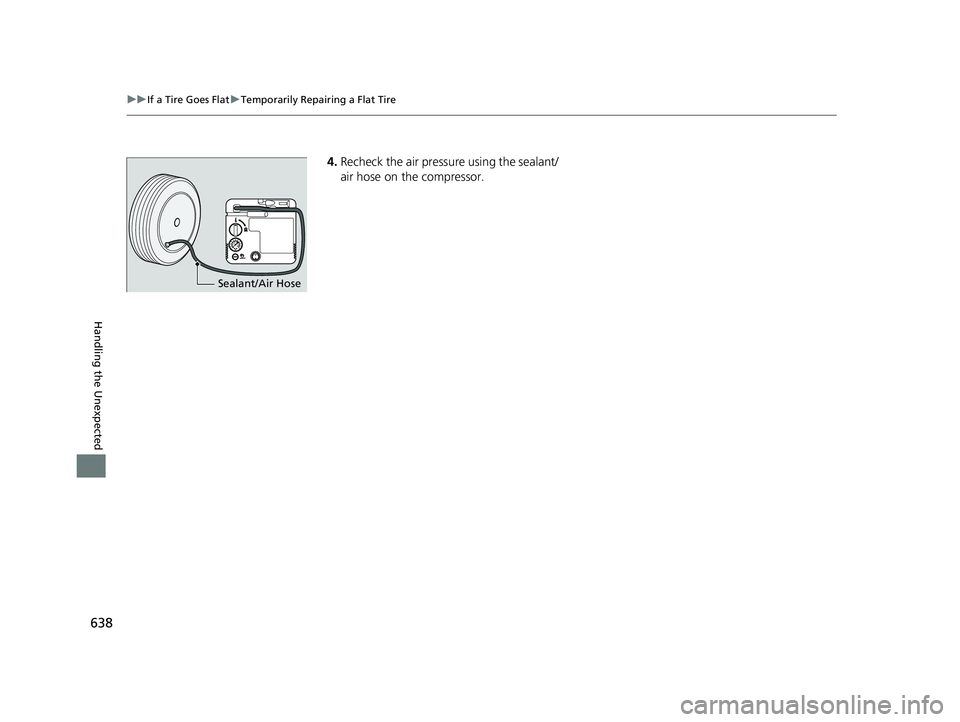

4. Recheck the air pressure using the sealant/
air hose on the compressor.
Sealant/Air Hose
