uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
Handling the Unexpected

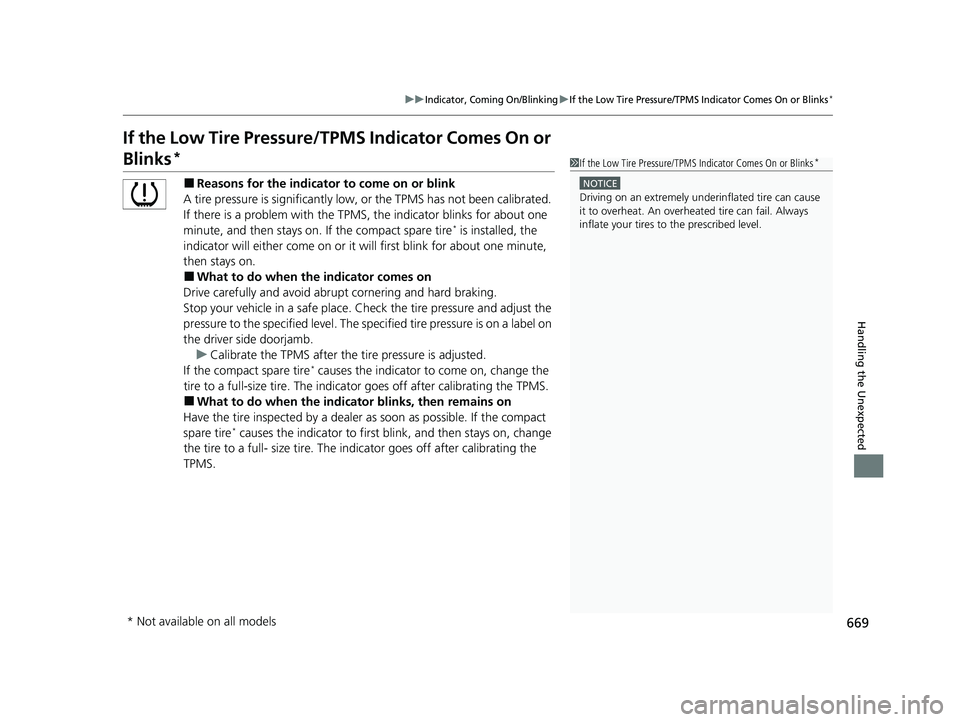

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks*
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on. If the compact spare tire
* is installed, the
indicator will either come on or it will first blink for about one minute,
then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
If the compact spare tire
* causes the indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stays on, change
the tire to a full- size tire. The i ndicator goes off after calibrating the
TPMS.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 669 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

670
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, turn the ignition switch to LOCK (0*1, and
check to see if any app licable fuse is blown.
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Engine Compartment Fuse Box
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 670 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

671
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Option Block 1*(60 A)
−−
Cooling Fan50 A*4
30 A*5
Audio AMP*(30 A)
IG Main 2*1(30 A)
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main 1 30 A*1
50 A*2
Fuse Box Option*(40 A)
Fuse Box 1 60 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
3
Rear Defroster40 A
Starter Motor(30 A)
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
4 −−
−−
−−
−−
5Cooling Fan*4(5 A)
6Washer 15A
7FI Main15 A*4
20 A*5
8 Stop Lights 10 A
9FI Sub15 A
10 Injector*4(15 A)
Sub Fan Motor*520 A
11LAF5A
12 FI ECU 10 A
13Hazard15 A
14 Rear Heated Seat*(15 A)
15IG Coil15 A
16 Transmission*3(15 A)
17Daytime Running Lights(10 A)
18 Back Up 10 A
19Audio(15 A)
20 Parking Lights 10 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor10 A
24 Horn 10 A
25−−
26 Left Headlight Low Beam 10 A
27Right Headlight Low Beam10 A
28 − −
29Left Headlight High Beam10 A
30 Right Headlight High Beam 10 A
31Passenger’s Power Seat Sliding*(20 A)
32 Passenger’s Power Seat
Reclining
*(20 A)
Adaptive Damper System
*5(15 A)
33VB ACT(5 A)
Circuit ProtectedAmps
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 671 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

672
uuFuses uFuse Locations
Handling the Unexpected
Located under the driver’s side dashboard.
Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.
■Interior Fuse Box
Fuse Label
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 672 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

673
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control*45A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20−−
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 673 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

674
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 670
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 674 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

675
Handling the Unexpected

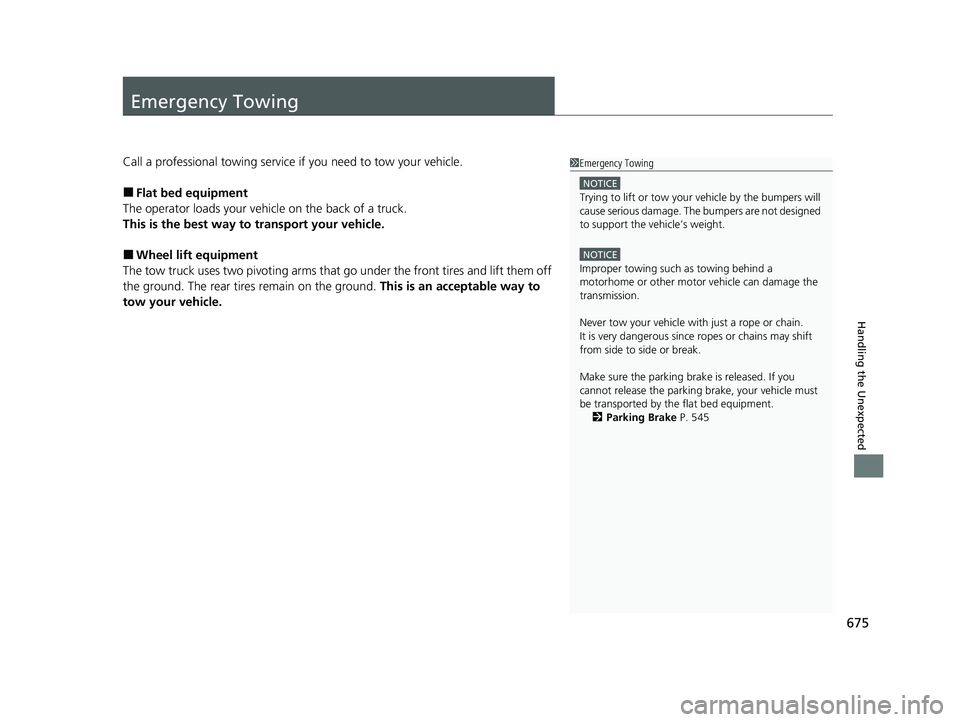

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 545
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 675 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

676
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the hatch.
2. Open the cargo floor lid.
2. Pull the strap on the cargo area floor lid and
open the lid.
3. Turn and pull the tab to open the
compartment cover located on the left side
of the cargo area.
4. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Release CordModels with tool case
Models with tool bag
All models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 676 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

677
Handling the Unexpected

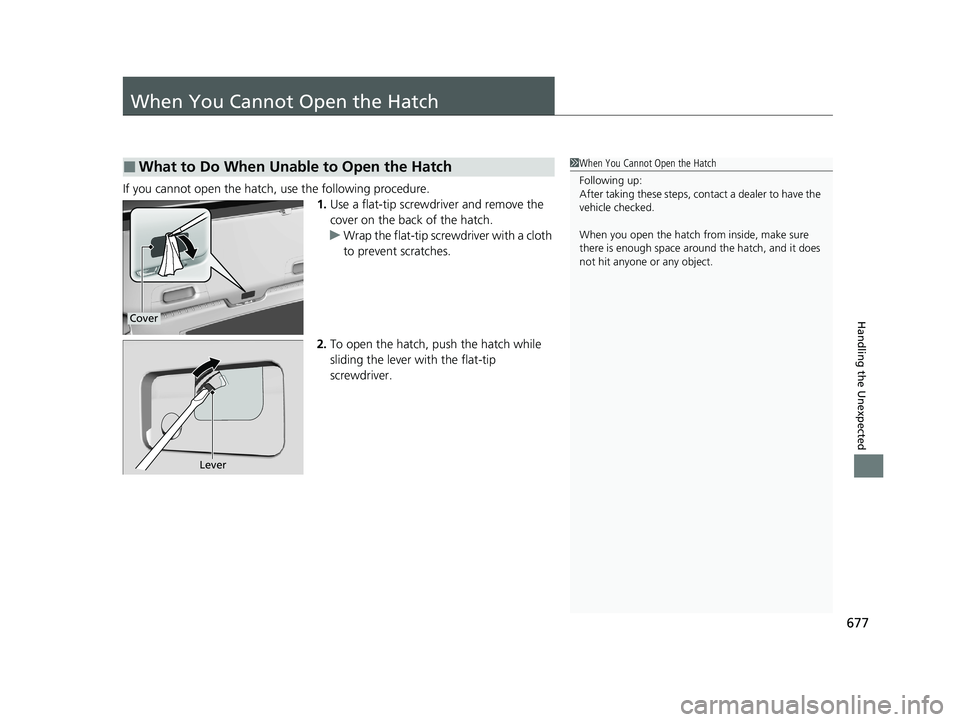

When You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.
1.Use a flat-tip screwdriver and remove the
cover on the back of the hatch.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the hatch, push the hatch while
sliding the lever with the flat-tip
screwdriver.
■What to Do When Unable to Open the Hatch1When You Cannot Open the Hatch
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Cover
Lever
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 677 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

678
Handling the Unexpected

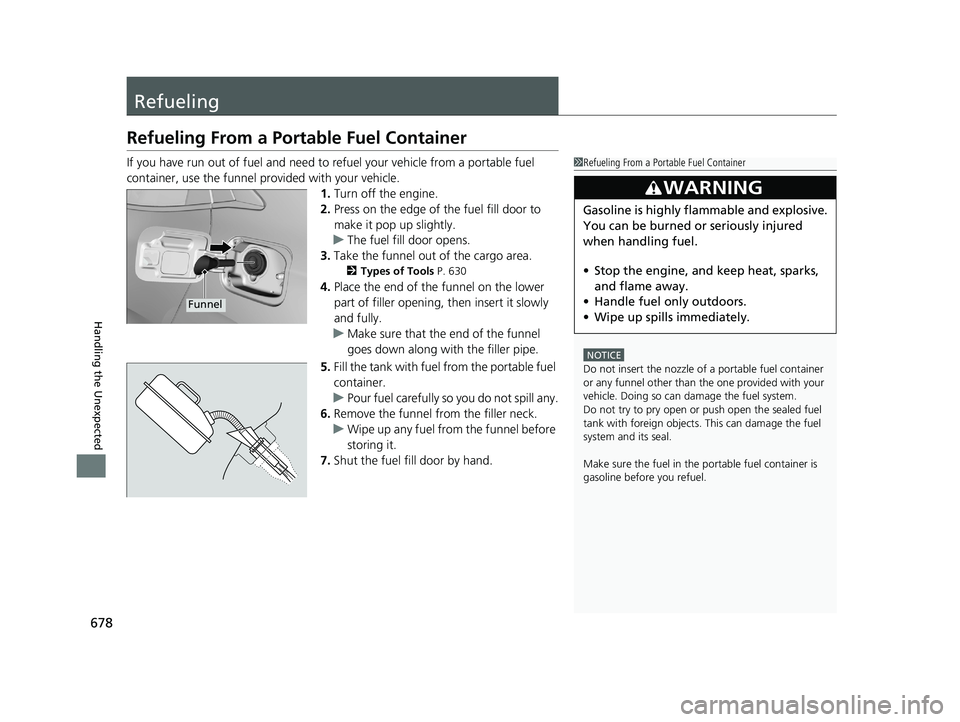

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the cargo area.
2 Types of Tools P. 630
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
