HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

599
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Continued
Maintenance

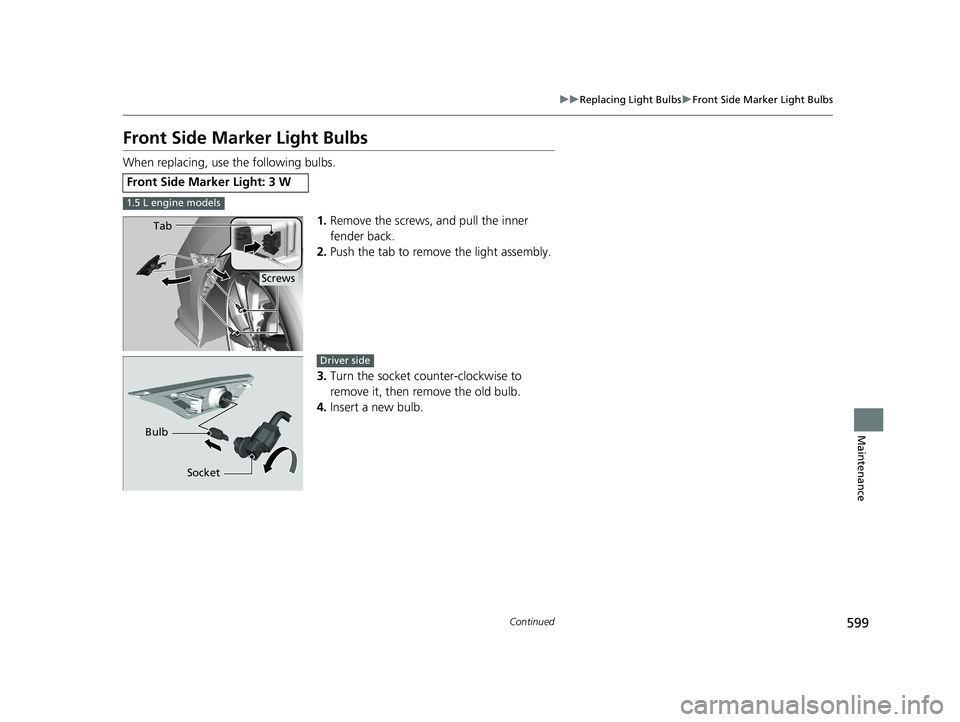

Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Remove the screws, and pull the inner
fender back.
2. Push the tab to remove the light assembly.
3. Turn the socket counter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
Front Side Marker Light: 3 W
1.5 L engine models
Tab
Screws
Socket
Bulb
Driver side
21 CIVIC 5D HUM-31TGG6400_01.book 599 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

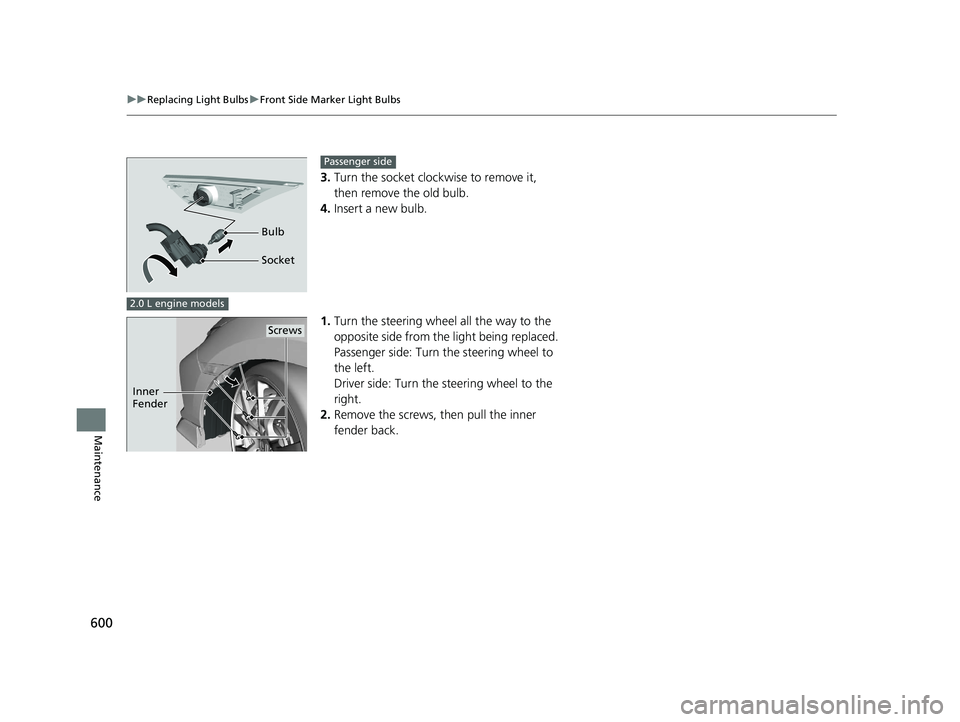

600
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
3. Turn the socket clockwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
1. Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel to
the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the screws, th en pull the inner
fender back.
Bulb
Socket
Passenger side
2.0 L engine models
Screws
Inner
Fender
21 CIVIC 5D HUM-31TGG6400_01.book 600 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

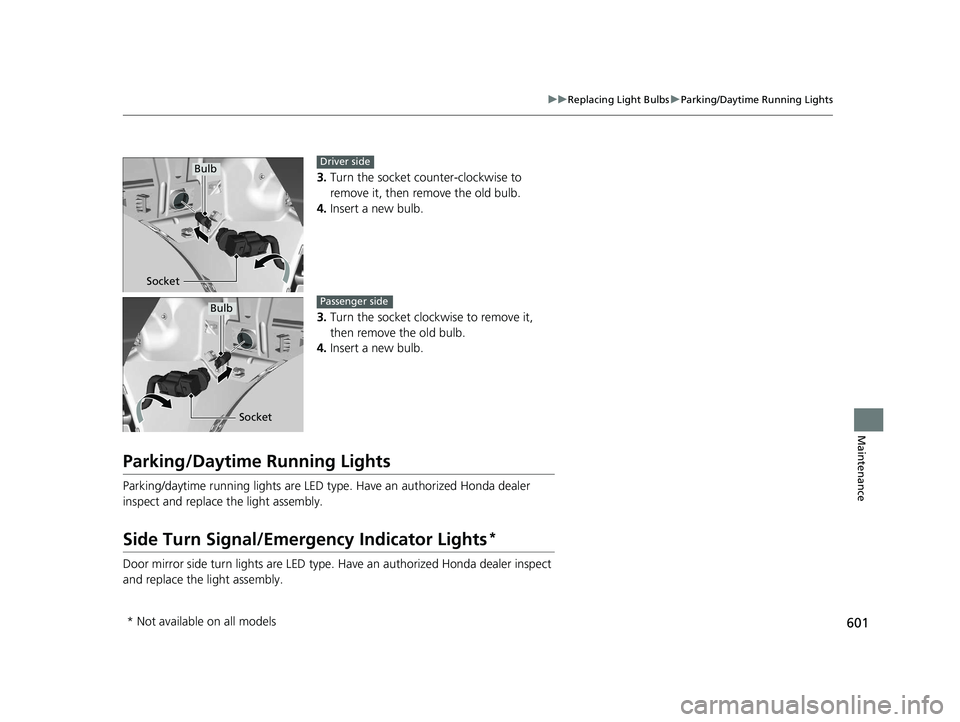

601
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
3. Turn the socket counter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
3. Turn the socket cloc kwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED ty pe. Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bulb
SocketDriver side
Bulb SocketPassenger side
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 601 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

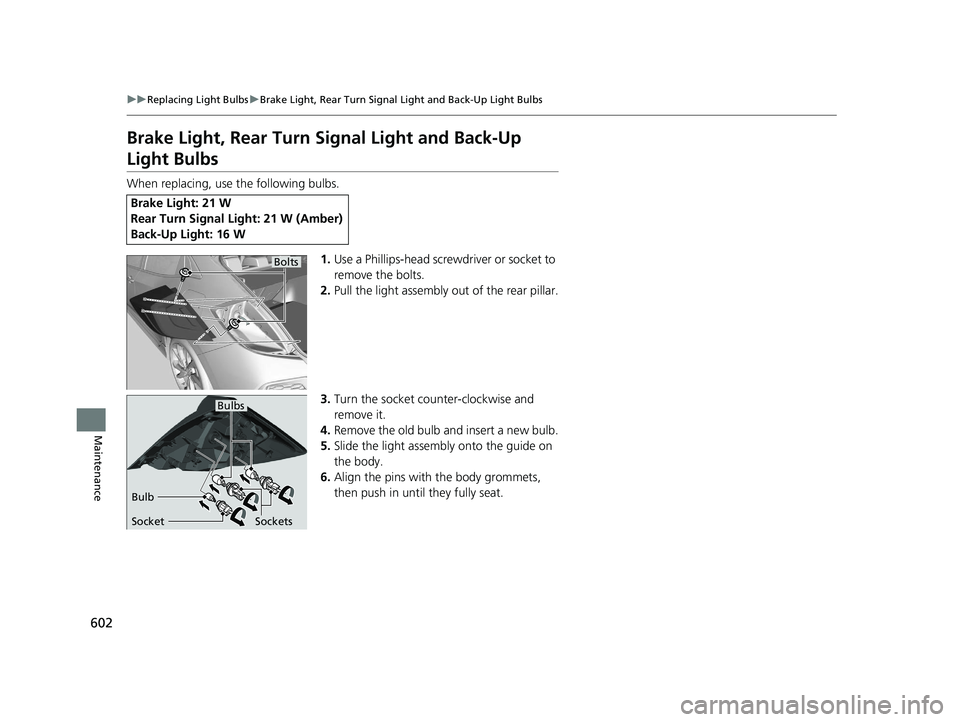

602
uuReplacing Light Bulbs uBrake Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance
Brake Light, Rear Turn Signal Light and Back-Up
Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in unt il they fully seat.
Brake Light: 21 W
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 16 W
Bolts
Bulbs
Sockets
Bulb
Socket
21 CIVIC 5D HUM-31TGG6400_01.book 602 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

603
uuReplacing Light Bulbs uTaillights/Rear Side Marker Lights
Maintenance

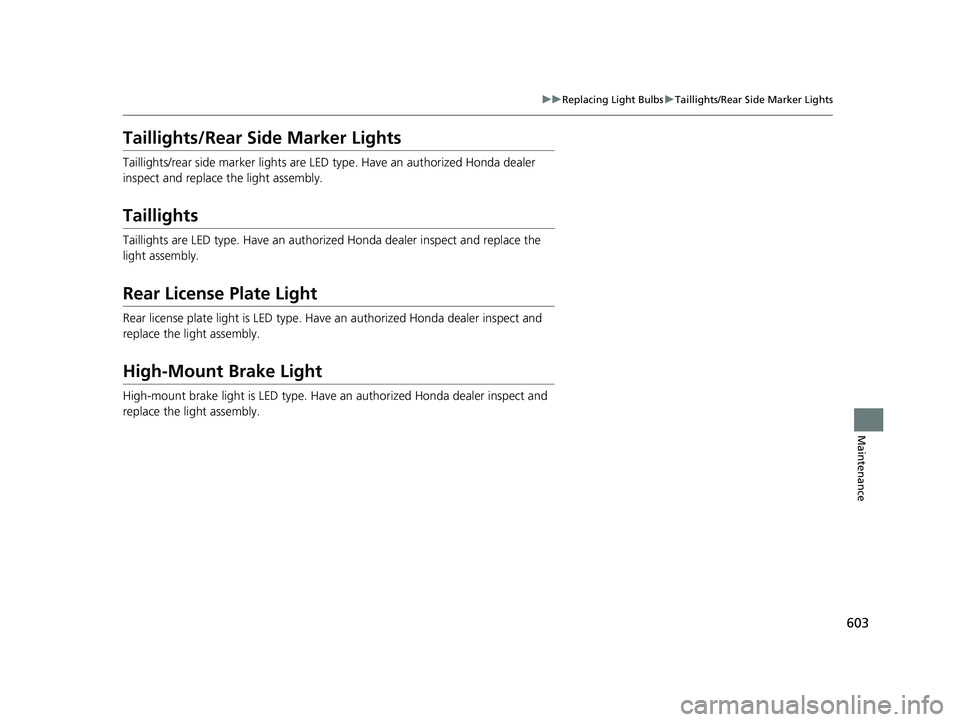

Taillights/Rear Side Marker Lights
Taillights/rear side marker lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Taillights
Taillights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
21 CIVIC 5D HUM-31TGG6400_01.book 603 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

604
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1. Turn the ignition switch to LOCK (0*1.
2. While holding the wiper switch in the MIST
position, turn the igni tion switch to ON
(w*1, then to LOCK (0*1.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
21 CIVIC 5D HUM-31TGG6400_01.book 604 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

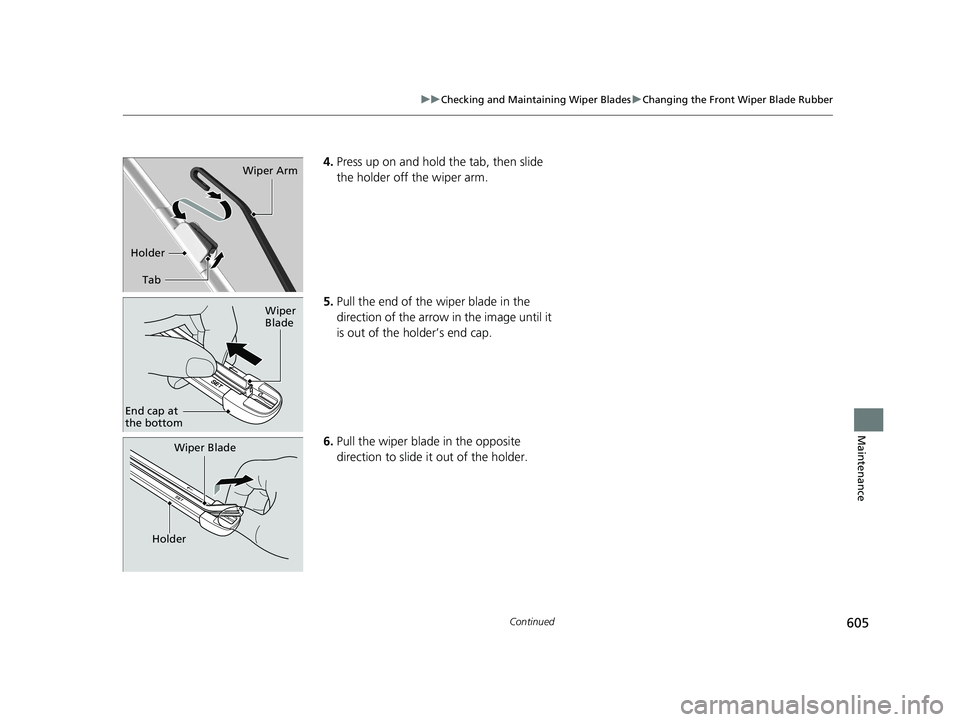

605
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Continued
Maintenance
4. Press up on and hold the tab, then slide
the holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.
Tab
Holder
Wiper Arm
Wiper
Blade
End cap at
the bottom
Wiper Blade
Holder
21 CIVIC 5D HUM-31TGG6400_01.book 605 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

606
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance
7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto th e wiper arm until it
locks.
10. Lower both wiper arms.
11. Turn the ignition switch to ON
(w*1 and
hold the wiper switch in the MIST position
until both wiper arms return to the
standard position.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Holder Wiper
Blade
Cap
21 CIVIC 5D HUM-31TGG6400_01.book 606 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

607
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber*
Continued
Maintenance

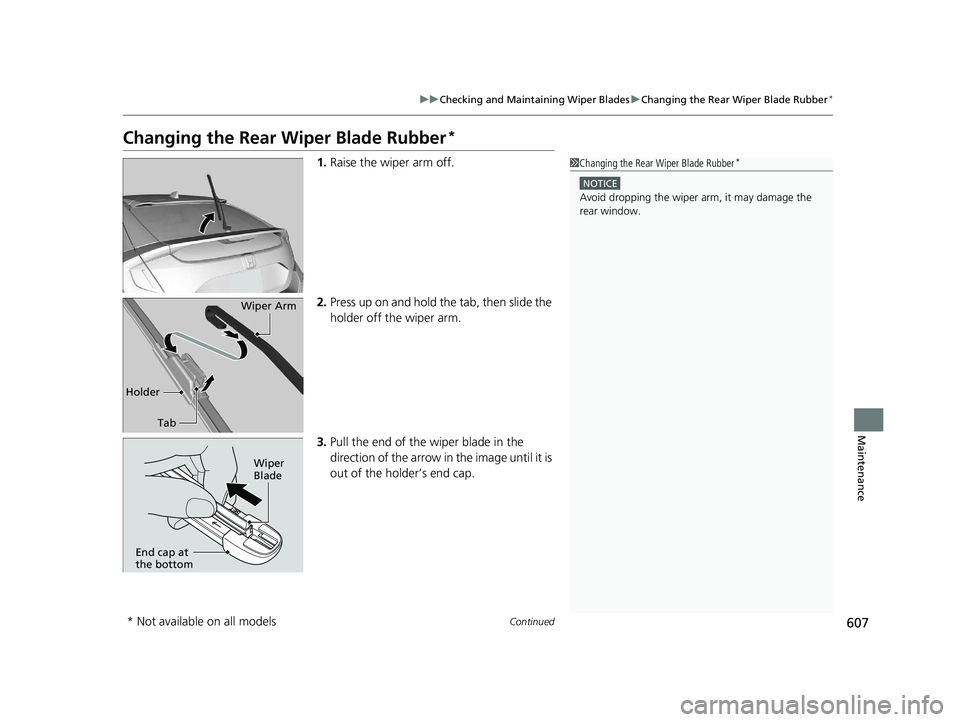

Changing the Rear Wiper Blade Rubber*
1.Raise the wiper arm off.
2. Press up on and hold the tab, then slide the
holder off the wiper arm.
3. Pull the end of the wiper blade in the
direction of the arrow in the image until it is
out of the holder’s end cap.1Changing the Rear Wiper Blade Rubber*
NOTICE
Avoid dropping the wiper ar m, it may damage the
rear window.
Tab
Wiper Arm
Holder
Wiper
Blade
End cap at
the bottom
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 607 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

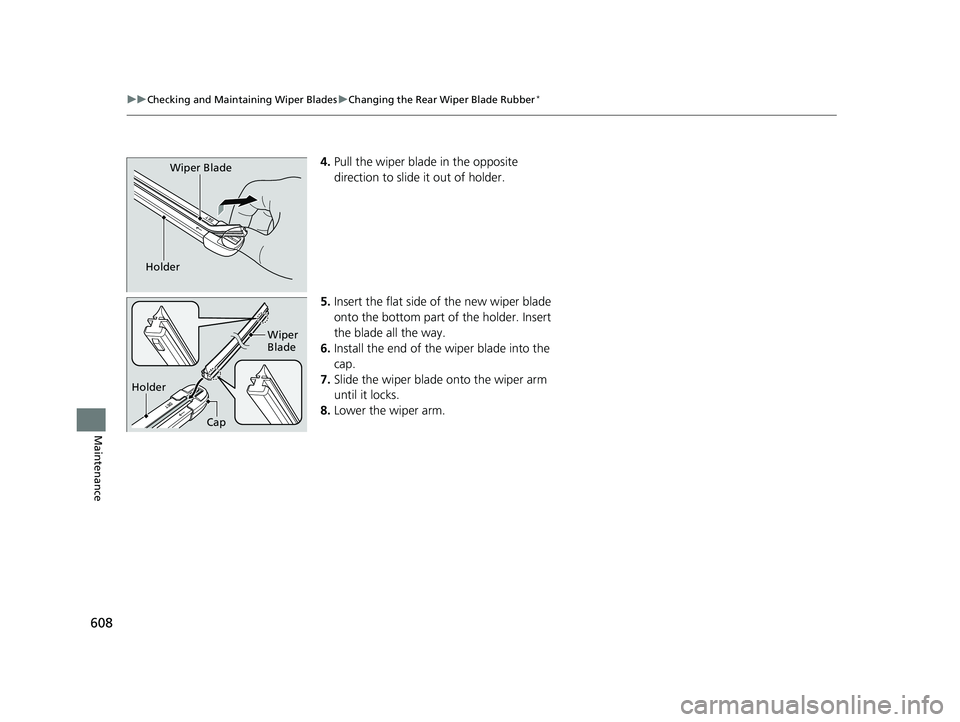

608
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber*
Maintenance
4. Pull the wiper blade in the opposite
direction to slide it out of holder.
5. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
6. Install the end of the wiper blade into the
cap.
7. Slide the wiper blade onto the wiper arm
until it locks.
8. Lower the wiper arm.Wiper Blade
Holder
Holder CapWiper
Blade
21 CIVIC 5D HUM-31TGG6400_01.book 608 ページ ２０２０年８月２８日　金曜日　午後１時
４８分
