HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

689Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
1.5 L engine models
21 CIVIC 5D HUM-31TGG6400_01.book 689 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

690
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows , drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more time s (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the acce lerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(N. Increase the engine speed to 2,000 rpm, and hold it
there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
2.0 L engine models
21 CIVIC 5D HUM-31TGG6400_01.book 690 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

691
uuEmissions Testing uTesting of Readiness Codes
Information
8. Select a nearby, lightly trav eled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in 5th gear without using cruise con trol. When traffic allows, drive for 90
seconds without moving the accelerator peda l. (Vehicle speed may vary slightly;
this is okay.) If you cannot do this for a continuous 90 seconds because of traffic
conditions, drive for at leas t 30 seconds, then repeat it two more times (for a
total of 90 seconds). While the vehicle is traveling in this speed range, shift to
6th gear and then accelerate and decelera te 5 times, each time making sure you
do not exceed 60 mph (97 km/h).
9. Park the vehicle and let the engine idle for 1 minute without using the
accelerator pedal.
10. Park the vehicle and leave the engine off for 30 minutes.
21 CIVIC 5D HUM-31TGG6400_01.book 691 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

692
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditiona l. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
21 CIVIC 5D HUM-31TGG6400_01.book 692 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

693
uuWarranty Coverages u
Continued
Information

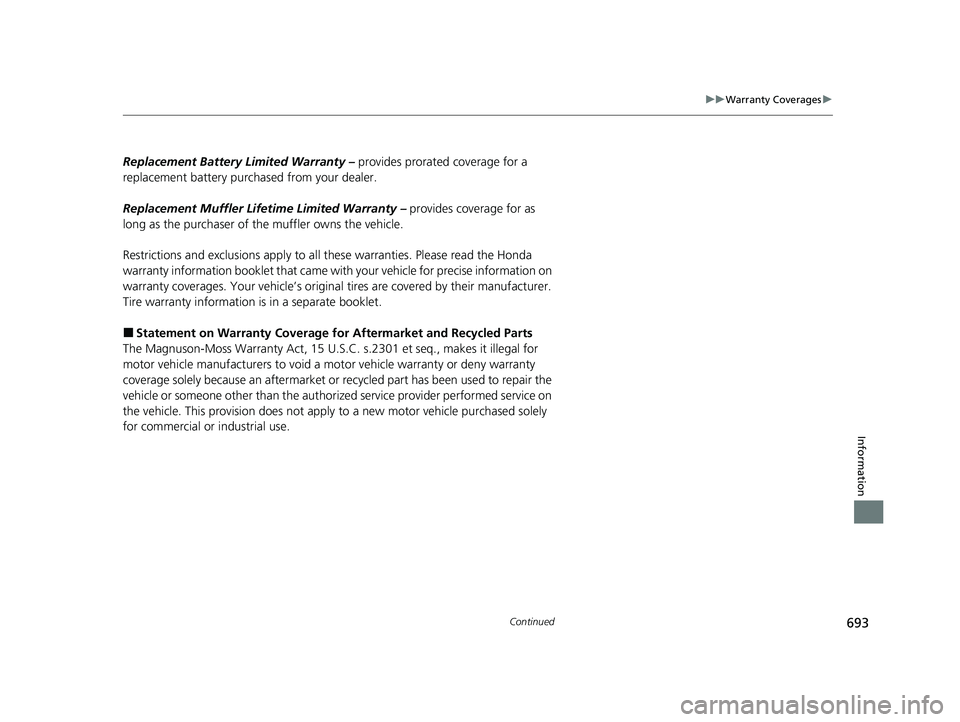

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purch ased from your dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or recycled part has been used to repair the
vehicle or someone other than the authoriz ed service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.
21 CIVIC 5D HUM-31TGG6400_01.book 693 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

694
uuWarranty Coverages u
Information

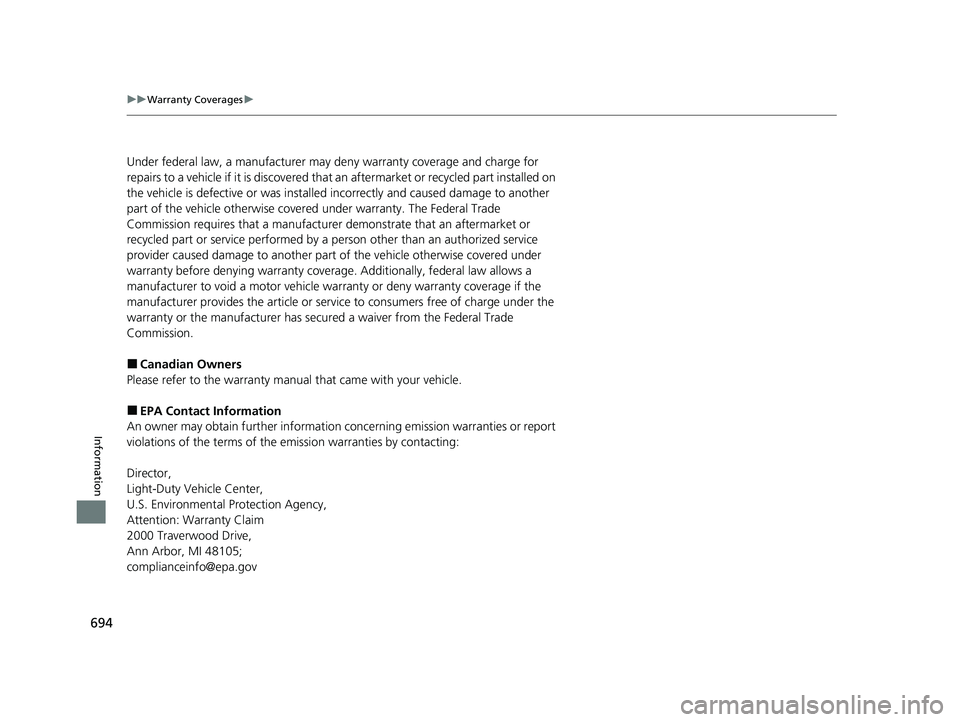

Under federal law, a manufacturer may de ny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty. The Federal Trade
Commission requires that a manufacturer demonstrate that an aftermarket or
recycled part or service performed by a person other than an authorized service
provider caused damage to another part of the vehicle otherwise covered under
warranty before denying warranty coverage . Additionally, federal law allows a
manufacturer to void a motor vehicle warra nty or deny warranty coverage if the
manufacturer provides the arti cle or service to consumers free of charge under the
warranty or the manufacturer has secured a waiver from the Federal Trade
Commission.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
21 CIVIC 5D HUM-31TGG6400_01.book 694 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

695
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
21 CIVIC 5D HUM-31TGG6400_01.book 695 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

696
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 686
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
21 CIVIC 5D HUM-31TGG6400_01.book 696 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

697
uuCustomer Service Information u
Information

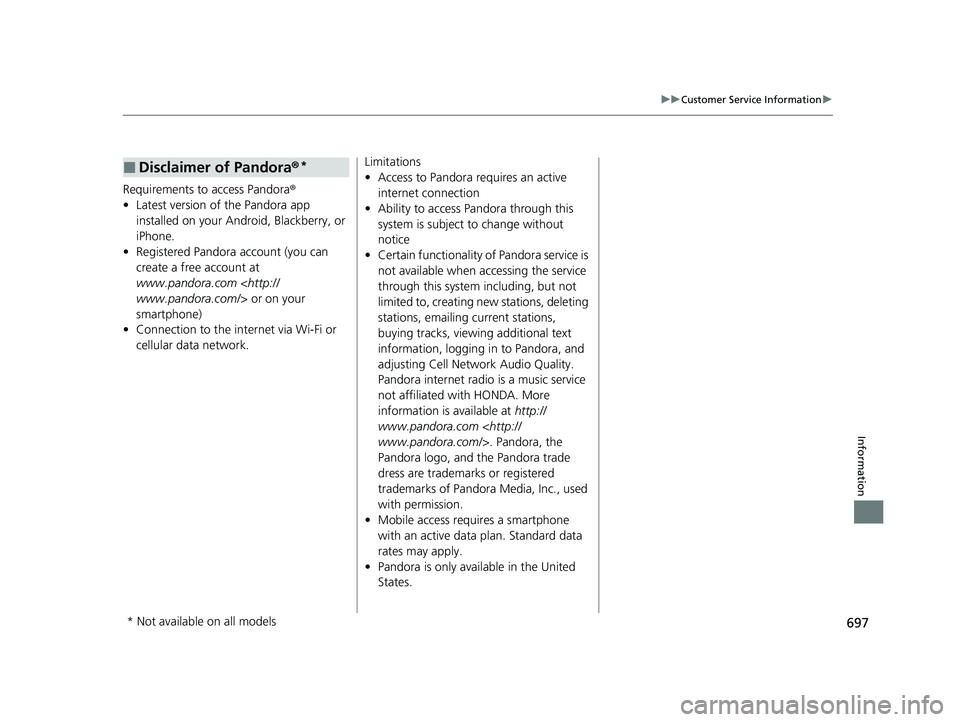

Requirements to access Pandora®
• Latest version of the Pandora app
installed on your Android, Blackberry, or
iPhone.
• Registered Pandora account (you can
create a free account at
www.pandora.com www.pandora.com/ > or on your
smartphone)
• Connection to the in ternet via Wi-Fi or
cellular data network.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating ne w stations, deleting
stations, emailing current stations,
buying tracks, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com www.pandora.com/ >. Pandora, the
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only avai lable in the United
States.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 697 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

Index
698
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 465
A
ABS (Anti-lock Brake System) ................... 556
Accelerator Position Meter ...................... 131
Accessories and Modifications ................. 631
Accessory Power Socket ........................... 208
Adaptive Cruise Control (ACC) ........... 99, 518
Adaptive Cruise Control (ACC) with Low Speed Follow ............................. 99, 501
Adding the Coolant .................................. 590
Additives Coolant ................................................... 589
Engine Oil ................................................ 582
Washer .................................................... 593
Additives, Engine Oil ................................ 582
Adjusting Armrest ................................................... 200
Clock ....................................................... 144
Front Head Restraints............................... 196
Front Seats .............................................. 193
Mirrors .................................................... 190
Rear Seats................................................ 199
Steering Wheel ........................................ 189
Temperature ............................................ 129
Adjusting the Clock .................................. 144
Adjusting the Sound ................................. 238
Agile Handling Assist ................................ 478 Air Conditioning System (Climate Control
System) .................................................... 217
Changing the Mode ................................ 220
Defrosting the Windshield and Windows ............................................... 221
Dust and Pollen Filter............................... 624
Recirculation/Fresh Air Mode ................... 220
Sensor ..................................................... 224
Using Automatic Climate Control ............ 217
Air Pressure ....................................... 610, 685
Airbags ........................................................ 48
Advanced Airbags ..................................... 54
After a Collision ........................................ 51
Airbag Care............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 51
Indicator.............................................. 60, 89
Passenger Front Airbag Off Indicator ......... 61
Sensors ..................................................... 48
Side Airbags .............................................. 56
Side Curtain Airbags.................................. 58
AM/FM Radio ............................................ 280
Android Auto ........................................... 316
Anti-lock Brake System (ABS) .................. 556
Indicator.................................................... 89
Apple CarPlay ........................................... 313
Armrest ..................................................... 200
Audio Remote Controls ........................... 230
Audio System .................................... 226, 251
Adjusting the Sound........................ 238, 273
Android Auto .......................................... 316 Apple CarPlay ......................................... 313
Audio/Information Screen ....................... 252
Bluetooth
® Audio ........................... 248, 303
Changing the Home Screen Icon Layout.. 256
Changing the Screen Interface ................ 270
Closing Apps .......................................... 272
Customizing the Meter ........................... 256
Display Setup .......................................... 274
Error Messages ....................................... 320
General Information................................ 324
Home Screen .......................................... 262
HondaLink ®........................................... 305
iPod ................................................ 242, 291
Limitations for Manual Operation ............ 275
Menu Customize .................................... 271
MP3/WMA/AAC ............................. 245, 300
Pandora ®.............................................. 298
Reactivating ............................................ 229
Recommended Devices ........................... 326
Remote Controls ..................................... 230
Security Code ......................................... 229
Selecting an Audio Source ...................... 275
Siri Eyes Free ........................................... 312
SiriusXM ® Radio ...................................... 283
Song By Voice
TM (SBV) ............................. 294
Status Area ............................................. 269
Theft Protection ...................................... 229
USB Flash Drives...................... 245, 300, 326
USB Port(s) .............................................. 227
Voice Control Operation ......................... 276
Wallpaper Setup ..................................... 260
21 CIVIC 5D HUM-31TGG6400_01.book 698 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
