key HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

30
Quick Reference Guide
What to Do If
*1:U.S. models with manual transmission and Canadian models
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P556)
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
21 CIVIC 5D HUM-31TGG6400_01.book 30 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

31
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, slide the lever
up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The key is left in the ignition switch*.
●The power mode* is in ACCESSORY.
●The exterior lights are left on.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?
The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and hatch (Walk away auto lock ®) (P150)
Models with smart entry system
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 31 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

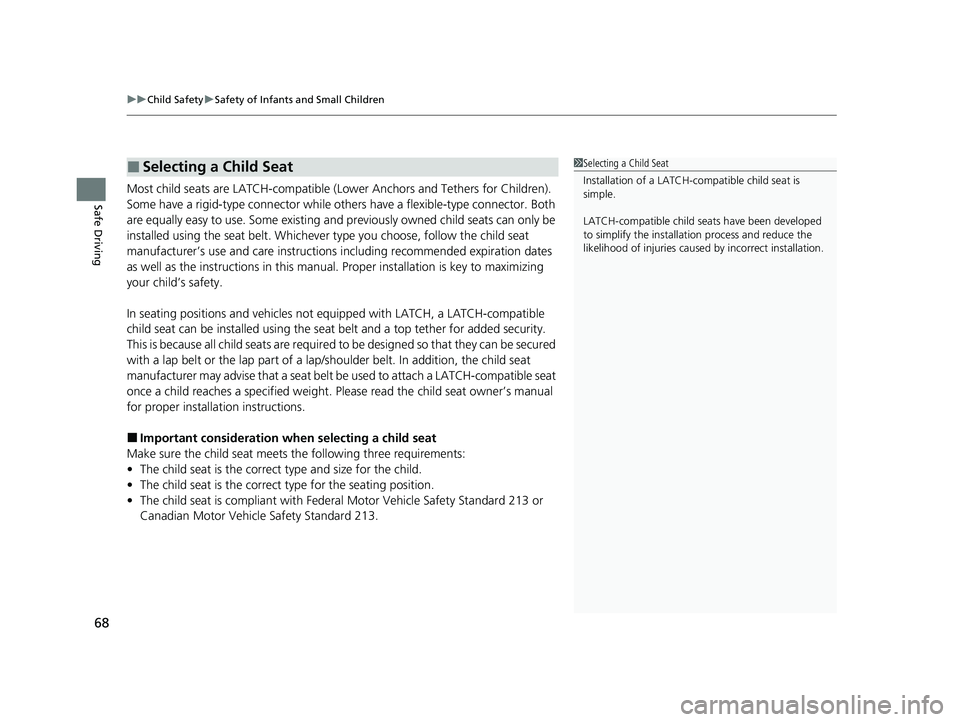

uuChild Safety uSafety of Infants and Small Children
68
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for Children).
Some have a rigid-type conn ector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/sh oulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
21 CIVIC 5D HUM-31TGG6400_01.book 68 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

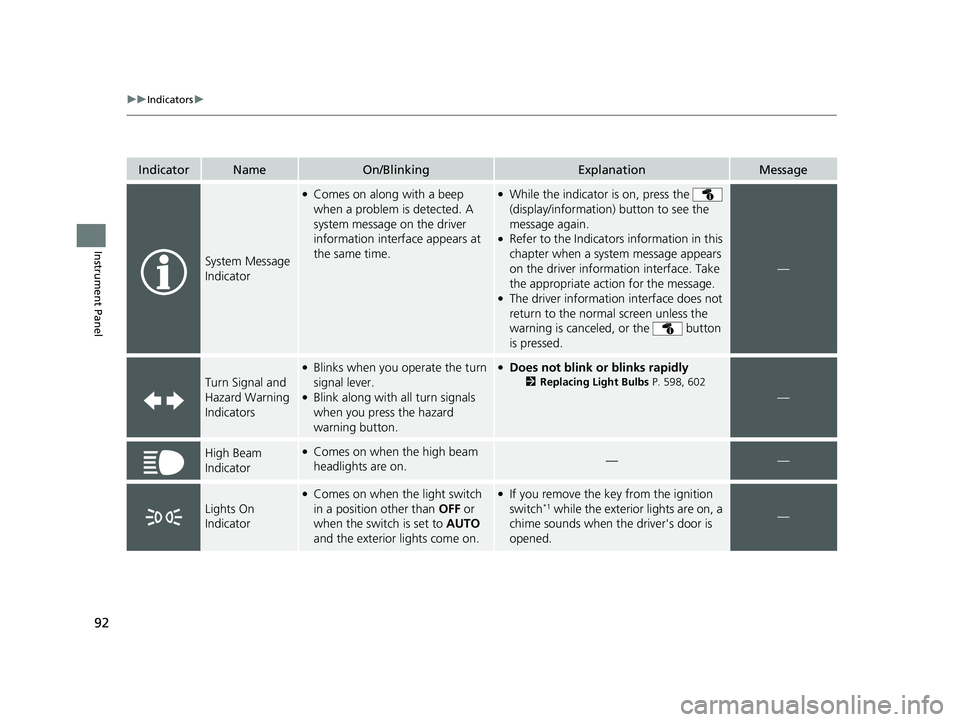

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.●While the indicator is on, press the
(display/information ) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 598, 602
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch
in a position other than OFF or
when the switch is set to AUTO
and the exterior lights come on.●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver's door is
opened.—
21 CIVIC 5D HUM-31TGG6400_01.book 92 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

94
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Canadian models only: Apply and hold the brake pedal before turning the ignition on.
IndicatorNameOn/BlinkingExplanationMessage*2
Immobilizer
System Indicator
●Blinks if the immobilizer system
cannot recognize the key
information.●Blinks - You cannot start the engine. Turn
the ignition switch to LOCK
(0*1, pull the
key out*2, and then insert the key and turn
it to ON
(w*1 again.●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
Indicator
Models without
smart entry system
Models with smart
entry system
21 CIVIC 5D HUM-31TGG6400_01.book 94 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

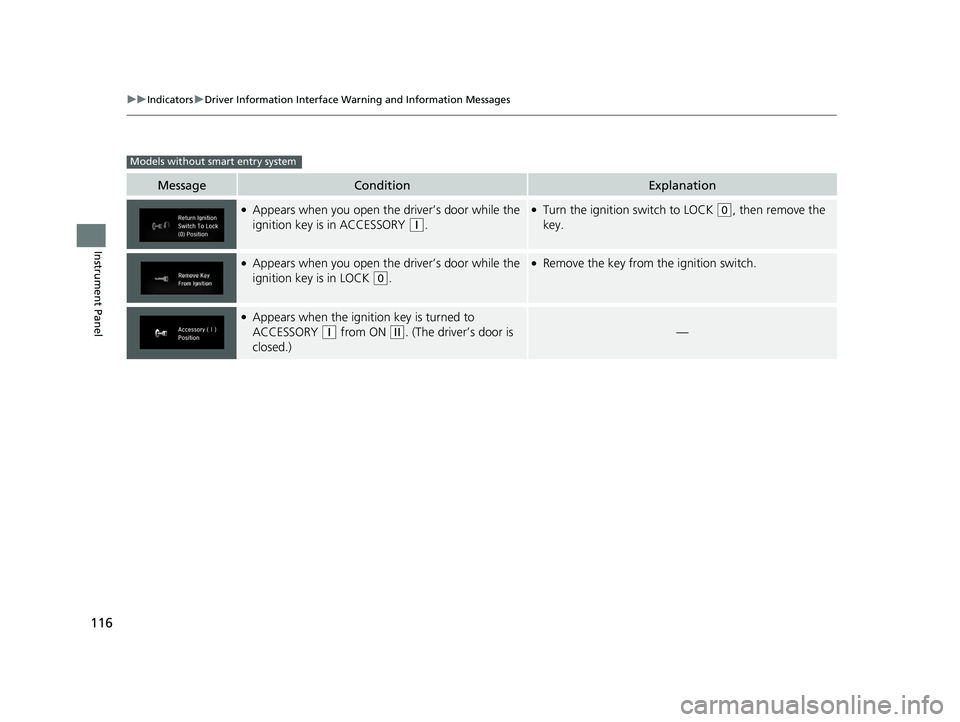

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q.
●Turn the ignition switch to LOCK (0, then remove the
key.
●Appears when you open the driver’s door while the
ignition key is in LOCK
(0.
●Remove the key from the ignition switch.
●Appears when the igniti on key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
Models without smart entry system
21 CIVIC 5D HUM-31TGG6400_01.book 116 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the back of the smart entry remote into contact
with the ENGINE START/STOP button.
2If the Smart Entry Remote Battery is Weak P. 660
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while pressing
the brake pedal and clutch pedal (manual transmission
only), manually start the engine.
Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
U.S.
*
Canada
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 119 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

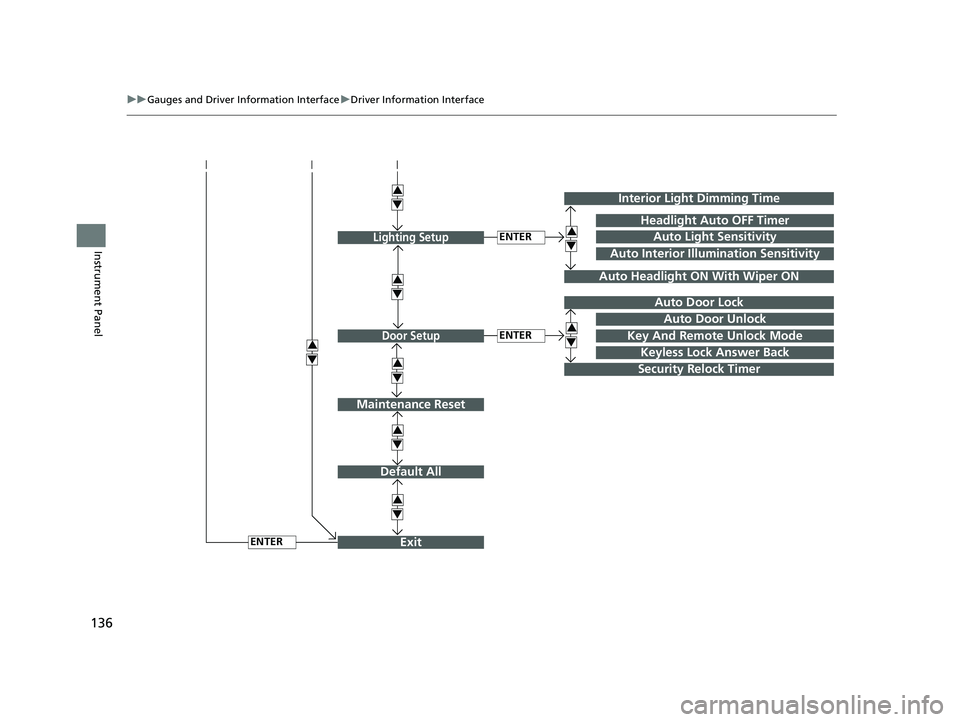

136
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
3
4
3
4
3
4
Maintenance Reset
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity3
4
3
4
Auto Headlight ON With Wiper ON
ENTER
ENTER
Auto Interior Illumination Sensitivity
Lighting Setup
Door Setup
21 CIVIC 5D HUM-31TGG6400_01.book 136 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

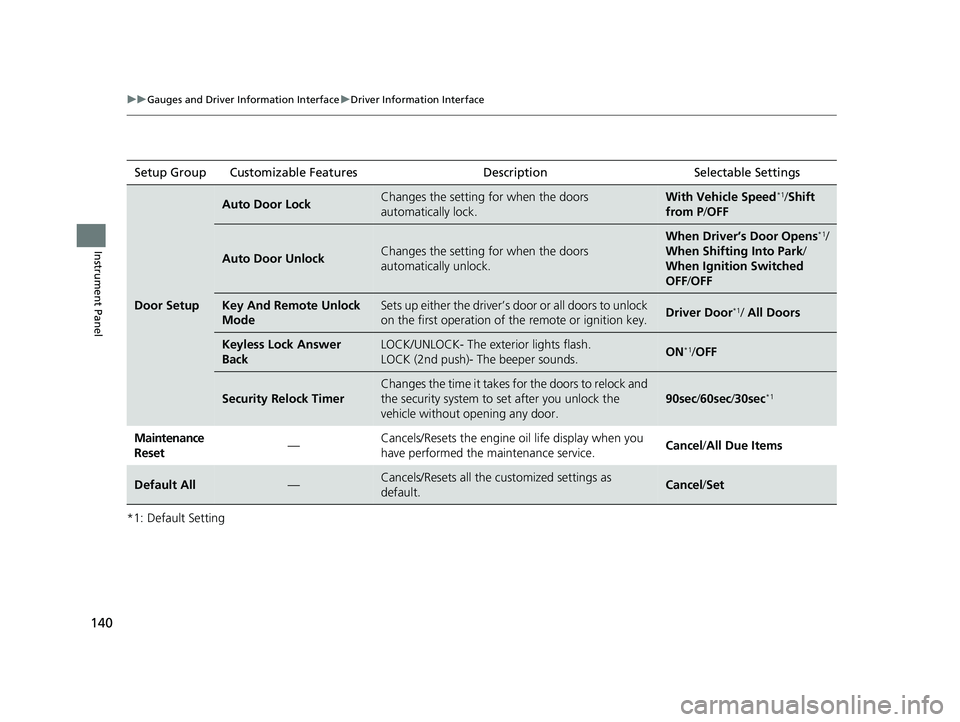

140
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/
Shift
from P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
When Driver’s Door Opens*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of th e remote or ignition key.Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Maintenance
Reset —Cancels/Resets the engine oil life display when you
have performed the maintenance service.
Cancel
/All Due Items
Default All—Cancels/Resets all the cu stomized settings as
default.Cancel /Set
21 CIVIC 5D HUM-31TGG6400_01.book 140 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

143
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 144
Locking and Unlocking the Doors
Key Types and Functions .................. 145
Low Smart Entry Remote Signal Strength*.. 146Locking/Unlocking the Doors from the Outside .......................................... 147
Locking/Unlocking the Doors from the Inside ............................................. 156
Childproof Door Locks ..................... 158
Auto Door Locking/Unlocking .......... 159
Hatch ................................................. 160
Security System Immobilizer System .......................... 163
Security System Alarm ...................... 164 Opening and Closing the Windows
... 167
Moonroof
*........................................ 170
Operating the Switches Around the Steering Wheel Ignition Switch
*............................... 171
ENGINE START/STOP Button*........... 172
Ignition Switch and Power Mode Comparison ................................... 175
Turn Signals ..................................... 176
Light Switches.................................. 177
Fog Lights
*...................................... 180
Daytime Running Lights ................... 180
Auto High-Beam .............................. 181
Wipers and Washers ........................ 184 Brightness Control ........................... 187
Rear Defogger/Heated Door Mirror
*
Button ........................................... 188
Adjusting the Steering Wheel .......... 189
Adjusting the Mirrors
Interior Rearview Mirror ................... 190
Power Door Mirrors ......................... 192
Adjusting the Seats .......................... 193
Interior Lights/Interior Convenience Items ................................................ 201
Climate Control System
Using Automatic Climate Control .... 217
Automatic Climate Control Sensors......224
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 143 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
