navigation HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

6
Quick Reference Guide
Quick Reference Guide

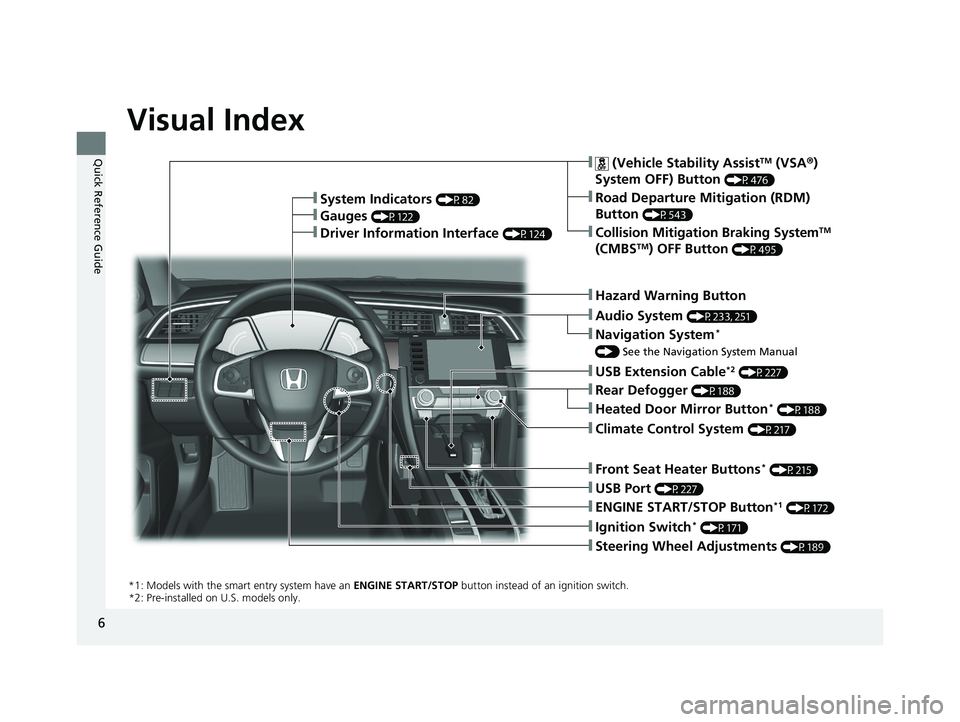

Visual Index
❚Ignition Switch* (P171)
❚ENGINE START/STOP Button*1 (P172)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Pre-instal led on U.S. models only.
❚System Indicators (P82)
❚Gauges (P122)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P495)
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P476)
❚Road Departure Mitigation (RDM)
Button
(P543)
❚Navigation System*
() See the Navigation System Manual
❚Audio System (P233, 251)
❚Hazard Warning Button
❚Rear Defogger (P188)
❚Heated Door Mirror Button* (P188)
❚Climate Control System (P217)
❚Front Seat Heater Buttons* (P215)
❚Steering Wheel Adjustments (P189)
❚Driver Information Interface (P124)
❚USB Extension Cable*2 (P227)
❚USB Port (P227)
21 CIVIC 5D HUM-31TGG6400_01.book 6 ページ ２０２０年８月２８日　金曜日　午後１時４８分

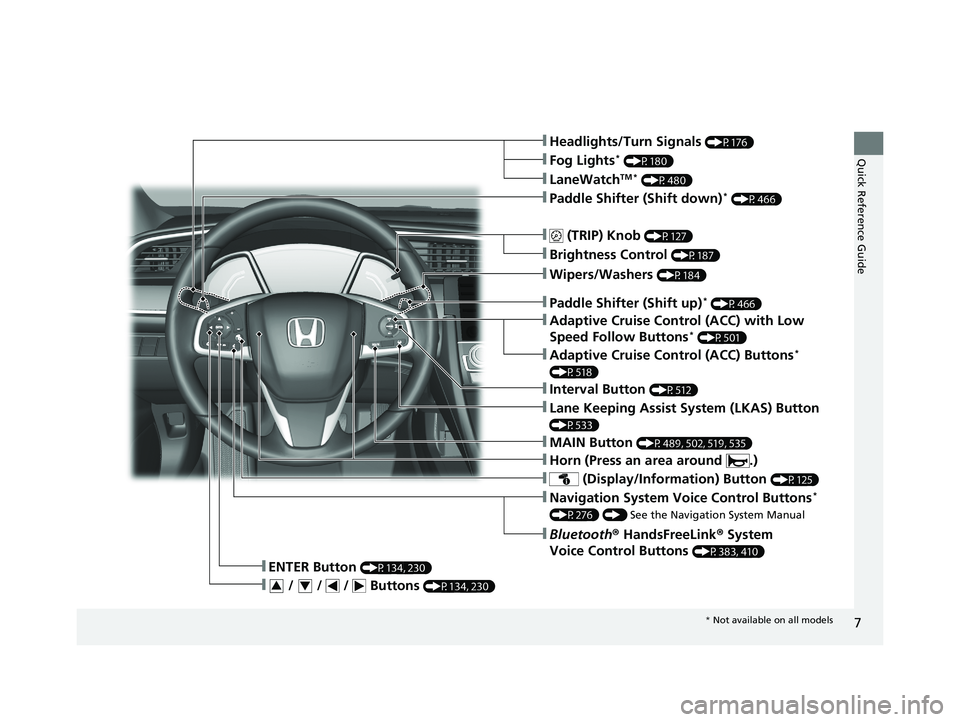

7
Quick Reference Guide❚Headlights/Turn Signals (P176)
❚ (TRIP) Knob (P127)
❚Brightness Control (P187)
❚LaneWatchTM * (P480)
❚Fog Lights* (P180)
❚ (Display/Information) Button (P125)
❚Navigation System Voice Control Buttons*
(P276) () See the Navigation System Manual
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P383, 410)
❚ENTER Button (P134, 230)
❚ / / / Buttons (P134, 230)34
❚Lane Keeping Assist System (LKAS) Button
(P533)
❚Paddle Shifter (Shift down)* (P466)
❚Paddle Shifter (Shift up)* (P466)
❚Wipers/Washers (P184)
❚Horn (Press an area around .)
❚Adaptive Cruise Control (ACC) Buttons*
(P518)
❚Interval Button (P512)
❚MAIN Button (P489, 502, 519, 535)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P501)
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 7 ページ ２０２０年８月２８日　金曜日　午後１時４８分

14
Quick Reference Guide
Controls (P 143)
Clock (P 144)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect Set, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aPress the (Home) button, then
select Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The clock is automatically updated through
the audio system.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 172)
●Press the button to ch ange the vehicle’s
power mode.
21 CIVIC 5D HUM-31TGG6400_01.book 14 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

17
Quick Reference Guide

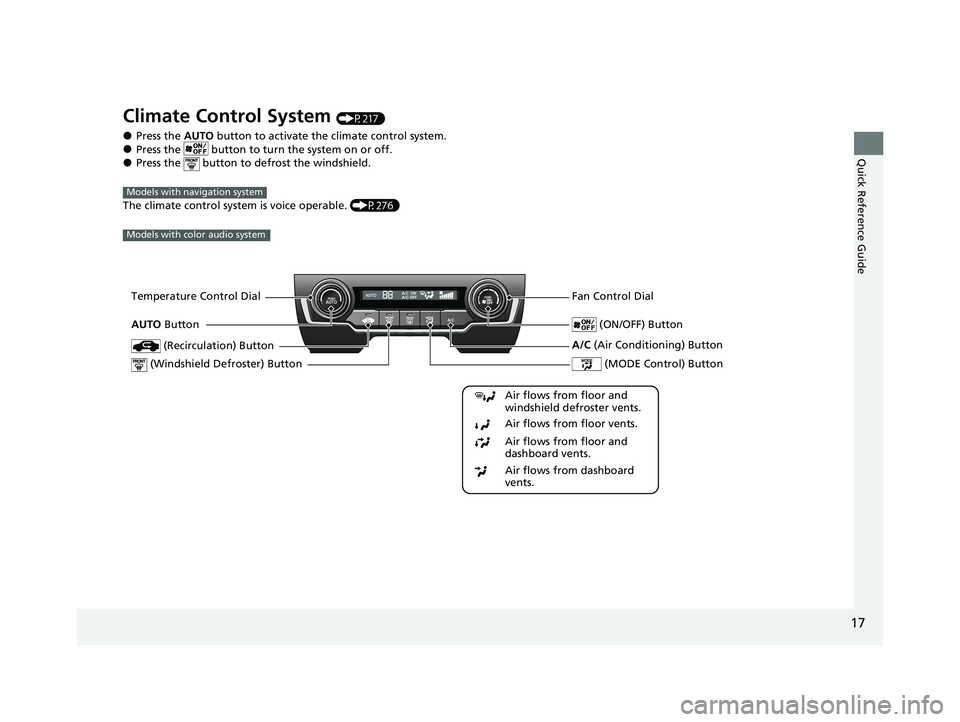

Climate Control System (P217)
●Press the AUTO button to activate th e climate control system.●Press the button to tu rn the system on or off.●Press the button to defrost the windshield.
The climate control system is voice operable. (P276)
Models with navigation system
Models with color audio system
Fan Control Dial
(Windshield De froster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) ButtonAUTO Button
A/C (Air Conditioning) Button
21 CIVIC 5D HUM-31TGG6400_01.book 17 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

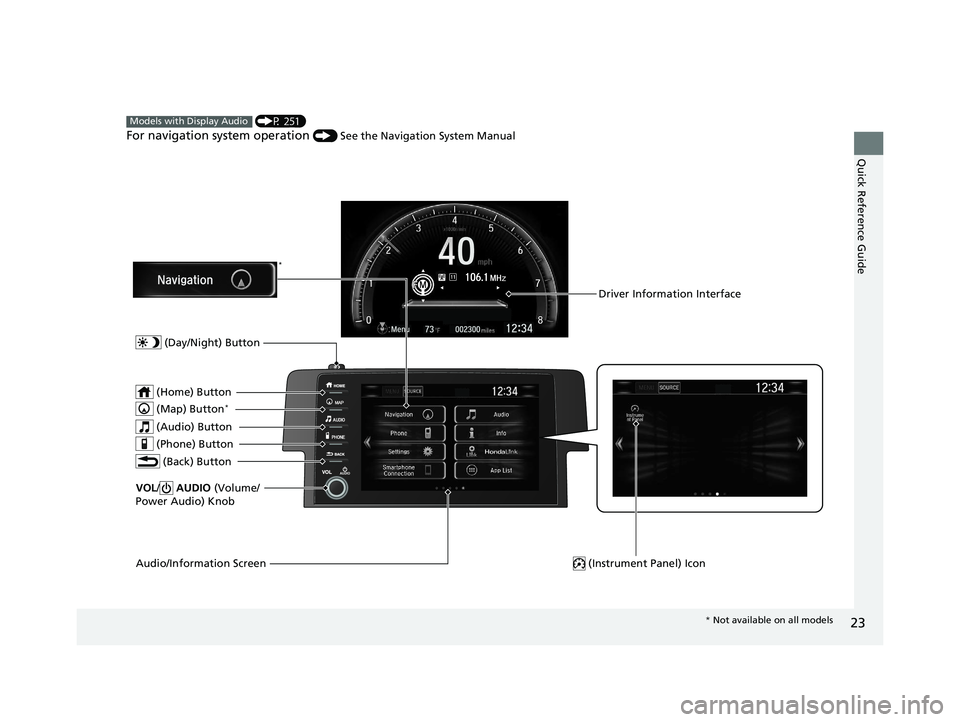

23
Quick Reference Guide
(P 251)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
Audio/Information Screen
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
(Home) Button
(Map) Button*
(Audio) Button
(Phone) Button
VOL / AUDIO (Volume/
Power Audio) Knob
(Back) Button
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 23 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

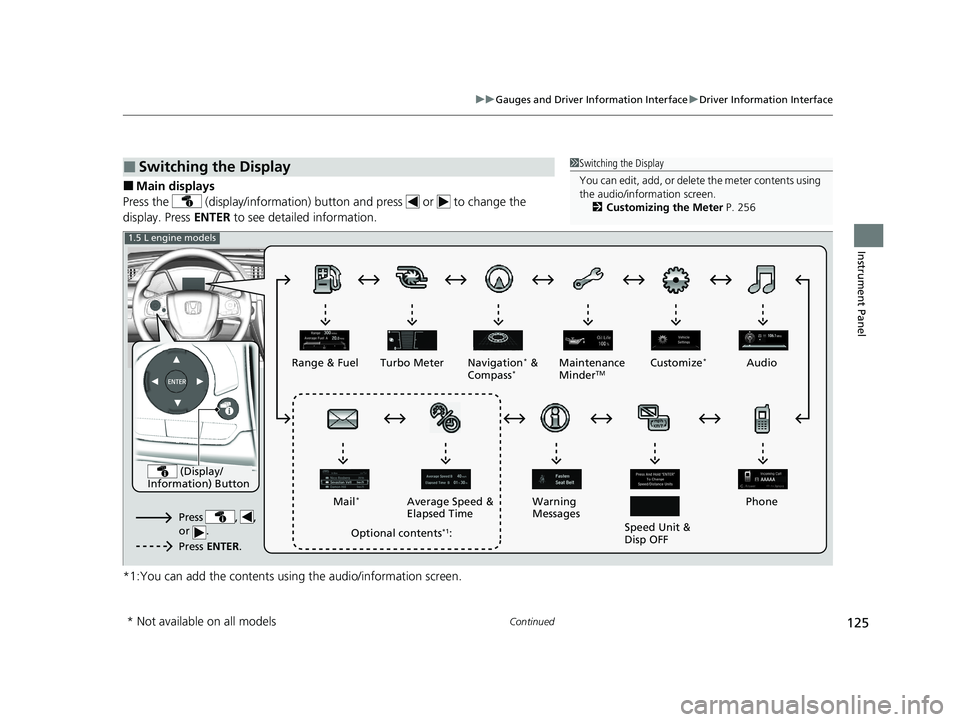

125
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Main displays
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the contents using the audio/information screen.
■Switching the Display1 Switching the Display
You can edit, add, or delete the meter contents using
the audio/information screen.
2 Customizing the Meter P. 256
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range & Fuel Turbo Meter Navigation* &
Compass*Maintenance
MinderTMCustomize*Audio
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average Speed &
Elapsed Time
Mail
*
Optional contents*1:
1.5 L engine models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 125 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

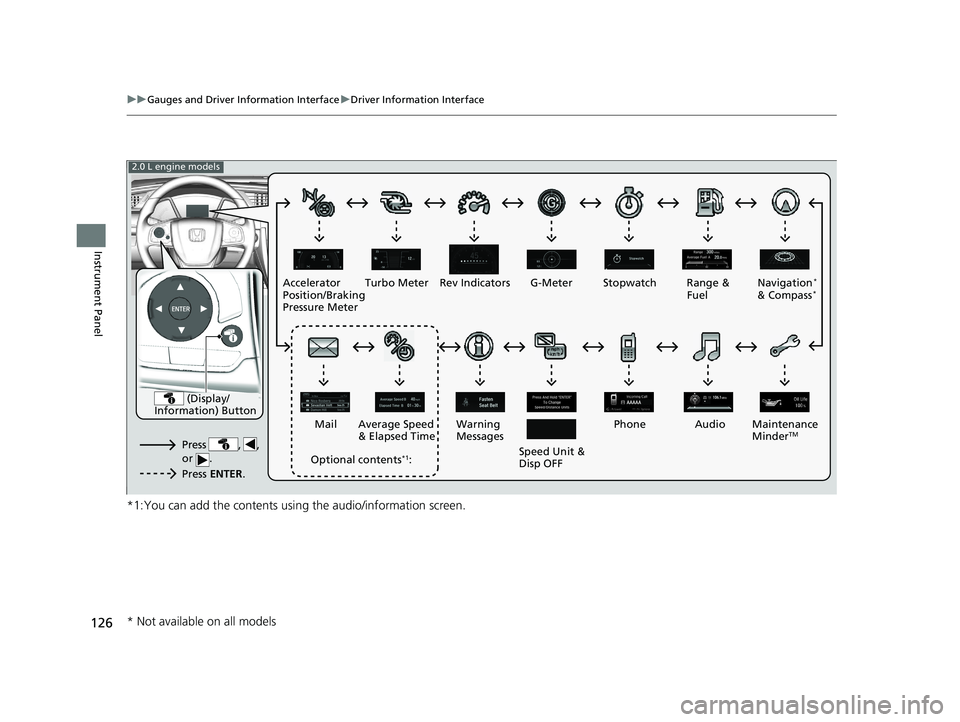

126
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1:You can add the contents usin g the audio/information screen.
Accelerator
Position/Braking
Pressure MeterTurbo Meter Rev Indicators G-Meter Stopwatch Range &
Fuel
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average Speed
& Elapsed Time
Mail
Optional contents
*1:
2.0 L engine models
Navigation*
& Compass*
Audio Maintenance MinderTMPress , ,
or .
Press ENTER .
(Display/
Information) Button
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 126 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

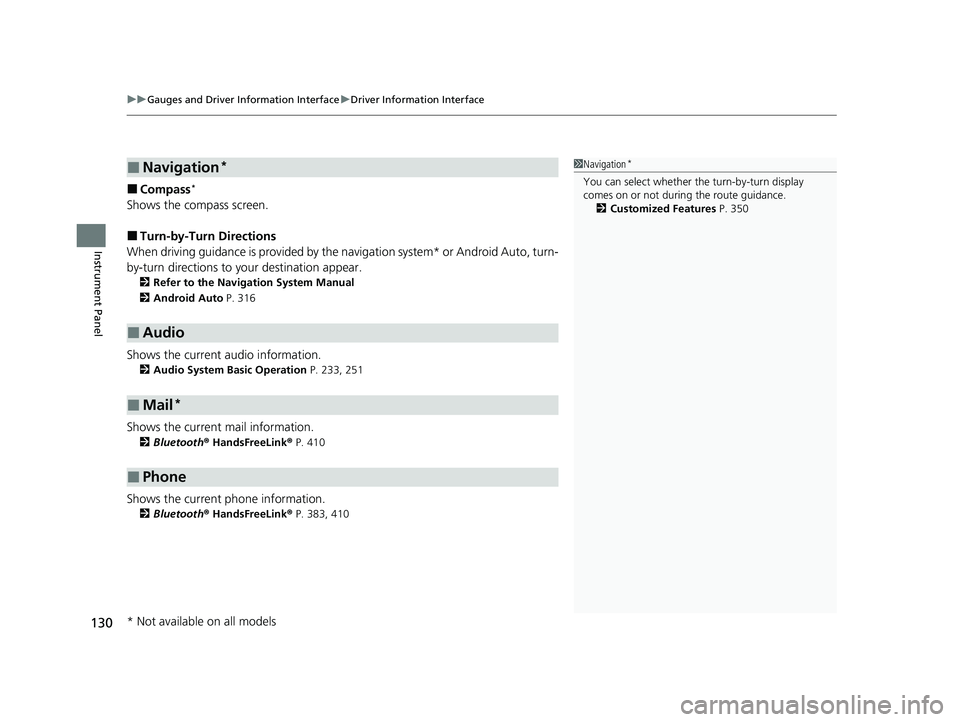

uuGauges and Driver Information Interface uDriver Information Interface
130
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 316
Shows the current audio information.
2Audio System Basic Operation P. 233, 251
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 410
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 383, 410
■Navigation*
■Audio
■Mail*
■Phone
1 Navigation*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 350
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 130 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

144
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatically updated through the audio
system.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 343, 350
Models with navigation system
All models
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
1 Using the Settings menu on the audio/information screen
You can turn the clock display on and off.
2 Customized Features P. 350
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
You cannot adjust the time while the vehicle is
moving.
34
34
MENU/CLOCK Button
Models with color audio system
Models with Display Audio
34
34
21 CIVIC 5D HUM-31TGG6400_01.book 144 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

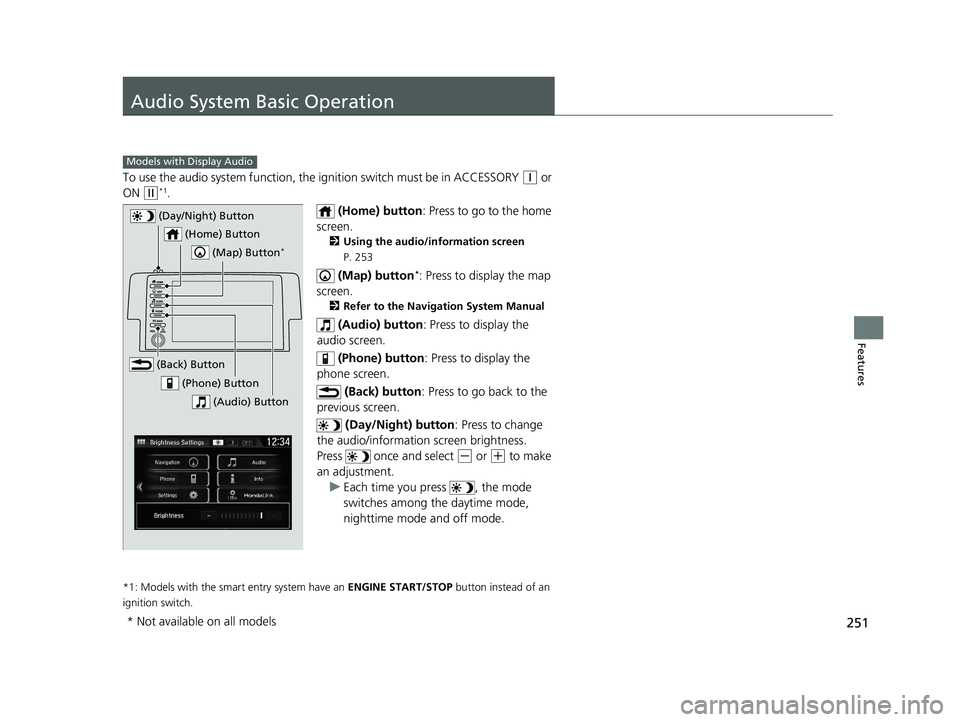

251
Features
Audio System Basic Operation
To use the audio system function, the ignition swit ch must be in ACCESSORY (q or
ON
(w*1.
(Home) button: Press to go to the home
screen.
2 Using the audio/information screen
P. 253
(Map) button*: Press to display the map
screen.
2 Refer to the Navigation System Manual
(Audio) button : Press to display the
audio screen.
(Phone) button : Press to display the
phone screen.
(Back) button : Press to go back to the
previous screen.
(Day/Night) button : Press to change
the audio/information screen brightness.
Press once and select
(- or (+ to make
an adjustment.
u Each time you press , the mode
switches among the daytime mode,
nighttime mode and off mode.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with Display Audio
(Day/Night) Button
(Home) Button
(Map) Button*
(Back) Button
(Phone) Button
(Audio) Button
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 251 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
