spark plugs HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

576
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair kit
bottle (If equipped)
●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes
more frequently than recommended by the Maintenance Minder. If you regularly drive your vehicle
under these conditions, have the transmission fluid changed every 25,000 miles.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
Continuously variable transmission models
21 CIVIC 5D HUM-31TGG6400_01.book 576 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

577
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km.
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes
more frequently than recommended by the Maintenance Minder. If you regularly drive your vehicle
under these conditions, have the transmission fluid changed every 40,000 km.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
Continuously variable transmission models
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Check expiration date for Temporary Tire Repair kit
bottle (If equipped)
●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
21 CIVIC 5D HUM-31TGG6400_01.book 577 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

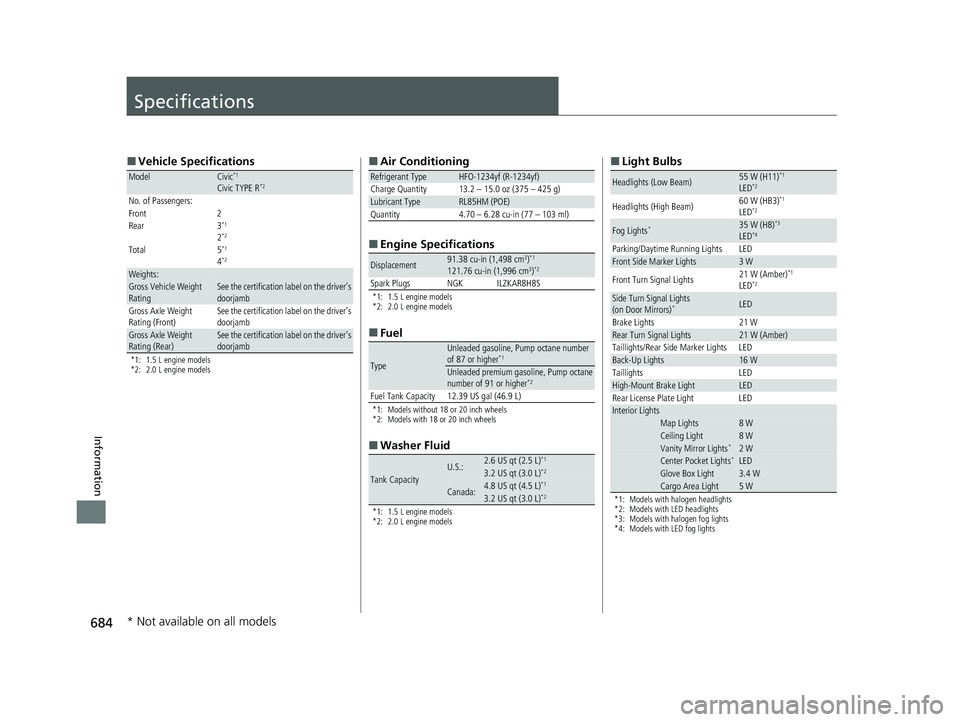

684
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelCivic*1
Civic TYPE R*2
No. of Passengers:
Front 2
Rear 3
*1
2*2
Total 5*1
4*2
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■
Air Conditioning
■ Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Fuel
*1: Models without 18 or 20 inch wheels
*2: Models with 18 or 20 inch wheels
■Washer Fluid
*1: 1.5 L engine models
*2: 2.0 L engine models
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.70 – 6.28 cu-in (77 – 103 ml)
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2
Spark Plugs NGK ILZKAR8H8S
Type
Unleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
3.2 US qt (3.0 L)*2
Canada:4.8 US qt (4.5 L)*1
3.2 US qt (3.0 L)*2
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with halogen fog lights
*4: Models with LED fog lights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights*35 W (H8)*3
LED*4
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Taillights/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WCenter Pocket Lights* LEDGlove Box Light3.4 WCargo Area Light5 W
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 684 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

704
Index
Pregnant Women....................................... 46
Puncture (Tire) .......................................... 635
R
Radar Sensor............................................. 548
Radio (FM/AM) .................................. 240, 280
Radio (SiriusXM ®)...................................... 283
Radio Data System (RDS) .................. 241, 282
Range ........................................................ 128
RDS (Radio Data System) .................. 241, 282
Readiness Codes (Emissions Testing) ....... 689
Rear Defogger/Heated Door Mirror
Button ...................................................... 188
Rear Seat Heaters ..................................... 216
Rear Seats (Folding Down) ....................... 199
Rearview Mirror ........................................ 190
Refueling ................................................... 562
Fuel Gauge .............................................. 122
Gasoline .......................................... 562, 684
Low Fuel Indicator ..................................... 88
Regulations ............................... 486, 612, 687
Remote Engine Start ................................ 456
Remote Transmitter .................................. 153
Replacement Battery..................................................... 622
Bulbs ....................................................... 594
Fuses ............................................... 674, 676
Tires ........................................................ 615
Wiper Blade Rubber ......................... 604, 607
Reporting Safety Defects ......................... 688Resetting a Trip Meter
............................. 127
Rev Indicators ........................................... 131
Rev Match System .................................... 469
Road Departure Mitigation (RDM) ......... 541
On and Off.............................................. 543
S
Safe Driving ................................................ 35
Safety Check ............................................... 39
Safety Labels ............................................... 80
Safety Message ............................................. 3
Seat Belts .................................................... 40
Adjusting the Shoulder Anchor.................. 45
Automatic Seat Belt Tensioners ................. 43
Checking................................................... 47
Fastening .................................................. 44
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 72
Pregnant Women ...................................... 46
Reminder .................................................. 42
Warning Indicator ............................... 42, 88
Seat Heaters ...................................... 215, 216
Seats .......................................................... 193
Adjusting ................................................ 193
Front Seat Heaters ................................... 215
Front Seats .............................................. 193
Rear Seats ............................................... 199
Seat Heaters .................................... 215, 216
Security System ......................................... 163
Security System Alarm Indicator................. 95 Select Lever
................................ 24, 461, 468
Operation ................................. 24, 462, 468
Releasing ................................................ 665
Won’t Move ........................................... 665
Select/Reset Knob .................................... 127
Selecting a Child Seat ................................ 68
Selector Knob (Audio) ............................. 233
Setting the Clock ...................................... 144
Shift Lever .................................. 24, 461, 468
Shift Lever Position Indicator .................... 86
Shift Position Indicator ............................ 462
Shifting (Transmission) .................... 461, 468
Shoulder Anchor ........................................ 45
Side Airbags ............................................... 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 312
SiriusXM ® Radio ....................................... 283
Smart Entry with Push Button Start System ..................................................... 147
Snow Tires ................................................ 617
Song By Voice
TM (SBV) .............................. 294
Spare Tire ......................................... 648, 685
Spark Plugs ............................................... 684
Specifications ........................................... 684
Specified Fuel ................................... 562, 684
Speedometer ............................................ 122
SRS Airbags (Airbags) ................................ 51
Starting the Engine .......................... 451, 454
Does Not Start ........................................ 659
Engine Switch Buzzer .............................. 171
If the Battery Is Dead............................... 662
