Visual Index
8

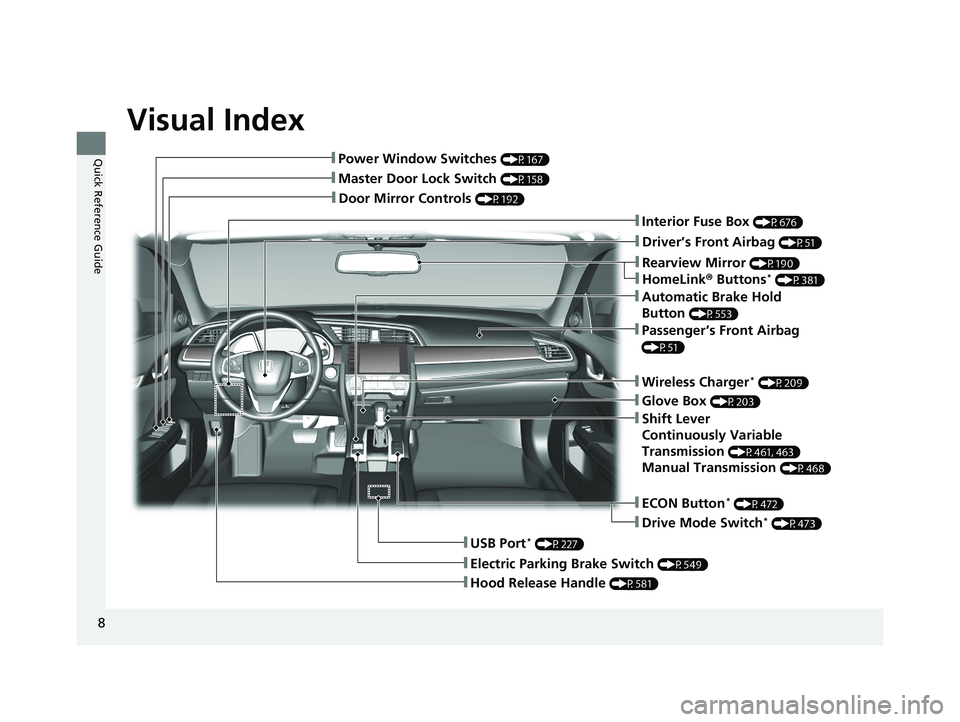

Quick Reference Guide
❚Door Mirror Controls (P192)
❚Glove Box (P203)
❚Rearview Mirror (P190)
❚Hood Release Handle (P581)
❚Master Door Lock Switch (P158)
❚Power Window Switches (P167)
❚Interior Fuse Box (P676)
❚Driver’s Front Airbag (P51)
❚Shift Lever
Continuously Variable
Transmission
(P461, 463)
Manual Transmission (P468)
❚Electric Parking Brake Switch (P549)
❚USB Port* (P227)
❚Wireless Charger* (P209)
❚Automatic Brake Hold
Button
(P553)
❚ECON Button* (P472)
❚Drive Mode Switch* (P473)
❚Passenger’s Front Airbag
(P51)
❚HomeLink® Buttons* (P381)
21 CIVIC 5D HUM-31TGG6400_01.book 8 ページ ２０２０年８月２８日　金曜日　午後１時４８分

674
Handling the Unexpected
Fuses
Fuse Locations

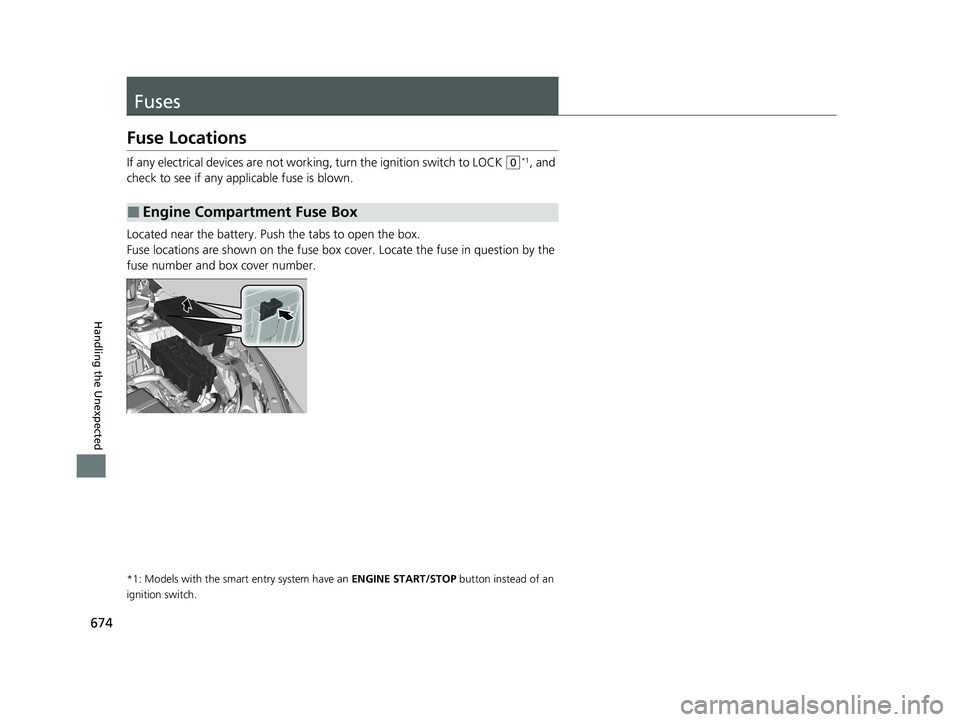

If any electrical devices are not working, turn the ignition switch to LOCK (0*1, and
check to see if any app licable fuse is blown.
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Engine Compartment Fuse Box
21 CIVIC 5D HUM-31TGG6400_01.book 674 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

675
uuFuses uFuse Locations
Continued
Handling the Unexpected

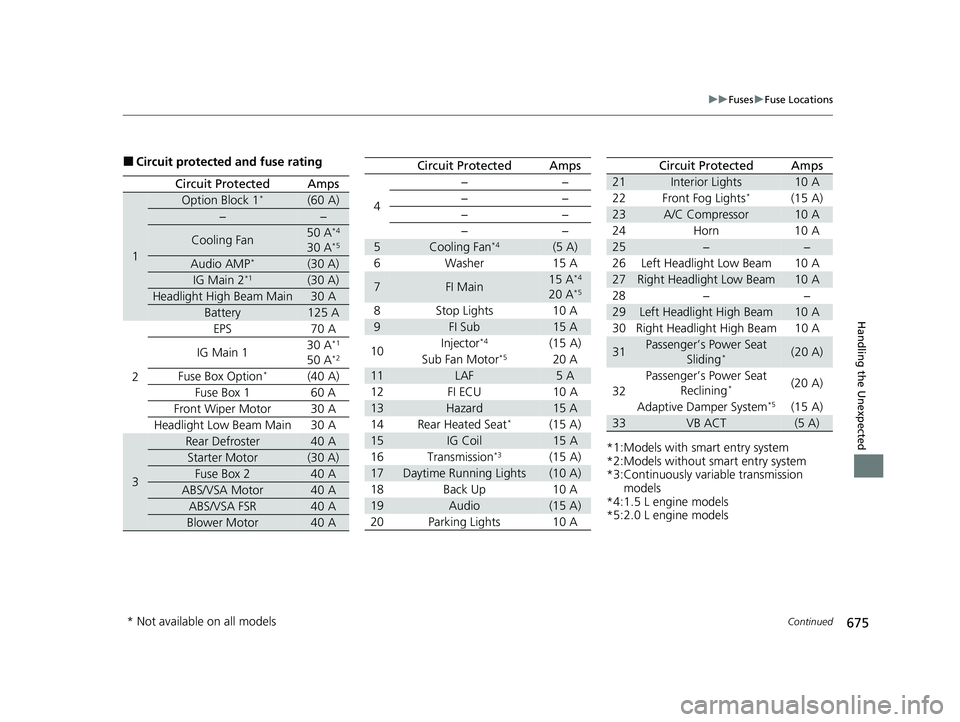

■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Option Block 1*(60 A)
−−
Cooling Fan50 A*4
30 A*5
Audio AMP*(30 A)
IG Main 2*1(30 A)
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main 1 30 A*1
50 A*2
Fuse Box Option*(40 A)
Fuse Box 1 60 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
3
Rear Defroster40 A
Starter Motor(30 A)
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
4 −−
−−
−−
−−
5Cooling Fan*4(5 A)
6Washer 15A
7FI Main15 A*4
20 A*5
8 Stop Lights 10 A
9FI Sub15 A
10 Injector*4(15 A)
Sub Fan Motor*520 A
11LAF5A
12 FI ECU 10 A
13Hazard15 A
14 Rear Heated Seat*(15 A)
15IG Coil15 A
16 Transmission*3(15 A)
17Daytime Running Lights(10 A)
18 Back Up 10 A
19Audio(15 A)
20 Parking Lights 10 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor10 A
24 Horn 10 A
25−−
26 Left Headlight Low Beam 10 A
27Right Headlight Low Beam10 A
28 − −
29Left Headlight High Beam10 A
30 Right Headlight High Beam 10 A
31Passenger’s Power Seat Sliding*(20 A)
32 Passenger’s Power Seat
Reclining
*(20 A)
Adaptive Damper System
*5(15 A)
33VB ACT(5 A)
Circuit ProtectedAmps
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 675 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

676
uuFuses uFuse Locations
Handling the Unexpected

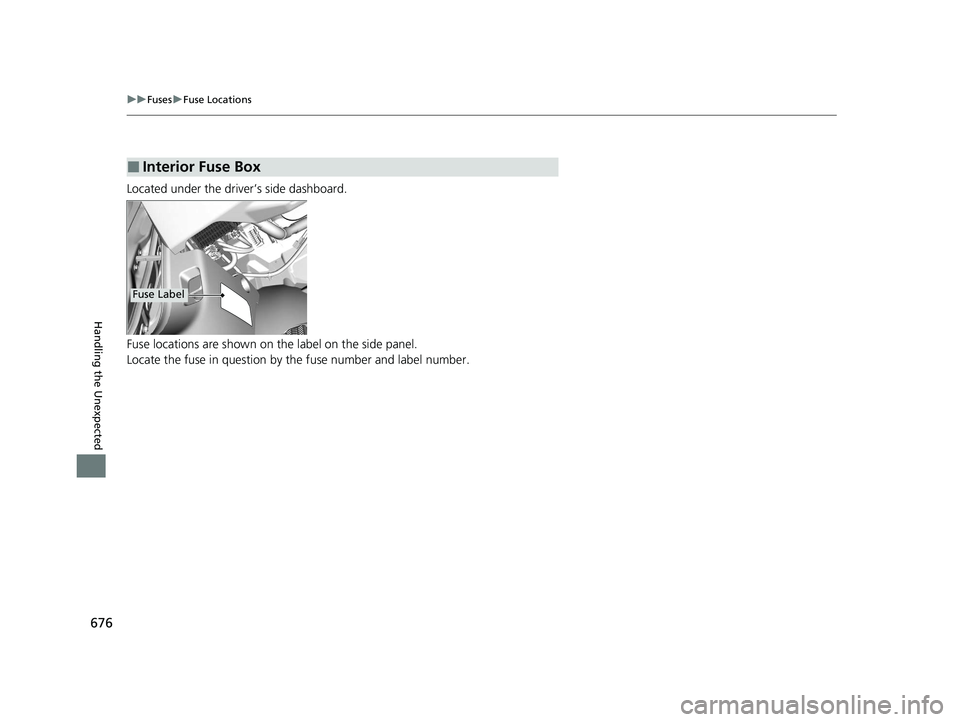

Located under the driver’s side dashboard.
Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.
■Interior Fuse Box
Fuse Label
21 CIVIC 5D HUM-31TGG6400_01.book 676 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

678
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses

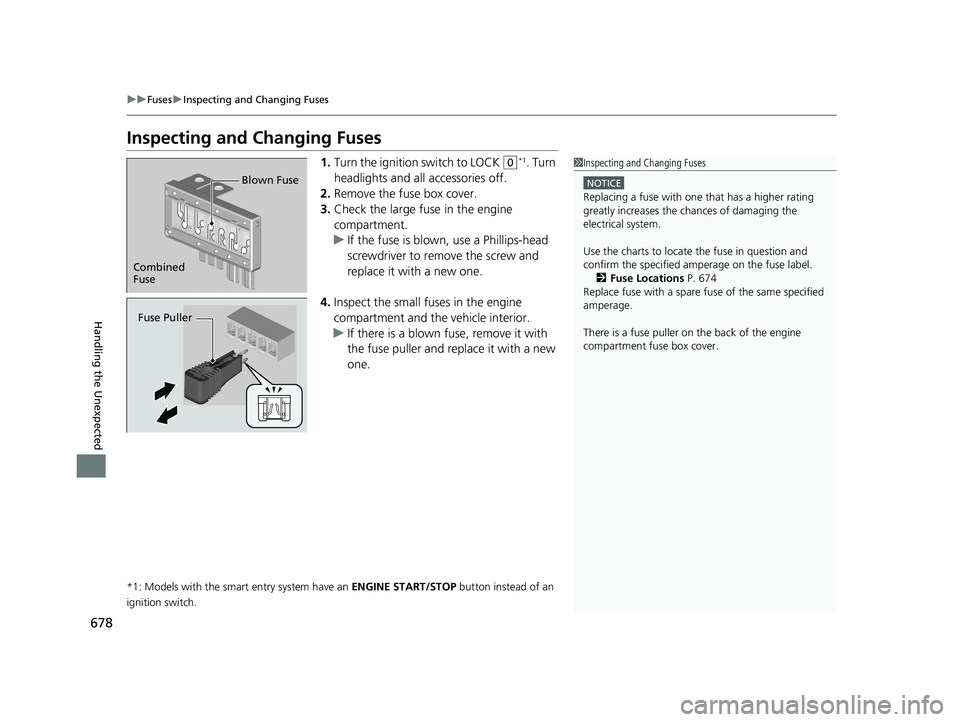

1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 674
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
21 CIVIC 5D HUM-31TGG6400_01.book 678 ページ ２０２０年８月２８日　金曜日　午後１時
