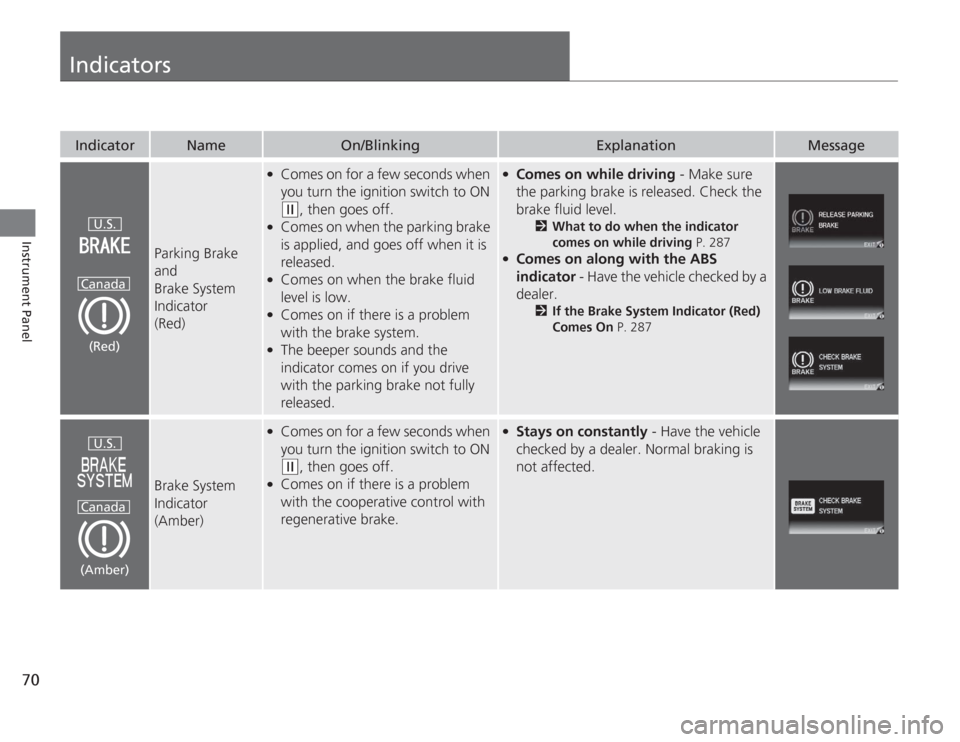

70Instrument Panel
IndicatorsIndicator
Name
On/Blinking
Explanation
Message
Parking Brake
and
Brake System
Indicator
(Red)
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on when the parking brake
is applied, and goes off when it is
released.
●
Comes on when the brake fluid
level is low.
●
Comes on if there is a problem
with the brake system.
●
The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●
Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 287
●
Comes on along with the ABS
indicator - Have the vehicle checked by a
dealer.
2 If the Brake System Indicator (Red)
Comes On P. 287
Brake System
Indicator
(Amber)
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on if there is a problem
with the cooperative control with
regenerative brake.
●
Stays on constantly - Have the vehicle
checked by a dealer. Normal braking is
not affected.
U.S.
Canada(Red)U.S.
Canada
(Amber)

71
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

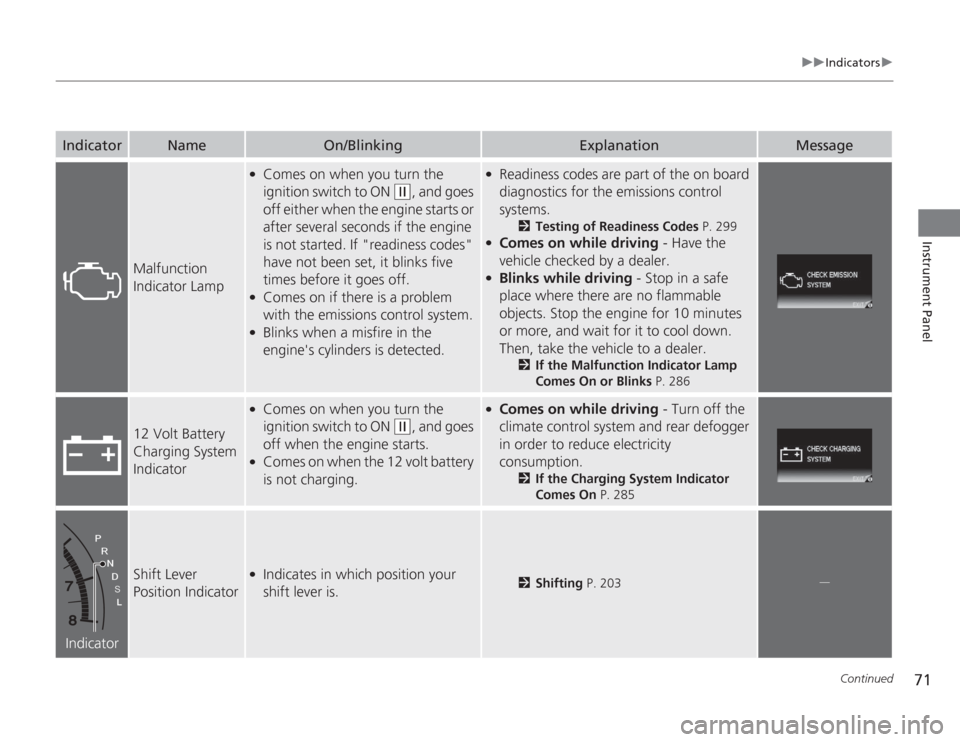

Malfunction
Indicator Lamp
●
Comes on when you turn the
ignition switch to ON
(w
, and goes
off either when the engine starts or
after several seconds if the engine
is not started. If "readiness codes"
have not been set, it blinks five
times before it goes off.
●
Comes on if there is a problem
with the emissions control system.
●
Blinks when a misfire in the
engine's cylinders is detected.
●
Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 299
●
Comes on while driving - Have the
vehicle checked by a dealer.
●
Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take the vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 286
12 Volt Battery
Charging System
Indicator
●
Comes on when you turn the
ignition switch to ON
(w
, and goes
off when the engine starts.
●
Comes on when the 12 volt battery
is not charging.
●
Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the Charging System Indicator
Comes On P. 285
Indicator
Shift Lever
Position Indicator
●
Indicates in which position your
shift lever is.
2Shifting P. 203
.

72
uuIndicators u
Instrument Panel

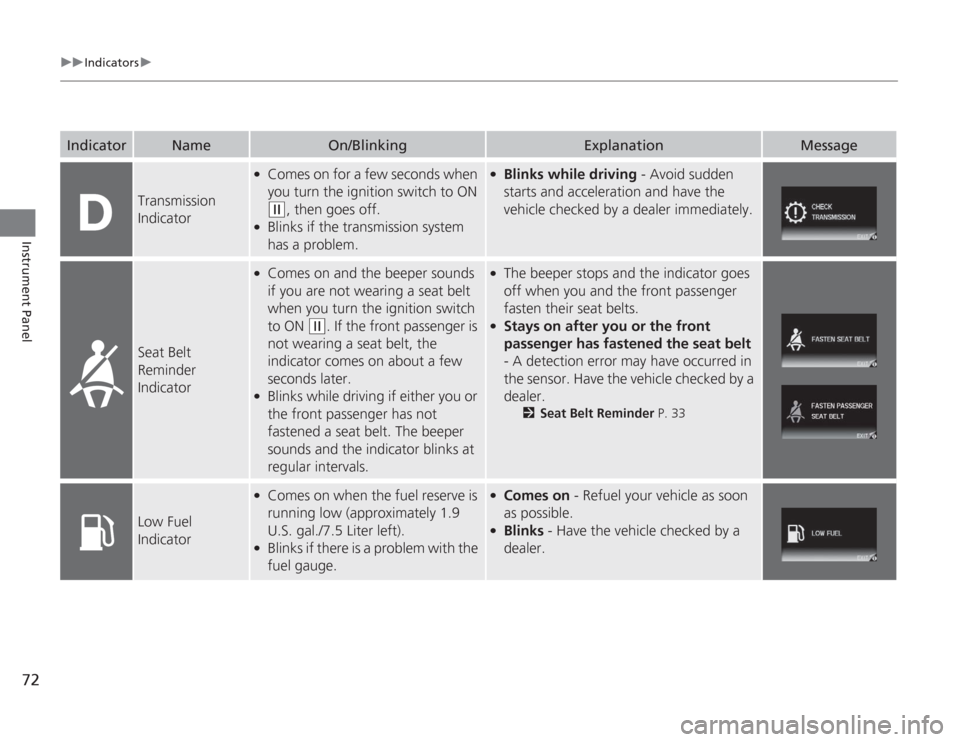

Transmission
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Blinks if the transmission system
has a problem.
●
Blinks while driving - Avoid sudden
starts and acceleration and have the
vehicle checked by a dealer immediately.
Seat Belt
Reminder
Indicator
●
Comes on and the beeper sounds
if you are not wearing a seat belt
when you turn the ignition switch
to ON
(w
. If the front passenger is
not wearing a seat belt, the
indicator comes on about a few
seconds later.
●
Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●
The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●
Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have the vehicle checked by a
dealer.
2 Seat Belt Reminder P. 33
Low Fuel
Indicator
●
Comes on when the fuel reserve is
running low (approximately 1.9
U.S. gal./7.5 Liter left).
●
Blinks if there is a problem with the
fuel gauge.
●
Comes on - Refuel your vehicle as soon
as possible.
●
Blinks - Have the vehicle checked by a
dealer.
Indicator
Name
On/Blinking
Explanation
Message

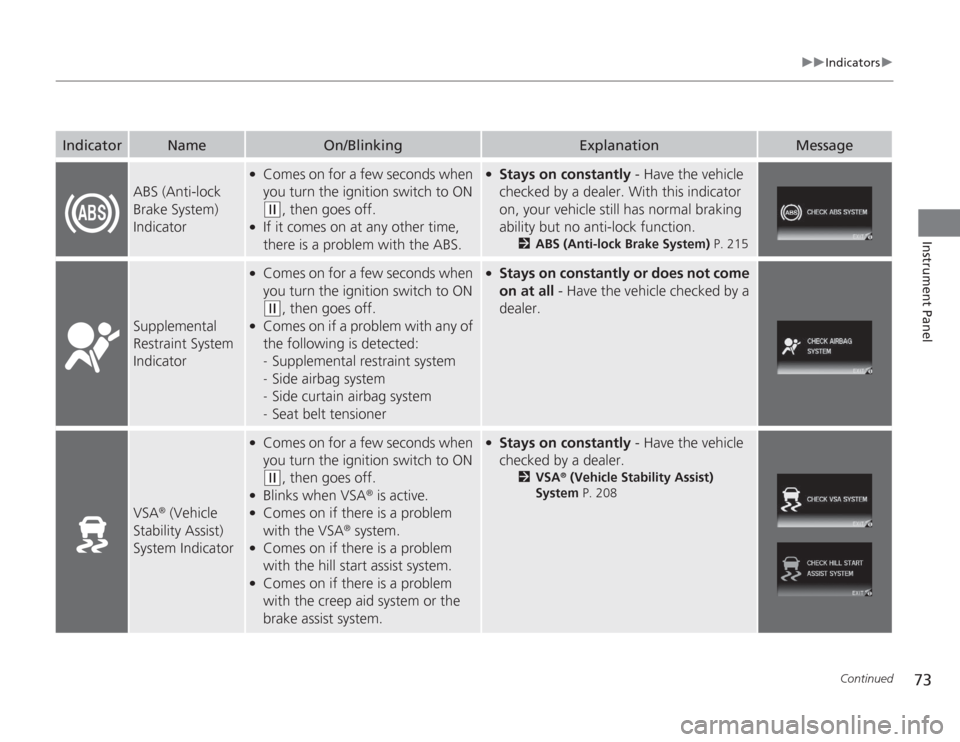

73
uuIndicators u
Continued
Instrument Panel
ABS (Anti-lock
Brake System)
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
If it comes on at any other time,
there is a problem with the ABS.
●
Stays on constantly - Have the vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 ABS (Anti-lock Brake System) P. 215
Supplemental
Restraint System
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●
Stays on constant ly or does not come
on at all - Have the vehicle checked by a
dealer.
VSA
® (Vehicle
Stability Assist)
System Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Blinks when VSA
® is active.
●
Comes on if there is a problem
with the VSA
® system.
●
Comes on if there is a problem
with the hill start assist system.
●
Comes on if there is a problem
with the creep aid system or the
brake assist system.
●
Stays on constantly - Have the vehicle
checked by a dealer.
2 VSA
® (Vehicle Stability Assist)
System P. 208
Indicator
Name
On/Blinking
Explanation
Message

74
uuIndicators u
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

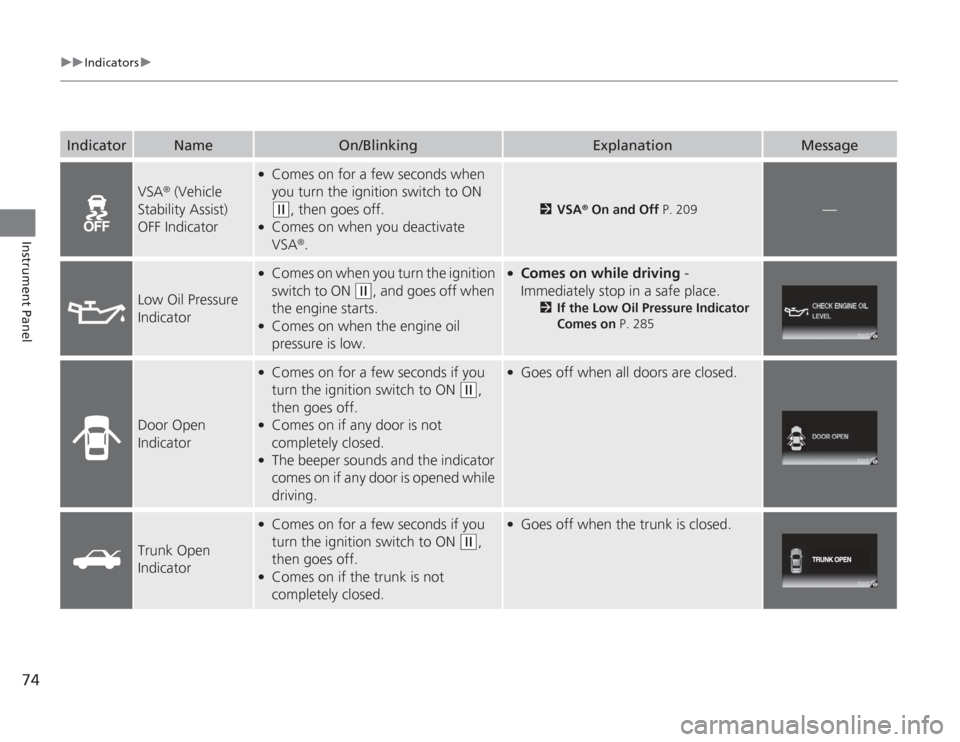

VSA
® (Vehicle
Stability Assist)
OFF Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on when you deactivate
VSA
®.
2 VSA
® On and Off P. 209
—
Low Oil Pressure
Indicator
●
Comes on when you turn the ignition
switch to ON
(w
, and goes off when
the engine starts.
●
Comes on when the engine oil
pressure is low.
●
Comes on while driving -
Immediately stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes on P. 285
Door Open
Indicator
●
Comes on for a few seconds if you
turn the ignition switch to ON
(w
,
then goes off.
●
Comes on if any door is not
completely closed.
●
The beeper sounds and the indicator
comes on if any door is opened while
driving.
●
Goes off when all doors are closed.
Trunk Open
Indicator
●
Comes on for a few seconds if you
turn the ignition switch to ON
(w
,
then goes off.
●
Comes on if the trunk is not
completely closed.
●
Goes off when the trunk is closed.

75
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

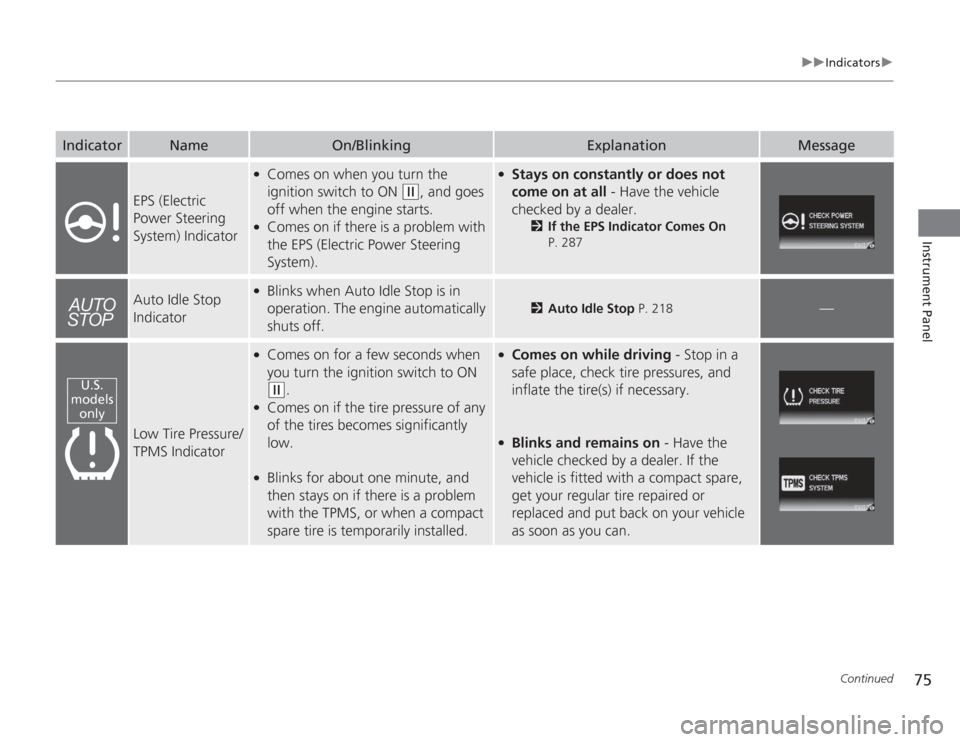

EPS (Electric
Power Steering
System) Indicator
●
Comes on when you turn the
ignition switch to ON
(w
, and goes
off when the engine starts.
●
Comes on if there is a problem with
the EPS (Electric Power Steering
System).
●
Stays on constantly or does not
come on at all - Have the vehicle
checked by a dealer.
2 If the EPS Indicator Comes On
P. 287
Auto Idle Stop
Indicator
●
Blinks when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2 Auto Idle Stop P. 218
—
Low Tire Pressure/
TPMS Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
.
●
Comes on if the tire pressure of any
of the tires becomes significantly
low.
●
Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.
●
Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●
Blinks and remains on - Have the
vehicle checked by a dealer. If the
vehicle is fitted with a compact spare,
get your regular tire repaired or
replaced and put back on your vehicle
as soon as you can.
U.S.
models only

76
uuIndicators u
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

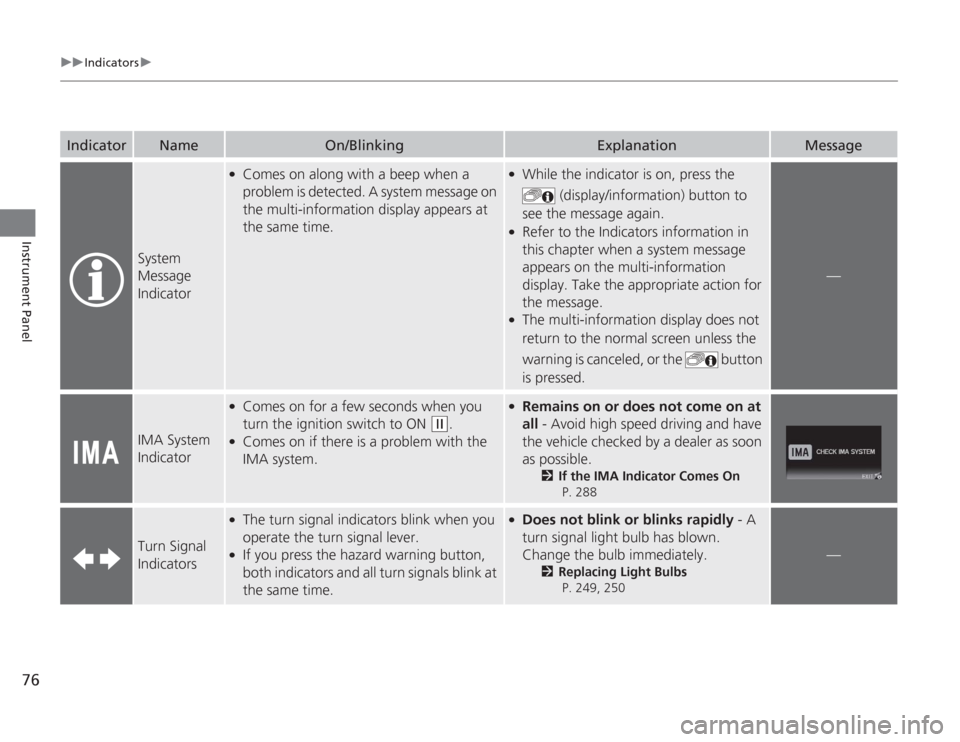

System
Message
Indicator
●
Comes on along with a beep when a
problem is detected. A system message on
the multi-information display appears at
the same time.
●
While the indicator is on, press the
(display/information) button to
see the message again.
●
Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the appropriate action for
the message.
●
The multi-information display does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
IMA System
Indicator
●
Comes on for a few seconds when you
turn the ignition switch to ON
(w
.
●
Comes on if there is a problem with the
IMA system.
●
Remains on or does not come on at
all - Avoid high speed driving and have
the vehicle checked by a dealer as soon
as possible.
2 If the IMA Indicator Comes On
P. 288
Turn Signal
Indicators
●
The turn signal indicators blink when you
operate the turn signal lever.
●
If you press the hazard warning button,
both indicators and all turn signals blink at
the same time.
●
Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs
P. 249, 250
—

77
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

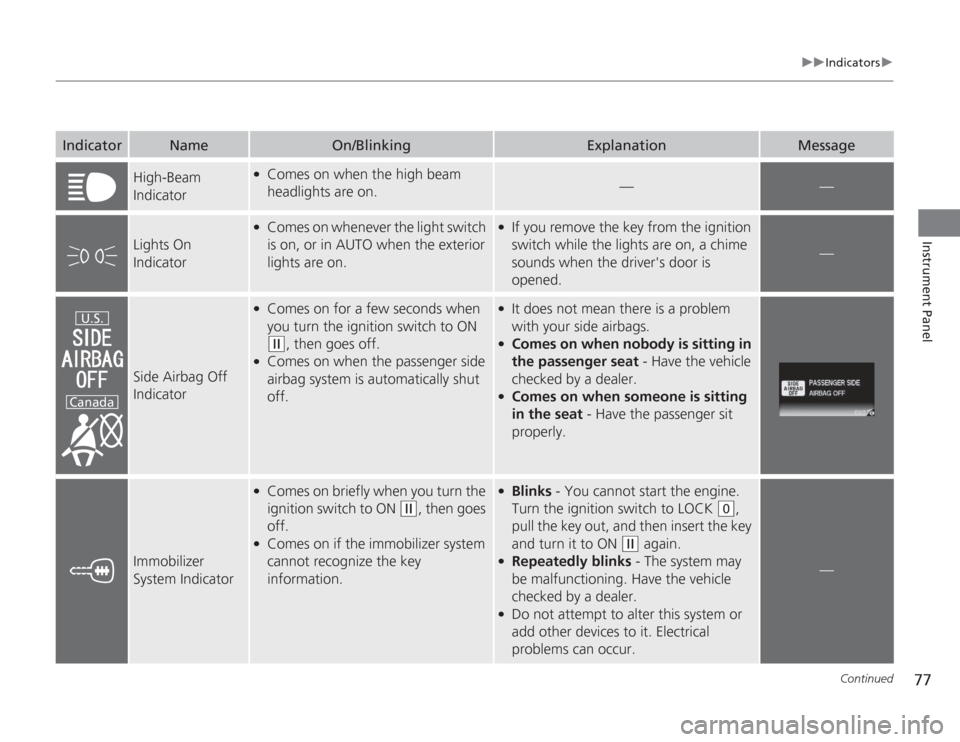

High-Beam
Indicator
●
Comes on when the high beam
headlights are on.
—
—
Lights On
Indicator
●
Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.
●
If you remove the key from the ignition
switch while the lights are on, a chime
sounds when the driver's door is
opened.
—
Side Airbag Off
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on when the passenger side
airbag system is automatically shut
off.
●
It does not mean there is a problem
with your side airbags.
●
Comes on when nobo dy is sitting in
the passenger seat - Have the vehicle
checked by a dealer.
●
Comes on when someone is sitting
in the seat - Have the passenger sit
properly.
Immobilizer
System Indicator
●
Comes on briefly when you turn the
ignition switch to ON
(w
, then goes
off.
●
Comes on if the immobilizer system
cannot recognize the key
information.
●
Blinks - You cannot start the engine.
Turn the ignition switch to LOCK
(0
,
pull the key out, and then insert the key
and turn it to ON
(w
again.
●
Repeatedly blinks - The system may
be malfunctioning. Have the vehicle
checked by a dealer.
●
Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
U.S.
Canada

78
uuIndicators u
Instrument Panel

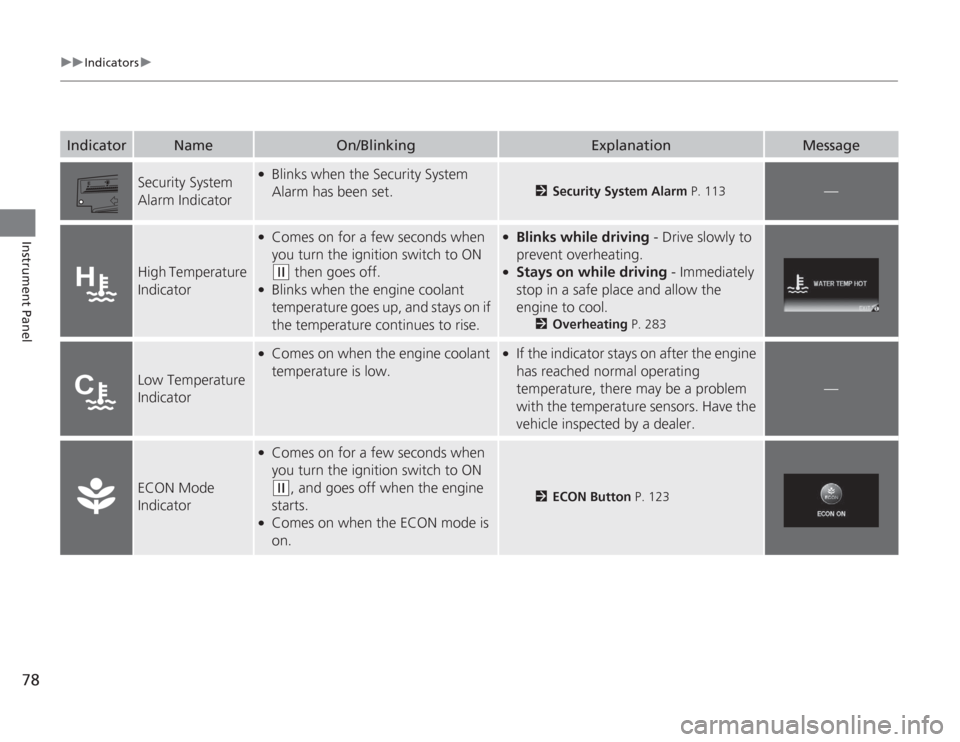

Security System
Alarm Indicator
●
Blinks when the Security System
Alarm has been set.
2Security System Alarm P. 113
—
High Temperature
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
then goes off.
●
Blinks when the engine coolant
temperature goes up, and stays on if
the temperature continues to rise.
●
Blinks while driving - Drive slowly to
prevent overheating.
●
Stays on while driving - Immediately
stop in a safe place and allow the
engine to cool.
2 Overheating P. 283
Low Temperature
Indicator
●
Comes on when the engine coolant
temperature is low.
●
If the indicator stays on after the engine
has reached normal operating
temperature, there may be a problem
with the temperature sensors. Have the
vehicle inspected by a dealer.
—
ECON Mode
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, and goes off when the engine
starts.
●
Comes on when the ECON mode is
on.
2 ECON Button P. 123
Indicator
Name
On/Blinking
Explanation
Message

79
uuIndicators u

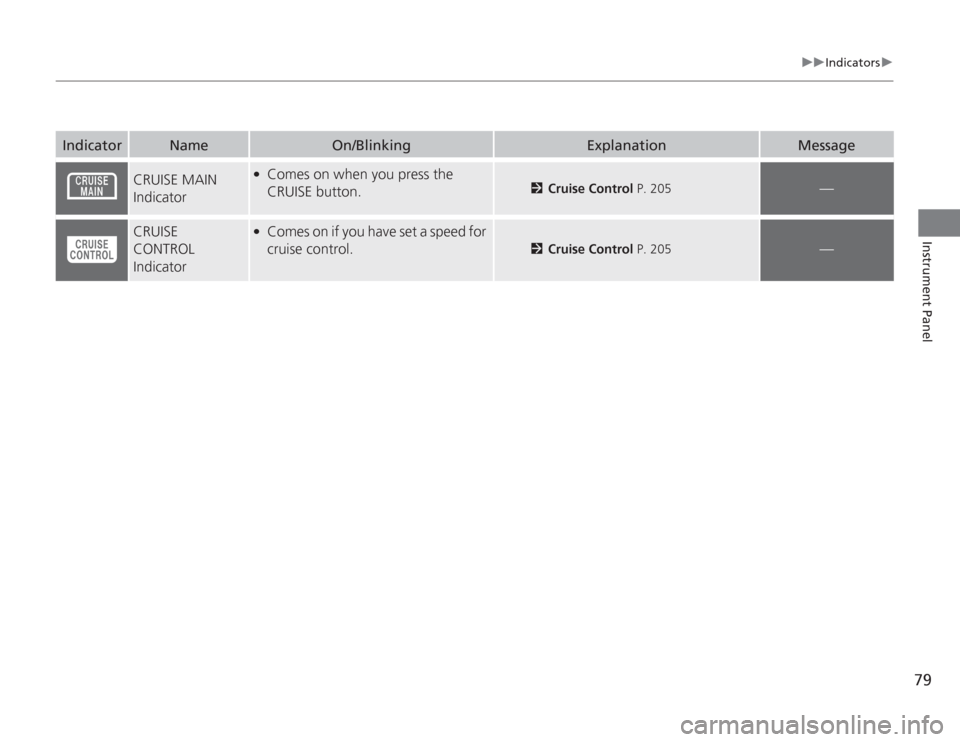

Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
CRUISE MAIN
Indicator
●
Comes on when you press the
CRUISE button.
2Cruise Control P. 205
—
CRUISE
CONTROL
Indicator
●
Comes on if you have set a speed for
cruise control.
2Cruise Control P. 205
—
