HONDA CIVIC HYBRID 2014 9.G Owners Manual

170
uuAudio System Basic Operation uPlaying an iPod
Features

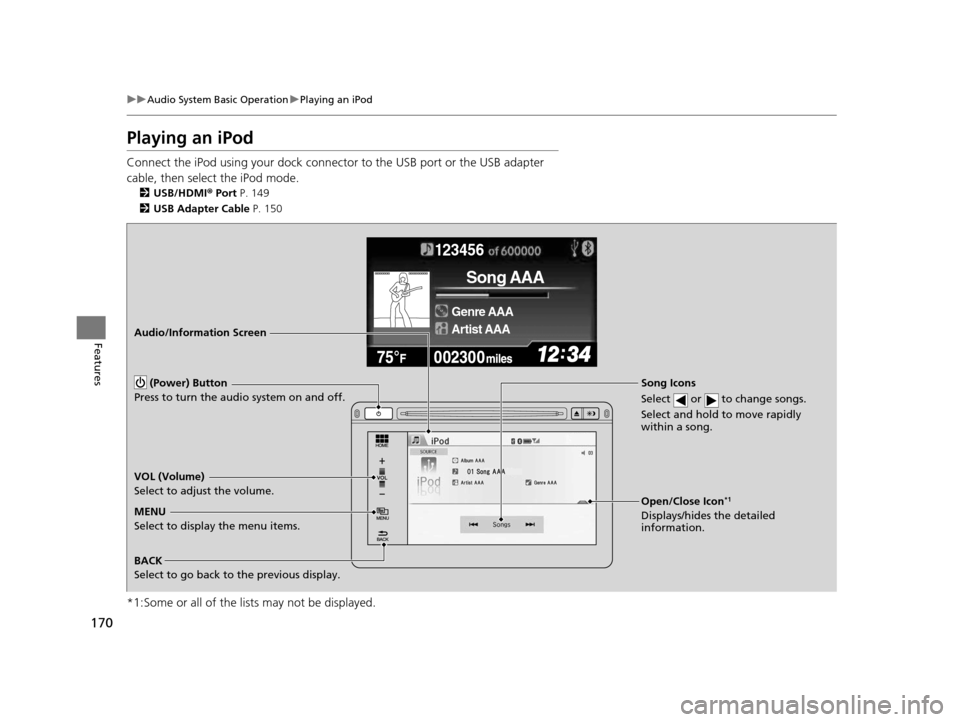

Playing an iPod
Connect the iPod using your dock connector to the USB port or the USB adapter
cable, then select the iPod mode.
2 USB/HDMI ® Port P. 149
2 USB Adapter Cable P. 150
*1:Some or all of the lists may not be displayed.
eƒŒ
_NO>q_Š€“‹>___
123456
Genre AAA
Song AAA
Artist AAAAudio/Information Screen
BACK
Select to go back to the previous display. VOL (Volume)
Select to adjust the volume. Song Icons
Select or to change songs.
Select and hold to move rapidly
within a song.
MENU
Select to display the menu items. (Power) Button
Press to turn the audio system on and off.Open/Close Icon*1
Displays/hides the detailed
information.
14 CIVIC IMA-31TR26200.book 170 ページ ２０１３年１２月２３日　月曜日　午後４時９分

Continued171
uuAudio System Basic Operation uPlaying an iPod
Features

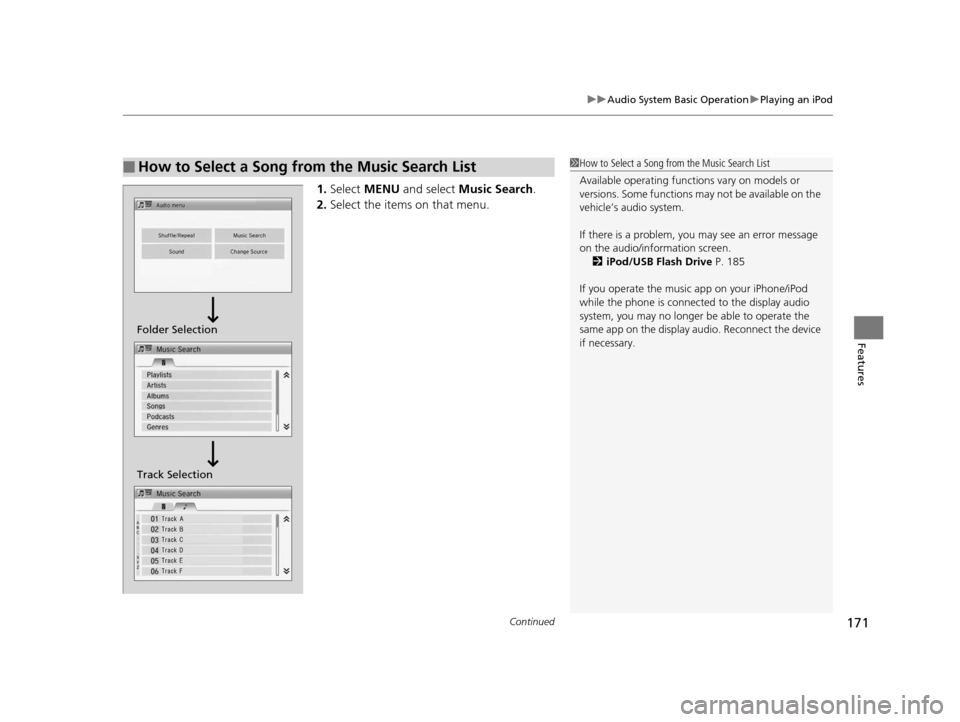

1. Select MENU and select Music Search .
2. Select the items on that menu.
■How to Select a Song from the Music Search List1How to Select a Song from the Music Search List
Available operating functi ons vary on models or
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen. 2 iPod/USB Flash Drive P. 185
If you operate the musi c app on your iPhone/iPod
while the phone is connecte d to the display audio
system, you may no longer be able to operate the
same app on the display audi o. Reconnect the device
if necessary.
Folder Selection
Track Selection
14 CIVIC IMA-31TR26200.book 171 ページ ２０１３年１２月２３日　月曜日　午後４時９分

uuAudio System Basic Operation uPlaying an iPod
172
Features

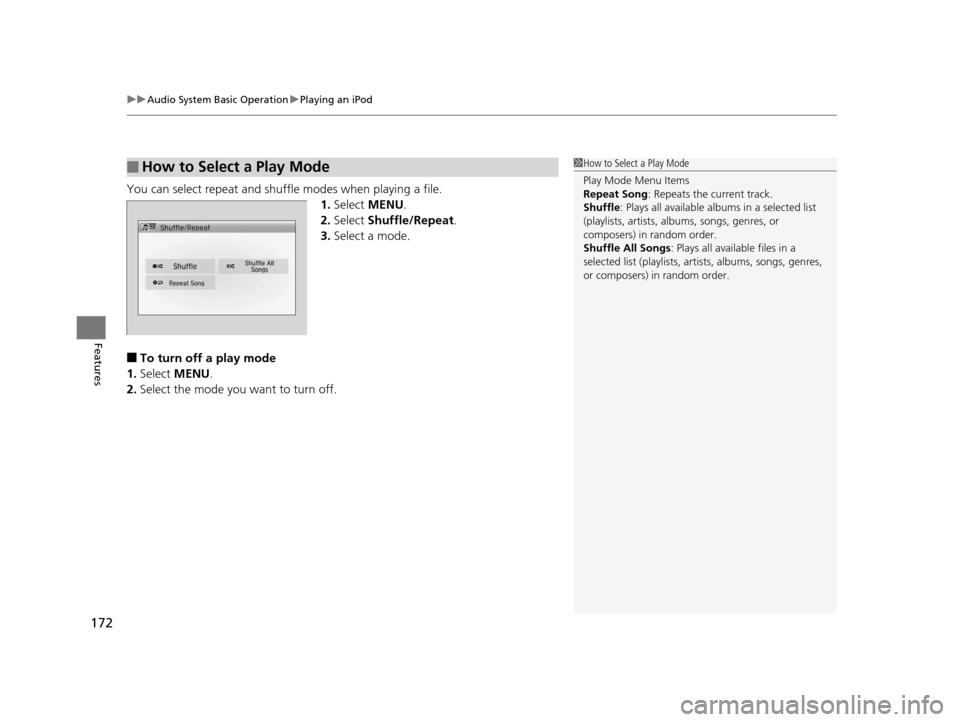

You can select repeat and shuffle modes when playing a file.
1.Select MENU .
2. Select Shuffle/Repeat .
3. Select a mode.
■To turn off a play mode
1. Select MENU .
2. Select the mode you want to turn off.
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Repeat Song : Repeats the current track.
Shuffle : Plays all available albums in a selected list
(playlists, artists, al bums, songs, genres, or
composers) in random order.
Shuffle All Songs : Plays all available files in a
selected list (playlists, ar tists, albums, songs, genres,
or composers) in random order.
14 CIVIC IMA-31TR26200.book 172 ページ ２０１３年１２月２３日　月曜日　午後４時９分

173
uuAudio System Basic Operation uPlaying Internet Radio
Continued
Features

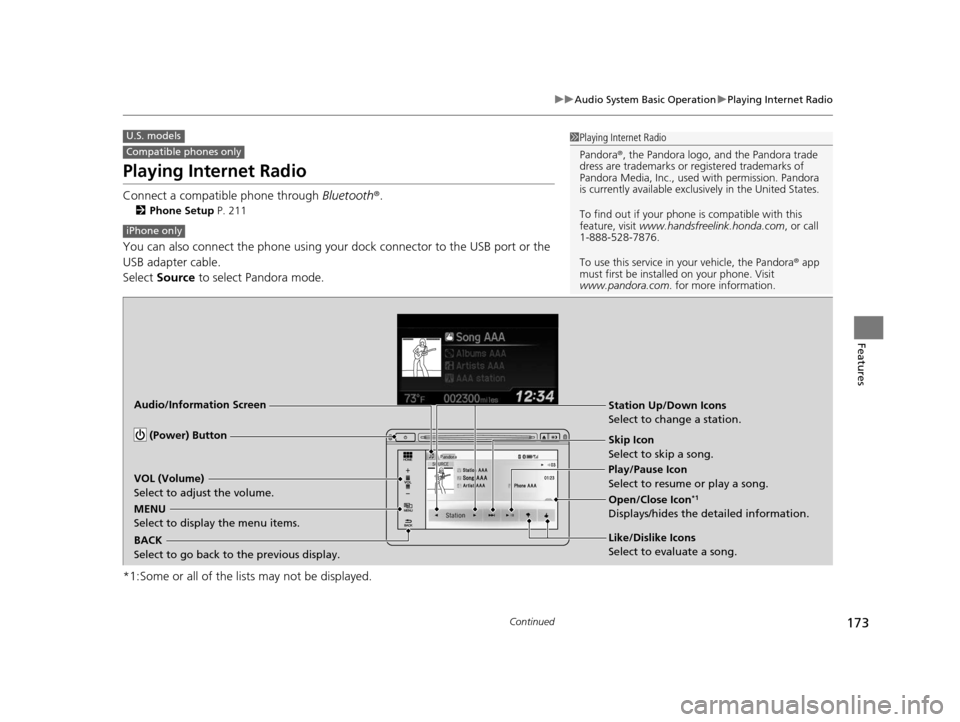

Playing Internet Radio
Connect a compatible phone through Bluetooth®.
2Phone Setup P. 211
You can also connect the phone using your dock connector to the USB port or the
USB adapter cable.
Select Source to select Pandora mode.
*1:Some or all of the lists may not be displayed.
U.S. models
Compatible phones only
1 Playing Internet Radio
Pandora ®, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.honda.com , or call
1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
iPhone only
Audio/Information Screen
(Power) Button
BACK
Select to go back to the previous display. VOL (Volume)
Select to adjust the volume.
MENU
Select to display the menu items.
Station Up/Down Icons
Select to change a station.
Skip Icon
Select to skip a song.
Play/Pause Icon
Select to resume or play a song.
Open/Close Icon
*1
Displays/hides the detailed information.
Like/Dislike Icons
Select to evaluate a song.
14 CIVIC IMA-31TR26200.book 173 ページ ２０１３年１２月２３日　月曜日　午後４時９分

uuAudio System Basic Operation uPlaying Internet Radio
174
Features

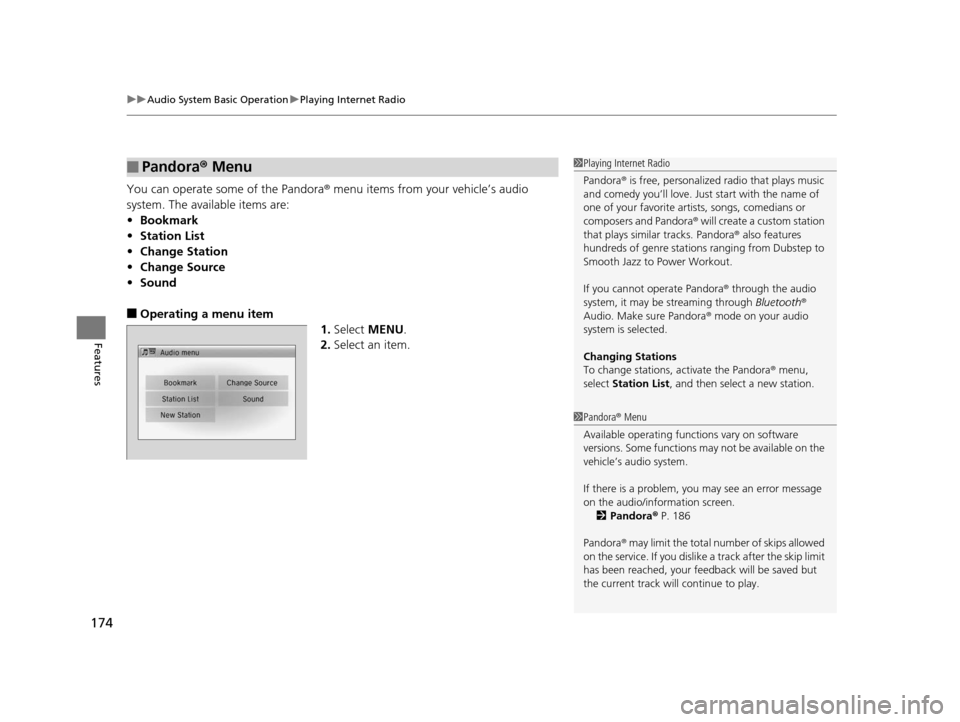

You can operate some of the Pandora® menu items from your vehicle’s audio
system. The available items are:
• Bookmark
• Station List
• Change Station
• Change Source
• Sound
■Operating a menu item
1.Select MENU .
2. Select an item.
■Pandora® Menu1Playing Internet Radio
Pandora ® is free, personalized radio that plays music
and comedy you’ll love. Just start with the name of
one of your favorite arti sts, songs, comedians or
composers and Pandora ® will create a custom station
that plays similar tracks. Pandora ® also features
hundreds of genre stations ranging from Dubstep to
Smooth Jazz to Power Workout.
If you cannot operate Pandora ® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora ® mode on your audio
system is selected.
Changing Stations
To change stations, activate the Pandora ® menu,
select Station List , and then select a new station.
1Pandora ® Menu
Available operating functi ons vary on software
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen. 2 Pandora ® P. 186
Pandora ® may limit the total number of skips allowed
on the service. If you dislike a track after the skip limit
has been reached, your fe edback will be saved but
the current track will continue to play.
14 CIVIC IMA-31TR26200.book 174 ページ ２０１３年１２月２３日　月曜日　午後４時９分

175
uuAudio System Basic Operation uPlaying a USB Flash Drive
Continued
Features

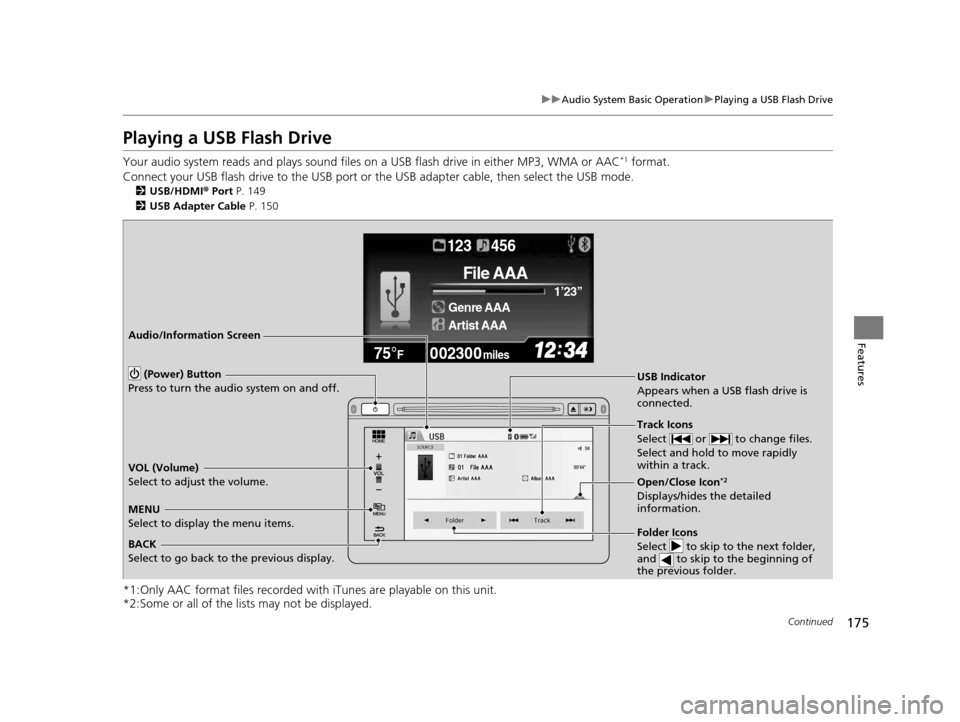

Playing a USB Flash Drive
Your audio system reads and play s sound files on a USB flash drive in either MP3, WMA or AAC*1 format.
Connect your USB flash drive to the USB port or th e USB adapter cable, then select the USB mode.
2USB/HDMI® Port P. 149
2 USB Adapter Cable P. 150
*1:Only AAC format files recorded with iTunes are playable on this unit.
*2:Some or all of the lists may not be displayed.
002300
75°F miles
Genre AAA 1’23’’
File AAA
Artist AAA
123 456
Audio/Information Screen
BACK
Select to go back to the previous display. (Power) Button
Press to turn the audi o system on and off.
Track Icons
Select or to change files.
Select and hold to move rapidly
within a track.
MENU
Select to display the menu items. USB Indicator
Appears when a USB flash drive is
connected.
Folder Icons
Select to skip to the next folder,
and to skip to the beginning of
the previous folder.
VOL (Volume)
Select to adjust the volume.
Open/Close Icon*2
Displays/hides the detailed
information.
14 CIVIC IMA-31TR26200.book 175 ページ ２０１３年１２月２３日　月曜日　午後４時９分

uuAudio System Basic Operation uPlaying a USB Flash Drive
176
Features
1. Select MENU and select Music Search .
2. Select a folder.
3. Select a track.
■How to Select a File from the Music Search List1Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 188
Files in WMA format prot ected by digital rights
management (DRM) cannot be played.
The audio system displays Unplayable File, and then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 185
Folder Selection
Track Selection
14 CIVIC IMA-31TR26200.book 176 ページ ２０１３年１２月２３日　月曜日　午後４時９分

177
uuAudio System Basic Operation uPlaying a USB Flash Drive
Features

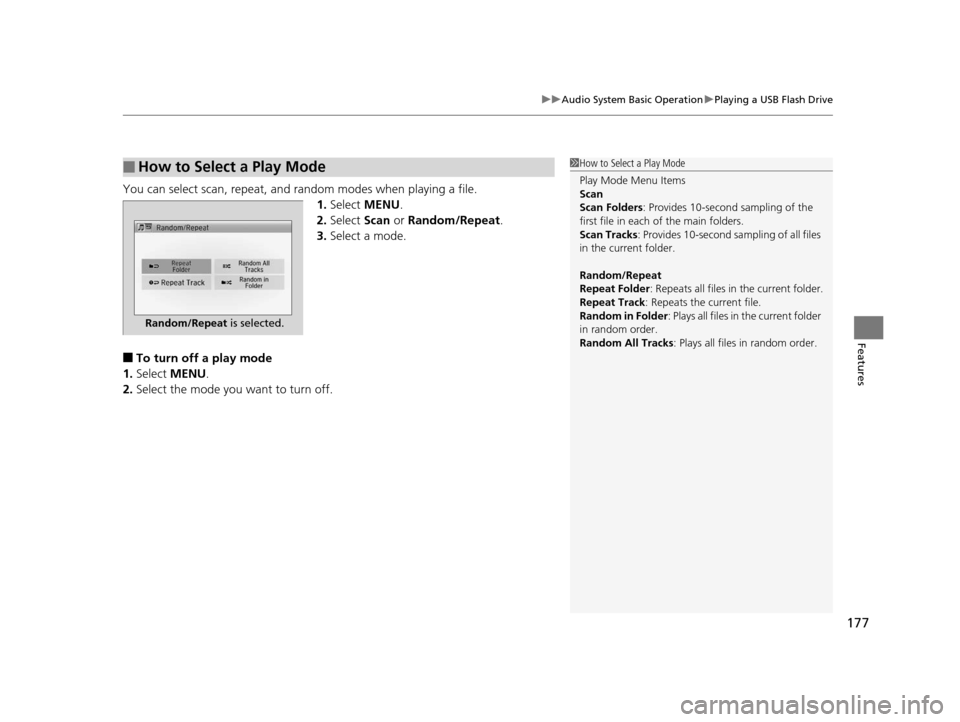

You can select scan, repeat, and random modes when playing a file.
1.Select MENU .
2. Select Scan or Random/Repeat .
3. Select a mode.
■To turn off a play mode
1. Select MENU .
2. Select the mode you want to turn off.
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders : Provides 10-second sampling of the
first file in each of the main folders.
Scan Tracks : Provides 10-second sa mpling of all files
in the current folder.
Random/Repeat
Repeat Folder : Repeats all files in the current folder.
Repeat Track: Repeats the current file.
Random in Folder : Plays all files in the current folder
in random order.
Random All Tracks : Plays all files in random order.
Random/Repeat is selected.
14 CIVIC IMA-31TR26200.book 177 ページ ２０１３年１２月２３日　月曜日　午後４時９分

178
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Features

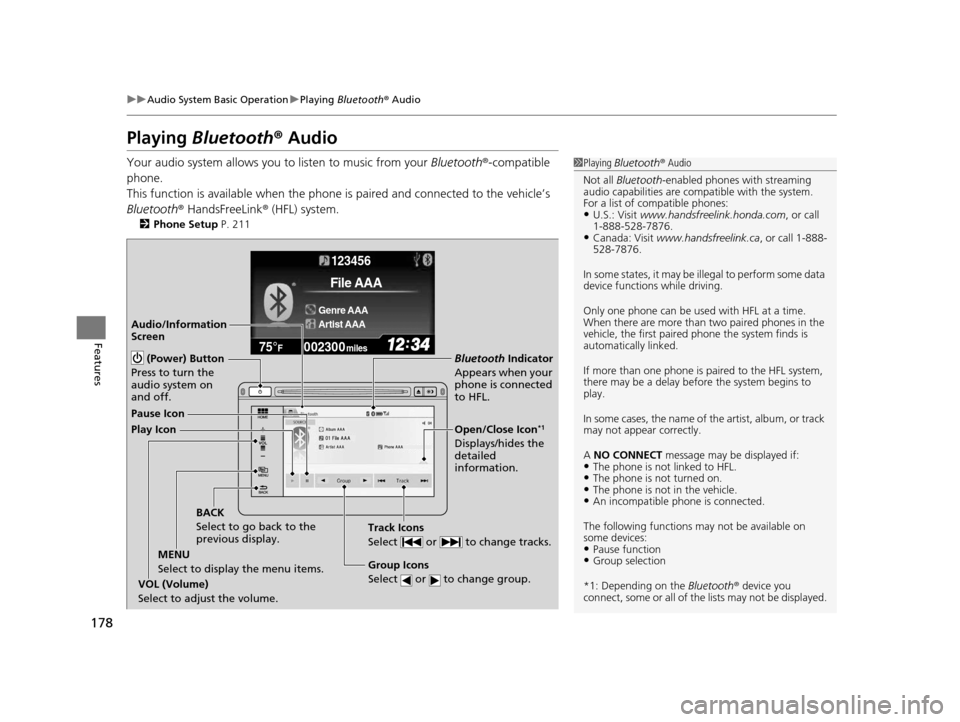

Playing Bluetooth ® Audio
Your audio system allows you to listen to music from your Bluetooth®-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system.
2 Phone Setup P. 211
1Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are comp atible with the system.
For a list of compatible phones:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
In some states, it may be il legal to perform some data
device functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically linked.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
In some cases, the name of the artist, album, or track
may not appear correctly.
A NO CONNECT message may be displayed if:
•The phone is not linked to HFL.•The phone is not turned on.•The phone is not in the vehicle.•An incompatible phone is connected.
The following functions may not be available on
some devices:
•Pause function•Group selection
*1: Depending on the Bluetooth® device you
connect, some or al l of the lists may not be displayed.
_ _Š€“‹>___NO>d‡Šƒ>___n†
ÛÛ
002300
75°F miles
123456
Genre AAA
File AAA
Artist AAA
Track Icons
Select or to change tracks.
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
(Power) Button
Press to turn the
audio system on
and off.
Audio/Information
Screen
Play Icon Pause Icon
BACK
Select to go back to the
previous display.
MENU
Select to display the menu items. Group Icons
Select or to change group.
VOL (Volume)
Select to adjust the volume.
Open/Close Icon*1
Displays/hides the
detailed
information.
14 CIVIC IMA-31TR26200.book 178 ページ ２０１３年１２月２３日　月曜日　午後４時９分

179
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Features

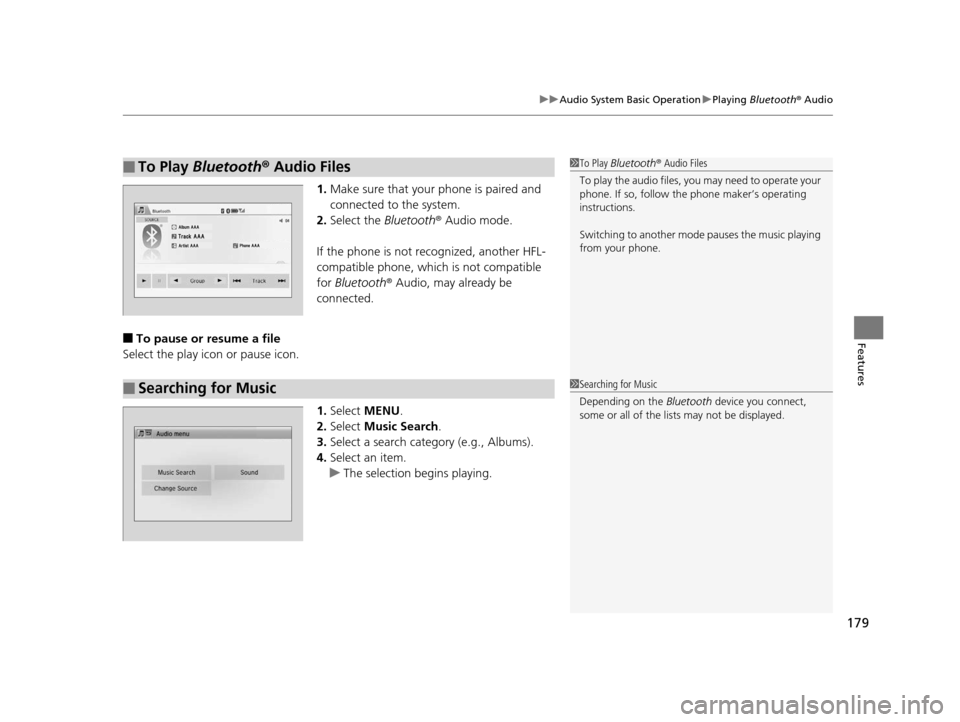

1. Make sure that your phone is paired and
connected to the system.
2. Select the Bluetooth® Audio mode.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth ® Audio, may already be
connected.
■To pause or resume a file
Select the play icon or pause icon.
1.Select MENU .
2. Select Music Search.
3. Select a search catego ry (e.g., Albums).
4. Select an item.
u The selection begins playing.
■To Play Bluetooth ® Audio Files1 To Play Bluetooth ® Audio Files
To play the audio files, y ou may need to operate your
phone. If so, follow the phone maker’s operating
instructions.
Switching to another mode pauses the music playing
from your phone.
ÛÛ
■Searching for Music1 Searching for Music
Depending on the Bluetooth device you connect,
some or all of the list s may not be displayed.
14 CIVIC IMA-31TR26200.book 179 ページ ２０１３年１２月２３日　月曜日　午後４時９分
