uuGeneral Information on the Audio System uRecommended CDs
190
Features

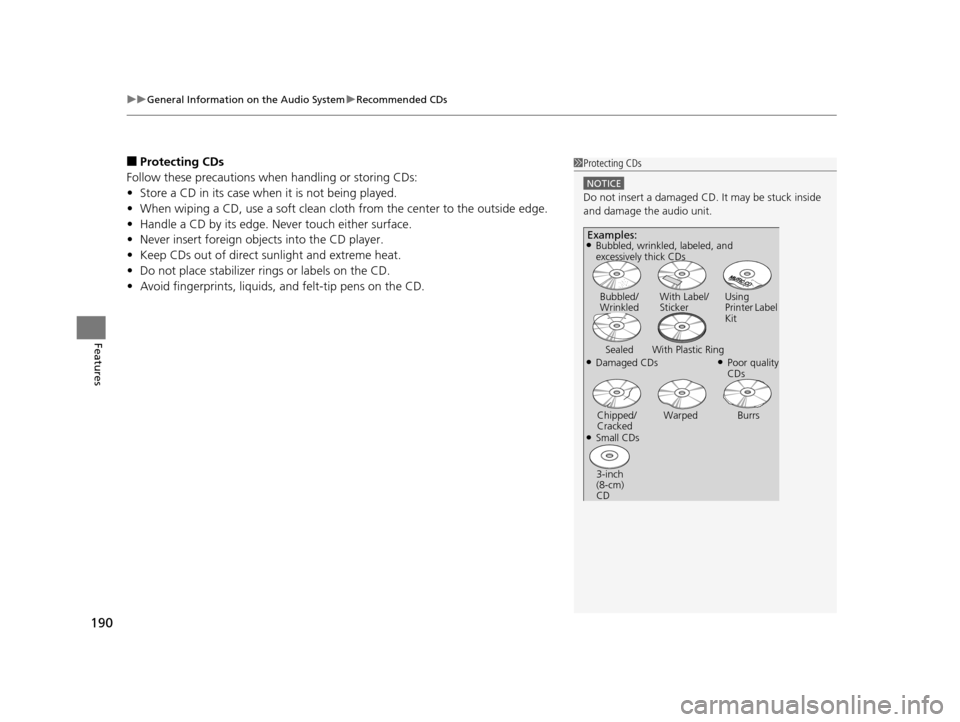

■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean cloth from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign objects into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer ri ngs or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
14 CIVIC IMA-31TR26200.book 190 ページ ２０１３年１２月２３日　月曜日　午後４時９分

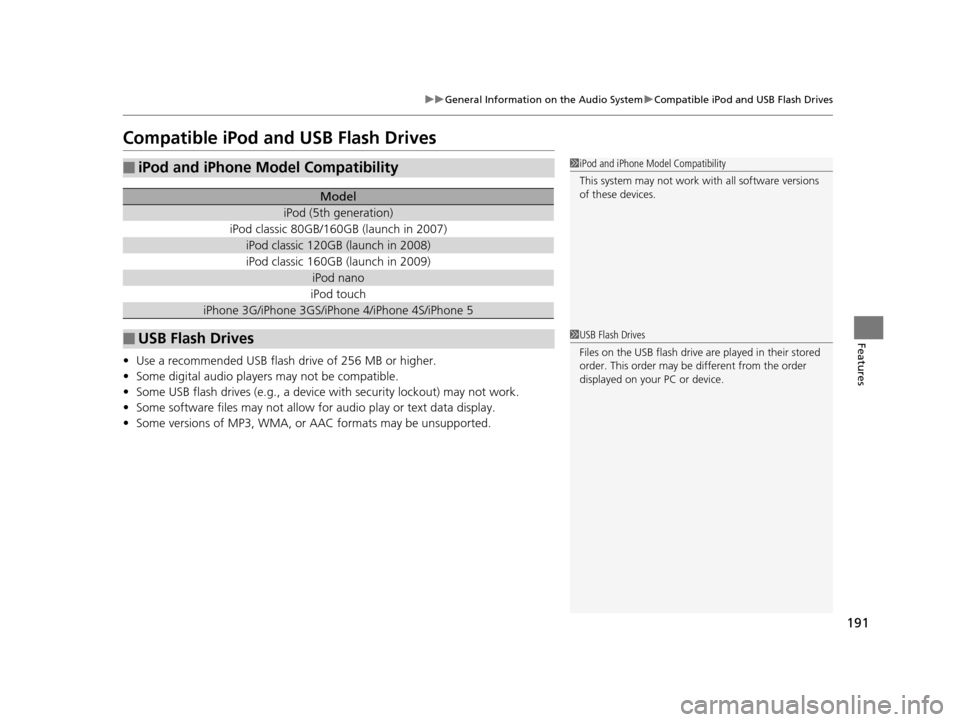

191
uuGeneral Information on the Audio System uCompatible iPod and USB Flash Drives
Features
Compatible iPod and USB Flash Drives
• Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano
iPod touch
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
14 CIVIC IMA-31TR26200.book 191 ページ ２０１３年１２月２３日　月曜日　午後４時９分

192
Features

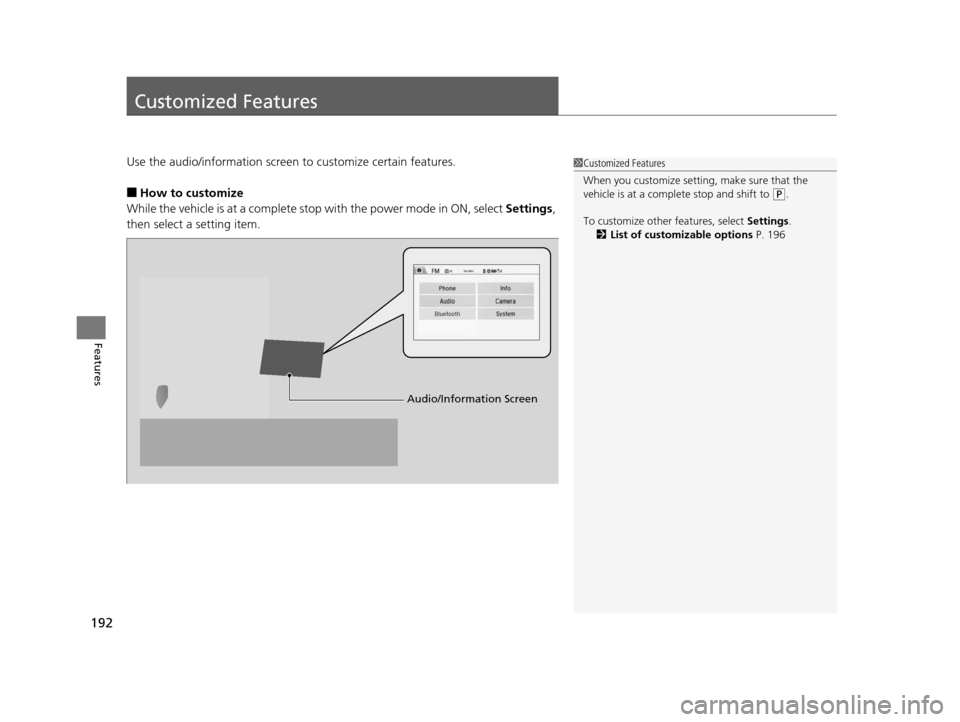

Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete stop with the power mode in ON, select Settings,
then select a setting item.
1 Customized Features
When you customize setting, make sure that the
vehicle is at a complete stop and shift to
(P.
To customize other features, select Settings.
2 List of customizable options P. 196
Audio/Information Screen
14 CIVIC IMA-31TR26200.book 192 ページ ２０１３年１２月２３日　月曜日　午後４時９分

193
uuCustomized Features u
Continued
Features

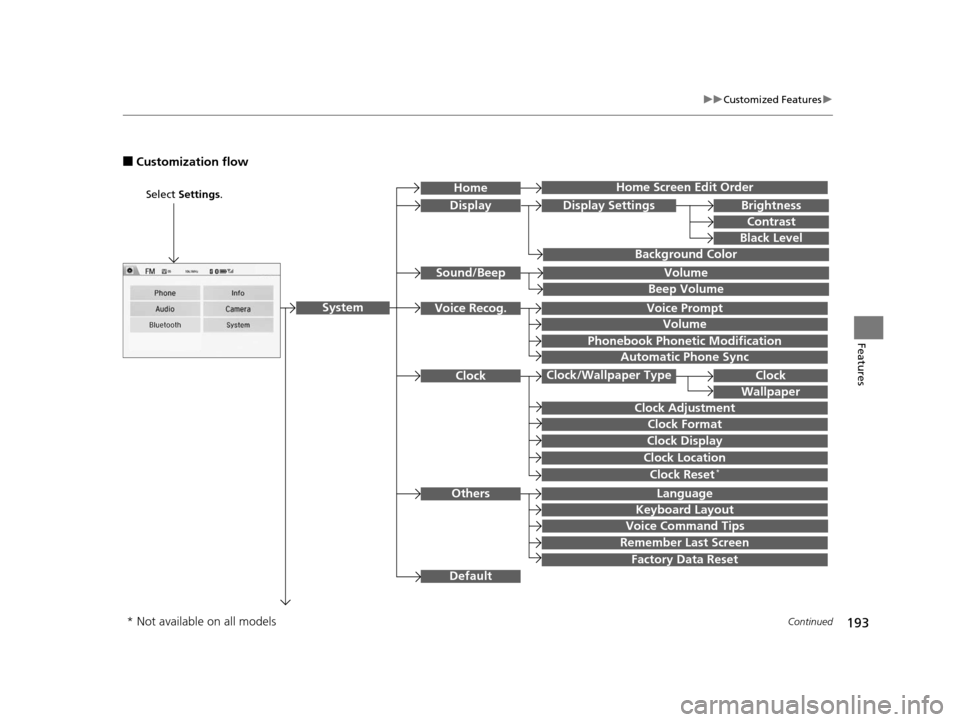

■Customization flow
Clock Format
Remember Last Screen
Factory Data Reset
Clock Adjustment
Select Settings .
Language
Default
Brightness
Contrast
Black Level
Clock
Wallpaper
Display
Home Screen Edit Order
Background Color
Volume
Clock Location
Clock Display
Beep Volume
Keyboard Layout
Home
Sound/Beep
Display Settings
ClockClock/Wallpaper Type
System
Clock Reset*
Others
Phonebook Phonet ic Modification
Automatic Phone Sync
Voice Prompt
Volume
Voice Recog.
Voice Command Tips
* Not available on all models
14 CIVIC IMA-31TR26200.book 193 ページ ２０１３年１２月２３日　月曜日　午後４時９分

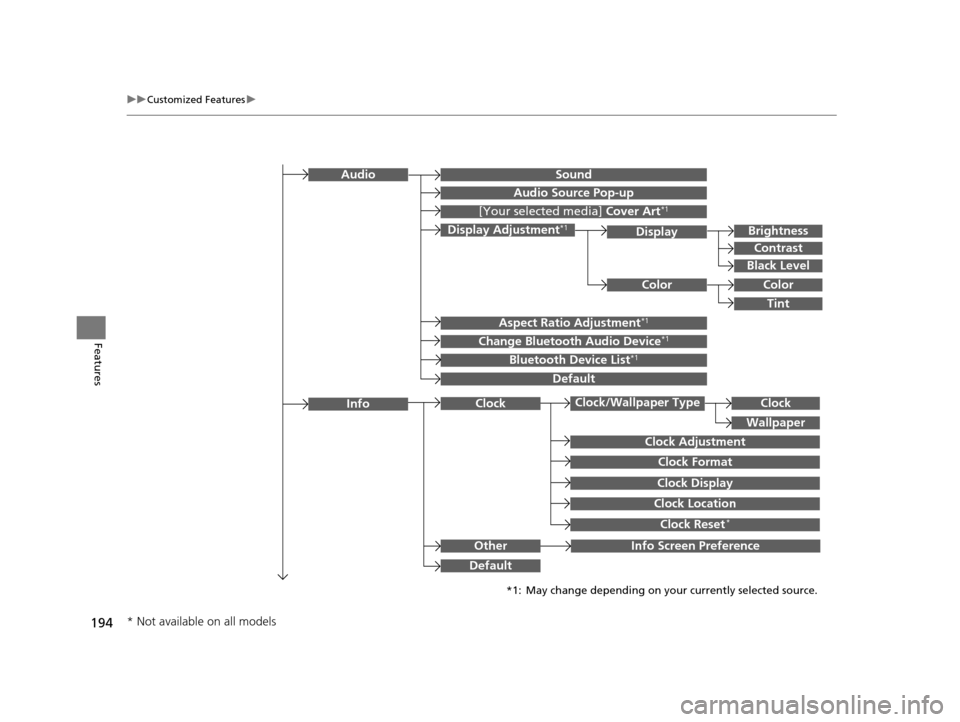

194
uuCustomized Features u
Features
Color
AudioSound
Audio Source Pop-up
[Your selected media] Cover Art*1
Display Adjustment*1
Aspect Ratio Adjustment*1
Change Bluetooth Audio Device*1
Bluetooth Device List*1
Default
DisplayBrightness
Contrast
Black Level
Color
Tint
Clock Format
Clock Adjustment
Clock/Wallpaper TypeClock
Wallpaper
Clock Location
Clock Display
Info Screen Preference
Default
Info
Clock Reset*
Other
Clock
*1: May change depending on your currently selected source.
* Not available on all models
14 CIVIC IMA-31TR26200.book 194 ページ ２０１３年１２月２３日　月曜日　午後４時９分

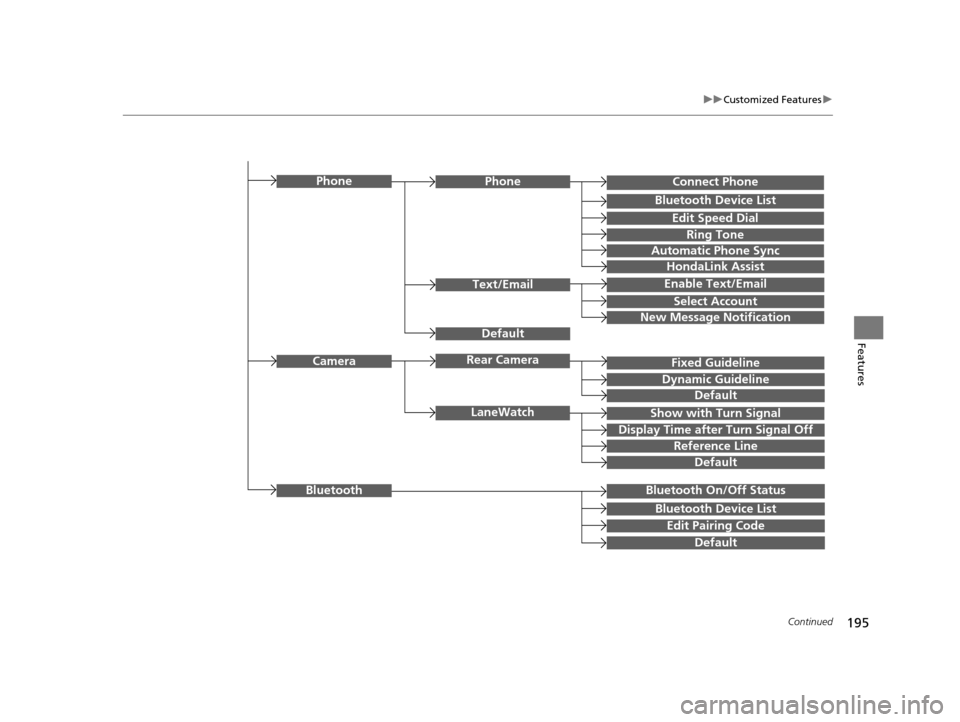

195
uuCustomized Features u
Continued
Features
Ring Tone
Edit Speed Dial
Connect PhonePhone
Default
Automatic Phone Sync
Bluetooth Device List
Edit Pairing Code
Bluetooth Device List
Rear CameraFixed Guideline
Dynamic Guideline
Camera
Bluetooth On/Off Status
Default
Default
HondaLink Assist
Enable Text/Email
Select Account
New Message Notification
LaneWatchShow with Turn Signal
Display Time after Turn Signal Off
Reference Line
Default
Phone
Text/Email
Bluetooth
14 CIVIC IMA-31TR26200.book 195 ページ ２０１３年１２月２３日　月曜日　午後４時９分

196
uuCustomized Features u
Features

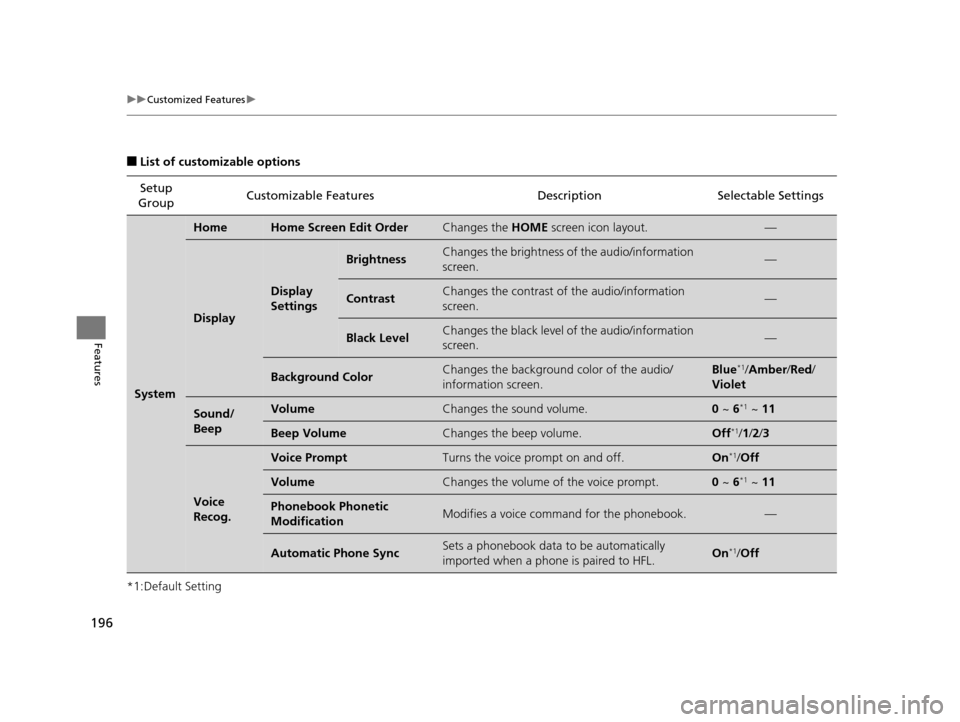

■List of customizable options
*1:Default Setting Setup
Group Customizable Features Descri
ption Selectable Settings
System
HomeHome Screen Edit OrderChanges the HOME screen icon layout.—
Display
Display
Settings
BrightnessChanges the brightness of the audio/information
screen.—
ContrastChanges the contrast of the audio/information
screen.—
Black LevelChanges the black level of the audio/information
screen.—
Background ColorChanges the background color of the audio/
information screen.Blue*1/Amber /Red /
Violet
Sound/
BeepVolumeChanges the sound volume.0 ~ 6*1 ~ 11
Beep VolumeChanges the beep volume.Off*1/1 /2 /3
Voice
Recog.
Voice PromptTurns the voice prompt on and off.On*1/Off
VolumeChanges the volume of the voice prompt.0 ~ 6*1 ~ 11
Phonebook Phonetic
ModificationModifies a voice command for the phonebook.—
Automatic Phone SyncSets a phonebook data to be automatically
imported when a phone is paired to HFL.On*1/Off
14 CIVIC IMA-31TR26200.book 196 ページ ２０１３年１２月２３日　月曜日　午後４時９分

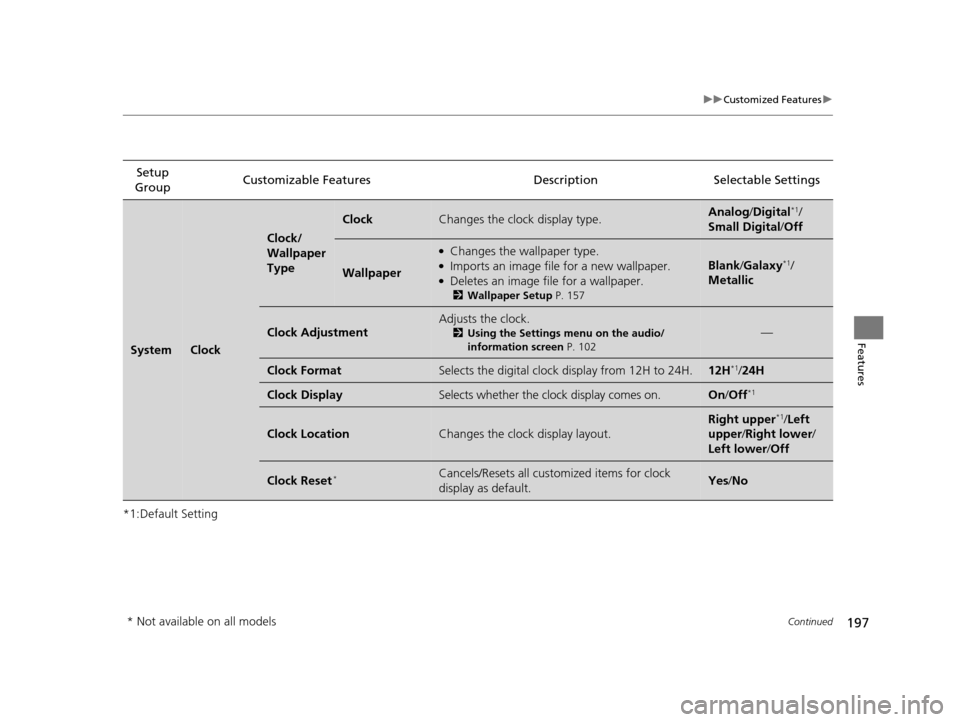

197
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
SystemClock
Clock/
Wallpaper
Type
ClockChanges the clock display type.Analog/Digital*1/
Small Digital /Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.
2 Wallpaper Setup P. 157
Blank/Galaxy*1/
Metallic
Clock Adjustment
Adjusts the clock.
2 Using the Settings menu on the audio/
information screen P. 102—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
Clock DisplaySelects whether the clock display comes on.On /Off*1
Clock LocationChanges the clock display layout.
Right upper*1/Left
upper /Right lower /
Left lower /Off
Clock Reset*Cancels/Resets all cust omized items for clock
display as default. Yes /No
* Not available on all models
14 CIVIC IMA-31TR26200.book 197 ページ ２０１３年１２月２３日　月曜日　午後４時９分

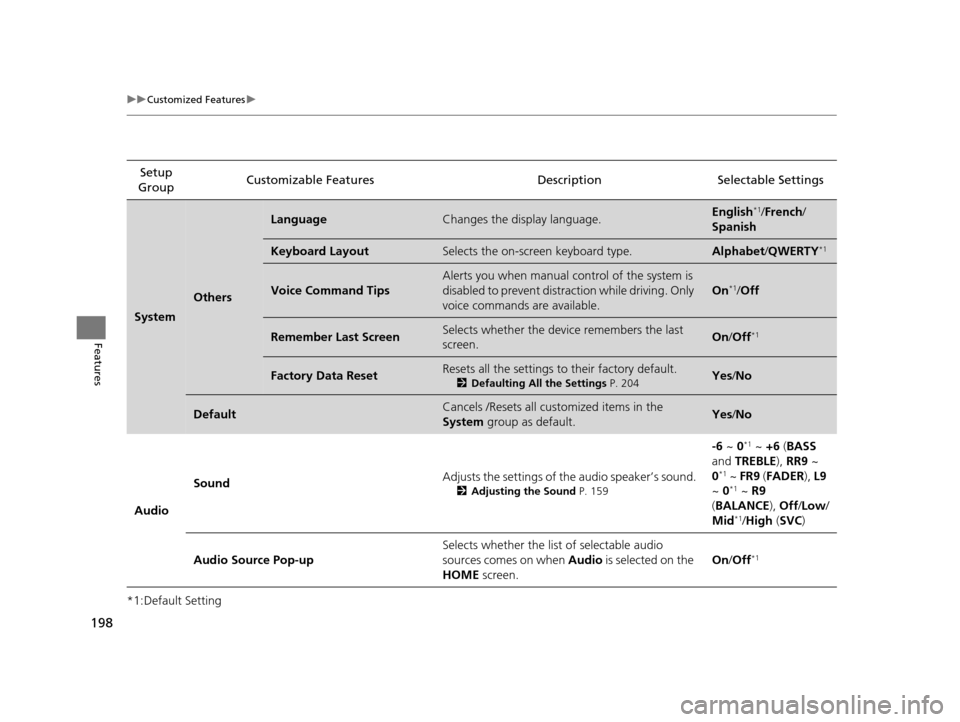

198
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
System
Others
LanguageChanges the display language.English*1/French /
Spanish
Keyboard LayoutSelects the on-screen keyboard type. Alphabet /QWERTY*1
Voice Command Tips
Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available.
On*1/ Off
Remember Last ScreenSelects whether the device remembers the last
screen.On /Off*1
Factory Data ResetResets all the settings to their factory default.
2 Defaulting All the Settings P. 204Yes/No
DefaultCancels /Resets all cust omized items in the
System group as default.Yes/No
Audio Sound
Adjusts the settings of
the audio speaker’s sound.
2Adjusting the Sound P. 159
-6 ~ 0*1 ~ +6 (BASS
and TREBLE ), RR9 ~
0
*1 ~ FR9 (FADER ), L9
~ 0*1 ~ R9
( BALANCE ), Off /Low /
Mid
*1/ High (SVC )
Audio Source Pop-up Selects whether the list of selectable audio
sources comes on when
Audio is selected on the
HOME screen. On
/Off
*1
14 CIVIC IMA-31TR26200.book 198 ページ ２０１３年１２月２３日　月曜日　午後４時９分

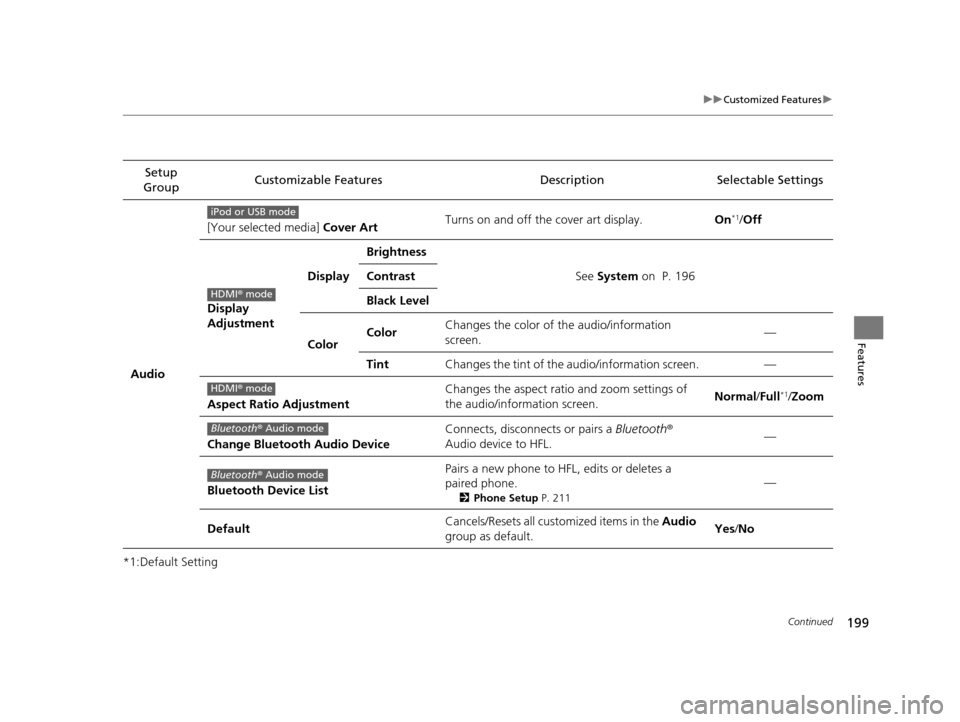

199
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Audio [Your selected media]
Cover Art Turns on and off the cover art display.
On
*1/Off
Display
Adjustment Display
Brightness
See System on P. 196
Contrast
Black Level
Color Color
Changes the color of the audio/information
screen. —
Tint Changes the tint of the audio/information screen. —
Aspect Ratio Adjustment Changes the aspect ratio and zoom settings of
the audio/information screen.
Normal
/Full
*1/Zoom
Change Bluetooth Audio Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a
paired phone.
2
Phone Setup P. 211
—
Default Cancels/Resets all customized items in the Audio

group as default. Yes
/No
iPod or USB mode
HDMI ® mode
HDMI ® mode
Bluetooth ® Audio mode
Bluetooth ® Audio mode
