HONDA CIVIC HYBRID 2014 9.G Owners Manual

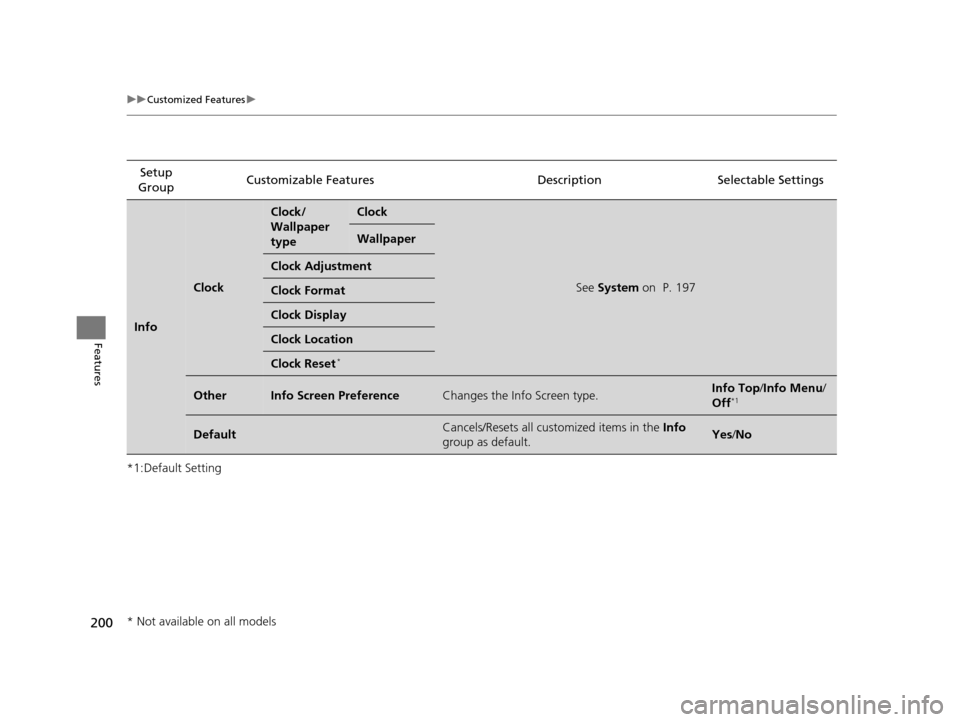

200
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Info
Clock
Clock/
Wallpaper
typeClock
See System on P. 197
Wallpaper
Clock Adjustment
Clock Format
Clock Display
Clock Location
Clock Reset*
OtherInfo Screen PreferenceChanges the Info Screen type.Info Top /Info Menu /
Off*1
DefaultCancels/Resets all customized items in the Info
group as default.Yes /No
* Not available on all models
14 CIVIC IMA-31TR26200.book 200 ページ ２０１３年１２月２３日　月曜日　午後４時９分

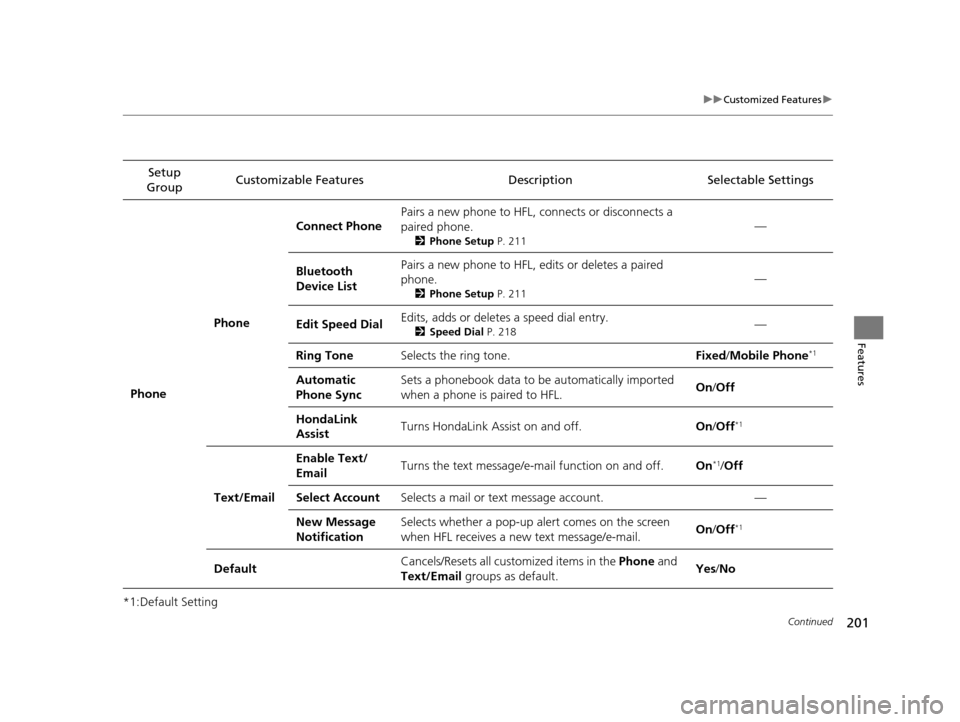

201
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Phone PhoneConnect Phone
Pairs a new phone to HFL, connects or disconnects a
paired phone.
2
Phone Setup P. 211
—
Bluetooth
Device List Pairs a new phone to HFL,
edits or deletes a paired
phone.
2 Phone Setup P. 211
—
Edit Speed Dial Edits, adds or deletes a speed dial entry.
2
Speed Dial P. 218—
Ring Tone Selects the ring tone. Fixed/Mobile Phone
*1
Automatic
Phone Sync Sets a phonebook data to be automatically imported
when a phone is paired to HFL.
On
/Off
HondaLink
Assist Turns HondaLink Assist on and off.
On/Off
*1
Text/Email Enable Text/
Email
Turns the text message/e-
mail function on and off. On
*1/Off
Select Account Selects a mail or text message account. —
New Message
Notification Selects whether a pop-up alert comes on the screen
when HFL receives a new text message/e-mail.
On
/Off
*1
Default Cancels/Resets all customized items in the
Phone and
Text/Email groups as default. Yes
/No
14 CIVIC IMA-31TR26200.book 201 ページ ２０１３年１２月２３日　月曜日　午後４時９分

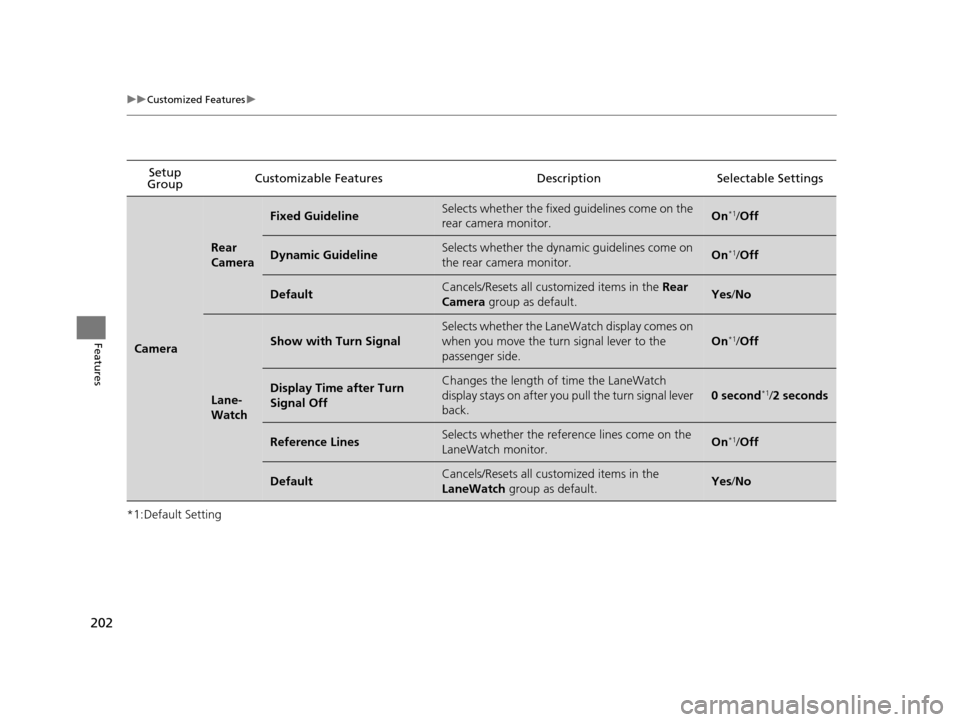

202
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Camera
Rear
Camera
Fixed GuidelineSelects whether the fixed guidelines come on the
rear camera monitor.On*1/Off
Dynamic GuidelineSelects whether the dynamic guidelines come on
the rear camera monitor.On*1/Off
DefaultCancels/Resets all cust omized items in the Rear
Camera group as default.Yes/No
Lane-
Watch
Show with Turn Signal
Selects whether the LaneWatch display comes on
when you move the turn signal lever to the
passenger side.
On*1/Off
Display Time after Turn
Signal OffChanges the length of time the LaneWatch
display stays on after you pull the turn signal lever
back.
0 second*1/2 seconds
Reference LinesSelects whether the reference lines come on the
LaneWatch monitor.On*1/ Off
DefaultCancels/Resets all cust omized items in the
LaneWatch group as default.Yes/No
14 CIVIC IMA-31TR26200.book 202 ページ ２０１３年１２月２３日　月曜日　午後４時９分

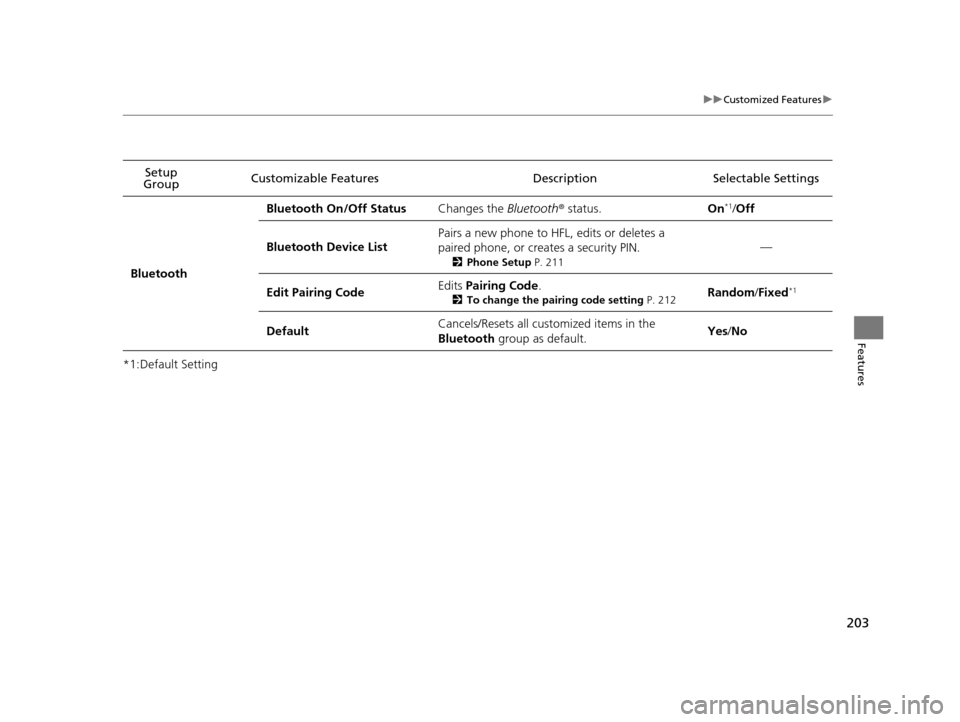

203
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Bluetooth Bluetooth On/Off Status
Changes the Bluetooth® status. On
*1/Off
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a
paired phone, or creates a security PIN.
2
Phone Setup P. 211
—
Edit Pairing Code Edits
Pairing Code.
2To change the pairing code setting P. 212Random /Fixed*1
Default Cancels/Resets all customized items in the
Bluetooth
group as default. Yes
/No
14 CIVIC IMA-31TR26200.book 203 ページ ２０１３年１２月２３日　月曜日　午後４時９分

204
uuCustomized Features uDefaulting All the Settings
Features

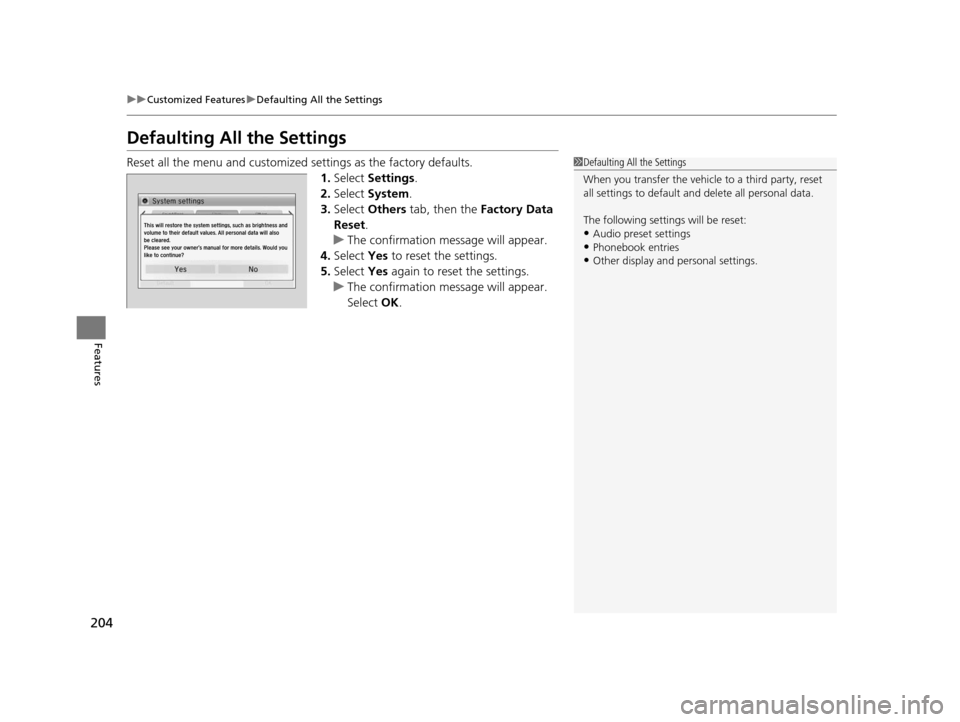

Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Select Settings .
2. Select System .
3. Select Others tab, then the Factory Data
Reset .
u The confirmation message will appear.
4. Select Yes to reset the settings.
5. Select Yes again to reset the settings.
u The confirmation message will appear.
Select OK.1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
The following settings will be reset:
•Audio preset settings
•Phonebook entries•Other display and personal settings.
14 CIVIC IMA-31TR26200.book 204 ページ ２０１３年１２月２３日　月曜日　午後４時９分

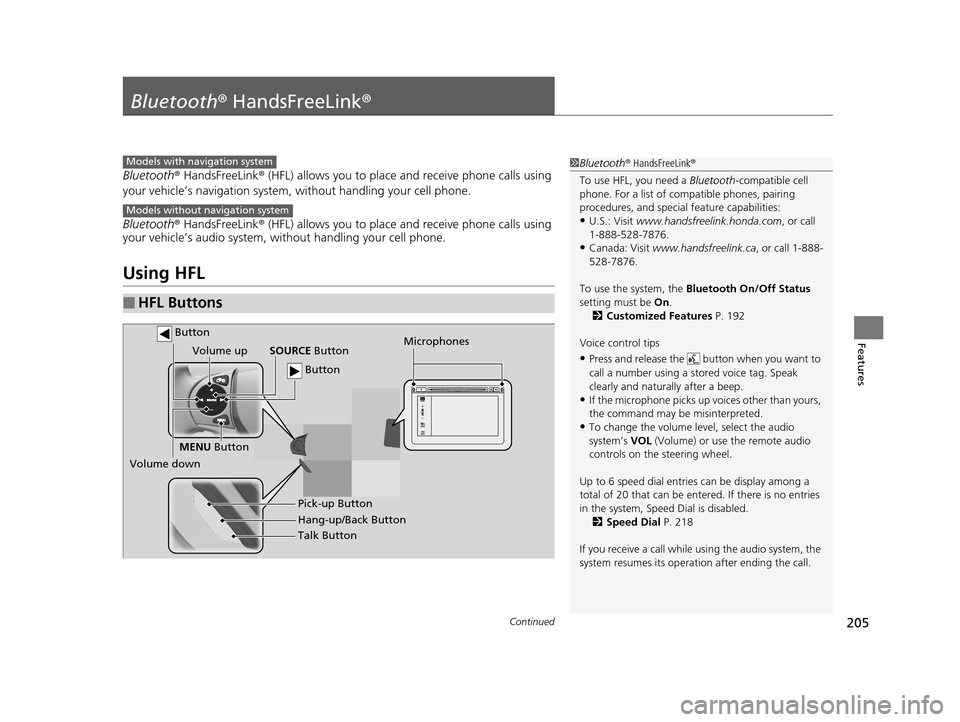

205Continued
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s navigation system, without handling your cell phone.
Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
To use the system, the Bluetooth On/Off Status
setting must be On.
2 Customized Features P. 192
Voice control tips
•Press and release the but ton when you want to
call a number using a st ored voice tag. Speak
clearly and naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, select the audio
system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to 6 speed dial entries can be display among a
total of 20 that can be entered. If there is no entries
in the system, Speed Dial is disabled. 2 Speed Dial P. 218
If you receive a call while using the audio system, the
system resumes its operati on after ending the call.
Models with navigation system
Models without navigation system
Talk Button
Volume up
Microphones
Hang-up/Back Button Pick-up Button
Volume down SOURCE
Button
MENU Button
Button
Button
14 CIVIC IMA-31TR26200.book 205 ページ ２０１３年１２月２３日　月曜日　午後４時９分

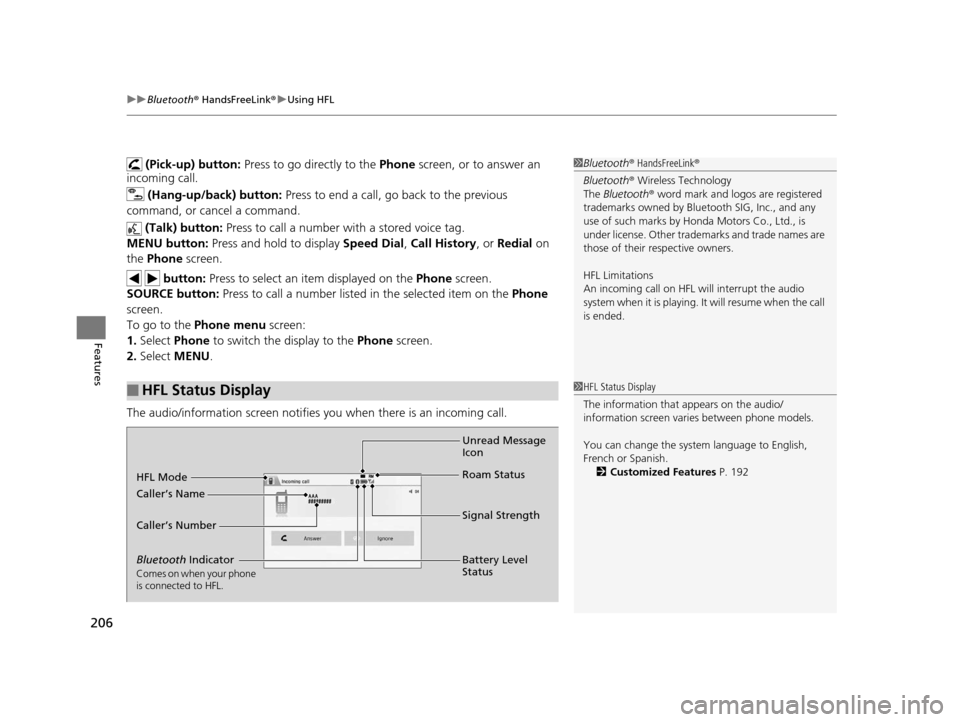

uuBluetooth ® HandsFreeLink ®u Using HFL
206
Features
(Pick-up) button: Press to go directly to the Phone screen, or to answer an
incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, or cancel a command.
(Talk) button: Press to call a number with a stored voice tag.
MENU button: Press and hold to display Speed Dial, Call History , or Redial on
the Phone screen.
button: Press to select an item displayed on the Phone screen.
SOURCE button: Press to call a number listed in the selected item on the Phone
screen.
To go to the Phone menu screen:
1. Select Phone to switch the display to the Phone screen.
2. Select MENU .
The audio/information screen notifies you when there is an incoming call.
■HFL Status Display
1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Blue tooth SIG, Inc., and any
use of such marks by Honda Motors Co., Ltd., is
under license. Other tradem arks and trade names are
those of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language to English,
French or Spanish. 2 Customized Features P. 192
Bluetooth Indicator
Comes on when your phone
is connected to HFL.
Signal Strength
HFL Mode
Battery Level
Status
Caller’s Name
Caller’s Number
Unread Message
Icon
Roam Status
14 CIVIC IMA-31TR26200.book 206 ページ ２０１３年１２月２３日　月曜日　午後４時９分

207
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
HFL Menus
The power mode must be in ACCESSO RY or ON to use the system.
■Phone settings screen
1.Select Settings .
2. Select Phone .
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
Pair a phone to the system.
Edit a previously paired phone name.Connect Phone*1
Bluetooth
Device List
Add Bluetooth Device
(Existing entry list)
Disconnect
Connect a phone to the system.
Disconnect a paired phone from the system.
(Existing entry list)*1Edit Device Name
Delete This DeviceDelete a previously paired phone.
Add Bluetooth Device
*1: Appears only when a phone is connected to the system. Pair a phone to the system.
Phone
14 CIVIC IMA-31TR26200.book 207 ページ ２０１３年１２月２３日　月曜日　午後４時９分

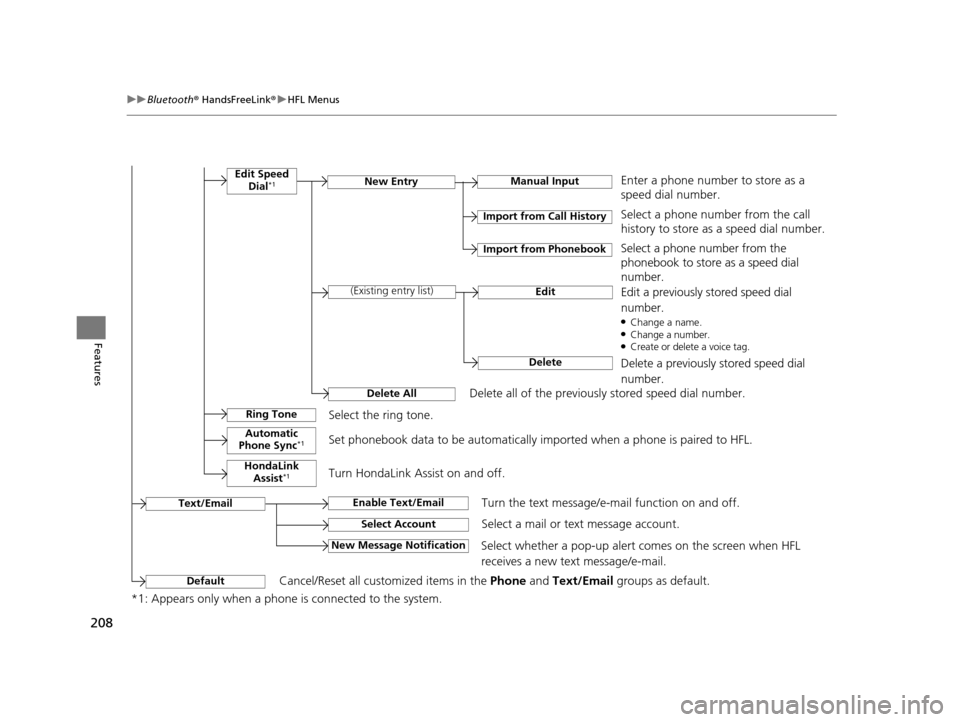

208
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
*1: Appears only when a phone is connected to the system.
Manual InputNew Entry
Import from Call History
Import from Phonebook
Edit
Delete
(Existing entry list)
Edit Speed
Dial*1
Delete All
Enter a phone number to store as a
speed dial number.
Select a phone number from the call
history to store as a speed dial number.
Delete all of the previously stored speed dial number.Select a phone number from the
phonebook to store as a speed dial
number.
Edit a previously stored speed dial
number.
●Change a name.●Change a number.●Create or delete a voice tag.
Delete a previously stored speed dial
number.
Ring ToneSelect the ring tone.
Automatic
Phone Sync*1Set phonebook data to be automatically imported when a phone is paired to HFL.
HondaLink Assist*1Turn HondaLink Assist on and off.
Text/EmailEnable Text/EmailTurn the text message/e-mail function on and off.
Select AccountSelect a mail or text message account.
New Message NotificationSelect whether a pop-up alert co mes on the screen when HFL
receives a new text message/e-mail.
DefaultCancel/Reset all customized items in the Phone and Text/Email groups as default.
14 CIVIC IMA-31TR26200.book 208 ページ ２０１３年１２月２３日　月曜日　午後４時９分

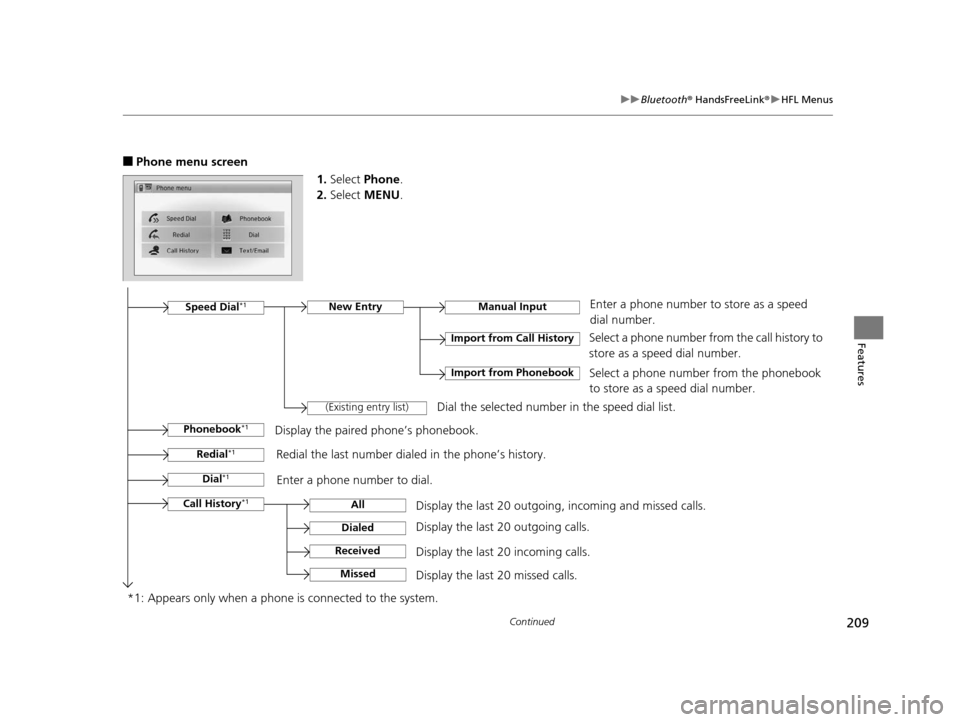

209
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■Phone menu screen
1.Select Phone .
2. Select MENU .
Display the last 20 outgoing, incoming and missed calls. Select a phone number from
the call history to
store as a speed dial number.Call History*1
Speed Dial*1
All
Manual Input
Dialed
Received
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
New Entry
Import from Call History
Import from PhonebookSelect a phone number from the phonebook
to store as a speed dial number. Enter a phone number to store as a speed
dial number.
*1: Appears only when a phone is connected to the system.
MissedDisplay the last 20 missed calls.
Dial*1
Redial*1
Enter a phone number to dial.
Redial the last number dialed in the phone’s history.
(Existing entry list)Dial the selected number in the speed dial list.
Phonebook*1Display the paired phone’s phonebook.
