uuAudio System Basic Operation*uPlaying the AM/FM Radio
150
Features

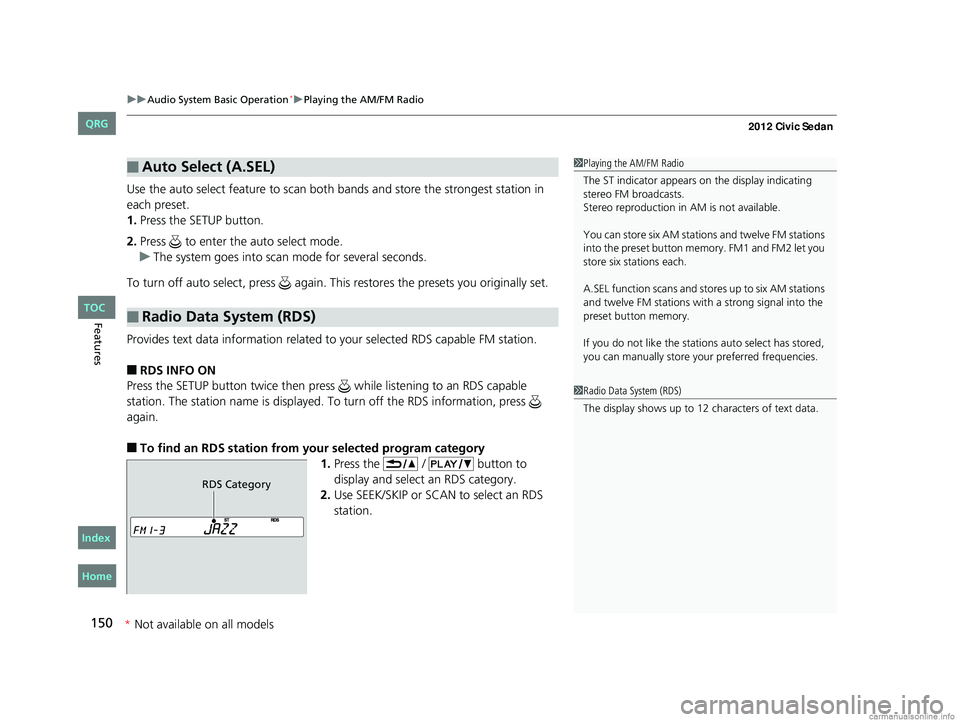

Use the auto select feature to scan both bands and store the strongest station in
each preset.
1. Press the SETUP button.
2. Press to enter the auto select mode.
u The system goes into scan mode for several seconds.
To turn off auto select, press again. Th is restores the presets you originally set.
Provides text data information related to your selected RDS capable FM station.
■RDS INFO ON
Press the SETUP button twice then pres s while listening to an RDS capable
station. The station name is displayed. To turn off the RDS information, press
again.
■To find an RDS station from your selected program category 1.Press the / button to
display and select an RDS category.
2. Use SEEK/SKIP or SCAN to select an RDS
station.
■Auto Select (A.SEL)
■Radio Data System (RDS)
1Playing the AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
You can store six AM stations and twelve FM stations
into the preset button me mory. FM1 and FM2 let you
store six stations each.
A.SEL function scans and stor es up to six AM stations
and twelve FM stations wi th a strong signal into the
preset button memory.
If you do not like the stati ons auto select has stored,
you can manually store your preferred frequencies.
1Radio Data System (RDS)
The display shows up to 12 ch aracters of text data.
RDS Category
CIVIC 4D-31TR3600.book 150 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
*
Not
available
on
all
models
Home
QRG
Index

151
uuAudio System Basic Operation*uPlaying a CD
Continued
Features

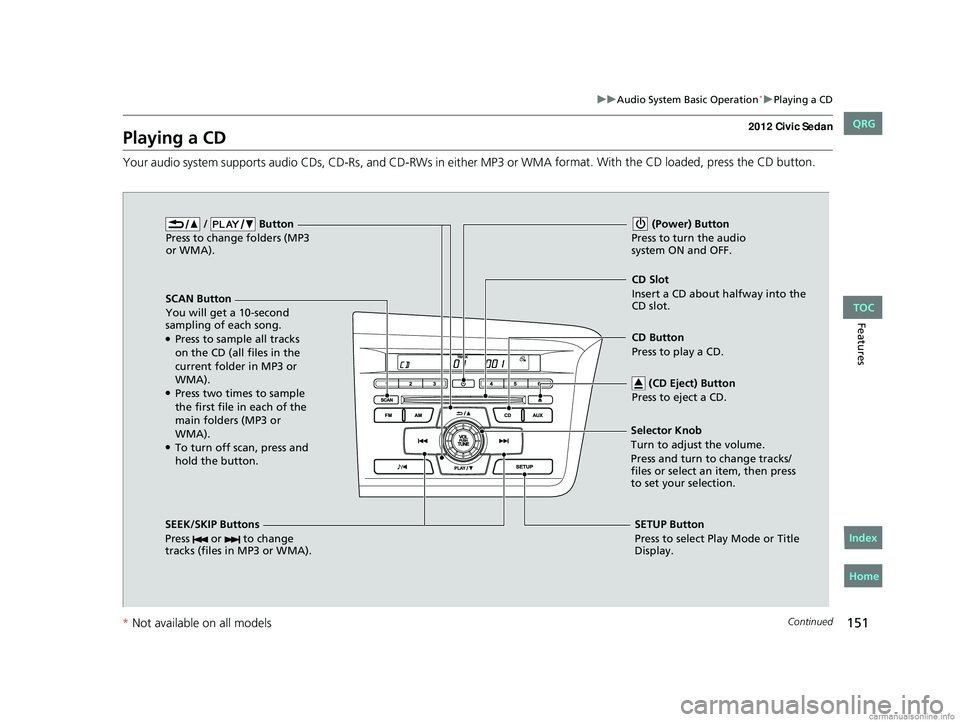

Playing a CD
Your audio system supports audio CDs, CD -Rs, and CD-RWs in either MP3 or WMA format. With the CD loaded, press the CD button.
/ Button
Press to change folders (MP3
or WMA).
SCAN Button
You will get a 10-second
sampling of each song.
●Press to sample all tracks
on the CD (all files in the
current folder in MP3 or
WMA).
●Press two times to sample
the first file in each of the
main folders (MP3 or
WMA).
●To turn off scan, press and
hold the button. (Power) Button
Press to turn the audio
system ON and OFF.
CD Slot
Insert a CD about halfway into the
CD slot.
SEEK/SKIP Buttons
Press or to change
tracks (files in MP3 or WMA).
SETUP Button
Press to select Play Mode or Title
Display.
Selector Knob
Turn to adjust the volume.
Press and turn to change tracks/
files or select an item, then press
to set your selection.
CD Button
Press to play a CD.
(CD Eject) Button
Press to eject a CD.
CIVIC 4D-31TR3600.book 151 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
* Not availabl eon allmo dels

uuAudio System Basic Operation*uPlaying a CD
152
Features

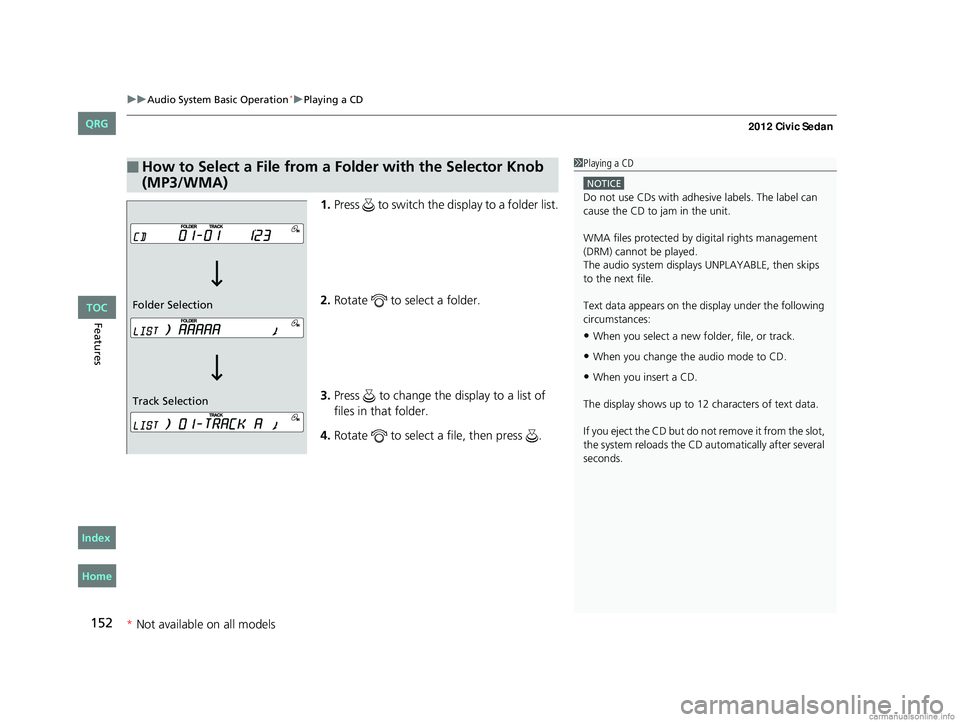

1. Press to switch the display to a folder list.
2. Rotate to select a folder.
3. Press to change the display to a list of
files in that folder.
4. Rotate to select a file, then press .
■How to Select a File from a Fo lder with the Selector Knob
(MP3/WMA)1 Playing a CD
NOTICE
Do not use CDs with adhesive labels. The label can
cause the CD to jam in the unit.
WMA files protected by di gital rights management
(DRM) cannot be played.
The audio system displays UNPLAYABLE, then skips
to the next file.
Text data appears on the di splay under the following
circumstances:
•When you select a new folder, file, or track.
•When you change the audio mode to CD.
•When you insert a CD.
The display shows up to 12 ch aracters of text data.
If you eject the CD but do not remove it from the slot,
the system reloads the CD automatically after several
seconds.
Track Selection Folder Selection
CIVIC 4D-31TR3600.book 152 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
* Not availabl eon allmo dels
Home
QRG
Index

Continued153
uuAudio System Basic Operation*uPlaying a CD
Features

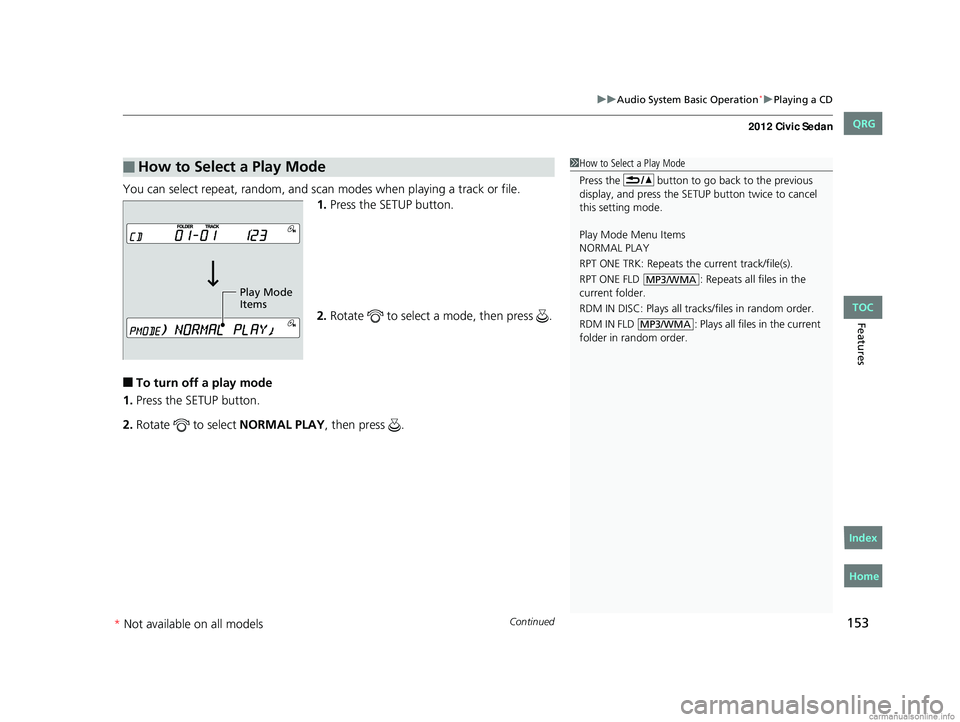

You can select repeat, random, and scan modes when playing a track or file.
1. Press the SETUP button.
2. Rotate to select a mode, then press .
■To turn off a play mode
1. Press the SETUP button.
2. Rotate to select NORMAL PLAY, then press .
■How to Select a Play Mode1How to Select a Play Mode
Press the button to go back to the previous
display, and press the SETU P button twice to cancel
this setting mode.
Play Mode Menu Items
NORMAL PLAY
RPT ONE TRK: Repeats the current track/file(s).
RPT ONE FLD : Repeats all files in the
current folder.
RDM IN DISC: Plays all tracks/files in random order.
RDM IN FLD : Plays all files in the current
folder in random order.
MP3/WMA
MP3/WMA
Play Mode
Items
CIVIC 4D-31TR3600.book 153 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
* Not available on all models
Home
QRG
Index

uuAudio System Basic Operation*uPlaying a CD
154
Features

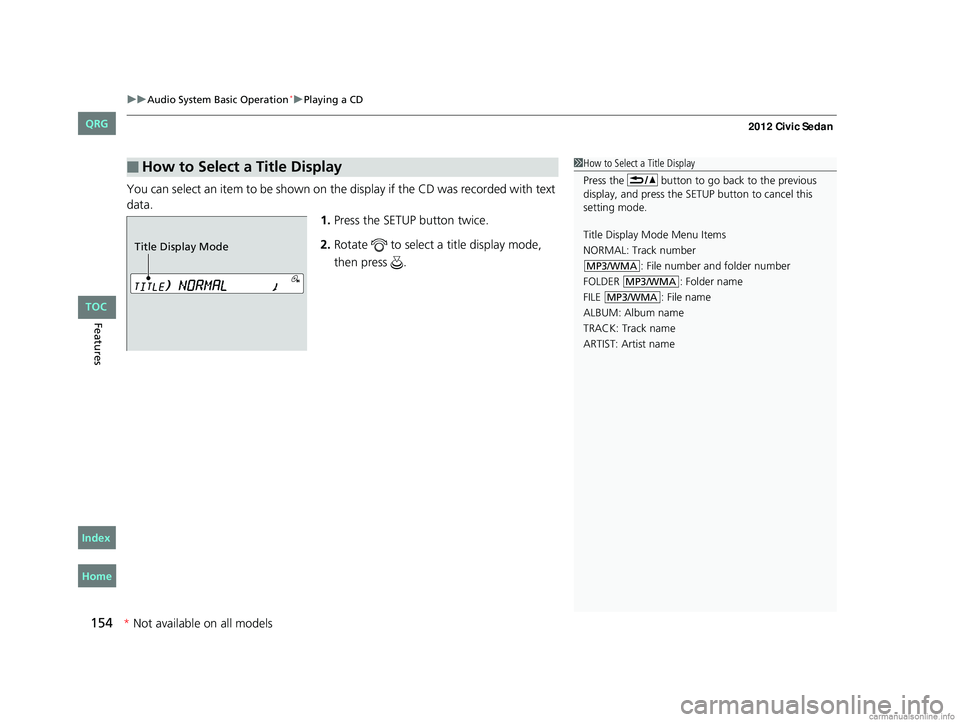

You can select an item to be shown on th e display if the CD was recorded with text
data. 1.Press the SETUP button twice.
2. Rotate to select a title display mode,
then press .
■How to Select a Title Display1How to Select a Title Display
Press the button to go back to the previous
display, and press the SETU P button to cancel this
setting mode.
Title Display Mode Menu Items
NORMAL: Track number
: File number and folder number
FOLDER : Folder name
FILE : File name
ALBUM: Album name
TRACK: Track name
ARTIST: Artist name
MP3/WMA
MP3/WMA
MP3/WMA
Title Display Mode
CIVIC 4D-31TR3600.book 154 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
* Not availabl eon allmo dels
Home
QRG
Index

155
Features

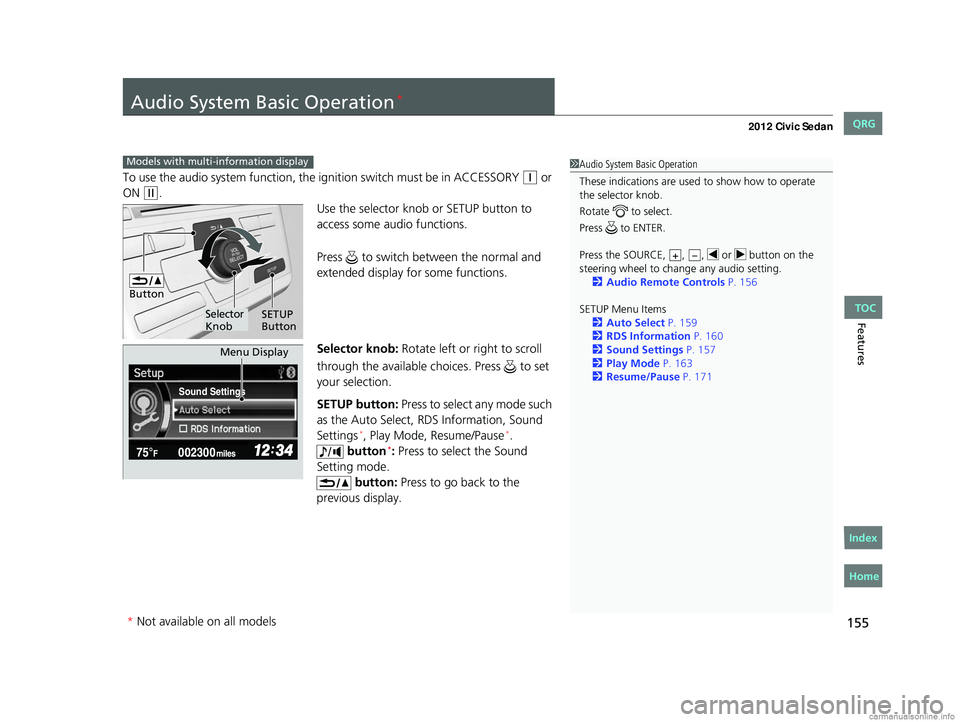

Audio System Basic Operation*
To use the audio system function, the ignition swit ch must be in ACCESSORY (q or
ON
(w.
Use the selector knob or SETUP button to
access some audio functions.
Press to switch between the normal and
extended display fo r some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
SETUP button: Press to select any mode such
as the Auto Select, RDS Information, Sound
Settings
*, Play Mode, Resume/Pause*.
button*: Press to select the Sound
Setting mode. button: Press to go back to the
previous display.
Models with multi- information display1Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to ENTER.
Press the SOURCE, , , or button on the
steering wheel to cha nge any audio setting.
2 Audio Remote Controls P. 156
SETUP Menu Items 2 Auto Select P. 159
2 RDS Information P. 160
2 Sound Settings P. 157
2 Play Mode P. 163
2 Resume/Pause P. 171
+–

Button
Selector
Knob SETUP
Button
Sound Settings
Menu Display
* Not available on all models
CIVIC 4D-31TR3600.book 155 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

156
uuAudio System Basic Operation*uAudio Remote Controls*
Features

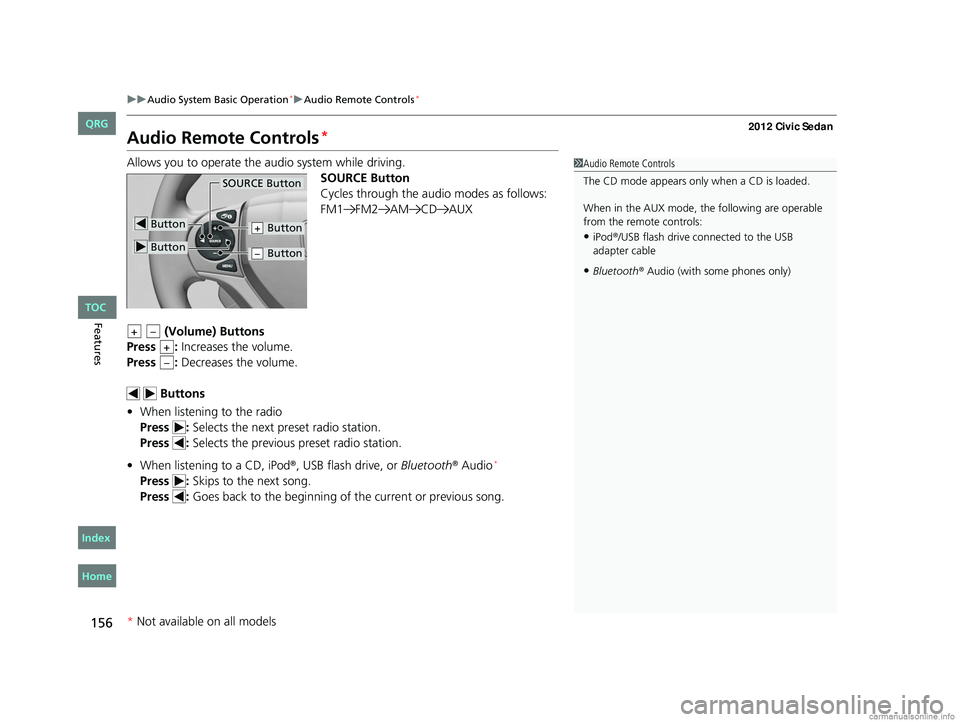

Audio Remote Controls*
Allows you to operate the audio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM1 FM2 AM CD AUX
(Volume) Buttons
Press : Increases the volume.
Press : Decreases the volume.
Buttons
• When listening to the radio
Press : Selects the next preset radio station.
Press : Selects the previous preset radio station.
• When listening to a CD, iPod
®, USB flash drive, or Bluetooth® Audio*
Press : Skips to the next song.
Press : Goes back to the beginning of the current or previous song.
1Audio Remote Controls
The CD mode appears only when a CD is loaded.
When in the AUX mode, the following are operable
from the remote controls:
•iPod®/USB flash drive connected to the USB
adapter cable
•Bluetooth® Audio (with some phones only)
Button
SOURCE Button
Button
Button+
Button–
+–
+
–
* Not available on all models
CIVIC 4D-31TR3600.book 156 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

157
uuAudio System Basic Operation*uAdjusting the Sound
Features

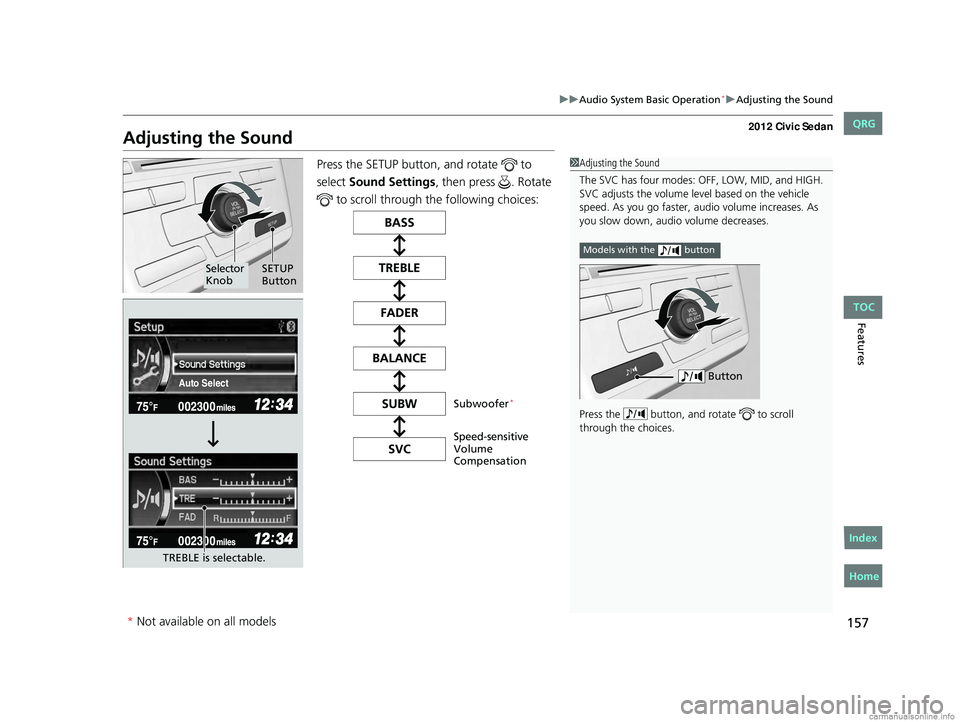

Adjusting the Sound
Press the SETUP button, and rotate to
select Sound Settings , then press . Rotate
to scroll through the following choices:1 Adjusting the Sound
The SVC has four modes: OFF, LOW, MID, and HIGH.
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audi o volume decreases.
Press the button, and rotate to scroll
through the choices.
Models with the button
ButtonAuto Select
TREBLE is selectable.
Selector
Knob SETUP
Button
Speed-sensitive
Volume
CompensationSubwoofer
*
* Not available on all models
CIVIC 4D-31TR3600.book 157 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

158
uuAudio System Basic Operation*uPlaying the AM/FM Radio
Features

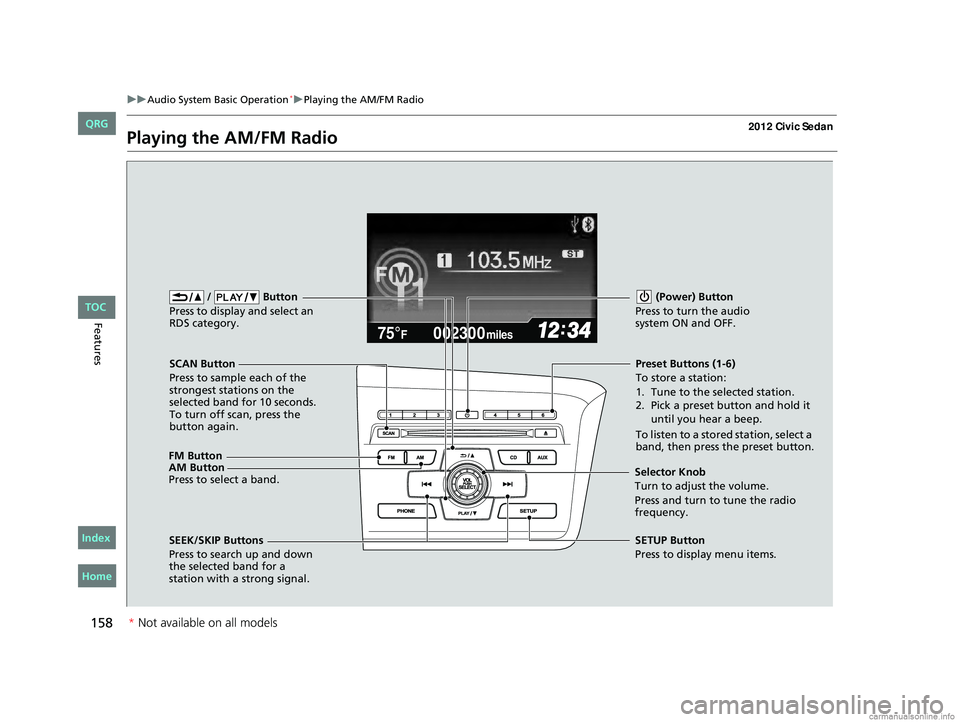

Playing the AM/FM Radio
002300
75°F miles
FM Button / Button
Press to display and select an
RDS category.
SCAN Button
Press to sample each of the
strongest stations on the
selected band for 10 seconds.
To turn off scan, press the
button again. (Power) Button
Press to turn the audio
system ON and OFF.Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it until you hear a beep.
To listen to a stored station, select a
band, then press the preset button.
SEEK/SKIP Buttons
Press to search up and down
the selected band for a
station with a strong signal. SETUP Button
Press to display menu items.
Selector Knob
Turn to adjust the volume.
Press and turn to tune the radio
frequency.
AM Button
Press to select a band.
CIVIC 4D-31TR3600.book 158 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
*
Not av ailable on all mo dels

Continued159
uuAudio System Basic Operation*uPlaying the AM/FM Radio
Features

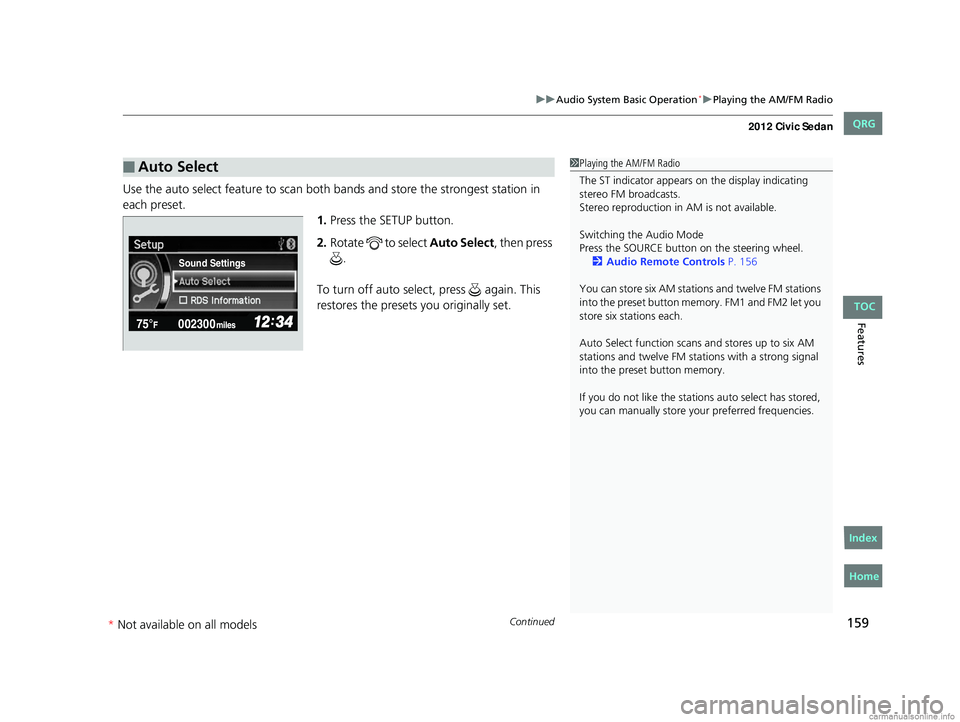

Use the auto select feature to scan both bands and store the strongest station in
each preset. 1.Press the SETUP button.
2. Rotate to select Auto Select, then press
.
To turn off auto select , press again. This
restores the presets you originally set.
■Auto Select1 Playing the AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE butt on on the steering wheel.
2 Audio Remote Controls P. 156
You can store six AM stations and twelve FM stations
into the preset button me mory. FM1 and FM2 let you
store six stations each.
Auto Select function scans and stores up to six AM
stations and twelve FM stat ions with a strong signal
into the preset button memory.
If you do not like the stati ons auto select has stored,
you can manually store your preferred frequencies.
Sound Settings
