HONDA CIVIC SEDAN 2014 (in English) Owners Manual

uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
90
Instrument Panel
Use the i-MID to customize certain features.
■How to customize
Select the Vehicle Menu screen by pressing the MENU button while the ignition
switch is in ON
(w*1, and the vehicle is at a complete stop. Select Customize
Settings , then press the SOURCE button.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Customized Features1 Customized Features
To customize other features, press the
(+ / (-
button.
2 List of customizable options P. 94
2 P. 98
MENU
SOURCE Button
Press to go to the next
display.
SOURCE Button
Press to set your selection.
MENU Button
Press to go to Vehicle Menu.(+ Button
Press to scroll upwards.
Button
Press to go back to the
previous display.
( - Button
Press to scroll downwards.
14 CIVIC 4D_SI-31TR36210.book 90 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

91
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument Panel

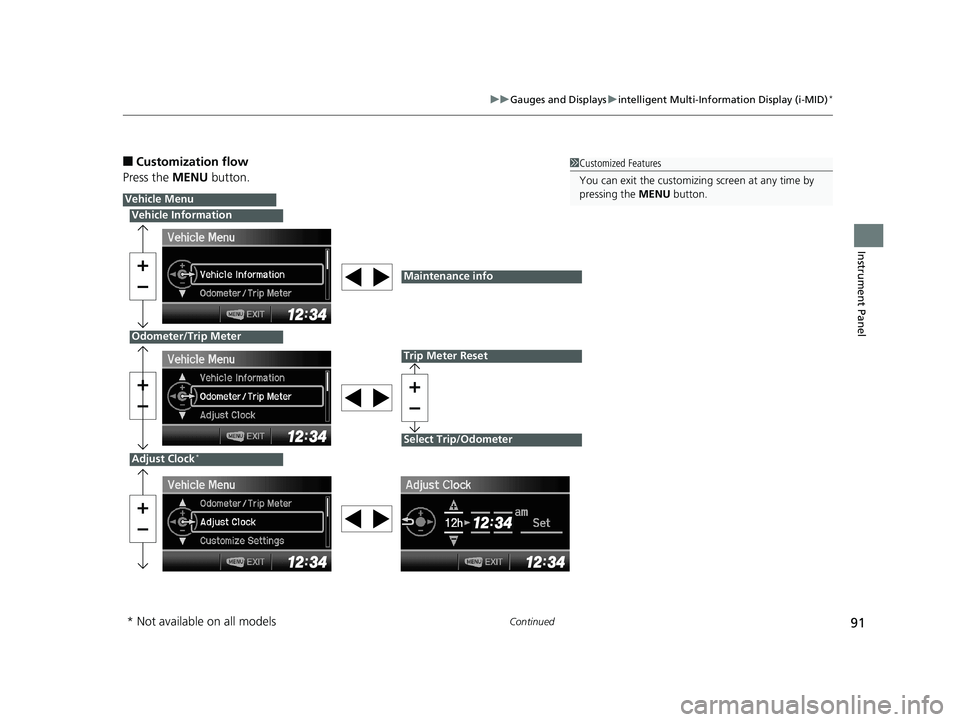

■Customization flow
Press the MENU button.1Customized Features
You can exit the customizing screen at any time by
pressing the MENU button.
Vehicle Menu
Vehicle Information
Odometer/Trip Meter
Adjust Clock*
Maintenance info
Trip Meter Reset
Select Trip/Odometer
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 91 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

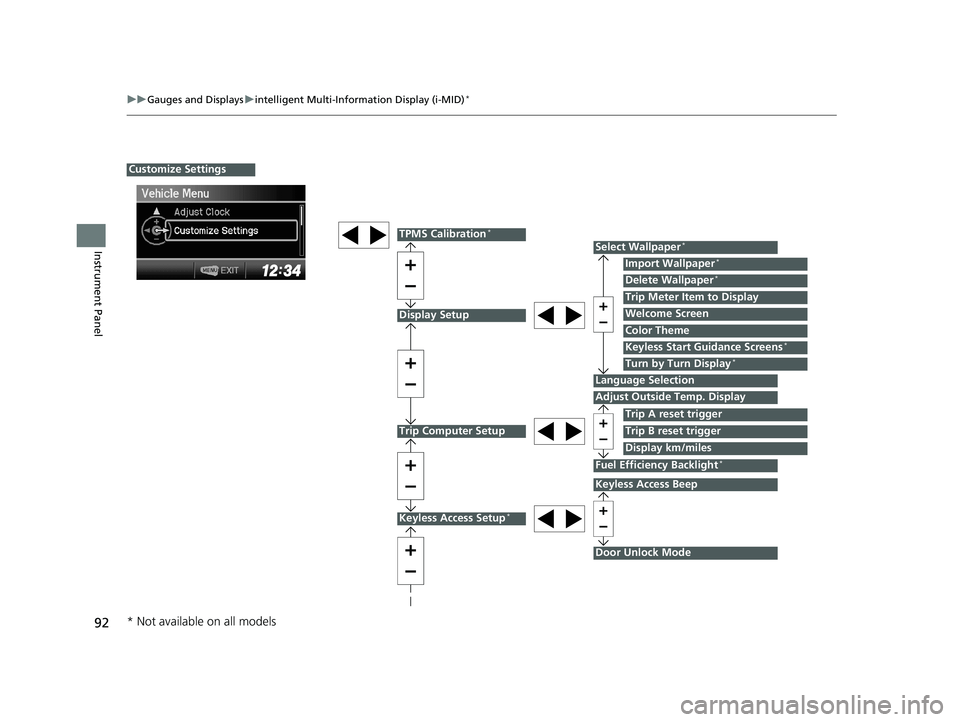

92
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel
Display Setup
Trip Computer Setup
Select Wallpaper*
Import Wallpaper*
Delete Wallpaper*
Language Selection
Adjust Outside Temp. Display
Trip A reset trigger
Display km/miles
Trip Meter Item to Display
Welcome Screen
Color Theme
Fuel Efficiency Backlight*
Customize Settings
Turn by Turn Display*
Trip B reset trigger
TPMS Calibration*
Keyless Start Guidance Screens*
Keyless Access Setup*
Door Unlock Mode
Keyless Access Beep
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 92 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

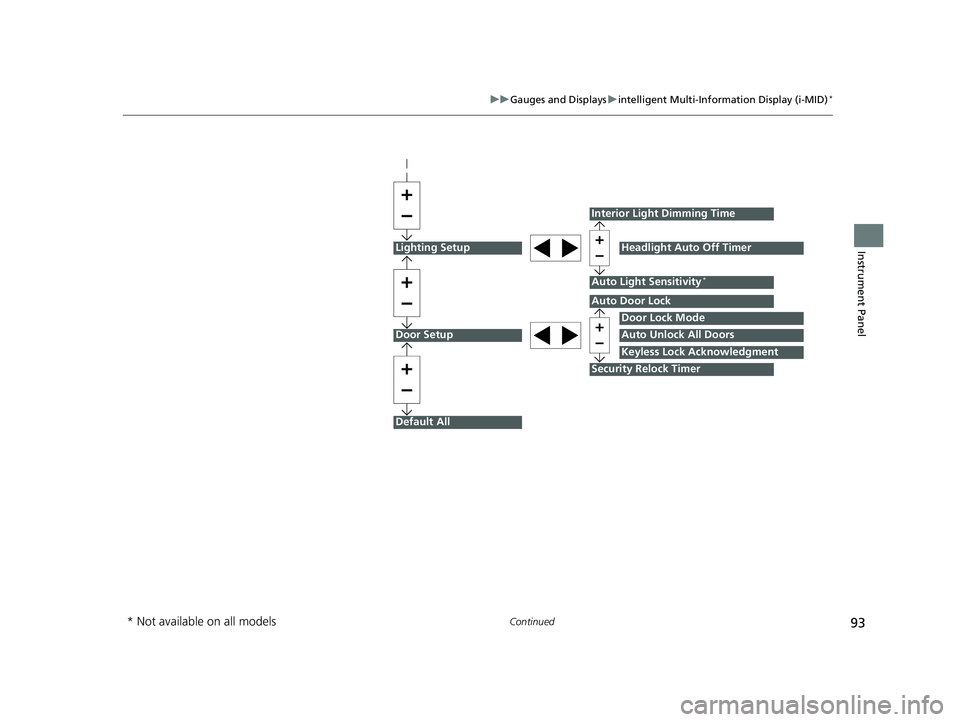

93
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument PanelLighting Setup
Door Setup
Default All
Auto Light Sensitivity*
Door Lock Mode
Auto Unlock All Doors
Keyless Lock Acknowledgment
Auto Door Lock
Security Relock Timer
Interior Light Dimming Time
Headlight Auto Off Timer
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 93 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

94
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel

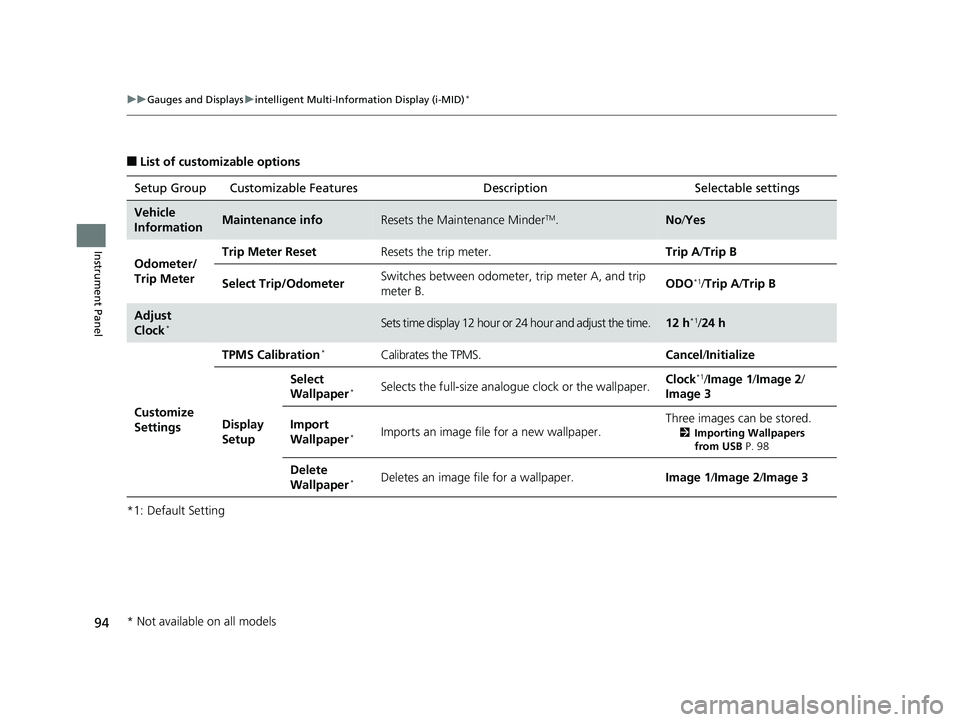

■List of customizable options
*1: Default Setting Setup Group Customizable Features
Description Selectable settings
Vehicle
InformationMaintenance infoResets the Maintenance MinderTM.No/Yes
Odometer/
Trip Meter Trip Meter Reset
Resets the trip meter. Trip A/Trip B
Select Trip/Odometer Switches between odometer, trip meter A, and trip
meter B. ODO
*1/
Trip A /Trip B
Adjust
Clock*Sets time display 12 hour or 24 hour and adjust the time.12 h*1/24 h
Customize
Settings TPMS Calibration
*Calibrates the TPMS.
Cancel/Initialize
Display
Setup Select
Wallpaper
*Selects the full-size analogue clock or the wallpaper.
Clock*1/
Image 1 /Image 2 /
Image 3
Import
Wallpaper
*Imports an image file for a new wallpaper. Three images can be stored.2
Importing Wallpapers
from USB P. 98
Delete
Wallpaper*Deletes an image file for a wallpaper. Image 1/Image 2/ Image 3
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 94 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

95
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument Panel
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Default Setting
*3: Default Setting for 1.8 ℓ engine models
*4: Default Setting for 2.4 ℓ engine models
*5: Refer to the Navigation System Manual for complete details.
Setup Group Customizable Features
Description Selectable settings
Customize
SettingsDisplay
SetupTrip Meter
Item to
Display
Selects an item to be di
splayed along with average
fuel economy. Range
*2/
Elapsed time /
Average speed
Selects an item to be displayed along with the
instant fuel economy. Average Fuel
*2/
Range /
Elapsed time /Average speed
Welcome
Screen Selects whether the welcome screen comes on
when you turn the igni
tion switch to ON
(w*1.On*2/
Off
Color Theme Changes the color of the screen. Blue
*3/Red*4/Amber /Gray
Keyless Start
Guidance
Screens
*
Displays the push button start guidance when
conditions are met to change power mode. On*2/
Off
Turn by Turn
Display
*, *5Selects whether the turn-b y-turn display comes on
during the route guidance. On*2/
Off
Language
Selection Changes the displayed language.
English
*2/French /Spanish
1.8 ℓ engine models
2.4 ℓ engine models
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 95 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

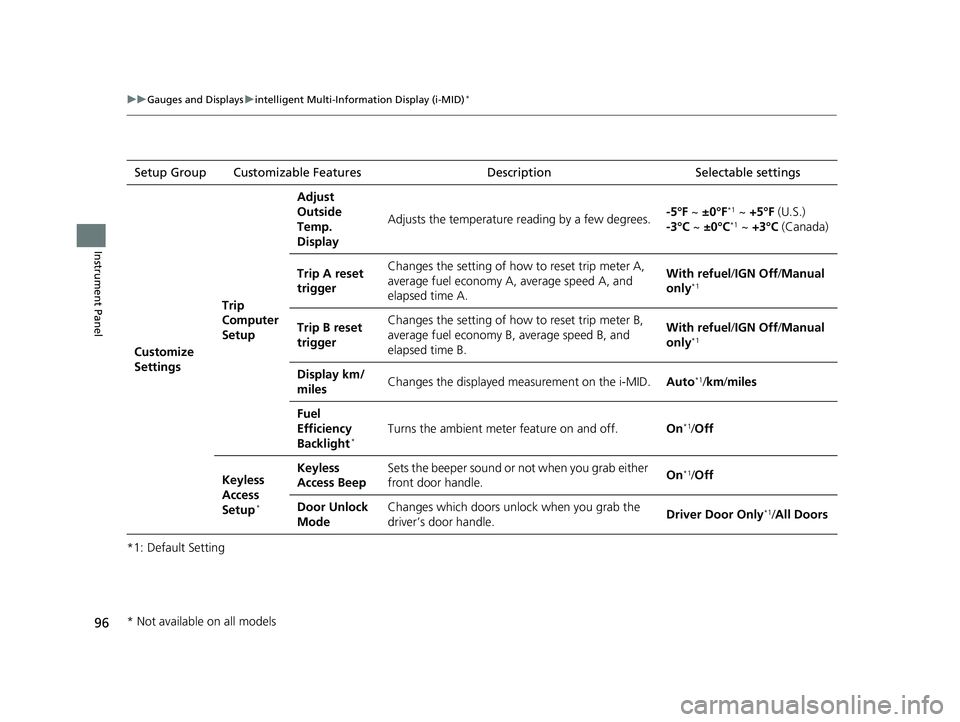

96
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable settings
Customize
Settings Trip
Computer
SetupAdjust
Outside
Temp.
Display
Adjusts the temperature reading by a few degrees.
-5°F ~
±0°F
*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
Trip A reset
trigger Changes the setting of how to reset trip meter A,
average fuel economy A,
average speed A, and
elapsed time A. With refuel/
IGN Off/Manual
only
*1
Trip B reset
trigger Changes the setting of how to reset trip meter B,
average fuel economy B,
average speed B, and
elapsed time B. With refuel/
IGN Off/Manual
only*1
Display km/
miles Changes the displayed measurement on the i-MID.
Auto*1/km/ miles
Fuel
Efficiency
Backlight
*Turns the ambient meter feature on and off. On*1/Off
Keyless
Access
Setup
*
Keyless
Access Beep Sets the beeper sound or
not when you grab either
front door handle. On*1/
Off
Door Unlock
Mode Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/
All Doors
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 96 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

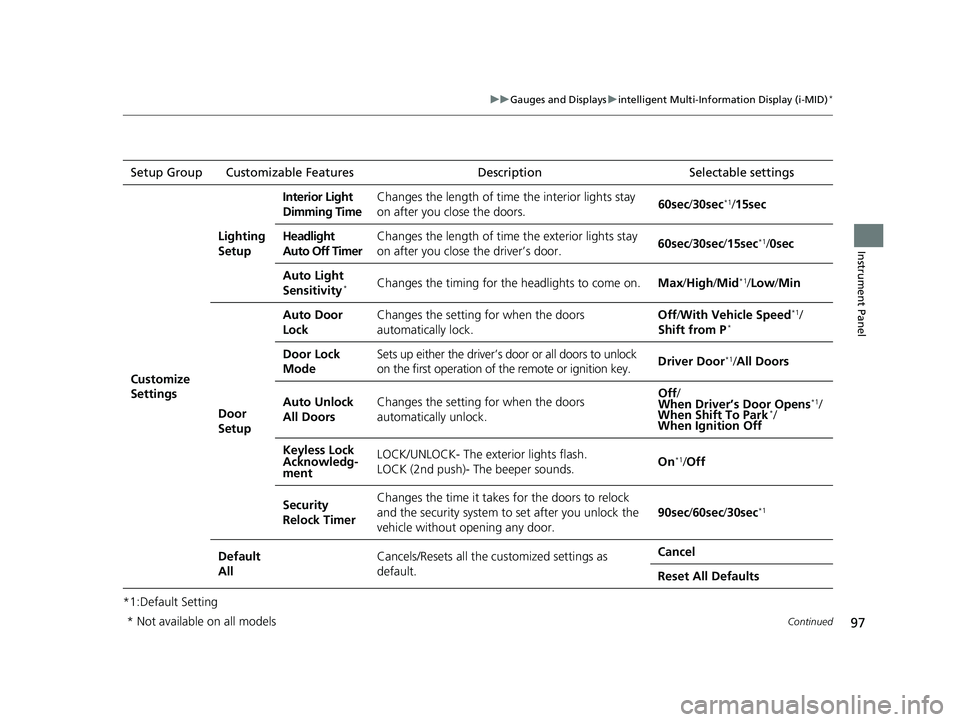

97
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable settings
Customize
SettingsLighting
Setup
Interior Light
Dimming Time
Changes the length of time
the interior lights stay
on after you close the doors. 60sec
/30sec
*1/15sec
Headlight
Auto Off Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/ 0sec
Auto Light
Sensitivity
*Changes the timing for th e headlights to come on. Max/High /Mid*1/ Low /Min
Door
Setup Auto Door
Lock
Changes the setting for when the doors
automatically lock. Off
/With Vehicle Speed
*1/
Shift from P*
Door Lock
Mode Sets up either the driver’s d
oor or all doors to unlock
on the first operation of the remote or ignition key. Driver Door*1/
All Doors
Auto Unlock
All Doors Changes the setting for when the doors
automatically unlock. Off
/
When Driver’s Door Opens
*1/
When Shift To Park*/
When Ignition Off
Keyless Lock
Acknowledg-
ment LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security
Relock Timer Changes the time it takes for the doors to relock
and the security system to set after you unlock the
vehicle without opening any door.
90sec
/60sec /30sec
*1
Default
All Cancels/Resets all the customized settings as
default. Cancel
Reset All Defaults
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 97 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
98
Instrument Panel

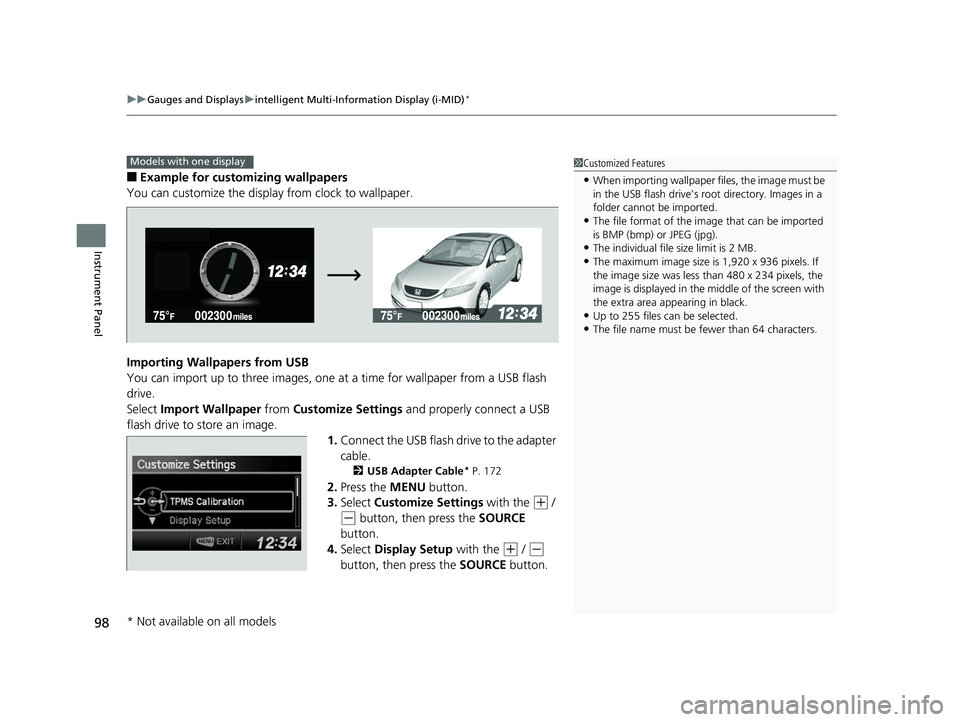

■Example for customizing wallpapers
You can customize the display from clock to wallpaper.
Importing Wallpapers from USB
You can import up to three images, one at a time for wallpaper from a USB flash
drive.
Select Import Wallpaper from Customize Settings and properly connect a USB
flash drive to store an image. 1.Connect the USB flash drive to the adapter
cable.
2 USB Adapter Cable* P. 172
2.Press the MENU button.
3. Select Customize Settings with the
(+ /
(- button, then press the SOURCE
button.
4. Select Display Setup with the
(+ / (-
button, then press the SOURCE button.
1Customized Features
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 2 MB.
•The maximum image size is 1,920 x 936 pixels. If
the image size was less than 480 x 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•Up to 255 files can be selected.
•The file name must be fewer than 64 characters.
Models with one display
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 98 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

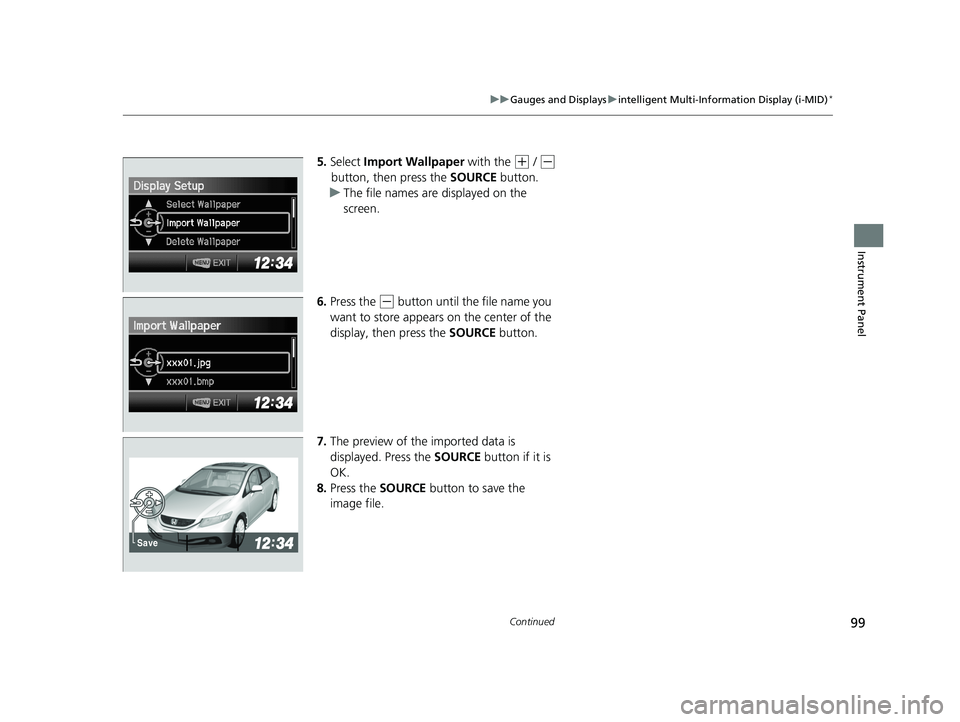

99
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument Panel
5.Select Import Wallpaper with the (+ / (-
button, then press the SOURCE button.
u The file names are displayed on the
screen.
6. Press the
(- button until the file name you
want to store appears on the center of the
display, then press the SOURCE button.
7. The preview of the imported data is
displayed. Press the SOURCE button if it is
OK.
8. Press the SOURCE button to save the
image file.
Save
