HONDA CIVIC SEDAN 2014 Owner's Manual (in English)

100
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel

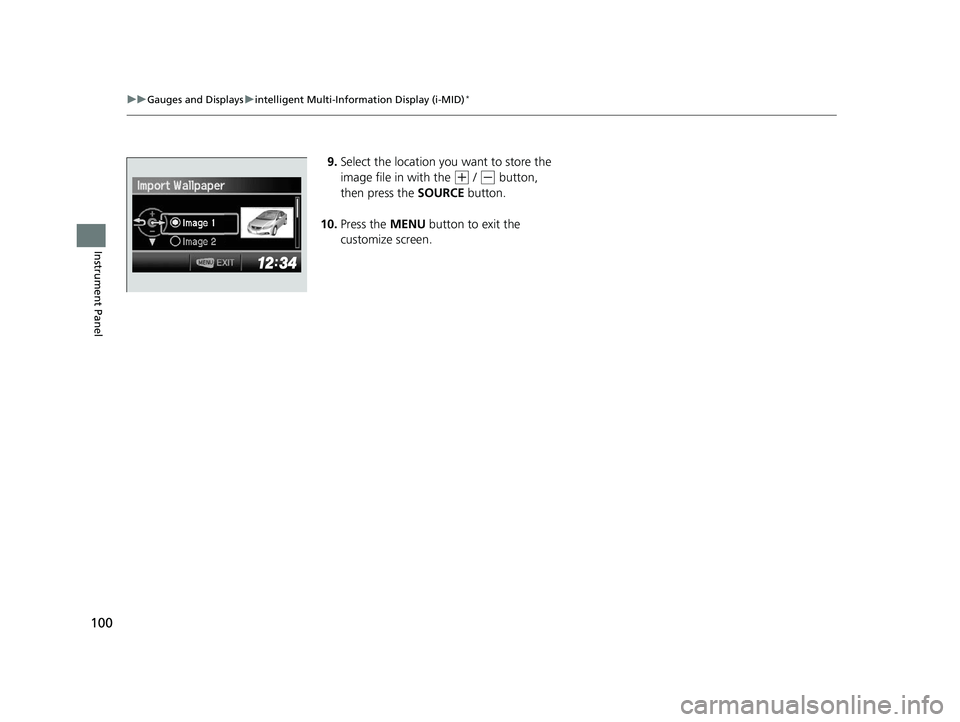

9. Select the location you want to store the
image file in with the
(+ / (- button,
then press the SOURCE button.
10. Press the MENU button to exit the
customize screen.
14 CIVIC 4D_SI-31TR36210.book 100 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

101
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Instrument Panel

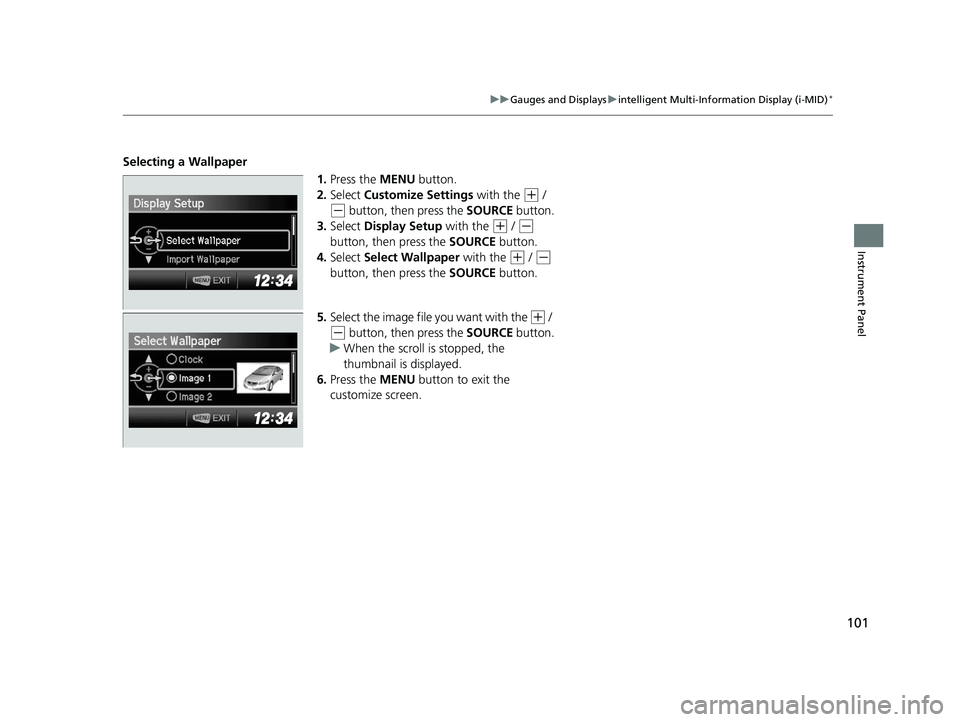

Selecting a Wallpaper
1.Press the MENU button.
2. Select Customize Settings with the
(+ /
(- button, then press the SOURCE button.
3. Select Display Setup with the
(+ / (-
button, then press the SOURCE button.
4. Select Select Wallpaper with the
(+ / (-
button, then press the SOURCE button.
5. Select the image file you want with the
(+ /
(- button, then press the SOURCE button.
u When the scroll is stopped, the
thumbnail is displayed.
6. Press the MENU button to exit the
customize screen.
14 CIVIC 4D_SI-31TR36210.book 101 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

102
14 CIVIC 4D_SI-31TR36210.book 102 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 104
Locking and Unlocking the Doors Key Types and Functions .................. 106
Low Smart Entry Remote Signal Strength*....... 108Locking/Unlocking the Doors from the Outside .......................................... 109
Locking/Unlocking the Doors from the Inside ............................................. 114
Childproof Door Locks ..................... 116
Auto Door Locking/Unlocking
*........ 117
Opening and Closing the Trunk ....... 121
Security System Immobilizer System .......................... 125
Security System Alarm
*.................... 125Opening and Closing the Windows ..... 128Opening and Closing the Moonroof*..... 130
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 131
ENGINE START/STOP Button*........... 132
Ignition Switch and Power Mode Comparison ................................... 135
Turn Signals ..................................... 136
Light Switches.................................. 136
Fog Lights
*...................................... 139
Daytime Running Lights ................... 139
Wipers and Washers ........................ 140
Brightness Control ........................... 141
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 142
Adjusting the Steering Wheel........... 143 Adjusting the Mirrors
Interior Rearview Mirror ................... 144
Power Door Mirrors ......................... 144
Adjusting the Seats .......................... 146
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 154
Interior Convenience Items .............. 156
Heating and Cooling
*
Using Vents, Heating and A/C*........ 161
Climate Control System*
Using Automatic Climate Control .... 165Automatic Climate Control Sensors ...... 167
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 103 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

104
Controls

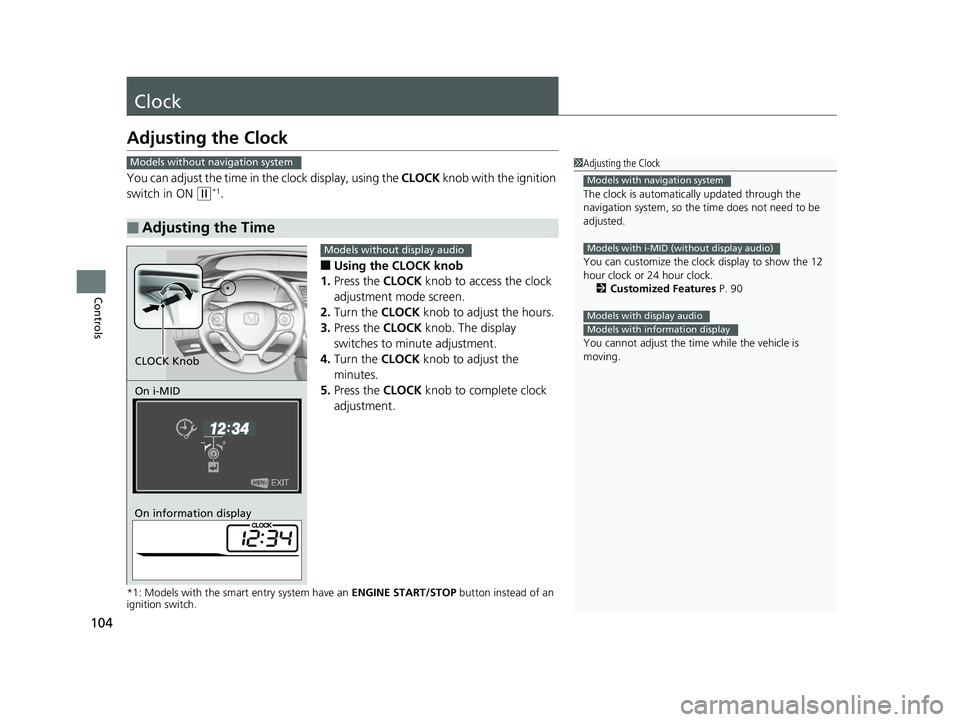

Clock
Adjusting the Clock
You can adjust the time in the clock display, using the CLOCK knob with the ignition
switch in ON
(w*1.
■Using the CLOCK knob
1. Press the CLOCK knob to access the clock
adjustment mode screen.
2. Turn the CLOCK knob to adjust the hours.
3. Press the CLOCK knob. The display
switches to minute adjustment.
4. Turn the CLOCK knob to adjust the
minutes.
5. Press the CLOCK knob to complete clock
adjustment.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 90
You cannot adjust the time while the vehicle is
moving.
Models with navigation system
Models with i-MID (without display audio)
Models with display audio
Models with information display
Models without navigation system
On i-MID
On information display
CLOCK Knob
Models without display audio
14 CIVIC 4D_SI-31TR36210.book 104 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

105
uuClock uAdjusting the Clock
Controls

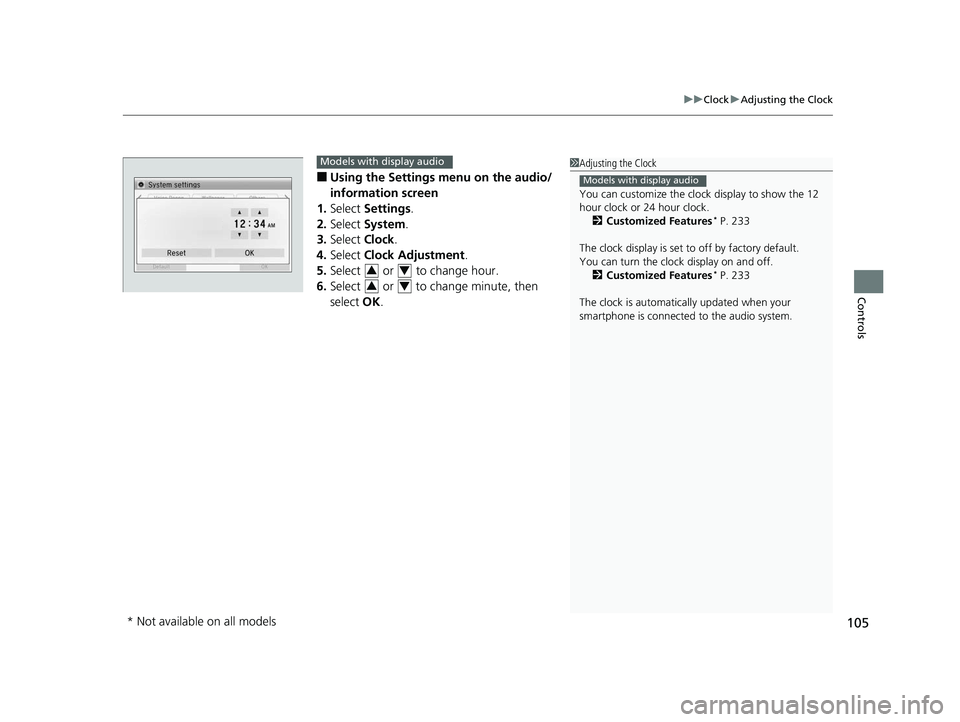

■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select System.
3. Select Clock.
4. Select Clock Adjustment .
5. Select or to change hour.
6. Select or to change minute, then
select OK.
1Adjusting the Clock
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features
* P. 233
The clock display is set to off by factory default.
You can turn the clock display on and off. 2 Customized Features
* P. 233
The clock is automatica lly updated when your
smartphone is connected to the audio system.
Models with display audio
Models with display audio
34
34
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 105 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

106
Controls

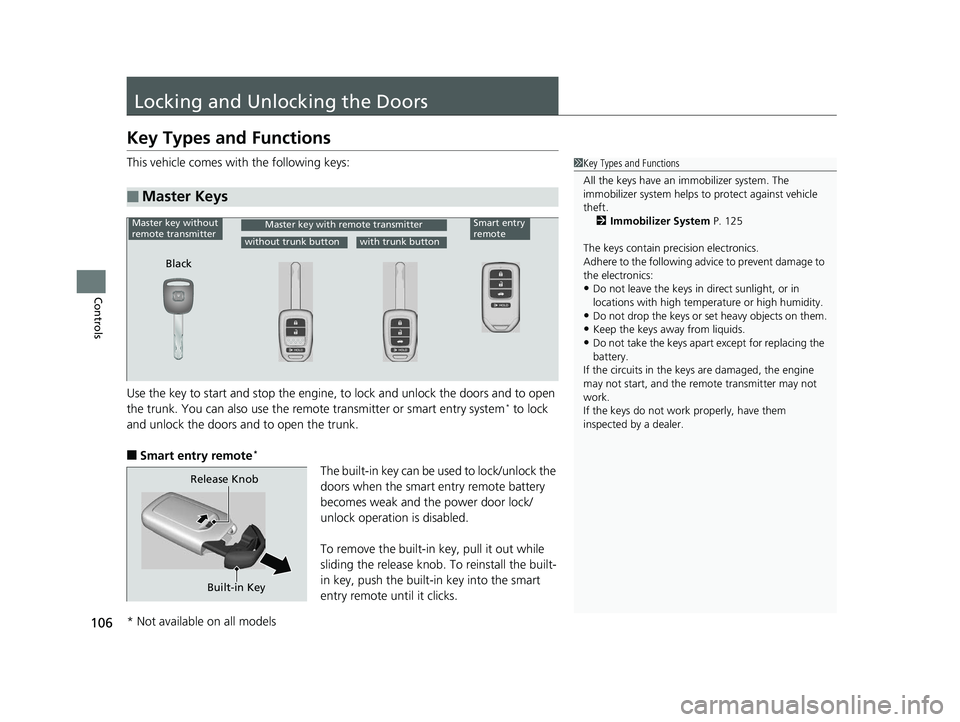

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, to lock and unlock the doors and to open
the trunk. You can also use the remote transmitter or smart entry system
* to lock
and unlock the doors and to open the trunk.
■Smart entry remote*
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Master Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 125
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Black
Master key without
remote transmitterMaster key with remote transmitter
without trunk buttonwith trunk button
Smart entry
remote
Built-in Key
Release Knob
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 106 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

107
uuLocking and Unlocking the Doors uKey Types and Functions
Controls
Can be used to start an d stop the engine, and
lock and unlock driver's door.
Contains a number that you will need if you
purchase a replacement key.

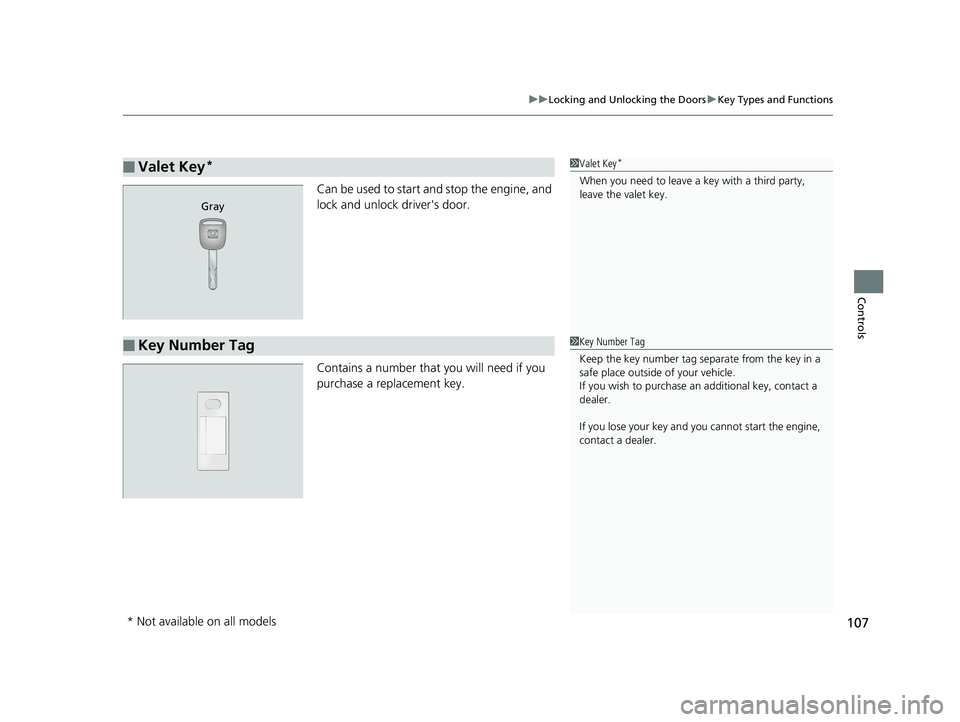

■Valet Key*1 Valet Key*
When you need to leave a key with a third party,
leave the valet key.
Gray
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 107 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

108
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls

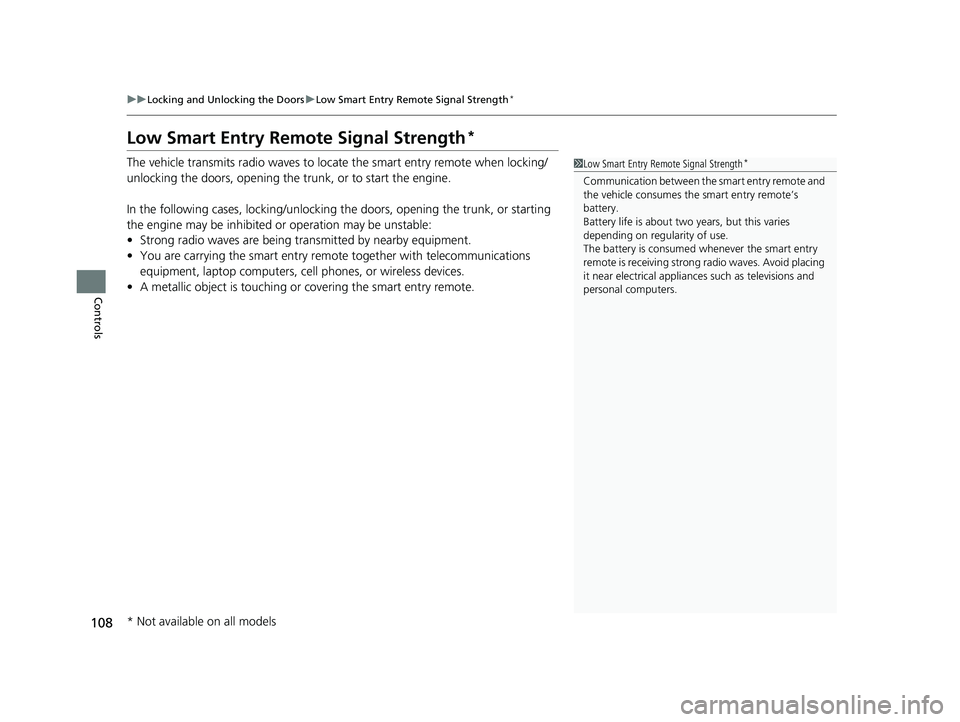

Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the trunk, or to start the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 108 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

109
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

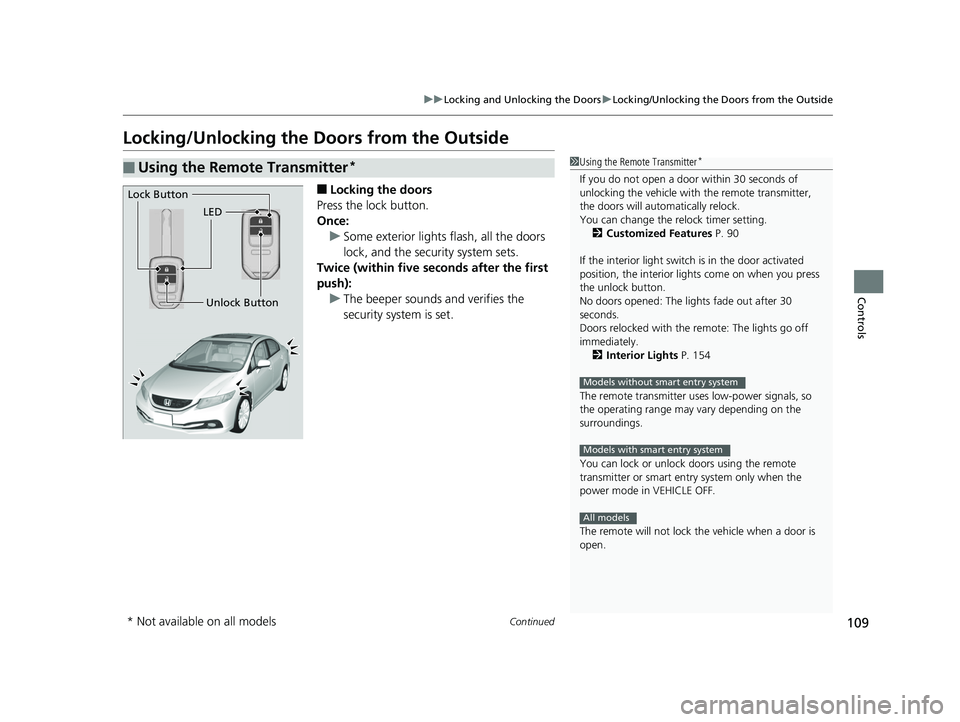

Locking/Unlocking the Doors from the Outside
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter*1Using the Remote Transmitter*
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting.
2 Customized Features P. 90
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 154
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode in VEHICLE OFF.
The remote will not lock th e vehicle when a door is
open.
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
* Not available on all models
