uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

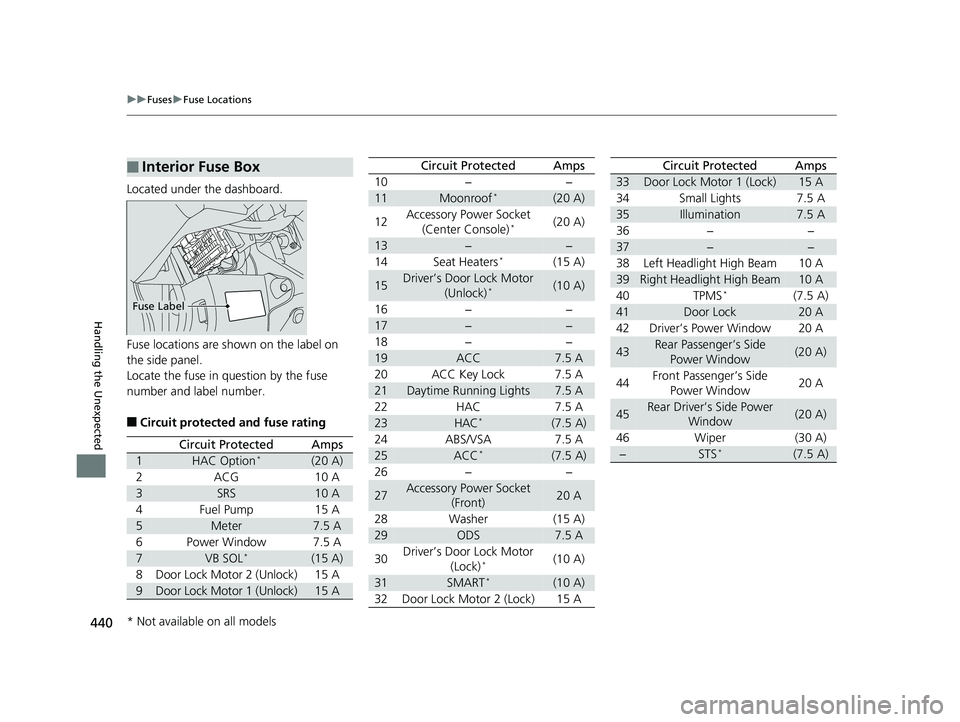

■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1HAC Option*(20 A)
2ACG10 A
3SRS10 A
4Fuel Pump15 A
5Meter7.5 A
6Power Window7.5 A
7VB SOL*(15 A)
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10−−
11Moonroof*(20 A)
12Accessory Power Socket
(Center Console)*(20 A)
13−−
14Seat Heaters*(15 A)
15Driver’s Door Lock Motor (Unlock)*(10 A)
16−−
17−−
18−−
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23HAC*(7.5 A)
24ABS/VSA7.5 A
25ACC*(7.5 A)
26−−
27Accessory Power Socket (Front)20 A
28Washer(15 A)
29ODS7.5 A
30Driver’s Door Lock Motor
(Lock)*(10 A)
31SMART*(10 A)
32Door Lock Motor 2 (Lock)15 A
Circuit ProtectedAmps
33Door Lock Motor 1 (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36−−
37−−
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40TPMS*(7.5 A)
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Passenger’s Side Power Window(20 A)
44Front Passenger’s Side Power Window20 A
45Rear Driver’s Side Power Window(20 A)
46Wiper(30 A)
−STS*(7.5 A)
Circuit ProtectedAmps
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 440 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

441
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

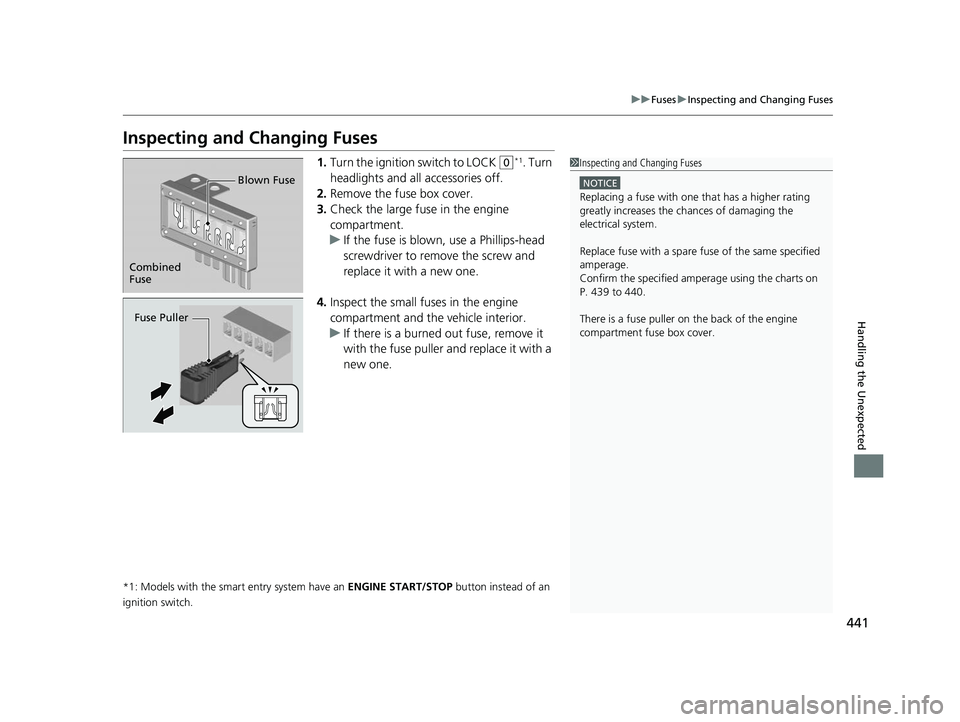

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 439 to 440.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
14 CIVIC 4D_SI-31TR36210.book 441 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

442
Handling the Unexpected

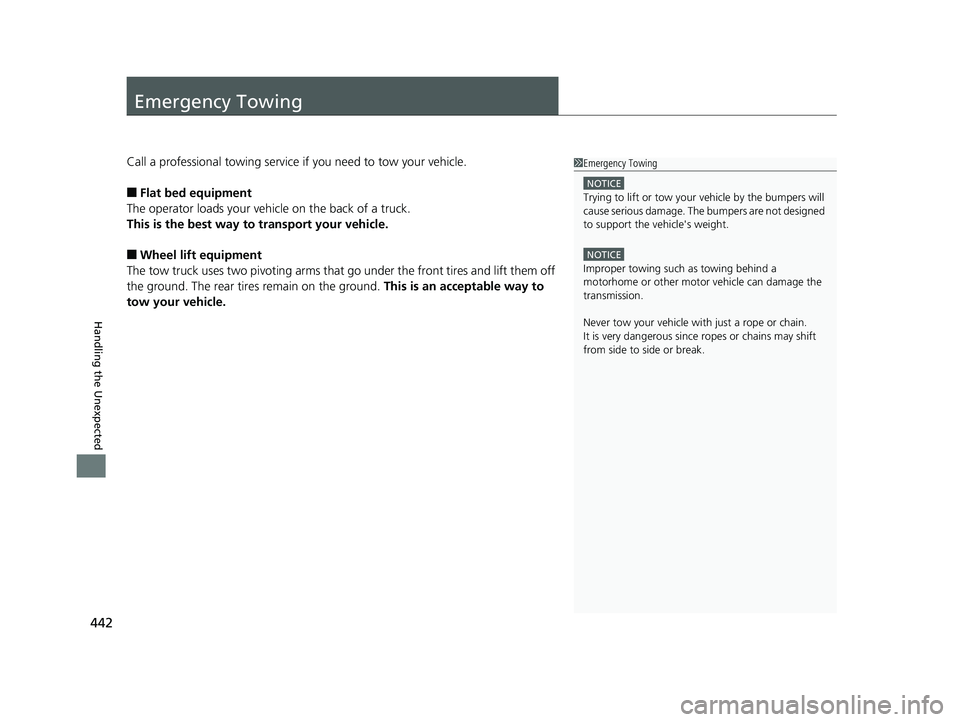

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
14 CIVIC 4D_SI-31TR36210.book 442 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

443
Information

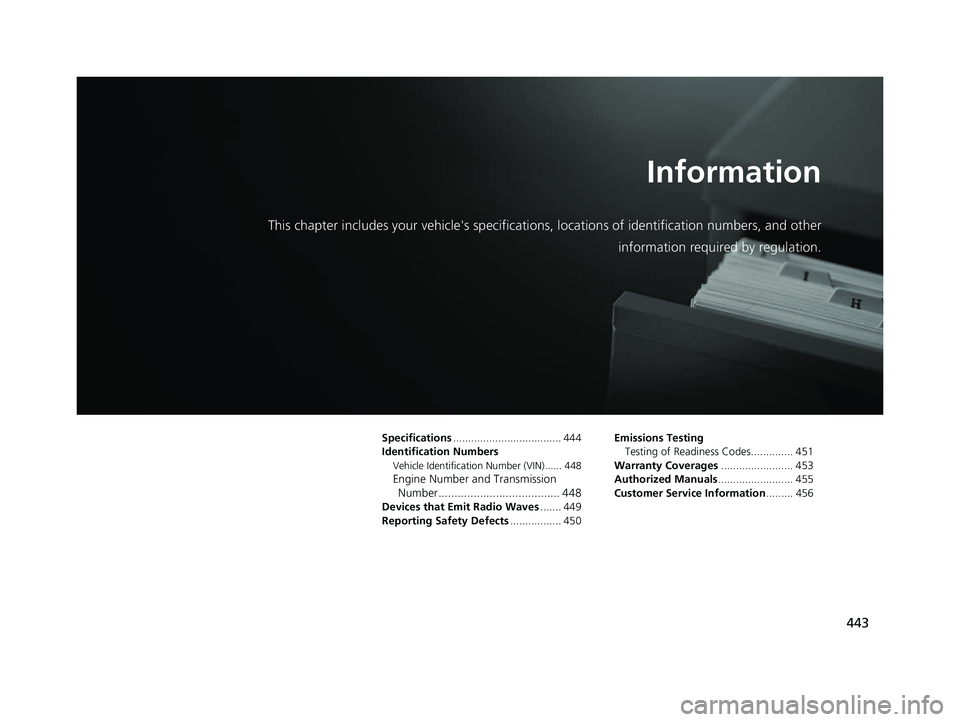

This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 444
Identification Numbers
Vehicle Identification Number (VIN)...... 448
Engine Number and Transmission Number...................................... 448
Devices that Emit Radio Waves ....... 449
Reporting Safety Defects ................. 450Emissions Testing
Testing of Readiness Codes.............. 451
Warranty Coverages ........................ 453
Authorized Manuals ......................... 455
Customer Service Information ......... 456
14 CIVIC 4D_SI-31TR36210.book 443 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

444
Information
Specifications

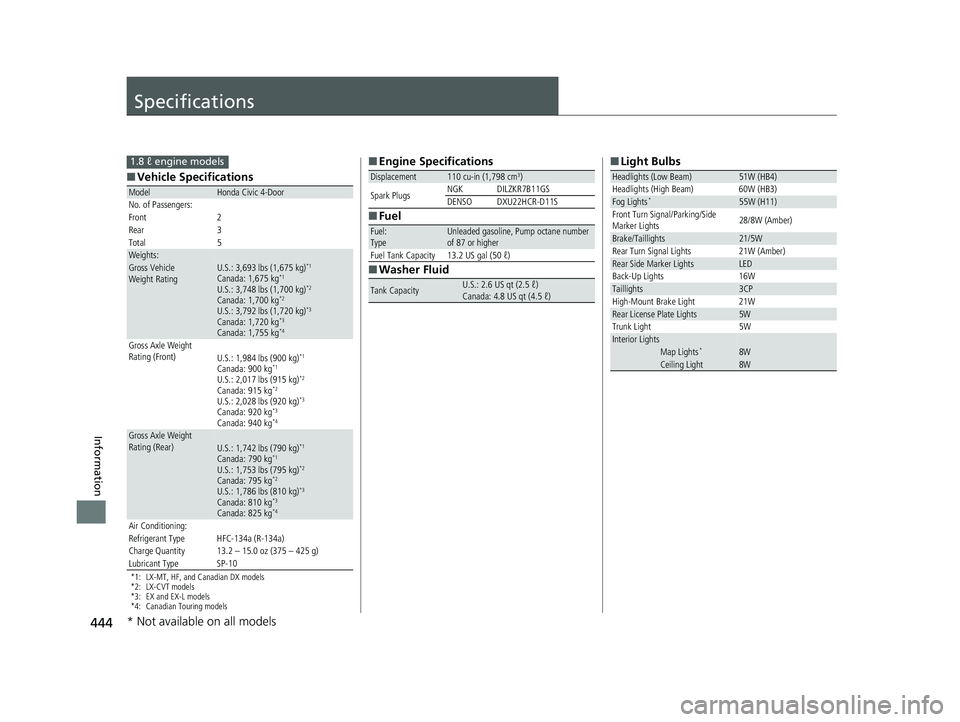

■Vehicle Specifications
*1: LX-MT, HF, and Canadian DX models
*2: LX-CVT models
*3: EX and EX-L models
*4: Canadian Touring models
ModelHonda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,693 lbs (1,675 kg)*1
Canada: 1,675 kg*1
U.S.: 3,748 lbs (1,700 kg)*2
Canada: 1,700 kg*2
U.S.: 3,792 lbs (1,720 kg)*3
Canada: 1,720 kg*3
Canada: 1,755 kg*4
Gross Axle Weight
Rating (Front)U.S.: 1,984 lbs (900 kg)*1
Canada: 900 kg*1
U.S.: 2,017 lbs (915 kg)*2
Canada: 915 kg*2
U.S.: 2,028 lbs (920 kg)*3
Canada: 920 kg*3
Canada: 940 kg*4
Gross Axle Weight
Rating (Rear)U.S.: 1,742 lbs (790 kg)*1
Canada: 790 kg*1
U.S.: 1,753 lbs (795 kg)*2
Canada: 795 kg*2
U.S.: 1,786 lbs (810 kg)*3
Canada: 810 kg*3
Canada: 825 kg*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
1.8 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement110 cu-in (1,798 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (Low Beam)51W (HB4)
Headlights (High Beam) 60W (HB3)
Fog Lights*55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W (Amber)
Brake/Taillights21/5W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker LightsLED
Back-Up Lights 16W
Taillights3CP
High-Mount Brake Light 21W
Rear License Plate Lights5W
Trunk Light 5W
Interior LightsMap Lights*8WCeiling Light8W
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 444 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

445
uuSpecifications u
Continued
Information

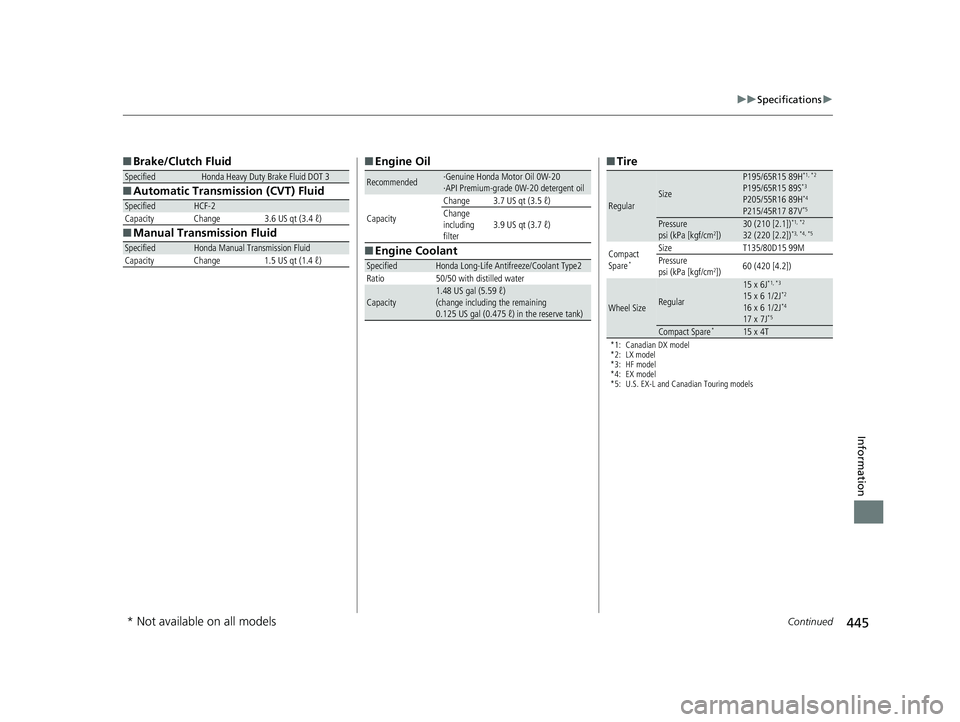

■Brake/Clutch Fluid
■ Automatic Transmission (CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.6 US qt (3.4 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Canadian DX model
*2: LX model
*3: HF model
*4: EX model
*5: U.S. EX-L and Canadian Touring models
RegularSize
P195/65R15 89H*1, *2
P195/65R15 89S*3
P205/55R16 89H*4
P215/45R17 87V*5
Pressure
psi (kPa [kgf/cm2])30 (210 [2.1])*1, *2
32 (220 [2.2])*3, *4, *5
Compact
Spare*
Size T135/80D15 99M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular
15 x 6J*1, *3
15 x 6 1/2J*2
16 x 6 1/2J*4
17 x 7J*5
Compact Spare*15 x 4T
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 445 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

446
uuSpecifications u
Information

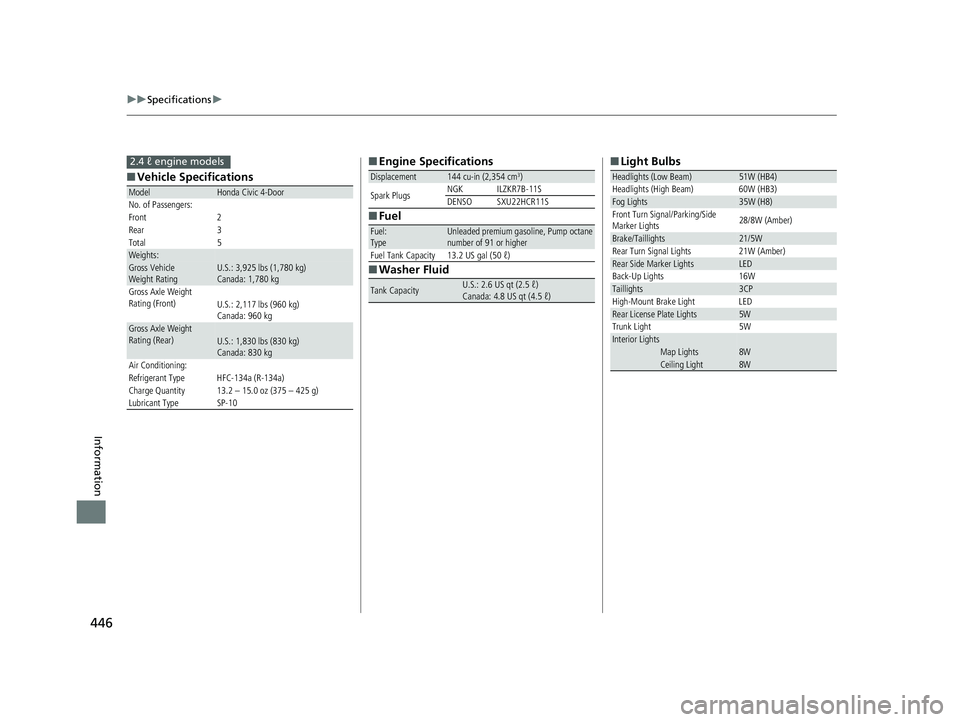

■Vehicle Specifications
ModelHonda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,925 lbs (1,780 kg)
Canada: 1,780 kg
Gross Axle Weight
Rating (Front)U.S.: 2,117 lbs (960 kg)
Canada: 960 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,830 lbs (830 kg)
Canada: 830 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (Low Beam)51W (HB4)
Headlights (High Beam) 60W (HB3)
Fog Lights35W (H8)
Front Turn Signal/Parking/Side
Marker Lights 28/8W (Amber)
Brake/Taillights21/5W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker LightsLED
Back-Up Lights 16W
Taillights3CP
High-Mount Brake Light LED
Rear License Plate Lights5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8W
14 CIVIC 4D_SI-31TR36210.book 446 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

447
uuSpecifications u
Information

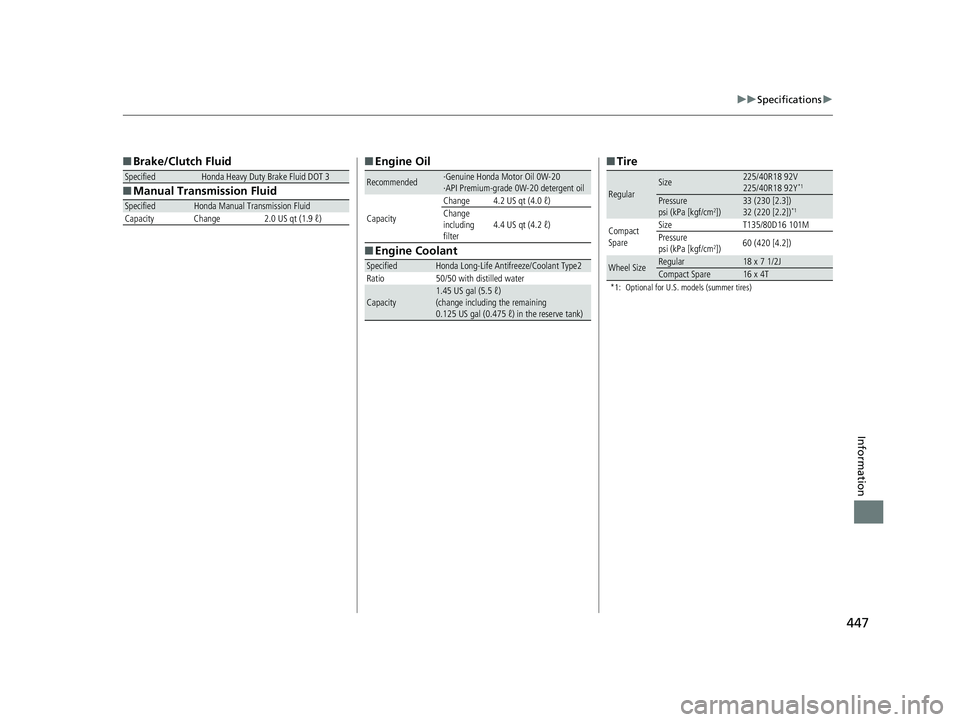

■Brake/Clutch Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Optional for U.S. models (summer tires)
RegularSize225/40R18 92V
225/40R18 92Y*1
Pressure
psi (kPa [kgf/cm2])33 (230 [2.3])
32 (220 [2.2])*1
Compact
Spare Size
T135/80D16 101M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2JCompact Spare16 x 4T
14 CIVIC 4D_SI-31TR36210.book 447 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

448
Information
Identification Numbers

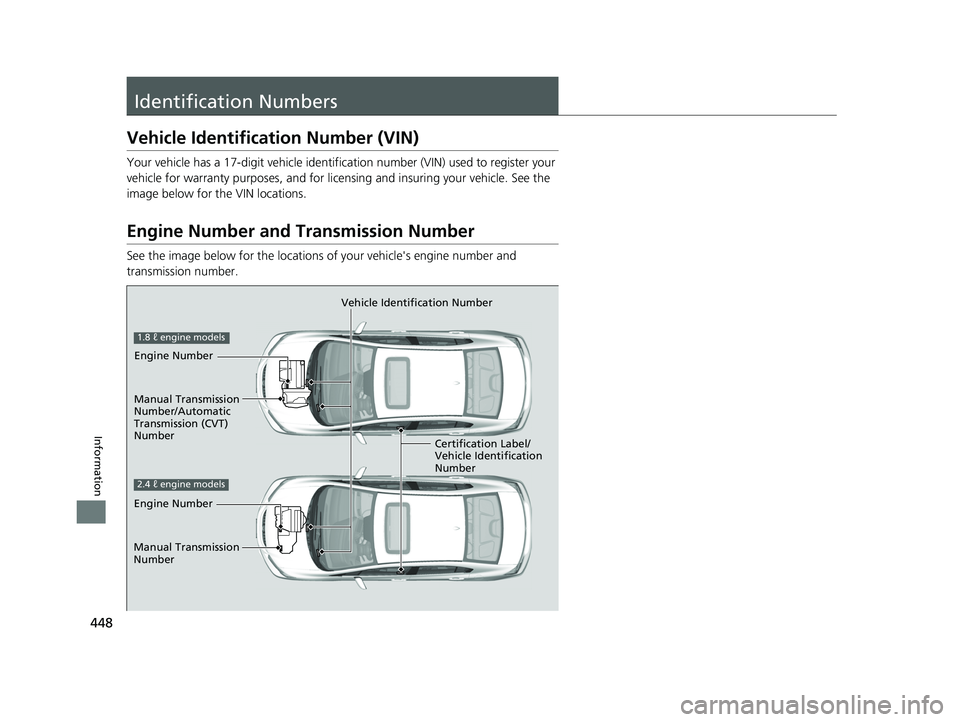

Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number/Automatic
Transmission (CVT)
Number
2.4 ℓ engine models
1.8 ℓ engine models
Engine Number
Manual Transmission
Number
14 CIVIC 4D_SI-31TR36210.book 448 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

449
Information

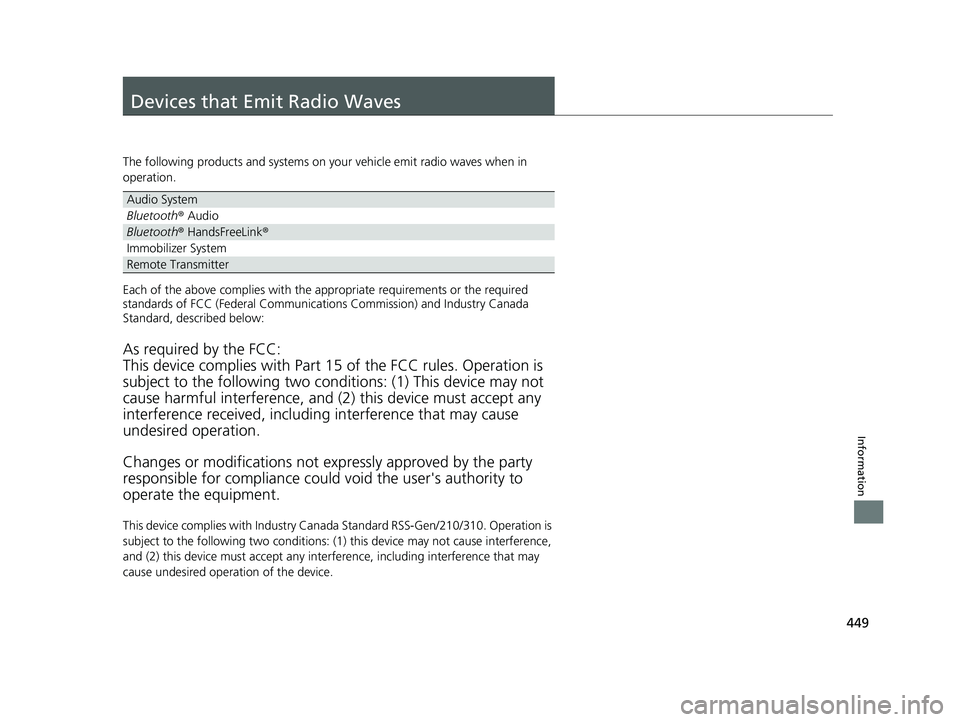

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Remote Transmitter
14 CIVIC 4D_SI-31TR36210.book 449 ページ ２０１４年１月３０日　木曜日　午後１２時１８分
