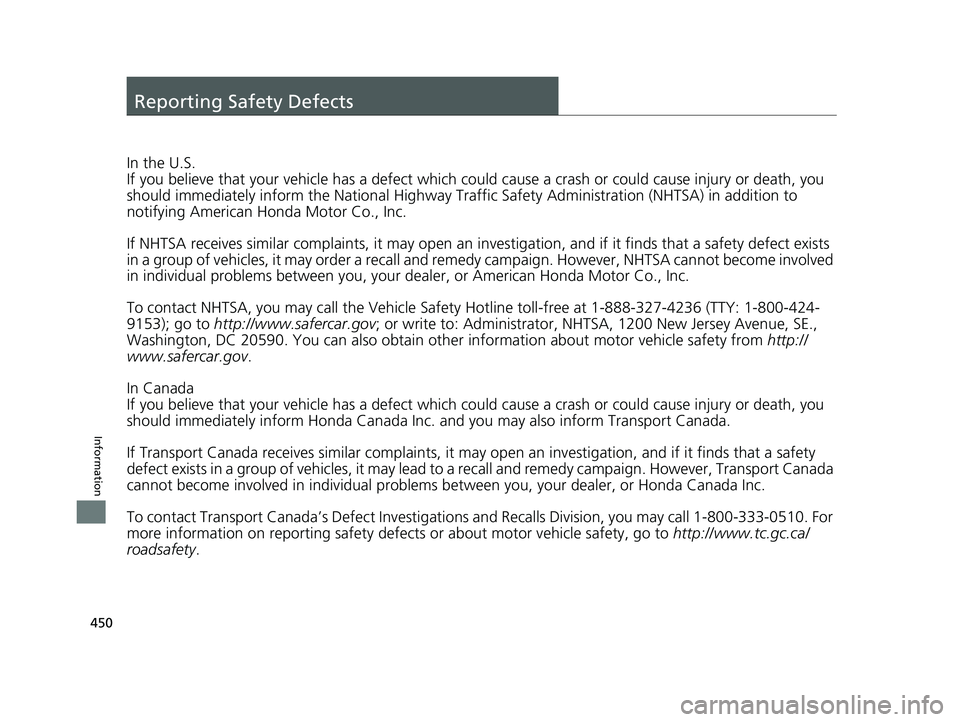

450
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
14 CIVIC 4D_SI-31TR36210.book 450 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

451Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (CVT) or (N (manual transmission). Increase the engine
speed to 2,000 rpm, and hold it there for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
14 CIVIC 4D_SI-31TR36210.book 451 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

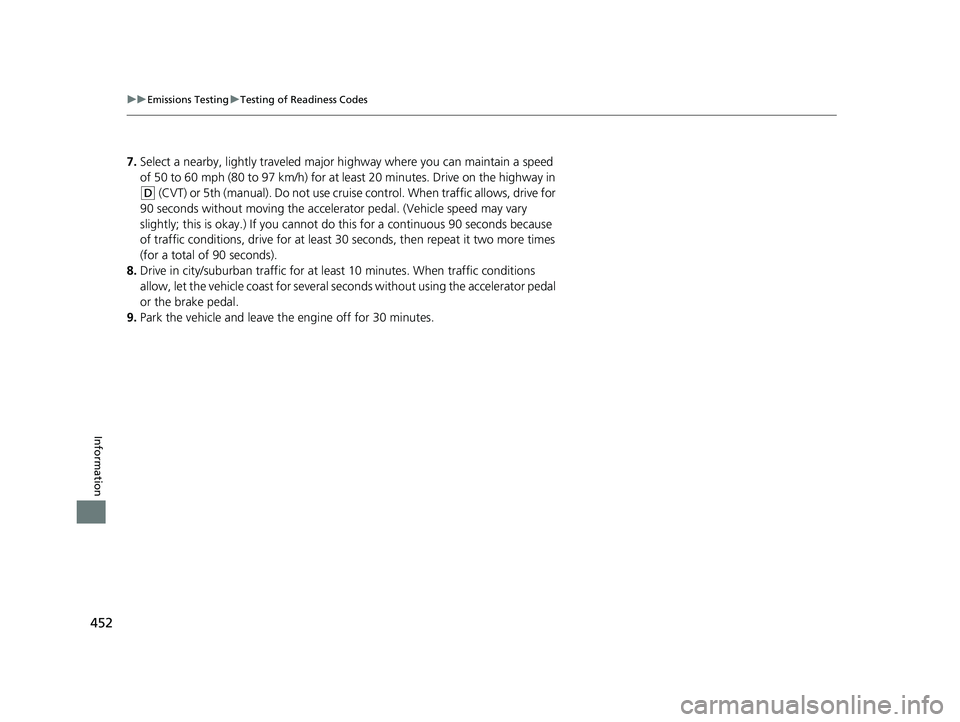

452
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (CVT) or 5th (manual). Do not use cruise control. When traffic allows, drive for
90 seconds without moving the accelerator pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot do this for a continuous 90 seconds because
of traffic conditions, drive for at least 30 seconds, then repeat it two more times
(for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
14 CIVIC 4D_SI-31TR36210.book 452 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

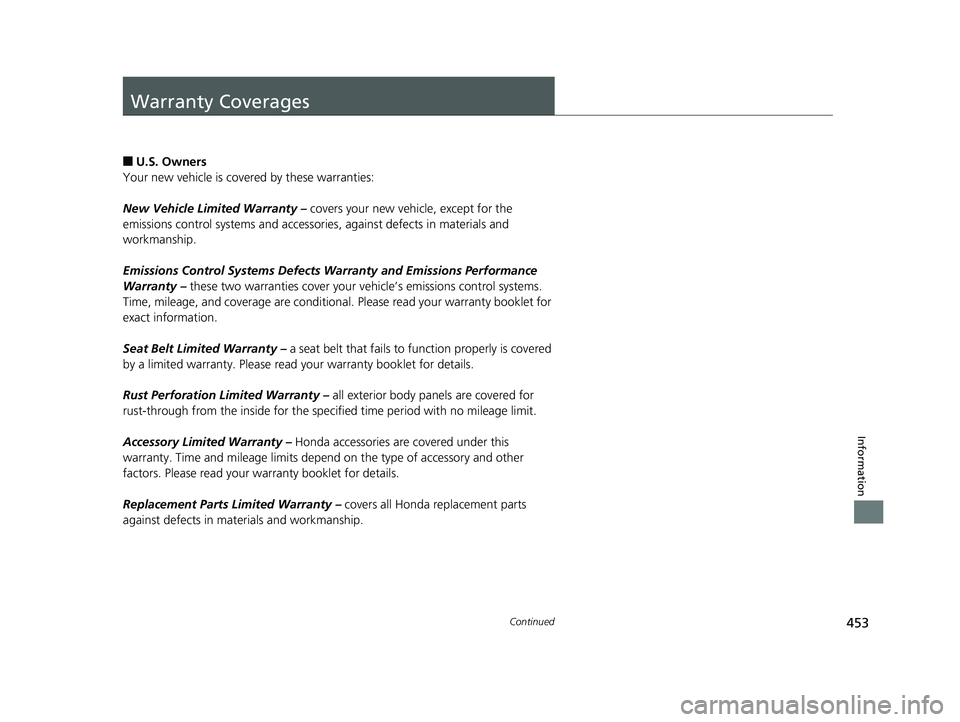

453Continued
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
14 CIVIC 4D_SI-31TR36210.book 453 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

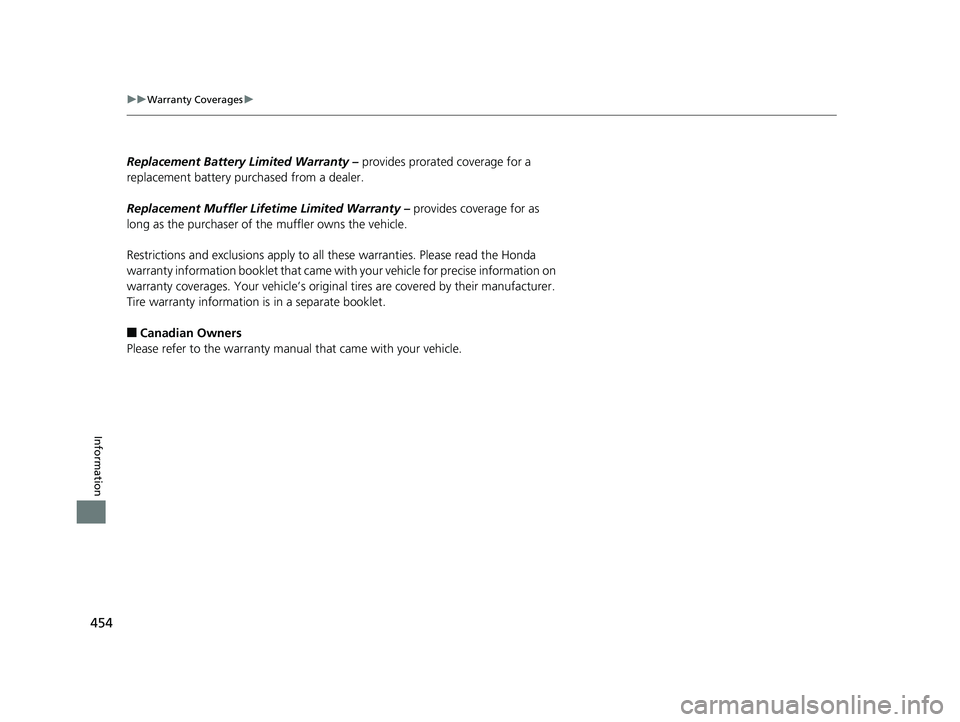

454
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
14 CIVIC 4D_SI-31TR36210.book 454 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

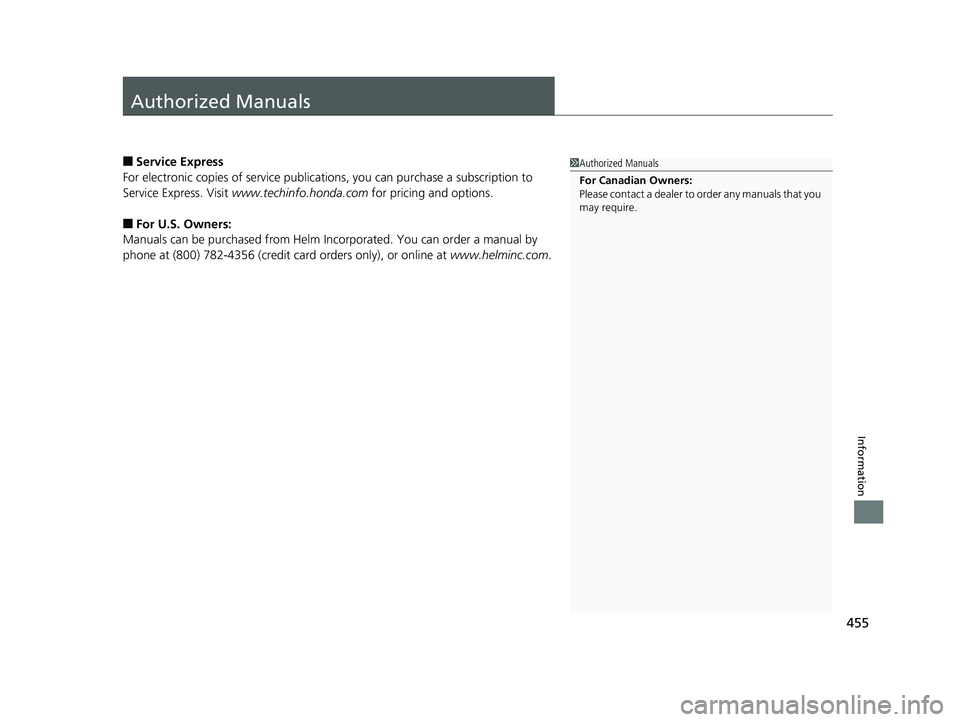

455
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners:
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
1Authorized Manuals
For Canadian Owners:
Please contact a dealer to order any manuals that you
may require.
14 CIVIC 4D_SI-31TR36210.book 455 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

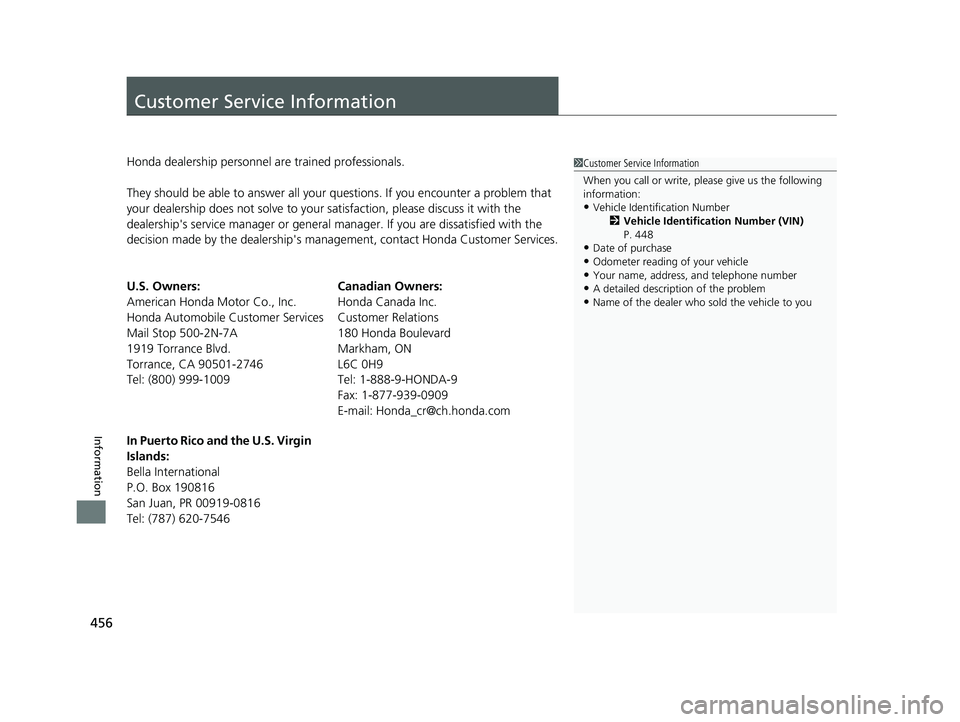

456
Information
Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership's service manager or general manager. If you are dissatisfied with the
decision made by the dealership's management, contact Honda Customer Services.
U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009 Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN)
P. 448
•Date of purchase
•Odometer reading of your vehicle•Your name, address, and telephone number
•A detailed description of the problem
•Name of the dealer who sold the vehicle to you
14 CIVIC 4D_SI-31TR36210.book 456 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

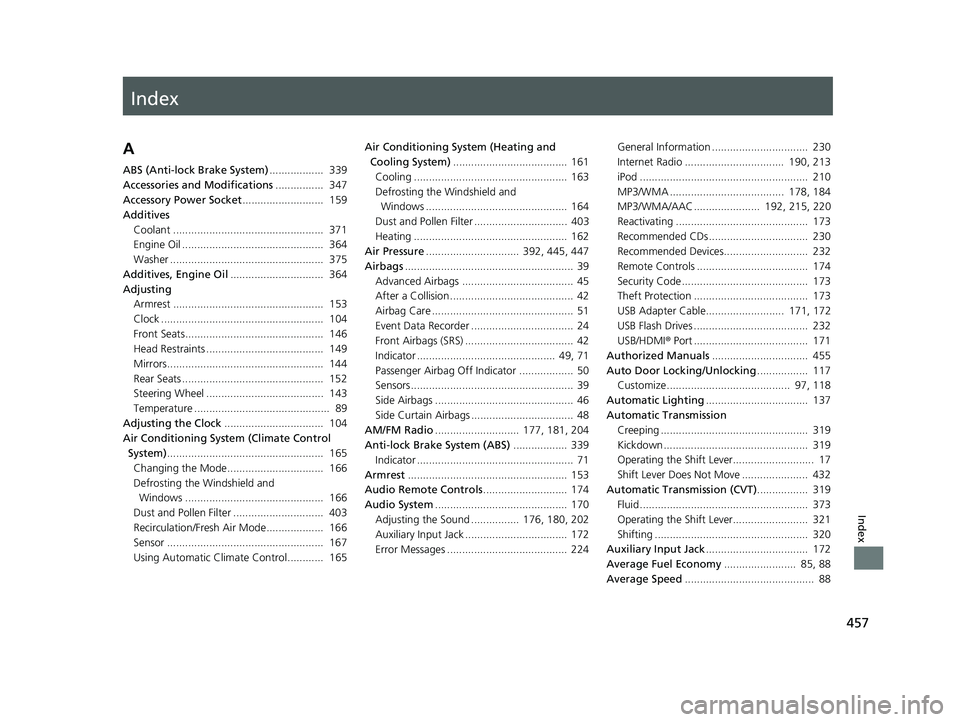

Index
457
Index
Index
A
ABS (Anti-lock Brake System).................. 339
Accessories and Modifications ................ 347
Accessory Power Socket ........................... 159
Additives
Coolant .................................................. 371
Engine Oil ............................................... 364
Washer ................................................... 375
Additives, Engine Oil ............................... 364
Adjusting Armrest .................................................. 153
Clock ...................................................... 104
Front Seats.............................................. 146
Head Restraints ....................................... 149
Mirrors.................................................... 144
Rear Seats ............................................... 152
Steering Wheel ....................................... 143
Temperature ............................................. 89
Adjusting the Clock ................................. 104
Air Conditioning System (Climate Control System) .................................................... 165
Changing the Mode................................ 166
Defrosting the Windshield and Windows .............................................. 166
Dust and Pollen Filter .............................. 403
Recirculation/Fresh Air Mode................... 166
Sensor .................................................... 167
Using Automatic Climate Control............ 165 Air Conditioning System (Heating and
Cooling System) ...................................... 161
Cooling ................................................... 163
Defrosting the Windshield and Windows ............................................... 164
Dust and Pollen Filter ............................... 403
Heating ................................................... 162
Air Pressure ............................... 392, 445, 447
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ......................................... 42
Airbag Care ............................................... 51
Event Data Recorder .................................. 24
Front Airbags (SRS) .................................... 42
Indicator .............................................. 49, 71
Passenger Airbag Off Indicator .................. 50
Sensors ...................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 48
AM/FM Radio ............................ 177, 181, 204
Anti-lock Brake System (ABS) .................. 339
Indicator .................................................... 71
Armrest ..................................................... 153
Audio Remote Controls ............................ 174
Audio System ............................................ 170
Adjusting the Sound ................ 176, 180, 202
Auxiliary Input Jack .................................. 172
Error Messages ........................................ 224 General Information ................................ 230
Internet Radio ................................. 190, 213
iPod ........................................................ 210
MP3/WMA ...................................... 178, 184
MP3/WMA/AAC ...................... 192, 215, 220
Reactivating ............................................ 173
Recommended CDs ................................. 230
Recommended Devices............................ 232
Remote Controls ..................................... 174
Security Code .......................................... 173
Theft Protection ...................................... 173
USB Adapter Cable.......................... 171, 172
USB Flash Drives ...................................... 232
USB/HDMI
® Port ...................................... 171
Authorized Manuals ................................ 455
Auto Door Locking/Unlocking ................. 117
Customize ......................................... 97, 118
Automatic Lighting .................................. 137
Automatic Transmission
Creeping ................................................. 319
Kickdown ................................................ 319
Operating the Shift Lever........................... 17
Shift Lever Does Not Move ...................... 432
Automatic Transmission (CVT) ................. 319
Fluid ........................................................ 373
Operating the Shift Lever......................... 321
Shifting ................................................... 320
Auxiliary Input Jack .................................. 172
Average Fuel Economy ........................ 85, 88
Average Speed ........................................... 88
14 CIVIC 4D_SI-31TR36210.book 457 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

458
Index
B
Battery....................................................... 400
Charging System Indicator ................. 69, 435
Jump Starting .......................................... 429
Maintenance (Checking the Battery) ........ 400
Maintenance (Replacing).......................... 401
Belts (Seat) .................................................. 32
Beverage Holders ...................................... 158
Bluetooth ® Audio ............................. 195, 218
Bluetooth ® HandsFreeLink ®............. 246, 277
Booster Seats (For Children) ....................... 63
Brake System ............................................. 337
Anti-lock Brake System (ABS) ................... 339
Brake Assist System ................................. 340
Fluid ........................................................ 374
Foot Brake ............................................... 338
Indicator (Amber)....................................... 68
Indicator (Red) ................................... 68, 437
Parking Brake .......................................... 337
Brightness Control (Instrument Panel) .... 141
Bulb Replacement ..................................... 376
Brake/Taillights, Rear Turn Signal Lights and
Rear Side Marker Lights ......................... 385
Fog Lights ................................................ 380
Front Turn Signal/Par king/Side Marker
Lights..................................................... 383
Headlights ............................................... 376
High-Mount Brake Light .......................... 388
Rear License Plate Lights .......................... 387
Taillights and Back-Up Lights ................... 386
Bulb Specifications ............................ 444, 446
C
Carbon Monoxide Gas ............................... 64
Carrying Cargo ................................. 305, 307
CD Player ................................... 178, 184, 207
Center Pocket ........................................... 157
Certification Label .................................... 448
Changing Bulbs ........................................ 376
Charging System Indicator ................. 69, 435
Child Safety ................................................. 52
Childproof Door Locks............................. 116
Emergency Trunk Opener ........................ 124
Child Seat .................................................... 52
Booster Seats ............................................ 63
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 59
Larger Children ......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 116
Cleaning the Exterior ............................... 406
Cleaning the Interior ................................ 404
Climate Control System ............................ 165
Changing the Mode ................................ 165
Defrosting the Windshield and Windows ............................................... 166
Dust and Pollen Filter............................... 403
Recirculation/Fresh Air Mode ................... 166
Sensors ................................................... 167 Using Automatic Climate Control............ 165
Clutch Fluid .............................................. 374
Coat Hook ................................................ 159
Compact Spare Tire .................. 411, 445, 447
Console Compartment ............................. 156
Controls .................................................... 103
Coolant (Engine) ...................................... 371
Adding to the Radiator ........................... 372
Adding to the Reserve Tank .................... 371
High Temperature Indicator ...................... 72
Low Temperature Indicator ....................... 75
Overheating ............................................ 433
Creeping (Automatic Transmission) ........ 319
Cruise Control .......................................... 326
Indicator ................................................... 76
Cup Holders .............................................. 158
Customer Service Information ................ 456
Customized Features ......................... 90, 233
D
Daytime Running Lights .......................... 139
Dead Battery ............................................ 429
Defrosting the Windshield and
Windows ......................................... 164, 166
Devices that Emit Radio Waves ............... 449
Dimming
Headlights .............................................. 136
Rearview Mirror ...................................... 144
Dipstick (Engine Oil) ................................ 365
Directional Signals (Turn Signal) ............. 136
14 CIVIC 4D_SI-31TR36210.book 458 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

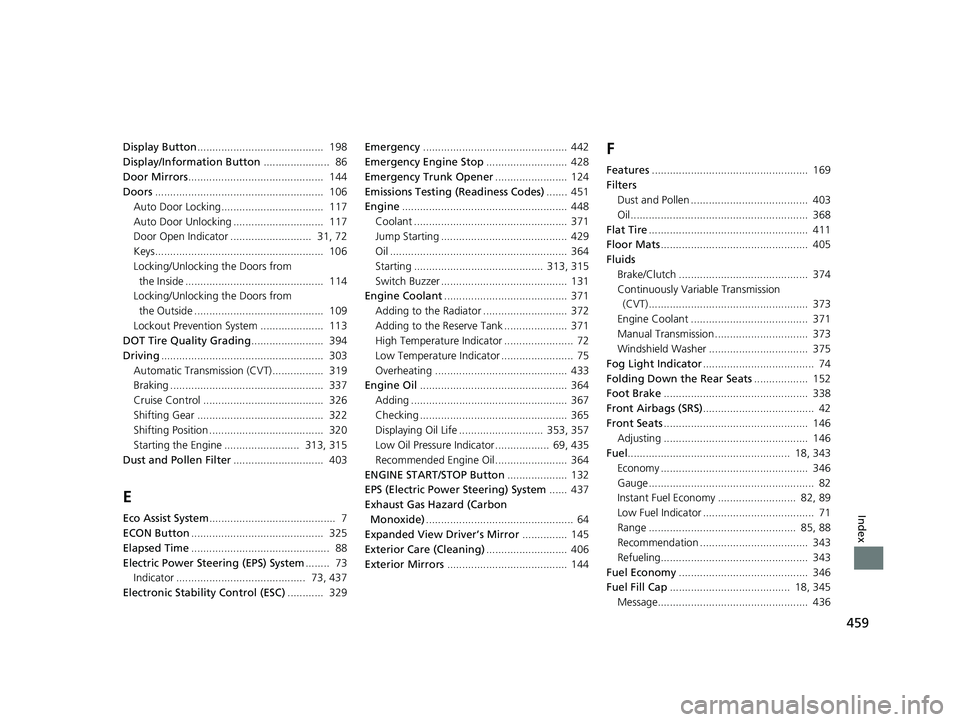

459
Index
Display Button.......................................... 198
Display/Information Button ...................... 86
Door Mirrors ............................................. 144
Doors ........................................................ 106
Auto Door Locking.................................. 117
Auto Door Unlocking .............................. 117
Door Open Indicator ........................... 31, 72
Keys........................................................ 106
Locking/Unlocking the Doors from the Inside .............................................. 114
Locking/Unlocking the Doors from
the Outside ........................................... 109
Lockout Prevention System ..................... 113
DOT Tire Quality Grading ........................ 394
Driving ...................................................... 303
Automatic Transmission (CVT)................. 319
Braking ................................................... 337
Cruise Control ........................................ 326
Shifting Gear .......................................... 322
Shifting Position ...................................... 320
Starting the Engine ......................... 313, 315
Dust and Pollen Filter .............................. 403
E
Eco Assist System.......................................... 7
ECON Button ............................................ 325
Elapsed Time .............................................. 88
Electric Power Steering (EPS) System ........ 73
Indicator ........................................... 73, 437
Electronic Stability Control (ESC) ............ 329Emergency
................................................ 442
Emergency Engine Stop ........................... 428
Emergency Trunk Opener ........................ 124
Emissions Testing (Readiness Codes) ....... 451
Engine ....................................................... 448
Coolant ................................................... 371
Jump Starting .......................................... 429
Oil ........................................................... 364
Starting ........................................... 313, 315
Switch Buzzer .......................................... 131
Engine Coolant ......................................... 371
Adding to the Radiator ............................ 372
Adding to the Reserve Tank ..................... 371
High Temperature Indicator ....................... 72
Low Temperature Indicator ........................ 75
Overheating ............................................ 433
Engine Oil ................................................. 364
Adding .................................................... 367
Checking ................................................. 365
Displaying Oil Life ............................ 353, 357
Low Oil Pressure Indicator .................. 69, 435
Recommended Engine Oil ........................ 364
ENGINE START/STOP Button .................... 132
EPS (Electric Power Steering) System ...... 437
Exhaust Gas Hazard (Carbon
Monoxide) ................................................. 64
Expanded View Driver’s Mirror ............... 145
Exterior Care (Cleaning) ........................... 406
Exterior Mirrors ........................................ 144
F
Features.................................................... 169
Filters Dust and Pollen ....................................... 403
Oil ........................................................... 368
Flat Tire ..................................................... 411
Floor Mats ................................................. 405
Fluids
Brake/Clutch ........................................... 374
Continuously Variable Transmission (CVT) ..................................................... 373
Engine Coolant ....................................... 371
Manual Transmission ............................... 373
Windshield Washer ................................. 375
Fog Light Indicator ..................................... 74
Folding Down the Rear Seats .................. 152
Foot Brake ................................................ 338
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 146
Adjusting ................................................ 146
Fuel ...................................................... 18, 343
Economy ................................................. 346
Gauge ....................................................... 82
Instant Fuel Economy .......................... 82, 89
Low Fuel Indicator ..................................... 71
Range ................................................. 85, 88
Recommendation .................................... 343
Refueling................................................. 343
Fuel Economy ........................................... 346
Fuel Fill Cap ........................................ 18, 345
Message.................................................. 436
14 CIVIC 4D_SI-31TR36210.book 459 ページ ２０１４年１月３０日　木曜日　午後１２時１８分
