HONDA CIVIC SEDAN 2017 Owner's Manual (in English)

Continued119
uuGauges and Displays uDriver Information Interface*
Instrument Panel
The navigation system shows you turn-by-turn directions to your destination.
2 Refer to the Navigation System Manual
Shows the current audio information.
2Audio System Basic Operation P. 219, 237
Shows the current mail information.
2Bluetooth ® HandsFreeLink ®* P. 384
Shows the current phone information.
2Bluetooth ® HandsFreeLink ®* P. 361, 384

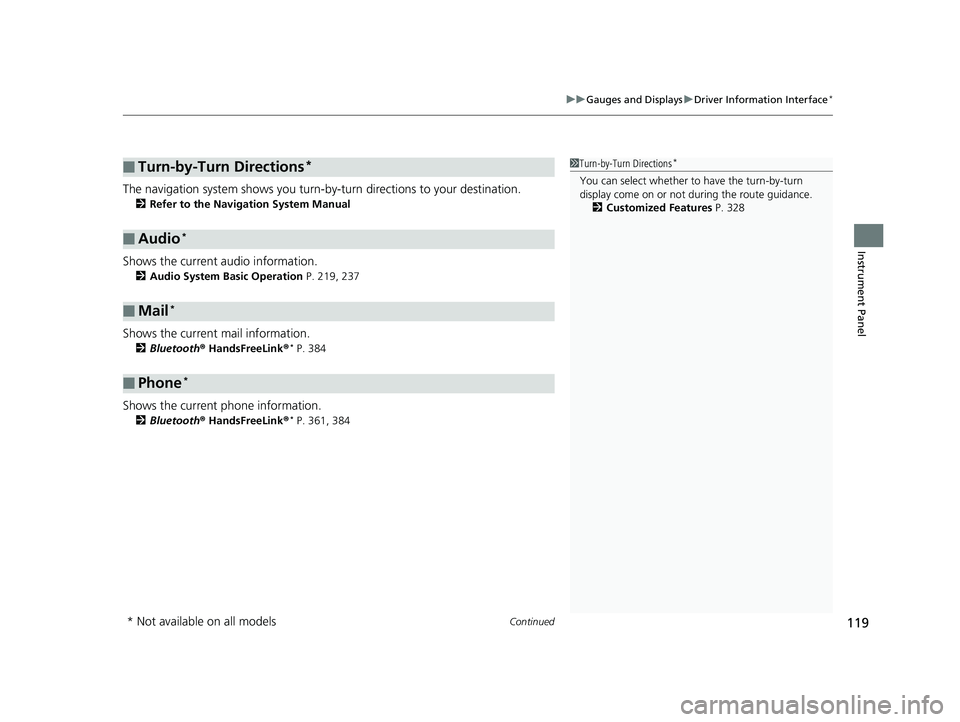

■Turn-by-Turn Directions*
■Audio*
■Mail*
■Phone*
1Turn-by-Turn Directions*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 328
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 119 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

120
uuGauges and Displays uDriver Information Interface*
Instrument Panel

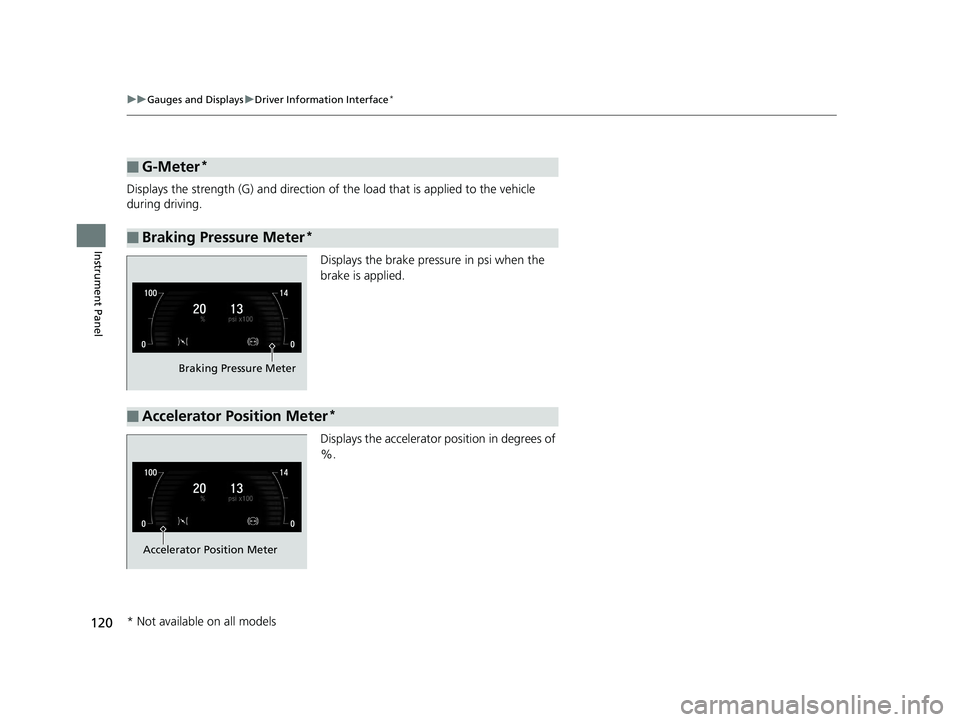

Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.
Displays the brake pressure in psi when the
brake is applied.
Displays the accelerator position in degrees of
%.
■G-Meter*
■Braking Pressure Meter*
Braking Pressure Meter
■Accelerator Position Meter*
Accelerator Position Meter
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 120 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

121
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

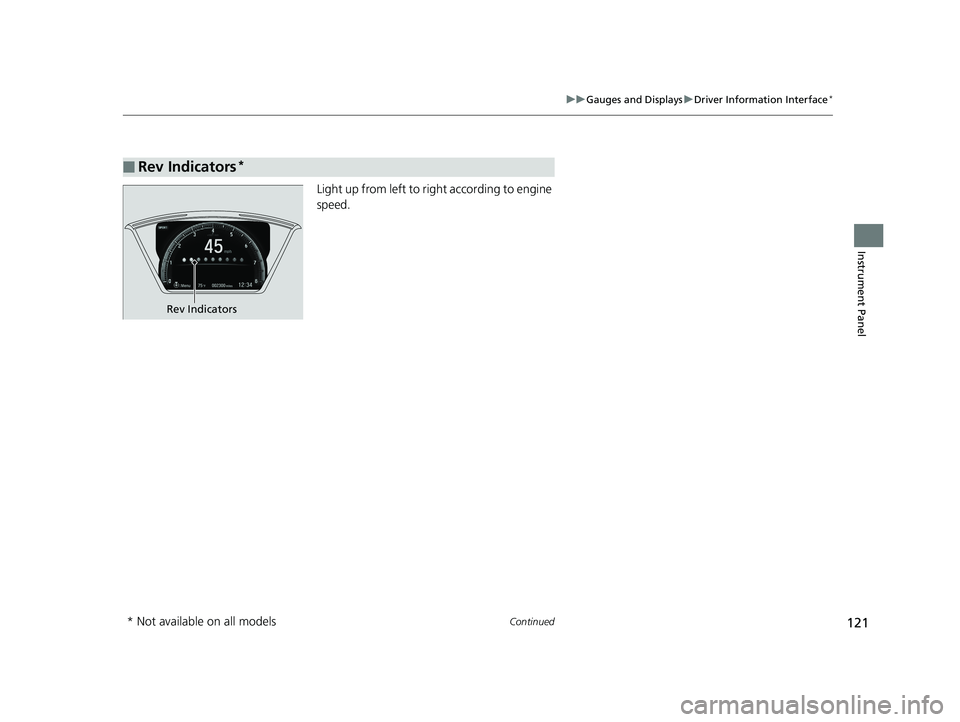

Light up from left to righ t according to engine
speed.
■Rev Indicators*
Rev Indicators
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 121 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

uuGauges and Displays uDriver Information Interface*
122
Instrument Panel

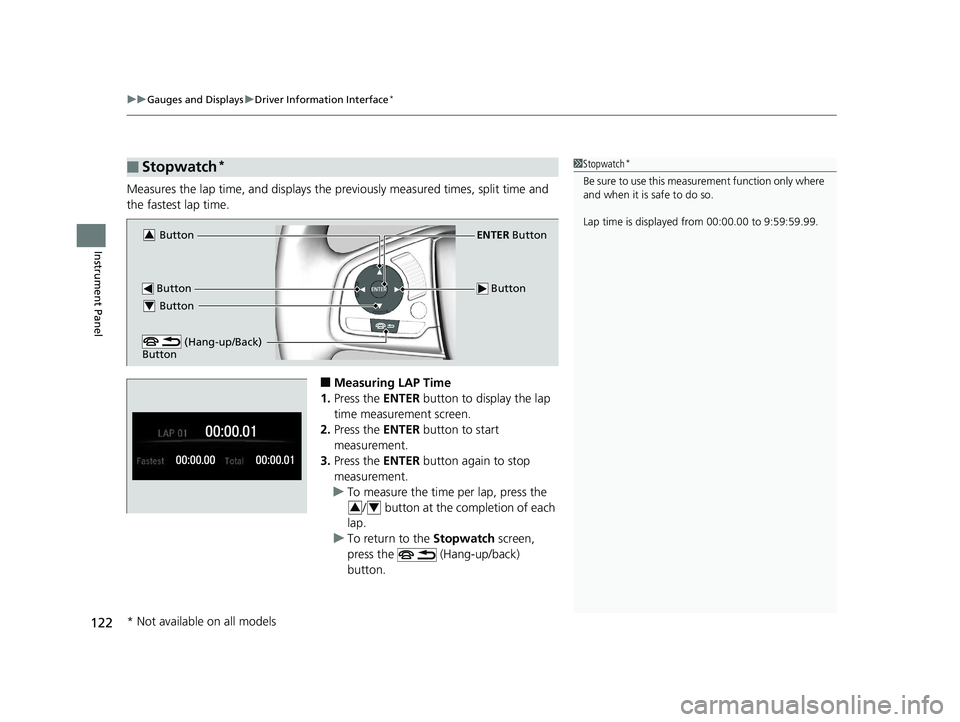

Measures the lap time, and displays the previously measured times, split time and
the fastest lap time.
■Measuring LAP Time
1. Press the ENTER button to display the lap
time measurement screen.
2. Press the ENTER button to start
measurement.
3. Press the ENTER button again to stop
measurement.
u To measure the time per lap, press the
/ button at the co mpletion of each
lap.
u To return to the Stopwatch screen,
press the (Hang-up/back)
button.
■Stopwatch*1 Stopwatch*
Be sure to use this measurement function only where
and when it is safe to do so.
Lap time is displayed from 00:00.00 to 9:59:59.99.
Button
ENTER Button
Button Button3
Button4
(Hang-up/Back)
Button
34
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 122 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

123
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel
■Checking/Clearing history
• To check history, press the button (when
lap time is not running) to change the
display, then pres s the / button to
scroll through lap times.
u A maximum of 20 lap times can be
stored at a time.
• To clear the history, press and hold the /
button when lap time is not running.
• To return to the lap time measurement
screen, press the button.
• To return to the Stopwatch screen, press
the (Hang-up/back) button.
Press
ButtonPress
Button
34
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 123 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

uuGauges and Displays uDriver Information Interface*
124
Instrument Panel

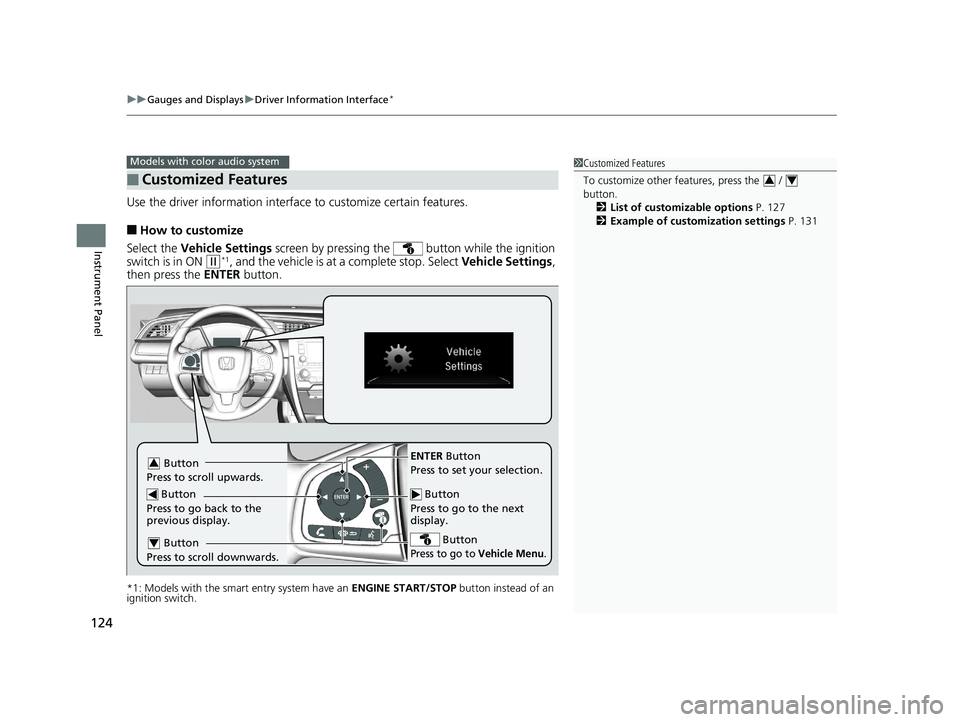

Use the driver information interfac e to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the ignition
switch is in ON
(w*1, and the vehicle is at a complete stop. Select Vehicle Settings,
then press the ENTER button.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Customized Features
Models with color audio system1 Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 127
2 Example of customization settings P. 131
34
Button
Press to go to the next
display.
ENTER Button
Press to set your selection.
Button
Press to go to Vehicle Menu.
Button
Press to scroll upwards.3
Button
Press to go back to the
previous display.
Button
Press to scroll downwards.4
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 124 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

125
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

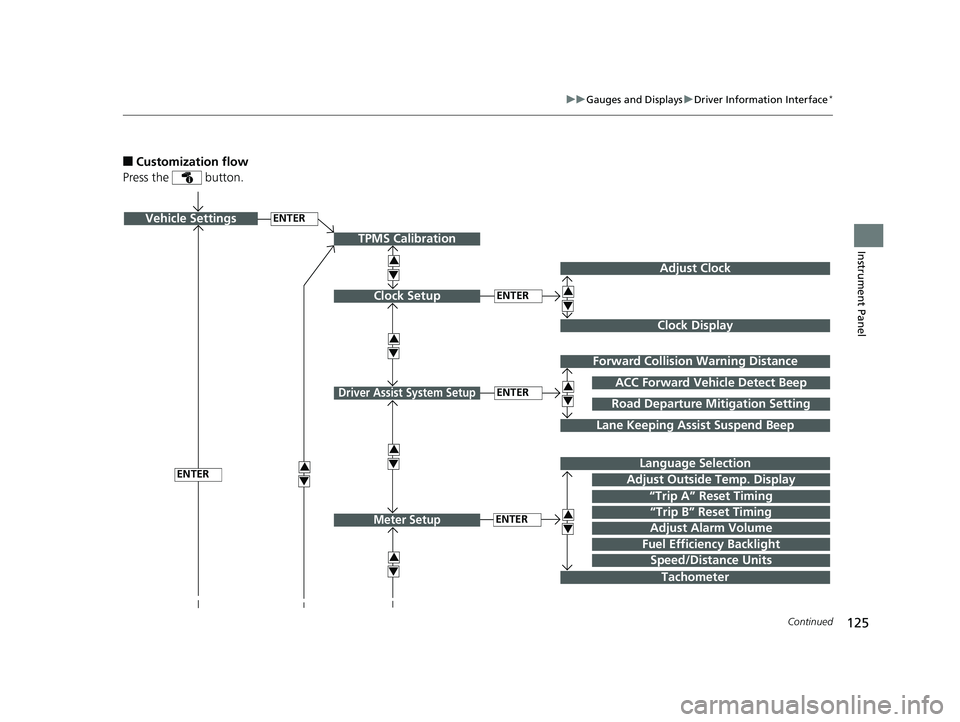

■Customization flow
Press the button.
ENTERVehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
3
4
TPMS Calibration
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight
3
4
ACC Forward Vehicle Detect Beep
3
4Tachometer
ENTER
Forward Collision Warning Distance
3
4
3
4
Lane Keeping Assi st Suspend Beep
Road Departure Mi tigation Setting
Adjust Alarm Volume
Speed/Distance Units
Adjust Clock
3
4
Clock Display
3
4
ENTER
ENTERClock Setup
Driver Assist System Setup
Meter Setup
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 125 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

126
uuGauges and Displays uDriver Information Interface*
Instrument Panel

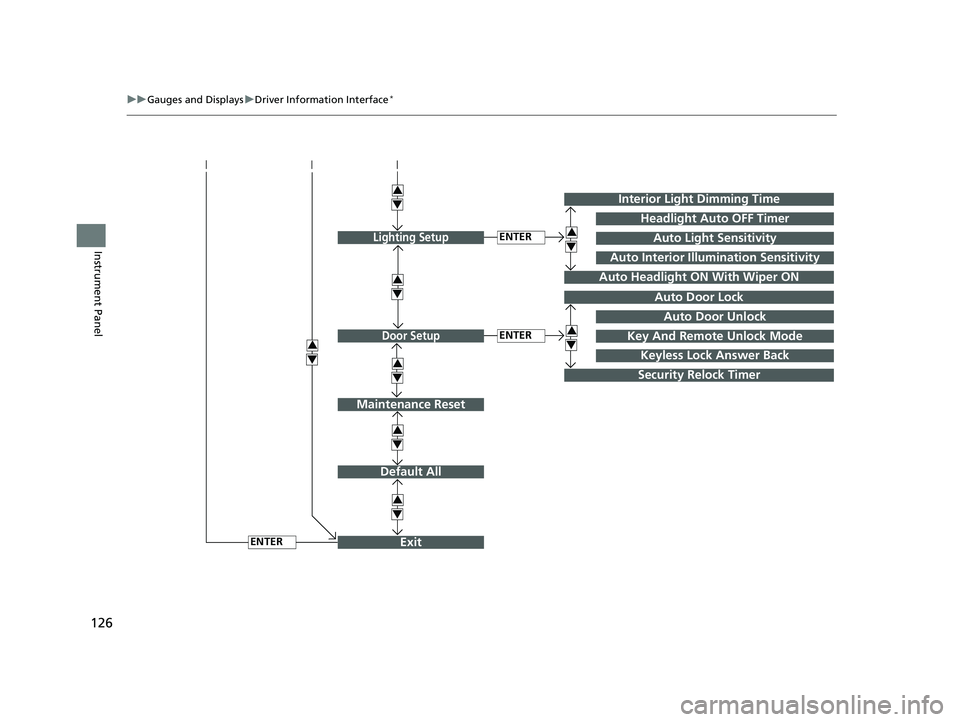

Exit
3
4
3
4
3
4
Maintenance Reset
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity3
4
3
4
Auto Headlight ON With Wiper ON
ENTER
ENTER
Auto Interior Illumination Sensitivity
Lighting Setup
Door Setup
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 126 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

127
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

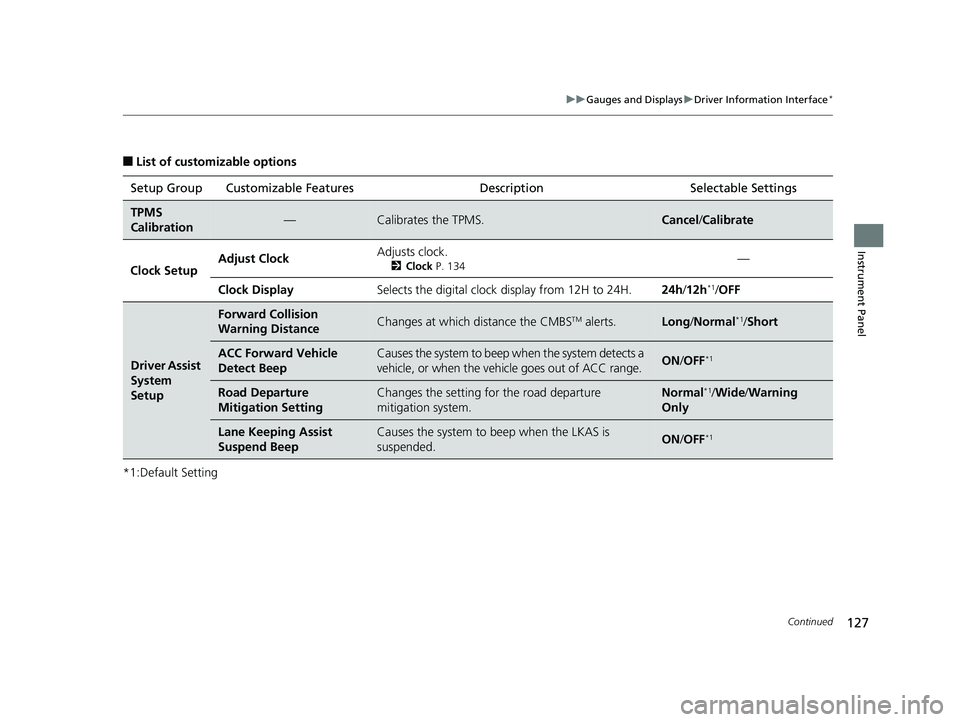

■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Clock Setup Adjust Clock
Adjusts clock.
2
Clock P. 134—
Clock Display Selects the digital clock display from 12H to 24H. 24h/12h
*1/OFF
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges at which distance the CMBSTM alerts.Long /Normal*1/ Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range.ON /OFF*1
Road Departure
Mitigation SettingChanges the setting fo r the road departure
mitigation system.Normal*1/ Wide /Warning
Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 127 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

128
uuGauges and Displays uDriver Information Interface*
Instrument Panel

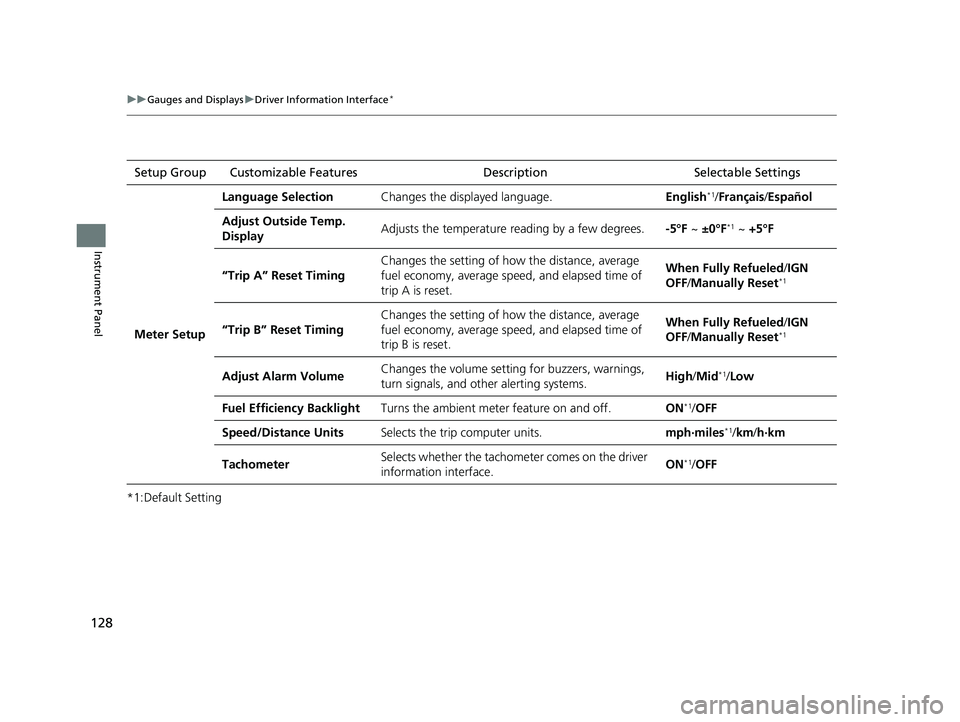

*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Meter Setup Language Selection
Changes the displayed language. English
*1/Français /Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees.
-5°F ~ ±0°F
*1 ~ +5°F
“Trip A” Reset Timing Changes the setting of how the distance, average
fuel economy, average speed, and elapsed time of
trip A is reset. When Fully Refueled
/IGN
OFF /Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how the distance, average
fuel economy, average speed, and elapsed time of
trip B is reset. When Fully Refueled
/IGN
OFF /Manually Reset*1
Adjust Alarm Volume Changes the volume setting
for buzzers, warnings,
turn signals, and other alerting systems. High
/Mid*1/Low
Fuel Efficien cy Backlight Turns the ambient meter feature on and off. ON
*1/OFF
Speed/Distance Units Selects the trip computer units. mph∙miles
*1/km/ h∙km
Tachometer Selects whether the tachometer comes on the driver
information interface. ON
*1/
OFF
