HONDA CIVIC SEDAN 2017 Owner's Manual (in English)

129
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

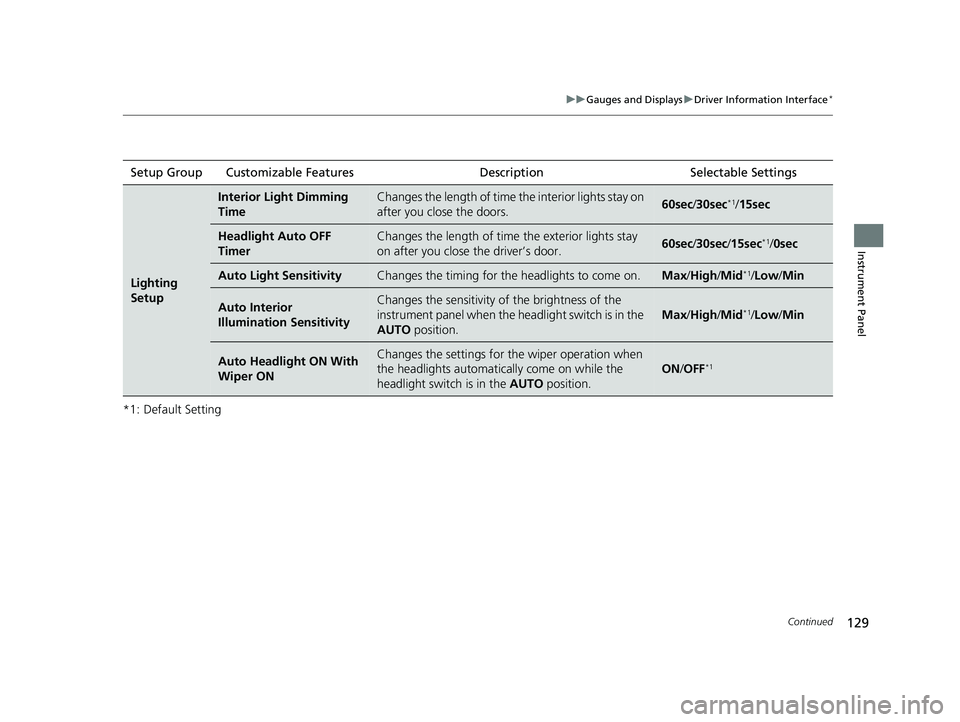

*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec/30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low /Min
Auto Headlight ON With
Wiper ONChanges the settings for th e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON/OFF*1
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 129 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

130
uuGauges and Displays uDriver Information Interface*
Instrument Panel

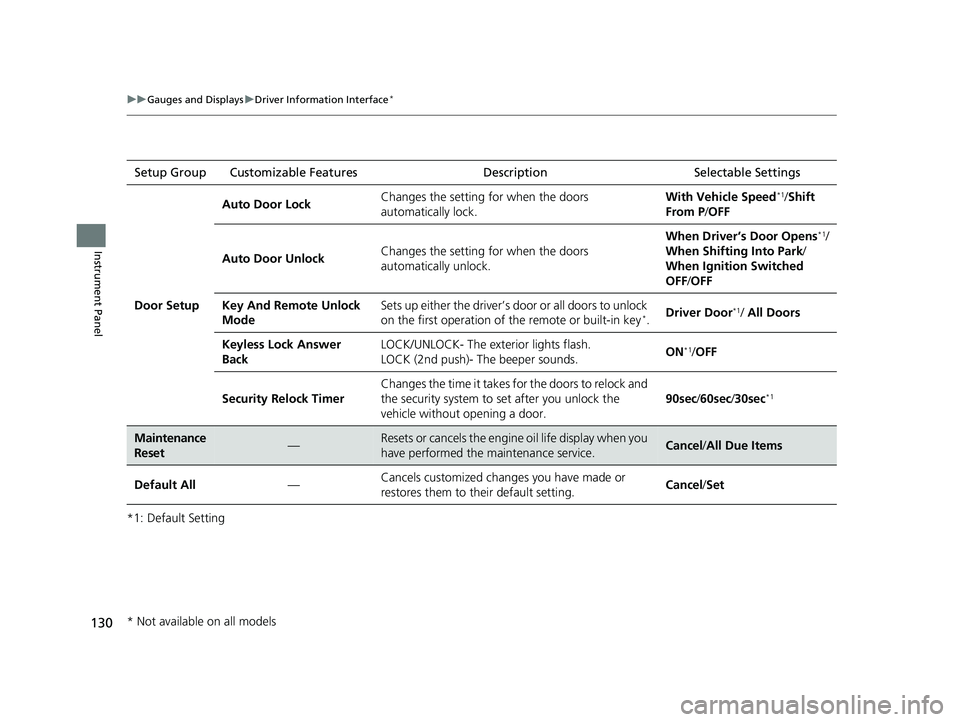

*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup Auto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1/
Shift
From P /OFF
Auto Door Unlock Changes the setting for when the doors
automatically unlock. When Driver’s Door Opens
*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key
*.
Driver Door*1/ All Doors
Keyless Lock Answer
Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
ON
*1/
OFF
Security Relock Timer Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening a door.
90sec
/60sec /30sec
*1
Maintenance
Reset—Resets or cancels the engine oil life display when you
have performed the maintenance service. Cancel /All Due Items
Default All —Cancels customized changes you have made or
restores them to their default setting. Cancel
/Set
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 130 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

131
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

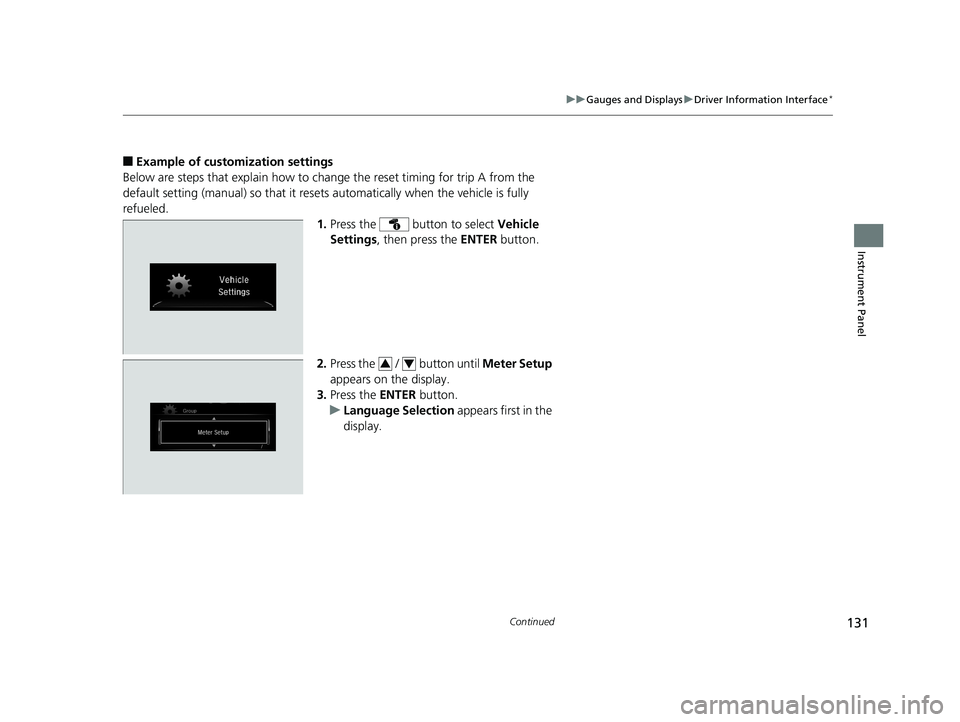

■Example of customization settings
Below are steps that explain how to ch ange the reset timing for trip A from the
default setting (manual) so that it resets automatically when the vehicle is fully
refueled. 1.Press the button to select Vehicle
Settings , then press the ENTER button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
u Language Selection appears first in the
display.
34
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 131 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

132
uuGauges and Displays uDriver Information Interface*
Instrument Panel

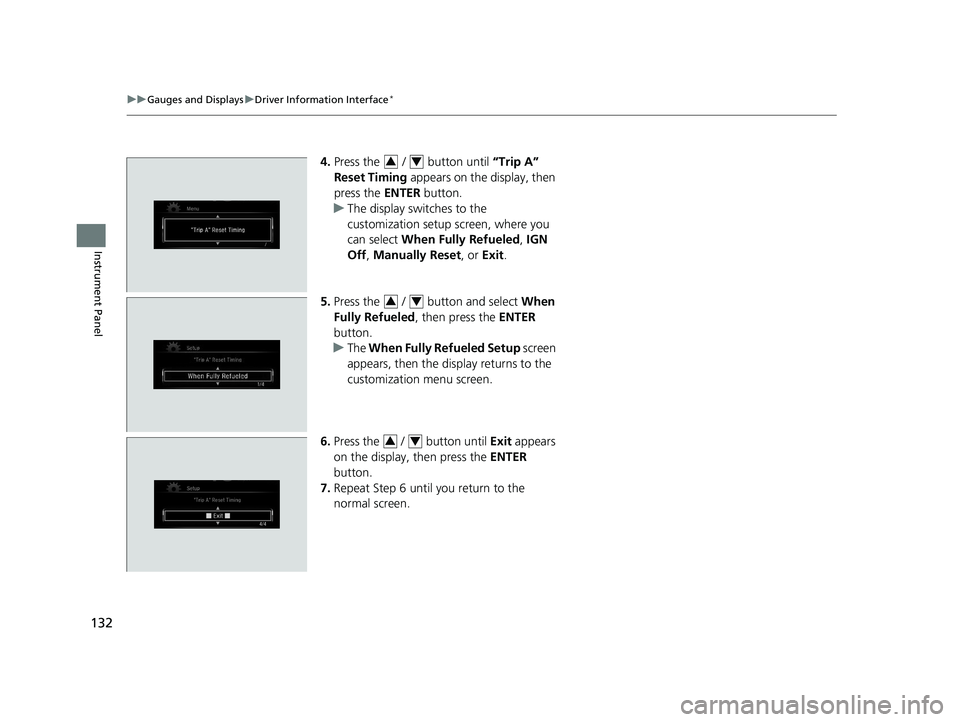

4. Press the / button until “Trip A”
Reset Timing appears on the display, then
press the ENTER button.
u The display switches to the
customization setup screen, where you
can select When Fully Refueled , IGN
Off , Manually Reset , or Exit.
5. Press the / button and select When
Fully Refueled , then press the ENTER
button.
u The When Fully Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
normal screen.34
34
34
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 132 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

133

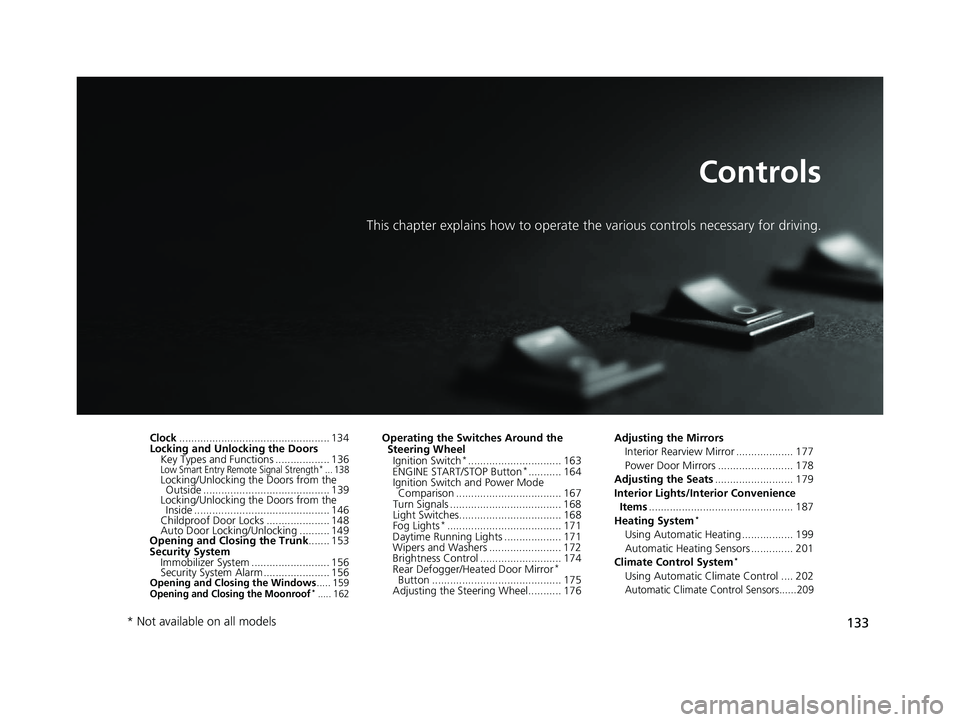

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 134
Locking and Unlocking the Doors Key Types and Functions .................. 136
Low Smart Entry Remote Signal Strength*... 138Locking/Unlocking the Doors from the Outside .......................................... 139
Locking/Unlocking the Doors from the Inside ............................................. 146
Childproof Door Locks ..................... 148
Auto Door Locking/Unlocking .......... 149
Opening and Closing the Trunk ....... 153
Security System Immobilizer System .......................... 156
Security System Alarm ...................... 156
Opening and Closing the Windows ..... 159Opening and Closing the Moonroof*..... 162
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 163
ENGINE START/STOP Button*........... 164
Ignition Switch and Power Mode Comparison ................................... 167
Turn Signals ..................................... 168
Light Switches.................................. 168
Fog Lights
*...................................... 171
Daytime Running Lights ................... 171
Wipers and Washers ........................ 172
Brightness Control ........................... 174
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 175
Adjusting the Steering Wheel........... 176 Adjusting the Mirrors
Interior Rearview Mirror ................... 177
Power Door Mirrors ......................... 178
Adjusting the Seats .......................... 179
Interior Lights/Interior Convenience Items ................................................ 187
Heating System
*
Using Automatic Heating ................. 199
Automatic Heating Sensors .............. 201
Climate Control System
*
Using Automatic Climate Control .... 202
Automatic Climate Control Sensors......209
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 133 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

134
Controls

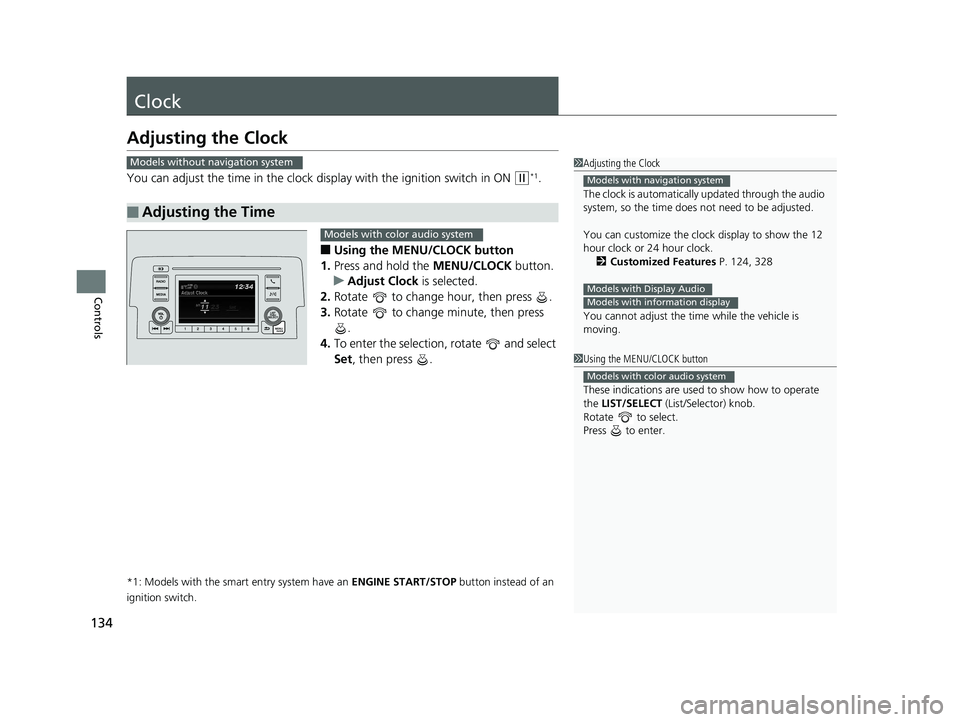

Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 124, 328
You cannot adjust the time while the vehicle is
moving.
Models with navigation system
Models with Display AudioModels with information display
Models without navigation system
1 Using the MENU/CLOCK button
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 134 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

135
uuClock uAdjusting the Clock
Controls
■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
Models with Display Audio1Using the Settings menu on the audio/information screen
You can turn the clock display on and off.
2 Customized Features P. 328
The clock is automatica lly updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment.
3. Select or to change hour.
4. Select or to change minute, then select OK.
3434
VOL
HOME
MENUBACK
AUDIO
34
34
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 135 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

136
Controls

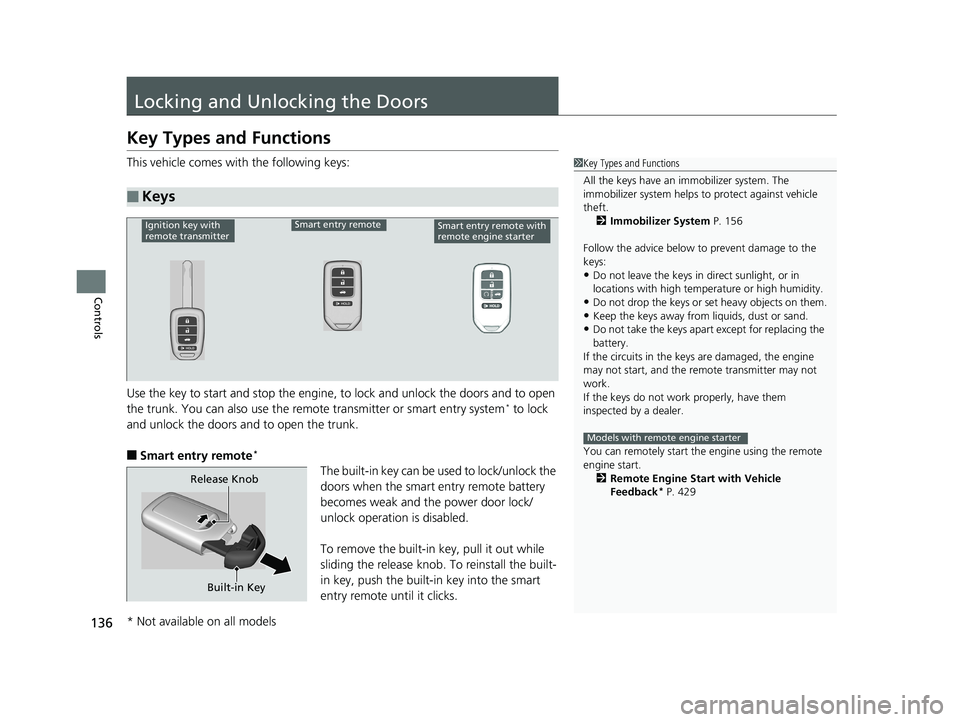

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, to lock and unlock the doors and to open
the trunk. You can also use the remote transmitter or smart entry system
* to lock
and unlock the doors and to open the trunk.
■Smart entry remote*
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 156
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust or sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start. 2 Remote Engine Start with Vehicle
Feedback
* P. 429
Models with remote engine starter
Ignition key with
remote transmitterSmart entry remoteSmart entry remote with
remote engine starter
Built-in Key
Release Knob
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 136 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

137
uuLocking and Unlocking the Doors uKey Types and Functions
Controls

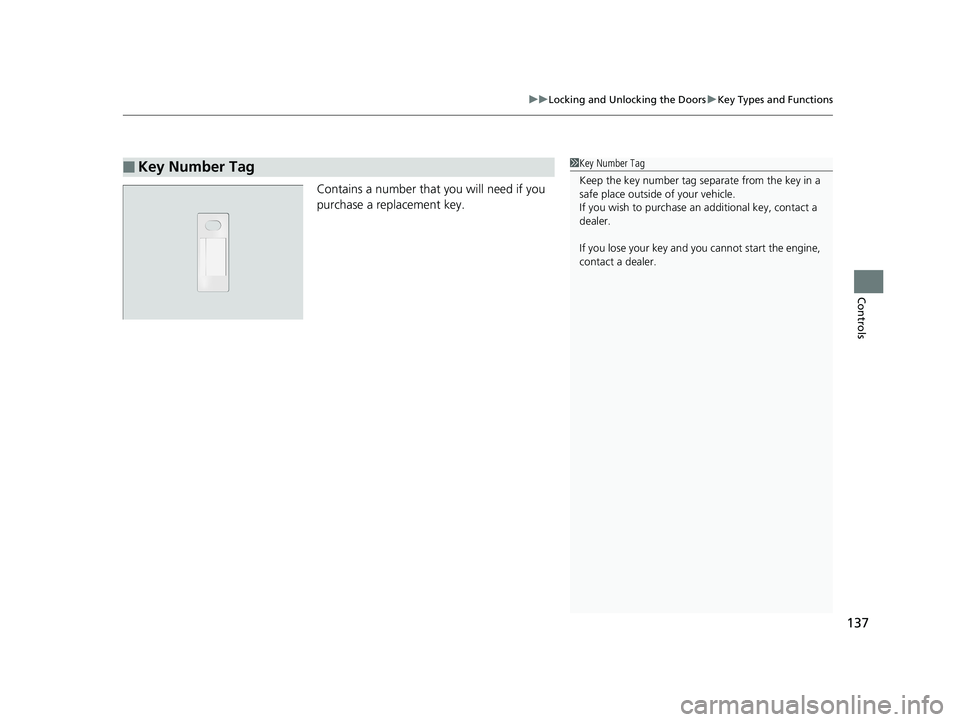

Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 137 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

138
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls

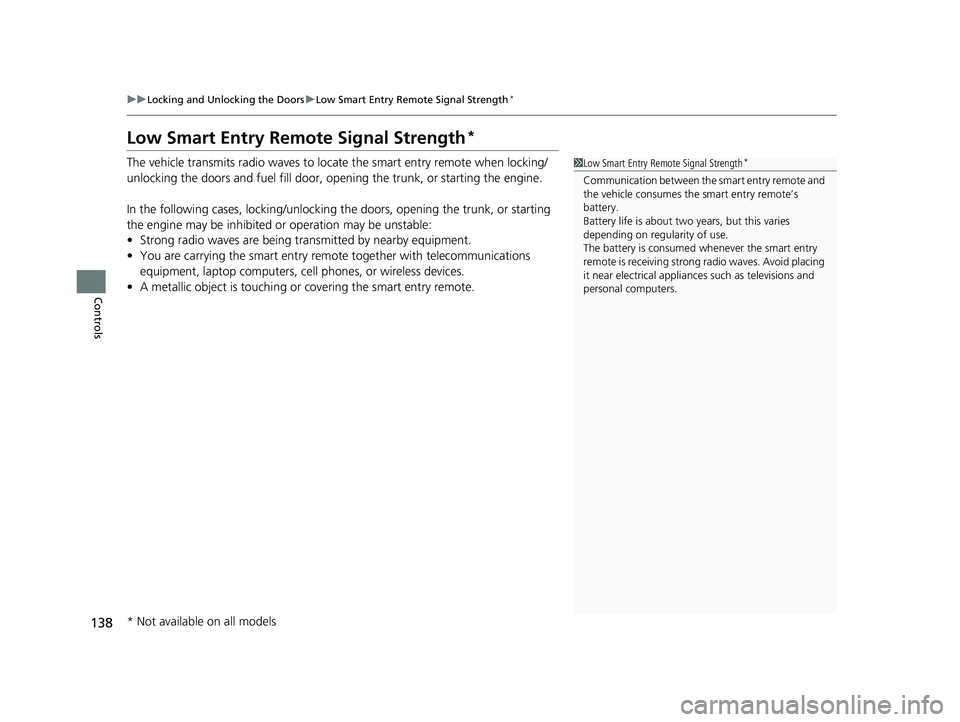

Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors and fuel fill door, opening the trunk, or starting the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
