HONDA CIVIC SEDAN 2017 Owner's Manual (in English)

149
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

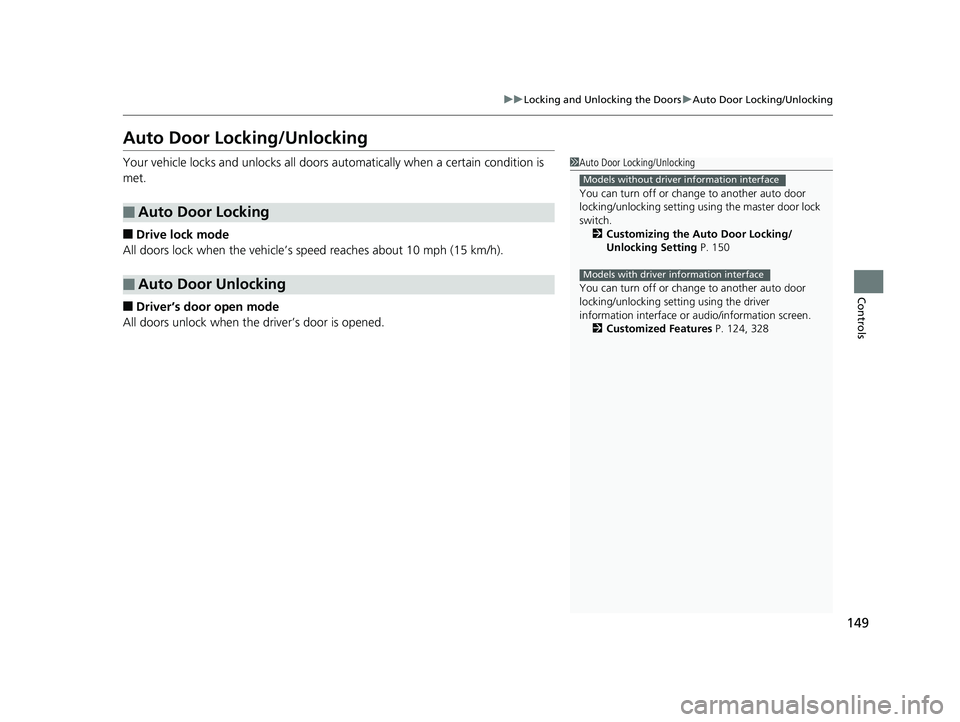

Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors automatically when a certain condition is
met.
■Drive lock mode
All doors lock when the vehicle’s sp eed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting P. 150
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the driver
information interface or audio/information screen.
2 Customized Features P. 124, 328
Models without driver information interface
Models with driver information interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 149 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

150
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls

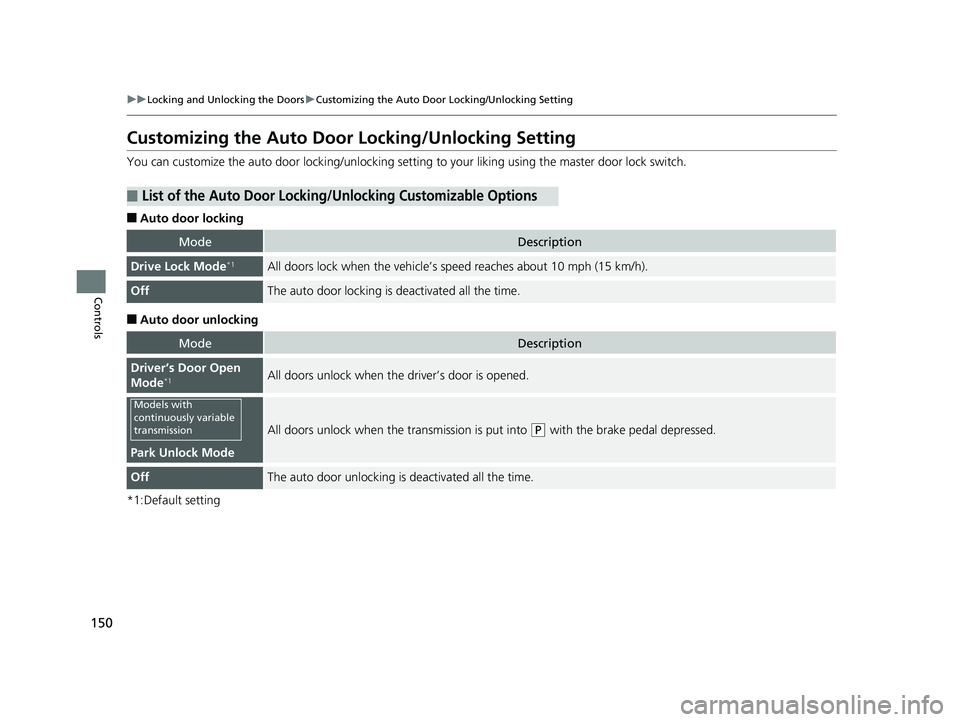

Customizing the Auto Door Locking/Unlocking Setting
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1:Default setting
■List of the Auto Door Locking/ Unlocking Customizable Options
ModeDescription
Drive Lock Mode*1All doors lock when the vehicle’s sp eed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver’s Door Open
Mode*1All doors unlock when the driver’s door is opened.
Park Unlock Mode
All doors unlock when the transmission is put into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
Models with
continuously variable
transmission
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 150 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

151
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Continued
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting

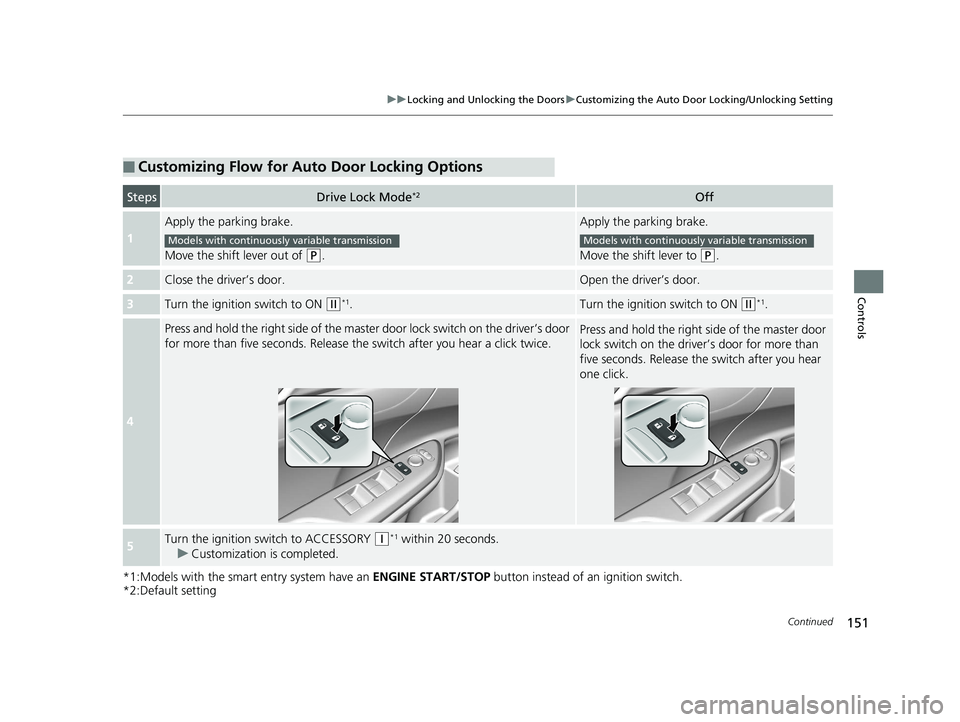

■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*2Off
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON (w*1.
4
Press and hold the right side of the master door lock switch on the driver’s door
for more than five seconds. Release th e switch after you hear a click twice.Press and hold the right side of the master door
lock switch on the driver’s door for more than
five seconds. Release the switch after you hear
one click.
5Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
Models with continuously variable transmissionModels with continuously variable transmission
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 151 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

152
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting

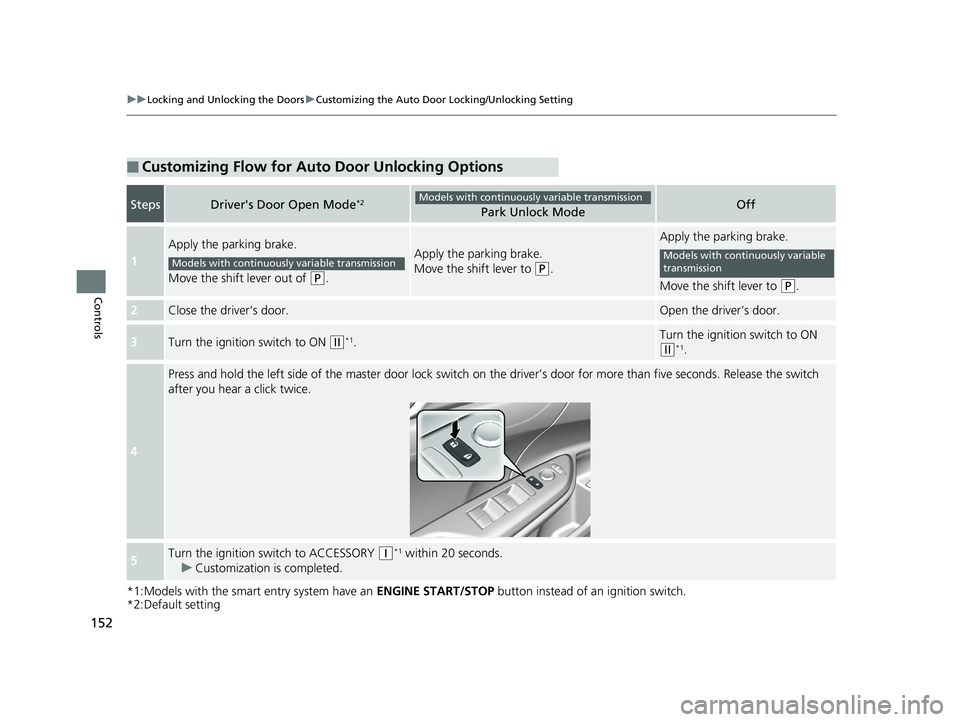

■Customizing Flow for Auto Door Unlocking Options
StepsDriver's Door Open Mode*2Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON
(w*1.
4
Press and hold the left side of the master door lock switch on the driver’s door for more than five seconds. Release the switch
after you hear a click twice.
5Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
Models with continuously variable transmission
Models with continuously variable transmissionModels with continuously variable
transmission
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 152 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

153
Controls

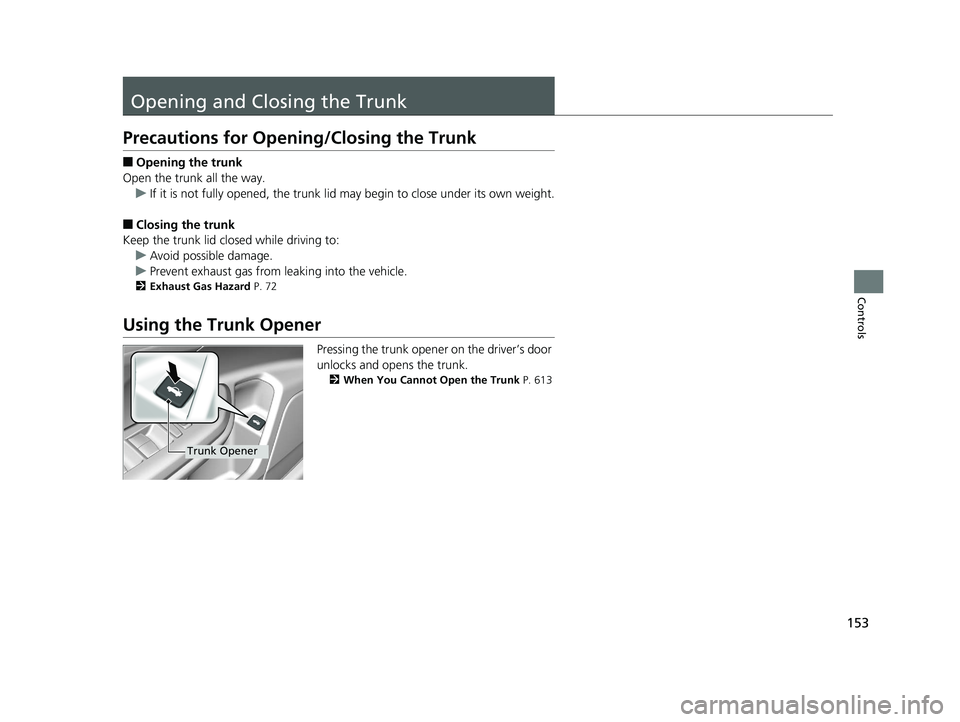

Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 72
Using the Trunk Opener
Pressing the trunk opener on the driver’s door
unlocks and opens the trunk.
2When You Cannot Open the Trunk P. 613
Trunk Opener
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 153 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

154
uuOpening and Closing the Trunk uUsing the Trunk Release Button*
Controls

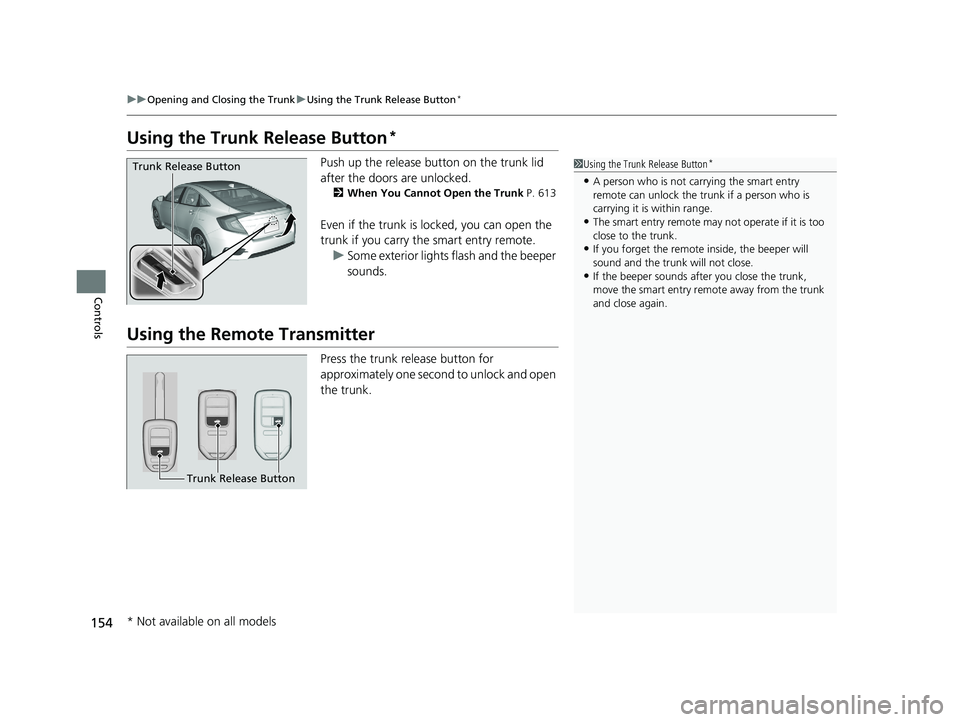

Using the Trunk Release Button*
Push up the release button on the trunk lid
after the doors are unlocked.
2When You Cannot Open the Trunk P. 613
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
u Some exterior lights flash and the beeper
sounds.
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button*
•A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
•The smart entry remote may not operate if it is too
close to the trunk.
•If you forget the remote inside, the beeper will
sound and the trunk will not close.
•If the beeper sounds after you close the trunk,
move the smart entry remote away from the trunk
and close again.
Trunk Release Button
Trunk Release Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 154 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

155
uuOpening and Closing the Trunk uEmergency Trunk Opener
Controls

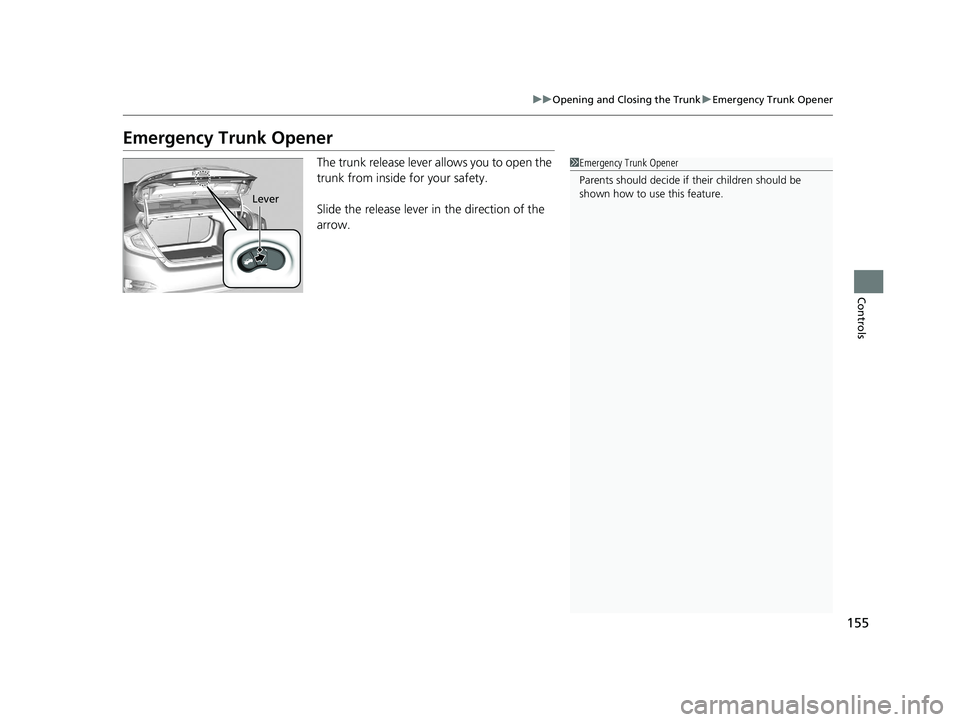

Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 155 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

156
Controls

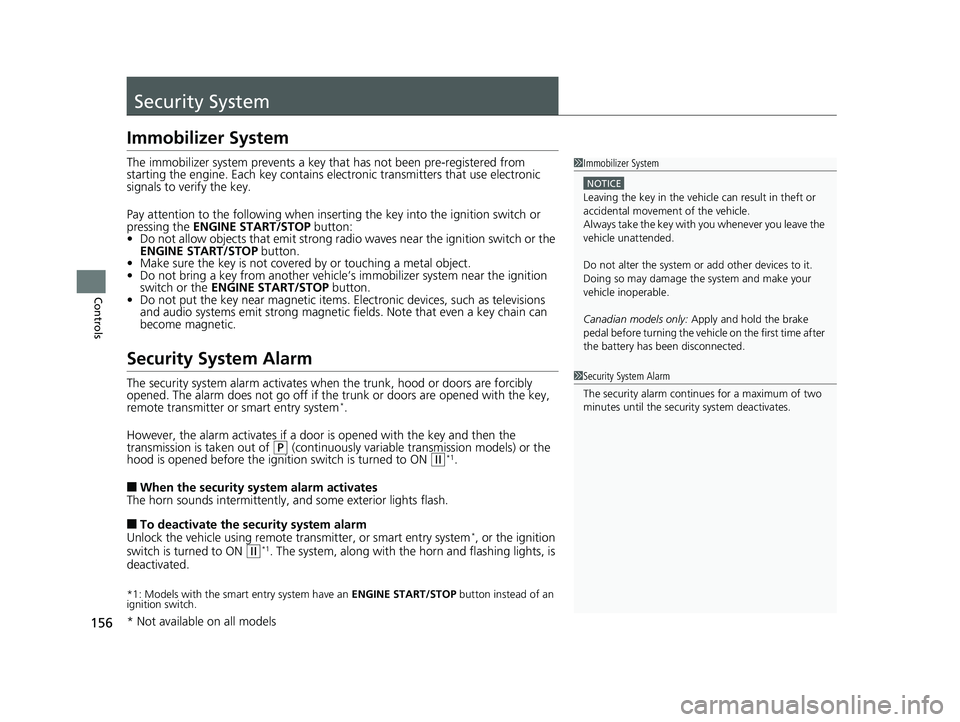

Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains el ectronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserti ng the key into the ignition switch or
pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ignition switch or the
ENGINE START/STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from anot her vehicle’s immobilizer system near the ignition
switch or the ENGINE START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates wh en the trunk, hood or doors are forcibly
opened. The alarm does not go off if the trunk or doors are opened with the key,
remote transmitter or smart entry system
*.
However, the alarm activates if a door is opened with the key and then the
transmission is taken out of
(P (continuously variable transmission models) or the
hood is opened before the ignition switch is turned to ON (w*1.
■When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using remote transmitter, or smart entry system*, or the ignition
switch is turned to ON
(w*1. The system, along with the horn and flashing lights, is
deactivated.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1 Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 156 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

Continued157
uuSecurity System uSecurity System Alarm
Controls

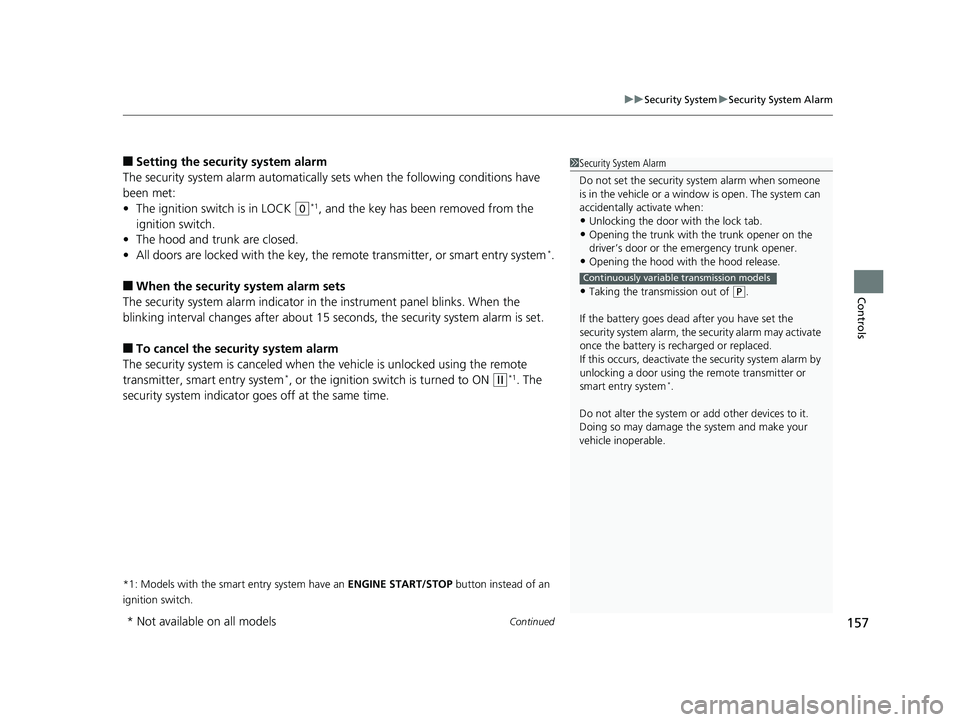

■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK
(0*1, and the key has been removed from the
ignition switch.
• The hood and trunk are closed.
• All doors are locked with the key, the remote transmitter, or smart entry system
*.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■To cancel the security system alarm
The security system is canc eled when the vehicle is unlocked using the remote
transmitter, smart entry system
*, or the ignition swit ch is turned to ON (w*1. The
security system indicator go es off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk opener on the
driver’s door or the emergency trunk opener.
•Opening the hood with the hood release.
•Taking the transmission out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may activate
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
smart entry system
*.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Continuously variable transmission models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 157 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分

158
uuSecurity System uSecurity System Alarm
Controls

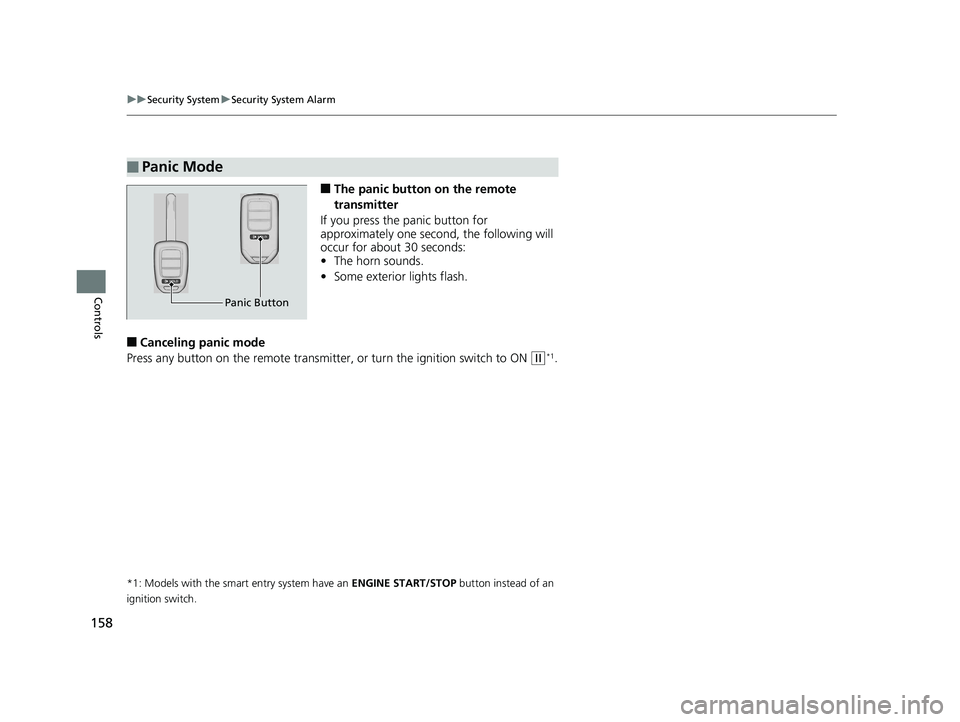

■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON
(w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Panic Mode
Panic Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 158 ページ ２０１８年１０月２５日　木曜日　午前１１時５６分
