HONDA CIVIC SEDAN 2019 Owner's Manual (in English)

329
uuGeneral Information on the Audio System uLicense Information
Features

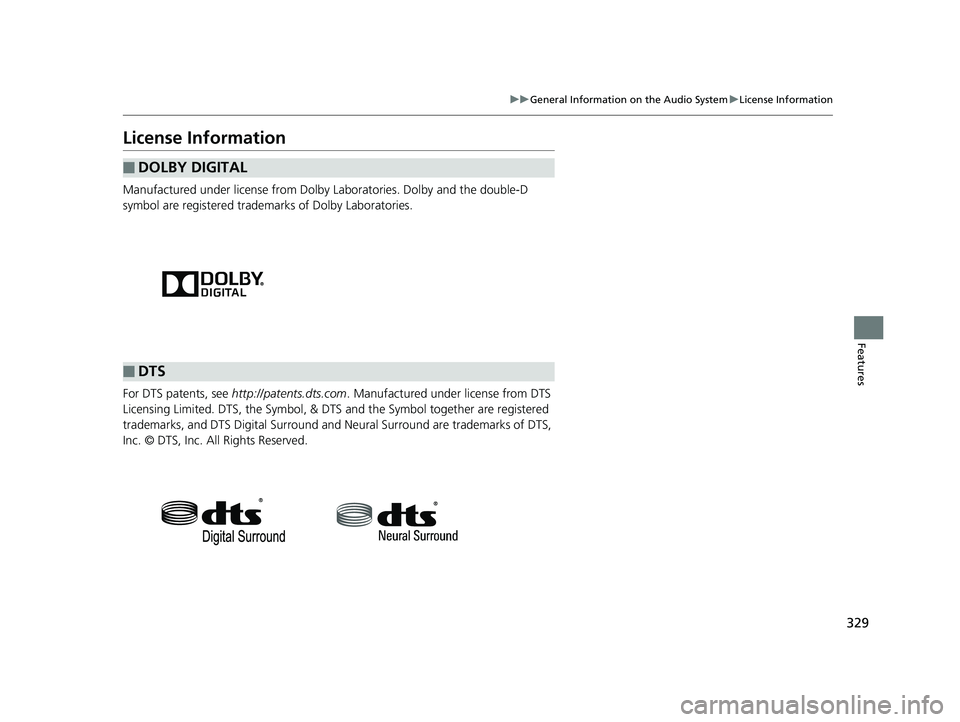

License Information
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are registered tradema rks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com . Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Digital Surround and Neural Surround are trademarks of DTS,
Inc. © DTS, Inc. All Rights Reserved.
■DOLBY DIGITAL
■DTS
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 329 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

330
Features

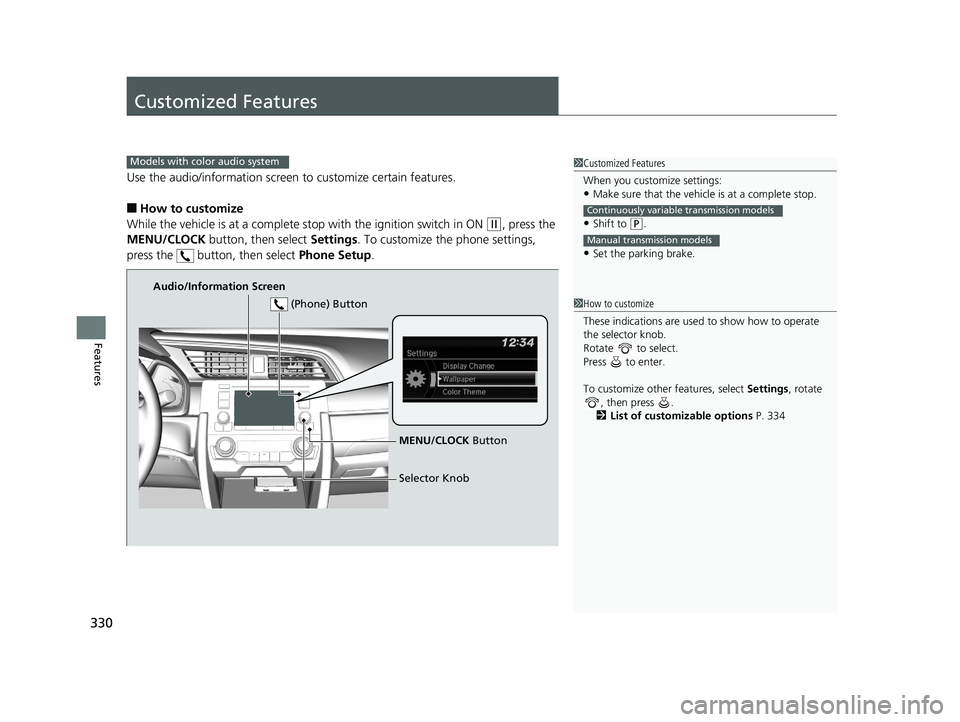

Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete stop with the igniti on switch in ON
(w, press the
MENU/CLOCK button, then select Settings. To customize the phone settings,
press the button, then select Phone Setup.
1Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
Continuously variable transmission models
Manual transmission models
Models with color audio system
1 How to customize
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To customize other features, select Settings, rotate
, then press .
2 List of customizable options P. 334
Audio/Information Screen
MENU/CLOCK Button
Selector Knob
(Phone) Button
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 330 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

331
uuCustomized Features u
Continued
Features

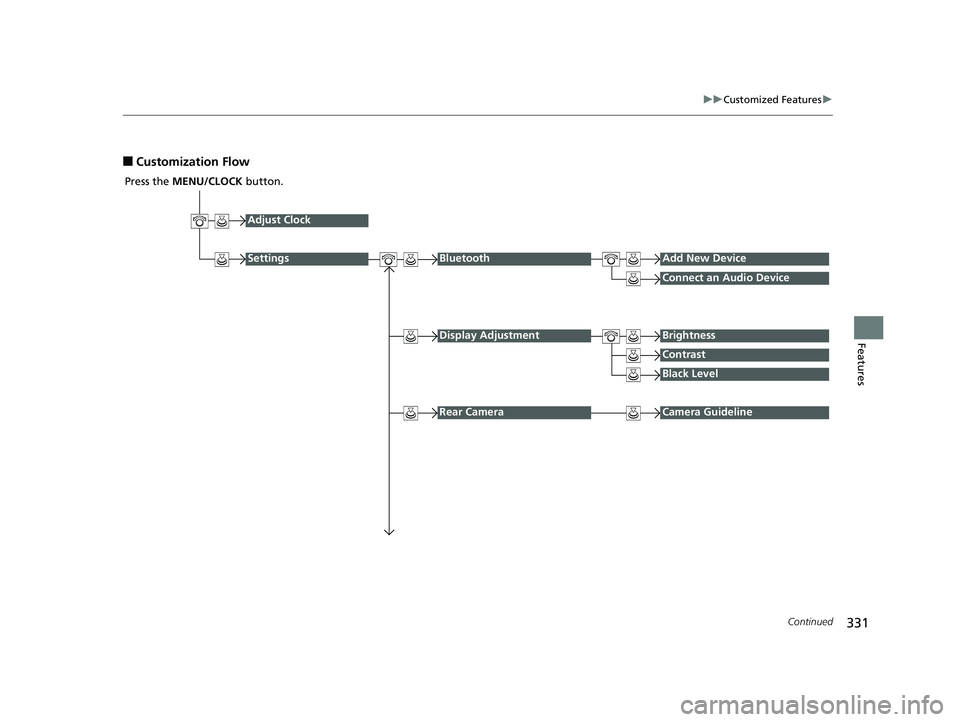

■Customization Flow
Press the MENU/CLOCK button.
Adjust Clock
SettingsBluetoothAdd New Device
Connect an Audio Device
Display AdjustmentBrightness
Contrast
Black Level
Rear CameraCamera Guideline
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 331 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

332
uuCustomized Features u
Features

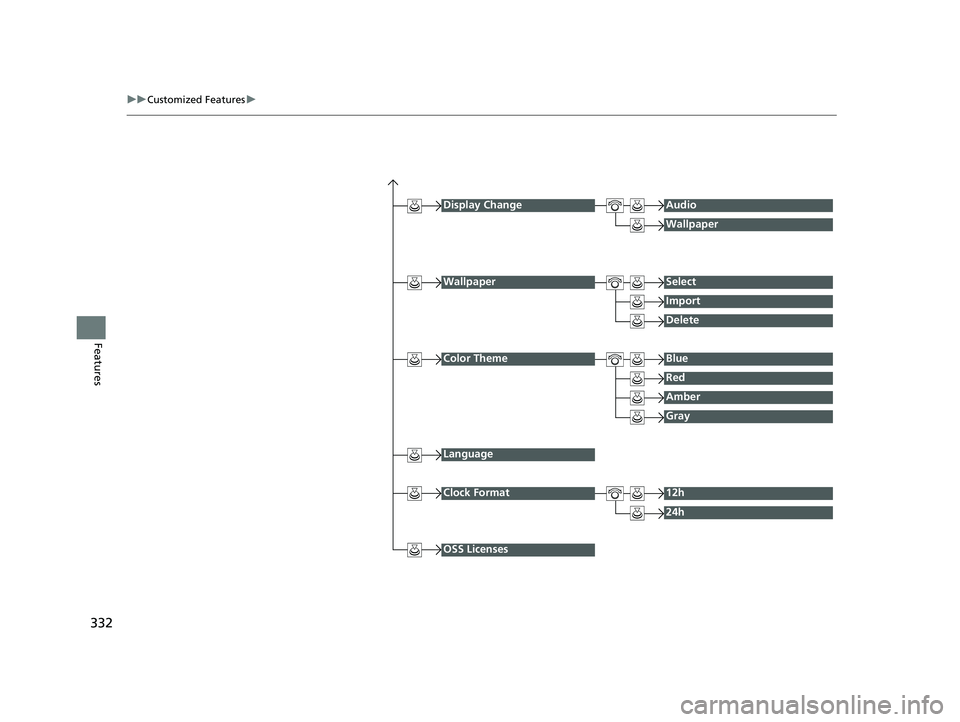

Display ChangeAudio
Wallpaper
WallpaperSelect
Import
Delete
Color ThemeBlue
Red
Amber
Gray
Language
Clock Format12h
24h
OSS Licenses
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 332 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

333
uuCustomized Features u
Continued
Features

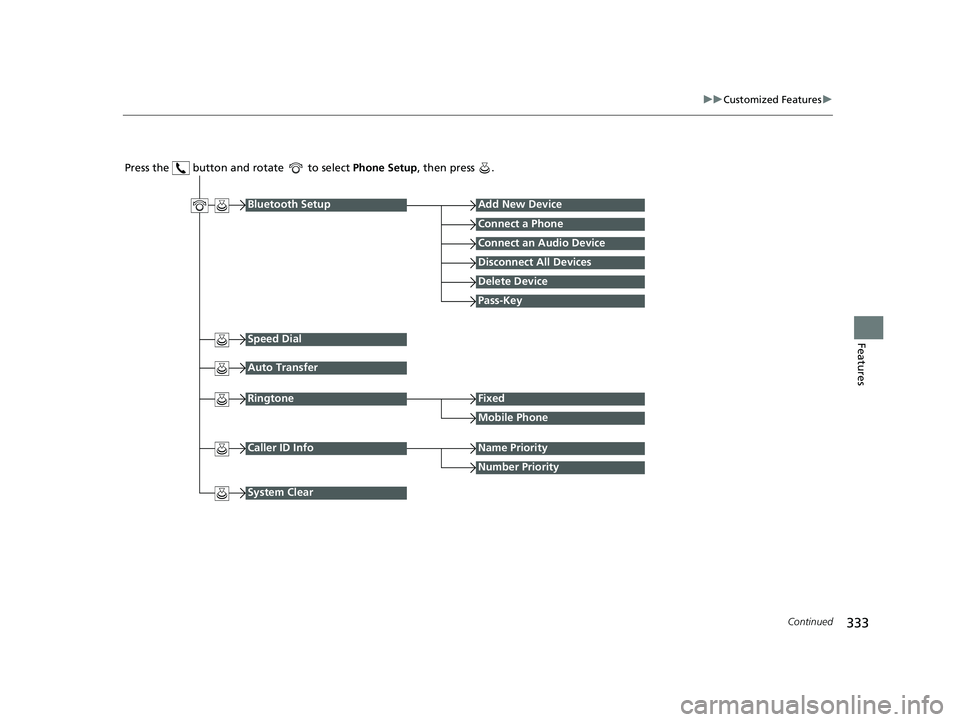

Press the button and rotate to select Phone Setup, then press .
RingtoneFixed
Mobile Phone
Bluetooth SetupAdd New Device
Connect a Phone
Connect an Audio Device
Disconnect All Devices
Delete Device
Pass-Key
Speed Dial
Caller ID InfoName Priority
Number Priority
System Clear
Auto Transfer
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 333 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

334
uuCustomized Features u
Features

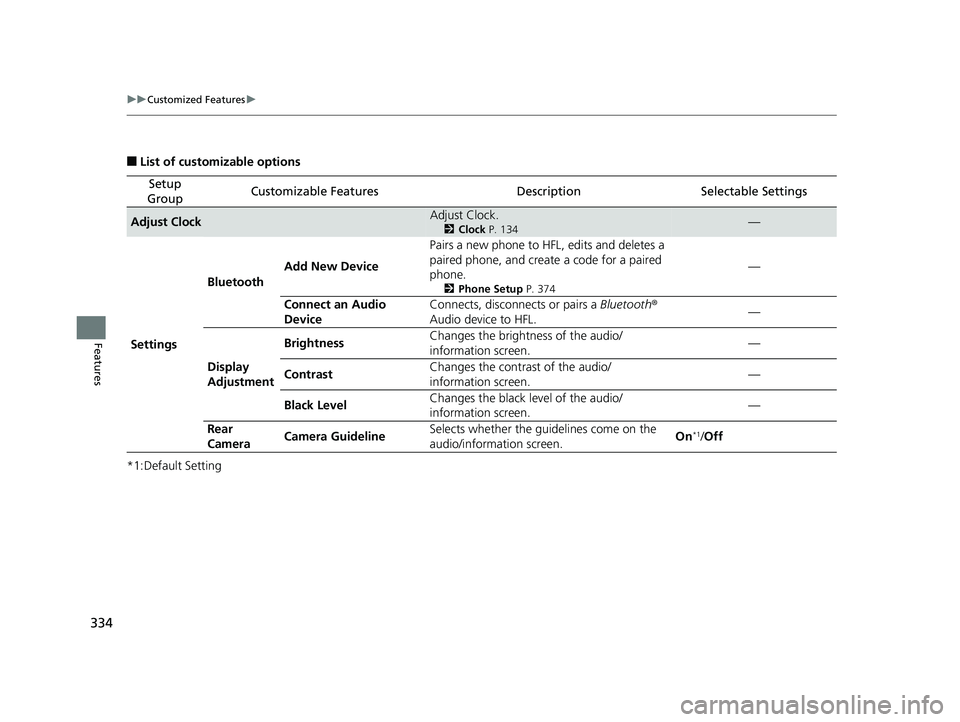

■List of customizable options
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Adjust ClockAdjust Clock.
2 Clock P. 134—
Settings Bluetooth
Add New Device Pairs a new phone to HFL, edits and deletes a
paired phone, and create a code for a paired
phone.
2
Phone Setup P. 374
—
Connect an Audio
Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Display
Adjustment Brightness
Changes the brightness of the audio/
information screen.
—
Contrast Changes the contrast of the audio/
information screen. —
Black Level Changes the black level of the audio/
information screen. —
Rear
Camera Camera Guideline Selects whether the guidelines come on the
audio/information screen.
On
*1/
Off
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 334 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

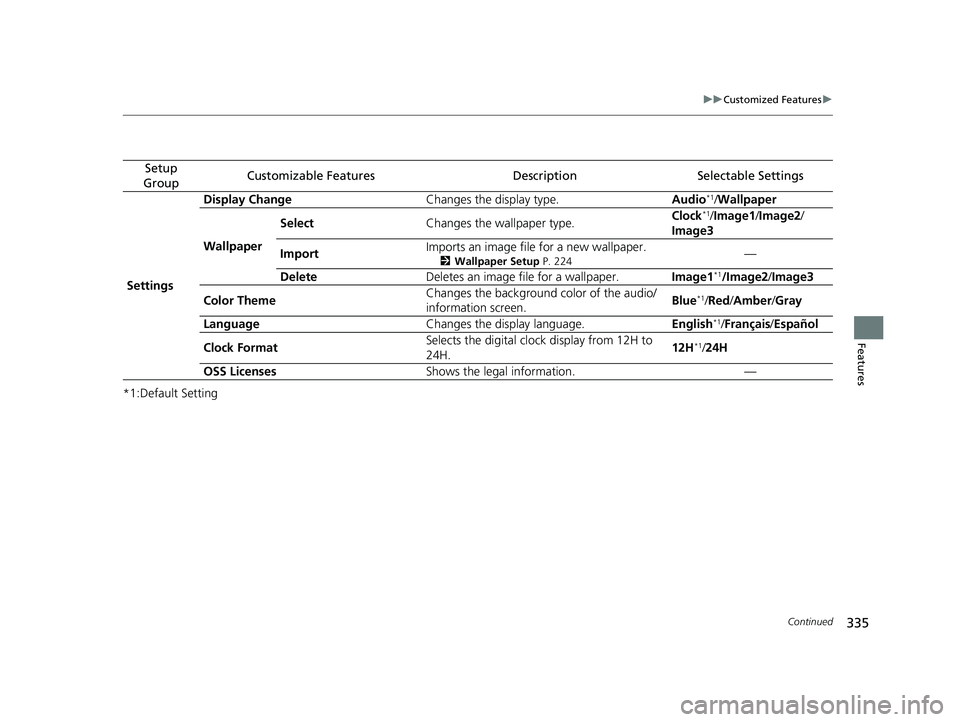

335
uuCustomized Features u
Continued
Features
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Settings Display Change
Changes the display type. Audio
*1/Wallpaper
Wallpaper Select
Changes the wallpaper type. Clock*1/
Image1 /Image2/
Import Imports an image file for a new wallpaper.
2
Wallpaper Setup P. 224—
Delete Deletes an image file for a wallpaper. Image1
*1/Image2/Image3
Color Theme Changes the background color of the audio/
information screen.
Blue
*1/
Red /Amber /Gray
Language Changes the display language. English
*1/Français /Español
Clock Format Selects the digital clock display from 12H to
24H. 12H
*1/
24H
OSS Licenses Shows the legal information. —
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 335 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

336
uuCustomized Features u
Features

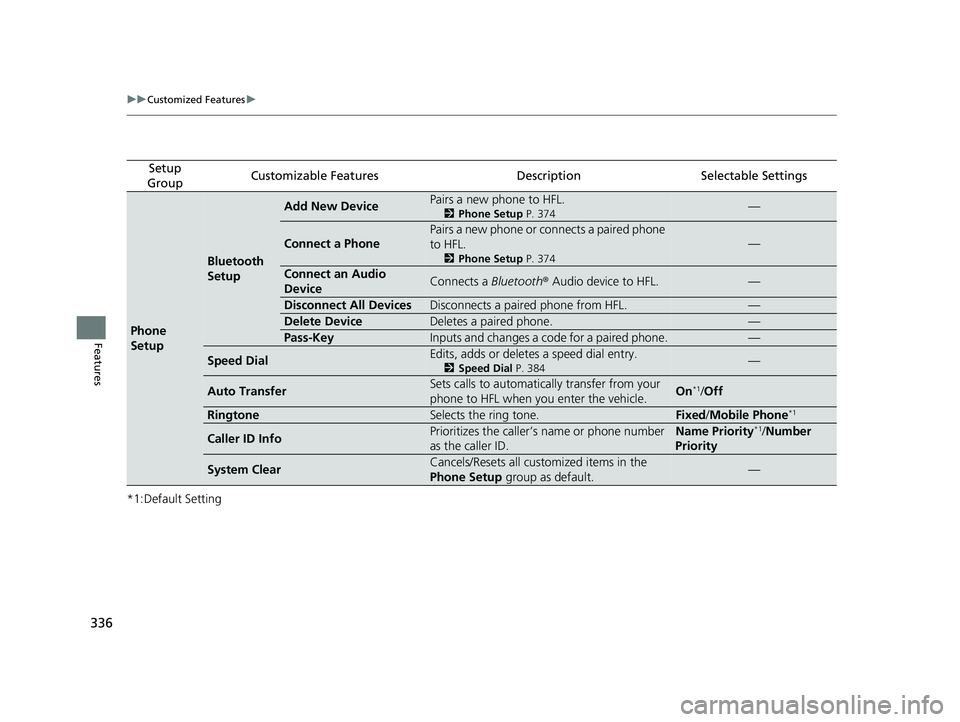

*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Phone
Setup
Bluetooth
Setup
Add New DevicePairs a new phone to HFL.
2 Phone Setup P. 374—
Connect a Phone
Pairs a new phone or connects a paired phone
to HFL.
2Phone Setup P. 374
—
Connect an Audio
DeviceConnects a Bluetooth® Audio device to HFL.—
Disconnect All DevicesDisconnects a paired phone from HFL.—
Delete DeviceDeletes a paired phone.—
Pass-KeyInputs and changes a code for a paired phone.—
Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 384—
Auto TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.On*1/Off
RingtoneSelects the ring tone.Fixed /Mobile Phone*1
Caller ID InfoPrioritizes the caller’s name or phone number
as the caller ID.Name Priority*1/Number
Priority
System ClearCancels/Resets all customized items in the
Phone Setup group as default.—
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 336 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

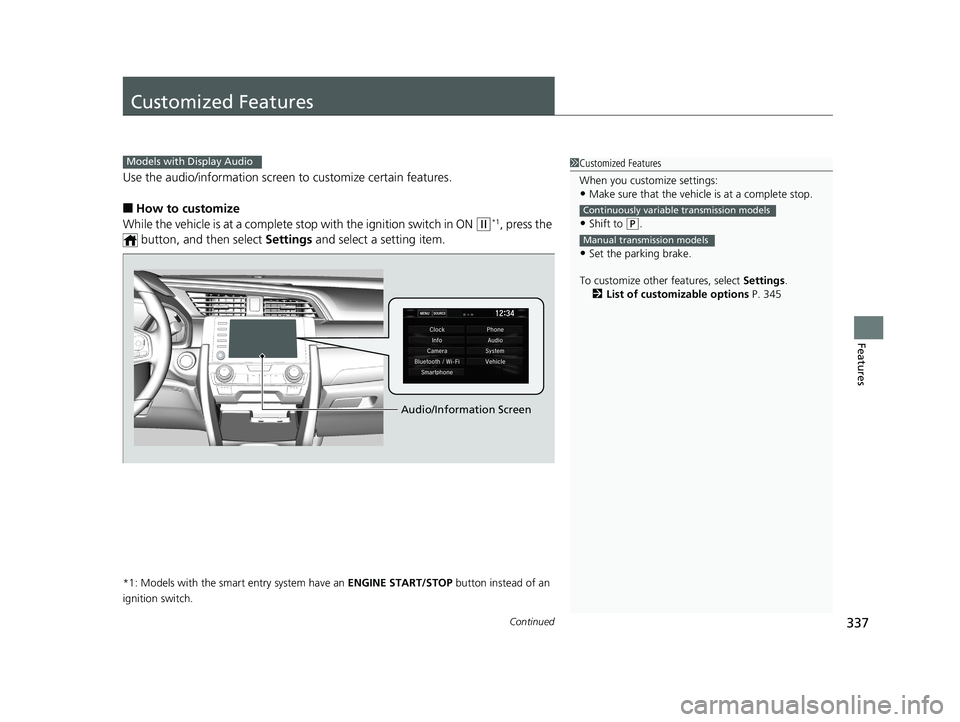

337Continued
Features
Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete st op with the ignition switch in ON
(w*1, press the
button, and then select Settings and select a setting item.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
To customize other features, select Settings.
2 List of customizable options P. 345
Continuously variable transmission models
Manual transmission models
Models with Display Audio
Audio/Information Screen
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 337 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

338
uuCustomized Features u
Features

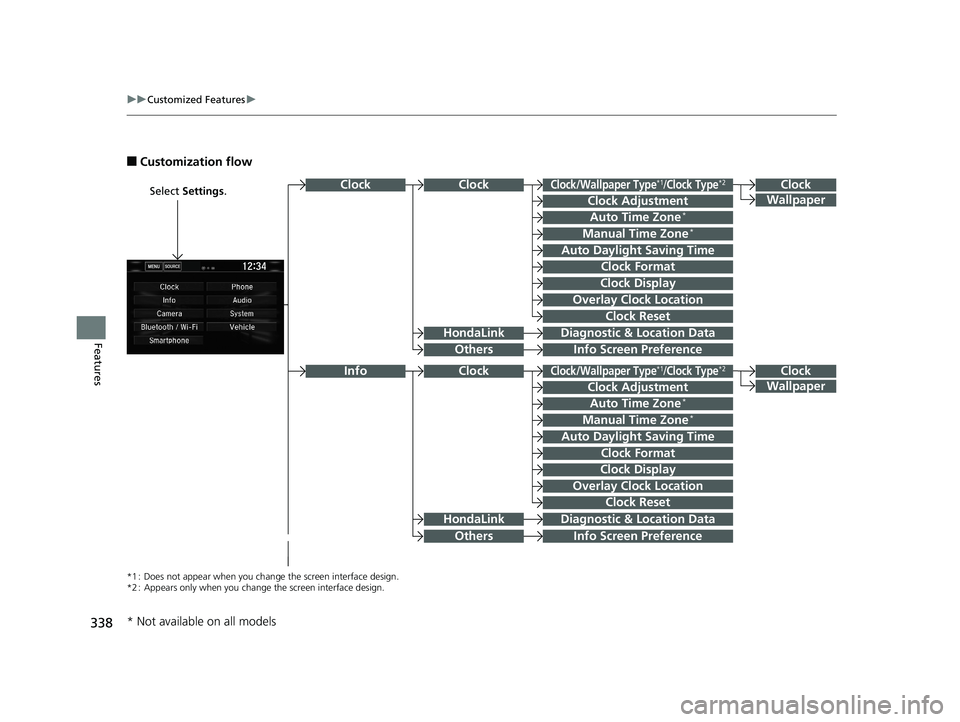

■Customization flow
Select Settings.Clock
Wallpaper
Others
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
ClockClock
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Clock
Wallpaper
Others
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
Clock
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Info
HondaLinkDiagnostic & Location Data
HondaLinkDiagnostic & Location Data
*1 : Does not appear when you chan ge the screen interface design.
*2 : Appears only when you change the screen interface design.
* Not available on all models
