HONDA CIVIC SEDAN 2020 Owner's Manual (in English)

449
uuWhen Driving uShifting
Driving

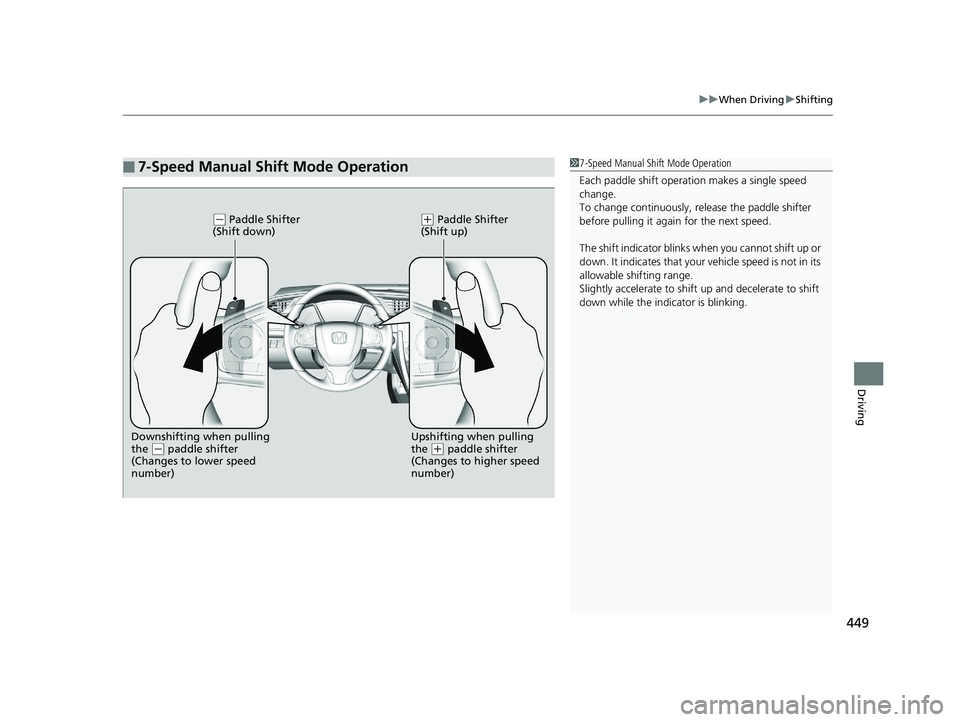

■7-Speed Manual Shift Mode Operation17-Speed Manual Shift Mode Operation
Each paddle shift operati on makes a single speed
change.
To change continuously, re lease the paddle shifter
before pulling it agai n for the next speed.
The shift indicator blinks when you cannot shift up or
down. It indicates that your vehicle speed is not in its
allowable shifting range.
Slightly accelerate to shift up and decelerate to shift
down while the indi cator is blinking.
(- Paddle Shifter
(Shift down)( + Paddle Shifter
(Shift up)
Downshifting when pulling
the
( - paddle shifter
(Changes to lower speed
number) Upshifting when pulling
the (
+ paddle shifter
(Changes to higher speed
number)
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 449 ページ ２０２０年７月６日　月曜日　午後３時０分

450
uuWhen Driving uShifting
Driving

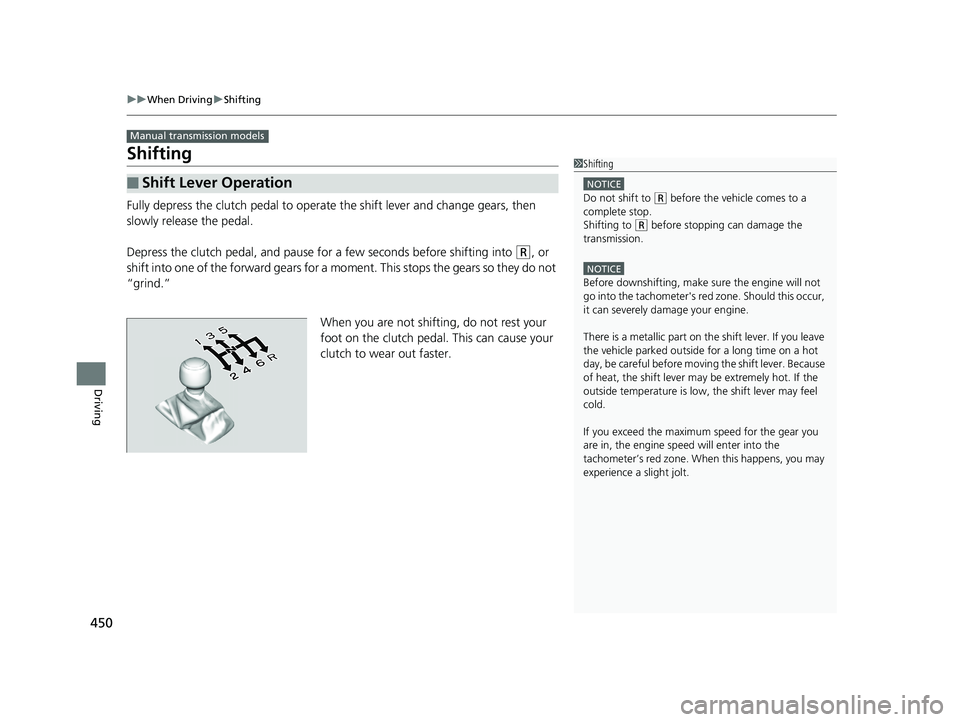

Shifting
Fully depress the clutch pedal to operate the shift lever and change gears, then
slowly release the pedal.
Depress the clutch pedal, and pause for a few seconds before shifting into
(R, or
shift into one of the forward gears for a moment. This stop s the gears so they do not
“grind.”
When you are not shifting, do not rest your
foot on the clutch pedal. This can cause your
clutch to wear out faster.
■Shift Lever Operation
Manual transmission models
1Shifting
NOTICE
Do not shift to (R before the vehicle comes to a
complete stop.
Shifting to
( R before stopping can damage the
transmission.
NOTICE
Before downshifting, make su re the engine will not
go into the tachometer's red zone. Should this occur,
it can severely da mage your engine.
There is a metallic part on the shift lever. If you leave
the vehicle parked outside for a long time on a hot
day, be careful before movi ng the shift lever. Because
of heat, the shift lever may be extremely hot. If the
outside temperature is low, the shift lever may feel
cold.
If you exceed the maximum speed for the gear you
are in, the engine speed will enter into the
tachometer’s red zone. When this happens, you may
experience a slight jolt.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 450 ページ ２０２０年７月６日　月曜日　午後３時０分

Continued451
uuWhen Driving uShifting
Driving

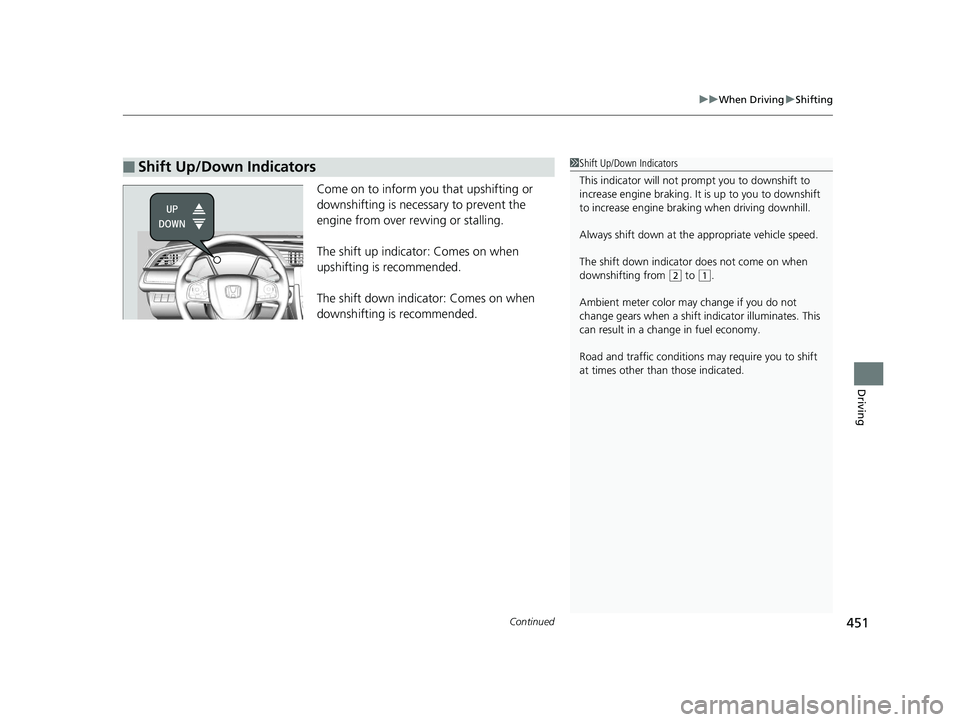

Come on to inform you that upshifting or
downshifting is necessary to prevent the
engine from over revving or stalling.
The shift up indicato r: Comes on when
upshifting is recommended.
The shift down indicator: Comes on when
downshifting is recommended.
■Shift Up/Down Indicators1 Shift Up/Down Indicators
This indicator will not prompt you to downshift to
increase engine br aking. It is up to you to downshift
to increase engine brak ing when driving downhill.
Always shift down at the appropriate vehicle speed.
The shift down indicator does not come on when
downshifting from
( 2 to (1.
Ambient meter color may change if you do not
change gears when a shift i ndicator illuminates. This
can result in a change in fuel economy.
Road and traffic c onditions may require you to shift
at times other than those indicated.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 451 ページ ２０２０年７月６日　月曜日　午後３時０分

452
uuWhen Driving uShifting
Driving

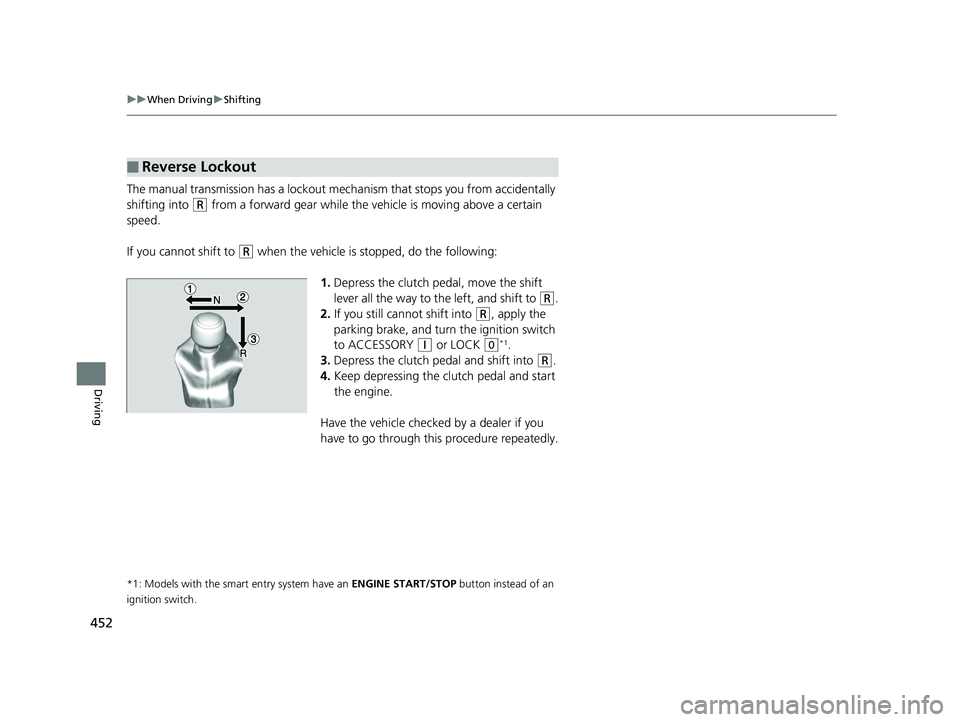

The manual transmission has a lockout mech anism that stops you from accidentally
shifting into
(R from a forward gear while the ve hicle is moving above a certain
speed.
If you cannot shift to
(R when the vehicle is stopped, do the following:
1.Depress the clutch pedal, move the shift
lever all the way to the left, and shift to
(R.
2. If you still cannot shift into
(R, apply the
parking brake, and turn the ignition switch
to ACCESSORY
(q or LOCK (0*1.
3. Depress the clutch pedal and shift into
(R.
4. Keep depressing the clutch pedal and start
the engine.
Have the vehicle checked by a dealer if you
have to go through this procedure repeatedly.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Reverse Lockout
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 452 ページ ２０２０年７月６日　月曜日　午後３時０分

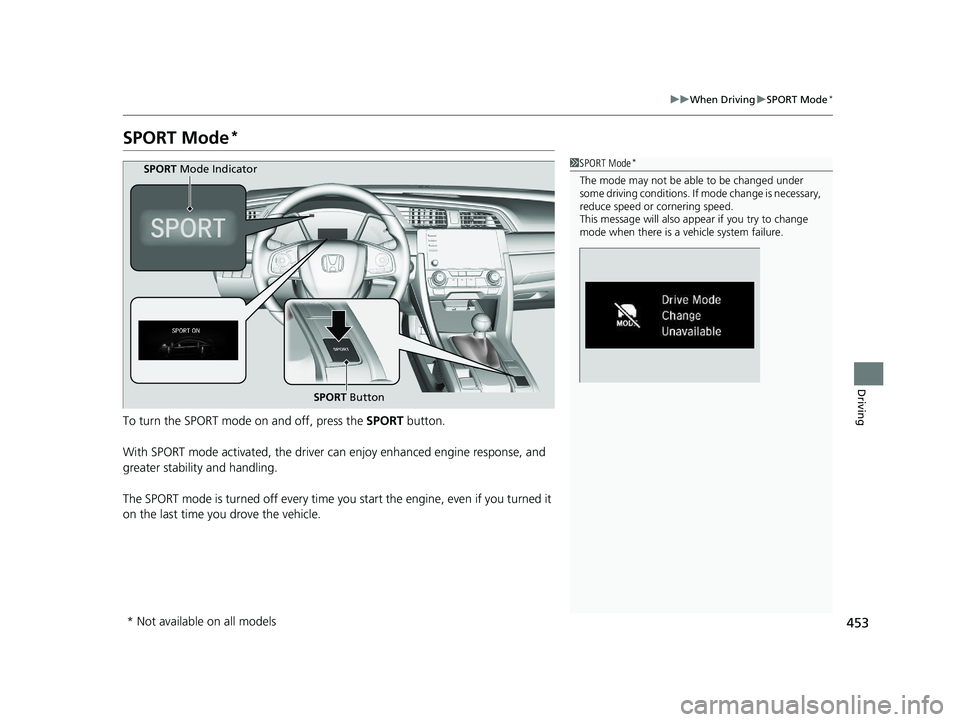

453
uuWhen Driving uSPORT Mode*
Driving
SPORT Mode*
To turn the SPORT mode on and off, press the SPORT button.
With SPORT mode activated, the driver can enjoy enhanced engine response, and
greater stability and handling.
The SPORT mode is turned off every time yo u start the engine, even if you turned it
on the last time you drove the vehicle.
1 SPORT Mode*
The mode may not be able to be changed under
some driving conditions. If mode change is necessary,
reduce speed or cornering speed.
This message will also appear if you try to change
mode when there is a vehicle system failure.
SPORT Button
SPORT
Mode Indicator
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 453 ページ ２０２０年７月６日　月曜日　午後３時０分

454
uuWhen Driving uECON Mode*
Driving

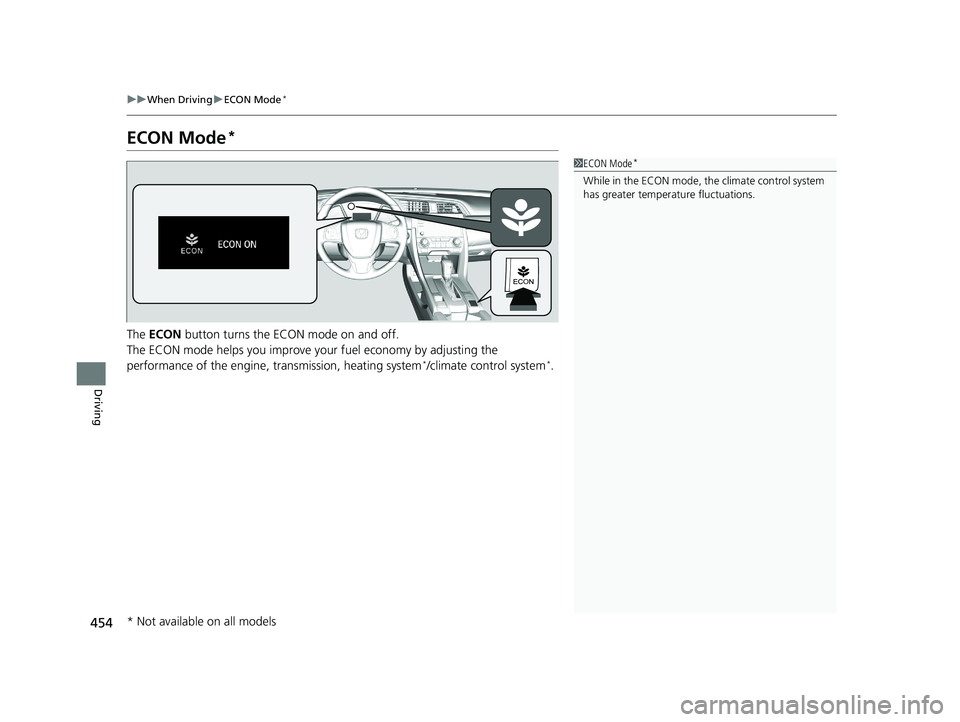

ECON Mode*
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your fuel economy by adjusting the
performance of the engine, transmission, heating system
*/climate control system*.
1 ECON Mode*
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 454 ページ ２０２０年７月６日　月曜日　午後３時０分

455
uuWhen Driving uAdaptive Damper System*
Driving

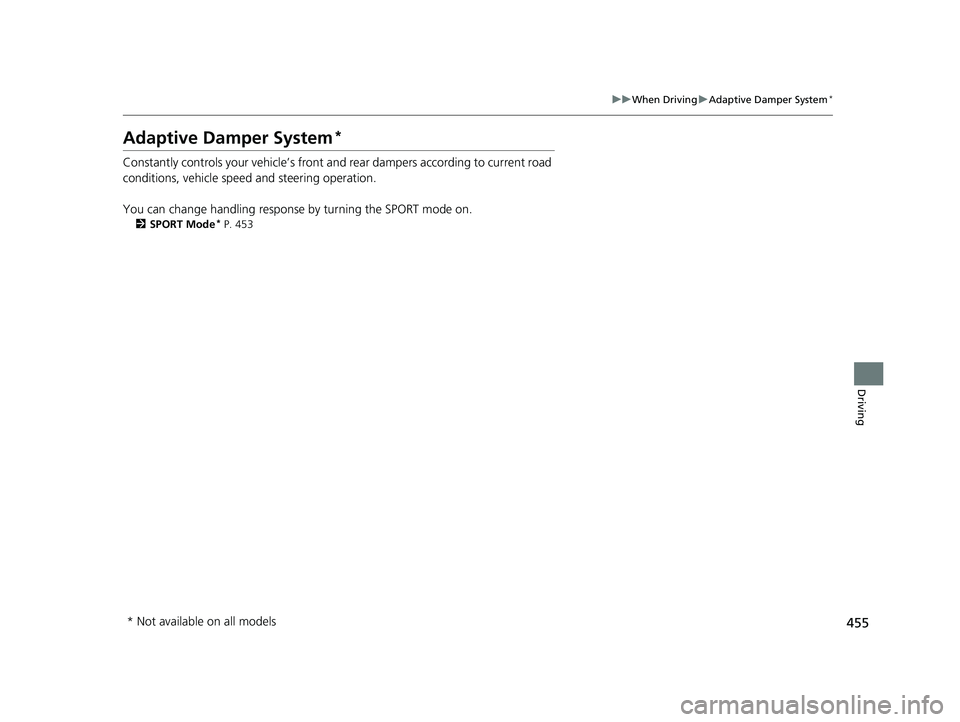

Adaptive Damper System*
Constantly controls your vehicle’s front a nd rear dampers according to current road
conditions, vehicle speed and steering operation.
You can change handling response by turning the SPORT mode on.
2 SPORT Mode* P. 453
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 455 ページ ２０２０年７月６日　月曜日　午後３時０分

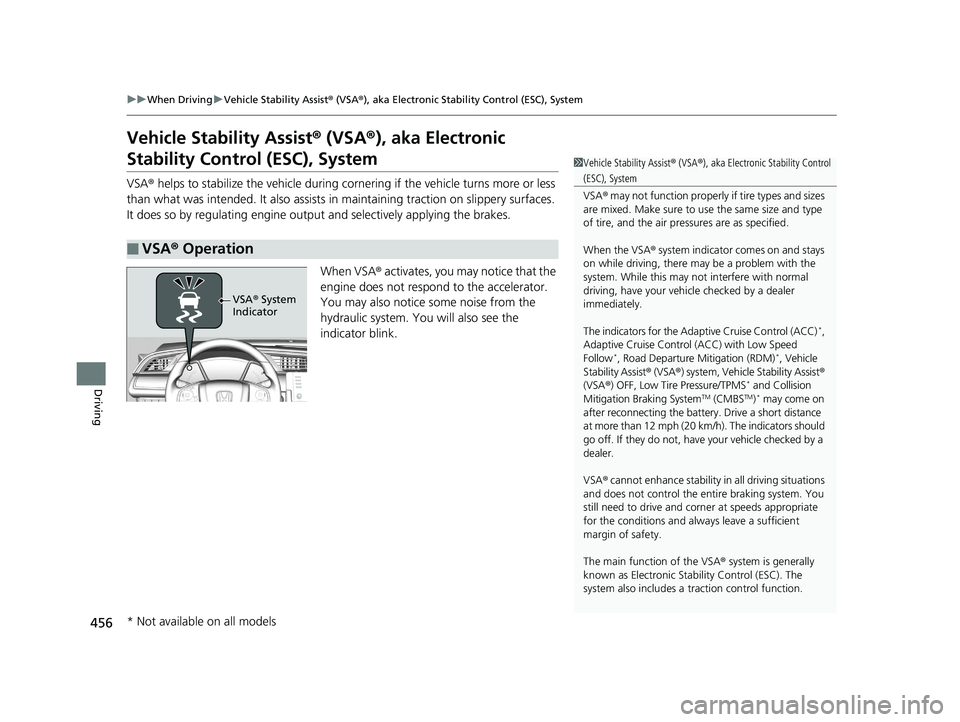

456
uuWhen Driving uVehicle Stability Assist ® (VSA ®), aka Electronic Stability Control (ESC), System
Driving
Vehicle Stability Assist ® (VSA ®), aka Electronic
Stability Control (ESC), System
VSA ® helps to stabilize the vehicle during cornering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine output and selectively applying the brakes.
When VSA® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic system. You will also see the
indicator blink.
■VSA ® Operation
1 Vehicle Stability Assist ® (VSA ®), aka Electronic Stability Control
(ESC), System
VSA ® may not function properly if tire types and sizes
are mixed. Make sure to use the same size and type
of tire, and the air pressures are as specified.
When the VSA ® system indicator comes on and stays
on while driving, there ma y be a problem with the
system. While this may not interfere with normal
driving, have your vehi cle checked by a dealer
immediately.
The indicators for the Adap tive Cruise Control (ACC)
*,
Adaptive Cruise Contro l (ACC) with Low Speed
Follow
*, Road Departure Mitigation (RDM)*, Vehicle
Stability Assist ® (VSA ®) system, Vehicle Stability Assist ®
(VSA ®) OFF, Low Tire Pressure/TPMS
* and Collision
Mitigation Braking SystemTM (CMBSTM)* may come on
after reconnecting the battery. Drive a short distance
at more than 12 mph (20 km/h). The indicators should
go off. If they do not, have your vehicle checked by a
dealer.
VSA ® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.
The main function of the VSA ® system is generally
known as Electronic Stab ility Control (ESC). The
system also includes a traction control function.
VSA® System
Indicator
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 456 ページ ２０２０年７月６日　月曜日　午後３時０分

457
uuWhen Driving uVehicle Stability Assist ® (VSA ®), aka Electronic Stability Control (ESC), System
Driving

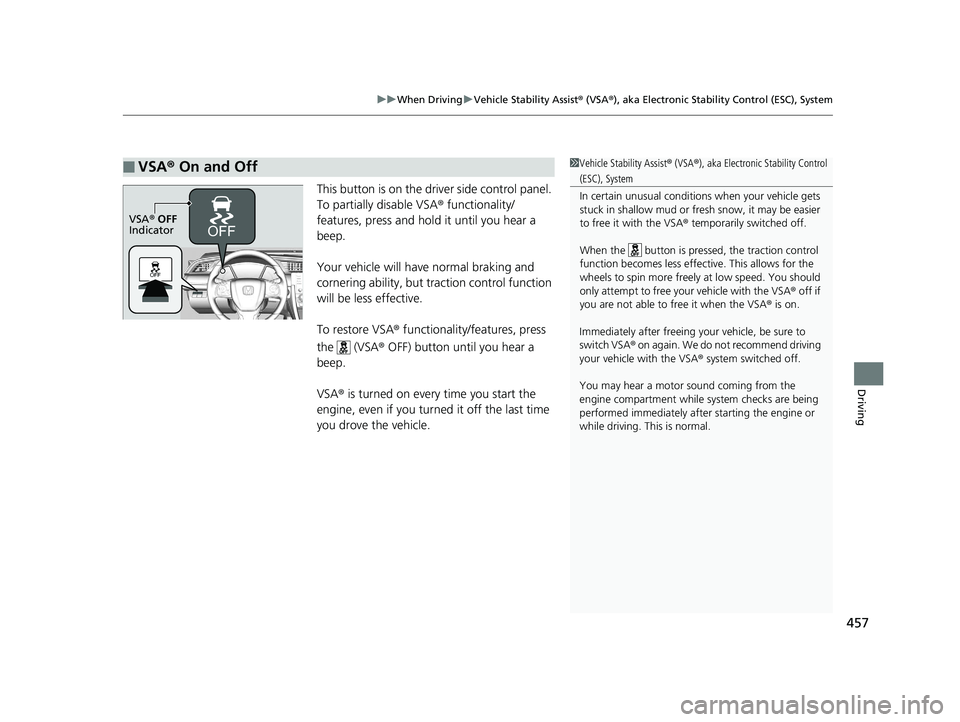

This button is on the driver side control panel.
To partially disable VSA ® functionality/
features, press and hold it until you hear a
beep.
Your vehicle will have normal braking and
cornering ability, but tra ction control function
will be less effective.
To restore VSA ® functionality/features, press
the (VSA ® OFF) button until you hear a
beep.
VSA ® is turned on every time you start the
engine, even if you turned it off the last time
you drove the vehicle.
■VSA ® On and Off1 Vehicle Stability Assist ® (VSA ®), aka Electronic Stability Control
(ESC), System
In certain unusual conditions when your vehicle gets
stuck in shallow mud or fr esh snow, it may be easier
to free it with the VSA ® temporarily switched off.
When the button is pressed, the traction control
function becomes less effective. This allows for the
wheels to spin more freely at low speed. You should
only attempt to free your vehicle with the VSA ® off if
you are not able to free it when the VSA ® is on.
Immediately after freeing your vehicle, be sure to
switch VSA ® on again. We do not recommend driving
your vehicle with the VSA ® system switched off.
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.
VSA ® OFF
Indicator
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 457 ページ ２０２０年７月６日　月曜日　午後３時０分

458
uuWhen Driving uAgile Handling Assist
Driving

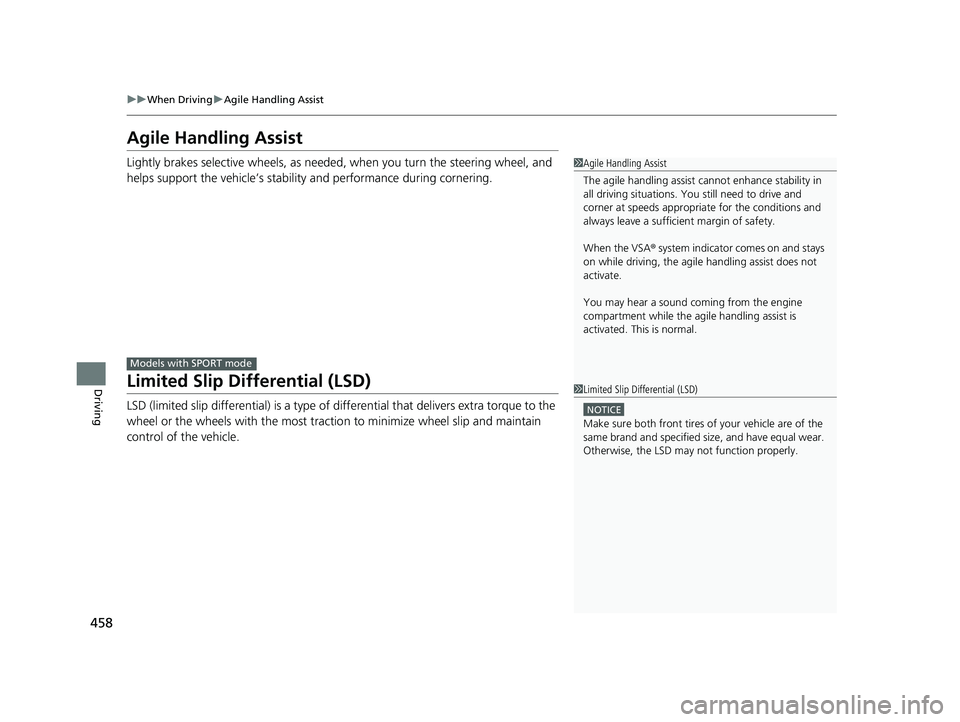

Agile Handling Assist
Lightly brakes selective wheels, as needed , when you turn the steering wheel, and
helps support the vehicle’s stability and performance during cornering.
Limited Slip Differential (LSD)
LSD (limited slip differential) is a type of differential that delivers extra torque to the
wheel or the wheels with the most tractio n to minimize wheel slip and maintain
control of the vehicle.
1 Agile Handling Assist
The agile handling assist ca nnot enhance stability in
all driving situations. You still need to drive and
corner at speeds appropriate for the conditions and
always leave a sufficient margin of safety.
When the VSA ® system indicator comes on and stays
on while driving, the agil e handling assist does not
activate.
You may hear a sound coming from the engine
compartment while the agile handling assist is
activated. This is normal.
Models with SPORT mode
1 Limited Slip Differential (LSD)
NOTICE
Make sure both front tires of your vehicle are of the
same brand and specified si ze, and have equal wear.
Otherwise, the LSD may not function properly.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 458 ページ ２０２０年７月６日　月曜日　午後３時０分
