mirror HONDA CIVIC SEDAN 2020 Owner's Manual (in English)

Contents
Child Safety P. 60Exhaust Gas Hazard P. 73Safety Labels P. 74
Opening and Closing the Trunk P. 150 Security System P. 153 Opening and Closing the Windows P. 156
Adjusting the Mirrors P. 178 Adjusting the Seats P. 180
Heating System
* P. 201 Climate Control System* P. 204
Audio Error Messages P. 309 General Information on the Audio System P. 312
Bluetooth ® HandsFreeLink ® P. 367, 394
When Driving P. 434 Honda Sensing ® P. 467 Braking P. 526 Parki ng Your Vehicle P. 534
Fuel Economy and CO
2 Emissions P. 541 Turbo Engine Vehicle* P. 542
Maintenance Under the Hood P. 553 Replacing Light Bulbs P. 568
Checking and Maintaining Tires P. 580 Battery P. 590 Remote Transmitter Care P. 592
Cleaning P. 595 Accessories and Modifications P. 600
Handling of the Jack P. 624 Engine Does Not Start P. 625 Jump Starting P. 628
Indicator, Coming On/Blinking P. 634 Fuses P. 640Emergency Towing P. 644
When You Cannot Open the Trunk P. 646 Refueling P. 647
Devices that Emit Radio Waves P. 655 Reporting Safety Defects P. 656
Authorized Manuals P. 661 Customer Service Information P. 662
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 75
ControlsP. 133
FeaturesP. 213
DrivingP. 427
MaintenanceP. 543
Handling the UnexpectedP. 603
InformationP. 649
IndexP. 663
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 3 ページ ２０２０年７月６日　月曜日　午後３時０分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P160)
❙ENGINE START/STOP Button*1 (P161)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙System Indicators (P76)
❙Gauges (P111)
❙ (Vehicle Stability Assist ® (VSA ®)
System OFF) Button
(P457)
❙Road Departure Mitigation (RDM)
Button
(P520)
❙Navigation System*
() See Navigation System Manual
❙Audio System (P221, 239)
❙Hazard Warning Button
❙Rear Defogger (P175)
❙Heated Door Mirror Button* (P175)
❙Heating System* (P201)
❙Climate Control System* (P204)
❙Front Seat Heater Buttons* (P199)
❙Steering Wheel Adjustments (P177)
❙Driver Information Interface (P113)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P474)
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 4 ページ ２０２０年７月６日　月曜日　午後３時０分

Visual Index
6
Quick Reference Guide
❙Door Mirror Controls (P179)
❙Passenger’s Front Airbag
(P49)
❙Rearview Mirror (P178)
❙Accessory Power Socket
(P194)
❙Hood Release Handle (P555)
❙Trunk Opener (P150)
❙Power Door Lock Master Switch (P148)
❙Power Window Switches (P156)
❙Interior Fuse Box (P641)
❙Driver’s Front Airbag (P49)
❙USB Port (P215)
❙Shift Lever
Continuously Variable
Transmission
* (P444, 446)
Manual Transmission* (P450)
❙ECON Button* (P454)
❙Electric Parking Brake Switch (P526)
❙Automatic Brake Hold Button (P529)
❙USB Port* (P215)
❙Wireless Charger* (P195)
❙SPORT Button* (P453)
❙Glove Box (P190)
❙HomeLink® Buttons* (P365)
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 6 ページ ２０２０年７月６日　月曜日　午後３時０分

7
Quick Reference Guide❙Seat Belt to Secure a Child Seat (P69)
❙Seat Belt (Installing a Child Seat) (P67)
❙Moonroof Switch* (P159)
❙Front Seat (P180)
❙Seat Belts (P38)
❙Side Airbags (P53)
❙Rear Seat (P183)
❙LATCH to Secure a Child Seat (P65)
❙Ceiling Light (P188)
❙Side Curtain Airbags (P55)
❙Coat Hook (P198)
❙Grab Handle
❙Coat Hook (P198)
❙Sun Visors
❙Vanity Mirrors
❙Map Lights (P189)
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 7 ページ ２０２０年７月６日　月曜日　午後３時０分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P553)
❙Windshield Wipers (P173, 577)
❙Tires (P580, 605)
❙Fog Lights* (P169, 570)
❙Power Door Mirrors (P179)
❙How to Refuel (P539)
❙
High-Mount Brake Light (P576)
Models without SPORT mode
❙Emergency Trunk Release Lever (P152)
❙Opening/Closing the Trunk (P150)
❙Multi-View Rear Camera (P536)
❙Door Lock/Unlock Control (P139)
❙Side Turn Signal Lights* (P165, 574)
❙Headlights (P166, 568)
❙Front Turn Signal Lights (P165, 572)
❙Parking/Daytime Running Lights (P165, 169, 574)
❙Front Side Marker Lights (P166, 573)
❙Taillights (P576)
❙Back-Up Lights (P575)
❙Brake Lights (P575)
❙Rear Turn Signal Lights (P575)
❙Tail/Rear Side Marker Lights (P575)
❙
High-Mount Brake Light (P576)
Models with SPORT mode
❙Trunk Release Button* (P151)
❙Rear License Plate Light (P576)
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 8 ページ ２０２０年７月６日　月曜日　午後３時０分

10
Quick Reference Guide

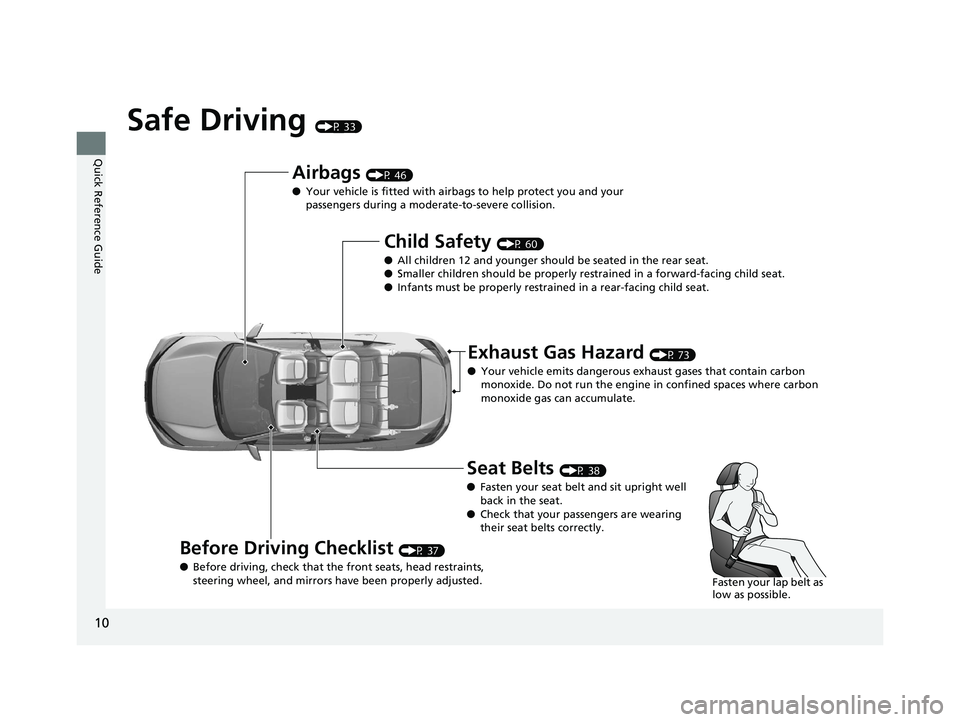

Safe Driving (P 33)
Airbags (P 46)
● Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P 60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 73)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 10 ページ ２０２０年７月６日　月曜日　午後３時０分

14
Quick Reference Guide
Steering Wheel (P 177)
To adjust, pull the adjustment lever up,
adjust to the desired position, then push
down the lever back in place.
Unlocking the Front
Doors from the Inside
(P 147)
Pull either front door inner handle to unlock
and open it at the same time.
To adjust
To lock
Trunk (P 150)
● To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
remote transmitter or the smart entry
remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors
(P 179)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 156)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 14 ページ ２０２０年７月６日　月曜日　午後３時０分

26
Quick Reference Guide
Honda Sensing® (P 467)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bumper and a front
sensor camera mounted to the interior side
of the windshield, behind the rearview
mirror.
Front Sensor Camera The camera is located
behind the rearview
mirror.
Radar Sensor The radar sensor is in
the lower bumper.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 470)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* (P480)
Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Adaptive Cruise Control
(ACC)
*(P 496)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P 511)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P 519)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 26 ページ ２０２０年７月６日　月曜日　午後３時０分

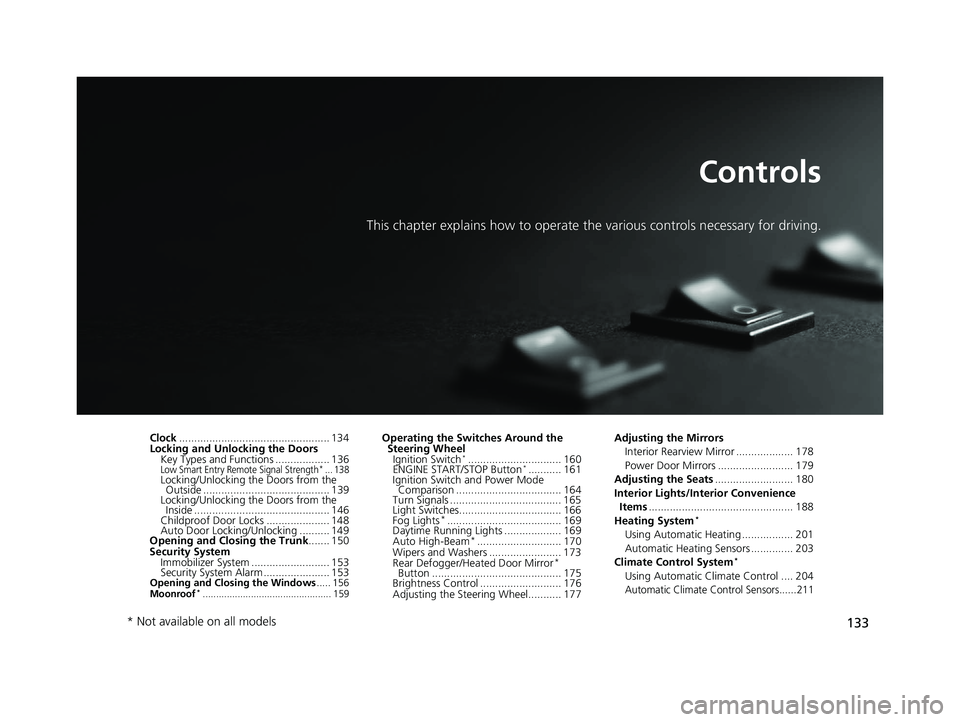

133
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 134
Locking and Unlocking the Doors Key Types and Functions .................. 136
Low Smart Entry Remote Signal Strength*... 138Locking/Unlocking the Doors from the Outside .......................................... 139
Locking/Unlocking the Doors from the Inside ............................................. 146
Childproof Door Locks ..................... 148
Auto Door Locking/Unlocking .......... 149
Opening and Closing the Trunk ....... 150
Security System Immobilizer System .......................... 153
Security System Alarm ...................... 153
Opening and Closing the Windows ..... 156Moonroof*................................................ 159
Operating the Switches Around the
Steering Wheel Ignition Switch
*............................... 160
ENGINE START/STOP Button*........... 161
Ignition Switch and Power Mode Comparison ................................... 164
Turn Signals ..................................... 165
Light Switches.................................. 166
Fog Lights
*...................................... 169
Daytime Running Lights ................... 169
Auto High-Beam
*............................ 170
Wipers and Washers ........................ 173
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 175
Brightness Control ........................... 176
Adjusting the Steering Wheel........... 177 Adjusting the Mirrors
Interior Rearview Mirror ................... 178
Power Door Mirrors ......................... 179
Adjusting the Seats .......................... 180
Interior Lights/Interior Convenience Items ................................................ 188
Heating System
*
Using Automatic Heating ................. 201
Automatic Heating Sensors .............. 203
Climate Control System
*
Using Automatic Climate Control .... 204
Automatic Climate Control Sensors......211
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 133 ページ ２０２０年７月６日　月曜日　午後３時０分

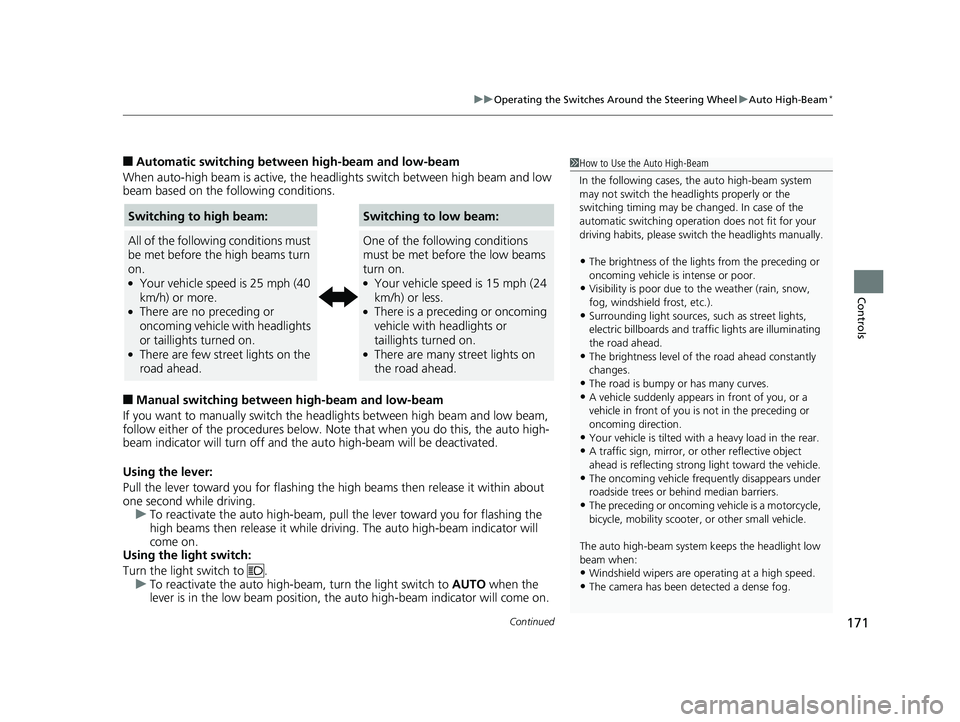

Continued171
uuOperating the Switches Around the Steering Wheel uAuto High-Beam*
Controls
■Automatic switching between high-beam and low-beam
When auto-high beam is active, the head lights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the h eadlights between high beam and low beam,
follow either of the procedur es below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you for flashing the hi gh beams then release it within about
one second while driving. u To reactivate the auto hi gh-beam, pull the lever toward you for flashing the
high beams then release it while driv ing. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the au to high-beam, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
1How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operati on does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are op erating at a high speed.
•The camera has been detected a dense fog.
Switching to high beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 25 mph (40
km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
Switching to low beam:
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 15 mph (24
km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 171 ページ ２０２０年７月６日　月曜日　午後３時０分
