HONDA CLARITY FUEL CELL 2018 Owner's Manual (in English)

439
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Driving

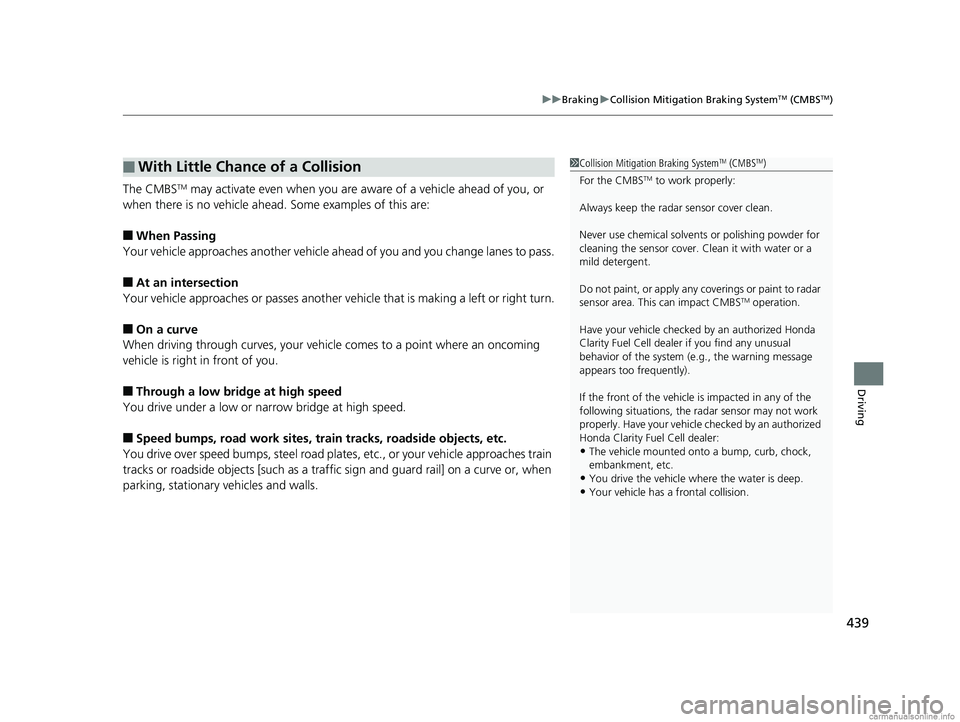

The CMBSTM may activate even when you are aware of a vehicle ahead of you, or
when there is no vehicle ahead. Some examples of this are:
■When Passing
Your vehicle approaches another vehicle ah ead of you and you change lanes to pass.
■At an intersection
Your vehicle approaches or passes another ve hicle that is making a left or right turn.
■On a curve
When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.
■Through a low bridge at high speed
You drive under a low or na rrow bridge at high speed.
■Speed bumps, road work sites, train tracks, roadside objects, etc.
You drive over speed bumps, st eel road plates, etc., or your vehicle approaches train
tracks or roadside objects [such as a traffic sign and guard rail] on a curve or, when
parking, stationary vehicles and walls.
■With Little Chance of a Collision1 Collision Mitigation Braking SystemTM (CMBSTM)
For the CMBS
TM to work properly:
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.
Do not paint, or apply any coverings or paint to radar
sensor area. This can impact CMBS
TM operation.
Have your vehicle checked by an authorized Honda
Clarity Fuel Cell dealer if you find any unusual
behavior of the system (e.g., the warning message
appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehicle checked by an authorized
Honda Clarity Fuel Cell dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
18 CLARITY FUEL CELL PPO-31TRT6100.book 439 ページ ２０１７年１１月２１日　火曜日　午後３時３分

440
Driving

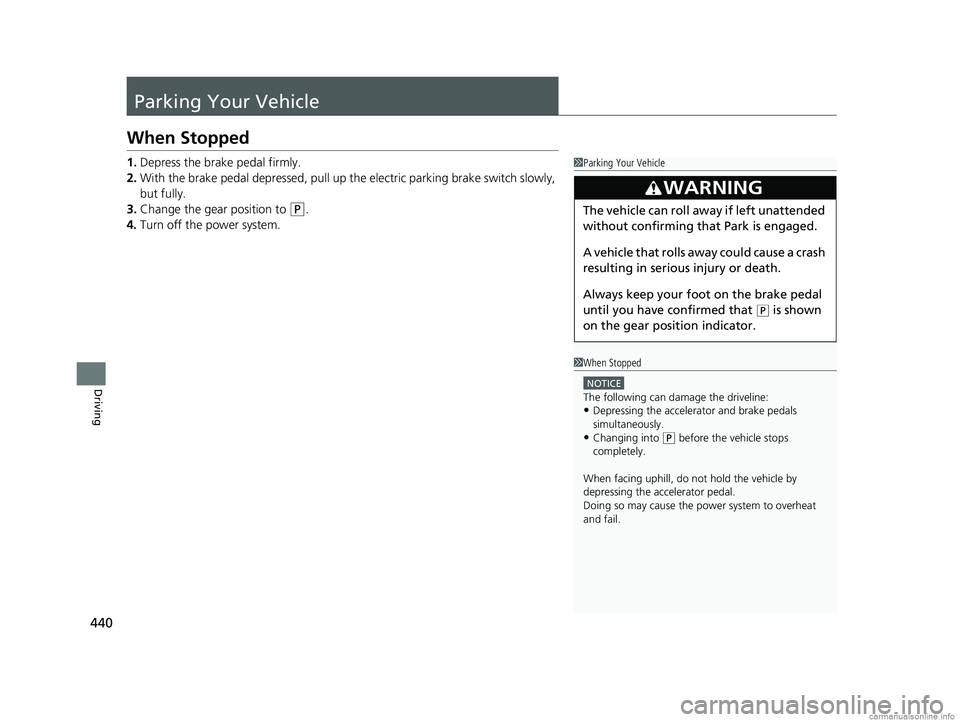

Parking Your Vehicle
When Stopped
1.Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up th e electric parking brake switch slowly,
but fully.
3. Change the gear position to
(P.
4. Turn off the power system.
1Parking Your Vehicle
3WARNING
The vehicle can roll aw ay if left unattended
without confirming that Park is engaged.
A vehicle that rolls away could cause a crash
resulting in seriou s injury or death.
Always keep your foot on the brake pedal
until you have confirmed that
( P is shown
on the gear position indicator.
1 When Stopped
NOTICE
The following can damage the driveline:
•Depressing the accelera tor and brake pedals
simultaneously.
•Changing into ( P before the vehicle stops
completely.
When facing uphill, do not hold the vehicle by
depressing the accelerator pedal.
Doing so may cause the power system to overheat
and fail.
18 CLARITY FUEL CELL PPO-31TRT6100.book 440 ページ ２０１７年１１月２１日　火曜日　午後３時３分

441
uuParking Your Vehicle uWhen Stopped
Driving

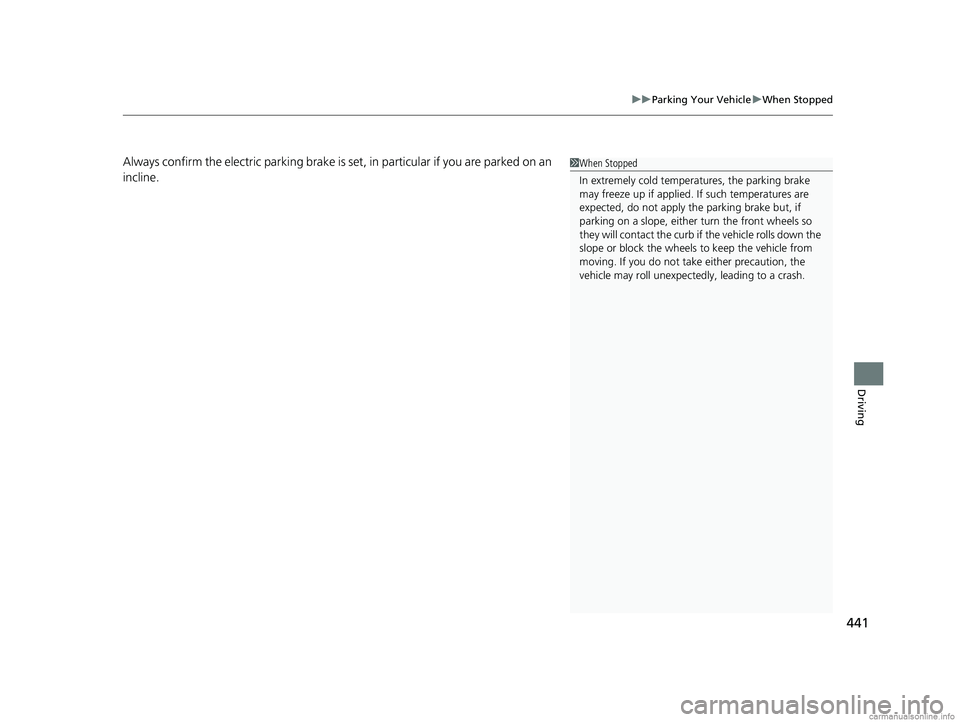

Always confirm the electric parking brake is set, in particular if you are parked on an
incline.1When Stopped
In extremely cold temperatures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpect edly, leading to a crash.
18 CLARITY FUEL CELL PPO-31TRT6100.book 441 ページ ２０１７年１１月２１日　火曜日　午後３時３分

442
Driving

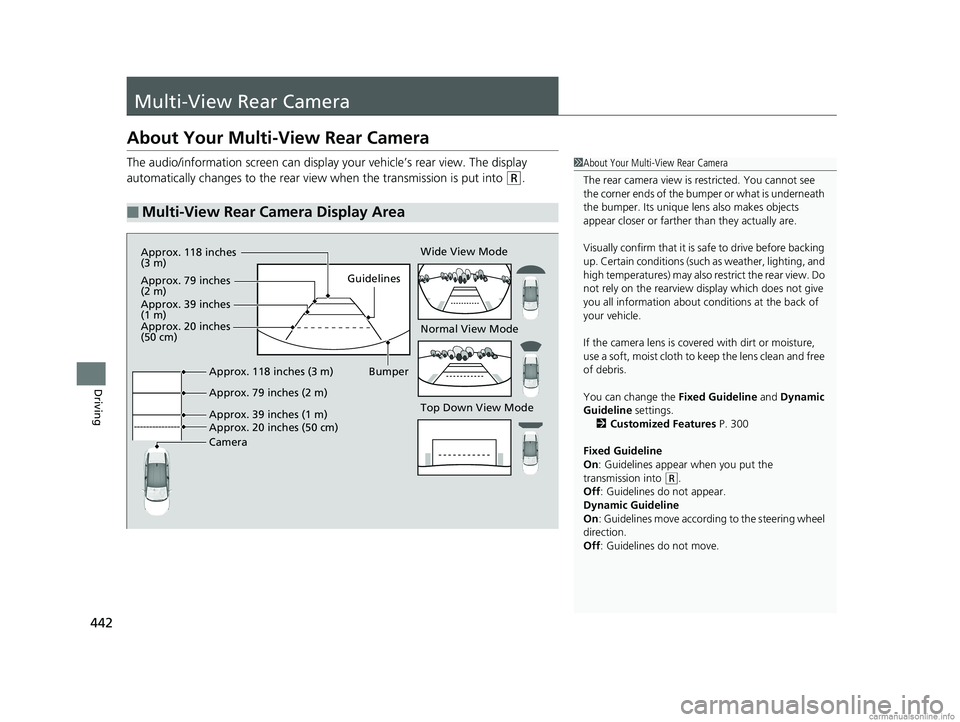

Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 300
Fixed Guideline
On : Guidelines appear when you put the
transmission into
( R.
Off : Guidelines do not appear.
Dynamic Guideline
On : Guidelines move according to the steering wheel
direction.
Off : Guidelines do not move.
Top Down View Mode Normal View Mode Wide View Mode
Guidelines
Bumper
Camera Approx. 118 inches (3 m)
Approx. 79 inches (2 m)
Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)
Approx. 118 inches
(3 m)
Approx. 79 inches
(2 m)
Approx. 39 inches
(1 m)
Approx. 20 inches
(50 cm)
18 CLARITY FUEL CELL PPO-31TRT6100.book 442 ページ ２０１７年１１月２１日　火曜日　午後３時３分

443
uuMulti-View Rear Camera uAbout Your Multi-View Rear Camera
Driving

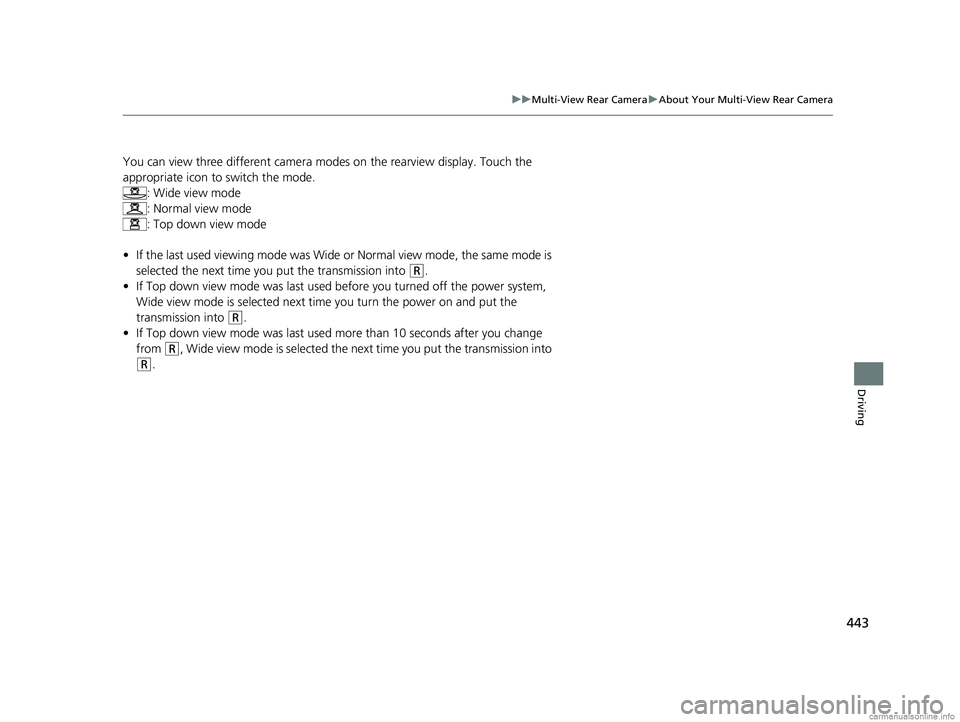

You can view three different camera mo des on the rearview display. Touch the
appropriate icon to switch the mode. : Wide view mode
: Normal view mode
: Top down view mode
• If the last used viewing mode was Wide or Normal view mode, the same mode is
selected the next time you put the transmission into
(R.
• If Top down view mode was last used before you turned off the power system,
Wide view mode is selected next time you turn the power on and put the
transmission into
(R.
• If Top down view mode was last used more than 10 seconds after you change
from
(R, Wide view mode is selected the ne xt time you put the transmission into
(R.
18 CLARITY FUEL CELL PPO-31TRT6100.book 443 ページ ２０１７年１１月２１日　火曜日　午後３時３分

444
Driving

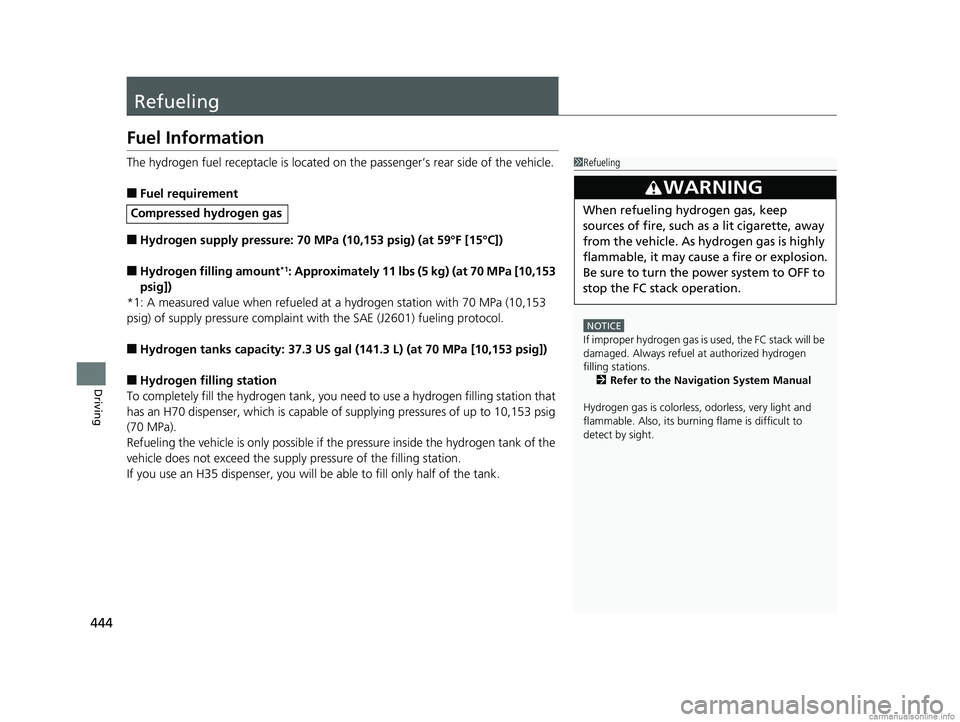

Refueling
Fuel Information
The hydrogen fuel receptacle is located on the passenger’s rear side of the vehicle.
■Fuel requirement
■Hydrogen supply pressure: 70 MPa (10,153 psig) (at 59°F [15°C])
■Hydrogen filling amount*1: Approximately 11 lbs (5 kg) (at 70 MPa [10,153
psig])
*1: A measured value when refueled at a hydrogen station with 70 MPa (10,153
psig) of supply pressure complaint with the SAE (J2601) fueling protocol.
■Hydrogen tanks capacity: 37.3 US gal (141.3 L) (at 70 MPa [10,153 psig])
■Hydrogen filling station
To completely fill the hydrogen tank, you n eed to use a hydrogen filling station that
has an H70 dispenser, which is capable of supplying pressures of up to 10,153 psig
(70 MPa).
Refueling the vehicle is only possible if the pressure inside the hydrogen tank of the
vehicle does not exceed the supply pressure of the filling station.
If you use an H35 dispenser, you will be able to fill only half of the tank.
Compressed hydrogen gas
1 Refueling
NOTICE
If improper hydrogen gas is us ed, the FC stack will be
damaged. Always refuel at authorized hydrogen
filling stations.
2 Refer to the Navigation System Manual
Hydrogen gas is colorless, odorless, very light and
flammable. Also, its burni ng flame is difficult to
detect by sight.
3WARNING
When refueling hydrogen gas, keep
sources of fire, such as a lit cigarette, away
from the vehicle. As hydrogen gas is highly
flammable, it may caus e a fire or explosion.
Be sure to turn the pow er system to OFF to
stop the FC stack operation.
18 CLARITY FUEL CELL PPO-31TRT6100.book 444 ページ ２０１７年１１月２１日　火曜日　午後３時３分

445
uuRefueling uHow to Refuel
Continued
Driving

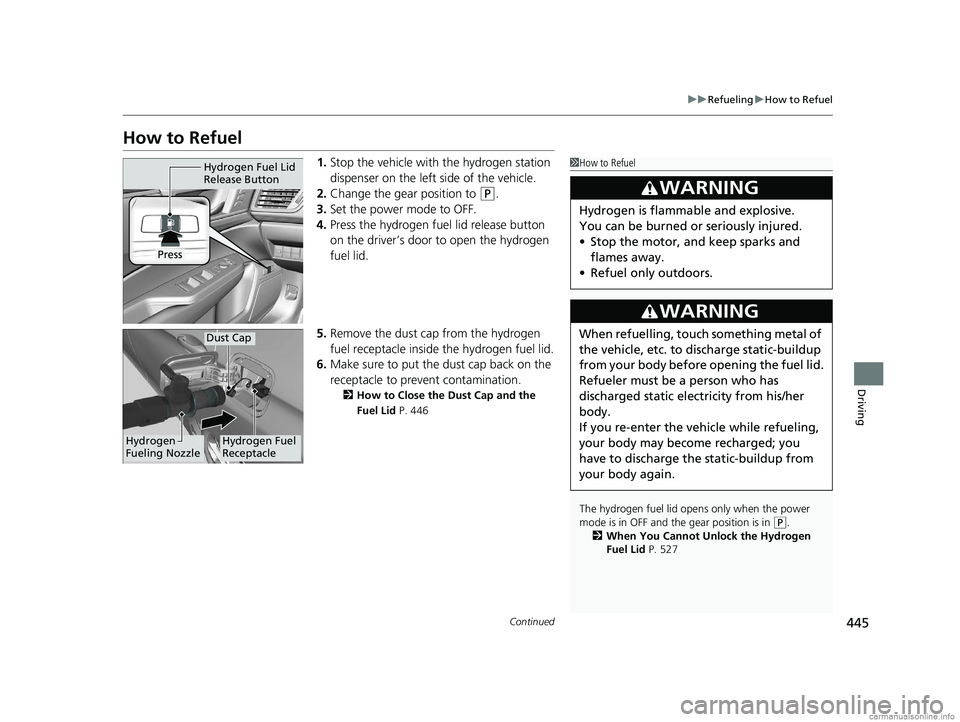

How to Refuel
1. Stop the vehicle with the hydrogen station
dispenser on the left side of the vehicle.
2. Change the gear position to
(P.
3. Set the power mode to OFF.
4. Press the hydrogen fuel lid release button
on the driver’s door to open the hydrogen
fuel lid.
5. Remove the dust cap from the hydrogen
fuel receptacle inside the hydrogen fuel lid.
6. Make sure to put the dust cap back on the
receptacle to prevent contamination.
2 How to Close the Dust Cap and the
Fuel Lid P. 446
1How to Refuel
The hydrogen fuel lid ope ns only when the power
mode is in OFF and the gear position is in
( P.
2 When You Cannot Unlock the Hydrogen
Fuel Lid P. 527
3WARNING
Hydrogen is flamma ble and explosive.
You can be burned or seriously injured.
• Stop the motor, a nd keep sparks and
flames away.
• Refuel only outdoors.
3WARNING
When refuelling, touc h something metal of
the vehicle, etc. to discharge static-buildup
from your body before opening the fuel lid.
Refueler must be a person who has
discharged static elec tricity from his/her
body.
If you re-enter the vehicle while refueling,
your body may become recharged; you
have to discharge the static-buildup from
your body again.
Hydrogen Fuel Lid
Release Button
Press
Hydrogen
Fueling NozzleHydrogen Fuel
Receptacle
Dust Cap
18 CLARITY FUEL CELL PPO-31TRT6100.book 445 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuRefueling uHow to Refuel
446
Driving

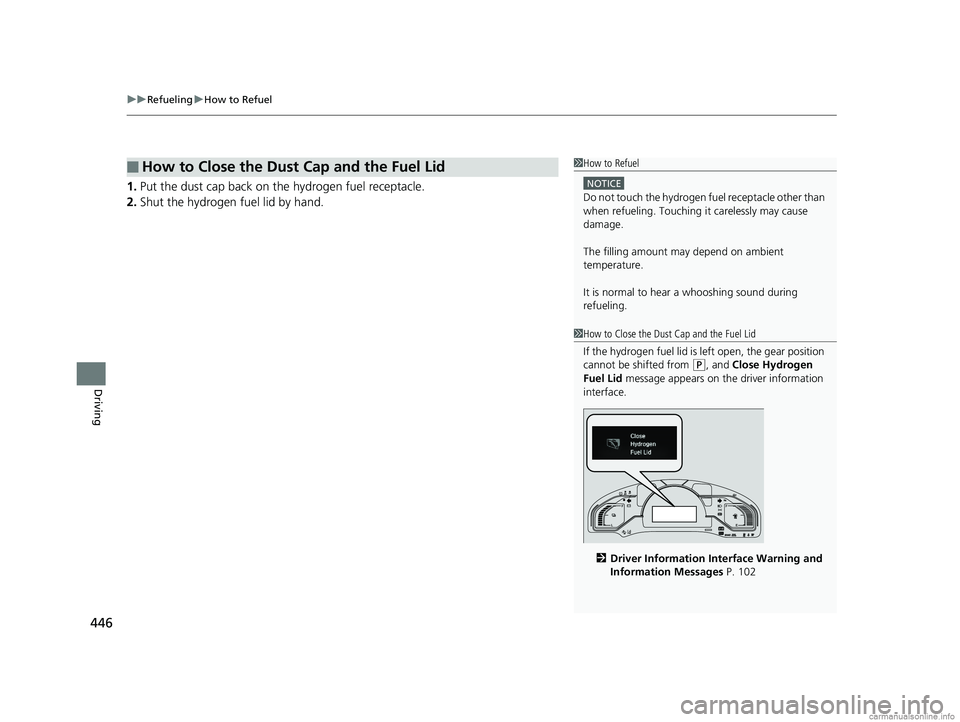

1. Put the dust cap back on the hydrogen fuel receptacle.
2. Shut the hydrogen fuel lid by hand.
■How to Close the Dust Cap and the Fuel Lid1How to Refuel
NOTICE
Do not touch the hydrogen fu el receptacle other than
when refueling. Touching it carelessly may cause
damage.
The filling amount may depend on ambient
temperature.
It is normal to hear a whooshing sound during
refueling.
1 How to Close the Dust Cap and the Fuel Lid
If the hydrogen fuel lid is left open, the gear position
cannot be shifted from
( P, and Close Hydrogen
Fuel Lid message appears on th e driver information
interface.
2 Driver Information Interface Warning and
Information Messages P. 102
18 CLARITY FUEL CELL PPO-31TRT6100.book 446 ページ ２０１７年１１月２１日　火曜日　午後３時３分

447
Driving

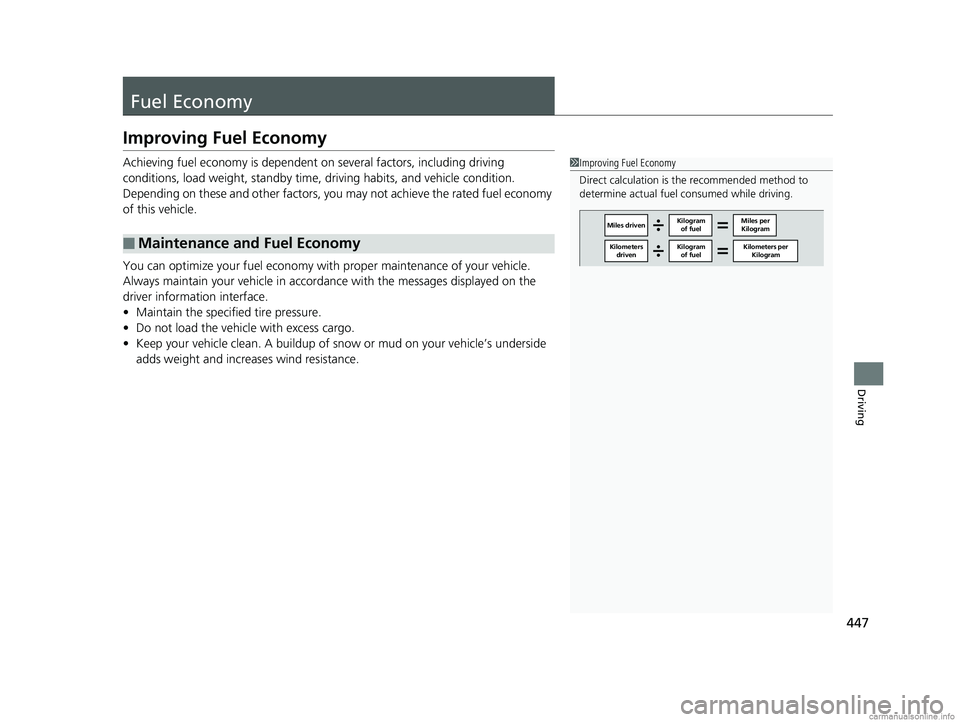

Fuel Economy
Improving Fuel Economy
Achieving fuel economy is dependent on several factors, including driving
conditions, load weight, standby time, driving habits, and vehicle condition.
Depending on these and other factors, you may not achieve the rated fuel economy
of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
Miles driven Kilogram
of fuel Miles per
Kilogram
Kilogram of fuel Kilometers per
Kilogram
Kilometers
driven
18 CLARITY FUEL CELL PPO-31TRT6100.book 447 ページ ２０１７年１１月２１日　火曜日　午後３時３分

448
18 CLARITY FUEL CELL PPO-31TRT6100.book 448 ページ ２０１７年１１月２１日　火曜日　午後３時３分
