uuWhen Driving uHigh Voltage Battery
Driving

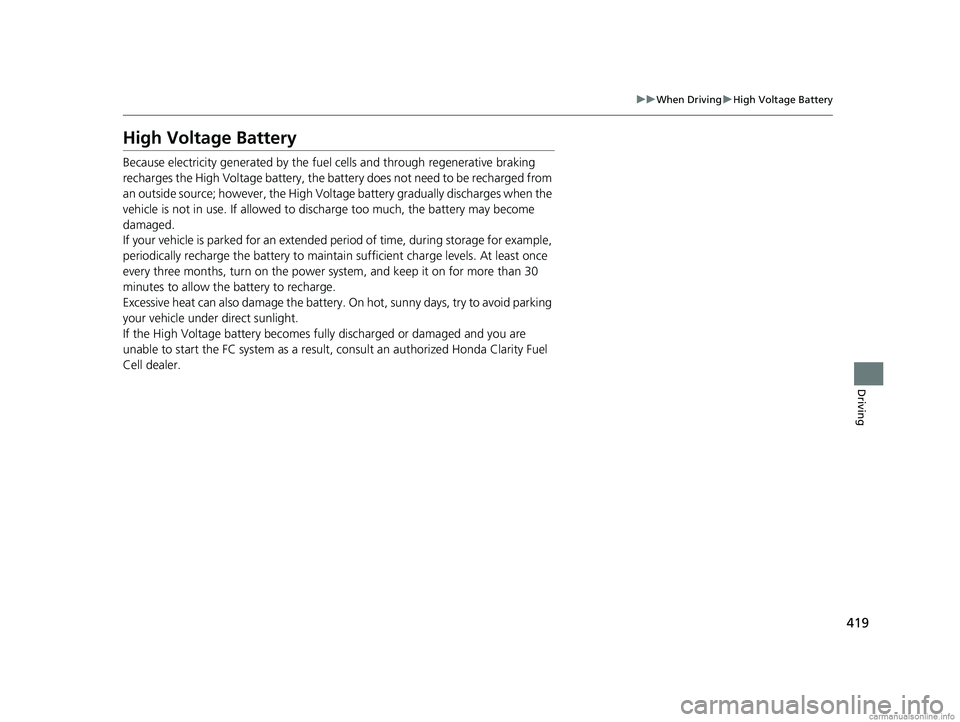

High Voltage Battery
Because electricity generated by the fuel cells and through regenerative braking
recharges the High Voltage battery, the battery does not need to be recharged from
an outside source; however, the High Voltag e battery gradually discharges when the
vehicle is not in use. If allowed to di scharge too much, the battery may become
damaged.
If your vehicle is parked for an extended period of time, during storage for example,
periodically recharge the battery to maintain sufficient charge levels. At least once
every three months, turn on the power sy stem, and keep it on for more than 30
minutes to allow the battery to recharge.
Excessive heat can also damage the battery. On hot, sunny days, try to avoid parking
your vehicle under direct sunlight.
If the High Voltage battery becomes fully discharged or damaged and you are
unable to start the FC system as a result, consult an authorized Honda Clarity Fuel
Cell dealer.
18 CLARITY FUEL CELL PPO-31TRT6100.book 419 ページ ２０１７年１１月２１日　火曜日　午後３時３分

420
uuWhen Driving uFC System in Extreme Cold-weather Conditions
Driving

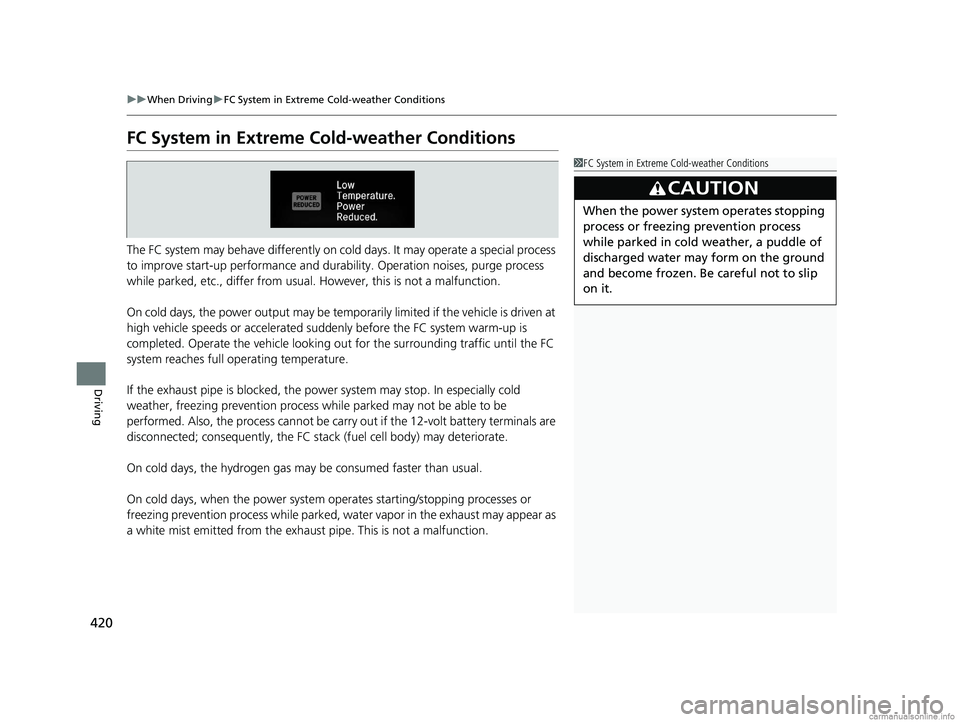

FC System in Extreme Cold-weather Conditions
The FC system may behave differently on cold days. It may operate a special process
to improve start-up performance and durabi lity. Operation noises, purge process
while parked, etc., differ from usual. However, this is not a malfunction.
On cold days, the power output may be temporarily limited if the vehicle is driven at
high vehicle speeds or accelerated sudd enly before the FC system warm-up is
completed. Operate the vehicle looking ou t for the surrounding traffic until the FC
system reaches full ope rating temperature.
If the exhaust pipe is blocked, the power system may stop. In especially cold
weather, freezing prevention process while parked may not be able to be
performed. Also, the process cannot be carry out if the 12-volt battery terminals are
disconnected; consequently, the FC st ack (fuel cell body) may deteriorate.
On cold days, the hydrogen gas may be consumed faster than usual.
On cold days, when the power system op erates starting/stopping processes or
freezing prevention process while parked, wa ter vapor in the exhaust may appear as
a white mist emitted from the exhaus t pipe. This is not a malfunction.
1FC System in Extreme Cold-weather Conditions
3CAUTION
When the power system operates stopping
process or freezing prevention process
while parked in cold weather, a puddle of
discharged water may form on the ground
and become frozen. Be careful not to slip
on it.
18 CLARITY FUEL CELL PPO-31TRT6100.book 420 ページ ２０１７年１１月２１日　火曜日　午後３時３分

421
uuWhen Driving uFC System in Extreme Cold-weather Conditions
Driving

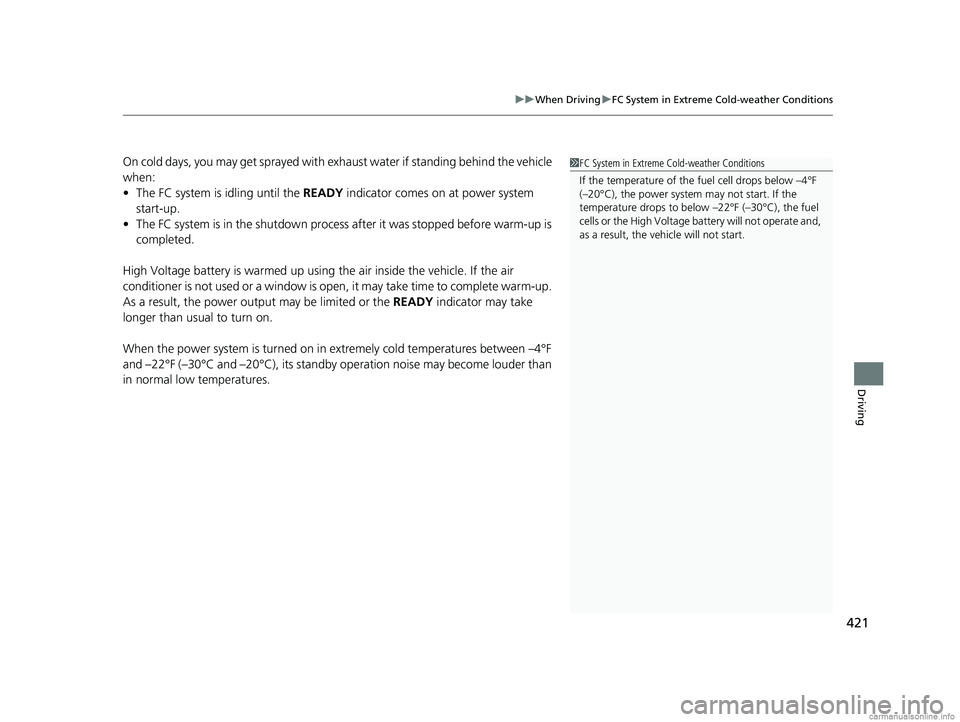

On cold days, you may get sprayed with exhaust water if standing behind the vehicle
when:
• The FC system is idling until the READY indicator comes on at power system
start-up.
• The FC system is in the shutdown process after it was stopped before warm-up is
completed.
High Voltage battery is warmed up using the air inside the vehicle. If the air
conditioner is not used or a window is op en, it may take time to complete warm-up.
As a result, the power output may be limited or the READY indicator may take
longer than usual to turn on.
When the power system is tu rned on in extremely cold temperatures between –4°F
and –22°F (–30°C and –20°C), its standby operation noise may become louder than
in normal low temperatures.1 FC System in Extreme Cold-weather Conditions
If the temperature of the fuel cell drops below –4°F
(–20°C), the power system may not start. If the
temperature drops to belo w –22°F (–30°C), the fuel
cells or the High Voltage ba ttery will not operate and,
as a result, the vehicle will not start.
18 CLARITY FUEL CELL PPO-31TRT6100.book 421 ページ ２０１７年１１月２１日　火曜日　午後３時３分

422
uuWhen Driving uLaneWatchTM
Driving
LaneWatchTM
LaneWatch is an assistance system that allows you to check the passenger side rear
areas displayed on the audio/information screen when the turn signal is activated to
the passenger’s side. A camera in the pass enger side door mirror monitors these
areas and allows you to chec k for vehicles, in addition to your visual check and use
of the passenger door mirror. You can also keep the system on for your convenience
while driving.1 LaneWatchTM
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch function can be affected by weather,
lighting (including headli ghts and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not prov ide the intended display
of traffic to the side and rear under the following
conditions:
•Your vehicle’s suspensi on has been altered,
changing the height of the vehicle.
•Your tires are over or under inflated.•Your tires or wheels are of varied size or
construction.
3WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.

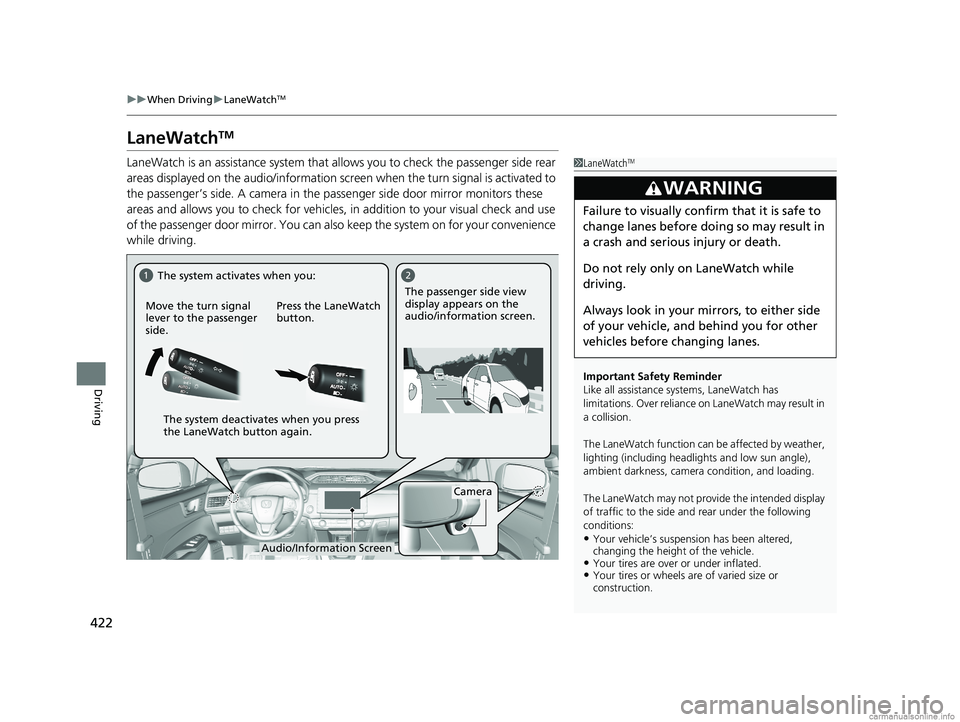

12
Camera
Move the turn signal
lever to the passenger
side.
Press the LaneWatch
button.The passenger side view
display appears on the
audio/information screen.
The system activates when you:
The system deactivates when you press
the LaneWatch button again.
Audio/Information Screen
18 CLARITY FUEL CELL PPO-31TRT6100.book 422 ページ ２０１７年１１月２１日　火曜日　午後３時３分

423
uuWhen Driving uLaneWatchTM
Driving

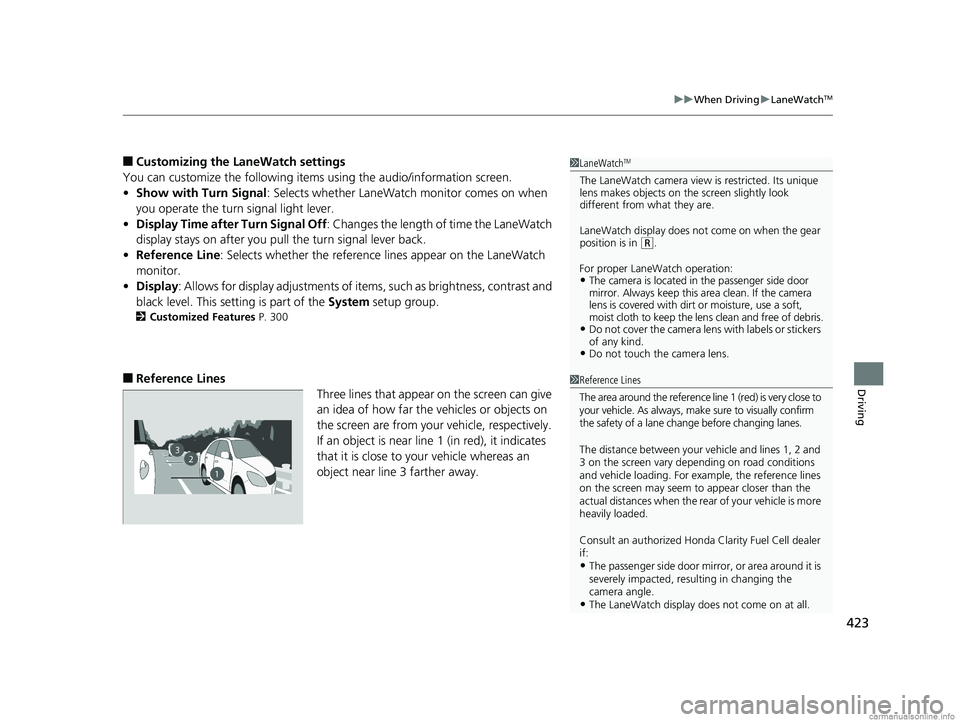

■Customizing the La neWatch settings
You can customize the following items using the audio/information screen.
• Show with Turn Signal : Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Display Time after Turn Signal Off : Changes the length of time the LaneWatch
display stays on after you pull the turn signal lever back.
• Reference Line : Selects whether the reference lines appear on the LaneWatch
monitor.
• Display : Allows for display adjustments of items, such as brightness, contrast and
black level. This setting is part of the System setup group.
2Customized Features P. 300
■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.
1LaneWatchTM
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen slightly look
different from what they are.
LaneWatch display does not come on when the gear
position is in
( R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.
•Do not cover the camera lens with labels or stickers
of any kind.
•Do not touch the camera lens.
23
1
1Reference Lines
The area around the reference lin e 1 (red) is very close to
your vehicle. As always, m ake sure to visually confirm
the safety of a lane chan ge before changing lanes.
The distance betwee n your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For ex ample, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.
Consult an authorized Honda Clarity Fuel Cell dealer
if:
•The passenger side door mirr or, or area around it is
severely impacted, resulting in changing the
camera angle.
•The LaneWatch display doe s not come on at all.
18 CLARITY FUEL CELL PPO-31TRT6100.book 423 ページ ２０１７年１１月２１日　火曜日　午後３時３分

424
Driving
Braking

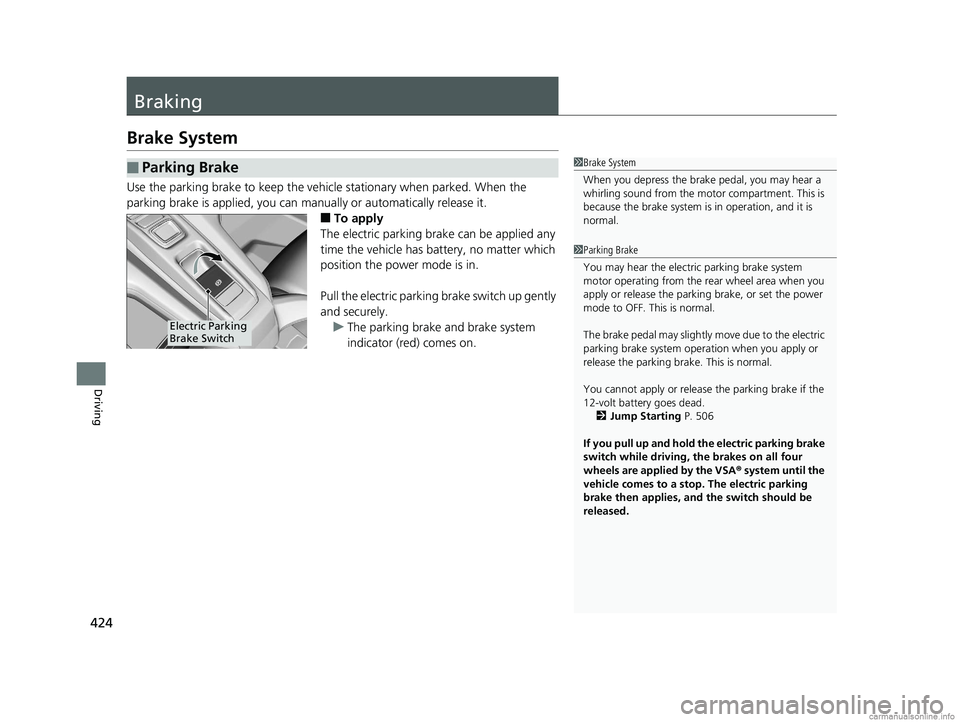

Brake System
Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can ma nually or automatically release it.
■To apply
The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the power mode is in.
Pull the electric parkin g brake switch up gently
and securely.
u The parking brake and brake system
indicator (red) comes on.
■Parking Brake1Brake System
When you depress the brak e pedal, you may hear a
whirling sound from the moto r compartment. This is
because the brake system is in operation, and it is
normal.
1 Parking Brake
You may hear the electric parking brake system
motor operating from the re ar wheel area when you
apply or release the parki ng brake, or set the power
mode to OFF. This is normal.
The brake pedal may slightly move due to the electric
parking brake system opera tion when you apply or
release the parking br ake. This is normal.
You cannot apply or release the parking brake if the
12-volt battery goes dead. 2 Jump Starting P. 506
If you pull up and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the VSA ® system until the
vehicle comes to a stop. The electric parking
brake then applies, and the switch should be
released.
Electric Parking
Brake Switch
18 CLARITY FUEL CELL PPO-31TRT6100.book 424 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Continued425
uuBraking uBrake System
Driving
■To release
The power mode must be in ON in order to
release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.
u The parking brake and brake system
indicator (red) goes off.
Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.1 Parking Brake
In the following situations, the parking brake
automatically operates.
•When the vehicle stops more than 10 minutes
while ACC with LSF is activated.
•When the driver’s seat belt is unfastened while your
vehicle is stopped automatically by ACC with LSF.
•When the power system is turned off while ACC
with LSF is activated.
•When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
•When the driver’s seat belt is unfastened while
your vehicle is stopped and brake hold is applied.
•When the power system is turned off while brake
hold is applied.
•When there is a problem with the Brake Hold
System while brake hold is applied.
Electric Parking
Brake Switch
18 CLARITY FUEL CELL PPO-31TRT6100.book 425 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuBraking uBrake System
426
Driving
■To release automatically

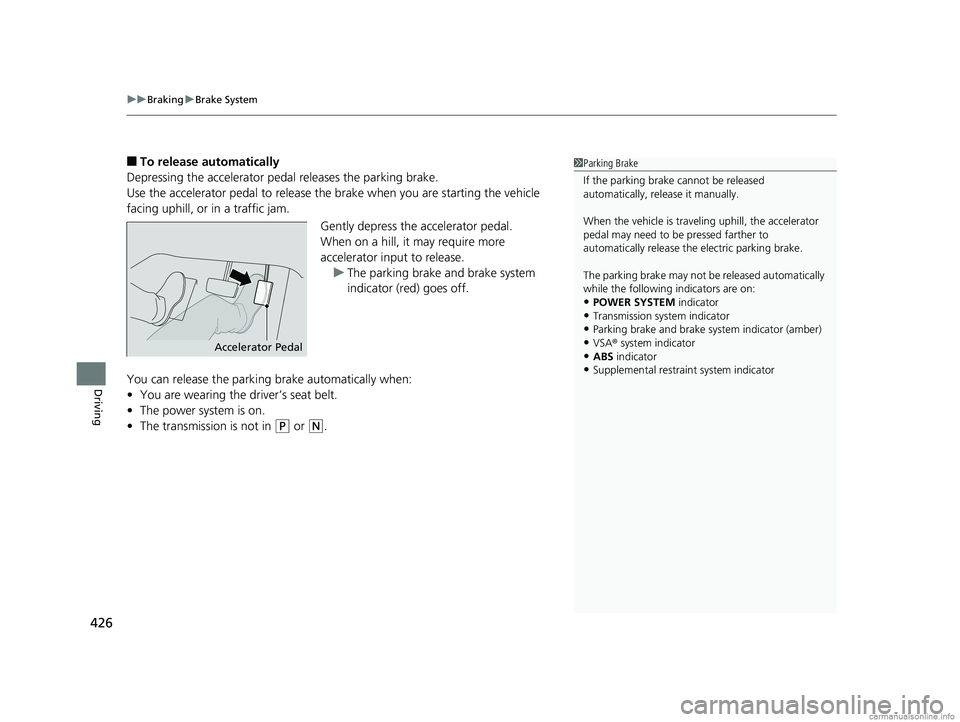

Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release th e brake when you are starting the vehicle
facing uphill, or in a traffic jam.
Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.u The parking brake and brake system
indicator (red) goes off.
You can release the parki ng brake automatically when:
• You are wearing the driver’s seat belt.
• The power system is on.
• The transmission is not in
(P or (N.
1Parking Brake
If the parking brake cannot be released
automatically, release it manually.
When the vehicle is travel ing uphill, the accelerator
pedal may need to be pressed farther to
automatically release the electric parking brake.
The parking brake may not be released automatically
while the following indicators are on:
•POWER SYSTEM indicator•Transmission system indicator
•Parking brake and brake sy stem indicator (amber)
•VSA® system indicator•ABS indicator
•Supplemental restraint system indicator
Accelerator Pedal
18 CLARITY FUEL CELL PPO-31TRT6100.book 426 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Continued427
uuBraking uBrake System
Driving
Your vehicle is equipped with disc brakes at all four wheels. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The an ti-lock brake system (ABS) helps you retain steering
control when brak ing very hard.
2Brake Assist System P. 431
2 Anti-lock Brake System (ABS) P. 430

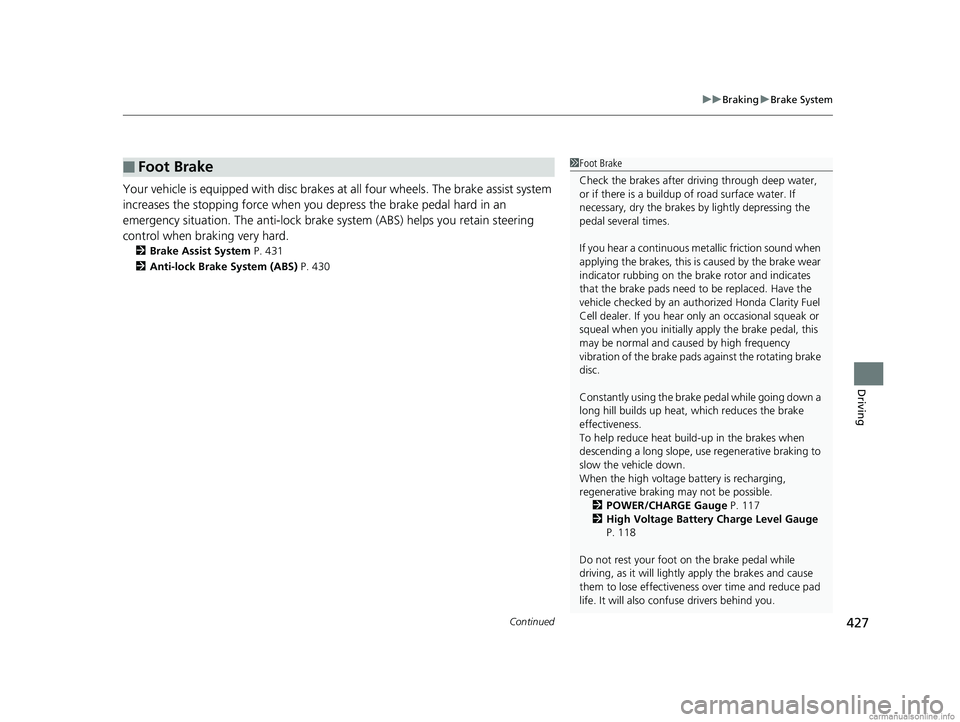

■Foot Brake1Foot Brake
Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.
If you hear a continuous me tallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by an authorized Honda Clarity Fuel
Cell dealer. If you hear onl y an occasional squeak or
squeal when you initially a pply the brake pedal, this
may be normal and caus ed by high frequency
vibration of the brake pads against the rotating brake
disc.
Constantly using the brak e pedal while going down a
long hill builds up heat, which reduces the brake
effectiveness.
To help reduce heat build -up in the brakes when
descending a long slope, use regenerative braking to
slow the vehicle down.
When the high voltage battery is recharging,
regenerative braking may not be possible.
2 POWER/CHARGE Gauge P. 117
2 High Voltage Battery Charge Level Gauge
P. 118
Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also conf use drivers behind you.
18 CLARITY FUEL CELL PPO-31TRT6100.book 427 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuBraking uBrake System
428
Driving
Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while the vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.

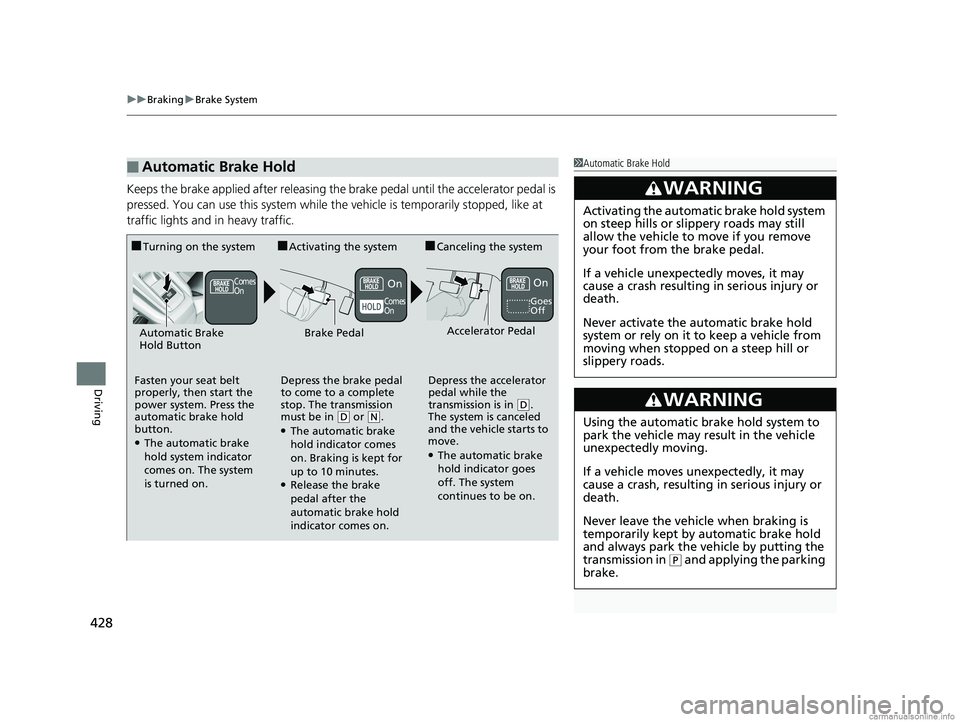

■Automatic Brake Hold1Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake
pedal after the
automatic brake hold
indicator comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission is in
( D.
The system is canceled
and the vehicle starts to
move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On OnComes
On
Comes
On
18 CLARITY FUEL CELL PPO-31TRT6100.book 428 ページ ２０１７年１１月２１日　火曜日　午後３時３分
