Continued79
uu Driving to Your Destination u Viewing the Route
Navigation

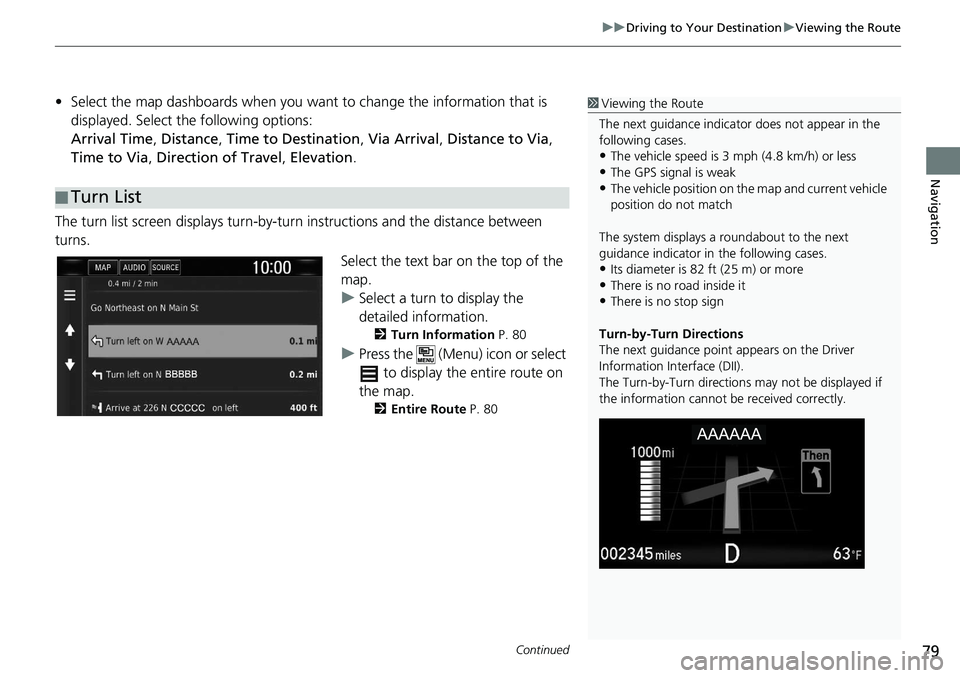

• Select the map dashboards when you want to change the information that is
displayed. Select the following options:
Arrival Time , Distance , Time to Destination , Via Arrival , Distance to Via ,
Time to Via , Direction of Travel , Elevation .
The turn list screen displa ys turn-by-turn instructions and the distance between
turns.
Select the text bar on the top of the
map.
uSelect a turn to display the
detailed information.
2 Turn Information P. 80
uPress the (Menu) icon or select
to display the entire route on
the map.
2 Entire Route P. 80
■Turn List
1
Viewing the Route
The next guidance indicator does not appear in the
following cases.
•The vehicle speed is 3 mph (4.8 km/h) or less
•The GPS signal is weak•The vehicle position on the map and current vehicle
position do not match
The system displays a roundabout to the next
guidance indicator in the following cases.
•Its diameter is 82 ft (25 m) or more•There is no road inside it
•There is no stop sign
Turn-by-Turn Directions
The next guidance point appears on the Driver
Information Interface (DII).
The Turn-by-Turn directions may not be displayed if
the information cannot be received correctly.

uu Driving to Your Destination u Viewing the Route
80
Navigation

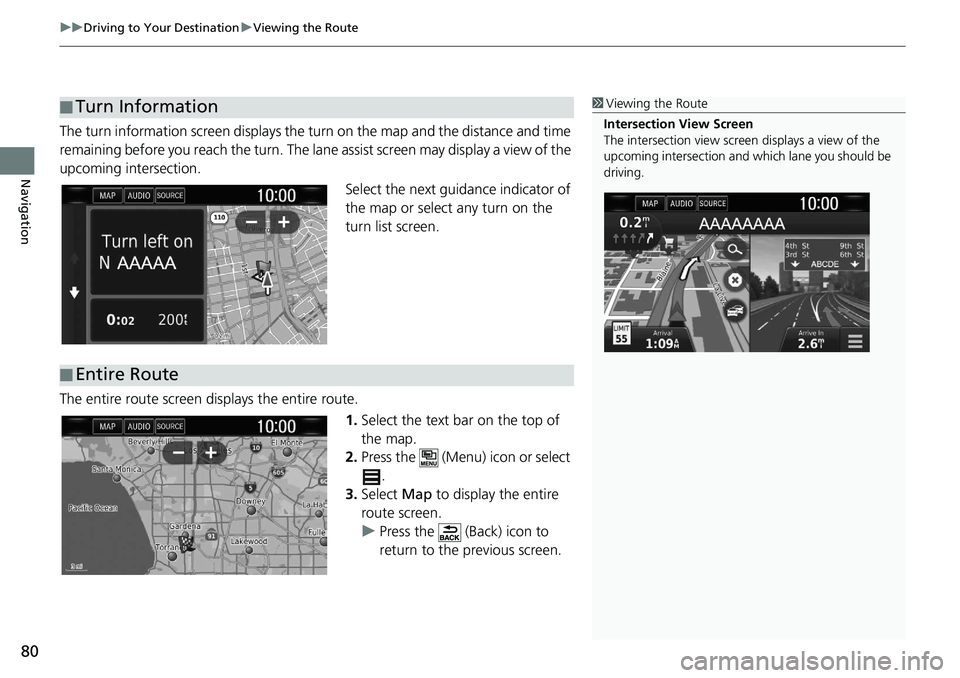

The turn information screen displays the turn on the map and the distance and time
remaining before you reach the turn. The lane assist screen may display a view of the
upcoming intersection.
Select the next guidance indicator of
the map or select any turn on the
turn list screen.
The entire route screen di splays the entire route.
1.Select the text bar on the top of
the map.
2.Press the (Menu) icon or select
.
3. Select Ma
p to display the entire
route screen.
u Press the (Back) icon to
return to the previous screen.
■Turn Information1
Viewing the Route
Intersection View Screen
The intersection view screen displays a view of the
upcoming intersection and which lane you should be
driving.
■ Entire Route

81
uu Driving to Your Destination u Viewing the Route
Navigation
If you leave the calculated r oute, the system automatically recalculates a route to the
set destination based on your current location and direction.
If you set the trip log to show , a series of lines (breadcrumbs) are displayed to track
the path you are taking.
2 Map Layers P. 34
■Deviating From the Planned Route
■Trip Log Display1
Trip Log Display
You can delete the Trip Log. 2 Device P. 50
2 Reset Factory Default Settings P. 52

82
Navigation

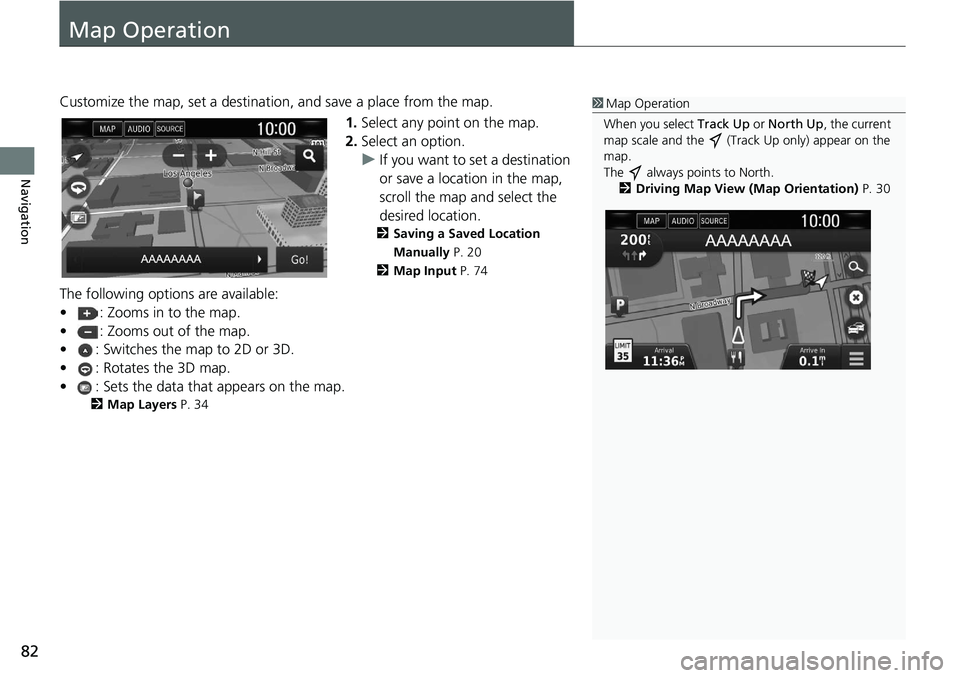

Map Operation
Customize the map, set a destination, and save a place from the map.1.Select any point on the map.
2.Select an option.
u If you want to set a destination
or save a location in the map,
scroll the map and select the
desired location.
2 Saving a Saved Location
Manually P. 20
2 Map Input P. 74
The following options are available:
• : Zooms in to the map.
• : Zooms out of the map.
• : Switches the map to 2D or 3D.
• : Rotates the 3D map.
• : Sets the data that appears on the map.
2Map Layers P. 34
1Map Operation
When you select Track Up or North Up , the current
map scale and the (Track Up only) appear on the
map.
The always points to North. 2 Driving Map View (Map Orientation) P. 30

83
uu Map Operation u Map Menu
Continued
Navigation

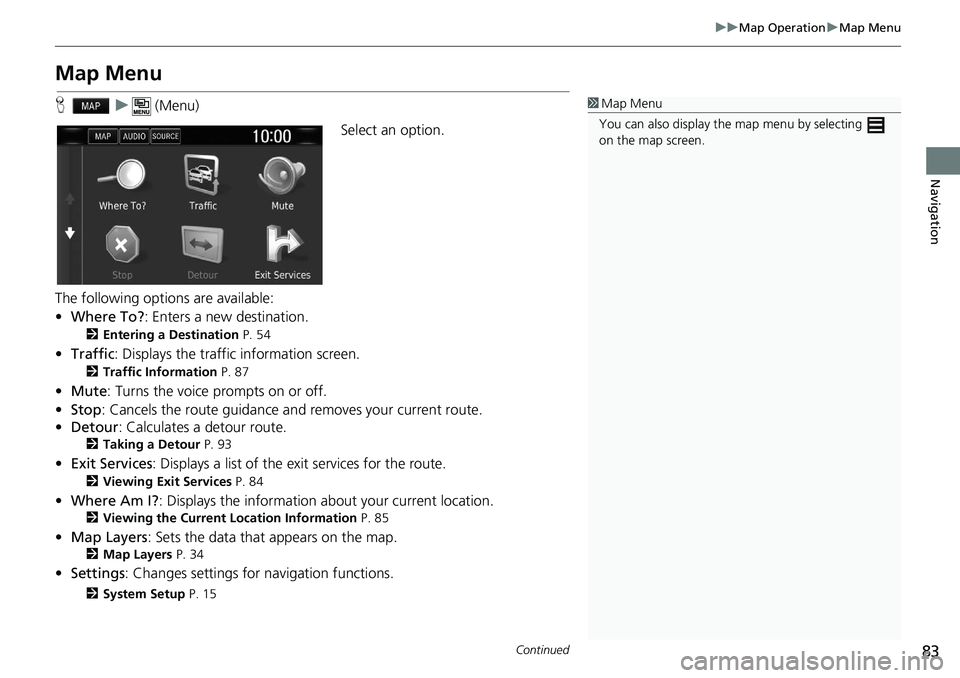

Map Menu
H u (Menu)
Select an option.
The following options are available:
• Where To? : Enters a new destination.
2Entering a Destination P. 54
•Traffic : Displays the traffic information screen.
2Traffic Information P. 87
•Mute : Turns the voice prompts on or off.
• Stop : Cancels the route guidance and removes your current route.
• Detour : Calculates a detour route.
2Taking a Detour P. 93
•Exit Services : Displays a list of the ex it services for the route.
2Viewing Exit Services P. 84
•Where Am I? : Displays the information about your current location.
2Viewing the Current Location Information P. 85
•Map Layers : Sets the data that appears on the map.
2Map Layers P. 34
•Settings : Changes settings for navigation functions.
2System Setup P. 15
1Map Menu
You can also display the map menu by selecting
on the map screen.

uu Map Operation u Map Menu
84
Navigation

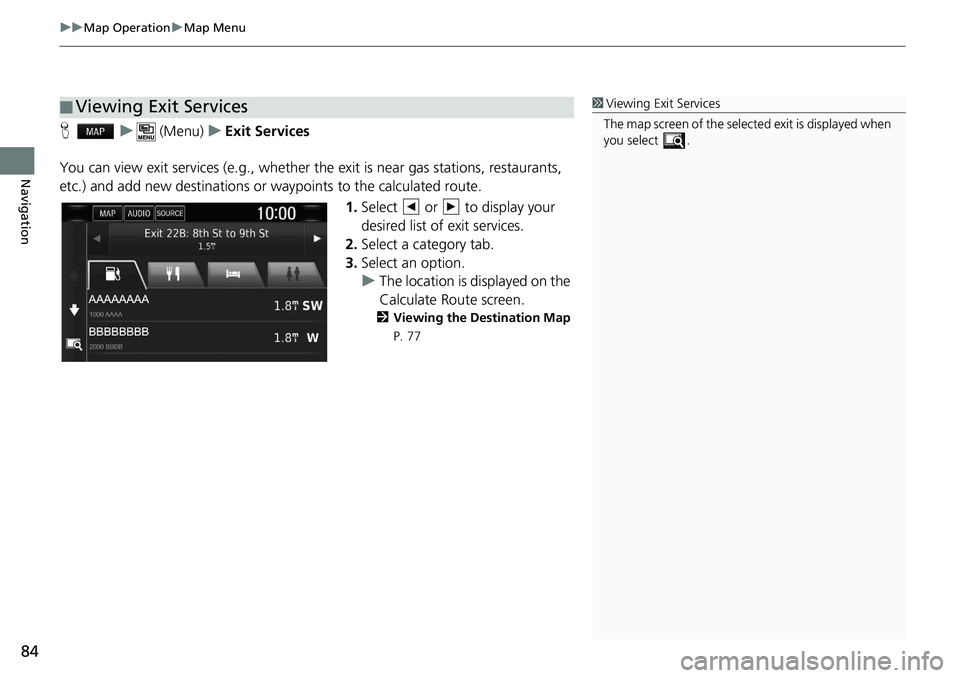

H u (Menu) u Exit Services
You can view exit services (e.g., whether th e exit is near gas stations, restaurants,
etc.) and add new destinations or waypoints to the calculated route.
1.Select or to display your
desired list of exit services.
2.Select a category tab.
3. Select an
option.
uThe location is displayed on the
Calculate Route screen.
2 Viewing the Destination Map
P. 77
■ Viewing Exit Services1
Viewing Exit Services
The map screen of the selected exit is displayed when
you select .

Continued85
uu Map Operation u Map Menu
Navigation
H u (Menu) u Where Am I?
You can confirm your current location , address, and nearest intersection.
Select an option.
The following options are available:
• Save : Saves your current location.
2Saving Your Current Location P. 21
•Hospitals /Police Stations /Hydrogen Stations : Searches for a hospital, police
station, or hydrogen station around your current location.
2 Searching Near Establishment P. 97
■Viewing the Current Location Information1
Viewing the Current Location Information
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.

86
uu Map Operation u Map Menu
Navigation
H u (Menu) u Where Am I?

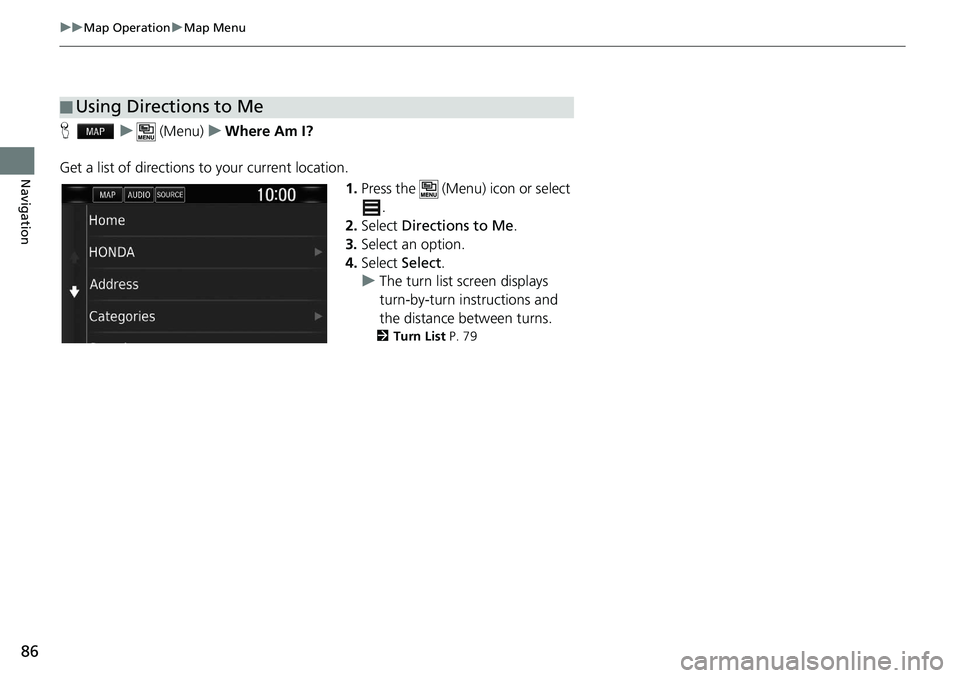

Get a list of directions to your current location. 1.Press the (Menu) icon or select
.
2.Select Directions to Me .
3. Select an
option.
4. Select Select.
uThe turn list screen displays
turn-by-turn in structions and
the distance between turns.
2 Turn List P. 79
■Using Directions to Me

87
uu Map Operation u Traffic Information
Continued
Navigation

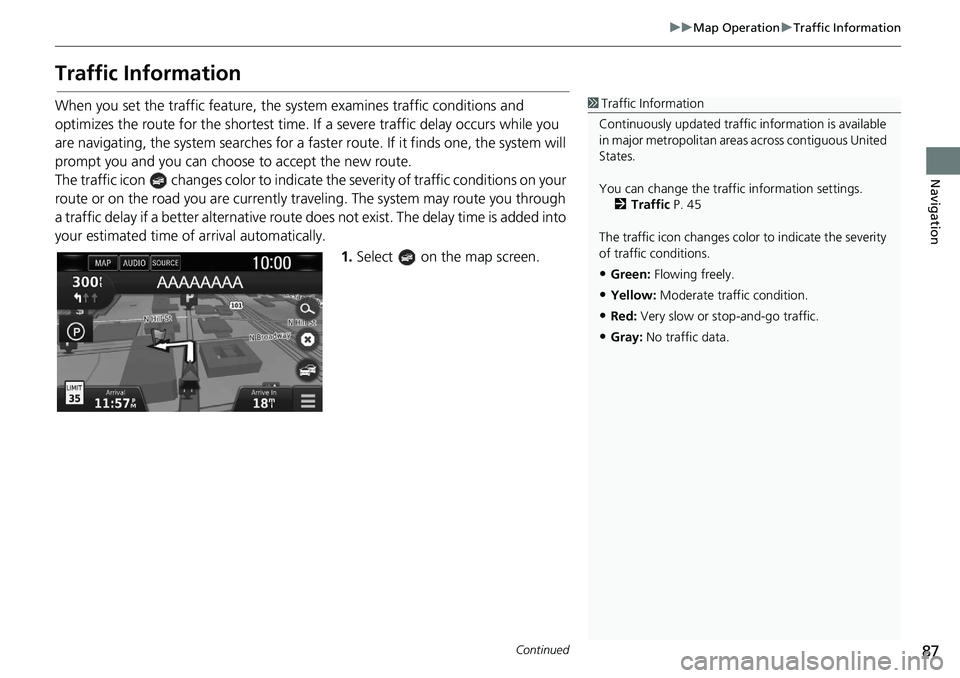

Traffic Information
When you set the traffic feature, the sy stem examines traffic conditions and
optimizes the route for the shortest time. If a severe traffic delay occurs while you
are navigating, the system search es for a faster route. If it finds one, the system will
prompt you and you can choose to accept the new route.
The traffic icon changes colo r to indicate the severity of traffic conditions on your
route or on the road you are currently tra veling. The system may route you through
a traffic delay if a better alternative route doe s not exist. The delay time is added into
your estimated time of arrival automatically.
1.Select on the map screen.1Traffic Information
Continuously updated traffic information is available
in major metropolitan area s across contiguous United
States.
You can change the traffic information settings. 2 Traffic P. 45
The traffic icon changes color to indicate the severity
of traffic conditions.
•Green: Flowing freely.
•Yellow: Moderate traf fic condition.
•Red: Very slow or st op-and-go traffic.
•Gray: No traffic data.

88
uu Map Operation u Traffic Information
Navigation

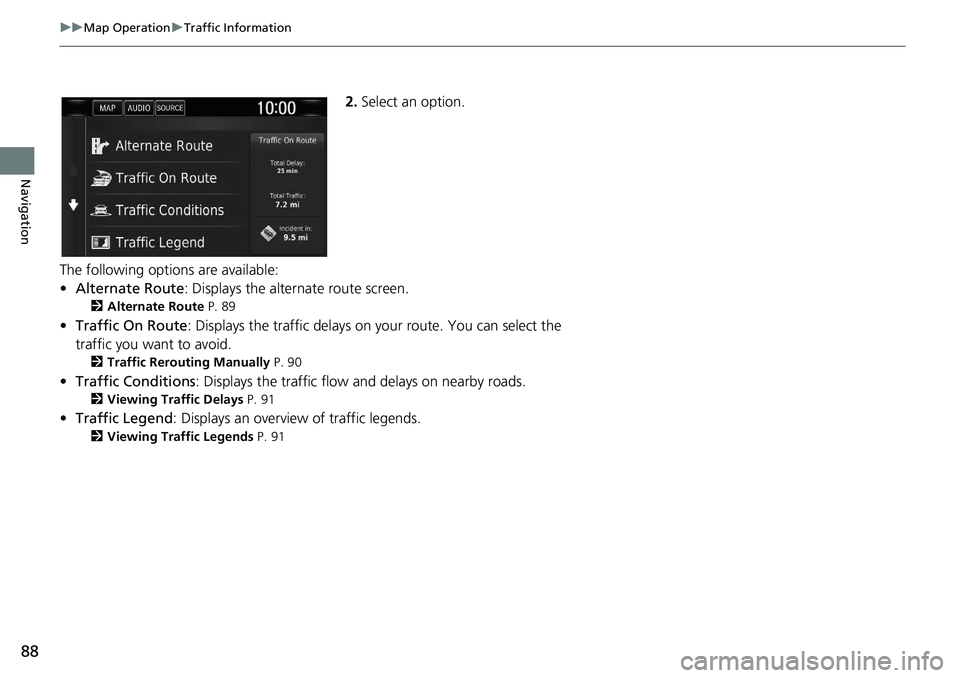

2. Select an option.
The following options are available:
•Alternate Route: Displays the alternate route screen.
2 Alternate Route P. 89
•Traffic On Route : Displays the traffic delays on your route. You can select the
traffic you want to avoid.
2 Traffic Rerouting Manually P. 90
•Traffic Conditions : Displays the traffic flow an d delays on nearby roads.
2Viewing Traffic Delays P. 91
•Traffic Legend : Displays an overview of traffic legends.
2Viewing Traffic Legends P. 91
