HONDA CLARITY FUEL CELL 2020   (in English) User Guide 9

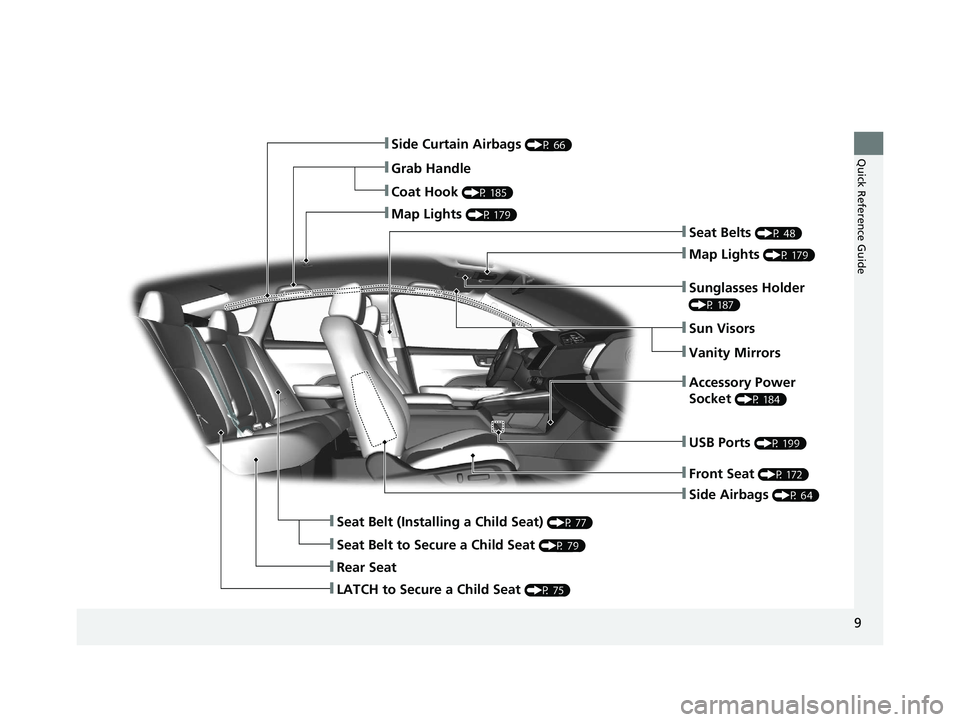

Quick Reference Guide
❚Side Airbags (P 64)
❚Side Curtain Airbags (P 66)
❚Seat Belts (P 48)
❚Seat Belt (Installing a Child Seat) (P 77)
❚Rear Seat
❚Coat Hook (P 185)
❚Map Lights (P 179)

Page 12 of 551

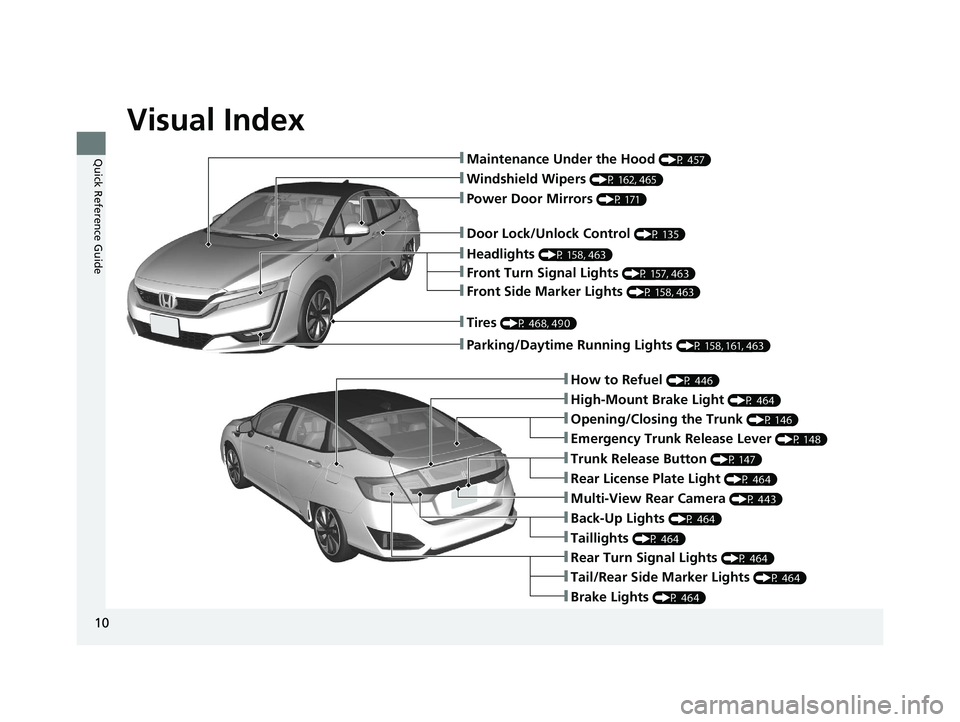

HONDA CLARITY FUEL CELL 2020   (in English) User Guide Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 457)
❚Windshield Wipers (P 162, 465)
❚Door Lock/Unlock Control (P 135)
❚Power Door Mirrors (P 171)
❚Headlights (P 158, 463

Page 13 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 11
Quick Reference Guide

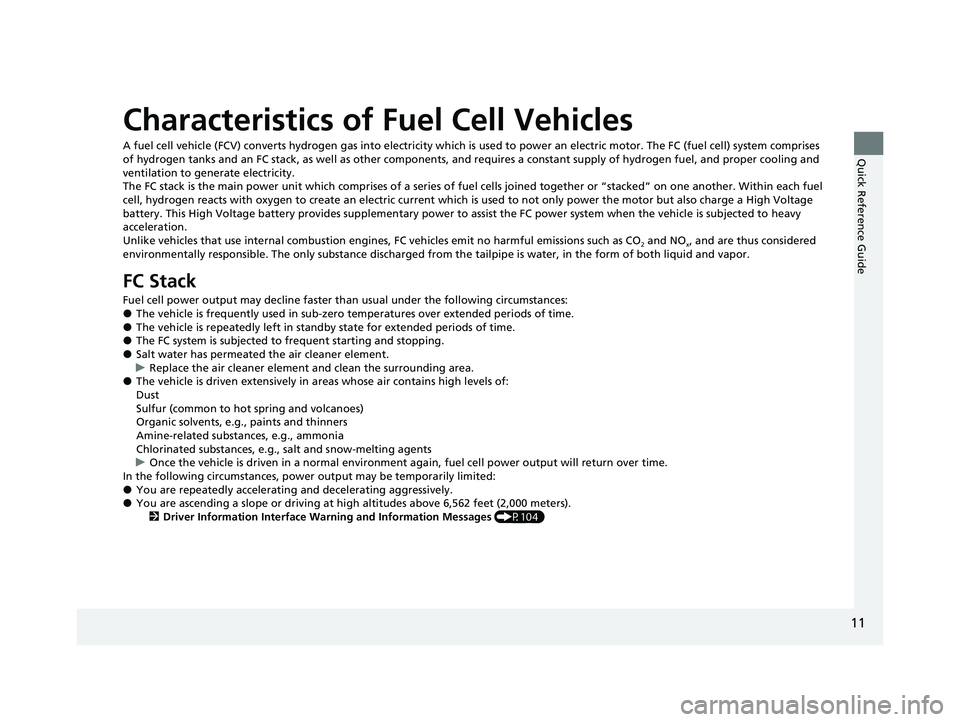

Characteristics of Fuel Cell Vehicles
A fuel cell vehicle (FCV) converts hydrogen gas into electricity which is used to power an electric motor. The FC (fuel cell) system comp

Page 14 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 12
Quick Reference Guide

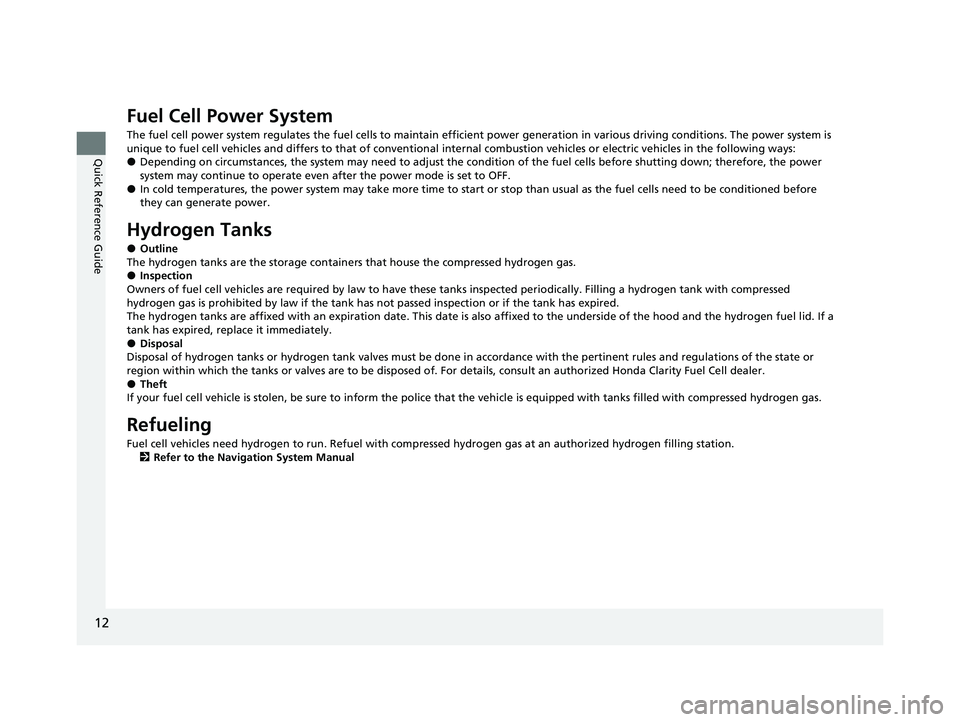

Fuel Cell Power System
The fuel cell power system regulates the fuel cells to maintain efficient power generation in various driving conditions. The p ower system is
unique t

Page 15 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 13
Quick Reference Guide

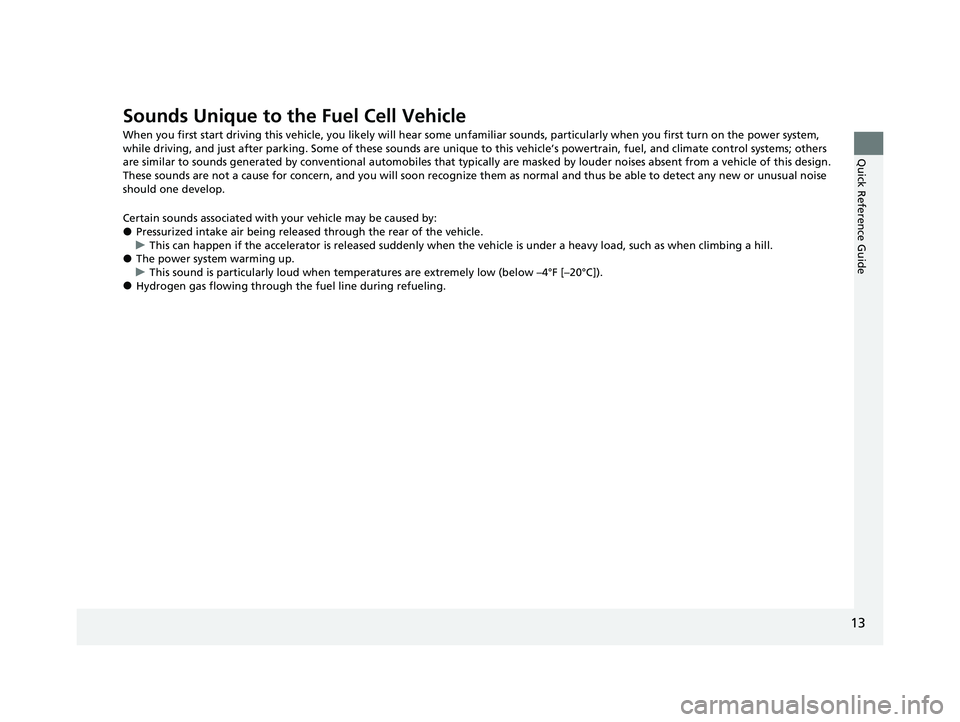

Sounds Unique to the Fuel Cell Vehicle
When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particularly when you first turn on the power sy

Page 16 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 14
Quick Reference Guide

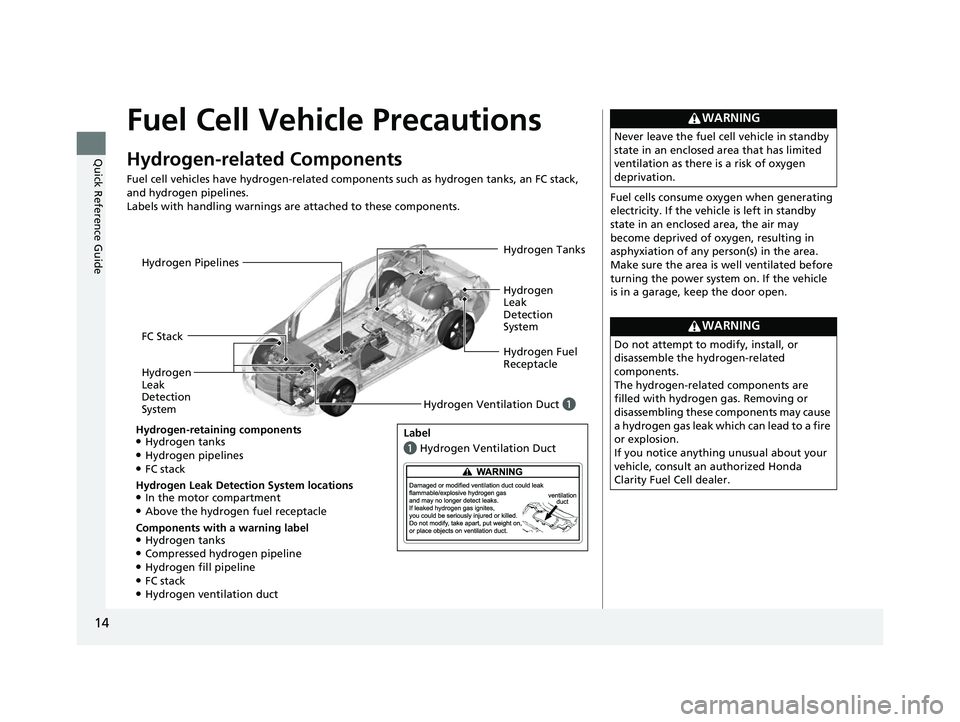

Fuel Cell Vehicle Precautions
Hydrogen-related Components
Fuel cell vehicles have hydrogen-related components such as hydrogen tanks, an FC stack,
and hydrogen pipelines.
Lab

Page 17 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 15
Quick Reference Guide

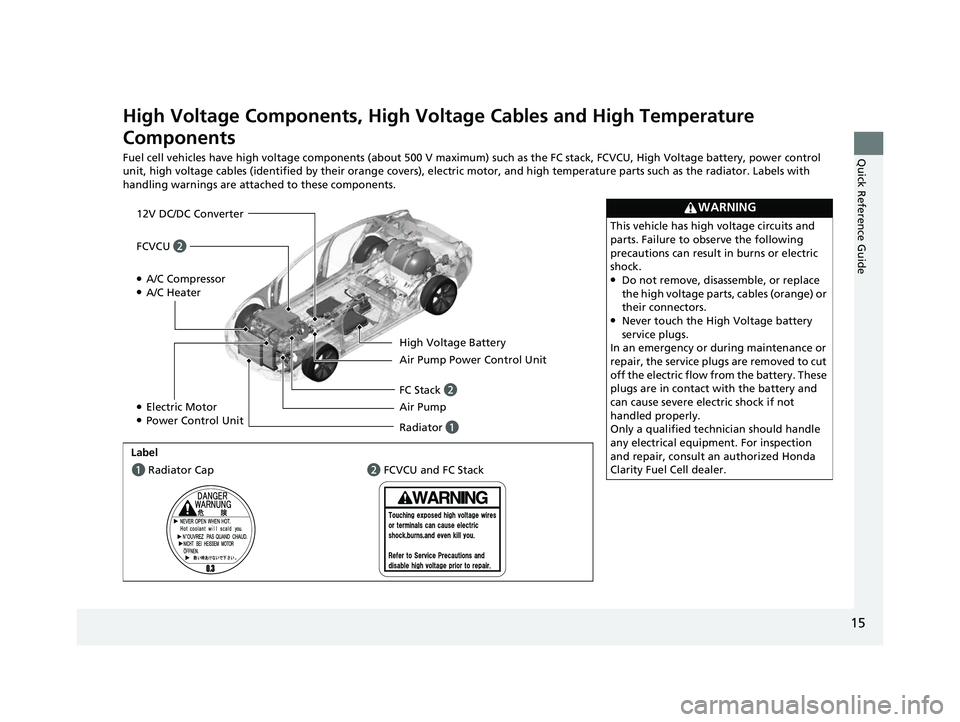

High Voltage Components, High Voltage Cables and High Temperature
Components
Fuel cell vehicles have high voltage components (about 500 V maximum) such as the FC stack, FCVCU

Page 18 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 16
Quick Reference Guide

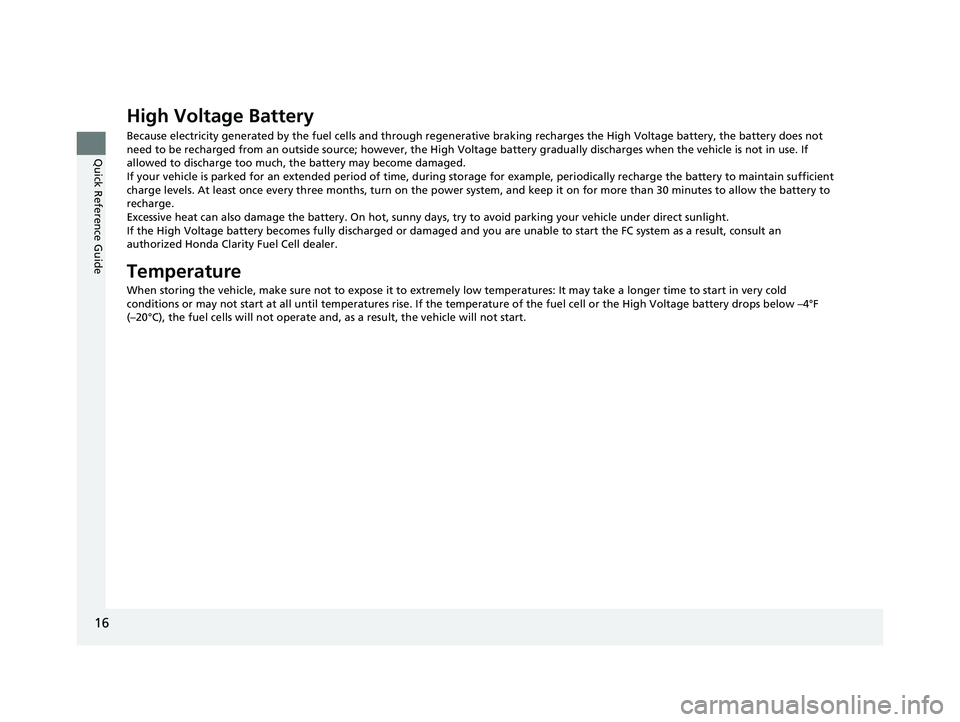

High Voltage Battery
Because electricity generated by the fuel cells and through regenerative braking recharges the High Voltage battery, the batter y does not
need to be rec

Page 19 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 17
Quick Reference Guide

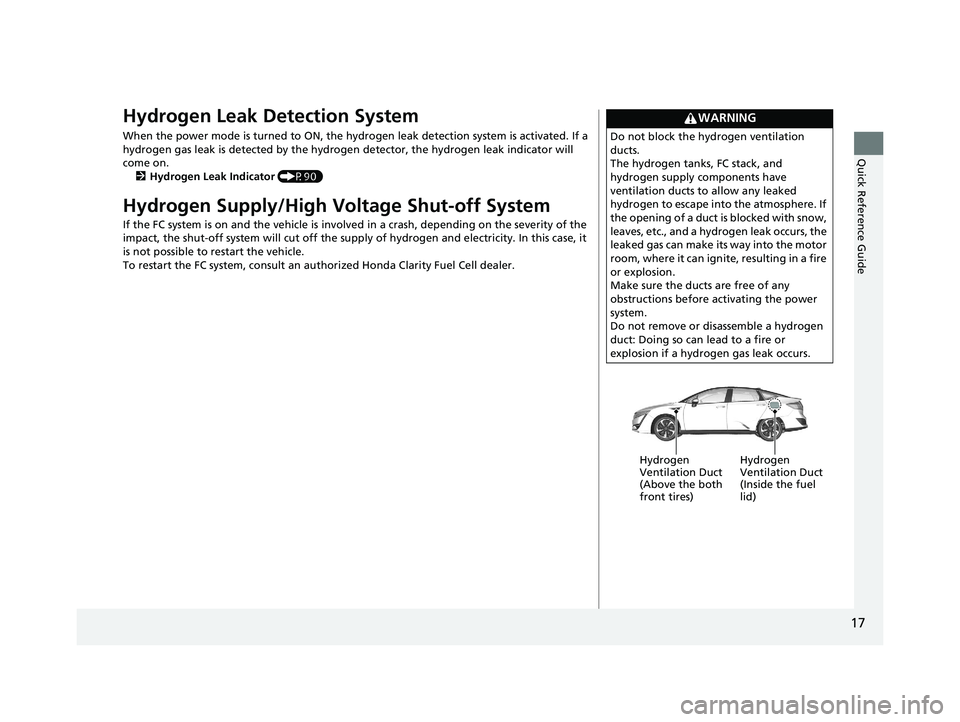

Hydrogen Leak Detection System
When the power mode is turned to ON, the hydrogen leak detection system is activated. If a
hydrogen gas leak is detected by the hydrogen detect

Page 20 of 551

HONDA CLARITY FUEL CELL 2020   (in English) User Guide 18
Quick Reference Guide

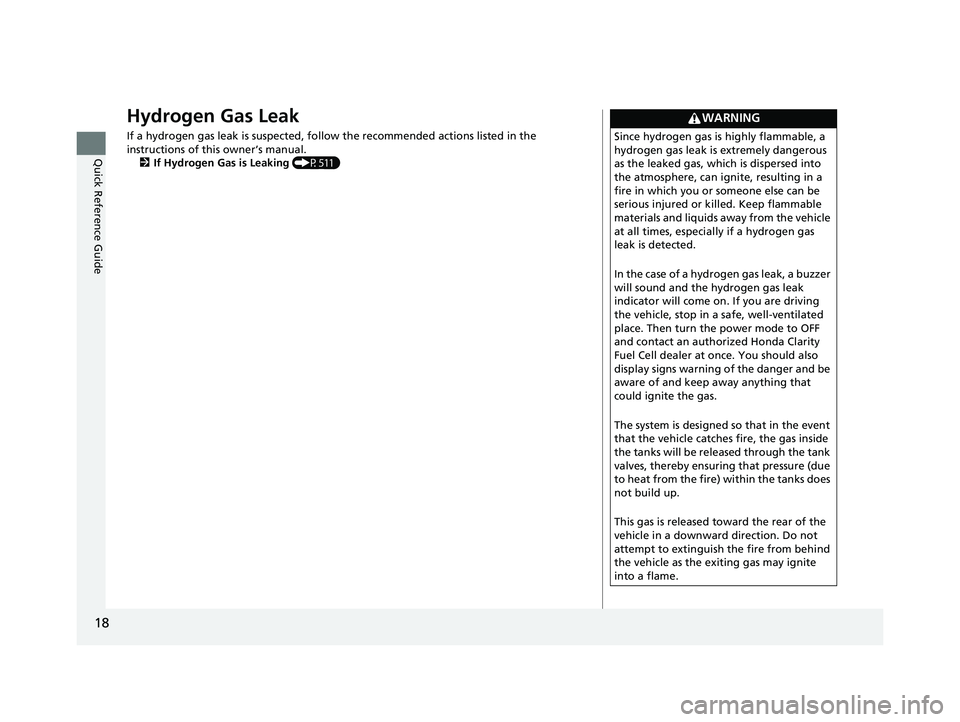

Hydrogen Gas Leak
If a hydrogen gas leak is suspected, follow the recommended actions listed in the
instructions of this owner’s manual. 2 If Hydrogen Gas is Leaking  (P511
