Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments (P 172)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button
(P 423)
❙Road Departure Mitigation (RDM)
Button
(P 398)❙System Indicators (P 86)
❙Gauges (P 121)❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 442)❙Driver Information Interface
(P 124)
❙Navigation System
() See the Navigation System Manual
❙Audio System (P 204)
❙Hazard Warning Button
❙Climate Control System (P 193)
❙Rear Window Defogger (P 169)
❙POWER Button (P 158)
❙Seat Heater Buttons (P 191)
❙Heated Door Mirror Button (P 169)
❙Acoustic Vehicle Alerting System
OFF Button* (P 393)
❙Charge Lid Release Button (P 456, 459)
18 CLARITY PHEV CSS-31TRW6000.book 6 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

Continued191
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
■Seat Heaters1Seat Heaters
Avoid using seat heaters when the 12-volt battery
charge is low. The vehicle may be difficult to start.
After a certain period of time, the strength setting for
the seat heaters will automatically be reduced by one
level at a time until the seat heaters shuts off. The
elapsed time varies according to the interior
environment.
When the ECON mode is active, the driver’s side seat
heater functions accordi ng to the status of the
climate control system. If you want to use only the
climate control system, press the seat heater button
to OFF.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
18 CLARITY PHEV CSS-31TRW6000.book 191 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

388
uuWhen Driving uECON Mode
Driving

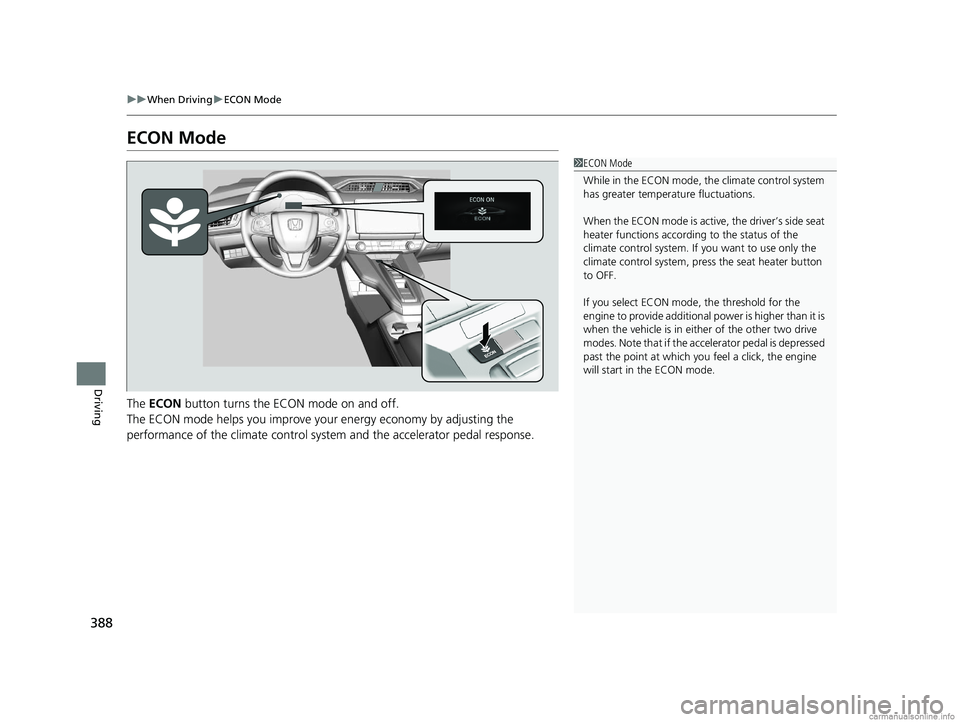

ECON Mode
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your energy economy by adjusting the
performance of the climate control system and the accelerator pedal response.
1 ECON Mode
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.
When the ECON mode is active, the driver’s side seat
heater functions accordi ng to the status of the
climate control system. If you want to use only the
climate control system, press the seat heater button
to OFF.
If you select ECON mode , the threshold for the
engine to provide additional power is higher than it is
when the vehicle is in eith er of the other two drive
modes. Note that if the ac celerator pedal is depressed
past the point at which you feel a click, the engine
will start in the ECON mode.
18 CLARITY PHEV CSS-31TRW6000.book 388 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

553Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are three fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Fuse box A
Located near the windshield washer
reservoir. Push the tabs to open the box.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY175 A
2
EPS70 A
ESB40 A
IG MAIN (SMART)30 A
ABS/VSA MOTOR40 A
WIPER MOTOR 130 A
ABS/VSA FSR40 A
−30 A
3
Engine EWP30 A
SUB FUSE BOX 2-130 A
SUB FUSE BOX 3-230 A
IG MAIN 230 A
4 IG COIL 15 A
5H/L LO MAIN15 A
6EVTC 20 A
7DTWP10 A
8 DBW 15 A
9VBU10 A
10 STOP LIGHT 7.5 A
11IGP15 A
12 FUSE BOX MAIN 1 60 A
FUSE BOX MAIN 2 40 A
FUSE BOX MAIN 3 50 A
H/L HI MAIN 30 A
SMALL MAIN 20 A
SUB FUSE BOX 4 (30 A) −30 A
WIPER MOTOR 2 30 A −30 A
−30 A
13HEATER MOTOR40 A
14 REAR DEFROSTER 40 A
15−−
16 BATT SNSR 7.5 A
17ES EWP15 A
18 A/C MAIN/DRL 10 A
19ES VLV7.5 A
20 HORN 10 A
21BACK UP10 A
22 AUDIO 15 A
23IGPS (LAF)10 A
24 R H/L LO 7.5 A
25L H/L LO7.5 A
26 IGPS 10 A
Circuit ProtectedAmps
18 CLARITY PHEV CSS-31TRW6000.book 553 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

556
uuFuses uFuse Locations
Handling the Unexpected
There are four fuse boxes on the driver’s
side.
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
Fuse Box A
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC7.5 A
2−−
3VB SOL10 A
4SHIFTER7.5 A
5OPTION MAIN15 A
6SRS OPTION7.5 A
7METER10 A
8FUEL PUMP15 A
9OPTION7.5 A
10CTR ACC SOCKET20 A
11−−
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17P-DRV7.5 A
18−−
19WASHER15 A
20−−
21ACG7.5 A
22DRL7.5 A
23−10 A
24FR SENSOR CAMERA5A
25DR DOOR LOCK10 A
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30INTERIOR LIGHT7.5 A
31DR P/SEAT REC20 A
32FR SEAT HEATER20 A
33DR P/SEAT SLI20 A
34ABS/VSA7.5 A
35SRS10 A
36−−
37LID ACT10 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
Circuit ProtectedAmps
18 CLARITY PHEV CSS-31TRW6000.book 556 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

582
Index
FM/AM Radio............................................ 243
Foot Brake ................................................. 433
Front Airbags (SRS) ..................................... 57
Front Seat Heaters .................................... 191
Front Seats ................................................ 175
Adjusting ................................................. 175
Front Sensor Camera ................................ 394
Fuel ...................................................... 33, 451
Fuel Economy and CO
2 Emissions............. 469
Gauge ..................................................... 121
Instant Fuel Economy ............................... 127
Range ...................................................... 121
Recommendation .................................... 451
Refueling ................................................. 451
Requirement ............................................ 566
Fuel Economy and CO
2 Emissions ............ 469
Fuel Fill Cap ......................................... 33, 452
Fuel Fill Door ....................................... 33, 452
Fuses .......................................................... 553
Inspecting and Changing ......................... 560
Locations ......................................... 553, 556
G
Gasoline (Fuel) Economy ................................................. 469
Information ............................................. 451
Refueling ................................................. 451
Gauges ....................................................... 121
Gear Position Indicator ....................... 91, 384 Gear Shift Positions
Transmission ........................................... 382
Glass (care) ........................................ 514, 516
Glove Box .................................................. 185
H
Handling the Unexpected ........................ 521
HandsFreeLink ® (HFL) ............................... 335
Automatic Import of Cellular Phonebook
and Call History ..................................... 348
Displaying Messages................................ 362
HFL Buttons............................................. 335
HFL Menus .............................................. 338
HFL Status Display ................................... 337
In Case of Emergency .............................. 366
Limitations for Manual Operation ............ 337
Making a Call .......................................... 356
Options During a Call .............................. 359
Phone Setup............................................ 343
Phonebook Phonetic Modification ........... 352
Receiving a Call ....................................... 359
Receiving a Text Message/E-mail.............. 360
Ring Tone................................................ 347
Selecting a Mail Account ......................... 361
Speed Dial ............................................... 349
To Set Up Text Message/E-mail Options ... 346
Hazard Warning Button .............................. 6
HD Radio
TM................................................ 243
Head Restraints ........................................ 178 Headlights
................................................ 162
Aiming.................................................... 494
Automatic Operation .............................. 163
Dimming......................................... 162, 165
Operating ............................................... 162
Heated Door Mirror Button .................... 169
Heaters (Seat) ........................................... 191
HFL (HandsFreeLink ®) .............................. 335
High Beam Indicator .................................. 97
High Voltage Battery ............................... 466
Charging ................................................ 454
High Voltage Battery Charge Level Gauge ..................................................... 123
Hill Start Assist System ............................. 379
Home Screen ............................................ 225
HomeLink ® Universal Transceiver ........... 332
Honda App License Agreement .............. 291
Honda Sensing
TM........................................ 34
HondaLink ®.............................................. 269
HV Button ................................................... 16
HV Charge .................................................. 17
HV Charge Indicator .................................. 89
HV Indicator ............................................... 89
I
Identification Numbers
Motor, and Transmission......................... 568
Vehicle Identification............................... 568
Immobilizer System .................................. 153
Indicator ................................................... 97
18 CLARITY PHEV CSS-31TRW6000.book 582 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

585
Index
READY Indicator........................................ 90
Rear Defogger Button ............................. 169
Rear Seats ................................................. 181
Rearview Mirror ....................................... 173
Refueling .................................................. 451
Fuel ........................................................ 566
Fuel Gauge ............................................. 121
Gasoline ................................................. 451
Regulations ...................... 427, 464, 502, 569
Remote Transmitter ................................. 143
Replacement
Battery .................................................... 510
Bulbs ...................................................... 494
Fuses .............................................. 553, 556
Tires........................................................ 505
Wiper Blade Rubber ................................ 496
Reporting Safety Defects ......................... 571
Resetting a Trip Meter ............................. 126
Road Departure Mitigation (RDM) ......... 396
On and Off ............................................. 398
S
Safe Driving ................................................ 41
Safety Checklist .......................................... 46
Safety Labels .............................................. 83
Safety Message ............................................ 4
Seat Belts .................................................... 47
Adjusting the Shoulder Anchor ................. 51
Automatic Seat Belt Tensioners ................. 49
Checking .................................................. 53 Fastening ................................................... 50
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 76
Pregnant Women ...................................... 52
Reminder............................................. 49, 93
Warning Indicator ................................ 49, 93
Seat Heaters .............................................. 191
Seats .......................................................... 175
Adjusting ................................................. 175
Front Seats .............................................. 175
Rear Seats ............................................... 181
Seat Heaters ............................................ 191
Security System ......................................... 153
Immobilizer System Indicator ..................... 97
Security System Alarm Indicator ................. 98
Selecting a Child Seat ................................. 73
Setting the Clock ...................................... 136
Shift Button ........................................ 31, 382
Operation ................................................ 384
Shifting (Transmission) ....................... 31, 382
Shoulder Anchor ......................................... 51
Side Airbags ................................................ 63
Side Curtain Airbags ................................... 65
Siri Eyes Free ............................................. 276
SiriusXM ® Radio ................................ 247, 288
Smart Entry System ................................... 139
Snow Tires ................................................. 507
Song By Voice
TM (SBV) .............................. 258
Specifications ............................................ 566
Specified Fuel .................................... 451, 566 SPORT HYBRID i-MMD Plug-in (Intelligent
Multi-mode Drive Plug-in) ....................... 11
SPORT Mode ............................................. 389
SPORT Mode Indicator ....................... 98, 389
SRS Airbags (Airbags) ................................. 57
Status Area ............................................... 232
Steering Wheel Adjusting ................................................ 172
Stopping ................................................... 447
Summer Tires ............................................ 507
Sunglasses Holder ..................................... 192
Supplemental Restraint System (SRS) ........ 57
Switches (Around the Steering Wheel) ............................................. 6, 7, 158
Synchronization Mode ............................. 198
System Message Indicator .......................... 98
T
Telematics Control Unit........................... 133
Temperature Sensor ................................. 201
Temporary Tire Repair Kit ....................... 523
Time (Setting) ........................................... 136
Timer ......................................................... 467
Tire Pressure Monitoring System (TPMS) ..................................................... 425
Indicator............................................ 96, 551
18 CLARITY PHEV CSS-31TRW6000.book 585 ページ ２０１７年１２月２５日　月曜日　午後２時２２分
