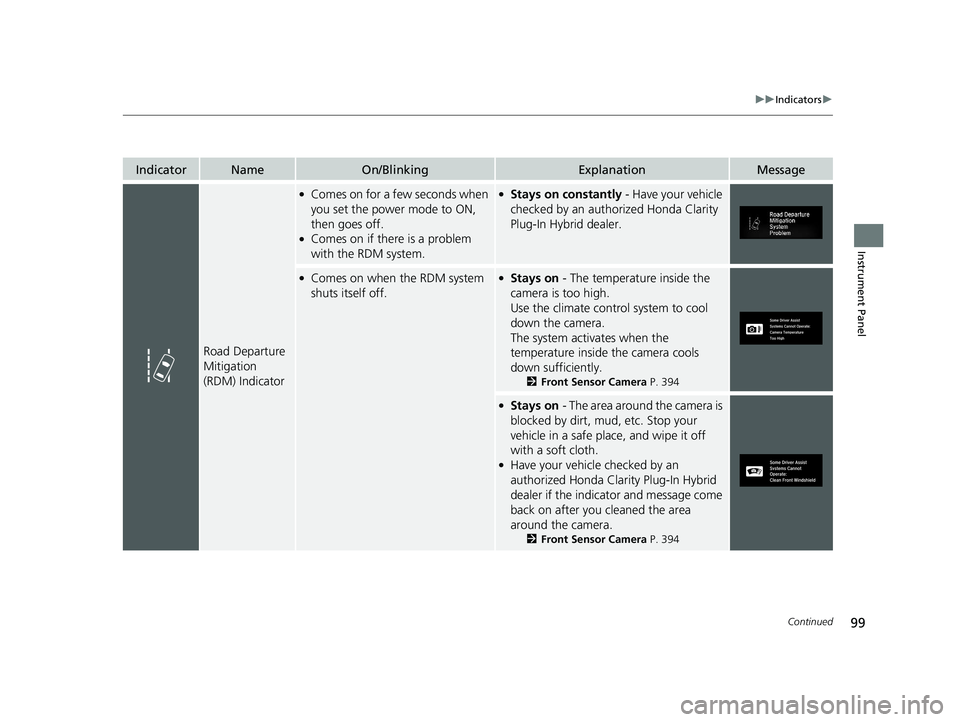

99 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Road Departure
Mitigation
(RDM) Indicator ●
Comes on for a few seconds when
you set the power mode to ON,
then goes off. ●
Comes on if there is a problem
with the RDM system. ●
Stays on constantly - Have your vehicle
checked by an author ized Honda Clarity
Plug-In Hybrid dealer. ●
Comes on when the RDM system
shuts itself off. ●
Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down sufficiently. 2 Front Sensor Camera P. 394 ●
Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth. ●
Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer if the indicator and message come
back on after you cleaned the area
around the camera. 2 Front Sensor Camera P. 39418 CLARITY PHEV CSS-31TRW6000.book 99 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

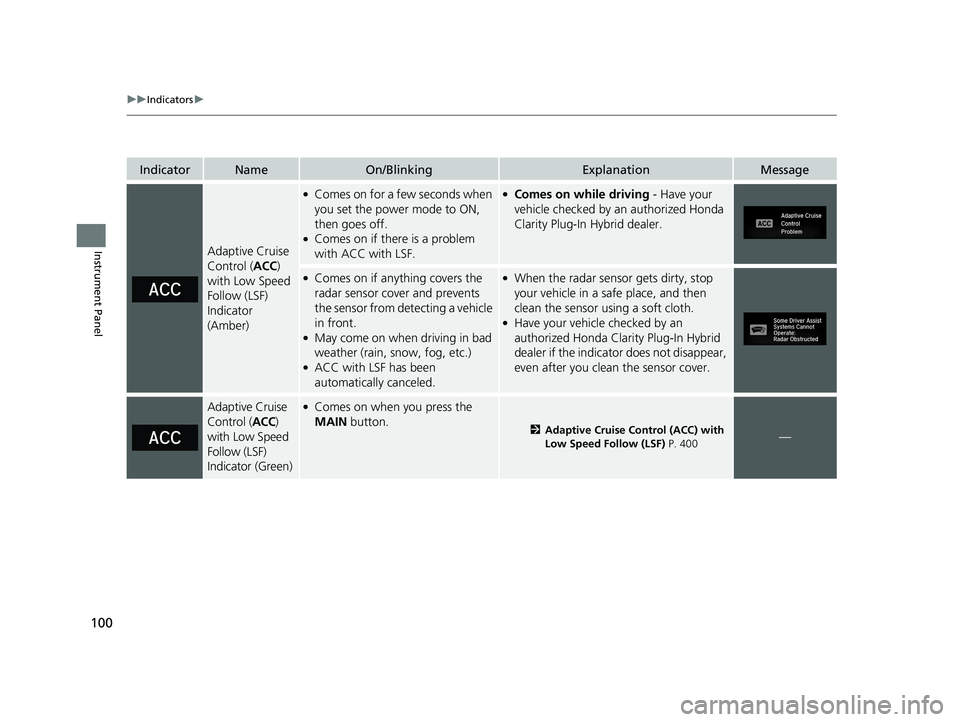

100 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Adaptive Cruise
Control ( ACC )
with Low Speed
Follow (LSF)
Indicator
(Amber) ●
Comes on for a few seconds when
you set the power mode to ON,
then goes off. ●
Comes on if there is a problem
with ACC with LSF. ●
Comes on while driving - Have your
vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer. ●
Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a vehicle
in front. ●
May come on when driving in bad
weather (rain, snow, fog, etc.) ●
ACC with LSF has been
automatically canceled. ●
When the radar sensor gets dirty, stop
your vehicle in a safe place, and then
clean the sensor using a soft cloth. ●
Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer if the indicator does not disappear,
even after you clean the sensor cover.
Adaptive Cruise
Control ( ACC )
with Low Speed
Follow (LSF)
Indicator (Green) ●
Comes on when you press the
MAIN button. 2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 400
—18 CLARITY PHEV CSS-31TRW6000.book 100 ページ ２０１７年８月３１日　木曜日　午後２時４９分

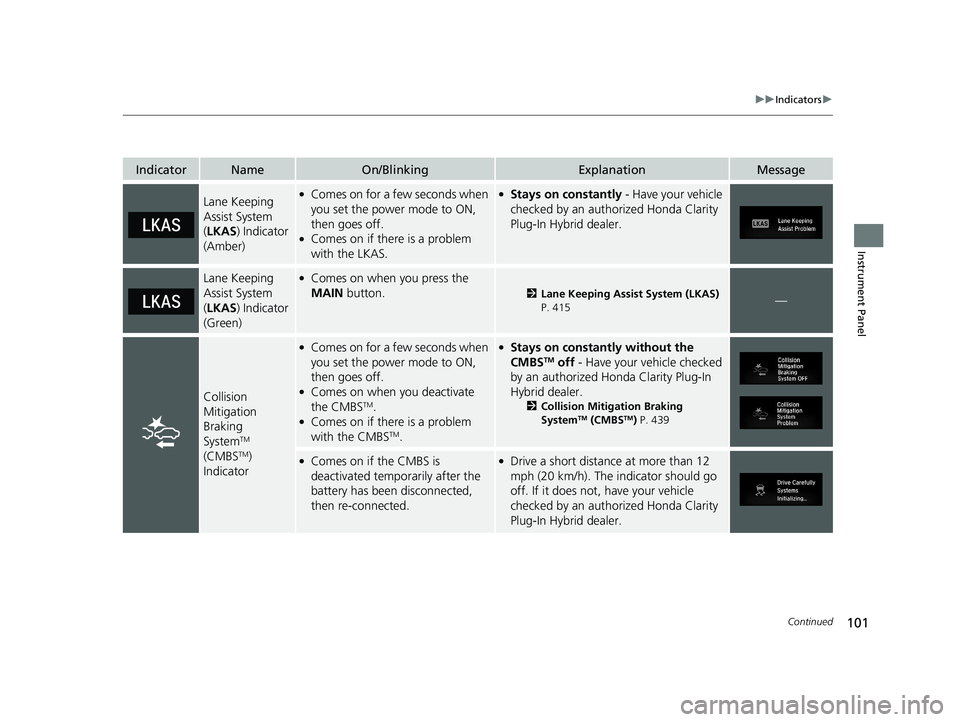

101 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Lane Keeping
Assist System
( LKAS ) Indicator
(Amber) ●
Comes on for a few seconds when
you set the power mode to ON,
then goes off. ●
Comes on if there is a problem
with the LKAS. ●
Stays on constantly - Have your vehicle
checked by an author ized Honda Clarity
Plug-In Hybrid dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green) ●
Comes on when you press the
MAIN button. 2 Lane Keeping Assist System (LKAS)
P. 415
—
Collision
Mitigation
Braking
System TM

(CMBS TM
)
Indicator ●
Comes on for a few seconds when
you set the power mode to ON,
then goes off. ●
Comes on when you deactivate
the CMBS TM
. ●
Comes on if there is a problem
with the CMBS TM
. ●
Stays on constantly without the
CMBS TM
off - Have your vehicle checked
by an authorized Honda Clarity Plug-In
Hybrid dealer. 2 Collision Mitigation Braking
System TM
(CMBS TM
) P. 439●
Comes on if the CMBS is
deactivated temporarily after the
battery has been disconnected,
then re-connected. ●
Drive a short distance at more than 12
mph (20 km/h). The i ndicator should go
off. If it does not, have your vehicle
checked by an author ized Honda Clarity
Plug-In Hybrid dealer.18 CLARITY PHEV CSS-31TRW6000.book 101 ページ ２０１７年８月３１日　木曜日　午後２時４９分

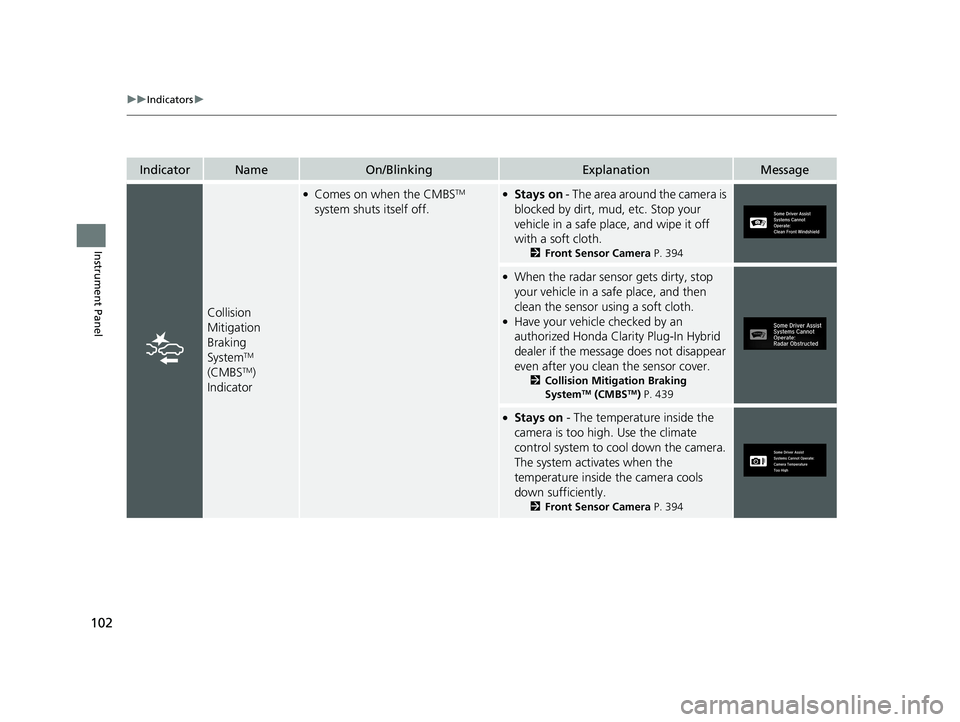

102 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Collision
Mitigation
Braking
System TM

(CMBS TM
)
Indicator ●
Comes on when the CMBS TM

system shuts itself off. ●
Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth. 2 Front Sensor Camera P. 394 ●
When the radar sensor gets dirty, stop
your vehicle in a safe place, and then
clean the sensor using a soft cloth. ●
Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer if the message does not disappear
even after you clean the sensor cover. 2 Collision Mitigation Braking
System TM
(CMBS TM
) P. 439 ●
Stays on - The temperature inside the
camera is too high . Use the climate
control system to cool down the camera.
The system acti vates when the
temperature inside the camera cools
down sufficiently. 2 Front Sensor Camera P. 39418 CLARITY PHEV CSS-31TRW6000.book 102 ページ ２０１７年８月３１日　木曜日　午後２時４９分

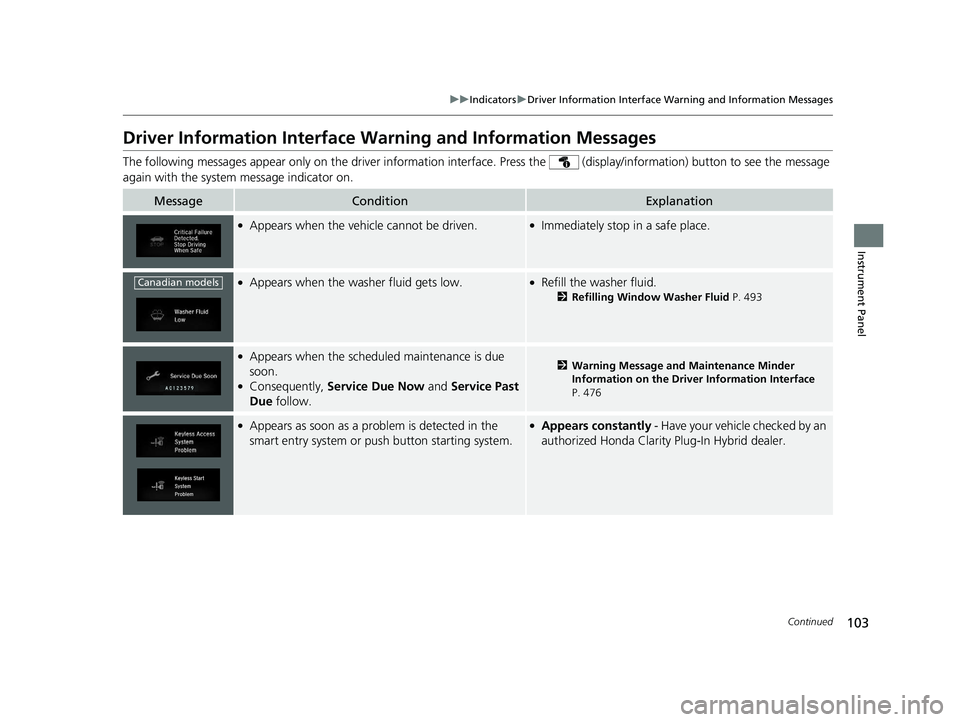

103uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages The following messages appear only on the dr iver information interface. Press the (d isplay/information) button to see the mess age
again with the system message indicator on.
Message Condition Explanation●
Appears when the vehicle cannot be driven. ●
Immediately stop in a safe place.●
Appears when the washer fluid gets low. ●
Refill the washer fluid. 2 Refilling Window Washer Fluid P. 493●
Appears when the scheduled maintenance is due
soon. ●
Consequently, Service Due Now and Service Past
Due follow. 2 Warning Message and Maintenance Minder
Information on the Driver Information Interface
P. 476●
Appears as soon as a problem is detected in the
smart entry system or push button starting system. ●
Appears constantly - Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid dealer.Canadian models18 CLARITY PHEV CSS-31TRW6000.book 103 ページ ２０１７年８月３１日　木曜日　午後２時４９分

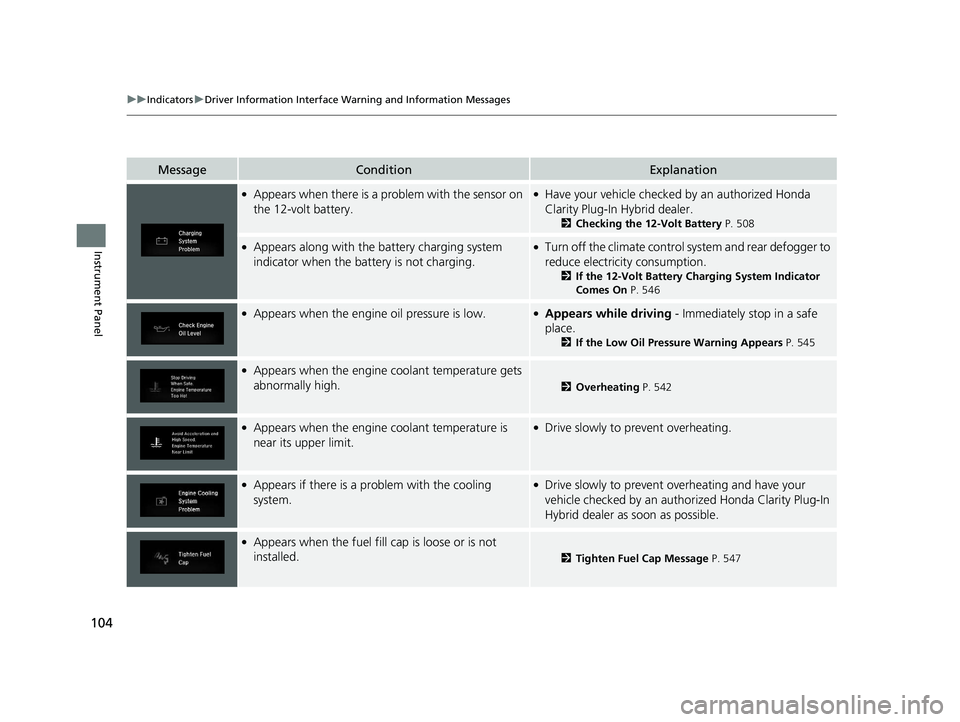

104 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears when there is a pr oblem with the sensor on
the 12-volt battery. ●
Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer. 2 Checking the 12-Volt Battery P. 508●
Appears along with the battery charging system
indicator when the batte ry is not charging. ●
Turn off the climate control system and rear defogger to
reduce electricity consumption. 2 If the 12-Volt Battery Charging System Indicator
Comes On P. 546●
Appears when the engine oil pressure is low. ●
Appears while driving - Immediately stop in a safe
place. 2 If the Low Oil Pressure Warning Appears P. 545●
Appears when the engine coolant temperature gets
abnormally high. 2 Overheating P. 542●
Appears when the engine coolant temperature is
near its upper limit. ●
Drive slowly to prevent overheating.●
Appears if there is a pr oblem with the cooling
system. ●
Drive slowly to prevent ov erheating and have your
vehicle checked by an author ized Honda Clarity Plug-In
Hybrid dealer as soon as possible.●
Appears when the fuel fill cap is loose or is not
installed. 2 Tighten Fuel Cap Message P. 54718 CLARITY PHEV CSS-31TRW6000.book 104 ページ ２０１７年８月３１日　木曜日　午後２時４９分

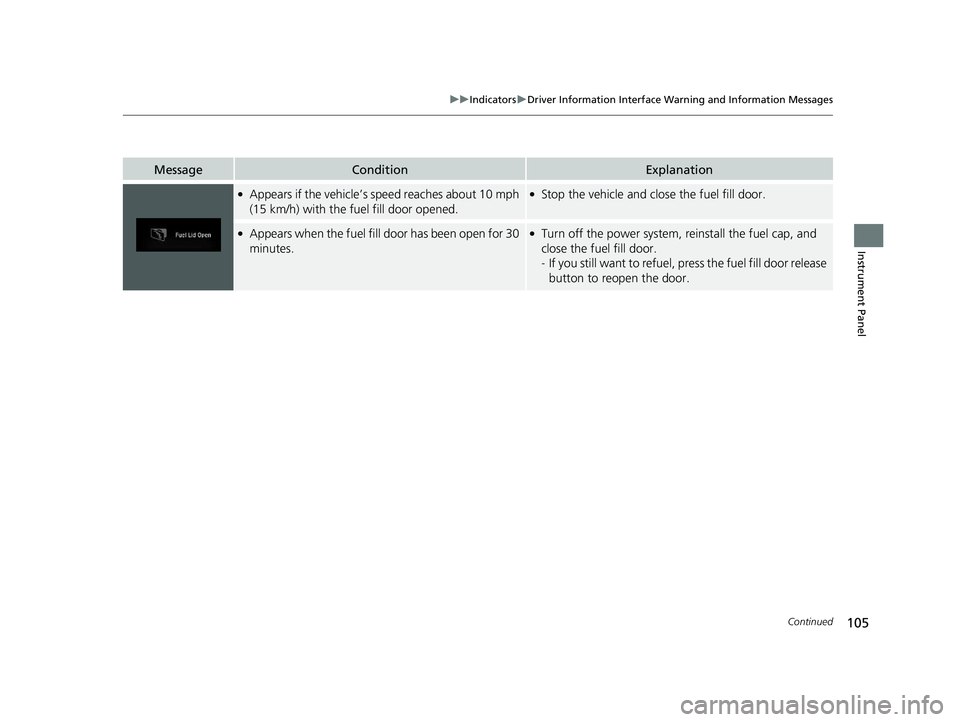

105uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Message Condition Explanation●
Appears if the vehicle’s speed reaches about 10 mph
(15 km/h) with the fuel fill door opened. ●
Stop the vehicle and close the fuel fill door.●
Appears when the fuel fill door has been open for 30
minutes. ●
Turn off the power system, re install the fuel cap, and
close the fuel fill door.
- If you still want to refuel, press the fuel fill door release
button to reopen the door.18 CLARITY PHEV CSS-31TRW6000.book 105 ページ ２０１７年８月３１日　木曜日　午後２時４９分

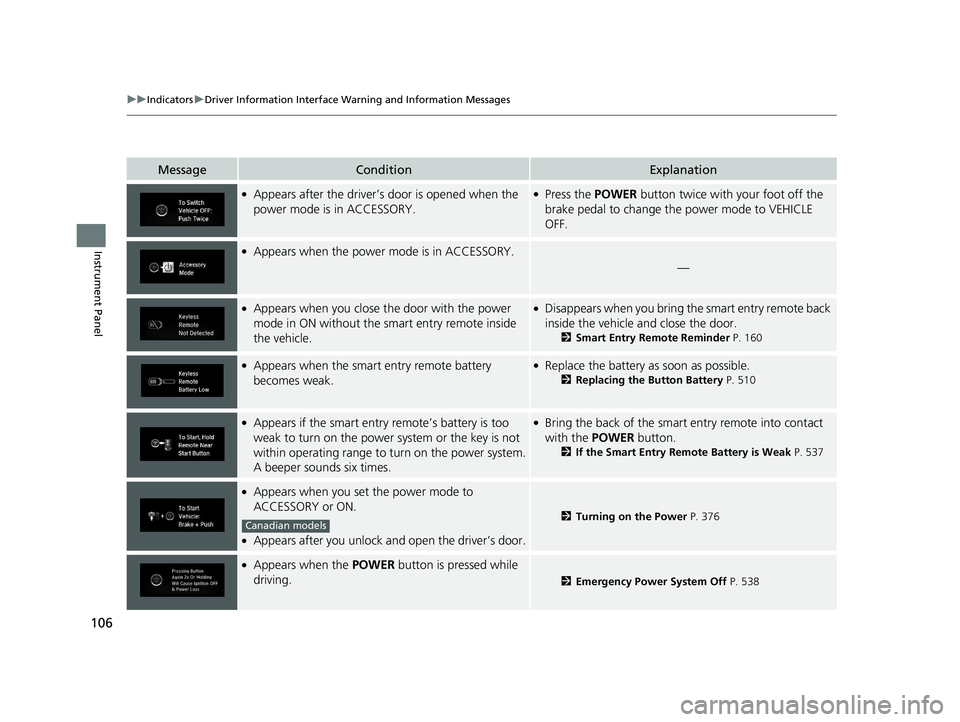

106 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears after the driver’s door is opened when the
power mode is in ACCESSORY. ●
Press the POWER button twice with your foot off the
brake pedal to change the power mode to VEHICLE
OFF.●
Appears when the power mode is in ACCESSORY.
—●
Appears when you close th e door with the power
mode in ON without the smart entry remote inside
the vehicle. ●
Disappears when you bring the smart entry remote back
inside the vehicle and close the door. 2 Smart Entry Remote Reminder P. 160●
Appears when the smart entry remote battery
becomes weak. ●
Replace the battery as soon as possible. 2 Replacing the Button Battery P. 510●
Appears if the smart entry remote’s battery is too
weak to turn on the power system or the key is not
within operating range to turn on the power system.
A beeper sounds six times. ●
Bring the back of the smart entry remote into contact
with the POWER button.2 If the Smart Entry Remote Battery is Weak P. 537●
Appears when you set the power mode to
ACCESSORY or ON. ●
Appears after you unlock a nd open the driver’s door. 2 Turning on the Power P. 376●
Appears when the POWER button is pressed while
driving. 2 Emergency Power System Off P. 538Canadian models18 CLARITY PHEV CSS-31TRW6000.book 106 ページ ２０１７年８月３１日　木曜日　午後２時４９分

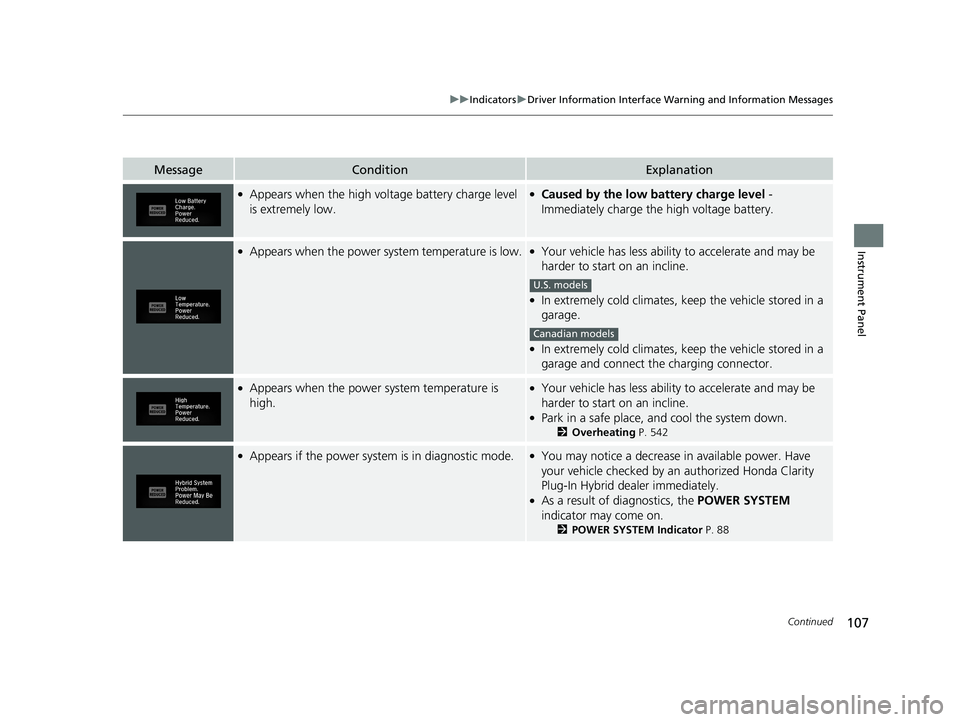

107uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Message Condition Explanation●
Appears when the high volt age battery charge level
is extremely low. ●
Caused by the low battery charge level -
Immediately charge the high voltage battery.●
Appears when the power system temperature is low. ●
Your vehicle has less ability to accelerate and may be
harder to start on an incline. ●
In extremely cold climates, keep the vehicle stored in a
garage. ●
In extremely cold climates, keep the vehicle stored in a
garage and connect th e charging connector.●
Appears when the power system temperature is
high. ●
Your vehicle has less ability to accelerate and may be
harder to start on an incline. ●
Park in a safe place, an d cool the system down.2 Overheating P. 542●
Appears if the power system is in diagnostic mode. ●
You may notice a decrease in available power. Have
your vehicle checked by an authorized Honda Clarity
Plug-In Hybrid dealer immediately. ●
As a result of diagnostics, the POWER SYSTEM
indicator may come on. 2 POWER SYSTEM Indicator P. 88U.S. models
Canadian models18 CLARITY PHEV CSS-31TRW6000.book 107 ページ ２０１７年８月３１日　木曜日　午後２時４９分

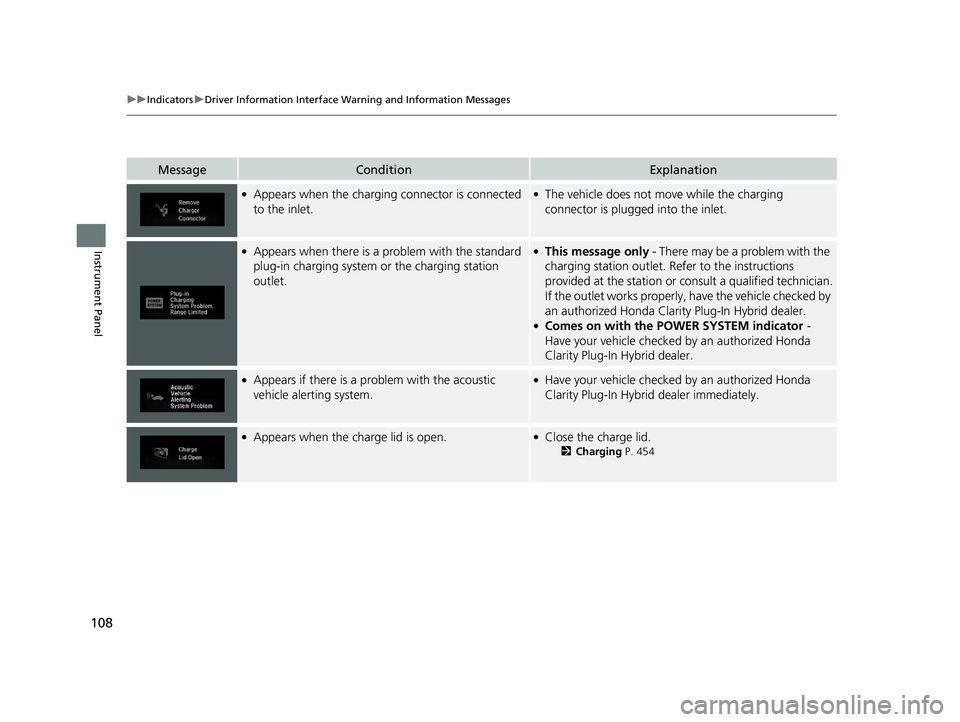

108 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears when the charging connector is connected
to the inlet. ●
The vehicle does not move while the charging
connector is plugged into the inlet.●
Appears when there is a pr oblem with the standard
plug-in charging system or the charging station
outlet. ●
This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or c onsult a qualified technician.
If the outlet works properly, have the vehicle checked by
an authorized Honda Clarit y Plug-In Hybrid dealer. ●
Comes on with the PO WER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer.●
Appears if there is a pr oblem with the acoustic
vehicle alerting system. ●
Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer immediately.●
Appears when the charge lid is open. ●
Close the charge lid. 2 Charging P. 45418 CLARITY PHEV CSS-31TRW6000.book 108 ページ ２０１７年８月３１日　木曜日　午後２時４９分
