HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

119uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel

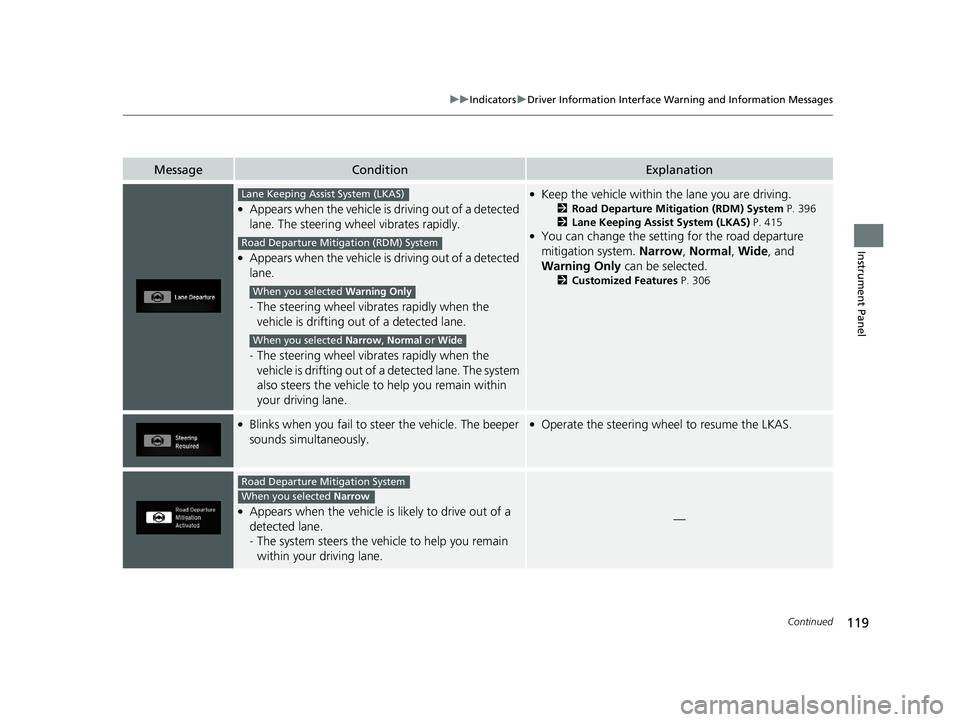

Message Condition Explanation●
Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly. ●
Appears when the vehicle is driving out of a detected
lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane. ●
Keep the vehicle within the lane you are driving.2 Road Departure Mitigation (RDM) System P. 396
2 Lane Keeping Assist System (LKAS) P. 415 ●
You can change the setting for the road departure
mitigation system. Narrow , Normal , Wide , and
Warning Only can be selected. 2 Customized Features P. 306●
Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously. ●
Operate the steering wheel to resume the LKAS.●
Appears when the vehicle is likely to drive out of a
detected lane.
- The system steers the vehi cle to help you remain
within your driving lane. —Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow , Normal or Wide
Road Departure Mitigation System
When you selected Narrow18 CLARITY PHEV CSS-31TRW6000.book 119 ページ ２０１７年８月３１日　木曜日　午後２時４９分

120 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●

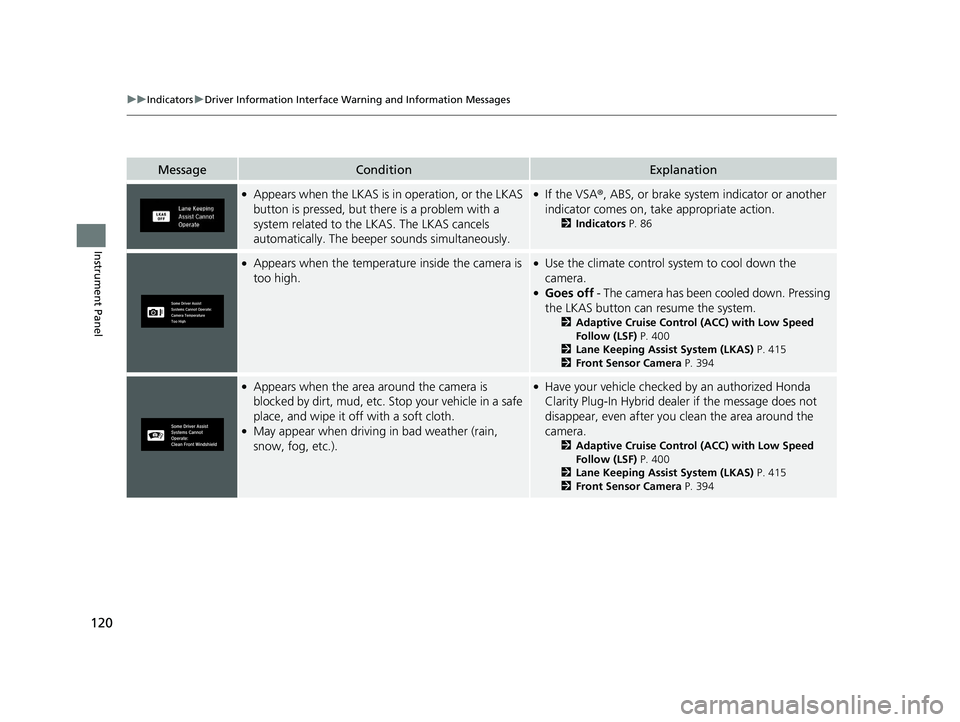

Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously. ●
If the VSA ® , ABS, or brake system indicator or another
indicator comes on, take appropriate action. 2 Indicators P. 86●
Appears when the temperature inside the camera is
too high. ●
Use the climate control sy stem to cool down the
camera. ●
Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system. 2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 400
2 Lane Keeping Assist System (LKAS) P. 415
2 Front Sensor Camera P. 394●
Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth. ●
May appear when driving in bad weather (rain,
snow, fog, etc.). ●
Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer if the message does not
disappear, even after you clean the area around the
camera. 2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 400
2 Lane Keeping Assist System (LKAS) P. 415
2 Front Sensor Camera P. 39418 CLARITY PHEV CSS-31TRW6000.book 120 ページ ２０１７年８月３１日　木曜日　午後２時４９分

121Continued
Instrument Panel

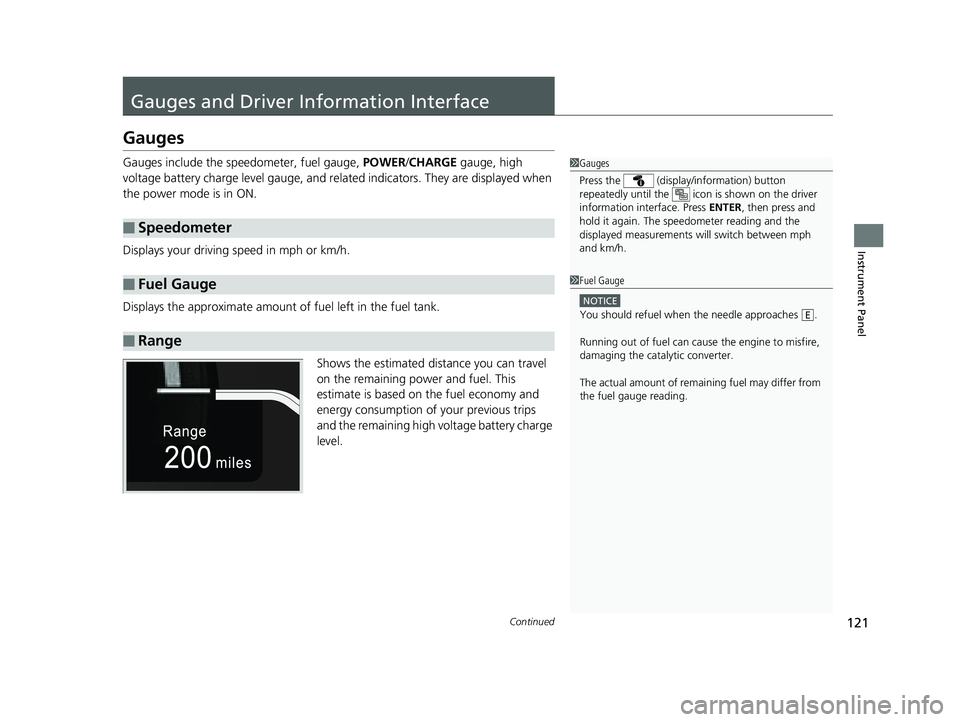

Gauges and Driver In formation Interface Gauges Gauges include the speedometer, fuel gauge, POWER / CHARGE gauge, high
voltage battery charge level gauge, and related indicators. They are displayed when
the power mode is in ON.
Displays your driving speed in mph or km/h.
Displays the approximate amount of fuel left in the fuel tank.
Shows the estimated distance you can travel
on the remaining power and fuel. This
estimate is based on the fuel economy and
energy consumption of your previous trips
and the remaining high voltage battery charge
level.■ Speedometer
■ Fuel Gauge
■ Range 1 Gauges
Press the (display /information) button
repeatedly until the icon is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer read ing and the
displayed measurements wi ll switch between mph
and km/h.
1 Fuel Gauge NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading. E18 CLARITY PHEV CSS-31TRW6000.book 121 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Gauges and Driver Information Interface u Gauges
122
Instrument Panel ■ Electric motor
The degree to which the electric motor is be ing powered is displayed by the readings
on the POWER side.
When you depress the accelerator pedal, th e white needle on the gauge moves. The
curved blue line on the gauge shows the range within which only the electric motor
provides propulsion to the wheels. The length of this line varies depending on the
drive mode and the remaining power of th e High Voltage battery. When the white
needle exceeds the curved blue line, the engine starts and the curved blue line turns
white.

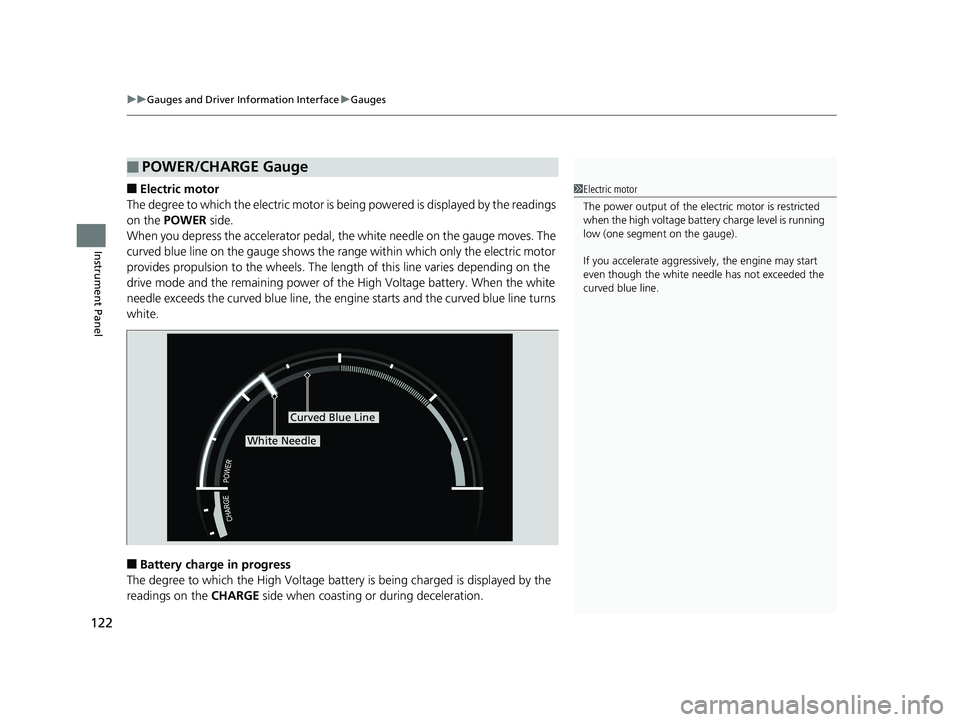

■ Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side when coasting or during deceleration.■ POWER/CHARGE Gauge 1 Electric motor
The power output of the elec tric motor is restricted
when the high voltage battery charge level is running
low (one segment on the gauge).
If you accelerate aggressively, the engine may start
even though the white needle has not exceeded the
curved blue line.
Curved Blue Line
White Needle18 CLARITY PHEV CSS-31TRW6000.book 122 ページ ２０１７年８月３１日　木曜日　午後２時４９分

123uu Gauges and Driver Information Interface u Gauges
Instrument Panel

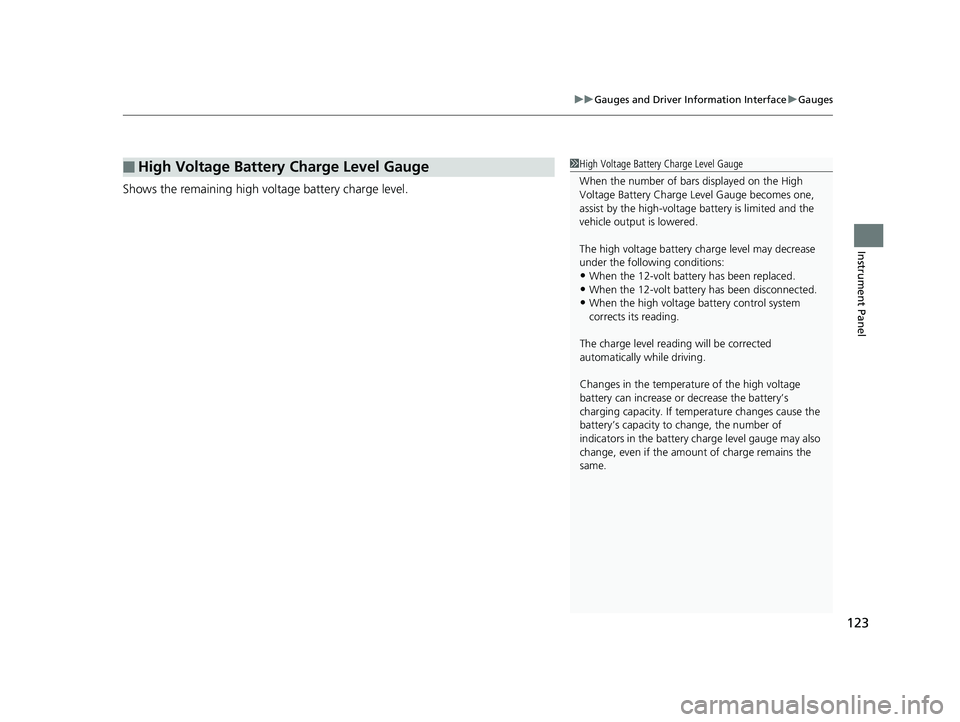

Shows the remaining high voltage battery charge level.
■ High Voltage Battery Charge Level Gauge 1 High Voltage Battery Charge Level Gauge
When the number of bars displayed on the High
Voltage Battery Charge Level Gauge becomes one,
assist by the high-voltage battery is li mited and the
vehicle output is lowered.
The high voltage battery ch arge level may decrease
under the following conditions:
• When the 12-volt battery has been replaced.
• When the 12-volt battery has been disconnected.
• When the high voltage battery control system
corrects its reading.
The charge level readi ng will be corrected
automatically while driving.
Changes in the temperature of the high voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charge remains the
same.18 CLARITY PHEV CSS-31TRW6000.book 123 ページ ２０１７年８月３１日　木曜日　午後２時４９分

124 uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel Driver Information Interface The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges. It also displays important messages such
as warnings and other helpful information.

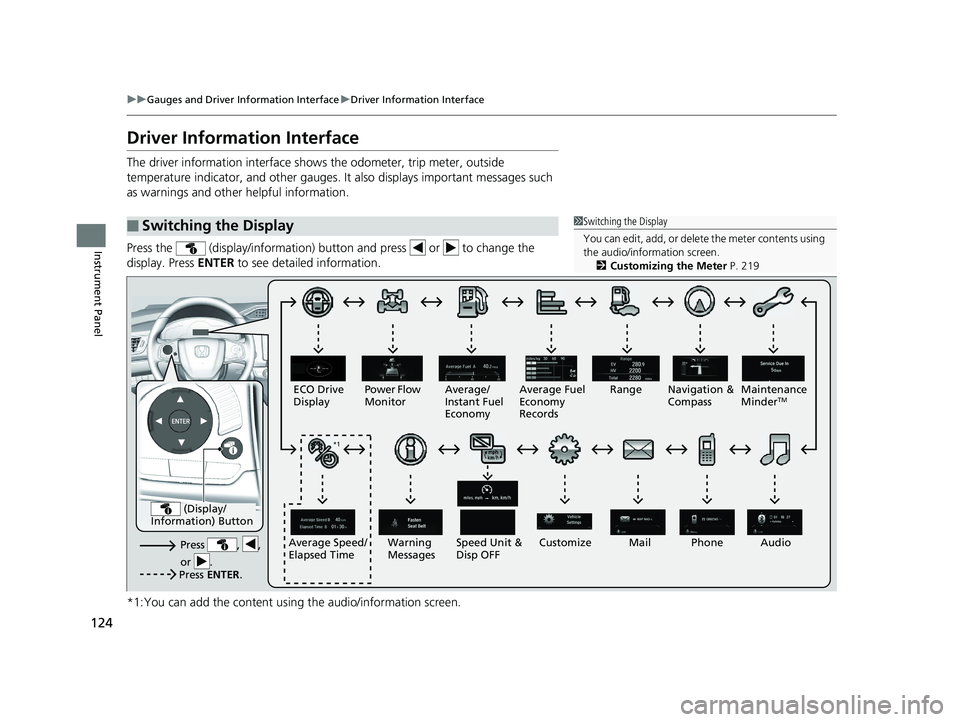

Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the content using the audio/information screen.■ Switching the Display 1 Switching the Display
You can edit, add, or delete the meter contents using
the audio/information screen.
2 Customizing the Meter P. 219
Press , ,
or . Speed Unit &
Disp OFFECO Drive
Display Power Flow
Monitor
CustomizeWarning
Messages AudioAverage Speed/
Elapsed Time Average/
Instant Fuel
Economy Range Maintenance
Minder TM
Average Fuel
Economy
Records
Phone
Press ENTER . (Display/
Information) Button *1 Navigation &
Compass
Mail*118 CLARITY PHEV CSS-31TRW6000.book 124 ページ ２０１７年８月３１日　木曜日　午後２時４９分

125uu Gauges and Driver Information Interface u Driver Information Interface
Continued
Instrument Panel

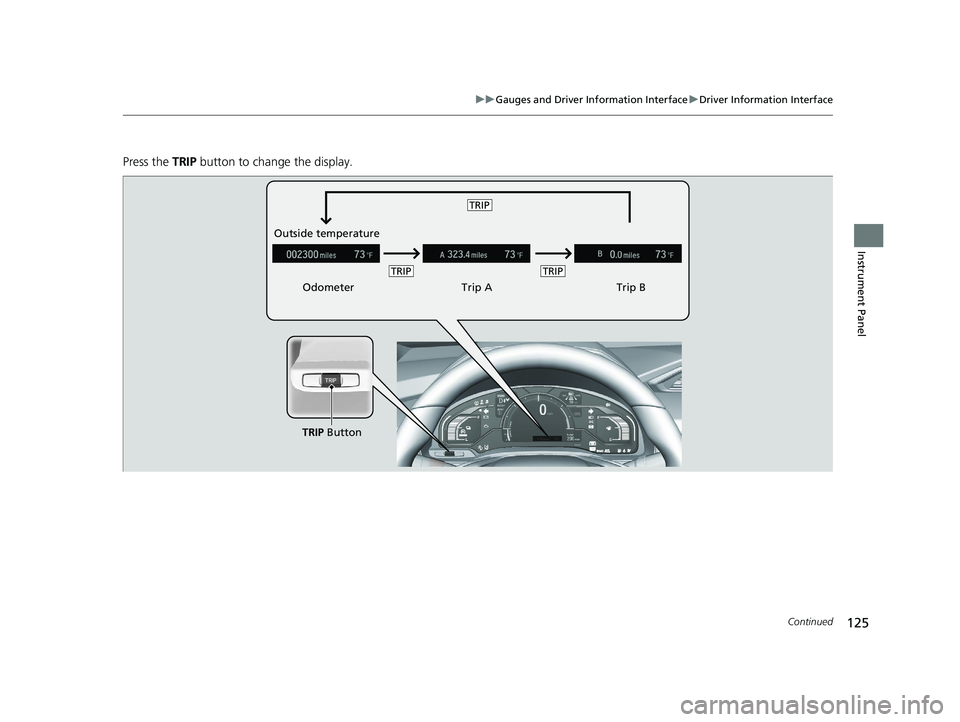

Press the TRIP button to change the display.
Odometer Trip A Trip BOutside temperature
TRIP Button TRIP TRIPTRIP18 CLARITY PHEV CSS-31TRW6000.book 125 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Gauges and Driver Information Interface u Driver Information Interface

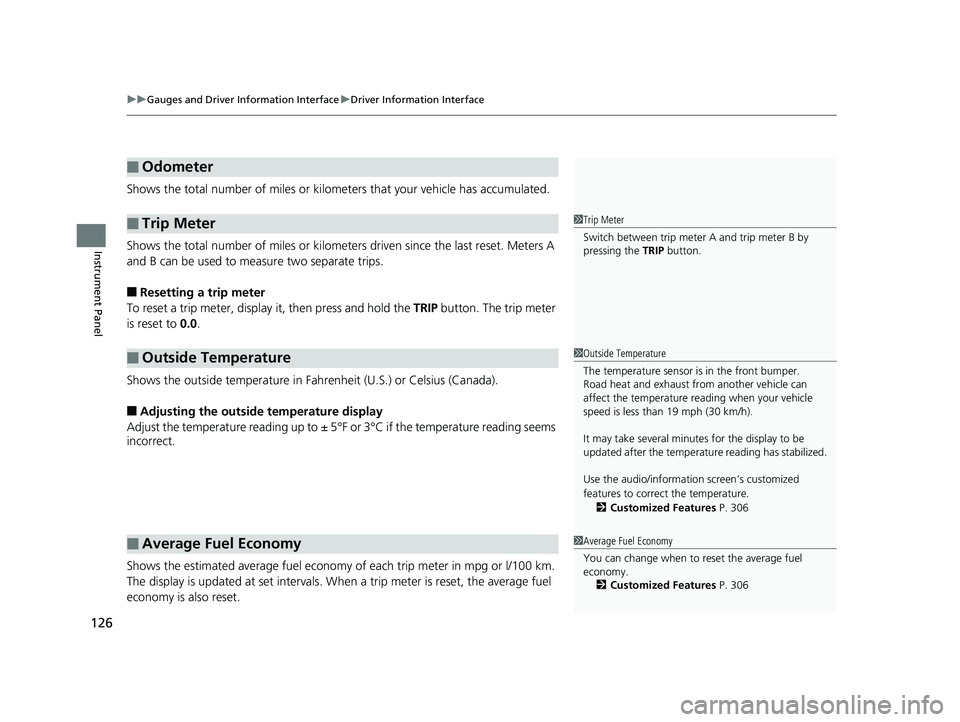

126
Instrument Panel Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■ Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0 .
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■ Adjusting the outside temperature display
Adjust the temperature reading up to ± 5° F or 3°C if the temperature reading seems
incorrect.
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.■ Odometer
■ Trip Meter
■ Outside Temperature
■ Average Fuel Economy 1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature.
2 Customized Features P. 306
1 Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 30618 CLARITY PHEV CSS-31TRW6000.book 126 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
127uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel

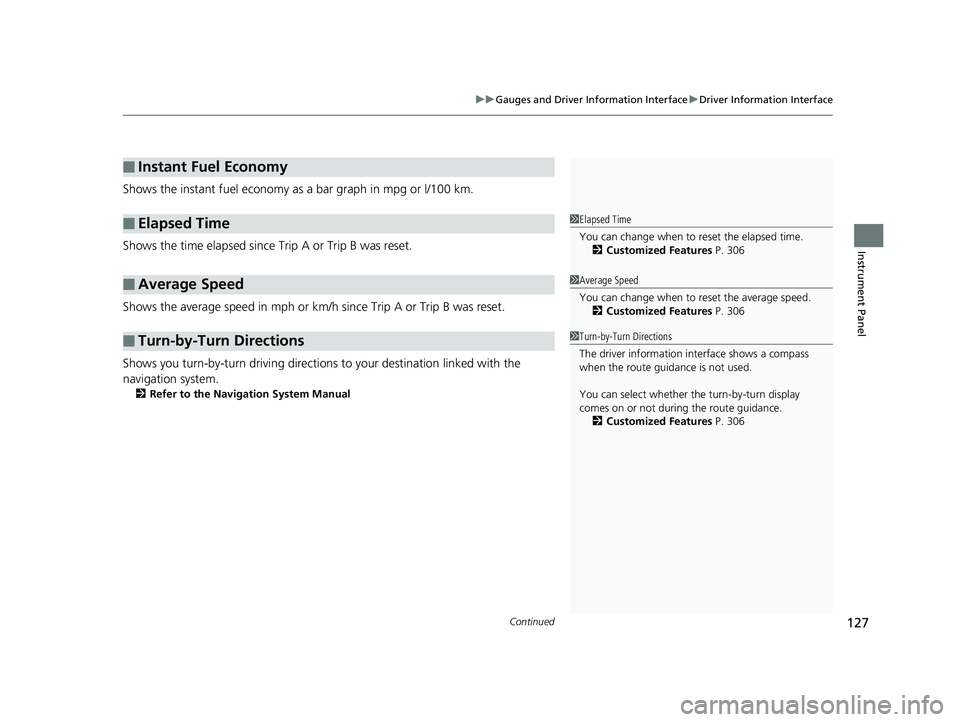

Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system. 2 Refer to the Navigation System Manual■ Instant Fuel Economy
■ Elapsed Time
■ Average Speed
■ Turn-by-Turn Directions 1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 306
1 Average Speed
You can change when to reset the average speed.
2 Customized Features P. 306
1 Turn-by-Turn Directions
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether th e turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 30618 CLARITY PHEV CSS-31TRW6000.book 127 ページ ２０１７年８月３１日　木曜日　午後２時４９分

128 uu Gauges and Driver Information Interface u Driver Information Interface

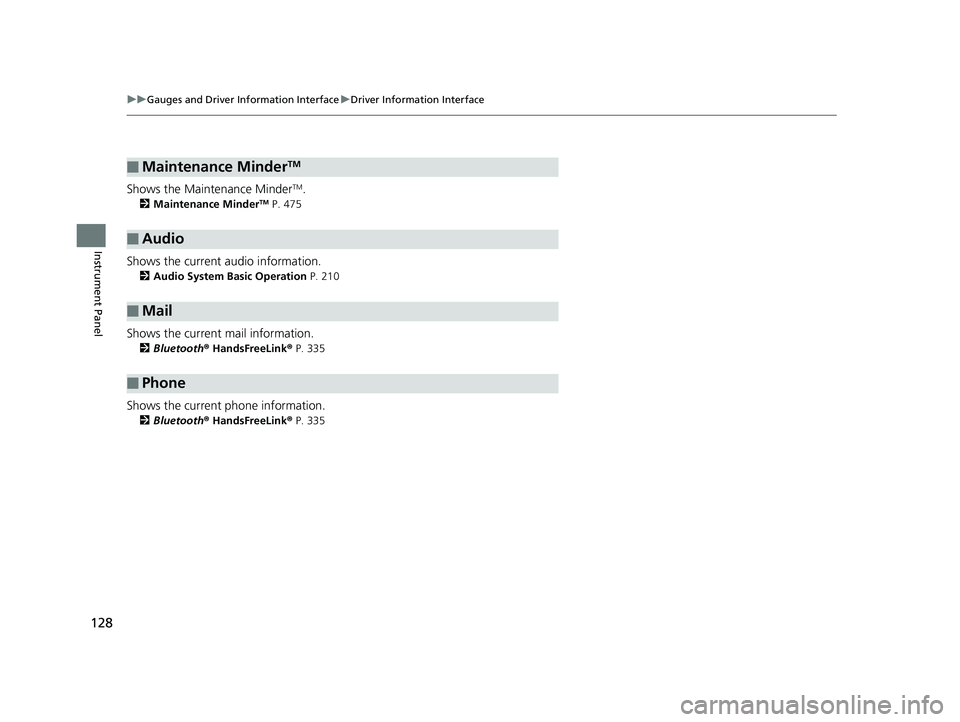

Instrument Panel Shows the Maintenance Minder TM
.2 Maintenance Minder TM
P. 475
Shows the current audio information. 2 Audio System Basic Operation P. 210
Shows the current mail information. 2 Bluetooth ® HandsFreeLink ® P. 335
Shows the current phone information. 2 Bluetooth ® HandsFreeLink ® P. 335■ Maintenance Minder TM
