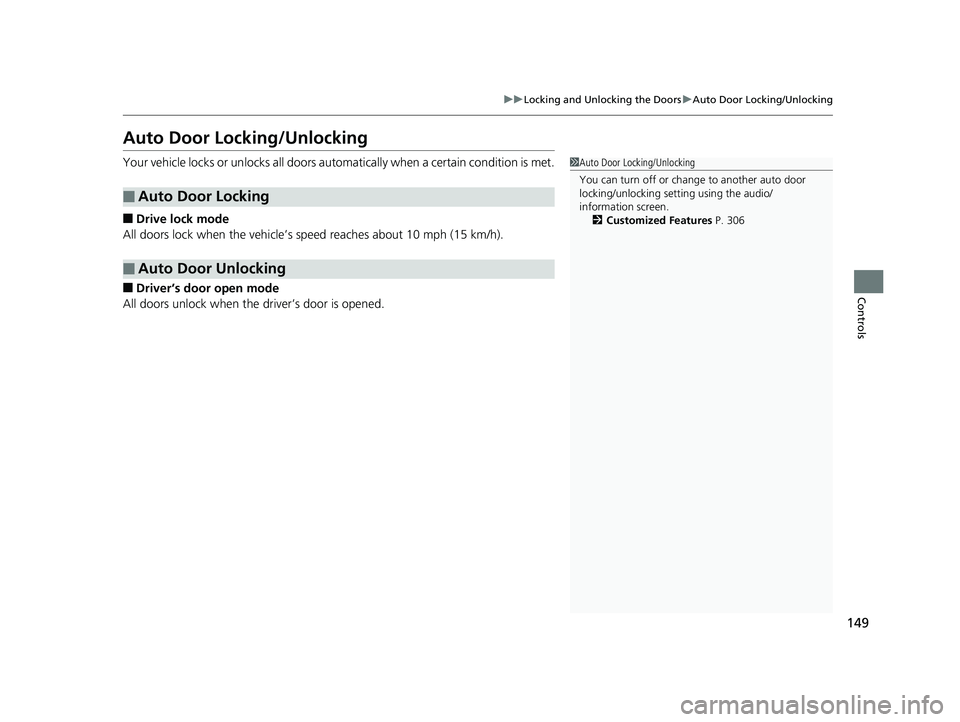

149uu Locking and Unlocking the Doors u Auto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■ Drive lock mode
All doors lock when the vehicle’s sp eed reaches about 10 mph (15 km/h).
■ Driver’s door open mode
All doors unlock when the driver’s door is opened.
■ Auto Door Locking
■ Auto Door Unlocking 1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen.
2 Customized Features P. 30618 CLARITY PHEV CSS-31TRW6000.book 149 ページ ２０１７年８月３１日　木曜日　午後２時４９分

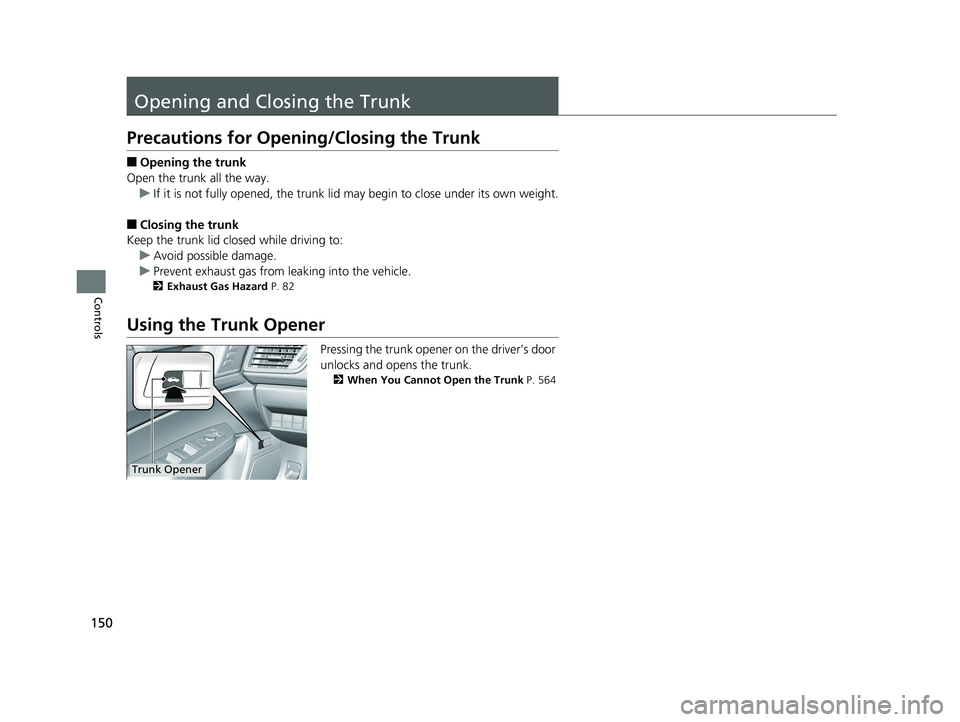

150
Controls Opening and Closing the Trunk Precautions for Opening/Closing the Trunk ■ Opening the trunk
Open the trunk all the way.
u If it is not fully opened, the trunk lid may begin to close under its own weight.
■ Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle. 2 Exhaust Gas Hazard P. 82
Using the Trunk Opener Pressing the trunk opener on the driver’s door
unlocks and opens the trunk. 2 When You Cannot Open the Trunk P. 564
Trunk Opener18 CLARITY PHEV CSS-31TRW6000.book 150 ページ ２０１７年８月３１日　木曜日　午後２時４９分

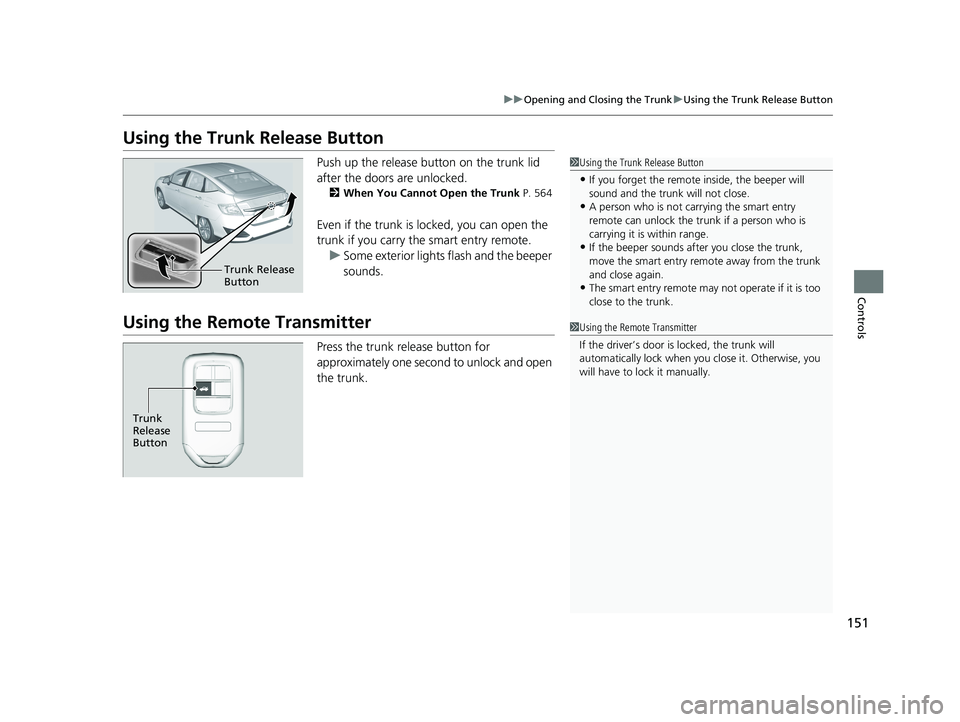

151uu Opening and Closing the Trunk u Using the Trunk Release Button
Controls
Using the Trunk Release Button Push up the release bu tton on the trunk lid
after the doors are unlocked. 2 When You Cannot Open the Trunk P. 564
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
u Some exterior lights flash and the beeper
sounds.
Using the Remote Transmitter Press the trunk release button for
approximately one second to unlock and open
the trunk. 1 Using the Trunk Release Button
• If you forget the remote inside, the beeper will
sound and the trunk will not close.
• A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
• If the beeper sounds after you close the trunk,
move the smart entry remote away from the trunk
and close again.
• The smart entry remote may not operate if it is too
close to the trunk.Trunk Release
Button
1 Using the Remote Transmitter
If the driver’s door is locked, the trunk will
automatically lock when yo u close it. Ot herwise, you
will have to lock it manually.
Trunk
Release
Button18 CLARITY PHEV CSS-31TRW6000.book 151 ページ ２０１７年８月３１日　木曜日　午後２時４９分

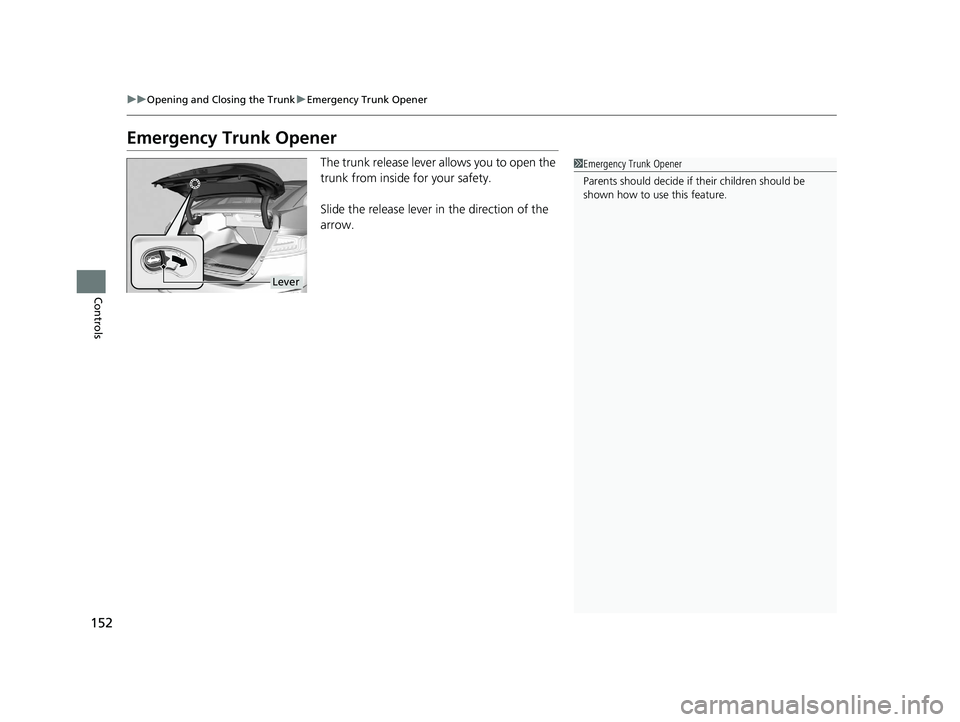

152 uu Opening and Closing the Trunk u Emergency Trunk Opener
Controls Emergency Trunk Opener The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow. 1 Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever18 CLARITY PHEV CSS-31TRW6000.book 152 ページ ２０１７年８月３１日　木曜日　午後２時４９分

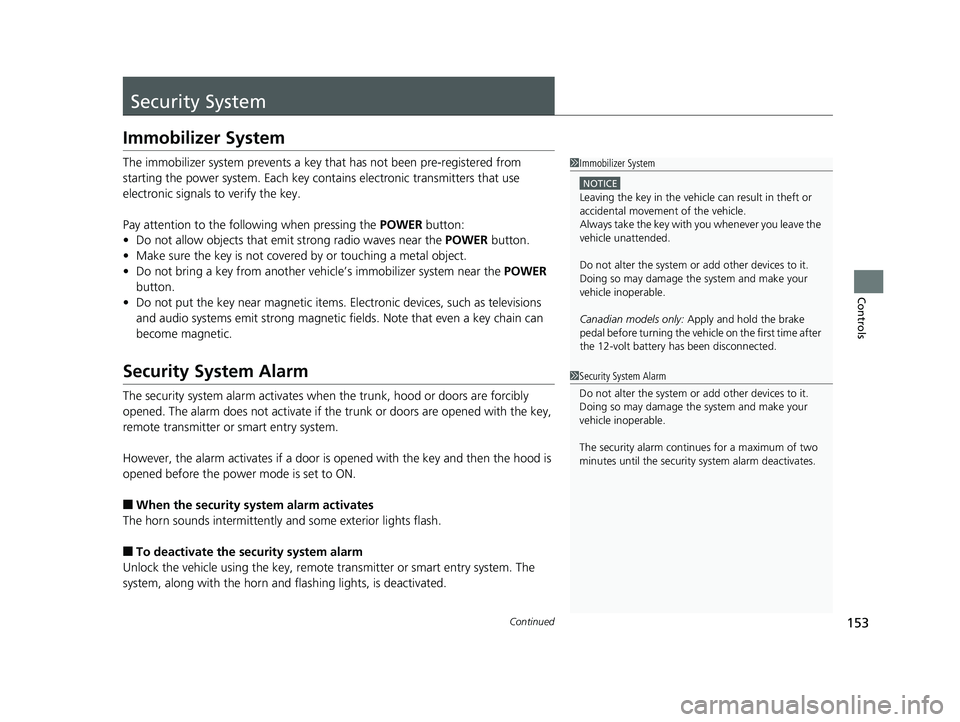

153Continued
Controls
Security System Immobilizer System The immobilizer system prevents a key th at has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the POWER
button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if the trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is op ened with the key and then the hood is
opened before the power mode is set to ON.
■ When the security system alarm activates
The horn sounds intermittently and some exterior lights flash.
■ To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system. The
system, along with the horn and flashing lights, is deactivated. 1 Immobilizer System NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the 12-volt battery ha s been disconnected.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.18 CLARITY PHEV CSS-31TRW6000.book 153 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Security System u Security System Alarm
154
Controls ■ Setting the security system alarm
The security system alarm automatically sets when th e following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood is closed.
• All doors and the trunk are locked from outside with the key , remote transmitter
or smart entry system.
■ When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■ To cancel the security system alarm
The security system alarm is canceled when the vehicle is unloc ked using the remote
transmitter, smart entry system, or the power mode is set to ON. The security system
alarm indicator goes off at the same time. 1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
• Unlocking the door with the lock tab.
• Opening the trunk with the trunk opener or the
emergency trunk opener.
• Opening the hood with the hood release.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter or
smart entry system.18 CLARITY PHEV CSS-31TRW6000.book 154 ページ ２０１７年８月３１日　木曜日　午後２時４９分

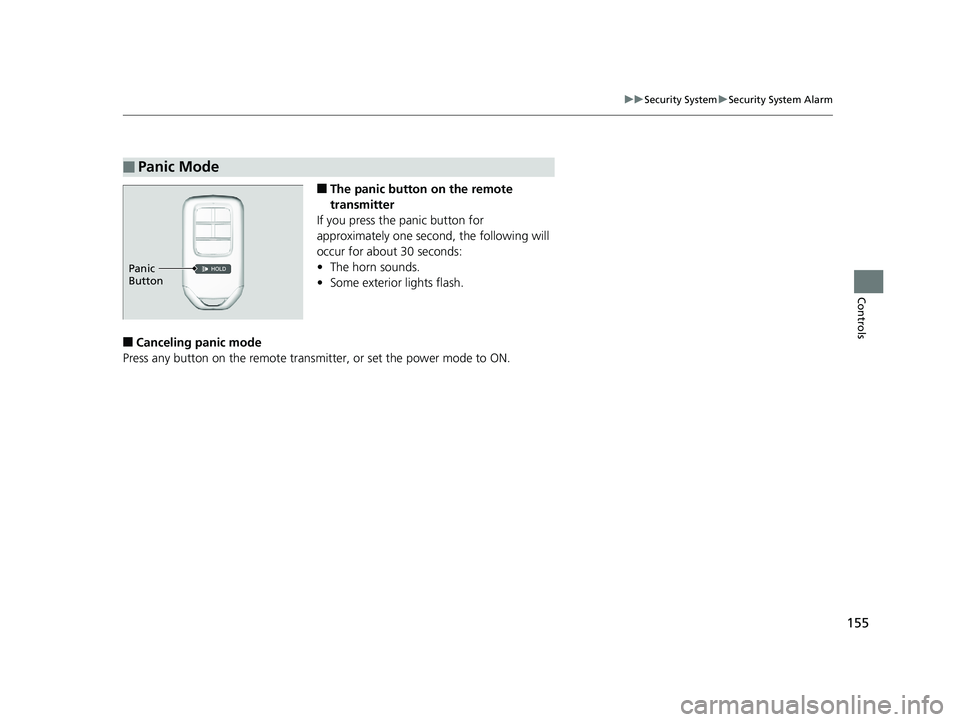

155uu Security System u Security System Alarm
Controls
■ The panic button on the remote
transmitter
If you press the panic button for
approximately one second, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■ Canceling panic mode
Press any button on the remote transmi tter, or set the power mode to ON.■ Panic Mode Panic
Button18 CLARITY PHEV CSS-31TRW6000.book 155 ページ ２０１７年８月３１日　木曜日　午後２時４９分

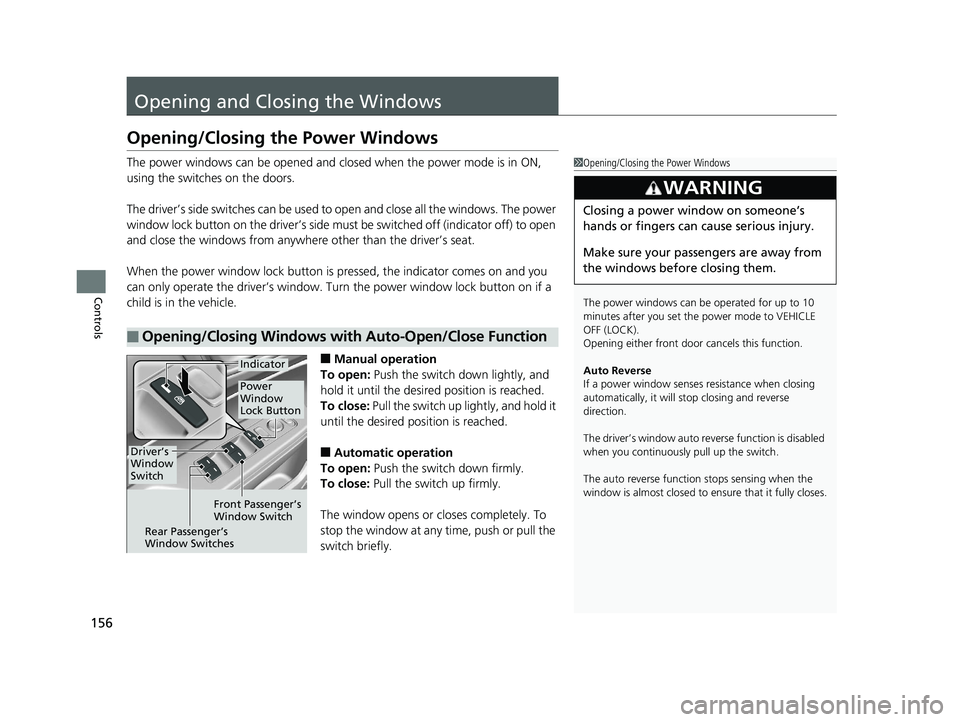

156
Controls Opening and Closing the Windows Opening/Closing the Power Windows The power windows can be opened and cl osed when the power mode is in ON,
using the switches on the doors.
The driver’s side switches can be used to open and close all the windows. The power
window lock button on the driver’s side must be switched off (indicator off) to open
and close the windows from anywhere other than the driver’s seat.
When the power window lock button is pressed, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on if a
child is in the vehicle.
■ Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
■ Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or cl oses completely. To
stop the window at any time, push or pull the
switch briefly.■ Opening/Closing Windows with Auto-Open/Close Function 1 Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it will stop closing and reverse
direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.3
WARNING Closing a power window on someone’s
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
Driver’s
Window
Switch
Front Passenger’s
Window Switch
Rear Passenger’s
Window Switches Power
Window
Lock ButtonIndicator18 CLARITY PHEV CSS-31TRW6000.book 156 ページ ２０１７年８月３１日　木曜日　午後２時４９分

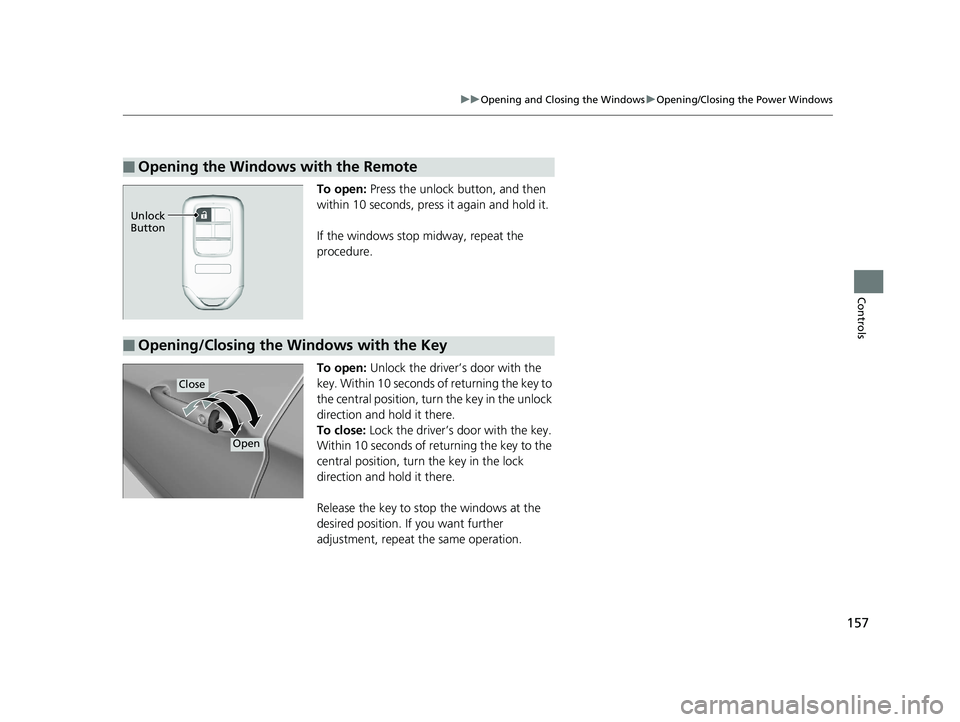

157uu Opening and Closing the Windows u Opening/Closing the Power Windows
Controls
To open: Press the unlock button, and then
within 10 seconds, press it again and hold it.
If the windows stop midway, repeat the
procedure.
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows at the
desired position. If you want further
adjustment, repeat the same operation.■ Opening the Windows with the Remote Unlock
Button
■ Opening/Closing the Windows with the Key Close
Open18 CLARITY PHEV CSS-31TRW6000.book 157 ページ ２０１７年８月３１日　木曜日　午後２時４９分

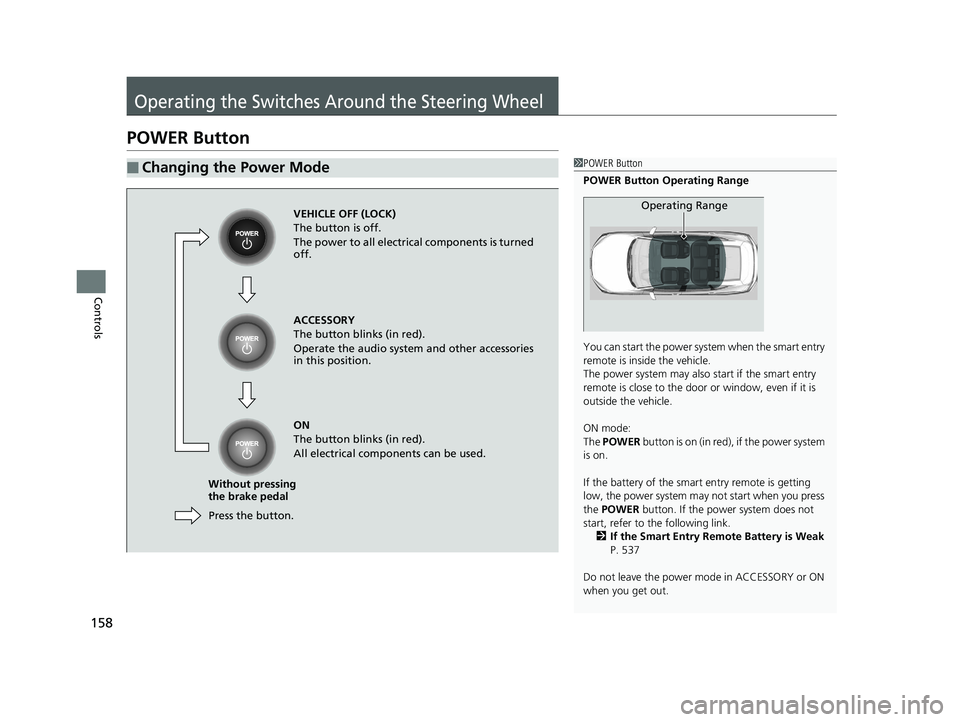

158
Controls Operating the Switches Around the Steering WheelPOWER Button ■ Changing the Power Mode 1 POWER Button
POWER Button Operating Range
You can start the power system when the smart entry
remote is inside the vehicle.
The power system may also start if the smart entry
remote is close to the door or window, even if it is
outside the vehicle.
ON mode:
The POWER button is on (in red), if the power system
is on.
If the battery of the smar t entry remote is getting
low, the power system may not start when you press
the POWER button. If the power system does not
start, refer to the following link.
2 If the Smart Entry Remote Battery is Weak
P. 537
Do not leave the power mode in ACCESSORY or ON
when you get out. Operating Range
VEHICLE OFF (LOCK)
The button is off.
The power to all electrical components is turned
off.
Press the button.Without pressing
the brake pedal ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories
in this position.
ON
The button blinks (in red).
All electrical components can be used.18 CLARITY PHEV CSS-31TRW6000.book 158 ページ ２０１７年８月３１日　木曜日　午後２時４９分
