HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

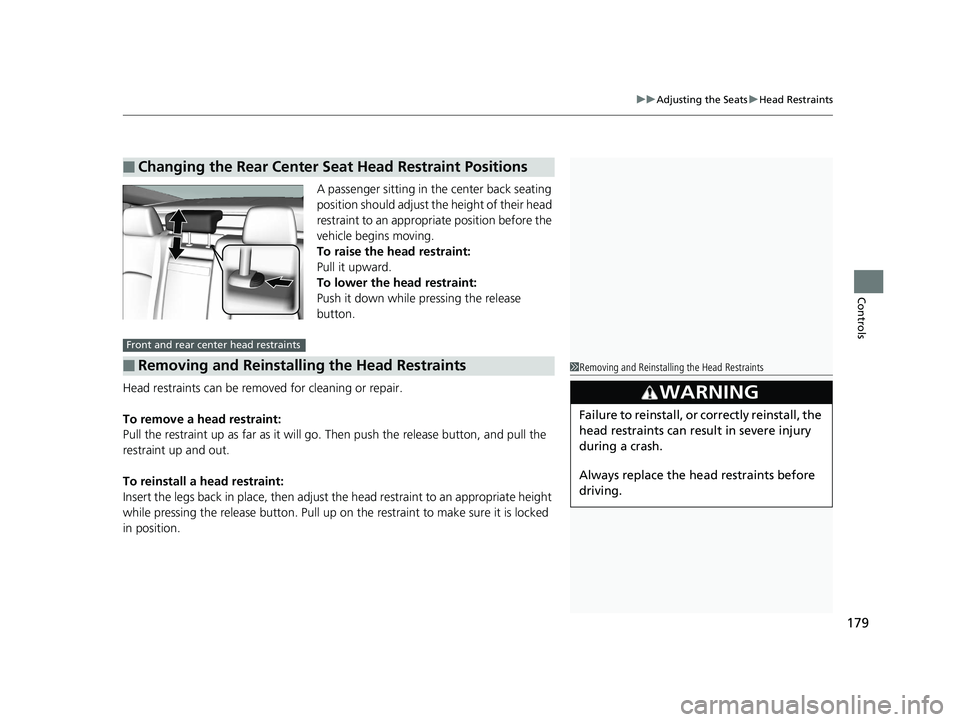

179uu Adjusting the Seats u Head Restraints
Controls
A passenger sitting in th e center back seating
position should adjust the height of their head
restraint to an appropriate position before the
vehicle begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.■ Changing the Rear Center Seat Head Restraint Positions
■ Removing and Reinstalling the Head Restraints Front and rear center head restraints
1 Removing and Reinstalling the Head Restraints
3
WARNING Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.18 CLARITY PHEV CSS-31TRW6000.book 179 ページ ２０１７年８月３１日　木曜日　午後２時４９分

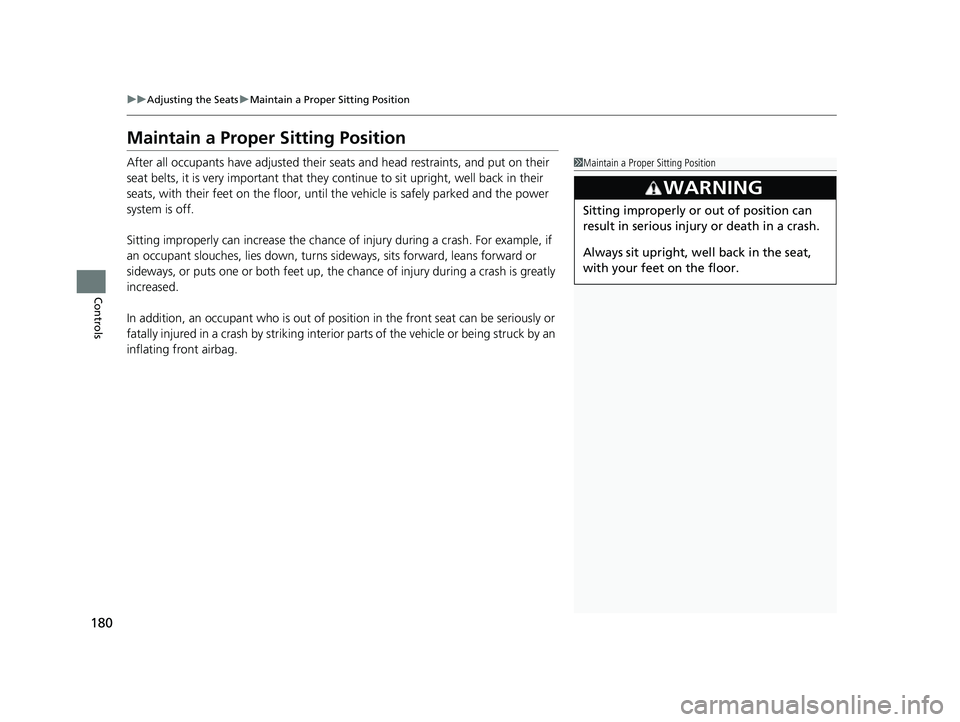

180 uu Adjusting the Seats u Maintain a Proper Sitting Position
Controls Maintain a Proper Sitting Position After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on th e floor, until the vehicle is safely parked and the power
system is off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag. 1 Maintain a Proper Sitting Position
3
WARNING Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.18 CLARITY PHEV CSS-31TRW6000.book 180 ページ ２０１７年８月３１日　木曜日　午後２時４９分

181 uu Adjusting the Seats u Rear Seats
Controls
Rear Seats 1. Remove the center shoulder belt from the
guide.
2. Pull the release lever in the trunk to release
the lock.
3. Fold the seat-back down.■ 60/40 Split Folding Down the Rear Seats 1 60/40 Split Folding Down the Rear Seats
The rear seat-back(s) can be folded down to
accommodate bulkier items in the trunk.
Never drive with a seat-back folded down and the
trunk lid open.
2 Exhaust Gas Hazard P. 82
To lock the seat-back upri ght, push it backwards until
it locks.
When returning a seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re -positioned in the guide.
Make sure that the folded seat-back does not press
against the front passenger se at, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Front Airbag Off Indicator P. 67
Also make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.Center
Shoulder Belt
Guide
Release
Lever18 CLARITY PHEV CSS-31TRW6000.book 181 ページ ２０１７年８月３１日　木曜日　午後２時４９分

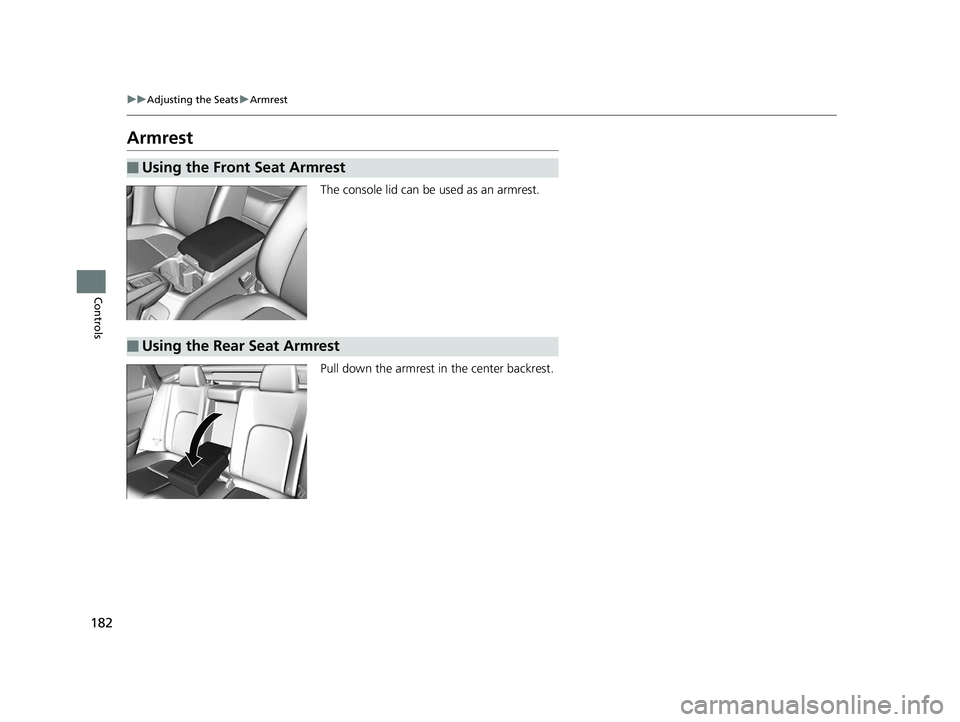

182 uu Adjusting the Seats u Armrest
Controls Armrest The console lid can be used as an armrest.
Pull down the armrest in the center backrest.■ Using the Front Seat Armrest
■ Using the Rear Seat Armrest 18 CLARITY PHEV CSS-31TRW6000.book 182 ページ ２０１７年８月３１日　木曜日　午後２時４９分

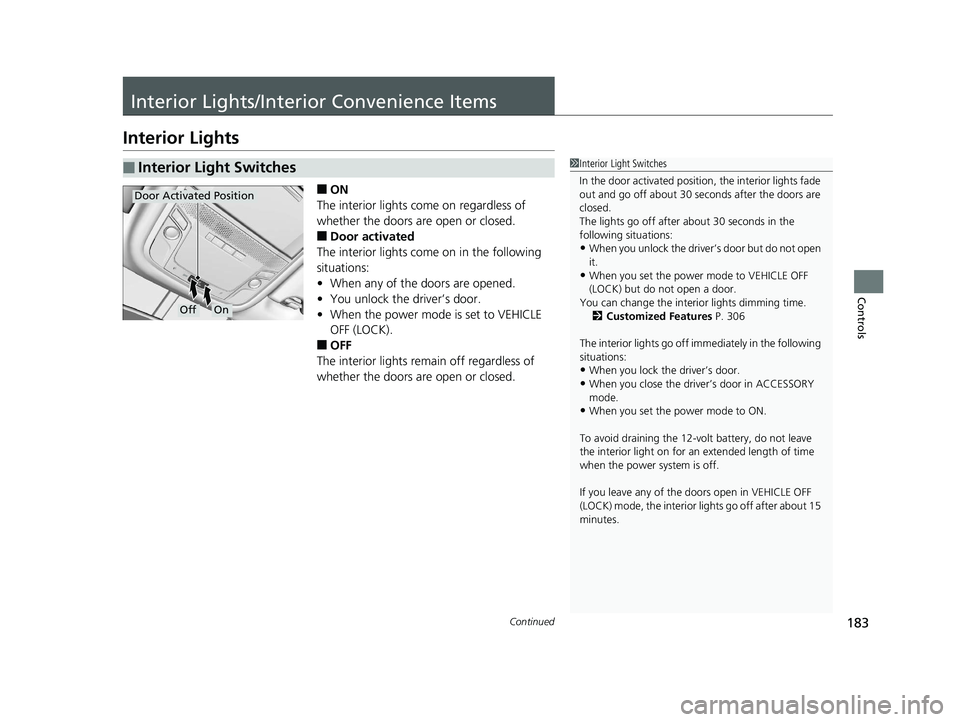

183Continued
Controls
Interior Lights/Interior Convenience Items Interior Lights ■ ON
The interior lights come on regardless of
whether the doors are open or closed.
■ Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■ OFF
The interior lights remain off regardless of
whether the doors are open or closed.■ Interior Light Switches 1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
• When you unlock the driver’s door but do not open
it.
• When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 306
The interior lights go off i mmediately in the following
situations:
• When you lock the driver’s door.
• When you close the driver’s door in ACCESSORY
mode.
• When you set the power mode to ON.
To avoid draining the 12-vo lt battery, do not leave
the interior light on for an extended length of time
when the power system is off.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, the interior lights go off after about 15
minutes.Off OnDoor Activated Position18 CLARITY PHEV CSS-31TRW6000.book 183 ページ ２０１７年８月３１日　木曜日　午後２時４９分

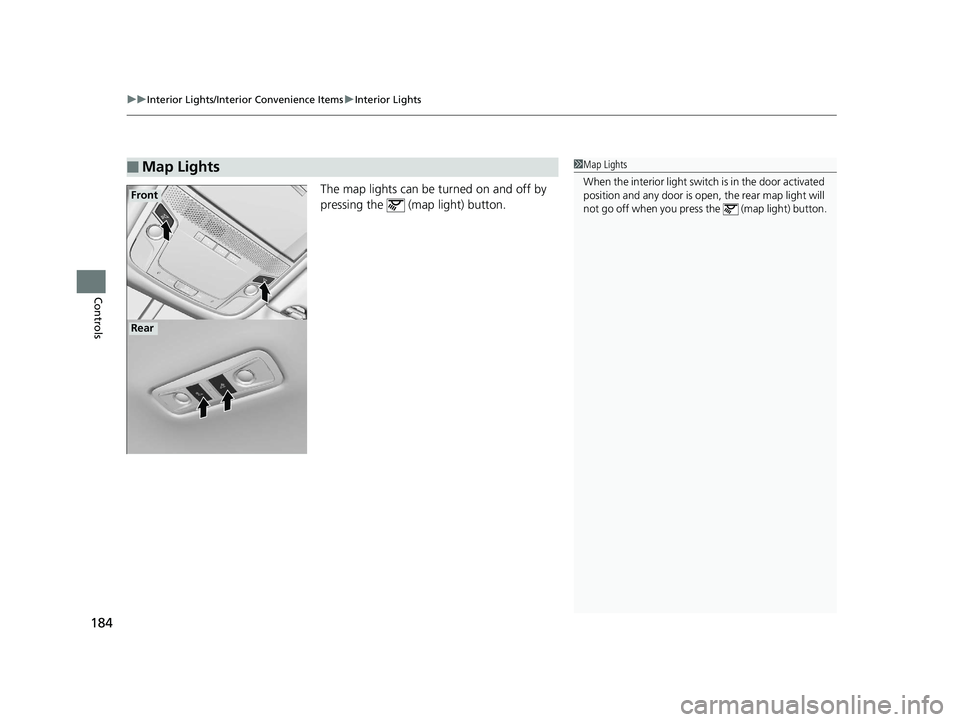

uu Interior Lights/Interior Convenience Items u Interior Lights
184
Controls The map lights can be turned on and off by
pressing the (map light) button.
■ Map Lights 1 Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the rear ma p light will
not go off when you press the (map light) button.Front
Rear18 CLARITY PHEV CSS-31TRW6000.book 184 ページ ２０１７年８月３１日　木曜日　午後２時４９分

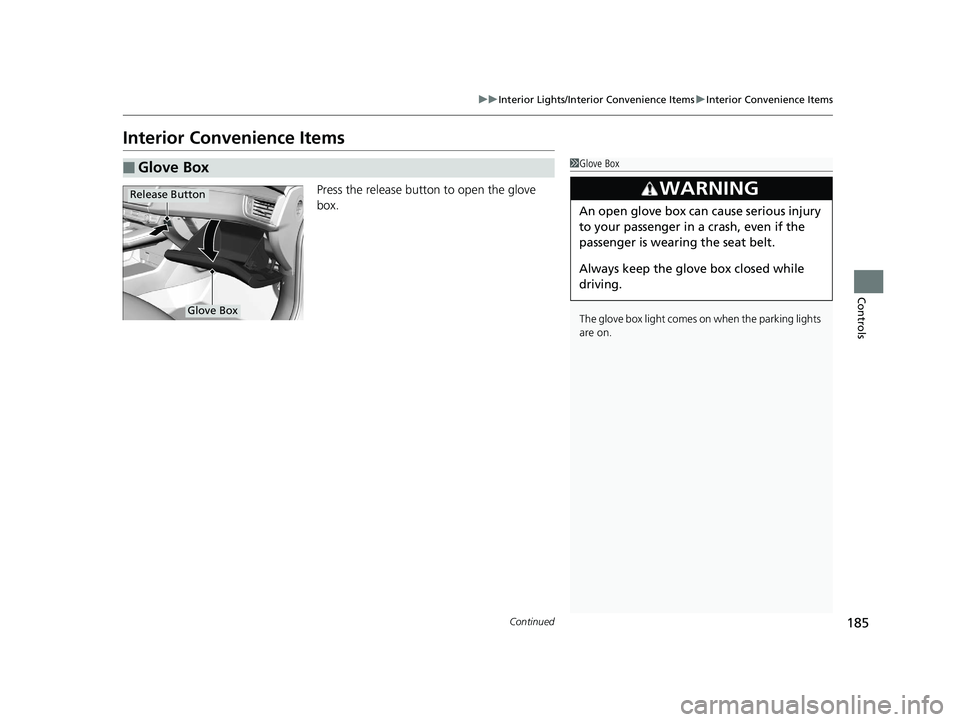

185uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Continued
Controls
Interior Convenience Items Press the release button to open the glove
box.
■ Glove Box 1 Glove Box
The glove box light comes on when the parking lights
are on.
3
WARNING An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.Glove BoxRelease Button18 CLARITY PHEV CSS-31TRW6000.book 185 ページ ２０１７年８月３１日　木曜日　午後２時４９分

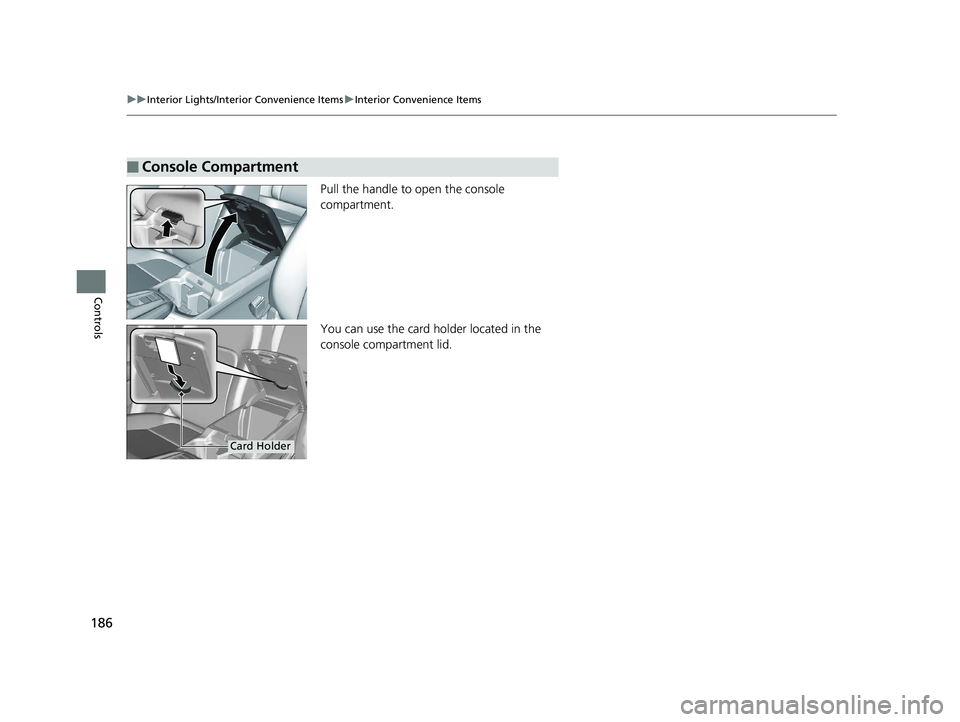

186 uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Controls Pull the handle to open the console
compartment.
You can use the card ho lder located in the
console compartment lid.■ Console Compartment
Card Holder18 CLARITY PHEV CSS-31TRW6000.book 186 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

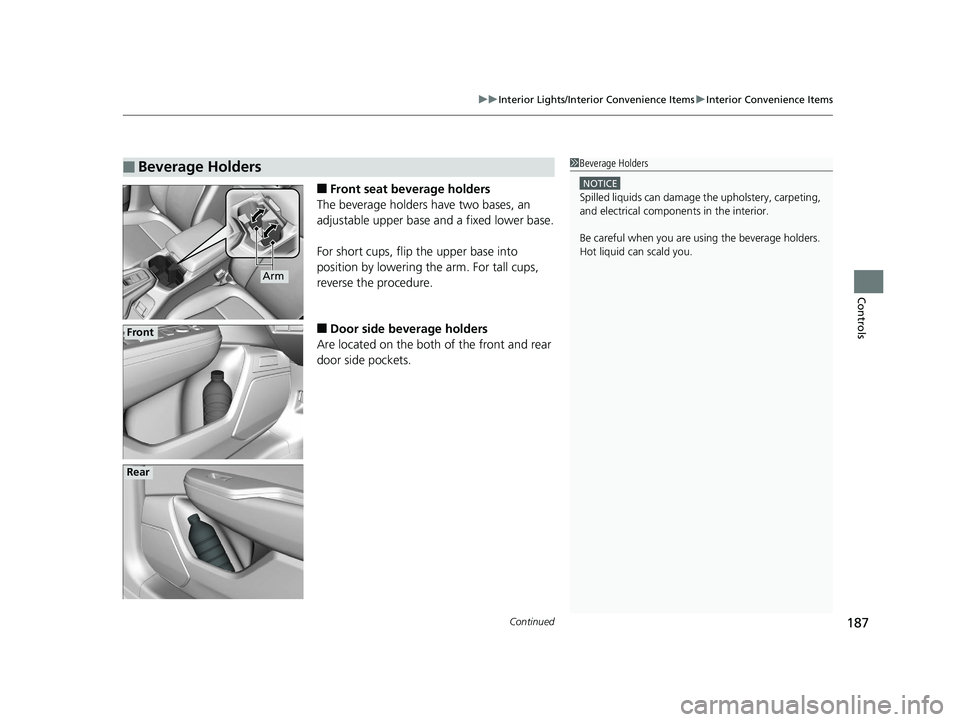

187uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Controls
■ Front seat beverage holders
The beverage holders have two bases, an
adjustable upper base and a fixed lower base.
For short cups, flip the upper base into
position by lowering the arm. For tall cups,
reverse the procedure.
■ Door side beverage holders
Are located on the both of the front and rear
door side pockets.■ Beverage Holders 1 Beverage Holders NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Arm
Front
Rear18 CLARITY PHEV CSS-31TRW6000.book 187 ページ ２０１７年８月３１日　木曜日　午後２時４９分

188 uu Interior Lights/Interior Convenience Items u Interior Convenience Items

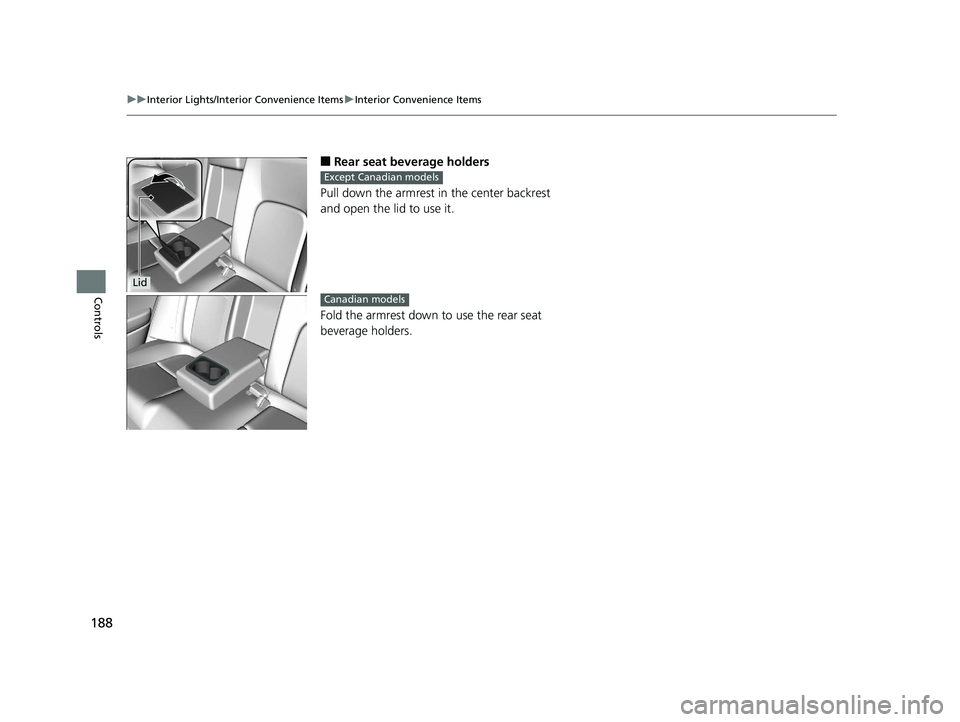

Controls ■ Rear seat beverage holders
Pull down the armrest in the center backrest
and open the lid to use it.
Fold the armrest down to use the rear seat
beverage holders.Lid Except Canadian models
Canadian models18 CLARITY PHEV CSS-31TRW6000.book 188 ページ ２０１７年８月３１日　木曜日　午後２時４９分
