HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

Continued
199uu Climate Control System u Using Automatic Climate Control
Controls
You can operate the climate control system from outside the vehicle.
■ To turn on the system
1. Press the lock button.
u Some exterior lights flash.
2. Within about five seconds, press and hold
the climate button.
u Some exterior lights flash.
u After a few seconds, some exterior lights
flash six times and the climate control
system is turned on.
■ To turn off the system
Press and hold th e climate button.
u Some exterior lights flash and the climate
control system is turned off.■ Turning the Climate Control System On and Off with the
Remote 1 Turning the Climate Control System On and Off with the Remote
The climate control system does not operate when
any of the following conditions are met.
• A door or the hood is not closed.
• The power mode is set to any mode other than
OFF.
• The brake pedal is being depressed.
• The High Voltage battery level is low.
When you use the climate control system while the
vehicle is charging, it is recommended that you set
the charging level to 240 volt charge.3
WARNING Make sure that no one is inside the vehicle
when you use the remote climate control
system. After a certain period of time has
elapsed, the system sh uts off temporarily.
During this time, the in terior of the vehicle
may heat up or cool down depending on
ambient temperatures. If a child is left
inside the vehicle, extreme temperature
exposure can result in death or serious
injury of the child.Climate
Button Lock
Button18 CLARITY PHEV CSS-31TRW6000.book 199 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Climate Control System u Using Automatic Climate Control
200

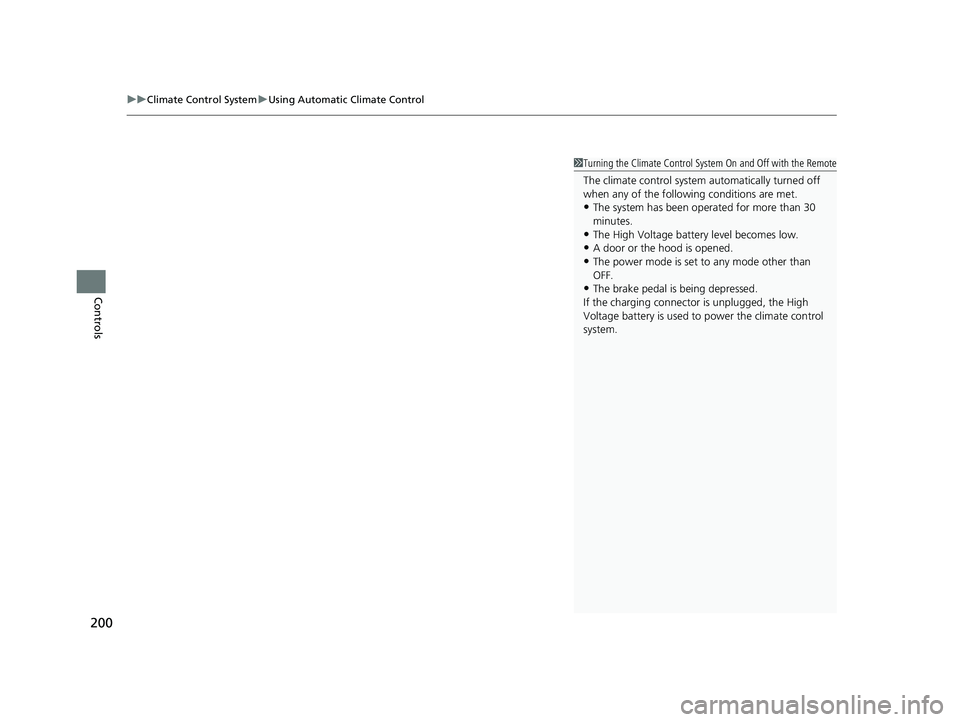

Controls 1 Turning the Climate Control System On and Off with the Remote
The climate control system automatically turned off
when any of the following conditions are met.
• The system has been operated for more than 30
minutes.
• The High Voltage battery level becomes low.
• A door or the hood is opened.
• The power mode is set to any mode other than
OFF.
• The brake pedal is being depressed.
If the charging connector is unplugged, the High
Voltage battery is used to power the climate control
system.18 CLARITY PHEV CSS-31TRW6000.book 200 ページ ２０１７年８月３１日　木曜日　午後２時４９分

201uu Climate Control System u Automatic Climate Control Sensors
Controls

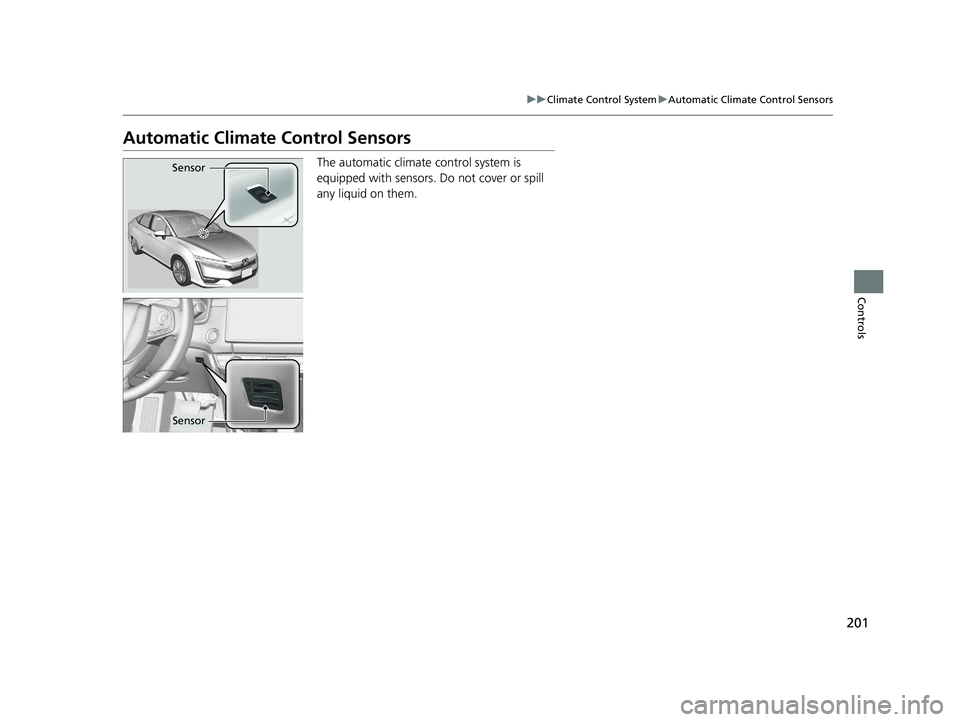

Automatic Climate Control Sensors The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor18 CLARITY PHEV CSS-31TRW6000.book 201 ページ ２０１７年８月３１日　木曜日　午後２時４９分

202 18 CLARITY PHEV CSS-31TRW6000.book 202 ページ ２０１７年８月３１日　木曜日　午後２時４９分

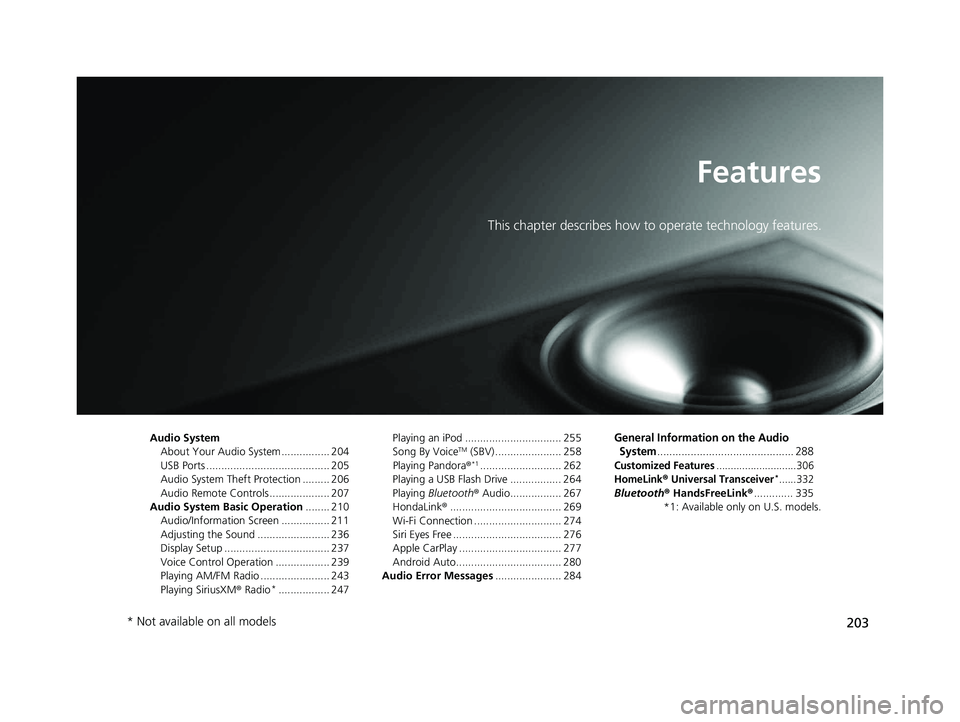

203Features This chapter describes how to operate technology features.
Audio System
About Your Audio System ................ 204
USB Ports ......................................... 205
Audio System Theft Protection ......... 206
Audio Remote Controls .................... 207
Audio System Basic Operation ........ 210
Audio/Information Screen ................ 211
Adjusting the Sound ........................ 236
Display Setup ................................... 237
Voice Control Operation .................. 239
Playing AM/FM Radio ....................... 243
Playing SiriusXM ® Radio *
................. 247 Playing an iPod ................................ 255
Song By Voice TM
(SBV) ...................... 258
Playing Pandora ® *1
........................... 262
Playing a USB Flash Drive ................. 264
Playing Bluetooth ® Audio................. 267
HondaLink ® ..................................... 269
Wi-Fi Connection ............................. 274
Siri Eyes Free .................................... 276
Apple CarPlay .................................. 277
Android Auto................................... 280
Audio Error Messages ...................... 284 General Information on the Audio
System ............................................. 288Customized Features ............................306
HomeLink ® Universal Transceiver *
......332
Bluetooth ® HandsFreeLink ® ............. 335
*1: Available only on U.S. models.
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 203 ページ ２０１７年８月３１日　木曜日　午後２時４９分

204

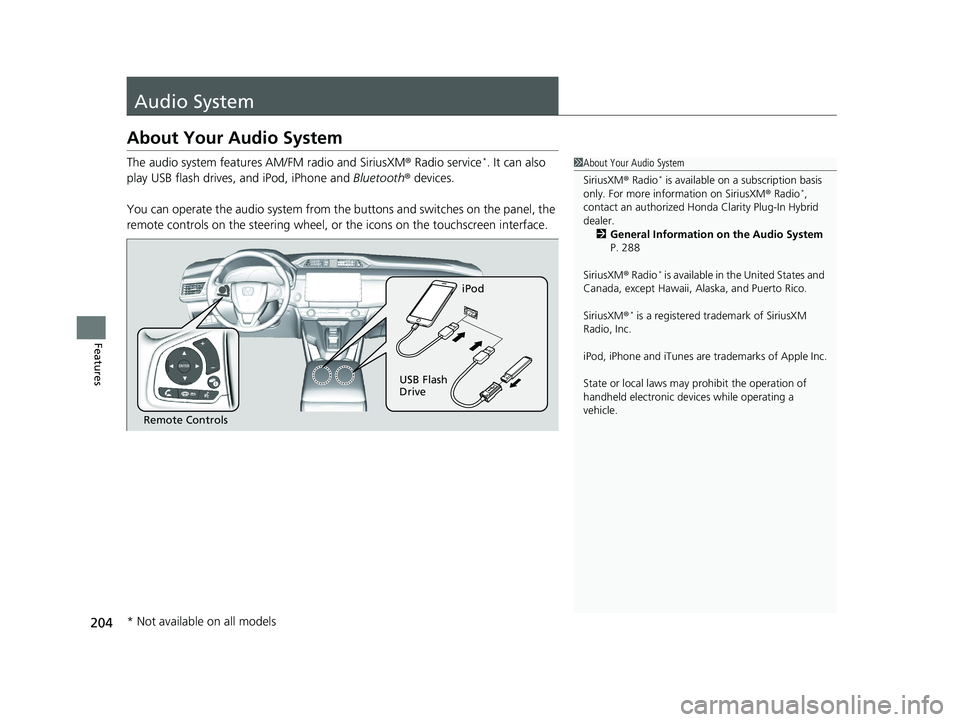

Features Audio System About Your Audio System The audio system features AM/FM radio and SiriusXM ® Radio service *
. It can also
play USB flash drives, and iPod, iPhone and Bluetooth ® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface. 1 About Your Audio System
SiriusXM ® Radio *
is available on a subscription basis
only. For more information on SiriusXM ® Radio *
,
contact an authorized Honda Clarity Plug-In Hybrid
dealer.
2 General Information on the Audio System
P. 288
SiriusXM ® Radio *
is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® *
is a registered trademark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Remote Controls iPod
USB Flash
Drive
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 204 ページ ２０１７年８月３１日　木曜日　午後２時４９分

205 uu Audio System u USB Ports
Features
USB Ports Install the device USB connector or the USB
flash drive to the USB port.
u The USB port (1.5A) is for charging
devices, playing audio files and
connecting compatib le phones with
Apple CarPlay or Android Auto.
u The USB port (1.0A) is for playing audio
files on the USB flash drive and
connecting a cellular phone and
charging device. 1 USB Ports
• Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
• We recommend using an ex tension cable with the
USB port.
• Do not connect the iPod or USB flash drive using a
hub.
• Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
• We recommend backing up yo ur data before using
the device in your vehicle.
• Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod .
The USB port can supply up to 1.0A or 1.5A of
power. It does not output 1.0A or 1.5A unless
requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Turn the power mode to ACCESSORY or ON first.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to. USB chargeUSB Port (1.5A)
USB Port (1.0A)18 CLARITY PHEV CSS-31TRW6000.book 205 ページ ２０１７年８月３１日　木曜日　午後２時４９分

206 uu Audio System u Audio System Theft Protection

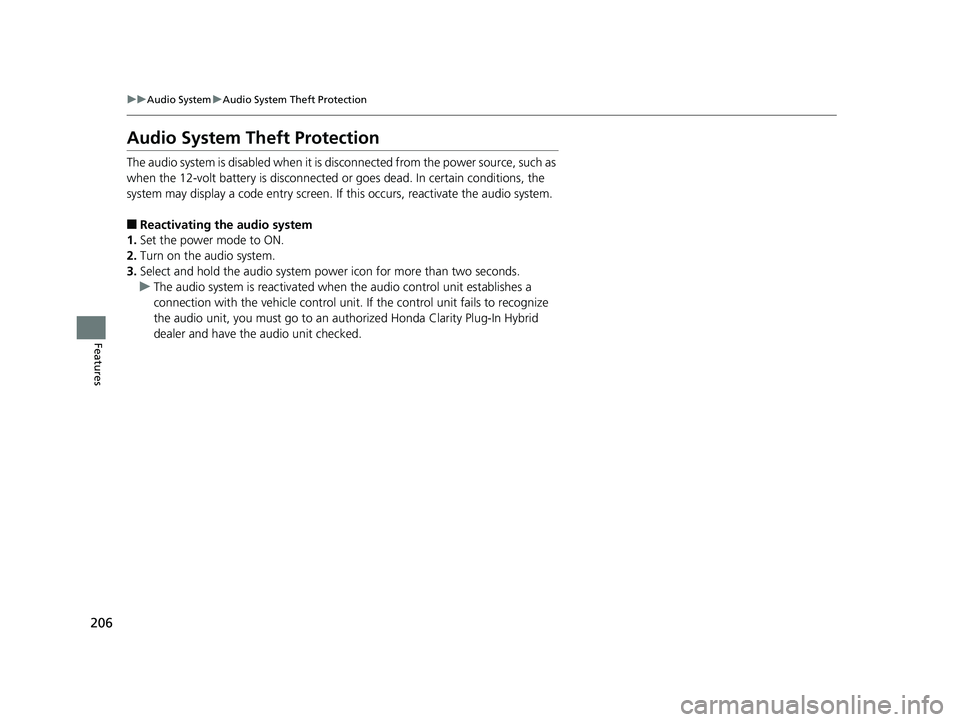

Features Audio System Theft Protection The audio system is disabled when it is di sconnected from the power source, such as
when the 12-volt battery is disconnected or goes dead. In certain conditions, the
system may display a code entry screen. If this occurs, reactivate the audio system.
■ Reactivating the audio system
1. Set the power mode to ON.
2. Turn on the audio system.
3. Select and hold the audio system power icon for more than two seconds.
u The audio system is reac tivated when the audio co ntrol unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to an authorized Honda Clarity Plug-In Hybrid
dealer and have the audio unit checked.18 CLARITY PHEV CSS-31TRW6000.book 206 ページ ２０１７年８月３１日　木曜日　午後２時４９分

207uu Audio System u Audio Remote Controls
Continued
Features

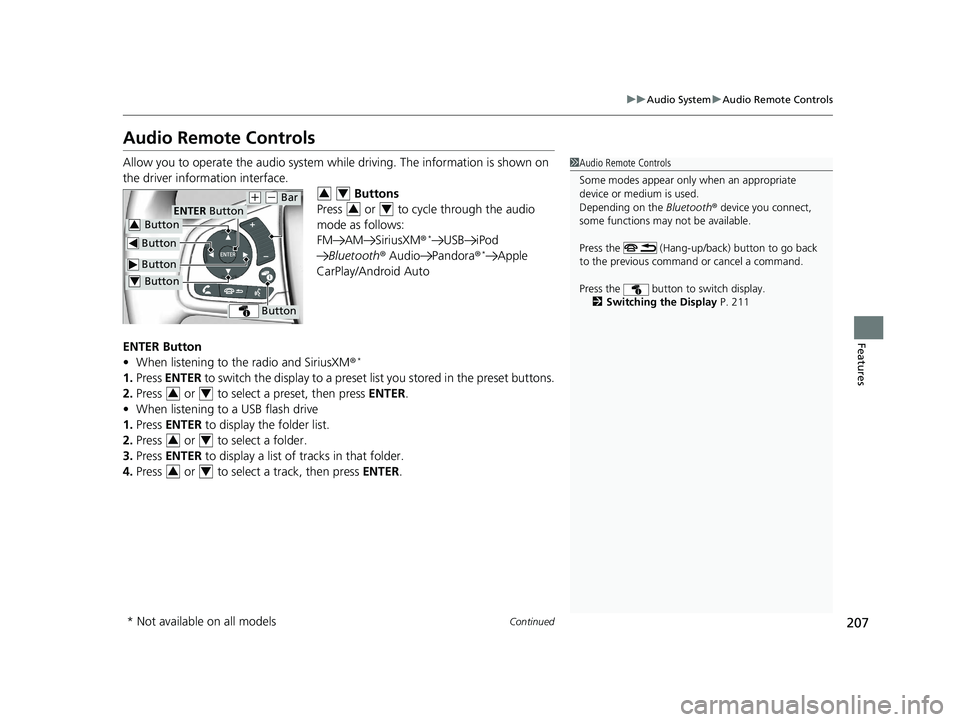

Audio Remote Controls Allow you to operate the audio system whil e driving. The information is shown on
the driver information interface.
Buttons
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ® *
USB iPod
Bluetooth ® Audio Pandora ® *
Apple
CarPlay/Android Auto
ENTER Button
• When listening to the radio and SiriusXM ® *
1. Press ENTER to switch the disp lay to a preset list you stored in the preset buttons.
2. Press or to select a preset, then press ENTER .
• When listening to a USB flash drive
1. Press ENTER to display the folder list.
2. Press or to select a folder.
3. Press ENTER to display a list of tracks in that folder.
4. Press or to select a track, then press ENTER . 1 Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth ® device you connect,
some functions may not be available.
Press the (Hang-up/back) button to go back
to the previous command or cancel a command.
Press the button to switch display.
2 Switching the Display P. 211 Button ENTER Button
Button ( +
( -
Bar
Button Button3
Button4 3 4
3 4
3 4
3 4
3 4
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 207 ページ ２０１７年８月３１日　木曜日　午後２時４９分

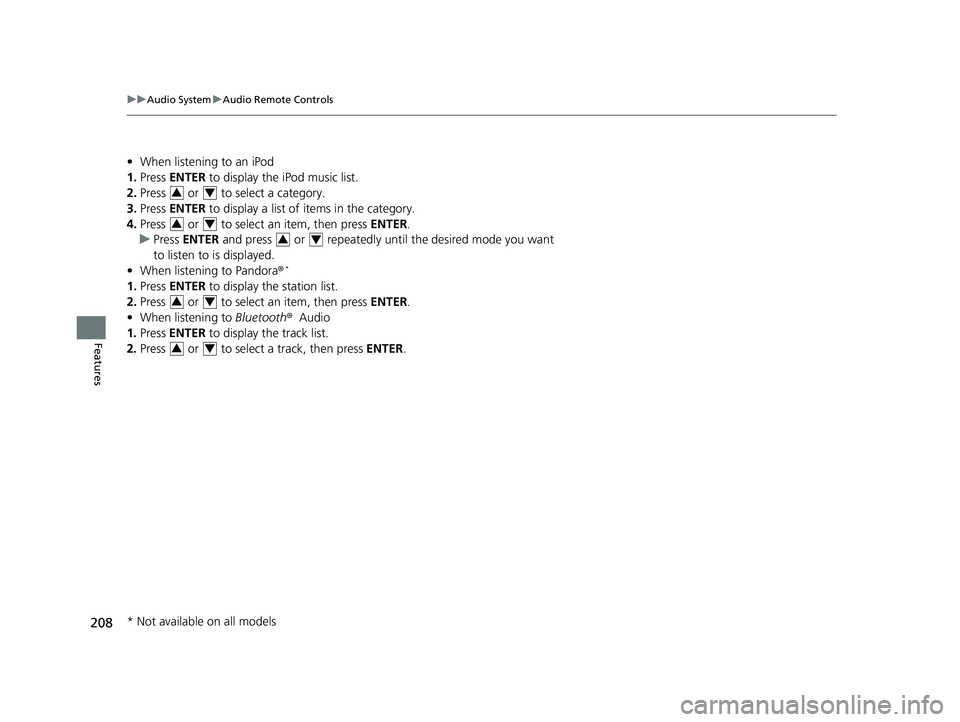

208 uu Audio System u Audio Remote Controls
Features • When listening to an iPod
1. Press ENTER to display the iPod music list.
2. Press or to select a category.
3. Press ENTER to display a list of items in the category.
4. Press or to select an item, then press ENTER .
u Press ENTER and press or repeatedly until the desired mode you want
to listen to is displayed.
• When listening to Pandora ® *
1. Press ENTER to display the station list.
2. Press or to select an item, then press ENTER .
• When listening to Bluetooth ® Audio
1. Press ENTER to display the track list.
2. Press or to select a track, then press ENTER .3 4
3 4
3 4
3 4
3 4
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 208 ページ ２０１７年８月３１日　木曜日　午後２時４９分
