Handling the Unexpected

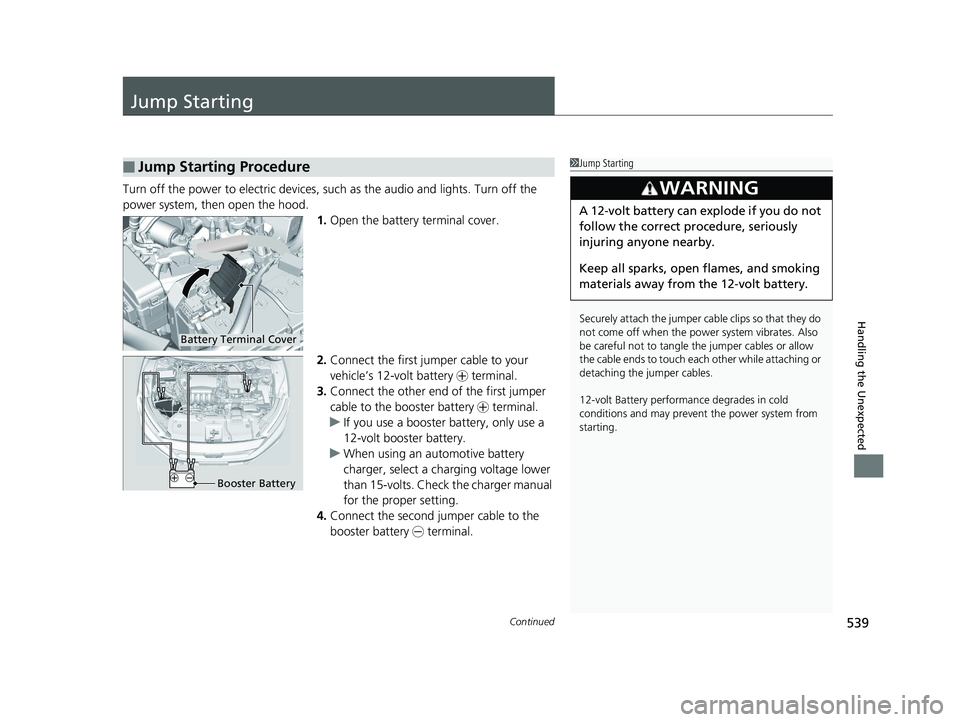

Jump Starting Turn off the power to electri c devices, such as the audi o and lights. Turn off the
power system, then open the hood.
1. Open the battery terminal cover.
2. Connect the first jumper cable to your
vehicle’s 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u If you use a booster battery, only use a
12-volt booster battery.
u When using an automotive battery
charger, select a charging voltage lower
than 15-volts. Check the charger manual
for the proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.■ Jump Starting Procedure 1 Jump Starting
Securely attach the jumper cable clips so that they do
not come off when the power system vibrates. Also
be careful not to tangle the jumper cables or allow
the cable ends to touch eac h other while attaching or
detaching the jumper cables.
12-volt Battery performa nce degrades in cold
conditions and may prevent the power system from
starting.3
WARNING A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
Battery Terminal Cover
Booster Battery18 CLARITY PHEV CSS-31TRW6000.book 539 ページ ２０１７年８月３１日　木曜日　午後２時４９分

540 uu Jump Starting u

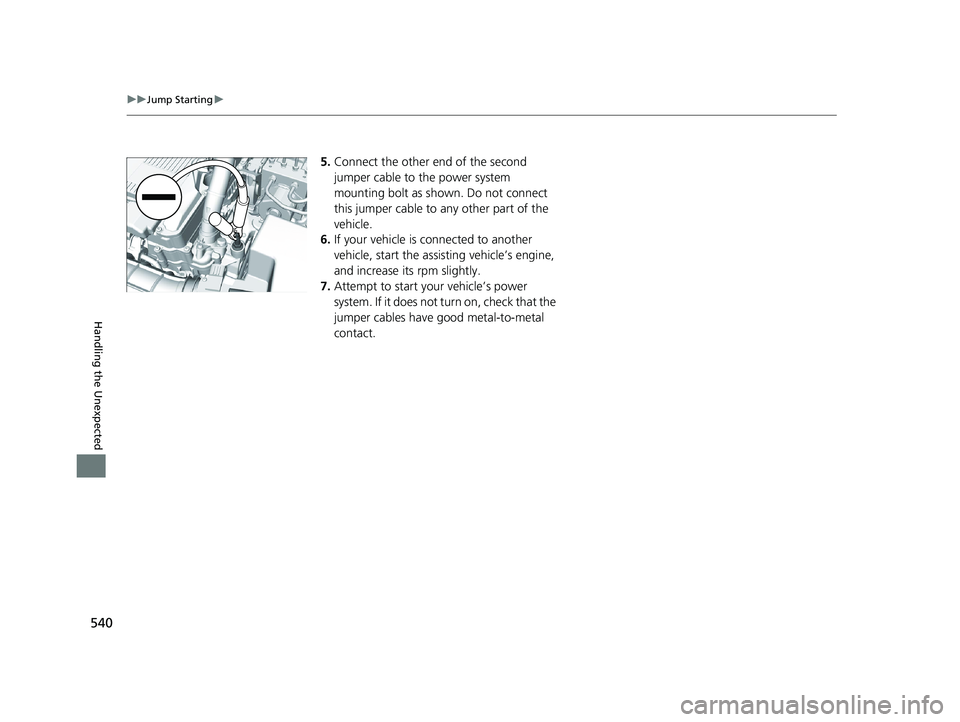

Handling the Unexpected 5. Connect the other end of the second
jumper cable to the power system
mounting bolt as shown. Do not connect
this jumper cable to any other part of the
vehicle.
6. If your vehicle is connected to another
vehicle, start the assi sting vehicle’s engine,
and increase its rpm slightly.
7. Attempt to start your vehicle’s power
system. If it does not tu rn on, check that the
jumper cables have good metal-to-metal
contact.18 CLARITY PHEV CSS-31TRW6000.book 540 ページ ２０１７年８月３１日　木曜日　午後２時４９分

541 uu Jump Starting u
Handling the Unexpected

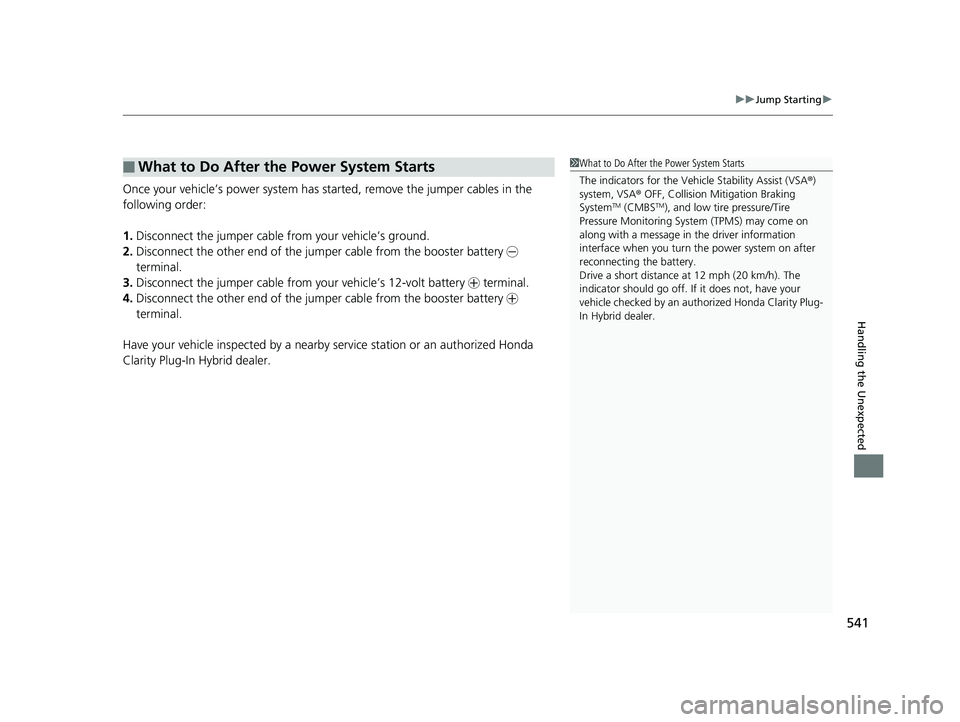

Once your vehicle’s power system has sta rted, remove the jumper cables in the
following order:
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jump er cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s 12-volt battery + terminal.
4. Disconnect the other end of the jump er cable from the booster battery +
terminal.
Have your vehicle inspected by a nearby service station or an authorized Honda
Clarity Plug-In Hybrid dealer.■ What to Do After the Power System Starts 1 What to Do After the Power System Starts
The indicators for the Vehicle Stability Assist (VSA ® )
system, VSA ® OFF, Collision Mitigation Braking
System TM
(CMBS TM
), and low tire pressure/Tire
Pressure Monitoring System (TPMS) may come on
along with a message in the driver information
interface when you turn the power system on after
reconnecting the battery.
Drive a short distance at 12 mph (20 km/h). The
indicator should go off. If it does not, have your
vehicle checked by an aut horized Honda Clarity Plug-
In Hybrid dealer.18 CLARITY PHEV CSS-31TRW6000.book 541 ページ ２０１７年８月３１日　木曜日　午後２時４９分

542

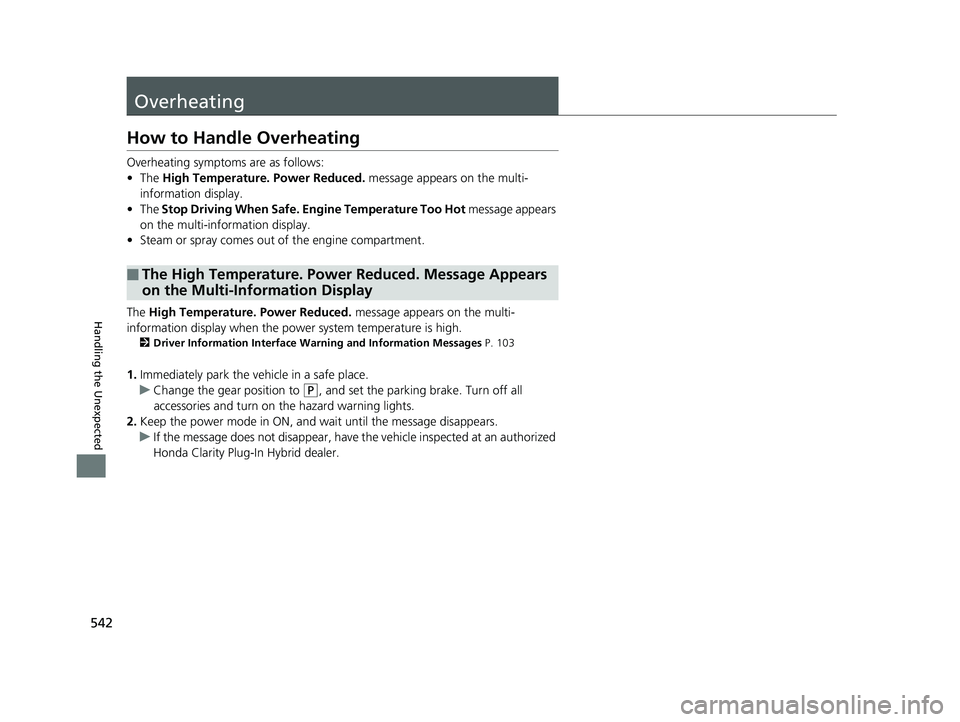

Handling the Unexpected Overheating How to Handle Overheating Overheating symptoms are as follows:
• The High Temperature. Power Reduced. message appears on the multi-
information display.
• The Stop Driving When Safe. Engine Temperature Too Hot message appears
on the multi-information display.
• Steam or spray comes out of the engine compartment.
The High Temperature. Power Reduced. message appears on the multi-
information display when the powe r system temperature is high.2 Driver Information Interface Warning and Information Messages P. 103
1. Immediately park the vehicle in a safe place.
u Change the gear position to ( P
, and set the parking brake. Turn off all
accessories and turn on the hazard warning lights.
2. Keep the power mode in ON, and wait until the message disappears.
u If the message does not disappear, have the vehicle inspected at an authorized
Honda Clarity Plug-In Hybrid dealer.■ The High Temperature. Power Reduced. Message Appears
on the Multi-Information Display 18 CLARITY PHEV CSS-31TRW6000.book 542 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
543uu Overheating u How to Handle Overheating
Handling the Unexpected
■ First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the power system on and open the hood.
u Steam or spray is present: Turn off the power system and wait until it
subsides. Then open the hood.

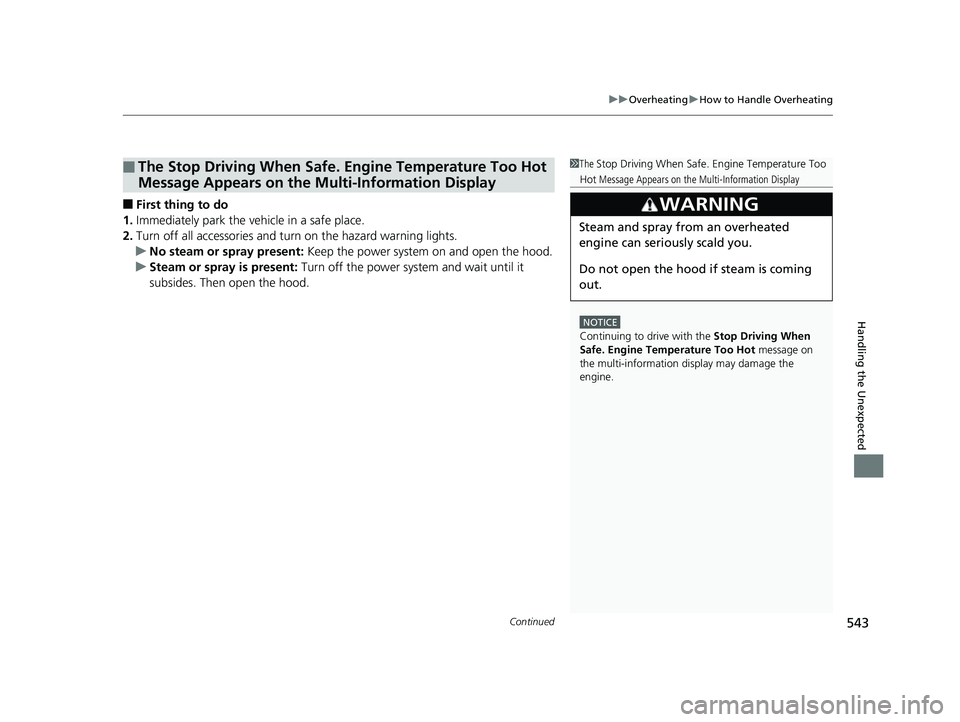

■ The Stop Driving When Safe. Engine Temperature Too Hot
Message Appears on the Multi-Information Display 1 The Stop Driving When Safe. Engine Temperature Too
Hot Message Appears on the Multi-Information Display
NOTICE
Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the multi-information display may damage the
engine.
3
WARNING Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.18 CLARITY PHEV CSS-31TRW6000.book 543 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Overheating u How to Handle Overheating
544

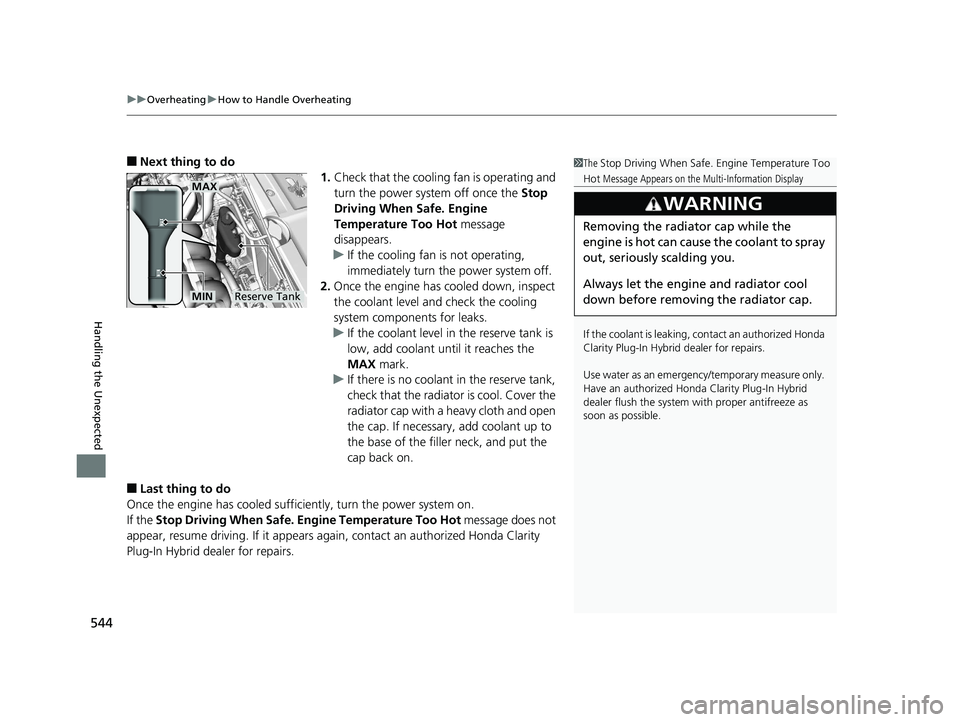

Handling the Unexpected ■ Next thing to do
1. Check that the cooling fan is operating and
turn the power system off once the Stop
Driving When Safe. Engine
Temperature Too Hot message
disappears.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■ Last thing to do
Once the engine has cooled sufficiently, turn the power system on.
If the Stop Driving When Safe. Engine Temperature Too Hot message does not
appear, resume driving. If it appears ag ain, contact an auth orized Honda Clarity
Plug-In Hybrid dealer for repairs. 1 The Stop Driving When Safe. Engine Temperature Too
Hot Message Appears on the Multi-Information Display
If the coolant is leaking, contact an authorized Honda
Clarity Plug-In Hybrid dealer for repairs.
Use water as an emergency/temporary measure only.
Have an authorized Honda Clarity Plug- In Hybrid
dealer flush the system wi th proper antifreeze as
soon as possible.3
WARNING Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.Reserve TankMAX
MIN18 CLARITY PHEV CSS-31TRW6000.book 544 ページ ２０１７年８月３１日　木曜日　午後２時４９分

545
Handling the Unexpected

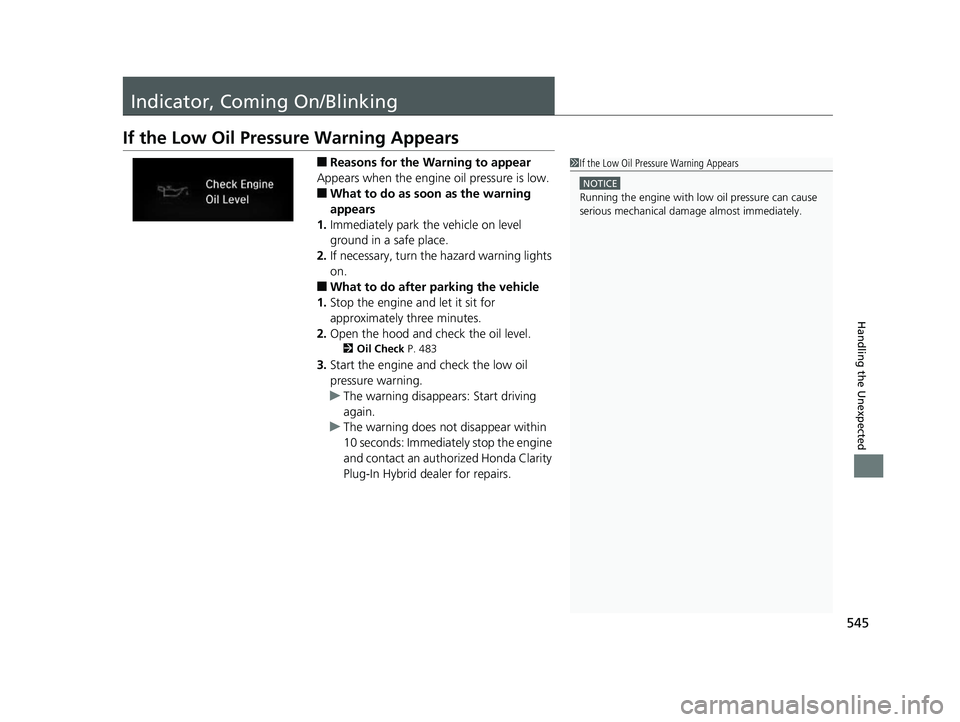

Indicator, Coming On/Blinking If the Low Oil Pressu re Warning Appears ■ Reasons for the Warning to appear
Appears when the engine oil pressure is low.
■ What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■ What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.2 Oil Check P. 483
3. Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact an authorized Honda Clarity
Plug-In Hybrid dealer for repairs. 1 If the Low Oil Pressure Warning Appears NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.18 CLARITY PHEV CSS-31TRW6000.book 545 ページ ２０１７年８月３１日　木曜日　午後２時４９分

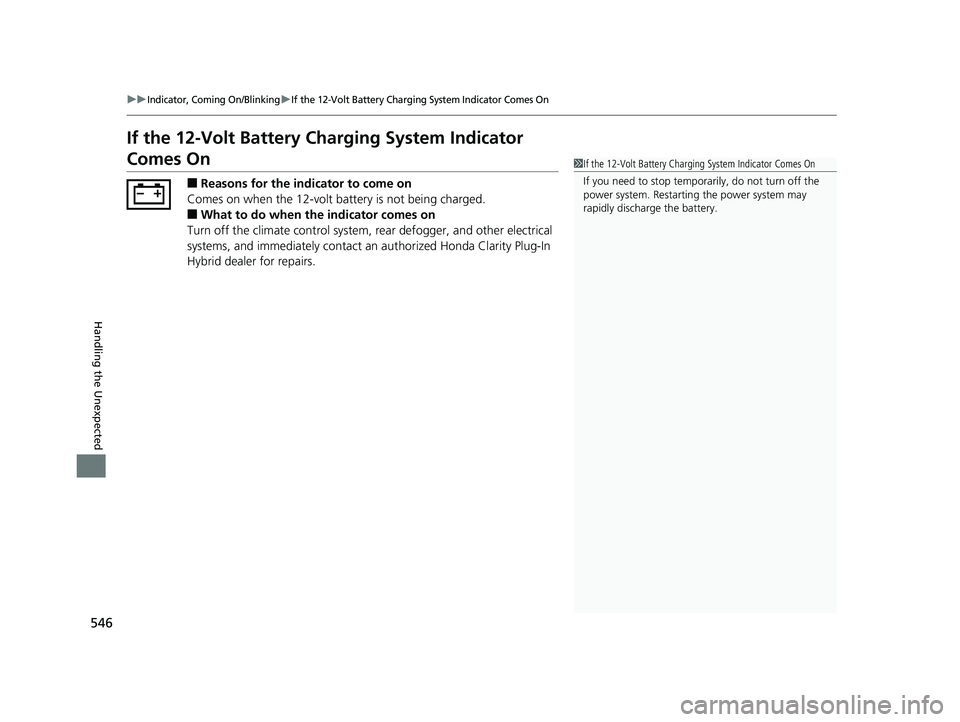

546 uu Indicator, Coming On/Blinking u If the 12-Volt Battery Charging System Indicator Comes On
Handling the Unexpected If the 12-Volt Battery Charging System Indicator
Comes On ■ Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■ What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact an authorized Honda Clarity Plug-In
Hybrid dealer for repairs. 1 If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.18 CLARITY PHEV CSS-31TRW6000.book 546 ページ ２０１７年８月３１日　木曜日　午後２時４９分

547uu Indicator, Coming On/Blinking u If the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected

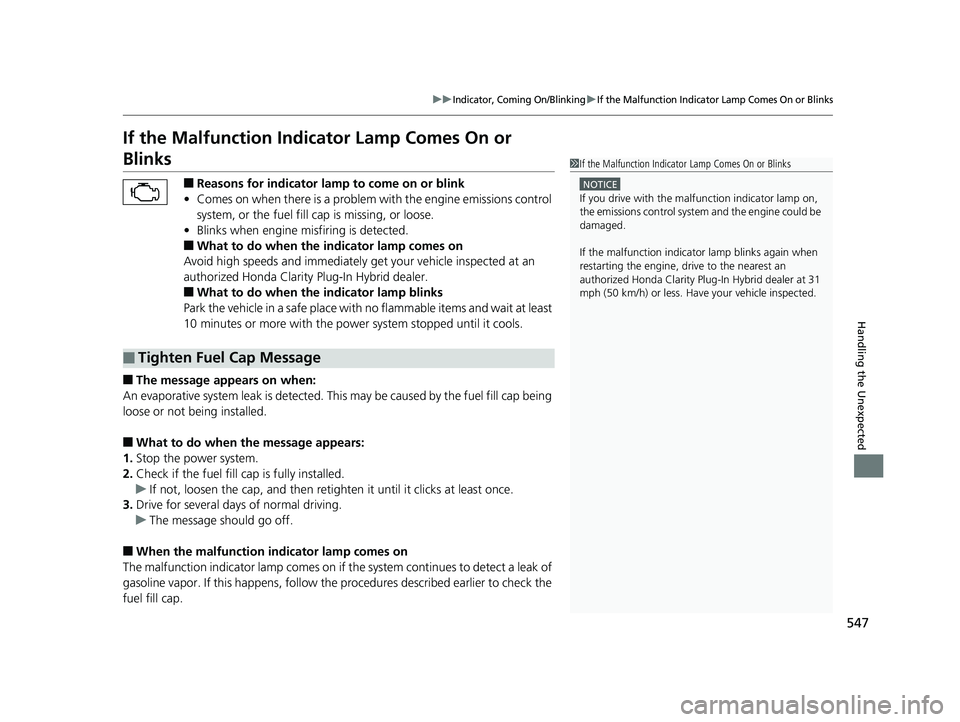

If the Malfunction Indica tor Lamp Comes On or
Blinks ■ Reasons for indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■ What to do when the indicator lamp comes on
Avoid high speeds and immediately ge t your vehicle inspected at an
authorized Honda Clarity Plug-In Hybrid dealer.
■ What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the power system stopped until it cools.
■ The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■ What to do when the message appears:
1. Stop the power system.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■ When the malfunction indicator lamp comes on
The malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, follow th e procedures described earlier to check the
fuel fill cap.■ Tighten Fuel Cap Message 1 If the Malfunction Indicato r Lamp Comes On or BlinksNOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest an
authorized Honda Clarity Plug- In Hybrid dealer at 31
mph (50 km/h) or less. Have your vehicle inspected.18 CLARITY PHEV CSS-31TRW6000.book 547 ページ ２０１７年８月３１日　木曜日　午後２時４９分

548 uu Indicator, Coming On/Blinking u If the Brake System Indicator (Red) Comes On or Blinks

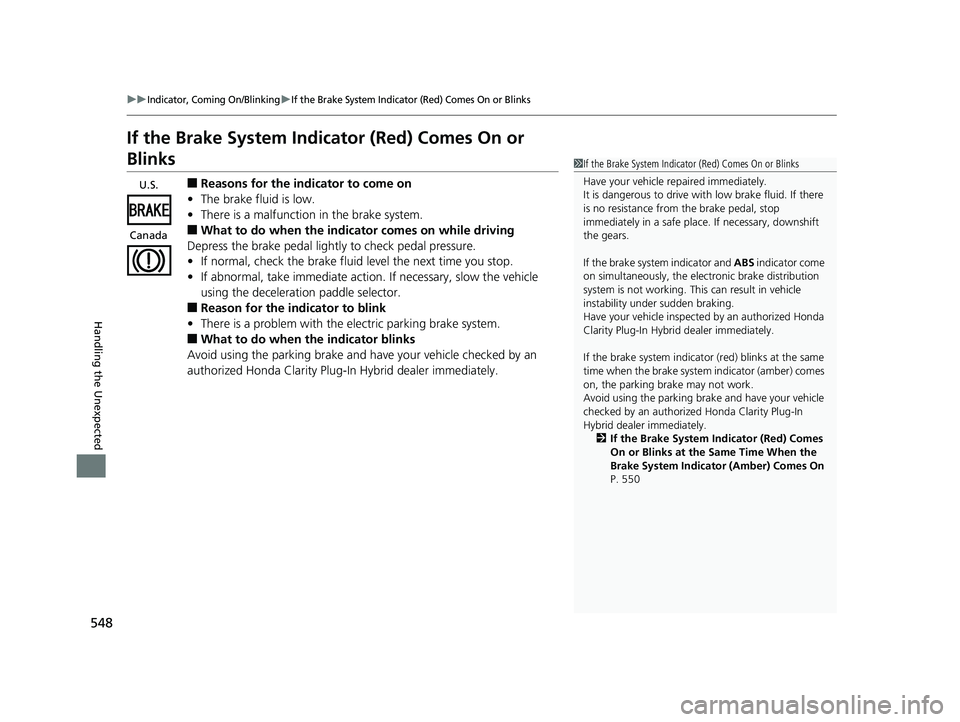

Handling the Unexpected If the Brake System Indicator (Red) Comes On or
Blinks ■ Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■ What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, slow the vehicle
using the deceleration paddle selector.
■ Reason for the indicator to blink
• There is a problem with the electric parking brake system.
■ What to do when the indicator blinks
Avoid using the parking brake and ha ve your vehicle checked by an
authorized Honda Clarity Plug-I n Hybrid dealer immediately. 1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspected by an authorized Honda
Clarity Plug-In Hybrid dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by an authorized Honda Clarity Plug-In
Hybrid dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 550U.S.
Canada18 CLARITY PHEV CSS-31TRW6000.book 548 ページ ２０１７年８月３１日　木曜日　午後２時４９分
