HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

549uu Indicator, Coming On/Blinking u If the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On ■ Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator peda l repeatedly to increase the motor
speed while the motor is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
• Comes on when the EPS steering angle center point memory is lost.
This could be due to a number of problems including: battery
disconnection, main fuse blow, low battery causing the reset of the
EPS system, wire damage to EPS ha rness. Vehicle Stability Assist
(VSA ® ), VSA ® OFF, Collision Mitigation Braking System TM
(CMBS TM
),
and low tire pressure/TPMS indicato rs come on along with a message
in the driver information interface.
■ What to do when th e indicator comes on
• Stop the vehicle in a safe place, turn off the power system, and turn
on the power system again.
If the indicator re-appears and stay s on, immediately have your vehicle
inspected by an authorized Hond a Clarity Plug-In Hybrid dealer.
• If VSA ® indicator, VSA ® OFF indicator, CMBS TM
indicator, and low tire
pressure/TPMS indicator come on al ong with a message in the driver
information interface, you need to calibrate the VSA and EPS systems.
Drive a short distance at more than 12 mph (20 km/h) to calibrate the
VSA and EPS systems.
If the indicators come on and stay on, park your vehicle in a safe
place, turn off and turn on the po wer system, then repeat the above
operation.
If the indicators still come on and stay on, immediately have your
vehicle inspected by an authorized Honda Clarity Plug-I n Hybrid dealer.18 CLARITY PHEV CSS-31TRW6000.book 549 ページ ２０１７年８月３１日　木曜日　午後２時４９分

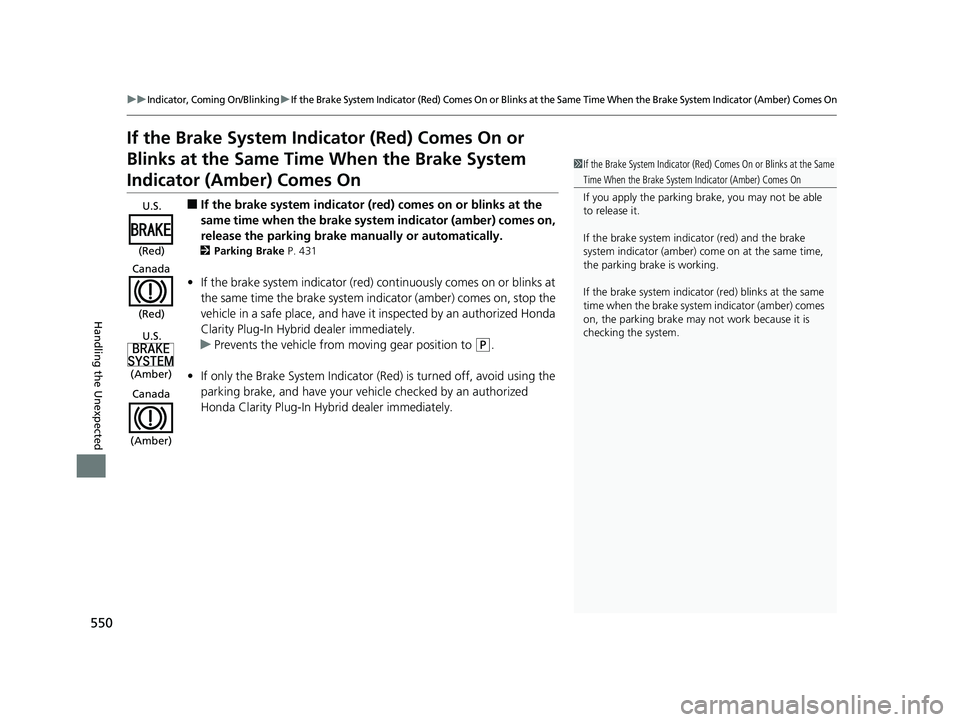

550 uu Indicator, Coming On/Blinking u If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On ■ If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (a mber) comes on,
release the parking brake manually or automatically. 2 Parking Brake P. 431
• If the brake system indicator (red) co ntinuously comes on or blinks at
the same time the brake system indicator (amber) comes on, stop the
vehicle in a safe place, and have it inspected by an authorized Honda
Clarity Plug-In Hybrid dealer immediately.
u Prevents the vehicle from moving gear position to ( P
.
• If only the Brake System Indicator (R ed) is turned off, avoid using the
parking brake, and have your vehi cle checked by an authorized
Honda Clarity Plug-In Hybr id dealer immediately. 1 If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.U.S.
Canada
U.S.
Canada (Red)
(Red)
(Amber)
(Amber)18 CLARITY PHEV CSS-31TRW6000.book 550 ページ ２０１７年８月３１日　木曜日　午後２時４９分

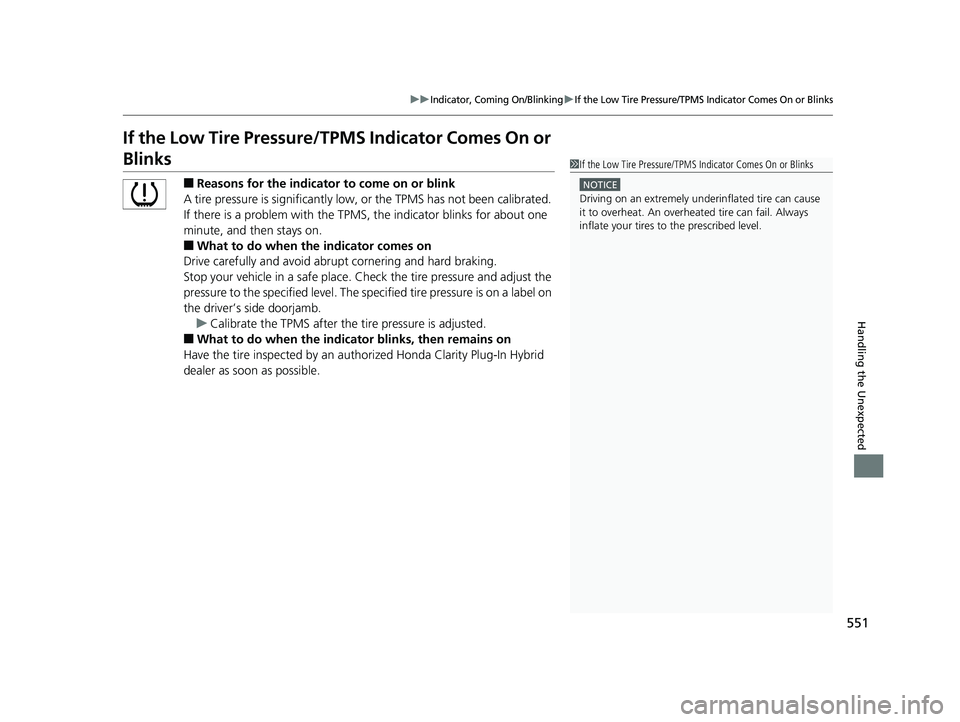

551uu Indicator, Coming On/Blinking u If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks ■ Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blin ks for about one
minute, and then stays on.
■ What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver’s side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
■ What to do when the indica tor blinks, then remains on
Have the tire inspected by an aut horized Honda Clarity Plug-In Hybrid
dealer as soon as possible. 1 If the Low Tire Pressure/TPMS Indicator Comes On or BlinksNOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.18 CLARITY PHEV CSS-31TRW6000.book 551 ページ ２０１７年８月３１日　木曜日　午後２時４９分

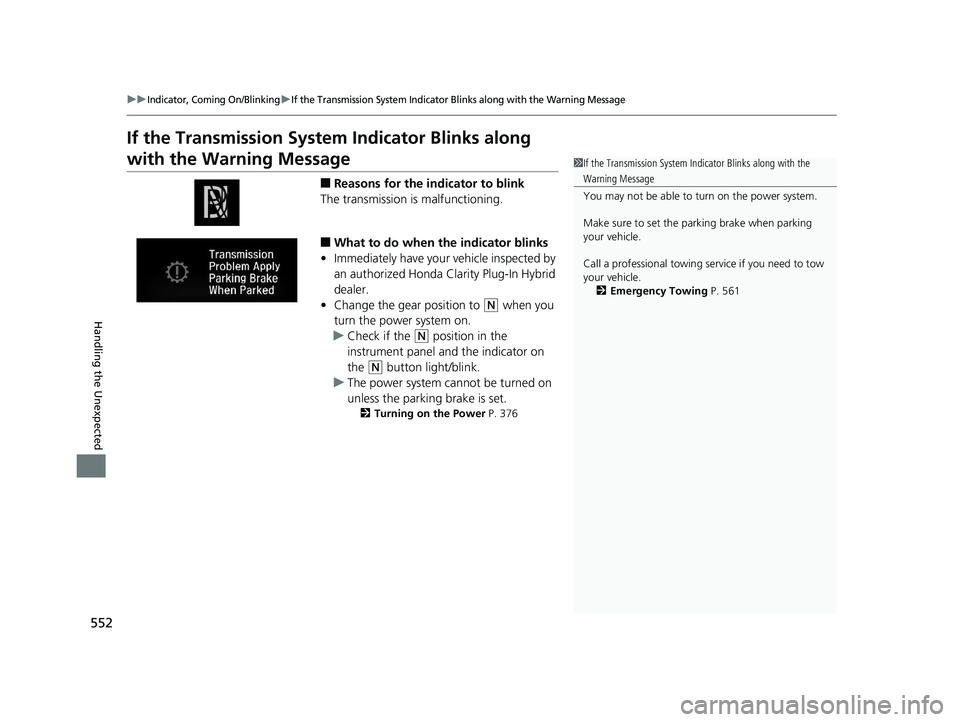

552 uu Indicator, Coming On/Blinking u If the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected If the Transmission System Indicator Blinks along
with the Warning Message ■ Reasons for the in dicator to blink
The transmission is malfunctioning.
■ What to do when the indica tor blinks
• Immediately have your vehicle inspected by
an authorized Honda Clarity Plug-In Hybrid
dealer.
• Change the gear position to ( N
when you
turn the power system on.
u Check if the ( N
position in the
instrument panel and the indicator on
the ( N
button light/blink.
u The power system cannot be turned on
unless the parking brake is set. 2 Turning on the Power P. 376 1 If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle.
2 Emergency Towing P. 56118 CLARITY PHEV CSS-31TRW6000.book 552 ページ ２０１７年８月３１日　木曜日　午後２時４９分

553 Continued
Handling the Unexpected

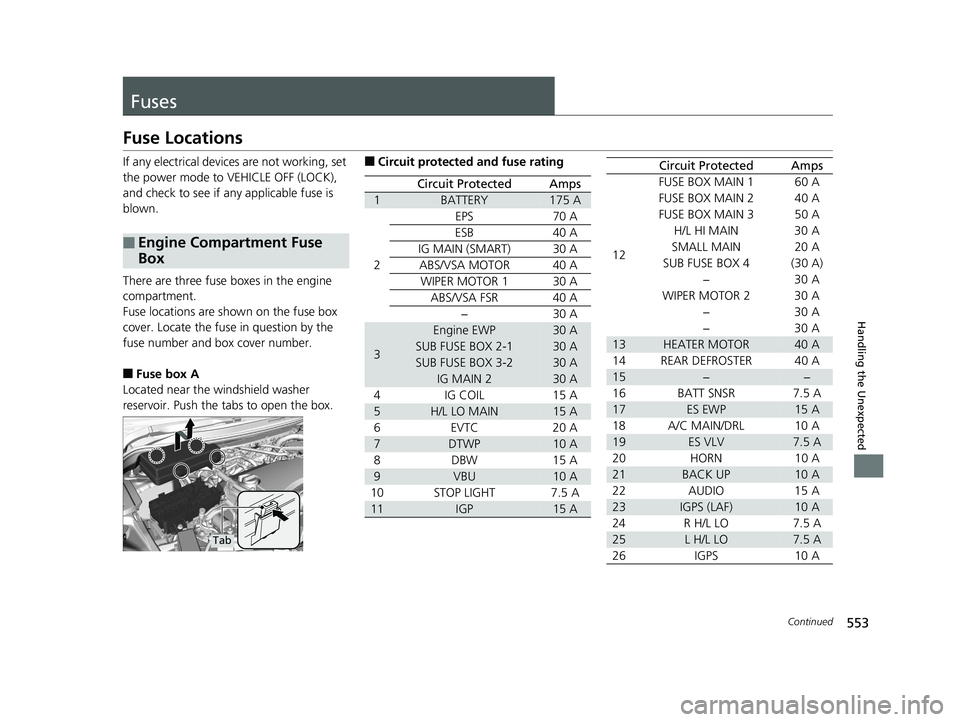

Fuses Fuse Locations If any electrical device s are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are three fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■ Fuse box A
Located near the windshield washer
reservoir. Push the tabs to open the box.■ Engine Compartment Fuse
Box
Tab ■ Circuit protected and fuse rating
Circuit Protected Amps
1 BATTERY 175 A
2 EPS 70 A
ESB 40 A
IG MAIN (SMART) 30 A
ABS/VSA MOTOR 40 A
WIPER MOTOR 1 30 A
ABS/VSA FSR 40 A
− 30 A
3 Engine EWP 30 A
SUB FUSE BOX 2-1 30 A
SUB FUSE BOX 3-2 30 A
IG MAIN 2 30 A
4 IG COIL 15 A
5 H/L LO MAIN 15 A
6EVTC 20 A
7 DTWP 10 A
8 DBW 15 A
9 VBU 10 A
10 STOP LIGHT 7.5 A
11 IGP 15 A 12 FUSE BOX MAIN 1 60 A
FUSE BOX MAIN 2 40 A
FUSE BOX MAIN 3 50 A
H/L HI MAIN 30 A
SMALL MAIN 20 A
SUB FUSE BOX 4 (30 A)
−30 A
WIPER MOTOR 2 30 A
−30 A
−30 A
13 HEATER MOTOR 40 A
14 REAR DEFROSTER 40 A
15 − −
16 BATT SNSR 7.5 A
17 ES EWP 15 A
18 A/C MAIN/DRL 10 A
19 ES VLV 7.5 A
20 HORN 10 A
21 BACK UP 10 A
22 AUDIO 15 A
23 IGPS (LAF) 10 A
24 R H/L LO 7.5 A
25 L H/L LO 7.5 A
26 IGPS 10 A Circuit Protected Amps18 CLARITY PHEV CSS-31TRW6000.book 553 ページ ２０１７年８月３１日　木曜日　午後２時４９分

554 uu Fuses u Fuse Locations

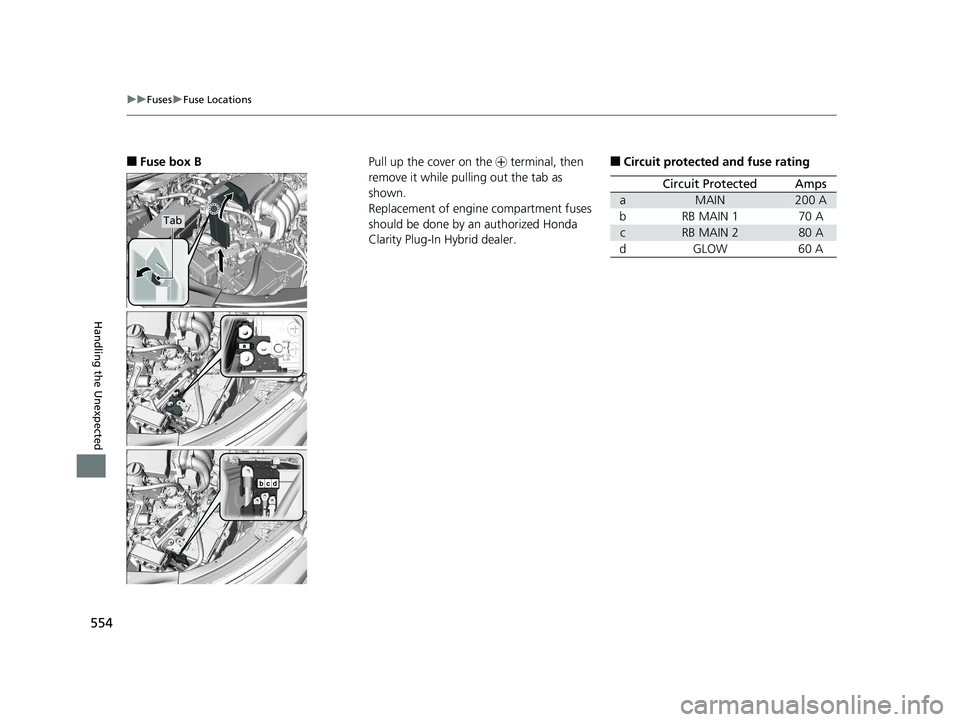

Handling the Unexpected ■ Fuse box B Tab
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of engine compartment fuses
should be done by an authorized Honda
Clarity Plug-In Hybrid dealer. ■ Circuit protected and fuse rating
Circuit Protected Amps
a MAIN 200 A
b RB MAIN 1 70 A
c RB MAIN 2 80 A
dGLOW 60 A18 CLARITY PHEV CSS-31TRW6000.book 554 ページ ２０１７年８月３１日　木曜日　午後２時４９分

555 uu Fuses u Fuse Locations
Continued
Handling the Unexpected

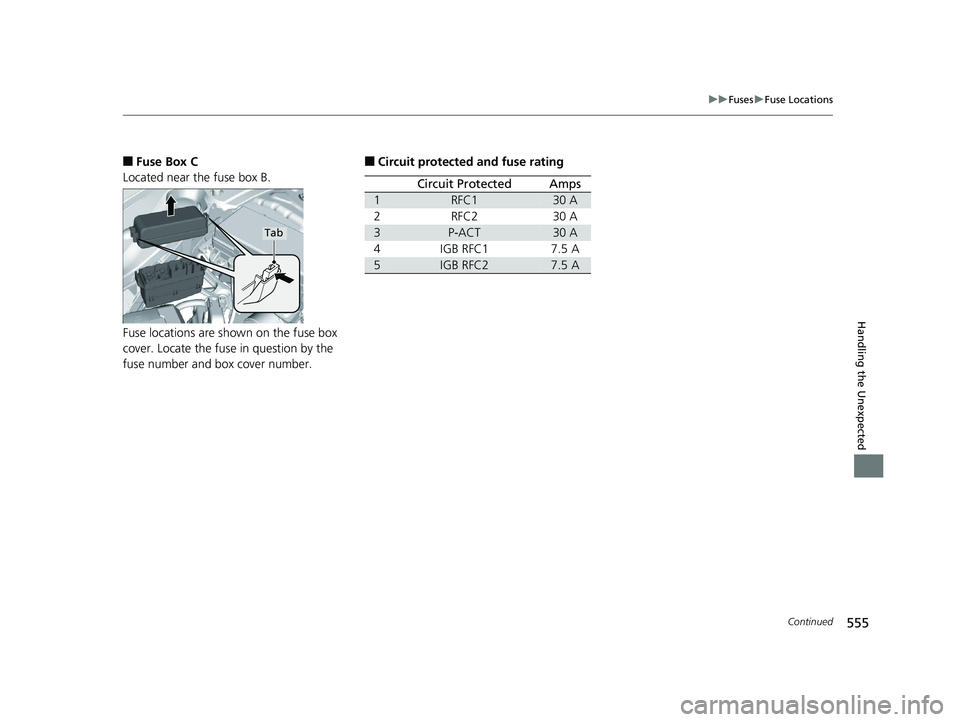

■ Fuse Box C
Located near the fuse box B.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number. Tab
■ Circuit protected and fuse rating
Circuit Protected Amps
1 RFC1 30 A
2 RFC2 30 A
3 P-ACT 30 A
4 IGB RFC1 7.5 A
5 IGB RFC2 7.5 A18 CLARITY PHEV CSS-31TRW6000.book 555 ページ ２０１７年８月３１日　木曜日　午後２時４９分

556 uu Fuses u Fuse Locations

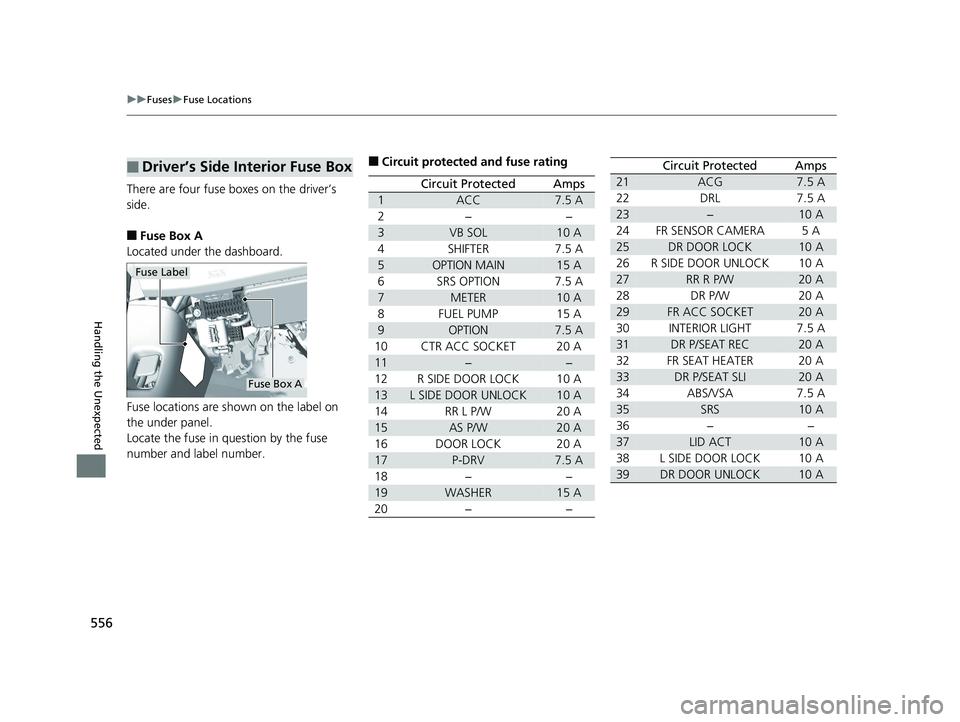

Handling the Unexpected There are four fuse boxes on the driver’s
side.
■ Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.■ Driver’s Side Interior Fuse Box Fuse Label
Fuse Box A ■ Circuit protected and fuse rating
Circuit Protected Amps
1 ACC 7.5 A
2 − −
3 VB SOL 10 A
4 SHIFTER 7.5 A
5 OPTION MAIN 15 A
6 SRS OPTION 7.5 A
7 METER 10 A
8 FUEL PUMP 15 A
9 OPTION 7.5 A
10 CTR ACC SOCKET 20 A
11 − −
12 R SIDE DOOR LOCK 10 A
13 L SIDE DOOR UNLOCK 10 A
14 RR L P/W 20 A
15 AS P/W 20 A
16 DOOR LOCK 20 A
17 P-DRV 7.5 A
18 − −
19 WASHER 15 A
20 − − 21 ACG 7.5 A
22 DRL 7.5 A
23 − 10 A
24 FR SENSOR CAMERA 5A
25 DR DOOR LOCK 10 A
26 R SIDE DOOR UNLOCK 10 A
27 RR R P/W 20 A
28 DR P/W 20 A
29 FR ACC SOCKET 20 A
30 INTERIOR LIGHT 7.5 A
31 DR P/SEAT REC 20 A
32 FR SEAT HEATER 20 A
33 DR P/SEAT SLI 20 A
34 ABS/VSA 7.5 A
35 SRS 10 A
36 − −
37 LID ACT 10 A
38 L SIDE DOOR LOCK 10 A
39 DR DOOR UNLOCK 10 ACircuit Protected Amps18 CLARITY PHEV CSS-31TRW6000.book 556 ページ ２０１７年８月３１日　木曜日　午後２時４９分

557 uu Fuses u Fuse Locations
Continued
Handling the Unexpected

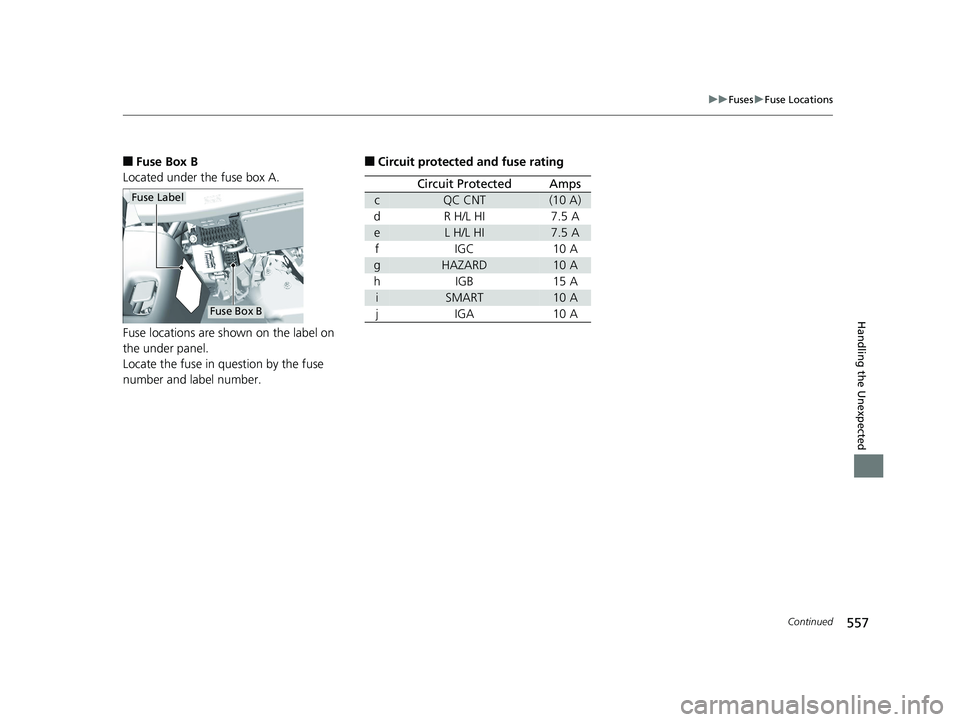

■ Fuse Box B
Located under the fuse box A.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number. Fuse Label
Fuse Box B ■ Circuit protected and fuse rating
Circuit Protected Amps
c QC CNT (10 A)
d R H/L HI 7.5 A
e L H/L HI 7.5 A
f IGC 10 A
g HAZARD 10 A
h IGB 15 A
i SMART 10 A
j IGA 10 A18 CLARITY PHEV CSS-31TRW6000.book 557 ページ ２０１７年８月３１日　木曜日　午後２時４９分

558 uu Fuses u Fuse Locations

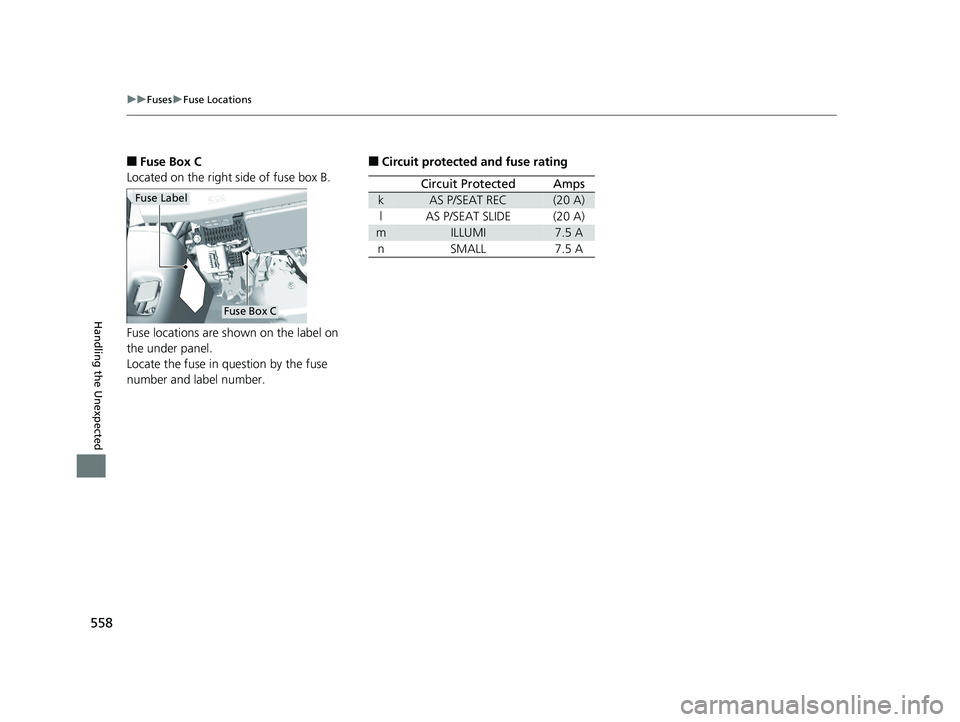

Handling the Unexpected ■ Fuse Box C
Located on the right side of fuse box B.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number. Fuse Label
Fuse Box C ■ Circuit protected and fuse rating
Circuit Protected Amps
k AS P/SEAT REC (20 A)
l AS P/SEAT SLIDE (20 A)
m ILLUMI 7.5 A
n SMALL 7.5 A18 CLARITY PHEV CSS-31TRW6000.book 558 ページ ２０１７年８月３１日　木曜日　午後２時４９分
